User’s
Manual
Washing
Machine
WFL7012VTMP
2820527580_EN/ 29-08-19.(15:59)
Document Number=

2 / EN Washing Machine / User’s Manual
1 General safety instructions
This section contains safety instructions that will help protect from risk of
personal injury or property damage. Failure to follow these instructions shall
void any warranty.
1.1 Life and property safety
uNever place the product on a carpet-covered floor. Otherwise, lack of airflow
beneath the machine will cause electrical parts to overheat. This will cause
problems with your product.
uUnplug the product if it is not in use.
uAlways have the installation and repairing procedures carried out by the
Authorised Service Agent. The manufacturer shall not be held liable for
damages that may arise from procedures carried out by unauthorised
persons.
uThe water supply and draining hoses must be securely fastened and remain
undamaged. Otherwise, there is the risk of water leakage.
uWhile there is still water inside the product, never open the loading door or
remove the filter. Otherwise, risk of flooding and injury from hot water will
occur.
uDo not force open the locked loading door. The door will open immediately
after the washing cycle has ended. If the door does not open, apply the
solutions provided for "Loading door cannot be opened." error in the
Troubleshooting section. In case of forcing the loading door to open, the
door and the lock mechanism may get damaged.
uUse detergents, softeners and supplements suitable for automatic washing
machines only.
uFollow the instructions on the label of textile products and the detergent
package.
1.2 Children's safety
uThis product can be used by children at and above 8 years old and by persons
whose physical, sensory or mental capabilities were not fully developed or
who lack experience and knowledge provided that they are supervised or
trained on the safe usage of the product and the risks it brings out. Children
should not play with the product. Cleaning and maintenance works should
not be performed by children unless they are supervised by someone.
Children under the age of 3 should be kept away unless continuously
supervised.

3 / EN
Washing Machine / User’s Manual
uPackaging materials are dangerous for the children. Keep packaging
materials in a safe place away from reach of the children.
uElectrical products are dangerous for the children. Keep children away from
the product when it is in use. Do not allow them to play with the product.
Use child lock to prevent children from intervening with the product.
uDo not forget to close the loading door when leaving the room where the
product is located.
uStore all detergents and additives in a safe place away from the reach of
the children by closing the cover of the detergent container or sealing the
detergent package.
1.3 Electrical safety
uIf the product has a failure, it should not be operated unless it is repaired by
the Authorised Service Agent! There is the risk of electric shock!
uThis product is designed to resume operating in the event of powering
on after a power interruption. If you wish to cancel the programme, see
"Cancelling the programme" section.
uPlug the product into a grounded outlet protected by a 16 A fuse. Do not
neglect to have the grounding installation made by a qualified electrician.
Our company shall not be liable for any damages that will arise when the
product is used without grounding in accordance with the local regulations.
uDo not wash the product by spraying or pouring water onto it! There is the
risk of electric shock!
uNever touch the power cable plug with wet hands! Never unplug by pulling
on the cable. Always press on the plug with one hand and pull out the plug
by grabbing with the other hand.
uProduct should be unplugged during installation, maintenance, cleaning
and repair procedures.
uIf the power cable is damaged, it must be replaced by the manufacturer,
authorized service or a similarly qualified person (preferably an electrician)
or someone designated by the importer in order to avoid possible risks.
1.4 Hot surface safety
The glass of the loading door gets too hot while
washing at higher temperatures. Therefore,
especially do not allow children touch the
loading door glass while washing.

4 / EN Washing Machine / User’s Manual
2Important instructions for environment
2.1 Compliance With GSR 1349(E) &E-Waste(Management) Amendment Rules,
INDIA - MOEF. / WEEE Directive
This product complies with : India Gezztte : G.SR.261(E) 22/3/2018 / G.S.R.1349(E)30/11/2017
- E Waste regulations And wide Environment protection act 1986/29
This product bears a classification symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and materials which can be reused
and are suitable for recycling. Do not dispose of the waste product with normal domestic and
other wastes at the end of its service life. Take it to the collection center for the recycling of
electrical and electronic equipment. Please consult your local authorities to learn about these
collection centers.
Compliance with RoHS Directive:
The product you have purchased complies with GSR 1349(E) &E-Waste(Management) Amendment
Rules, India - MOEF / . EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials
specified in the Directive.
2.2 Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our
National Environment Regulations. Do not dispose of the packaging materials together with the domestic or
other wastes. Take them to the packaging material collection points designated by the local authorities.
3 Intended use
• This product has been designed for domestic use. It is not for commercial purposes or it should not be used
out of its intended use.
• The product must only be used for washing and rinsing of laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of your product is 10 years. During this period, original spare parts will be available to
operate the appliance properly.

5 / EN
Washing Machine / User’s Manual
4Technical specifications
Supplier name or trademark VoltasBeko
Model name WFL7012VTMP
Rated capacity (kg) 7
Maximum spin speed (rpm) 1200
Built-in No
Height (cm) 84
Width (cm) 60
Depth (cm) 54
Net weight (±4 kg.) 64
Single Water inlet / Double Water inlet • / -
• Available
Electrical input (V/Hz) 230 V / 50Hz
Total current (A) 10
Total power (W) 2200

6 / EN Washing Machine / User’s Manual
4.1 Installation
• Apply to the nearest authorized service agent for the installation of your product.
• Preparation of the location and electrical, tap water and waste water installations at the place of installation
is under customer's responsibility.
• Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or
crushed while pushing the product into its place after installation or cleaning procedures.
• Make sure that the installation and electrical connections of the product are performed by authorized
service agent. The manufacturer shall not be held liable for damages that may arise from procedures
carried out by unauthorised persons.
• Prior to installation, visually check if the product has any defects on it. If so, do not have it installed.
Damaged products cause risks for your safety.
• Operate the product in a well ventilated and dust free environment.
4.1.1 Appropriate installation location
• Place the product on a solid and level floor. Do not place it onto a carpet with high pile or other similar surfaces.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each
other reaches to approx. 180 kilograms. Place the product on a solid and flat floor that has sufficient load
carrying capacity!
• Do not place the product on the power cable.
• Do not install the product at places where temperature may fall below 0ºC.
• Leave a minimum space of 1.5 cm between the product and the furniture.
• If you will install the product on a surface with steps, never place it close to the edge.
• Do not place the product on any platform.
• Do not place heat sources such as Hobs, Irons, Ovens, etc. on the washing machine and do not use them
on the product.
4.1.2 Removing packaging reinforcement
Tilt the product backwards to remove the packaging reinforcement.
Remove the packaging reinforcement by pulling the ribbon. Do not make
this operation alone by yourself.
4.1.3 Removing transportation safety bolts
1 Loosen all transportation safety bolts with an appropriate wrench until they turn freely.
2 Remove the transport safety bolts by turning them slightly then remove the wire placed on top of it.
3 Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel.
AWARNING: Remove the transportation safety bolts before operating the product! Otherwise, the product will get
damaged.
CKeep the transportation safety bolts in a safe place to reuse when the product needs to be moved again in the future.
Install the transportation safety bolts in reverse order of the disassembly procedure.
Never move the product without the transportation safety bolts properly fixed in place!

7 / EN
Washing Machine / User’s Manual
4.1.4 Connecting water supply
CThe water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 –
80 liters of water flowing from the fully open tap in 1 minute to have your product run smoothly. Attach a pressure reducing
valve if water pressure is higher.
If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied stopper
to the hot water valve before operating the product. (Applies for the products supplied together with a blind stopper group.)
AWARNING: Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will
get damaged or the product will switch to protection mode and will not operate.
WARNING: Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry and water
leakage damages.
Nuts
Screwdriver
Screw
Bushing
Figc
Figb Fige
Figd
inlet hose
connector
water inlet
take out
hose
Cap
Figa
1 Press down the cap, remove the inlet hose connector
as shown in Fig a.
2 Loosen four screws on the inlet hose connector, put
the connector on the tap as shown in Fig b. If the tap
caliber is too large and the connector can not put
on it, loosen four screws and remove the bushing as
shown in Fig c.
3 Tighten four screws as shown in Fig d.
4 Tighten nuts as shown in Fig e.
Fig f
5 Tighten the nut by hand to connect the hose to
washing machine as show in Fig f. Never use a tool
when tightening the nut.
6 When hose connection is completed, check whether
there are leakage problems at the connection points
by opening the taps fully. If any leaks occur, turn
off the tap and remove the nut. Retighten the nut
carefully after checking the seal. In order to prevent
the water leaks and resultant damages, keep the
taps closed when you do not use the product.
4.1.5 Connecting the drain hose to the drain
• Attach the end of the drain hose directly to waste water drain, washbasin or bathtub.
AWARNING: Your house will be flooded if the drain hose is dislocated during water draining. Moreover, there is risk of
scalding due to high washing temperatures! In order to prevent such situations and make sure that the product performs
water intake and drain processes without any problem, fix the drain hose securely.
• Connect the drain hose to a minimum height of 40 cm and a maximum height of 100 cm.
• In case the drain hose is elevated after laying it on the floor level or close to the ground (less than 40 cm
above the ground), water draining becomes more difficult and the laundry may come out excessively wet.
Therefore, observe the heights described in the figure.
40 cm
100 cm

8 / EN Washing Machine / User’s Manual
• To prevent the waste water to go back into the product again and to ensure easy drainage, do not immerse
the end of the hose into the waste water or do not insert it into the drain for more than 15 cm. If it is too
long, cut it short.
• The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched
between the drain and the product.
• If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may
not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the
drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.
4.1.6 Adjusting the feet
AWARNING: In order to ensure that the product operates more silently and vibration-free, it must stand level and
balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause
crushing, noise and vibration problems.
WARNING: Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged.
1 Loosen the lock nuts on the feet by hand.
2 Adjust the feet until the product stands level and balanced.
3 Tighten all lock nuts again by hand.
4.1.7 Electrical connection
Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any
damages that may arise when the product is used without grounding in accordance with the local regulations.
• Connection must comply with national regulations.
• The electrical connection cable infrastructure of the product must be adequate and suitable for product
requirements. It is recommended to use a residual current device.
• Power cable plug must be within easy reach after installation.
• If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician
install a 16 Amp fuse.
• The voltage specified in the "4. Technical specifications" section must be equal to your mains voltage.
• Do not make connections via extension cables or multi-plugs.
BWARNING: Damaged power cables must be replaced by the Authorised Service Agent.
4.1.8 Initial use
Before starting to use the product make sure that the preparations
described in section “2. Environmental instructions” and “4.1 Installation”.
To prepare the product for washing laundry, perform first operation
in Drum Cleaning programme. If this program is not available in your
product, apply the method which is described in section "4.4.2 Cleaning
the loading door and the drum".
CUse an anti-limescale suitable for the washing machines.
Some water has remained in the product due to the quality control processes in the production. It is not harmful for the
product.

9 / EN
Washing Machine / User’s Manual
4.2 Preparation
4.2.1 Sorting the laundry
• Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature.
• Always observe the instructions given on the garment care labels.
4.2.2 Preparing laundry for washing
• Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the
machine. Remove the metal pieces or wash such clothes by putting them in a laundry bag or pillow case.
• Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and
brush. Such objects may damage the product or cause noise problem.
• Put small size clothes such as infant's socks and nylon stockings in a laundry bag or pillow case.
• Place curtains in without compressing them. Remove curtain attachment items.
• Fasten zippers, sew loose buttons and mend rips and tears.
• Wash “Machine washable” or “Hand washable” labeled products only with an appropriate programme.
• Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them
separately.
• Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.
• Only use the dyes / color changers and descaling agents which are appropriate for machine wash. Always
follow the instructions on the package.
• Wash trousers and delicate laundry turned inside out.
• Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce
piling.
• Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken
off before placing into the product. Such dusts and powders on the laundry may build up on the inner parts
of the product in time and can cause damage.
4.2.3 Tips for energy saving
Following information will help you use the product in an ecological and energy-efficient manner.
• Operate the product in the highest load capacity allowed for the programme you have selected, but do not
overload. See, "Programme and consumption table".
• Observe the temperature instructions on the detergent packaging.
• Wash slightly soiled laundry at low temperatures.
• Use faster programmes for small quantities of lightly soiled laundry.
• Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.
• If you plan to dry your laundry in a dryer, select the highest spin speed recommended during washing
process.
• Do not use more detergent than the recommended on the detergent packaging.
4.2.4 Loading the laundry
1. Open the loading door.
2. Put the laundry items into the product in a loose manner.
3 Push the loading door to close until you hear a locking sound. Ensure that no items are caught in the door.
The loading door is locked while a programme is running. The door lock will open immediately after the
washing programme has ended. Then you can open the loading door. If the door does not open, apply the
solutions provided for "Loading door cannot be opened." error in the Troubleshooting section.
4.2.5 Correct load capacity
The maximum load capacity depends on the type of laundry, the degree of soiling and the desired washing
programme.
The machine automatically adjusts the water amount according to the weight of the laundry put inside it.
AWARNING: Comply with the information in the section "Programme and consumption table". When overloaded,
product's washing performance will drop. Moreover, noise and vibration problems may occur.

10 / EN Washing Machine / User’s Manual
4.2.6 Using detergent and softener
C
When using detergent, softener, starch, fabric dye, bleach and descaling agents; read the manufacturer's instructions written
on the package and follow the dosages specified. Use measuring cup if available.
1
3
2
The detergent drawer is composed of three compartments:
– (1) for prewash
– (2) for main wash
– (3) for softener
– ( ) in addition, there is a siphon piece in the softener compartment.
Detergent, softener and other cleaning agents
• Add detergent and softener before starting the washing programme.
• While the washing cycle is in progress, do not leave the detergent drawer open!
• When using a programme without prewash, do not put any detergent into the prewash compartment
(compartment no. "1").
• In a programme with prewash, do not put liquid detergent into the prewash compartment (compartment no.
"1").
• Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place the
detergent bag or the dispensing ball directly among the laundry in the product.
• If you are using liquid detergent, do not forget to place the liquid detergent container into the main wash
compartment (compartment no. “2”).
Choosing the detergent type
Detergent type to be used depends on the fabric type and color.
• Use different detergents for coloured and white laundry.
• Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) intended
solely for delicate clothes.
• When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.
• Wash woolens with special detergent made specifically for woolens.
AWARNING: Use only detergents manufactured specifically for washing machines.
WARNING: Do not use soap powder.
Adjusting detergent amount
The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and
water hardness.
• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid
problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.
• Use lesser detergent for small amounts or lightly soiled clothes.
Using softeners
Pour the softener into the softener compartment of the detergent drawer.
• Do not exceed the (>max<) level sign on the softener compartment.
• If the softener has lost its fluidity, dilute it with water before adding it in the detergent compartment.
AWARNING: Do not use liquid detergents or other cleaning products other than fabric softeners produced for washing
machines to soften the clothes.
Using liquid detergents

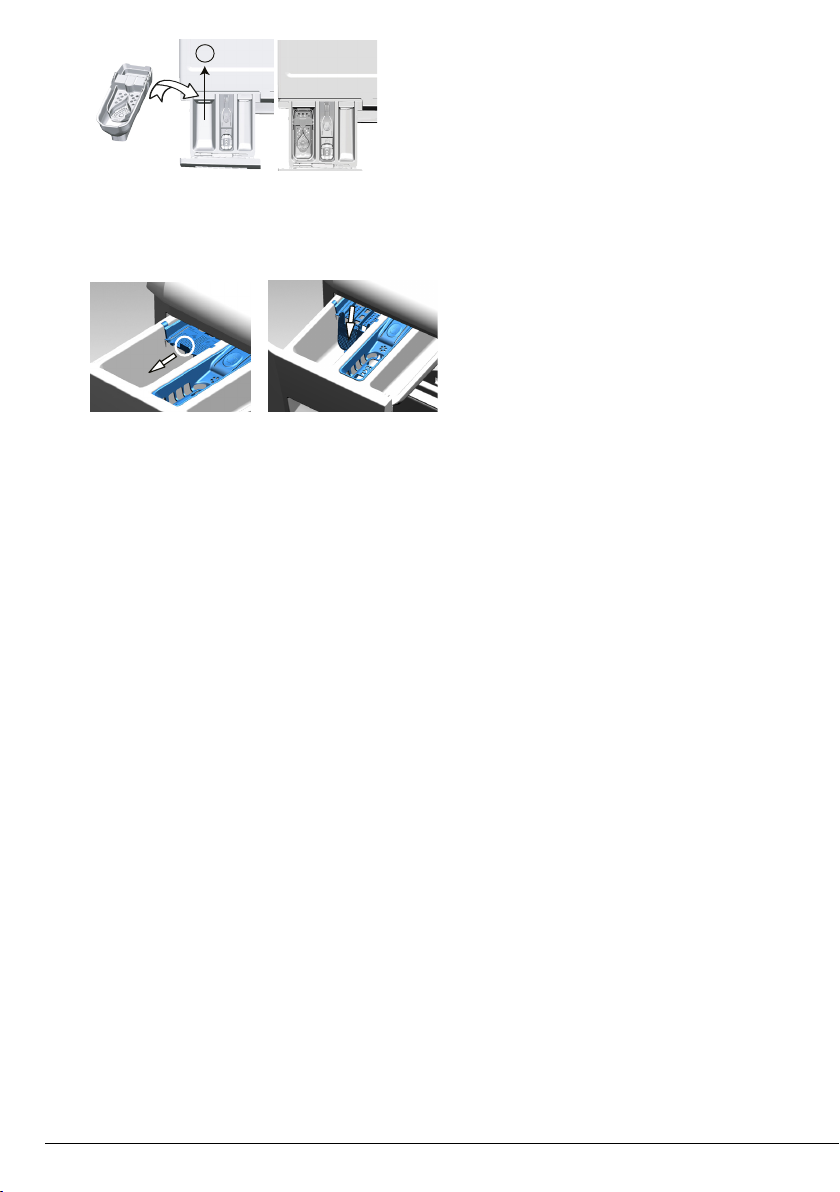

If the product contains a liquid detergent cup:
• Put the liquid detergent container into the compartment no “2”.
• If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container.

11 / EN
Washing Machine / User’s Manual
2
2
If the product is equipped with a liquid detergent part:
• When you want to use liquid detergent, pull the apparatus towards yourself. The part that falls down will
serve as a barrier for the liquid detergent. If required, clean the apparatus with water when it is in place
or by removing it. If you will use powder detergent, the apparatus must be secured at top position.
If the product does not contain a liquid detergent cup:
• Do not use liquid detergent for the prewash in a programme with prewash.
• Liquid detergent stains your clothes when used with "End Time" function to started delayed. If you are going
to use the End Time function, do not use liquid detergent.
Using gel and tablet detergent
• If the gel detergent thickness is fluidal and your product does not contain a special liquid detergent container,
put the gel detergent into the main wash detergent compartment during first water intake. If your product
contains a liquid detergent container, fill the detergent into this container before starting the programme.
• If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the
drum before washing.
• Put tablet detergents into the main wash compartment (compartment no. "2") or directly into the drum
before washing.
Using starch
• Add liquid starch, powder starch or the dyestuff into the softener compartment.
• Do not use softener and starch together in a washing cycle.
• Wipe the inside of the product with a damp and clean cloth after using starch.
Using limescale remover
• When required, use limescale removers manufactured specifically for washing machines only.
Using bleaches
• Select a programme with prewash and add the bleach at the beginning of the prewash. Do not put detergent
in the prewash compartment. As an alternative application, select a programme with extra rinse and add the
bleach while the product is taking water from the detergent compartment during first rinsing step.
• Do not use bleach and detergent by mixing them.
• Use just a little amount (approx. 50 ml) of bleach and rinse the clothes very well as it causes skin irritation.
• Do not pour the bleach onto the laundry.
• Do not use it with the colored items.
• When using an oxygen-based bleach, select a program which washes the laundry at a low temperature.
• Oxygen-based bleach can be used together with the detergent. However, if its thickness is not the same
with the detergent, put the detergent first into the compartment no. "2" in the detergent drawer and wait
until the detergent flows while the product is taking in water. While the product continues taking in water,
add bleach in the same compartment.

12 / EN Washing Machine / User’s Manual
4.2.7 Tips for efficient washing
Clothes
Light Colours and
Whites Colours Black/Dark Colours
Delicates/
Woolens/Silks
(Recommended temperature
range based on soiling level:
40-90°C)
(Recommended temperature
range based on soiling level:
cold -40°C)
(Recommended
temperature range
based on soiling level:
cold -40°C)
(Recommended
temperature range
based on soiling level:
cold-30°C)
Soiling Level
Heavily Soiled
(difficult stains such
as grass, coffee, fruits
and blood.)
It may be necessary to pre-treat
the stains or perform prewash.
Powder and liquid detergents
recommended for whites can be
used at dosages recommended
for heavily soiled clothes. It is
recommended to use powder
detergents to clean clay and soil
stains and the stains that are
sensitive to bleaches.
Powder and liquid
detergents recommended
for colors can be used at
dosages recommended
for heavily soiled clothes.
It is recommended to use
powder detergents to clean
clay and soil stains and the
stains that are sensitive to
bleaches. Detergents which
do not contain bleach should
be used.
Liquid detergents
suitable for colors
and dark colors can
be used at dosages
recommended for
heavily soiled clothes.
Prefer liquid
detergents produced
for delicate clothes.
Woolen and silk
clothes must be
washed with special
woolen detergents.
Normally Soiled
(For example, stains
caused by body on
collars and cuffs)
Powder and liquid detergents
recommended for whites can be
used at dosages recommended
for normally soiled clothes.
Powder and liquid detergents
recommended for colors
can be used at dosages
recommended for normally
soiled clothes. Detergents
which do not contain bleach
should be used.
Liquid detergents
suitable for colors
and dark colors can
be used at dosages
recommended for
normally soiled clothes.
Prefer liquid
detergents produced
for delicate clothes.
Woolen and silk
clothes must be
washed with special
woolen detergents.
Lightly Soiled
(No visible stains
exist.)
Powder and liquid detergents
recommended for whites can be
used at dosages recommended
for lightly soiled clothes.
Powder and liquid detergents
recommended for colors
can be used at dosages
recommended for lightly soiled
clothes. Detergents which
do not contain bleach should
be used.
Liquid detergents
suitable for colors
and dark colors can
be used at dosages
recommended for
lightly soiled clothes.
Prefer liquid
detergents produced
for delicate clothes.
Woolen and silk
clothes must be
washed with special
woolen detergents.
4.2.8 Displayed Program Time
You can see the programme duration on the display of your machine while selecting a programme. Depending
on the amount of laundry you have loaded into your machine, foaming, unbalanced load conditions,
fluctuations in power supply, water pressure and program settings, the programme duration is automatically
adjusted while the programme is running.
SPECIAL CASE: At programme start of Cottons and Cotton Eco programmes, display shows the duration
of half load, which is the most common use case. After programme starts, in 20-25 minutes actual load is
detected by the machine. And if the detected load is higher than half load; washing program will be adjusted
accordingly and program duration increased automatically. You may follow this change on the display.
SpinPre-wash Night
mode
Fast+ Rinse
Plus
TemperatureAnti
creasing
No
spin
Cold Rinse
hold
Rinse
hold
Time
delay
Pet hair
removal
Auto
Dosing
Rinse Spin+Pump Fast+ Steam Pet hair
removal
Cold Drying

13 / EN
Washing Machine / User’s Manual
4.3 Operating the product
4.3.1 Control panel
1 - Programme Selection knob
2 - Temperature level lights
3 - Spin level indicator lights
4 - Display
5 - Start / Pause button
6 - Remote Control button.
7 - End Time Setting button
8 - Auxiliary Function button 3
9 - Auxiliary Function button 2
10 - Auxiliary Function button 1
11 - Spin speed adjustment button
12 - Temperature adjustment button
4.3.2 Display symbols
1200
1000
800
600
90
˚
60
˚
40
˚
30
˚
20
˚
a b c d e
f
h
g
ikl jno mpr
a- Temperature indicator
b- Spin speed indicator
c- Duration information
d - Door lock is engaged symbol
e- Programme follow-up indicator
f- No Water indicator
g - Add Garment indicator
h- Bluetooth Connection indicator
i- Remote Control indicator
j - Delayed Start Enabled indicator
k - Auxiliary Function indicators 3
l- Child Lock is Engaged symbol
m- Auxiliary Function indicators 2
n- Auxiliary Function indicators 1
o- No Spin Indicator
p- Rinse Hold Indicator
r- Cold Water indicator
CThe visuals used for machine description in this section are schematic and may not match exactly with the features of your
machine.
Cottons
Cottons Eco
Synthetics
Monsoon
Spin+Drain
Rinse
Saree
StainExpert
Hygiene+
Spin Prewash
Steam
Heavy Ending In Start/
Pause
Program
Infinity
Woollens
Express 14’ / 28’
Dark Care
Mix
1200
1000
800
600
90
˚
60
˚
40
˚
30
˚
20
˚
1 2 3 4
79 8101112 6 5

14 / EN Washing Machine / User’s Manual
4.3.3 Programme and consumption table
• : Selectable.
* : Automatically selected, cannot be cancelled.
** : Energy Label programme (BEE SCHEDULE 12 - IEC 60456.2010)
*** : If maximum spin speed of the machine is lower then this value, you can only select up to the maximum spin speed.
***** : These programmes can be used with the HomeWhiz application.
- : See the programme description for maximum load.
EN 2Auxiliary functions
Programme
Max. Load (kg) Water Consumption (l) Energy Consumption (kWh) Max. Speed*** Heavy Prewash Pet Hair Removal Steam Anti-Crease+
Selectable
temperature
range °C
Cottons
90 7 95 2,40 1200 • • •• • Cold-90
60 7 95 1,90 1200 • • • • • Cold-90
40 7 93 1,00 1200 • • • • • Cold-90
Cottons Eco 60** 749,0 0,630 1200 Cold-60
Synthetics 60 3 70 1,35 1200 • • • • • Cold-60
40 3 70 0,85 1200 • • • • • Cold-60
Express 14’ / 28’
90 7 66 2,20 1200 • • • Cold-90
60 7 66 1,20 1200 • • • Cold-90
30 7 66 0,20 1200 • • • Cold-90
Express 14’ / 28’ + Heavy 30 2 40 0,15 1200 • • • Cold-90
Woollens 40 1,5 55 0,50 1200 Cold-40
Saree 40 3 55 0,70 800 Cold-40
Dark Care 40 3 80 0,85 1200 • • • • • Cold-40
Monsoon 40 3 75 0,85 1200 • • • • Cold-40
StainExpert 60 4 75 1,60 1200 • • 30-60
Hygiene+ 90 7 120 2,70 1200 * 20-90
Mix 40 3 75 0,85 800 • • • • Cold-40
Cuff & Collar 60 3 60 1,23 800 • • • • • Cold-60
Drum Clean+ 90 - 70 2,60 600 * 90
Infinity Program*****
Down Wear 60 2 75 1,20 1000 • Cold-60
Outdoor / Sports 40 3 55 0,55 1200 • Cold-40
Curtain 40 2 90 0,80 800 • Cold-40
Lingerie 30 1 70 0,30 600 Cold-30
Soft Toys 40 1 65 0,75 600 Cold-40

15 / EN
Washing Machine / User’s Manual
CThe auxiliary functions in the table may vary according to the model of your machine.
Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient
temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
You can see the washing duration on the display of your machine while selecting a programme. Depending on the amount of laundry
you have loaded into your machine, there may be a difference of 1-1.5 hours between the duration shown on the display and the
actual duration of the wash cycle. Duration will be automatically updated soon after the washing starts.
"Selection patterns for auxiliary functions can be changed by the manufacturer company. New selection patterns can be added or removed."
"The spin speed of your machine may vary according to the programme; this spin speed cannot exceed the max. spin speed of your machine."
4.3.4 Programme selection
1 Determine the programme suitable for the type, quantity and soiling level of the laundry in accordance with
"Programme and consumption table".
C
Programmes are limited with the highest spin speed appropriate for that particular type of fabric.
When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature.
Always select the lowest appropriate temperature. Higher temperature means higher electricity consumption.
2 Select the desired programme with the Programme Selection knob.
4.3.5 Programmes
•Cottons Eco
Use to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other
programmes, it provides high energy and water savings. Actual water temperature may be different from the
stated wash temperature. When you load the machine with less laundry (e.g. ½ capacity or less), periods in
programme stages may automatically get shorter. In this case, energy and water consumption will decrease
more, providing a more economic wash.
• Cottons
You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in
this programme. When the heavy function is selected, programme duration becomes notably longer to
ensure superior washing and rinsing performance. If the heavy function is not selected, effective washing
performance is ensured with intense washing movements.
• Synthetics
You can wash your laundry (such as shirts, blouses, synthetic/cotton blended fabrics etc.) in this programme.
When the heavy function is selected, programme duration becomes notably longer to ensure superior washing
and rinsing performance. If the heavy function is not selected, high washing performance is ensured with
intense washing movements.
• Woollens
Use to wash your woolen/delicate laundry. Select the appropriate temperature complying with the tag of your
clothes. Your laundry will be washed with a very gentle washing action in order not to damage the clothes.
"Woolens programme of this machine is approved by “The Woolmark Company” for
washing machine-washable woolen products provided that the products are washed in
accordance with the instructions on the product tag and the instructions published by
the manufacturer of this machine. M1367"
In the UK, Ireland, Hong Kong and India, the Woolmark trademark is a Certification trademark.

16 / EN Washing Machine / User’s Manual
• Hygiene+
Applying a steam step at the beginning of the programme allows to soften the dirt easily.
Use this programme for your laundry (baby clothes, bed sheets, bedlinen, underwear, etc. cotton items) that
requires an anti-allergic and hygienic washing at high temperature with intensive and long washing cycle. The
high level of hygiene is ensured thanks to the steam application before the programme, long heating duration
and additional rinsing step.
• Programme was tested by „The British Allergy Foundation
„ (Allergy UK) with the 60°C temperature option selected and it was certified in terms of its efficacy in
eliminating allergens in addition to bacteria and mould.
Allergy UK is the brand of the British Allergy Association. Seal of Approval is created to
guide people that require recommendation about a product that the related product restricts
/ reduces / eliminates the allergens or reduces the allergen content significantly in the
ambient where allergy patients exist. It aims to provide assurance that the products are
tested scientifically or examined in a way to provide measurable results.
• Down Wear
Use this programme to wash your coats, vest, jackets etc. containing feathers with a "machine-washable"
label on them. Thanks to special spinning profiles, it is ensured that the water reaches the air gaps amongst
the feathers.
• Spin+Drain
You can use this function to remove the water on the garment of drain the water in the machine.
•Rinse
Use when you want to rinse or starch separately.
• Curtain
You can use this programme to wash your tulles and curtains. As their meshed texture causes excessive
foaming, put little amount of detergent into the main wash compartment. Thanks to the special spin profile of
the programme, tulles and curtains crease lesser. Do not load your curtains above the specified capacity in
order not to damage them.
C
It is recommended to use special detergents produced for curtains in the powder detergent compartment in this programme.
• Cuff & Collar
This programme is used to wash the shirts made from cotton, synthetic and synthetic blended fabrics
altogether. It reduces wrinkles and the Pre-treatment algorithm is executed. When the heavy function is
selected, the Pre-treatment algorithm is cancelled but program duration is increased to ensure superior
washing performance.
• Apply the pre-treatment chemical on your garments directly or add it together with detergent when
the machine starts to take water from the main washing compartment. Thus, you can obtain the same
performance as you obtain with normal washing in a much shorter period of time. Usage life of your shirts
increases
• Express 14’ / 28’
Use this programme to wash your lightly soiled or unspotted cotton clothes in a short time. The programme
duration can be increased up to 28 minutes and maximum laundry can be washed when the heavy function is
selected. When the heavy function is not selected, maximum 2 (two) kg of laundry must be washed.
• Dark Care
Use this programme to protect the colour of your dark-coloured garments or jeans. It performs high performance
washing with special drum movement even if the temperature is low. It is recommended to use liquid detergent
or woolen shampoo for dark coloured laundry. Do not wash your delicate clothes containing wool or etc.
• Mix
Use to wash your cotton and synthetic clothes together without sorting them.

17 / EN
Washing Machine / User’s Manual
• Monsoon
Use this programme to wash cottons, synthetics or cotton/synthetic mix clothes. Eliminates dust, sand, etc.
Thanks to the strong spinning profile at the end of the programme, the following drying processes are easier.
• Saree
It is suitable for cotton, synthetic or cotton/synthetic mix “Sari” dresses. It washes with more delicate washing
action. A maximum of 2 Sari dresses must be washed.
• Lingerie
You can use this programme to wash delicate garments that are suitable for hand wash and delicate women's
underwear. Small amount of garments must be washed in a washing net. Hooks, buttons etc. must be done up
and zips must be zipped up.
• Outdoor / Sports
You can use this programme to wash sports and outdoors garments that contain cotton/synthetics mix and
water repellent covers such as gore-tex etc. It makes sure your garments are washed gently thanks to special
rotating movements.
• StainExpert
The machine has a special stain programme which enables the removal of different types of stains in the
most effective way. Use this programme only for durable colourfast cotton laundry. Do not wash delicate
and pigmenting clothes and laundry in this programme. Before washing, garment tags should be checked
(recommended for cotton shirts, trousers, shorts, t-shirts, baby clothes, pyjamas, aprons, table clothes,
beddings, duvet cover, bed sheet, pillowcase, bath-beach towel, towel, socks, cotton underwear that are
suitable for washing at high temperature and long time). In the automatic stain programme, you can wash
26 types of stains divided into two different groups according to heavy function selection. You can see stain
groups based on the selection of the heavy function.
When heavy function is not selected:
Blood Tea Red Wine
Chocolate Coffee Curry
Pudding Fruit juice Jam
Egg Ketchup Coal
When heavy function is selected:
Butter Sweat Salad Dressing
Grass Collar Soil Make-up
Mud Food Machine Oil
Coke Mayonnaise Baby Food
Turmenic Massala
• Select the stain programme.
• Select the stain you want to clean by locating it in the groups above and selecting the related group with the
heavy auxiliary function button.
• Read the garment tag carefully and ensure that correct temperature and spin speed are selected.

18 / EN Washing Machine / User’s Manual
• Infinity Program
This is a special programme that allows you to download different programmes when you want to. At the start,
there is a programme you can see with the HomeWhiz application as default. However, you can use the HomeWhiz
application to select a programme from the predetermined programme set, and then change and use it.
CIf you want to use HomeWhiz feature and Remote Control function, you must select Downloaded Programme. Detailed
information can be found in 4.3.15 HomeWhiz Feature and Remote Control Function.
• Soft Toys
Soft toys must be washed in a delicate programme due to their delicate fabrics, and the fibre and accessories
they contain. Thanks to its delicate washing movements and spinning profile, the soft toys programme protects
the toys during washing. It is recommended to use liquid detergent.
CFragile toys with hard surfaces must not be washed under any circumstances.
Toys must not be washed together with your garments since they may harm laundry.
4.3.6 Temperature selection
-
-
-
-
-
-
Whenever a new programme is selected, the recommended temperature for the programme appears on the temperature
indicator. It is possible that the recommended temperature value is not the maximum temperature that can be selected for the
current programme.
Press the Temperature Adjustment button to change the temperature. Temperature decreases gradually.
CNo change can be made in programmes where temperature adjustment is not allowed.
You can also change the temperature after the washing starts. This change can be made if the washing steps
allow it. Changes cannot be made if the steps do not allow it.
CIf you scroll to cold wash option and press Temperature Adjustment button again, the recommended maximum temperature
for the selected programme appears on the display. Press the Temperature Adjustment button again to decrease the
temperature.
4.3.7 Spin speed selection
-
-
-
-
-
-
Whenever a new programme is selected, the recommended spin speed of the selected programme is
displayed on the Spin Speed indicator.
CIt is possible that the recommended spin speed value is not the maximum spin speed that can be selected for the current
programme.
Press the Spin Speed Adjustment button to change the spin speed. Spin speed decreases gradually.
Then, depending on the model of the product, "Rinse Hold " and "No Spin " options appear on the display.
If you are not going to unload your laundry immediately after the programme completes, you can use Rinse
Hold function in order to prevent them from getting wrinkled when there is no water in the machine.
This function holds the laundry in the final rinsing water.
If you want to spin your laundry after the Rinse Hold function:
- Adjust the Spin Speed.

19 / EN
Washing Machine / User’s Manual
- Press Start / Pause / Cancel. The programme will resume. Machine drains the water and spins the laundry.
If you want to drain the water at the end of the programme without spinning, use No Spin function.
CNo change can be made in programmes where spin speed adjustment is not allowed.
You can change the spin speed after the washing starts if the washing steps allow it. Changes cannot be
made if the steps do not allow it.
Rinse hold
If you are not going to unload your clothes immediately after the programme completes, you can use rinse
hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled
when there is no water in the machine. Press Start / Pause button after this process if you want to drain the
water without spinning your laundry. Programme will resume and complete after draining the water.
If you want to spin the laundry held in water, adjust the Spin Speed and press Start / Pause button.
The programme will resume. Water is drained, laundry is spun and the programme is completed.
4.3.8 Auxiliary function selection
-
-
-
-
-
-
Select the desired auxiliary functions before starting the programme. Whenever a programme is selected,
icons of the auxiliary function symbol that is selected together with it illuminates.
CWhen an auxiliary function button that cannot be selected with the current programme is pressed, the washing machine will
make a warning sound.
Also the frames of the auxiliary function selected for the current programme after the washing has started
remains illuminated.
CSome functions cannot be selected together. If a second auxiliary function conflicting with the first one is selected before
starting the machine, the function selected first will be canceled and the second auxiliary function selection will remain
active. For example, if you want to select Quick Wash after you have selected the Additional Water, Additional Water will be
canceled and Quick Wash will remain active.
An auxiliary function that is not compatible with the programme cannot be selected. (See "Programme and consumption table")
Some programmes have auxiliary functions that must be operated simultaneously. Those functions cannot be cancelled. The
frame of the auxiliary function will not be illuminated, only inner area will be illuminated.
4.3.8.1 Auxiliary functions
•Prewash
A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water,
detergent and time.
• Heavy
When this function is selected, the durations of relevant programmes get longer to ensure superior washing
and rinsing performance. Heavily soiled garments should be washed by selecting this function.
•Steam
Use this programme to reduce the creases and ironing times of a small amount of unspotted cotton, synthetic
or mixed laundry.

20 / EN Washing Machine / User’s Manual
• Remote Control
You can use this auxiliary function key to connect your product to smart devices. For detailed information, see
4.3.15 HomeWhiz Feature and Remote Control Function.
• Customized Programme
This auxiliary function can only be used for Cotton and Synthetics programmes together with the HomeWhiz
application. When this auxiliary function is activated, you can add up to 4 auxiliary rinsing steps to the
programme. You can select and use some auxiliary functions even though they are not found on your product.
You can increase and decrease the time of the Cottons and Synthetics programmes within a safe range.
CWhen the Customized Programme auxiliary function is selected, the washing performance and energy consumption will be
different than the declared value.
4.3.8.2 Functions/Programmes Selected by Pressing the Function Keys for 3 Seconds
• Drum Clean+
Press and hold the auxiliary function button 1 for 3 seconds to select the programme. Use regularly (once in
every 1-2 months) to clean the drum and provide the required hygiene. Steam is applied before the programme
to soften the residues in the drum. Operate the programme while the machine is completely empty. To obtain
better results, put powder lime-scale remover for washing machines into the detergent compartment no. „2“.
When the programme is over, leave the loading door ajar so that the inside of the machine gets dry.
CThis is not a washing programme. It is a maintenance programme.
Do not run the programme when there is something in the machine. If you try to do so, the machine detects that there is
load inside and aborts the programme.
• Anti-Crease+
This function is selected when the spin selection button is pressed and held for 3 seconds and the programme
follow-up light for the relevant step turns on. When the function is selected, the drum rotates for up to 8 hours
for preventing the laundry from creasing at the end of the programme. You can cancel the programme and take
your laundry out at any time during the 8-hour duration. Press the function selection key or the machine on/off
key to cancel the function. The programme follow-up light will remain on until the function is canceled or the
step is complete. If the function is not cancelled, it will be active in the subsequent washing cycles as well.
• Pet Hair Removal
This function is selected when the auxiliary function button 2 is pressed and held for 3 seconds.
This function helps to remove pet hair that remain on your garments more effectively.
When you select this function, Prewash and Extra Rinse steps are added to the normal programme. Thus,
washing is performed with more water and the pet hair is removed more effectively.
• Child lock
Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes
in a running programme.
CYou can switch on and off the machine with On / Off button when the Child Lock is active. When you switch on the machine
again, programme will resume from where it has stopped.
When the Child Lock is enabled, an audio warning will be given if the buttons are pressed. Audio warning will be canceled if
the buttons are pressed five times consecutively.
To activate the Child Lock:
Press and hold Auxiliary Function button 3 for 3 seconds. After the countdown as “CL 3-2-1" on the
display is over, "CL On" symbol appears on the display. When this warning is displayed, you can release the
Auxiliary Function button 3.
To deactivate the Child Lock:
