Dear customer, Thank you for choosing our product.
Please read these instructions carefully before connecting and using the machine. An awareness
of how the machine operates will help guarantee its correct and safe use. The instructions also
contain some useful information on the machine’s functions that will help you get the most out of
its use. If you decide to sell or give the washing machine to someone else, remember to give the
instruction book to the new owner.
NOTES AND ADVICE FOR THE USER 45-46
• Caratteristiche tecniche 45
DESCRIPTION OF THE MACHINE 47
INSTALLING THE MACHINE 48-50
• Unpacking and unblocking the machine 48
• Positioning and levelling the machine 49
• Connecting to the water supply system 49
• Connecting to the power supply 50
USING THE WASHING MACHINE 50-54
• Using the machine 50
• Use of detergents 51
• How to eliminate stains 52
• International clothing care symbols 52
• Wash cycle 52
• Variable spin 52
• Delayed start 54
• Start button 54
• Programmer knob “STOP” 54
OPTIONAL FUNCTIONS 54-55
• Prewash 54
• Energetic wash 54
• Extra rinse 55
• Anti-crease 55
• Delayed start 55
PROGRAMME TABLES 51-52
• “EASY LOGIC” technology 52
MAINTENANCE 53-54
• Cleaning the machine 53
• Removing the detergent drawe 53
• Cleaning the filter 53
• Troubleshooting 54
MODEL: .................................................................................................................................................................................................................
PRODUCTION CODE: .................................................................................................................................................................................
DATE OF PURCHASE: ...............................................................................................................................................................................
min. 0,05 MPa - max. 1 MPa
Width cm.:
Height cm.:
Depth cm.:
Dimensions:
Max. spin: (rpm)
Maximum
recommended
load:
Water pressure:
Max. absorbed power/Electrical connection see rating plate
MODEL
6,0 Kg
3,0 Kg
1,5 Kg
1200
59.5
85.0
55.0
WA 126 E
TECHNICAL CHARACTERISTICS

46
SM2209

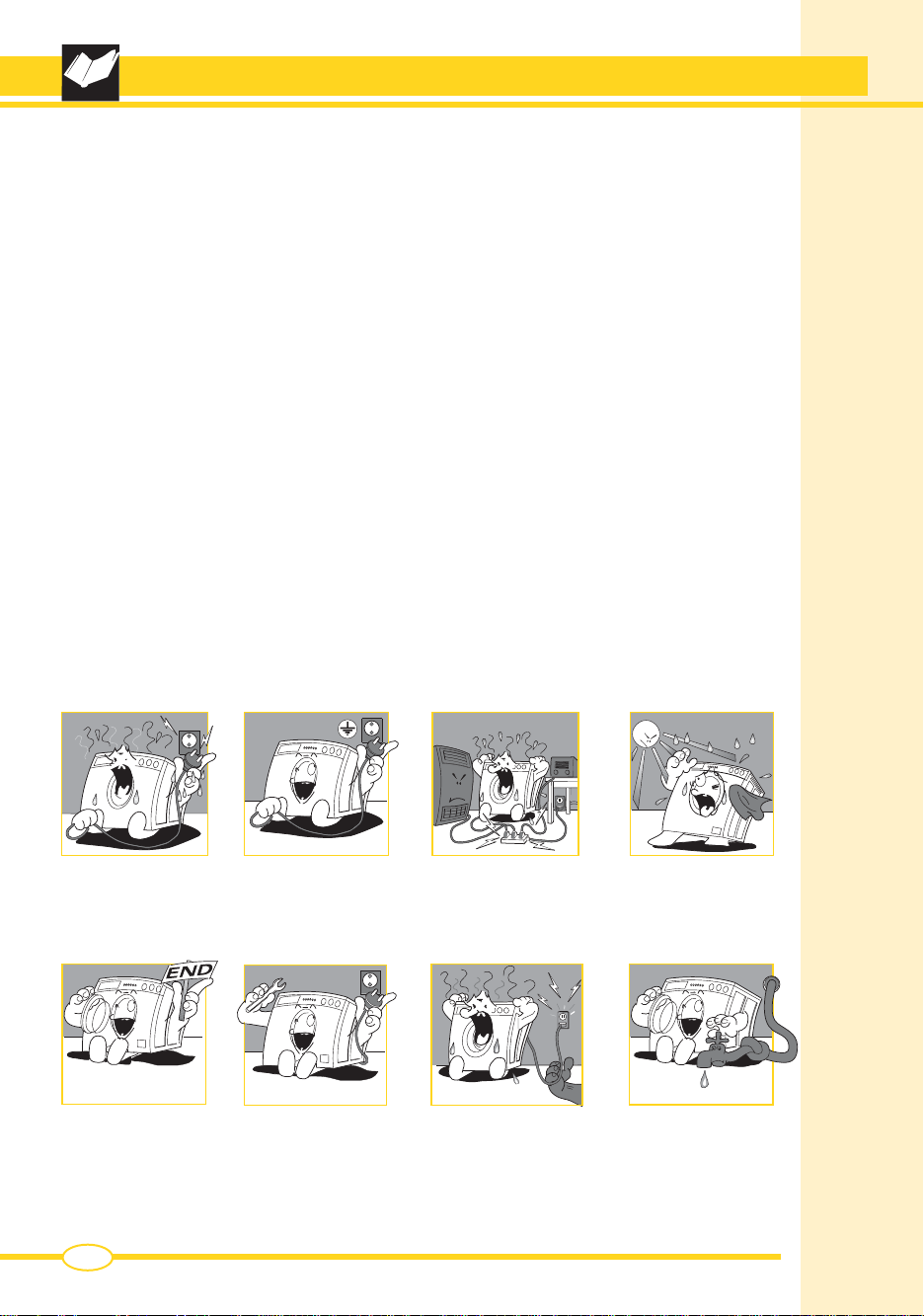

NOTES AND USEFUL ADVICE FOR THE USER
Do not plug-in or unplug
the machine with wet
hands.
Unplug the washing
machine from the pow-
er supply before servic-
ing and cleaning.
To disconnect the ma-
chine from the power
supply, pull the plug and
not the cable.
After the end of each
washing cycle it is ad-
visable to unplug the
machine and shut-off
the water supply.
Do not expose the ap-
pliance to atmospheric
agents.
The power supply
socket to which the
machine is connected
must be earthed and
must comply with the
safety requirements
Extension leads or mul-
tiple adapters must not
be used to connect the
washing machine to the
mains supply.
▼The washing machine has been designed
for domestic use only, and as such any other
use is regarded as improper and therefore
potentially dangerous.
▼Any modifications or attempts to alter the
equipment in any way may be dangerous for
the user and cause damage to the washing
machine.
▼Due to the weight of the machine, special
safety standards must be observed during
handling.
▼The machine must not be used by unsuper-
vised children.
▼Any modifications to the water or electrical
system must be carried out by authorised
specialists.
▼When positioning the appliance, make sure
that the power supply cable is not bent or
squashed and that it is accessible.
▼Before operating the machine, remove all
packing materials and the locking device used
for protection during transport (protection
screws).Failure to do this may result in serious
damage to the machine and to your home.
▼If the machine is installed on a carpeted floor,
make sure that air is free to circulate between
the machine and the floor.
▼The washing machine must never be over-
loaded.
▼When the machine is in operation, avoid any
contact with the water coming out of the drain
hose, as this may be hot. Do not touch the
door glass as this may also heat up during
the wash
▼Only wash clothes that are machine wash-
able. In case of doubt, check the manufactur-
er’s instructions found on the label attached
to the clothes (see “Clothing cares symbols
“ ) .
▼Before loading clothes into the washing ma-
chine, check that all the pockets are empty.
Hard or pointed objects such as coins, pins,
nails, screws or even stones can cause seri-
ous damage.
▼Clothes that have been dirtied with sub-
stances containing petroleum cannot be
washed in the machine. If stains have been
removed using vaporising products, before
loading the clothes in the washing machine,
wait until the substances have completely
evaporated from the material.
▼Do not use detergents formulated for hand
washing, in that the excessive lather produced
could damage the internal components.
GB
The washing machine
can only be opened
after the led or the di-
splay has indicated
the end of the cycle.
On some models this
is shown with the start
button flashing.
NOTES AND USEFUL ADVICE FOR THE USER

47
SM2209
NOTES AND USEFUL ADVICE FOR THE USER
DESCRIPTION OF THE MACHINE
THE MANUFACTURERWILL NOT BE HELD
RESPONSIBLE FOR ANY ACCIDENTS
THAT MAY RESULT FROM NON-COMPLI-
ANCE WITH THE REQUIREMENTS OF
SAFETY STANDARDS OR THIS INSTRUC-
TION MANUAL

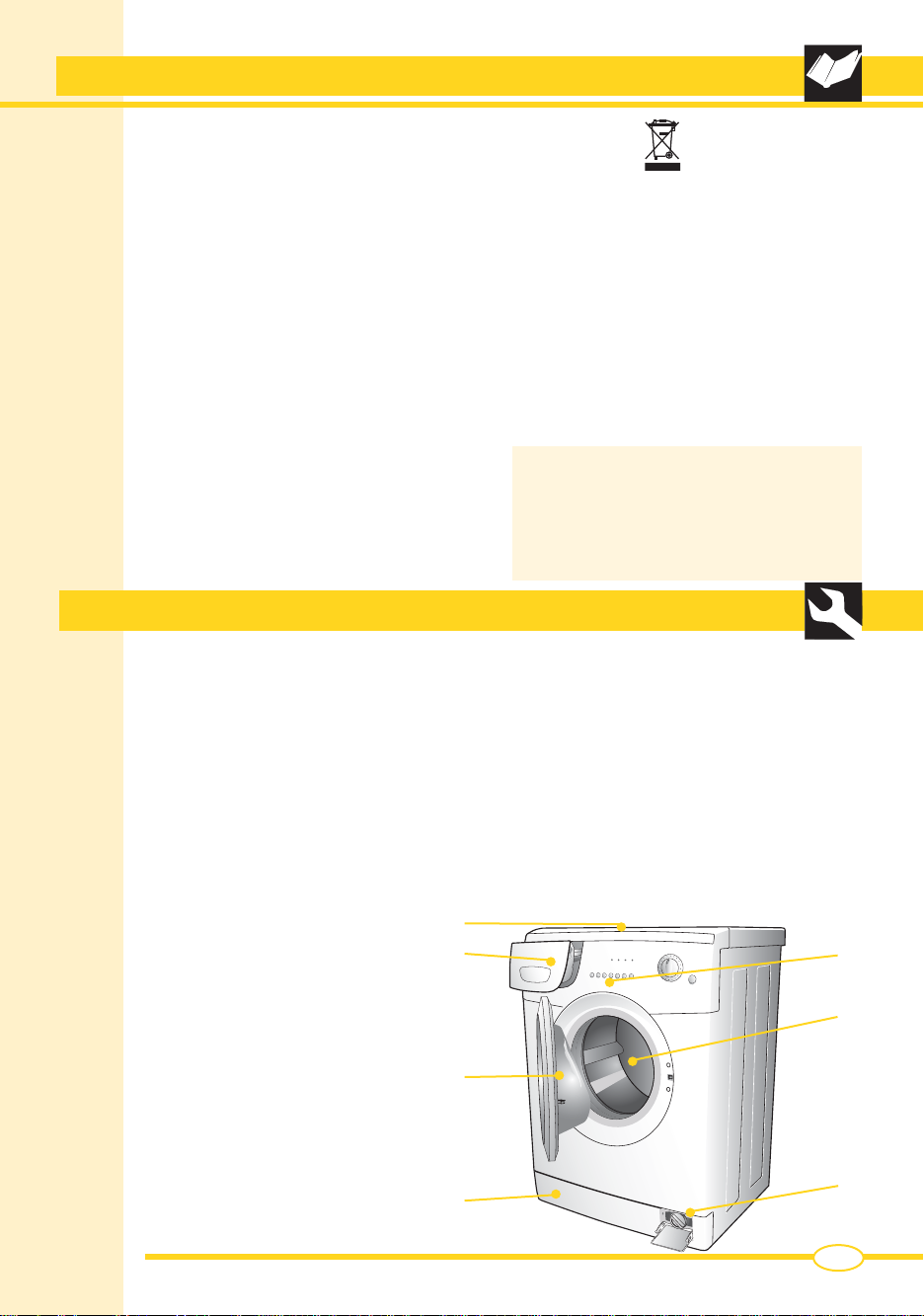

A- Glass door
B- Filter
C- Adjustable feet
D- Top cover
E- Drum
F - Control panel
G - Detergent drawer
1
The washing machine is a household appliance that can wash any type of fabric whenever you want.
▼The structure of the machine is fabricated in steel sheet, which has been worked using a special
process and then enamelled in order to maintain its external appearance and protect it against
corrosion.
▼The motor and all the other moving parts are built to ensure noiseless machine operation.
▼The large stainless steel drum is well placed to guarantee a good wash quality and prolong the
life of the washing.
▼The easy to use control panel makes the selection of any wash or dry programme quick and simple
(see control panel and table of programmes).
▼The ample glass door makes loading and unloading easier.
▼The perfect machine balance is the result of many years of research aimed at finding the correct
balance between the various moving parts.
▼After washing rugs, blankets or any other long
fibre fabrics, remember to check the filter and,
if necessary, clean it.
▼It is advisable to leave the door open at the
end of the wash cycle.
▼Under no circumstances should any repairs
to the machine be attempted by unqualified
persons as this could result in serious dam-
age and will invalidate the guarantee.
▼Repairs to the washing machine must only
be carried out by persons authorised to do
so by the service centres.Only original spare
parts may be used for repairs.
▼This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
The symbol on the product, or on the
documents accompanying the product, indi-
cates that this appliance may not be treated
as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment. Disposal must be carried out in
accordance with local environmental regu-
lations for waste disposal. For more detailed
information about treatment, recovery and
recycling of this product, please contact your
local city office, your household waste dispo-
sal service or the shop where you purchased
the product.
GB
D
G
F
C
A
C
D
F
E
B

48
SM2209
INSTALLING THE MACHINE
(ACCORDING TO MODEL)
For transport purposes the swinging unit in the machine is blocked using 4
spacers with screws. Before starting the machine these spacers and lock
screws must be removed, and stored for use in the event of a possible change
of location.
Block off the holes with the plugs provided, which can be found in the bag
containing the documents.
For transport purposes the swinging unit in the machine is blocked using 4 spac-
ers with screws. Before starting the machine these screws must be removed
using a screwdriver.
Insert a screwdriver in the holes and proceed as shown in the figure to recover
the 4 plastic spacers.
The machine must be installed by professionally qualified technicians, according
to the manufacturer’s indications. Incorrect installation may result in damage to
persons and property.
The machine can be installed anywhere, provided the temperature in the place of
installation is not below 3°C and the cables and hoses at the rear of the machine
are not crushed in any way.
GB
2
3
5
4

49
SM2209 GB
INSTALLING THE MACHINE
6
7
SETTING THE MACHINE LEVEL
After selecting a suitable position, level the machine carefully using the adjustable
feet (Fig. 6). Particular care must be taken when selecting the position, levelling the
washing machine and ensuring the safety of lock nuts.
If levelling is not carried out correctly, the washing machine will be unstable and
noisy during operation, which may result in damage.
Ifthemachinestandson a carpet floor,makesurethataircancirculatefreelybetween
the washing machine and the floor itself.
It is not recommended that the machine be installed in locations where the tempera-
ture is liable to drop below freezing.
CONNECTION TO THE WATER SUPPLY SYSTEM
▼Themainswaterpressure must be between 0.05
and 1.00 MPa (0.5 - 10 bar.)
▼Before connecting the water fill hose, open the
valve and allow a quantity of water to flow. This
will censure that the supply pipes are free from
impurities, such as sand or rust (this operation is
veryimportantwhenthewashingmachineisbeing
connected toa new supplysystemorifthesystem
has not been used for a long period of time).
▼Connectthewater fill hose toa3/4 threaded cold
water outlet.
▼Place the filter washer supplied between the hose and the valve and hand tighten
the connection as much as possible (fig. 7-8).
▼Connect water feed hose (fig. 9).
N.B.: Use the new pipe supplied with the machine and do not re-use the old one.
▼The water supply tap must be fully open when washing.
▼The water drain hose must be placed at least 60 cm and not more than 90 cm
from the floor (fig. 10).
▼If the drain hose is connected to a fixed drainage system, the free end must
be inserted in a pipe of minimum internal diameter 40 mm.
▼The drain hose water connection to the drainage system must not be hermetically
sealed, as this would cause air to accumulate and the water to siphon out.
▼If the waste water is to be discharged into a sink or washbasin, insert the
hose in the special bracket supplied and hook it over the edge of the sink or
washbasin. Then tie the hose and bracket to a tap or similar (fig. 11). To avoid
overflowing, the sink drain must be clear of obstructions and must be able to
empty quickly.
10
11
N.B. On electronic washing machines fitted with a dual solenoid valve (hot
and cold water), connect the red hose to the hot water supply valve and the
other hose to the cold water supply valve.
If a hot water supply is not available, both hoses must be connected to the
cold supply using the fitting supplied (see fig. 8)
8
9

50
SM2209
INSTALLING THE MACHINE
USING THE MACHINE
GB
12
13
CONNECTING TO THE POWER SUPPLY
▼Check that the voltage indicated on the technical data plate on the back of the

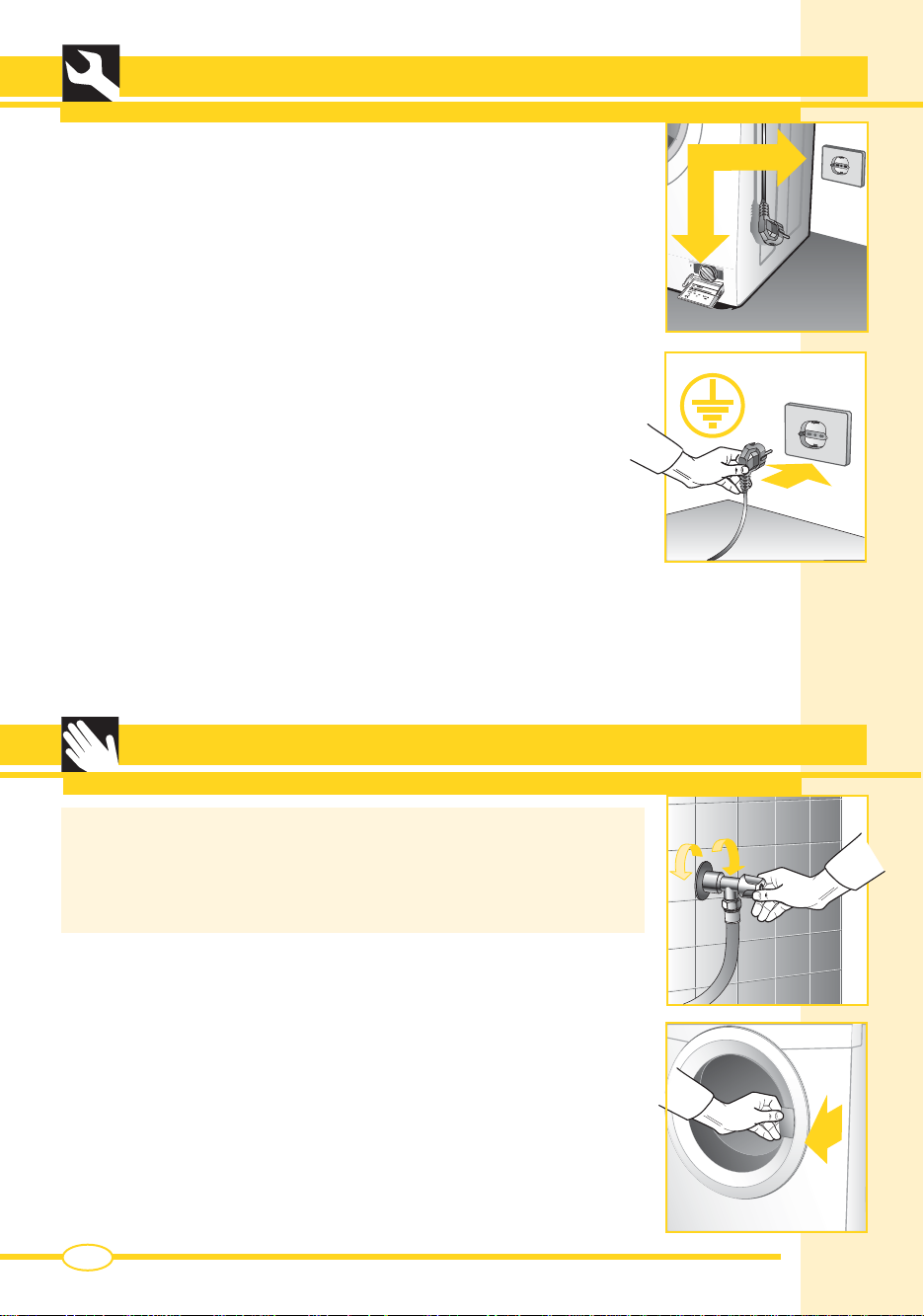

washing machine is the same as that of the mains power supply (fig. 12).
▼The fuses, electric cables and wall socket must be rated to withstand the maxi-
mum power load indicated on the data plate.
▼On completion of the installation, the appliance must be connected to the mains
supply through a two-pole switch.
▼The power supply socket into which the washing machine will be plugged must
be earthed. Otherwise, the manufacturer will not be held responsible for any
accidents (fig. 13).
▼If the socket to which the machine will be connected is faulty or does not comply
with the requirements, it must be replaced by a qualified electrician.
▼The washing machine must not be connected to the electricity supply using
extension leads or multi-plug adapters.
▼During maintenance the washing machine must be unplugged from the power
supply socket.
▼Do not plug-in or unplug the machine with wet hands.
▼If the power cable is damaged in any way, contact the specialised technical
service centre.
▼Position the appliance so that the power supply cable can be accessed with
ease, enabling it to be disconnected when required.
14
15
Open
Closed
ADVICE BEFORE USING
Attention: Before running the machine loaded for the first time, we
re-commend that you run a short washing cycle with the
machine empty.
This makes it possible to check operation of the machine and clean the
drum.
Each time you use the machine:
▼check that all water connections are tight, the drain hose is positioned correctly
(see connection to the water supply) and the supply tap is open. (fig. 14).
▼make sure that your hands are dry, then insert the plug into the power sock-
et.
▼divide the washing according to fabric type (check the labels on the clothes).
▼check that the clothes to be washed have nothing in their pockets that might
damage the washing, the washing machine or the filter

51
SM2209
USING THE MACHINE
USE OF DETERGENTS

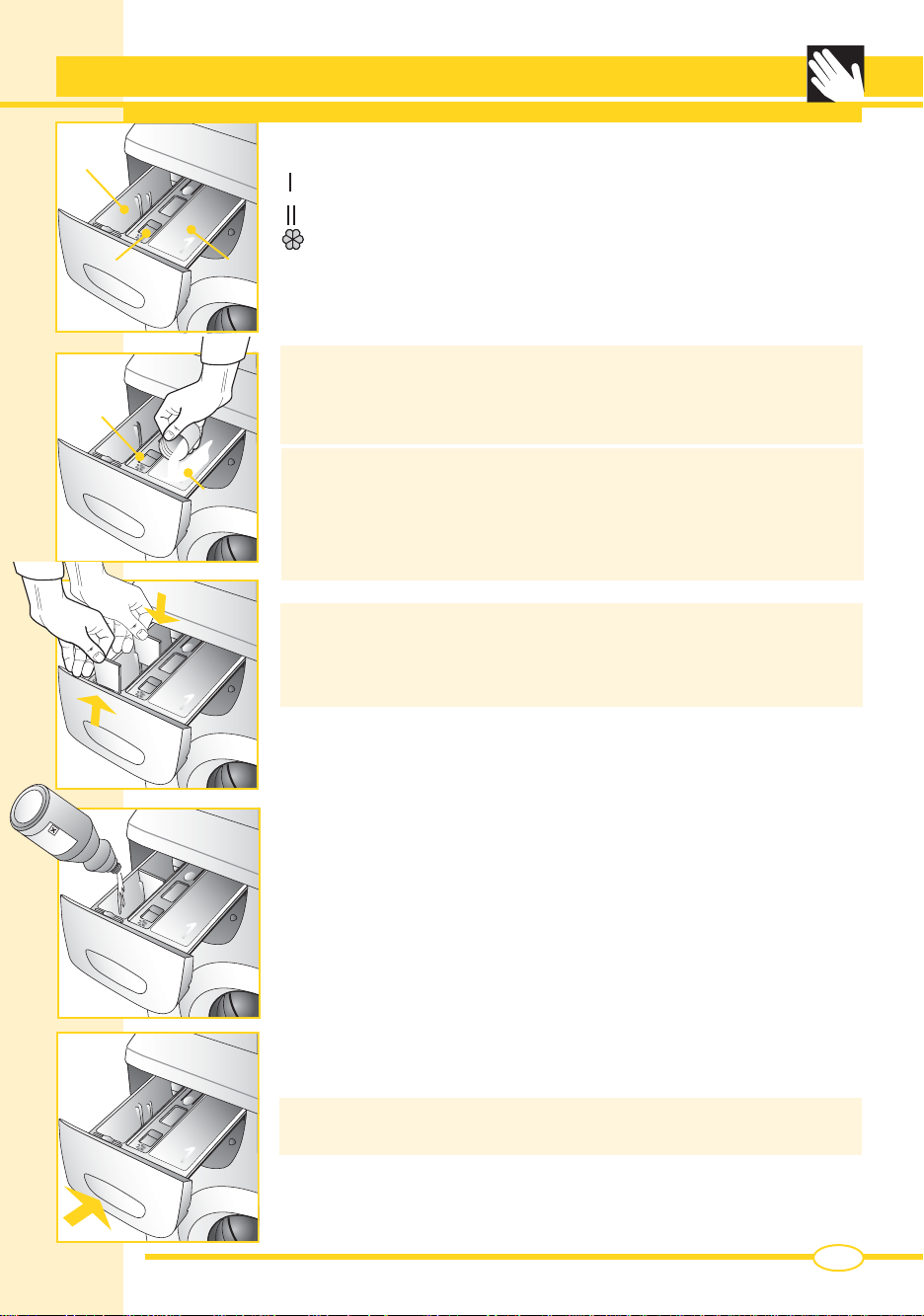

The washing machine has a three-compartment detergent drawer.
compartment for pre-wash or soak powder detergent (1)
compartment for normal wash powder detergent (2)
compartment for fabric softener (3)
use a low-foam detergent and softener (if necessary), of the type indicated for auto-
matic washing machines. Use the doses recommended on the package.
N.B. Excessive amounts of detergent may result in too much foam, and
give a poor quality wash.
Insufficient amounts of detergent may mean that the washing does not
come properly clean.
N.B. When filling the detergent compartment it is important that the de-
tergent does not overflow into the compartment used for fabric softener,
as this would result in a rinse cycle containing soap, which might leave
the washing with white stains. Equally, do not allow the fabric softener
to overflow into the detergent compartment, as this would reduce the
cleaning capacity.
N.B. When using a liquid detergent (recommended for programs without
pre-wash) proceed as follows: remove the baffle from its housing at the
front of compartment 2 and insert it in the guides near the centre of the
same compartment.
▼close the detergent drawer before starting the wash.
Attention! Never remove the detergent drawer when the machine is run-
ning, as water may come out of it.
GB
20
16
1
2
3
NO
19
17
18

52
SM2209
USING THE MACHINE
Some stains cannot be removed by just washing in a washing machine. Before trying to remove any
type of stain by hand, first try the removal procedure on a small area of hidden fabric starting from the
edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the
stain. A few methods for removing stains are reported below.
▼WAX: scrape the wax using a blunt point in
order not to damage the fabric. Then, with the
fabric placed between two pieces of absorb-
ent paper, run a hot iron over the stain.
▼B
ALL-POINT PENS AND FELT-TIP PENS:clean using
a soft cloth soaked in ethyl alcohol. Take care
not to spread the mark.
▼D
AMP AND MOULD:if the fabric supports the
use of bleach, perform a wash cycle adding
bleach. Other-wise, soak the soiled part in
hydrogen peroxide (10 volumes) and leave
for 10 to 15 minutes.
▼L
IGHT SCORCH MARKS CAUSED BY IRONING: follow
the instructions for mould and damp.
▼RUST:use products specially designed for rust
stains, following the manufacturer’s instruc-
tions written on the packet.
▼C
HEWING GUM:rub ice over the mark, scrape
away as much as possible and then rub with a
cotton cloth soaked in acetone (alternatively,
use nail varnish remover).
INTERNATIONAL CLOTHING CARE SYMBOLS
Before placing the clothes in the washing machine and selecting the wash programme, examine the
symbols on the manufacturer’s label. The table reported below will provide a useful guide to reading
the symbols.
▼PAINT: do not allow the paint to dry. Rub the
area with the solvent recommended by the
paint manufacturer (e.g.water, turps, trichlo-
roethylene), apply soap and then rinse.
▼L
IPSTICK:stains on cotton or wool can be
eliminated using a cloth soaked in ether.
Stains on silk require the use of trichloroeth-
ylene.
▼N
AIL VARNISH:place a sheet of absorbent paper
on the stained material, then dampen the back
of the fabric with acetone, frequently changing
the paper placed over the stain. Continue like
this until the stain has disappeared.
▼T
AR OR DIRT: spread some fresh butter over
the stain, allow to stand and then wash with
oil of turpentine.
▼G
RASS:delicately soap the stain, use diluted
bleach. Good results can be obtained on
woollen fabrics using 90% alcohol.
▼B
LOOD:put into soak in cold water with added
salt, then wash with washing soap.
HOW TO REMOVE STAINS
GB

53
SM2209
The machine offers a wide selection of spin speeds that can be selected beforehand
according to the wash programme. To change the spin speed, simply press button
(H) to select the required speed.The corresponding speed led will light-up each time
the button is pressed.
To exclude the spin, select the led corresponding to symbol , if present, or the
writing “no-spin”.
NB. the maximum spin speed will vary according to the model and is
indicated by the Leds on the machine.The maximum spin speed that can
be selected for each programme is indicated by the leds that light-up
automatically when the wash programme is selected.
SPIN LOAD IMBALANCE CONTROL:
This washing machine is equipped with a special electronic control system for correctly
balancing the wash load. Prior to each spin, the system ensures that the washing is evenly
distributed in the drum. If the washing is not evenly distributed, the final spin speed is
reduced, and if the load is very unbalanced, the spin is not effected.
USING THE MACHINE

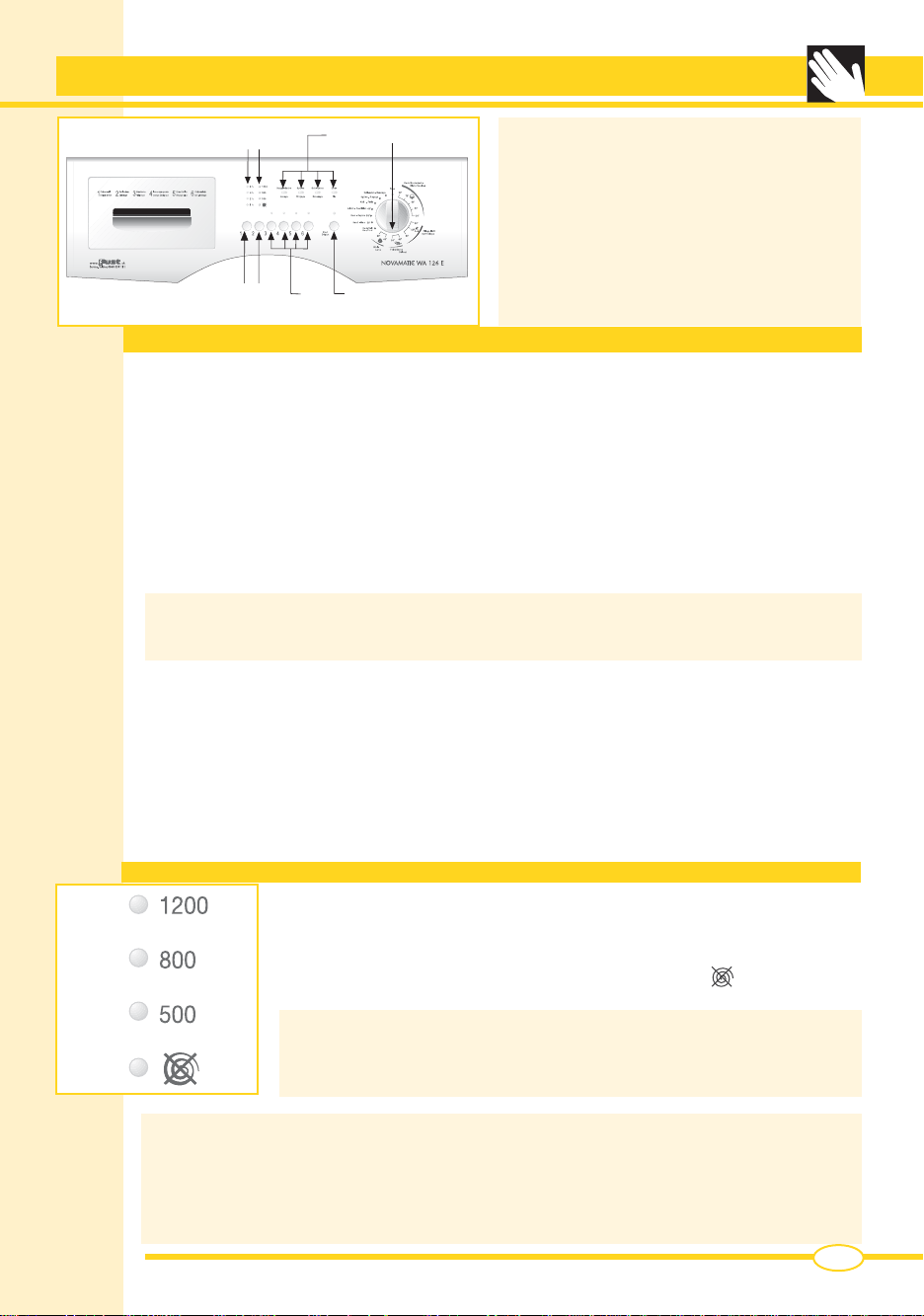

COptional function buttons
D Spin speed indicator leds
B Delayed start led
HSpin selection button
IDelayed start button
L Start button
PProgramme and temperature knob
SProgramme status led
VARIABLE SPIN:
WASH CYCLE:
(follow these instructions and the washing machine will run the selected wash cycle)
1. Open the door
2. Load the washing in the drum and close the door.
Warning: Do not overload the machine. It is not advisable to wash items that absorb large
quantities of water such as carpets.
3. Add a low-suds detergent and softener designed for automatic washing machines in the respective
compartments of the detergent drawer (see chapter “USE OF DETERGENTS”).
4. Close the detergent drawer.Do not open the drawer while the machine is working as this may cause
water to spill out.
5. Rotate the programmer knob (P) to select the required programme and temperature according to
the type of fabric to wash (see: “PROGRAMME TABLES”)
N.B.: When selecting a program, the led of maximum spin speed allowed by the program
selected will automatically light up. One of the leds (S) will light up to indicate the starting
wash cycle.
6. Select the required spin speed by pressing button (H) (see “VARIABLE SPIN”).
7. Select the (C) buttons with the functions required (see “OPTIONAL FUNCTIONS”)..
8. Press button (I) if required (see “DELAYED START”).
9. Press button (L) to start the wash cycle (see “START BUTTON”).
10. At the end of the wash cycle, turn the program selector knob (P) on “STOP”.
11. Open the door and remove the washing.
12. With dry hands, unplug the washing machine from the mains supply.
13. Close the water feed valve.
CL
IH
P
BS D
GB
21
22

54
SM2209
USING THE MACHINE
DELAYED START:
The machine is fitted with a delayed start function.This allows the washing machine
to be programmed to start the wash cycle up to 8 hours later. The delay in hours
can be selected as follows: press the button to set a delay of 1, 2, 4, 8 hours. When
the START button (L) is pressed, the selected led will flash or button (I) will light
up (according to the model), signalling that the function has been activated. The
machine will wait for the number of hours set to elapse and then start the wash
cycle automatically. 23
L
24
START BUTTON:
After having carried out all the operations described in points 1 to 8 in the para-
graph “WASHING CYCLE” press this button and the washing machine will begin
its washing cycle.
The relative LED will light up after 2-3 seconds, to indicate that the door is locked
and the program has started.
PROGRAMMER KNOB “STOP”:
STOP
25
OPTIONAL FUNCTIONS
If one of the buttons listed below is selected, then the corresponding led will light up. But if it
has been selected by mistake or you have changed your mind, simply press it again to cancel
the selection.
Press this button to run a short wash at a maximum temperature of 40°C of ap-
proximate duration 10 minutes.
This function can only be used with the “COTTON” and “SYNTHETIC” programmes
and DAILY”
N.B.When using this function, remember to put some detergent
in the pre-wash compartment too. 26
27
PREWASH:
ENERGETIC WASH:
Press the button and the machine will carry out a wash cycle at the set temperature
but lasting longer.
The button is active with “COTTON” and “SYNTHETICS” programs.
GB
The stop function resets the washing machine. If, for any reason, you want to change
the wash programme or add more washing to the load during the wash cycle, simply
place the programmer knob in position “STOP”, then re-position the knob on the new
programme and press the “START” button.
Warning!! only use this function if strictly necessary and then only if the
programme to reset has been running for a few minutes. Before open-
ing the door after a reset, wait 2 minutes for the locking mechanism to
release.

55
SM2209
28 The washing machine has been designed to reduce water consumption to a mini-
mum.
In very soft water areas, or in the case where detergent residues are noticed at the end
of the wash cycle, pressing this button will add one more rinse to the programme.
OPTIONAL FUNCTIONS
EXTRA RINSE:
When this button is pressed, at the end of the wash cycle, the items loaded in the
washing machine will continue to rotate for a further thirty minutes to reduce creasing.
With this function, the working spin speed is 800 rpm.
NB.The use of this function depends on the type of programme selected.
Consequently, if the wash programme does not include this function, the
button cannot be enabled (see “PROGRAMME TABLE”).
ANTI-CREASE:
29
The figure alongside shows the 4 main functions of a wash cycle: PREWASH - MAIN
WASH, RINSES, SPIN, END.
During the cycle, each of these functions is highlighted by a led informing the user
what the washing machine is doing at that moment.
After the spin phase, the corresponding led will stay lit for approximately 2 minutes;
this is the time lapse necessary before the door can be opened.
At this point, the “END” led will light-up.
MONITORING THE WASH:
30

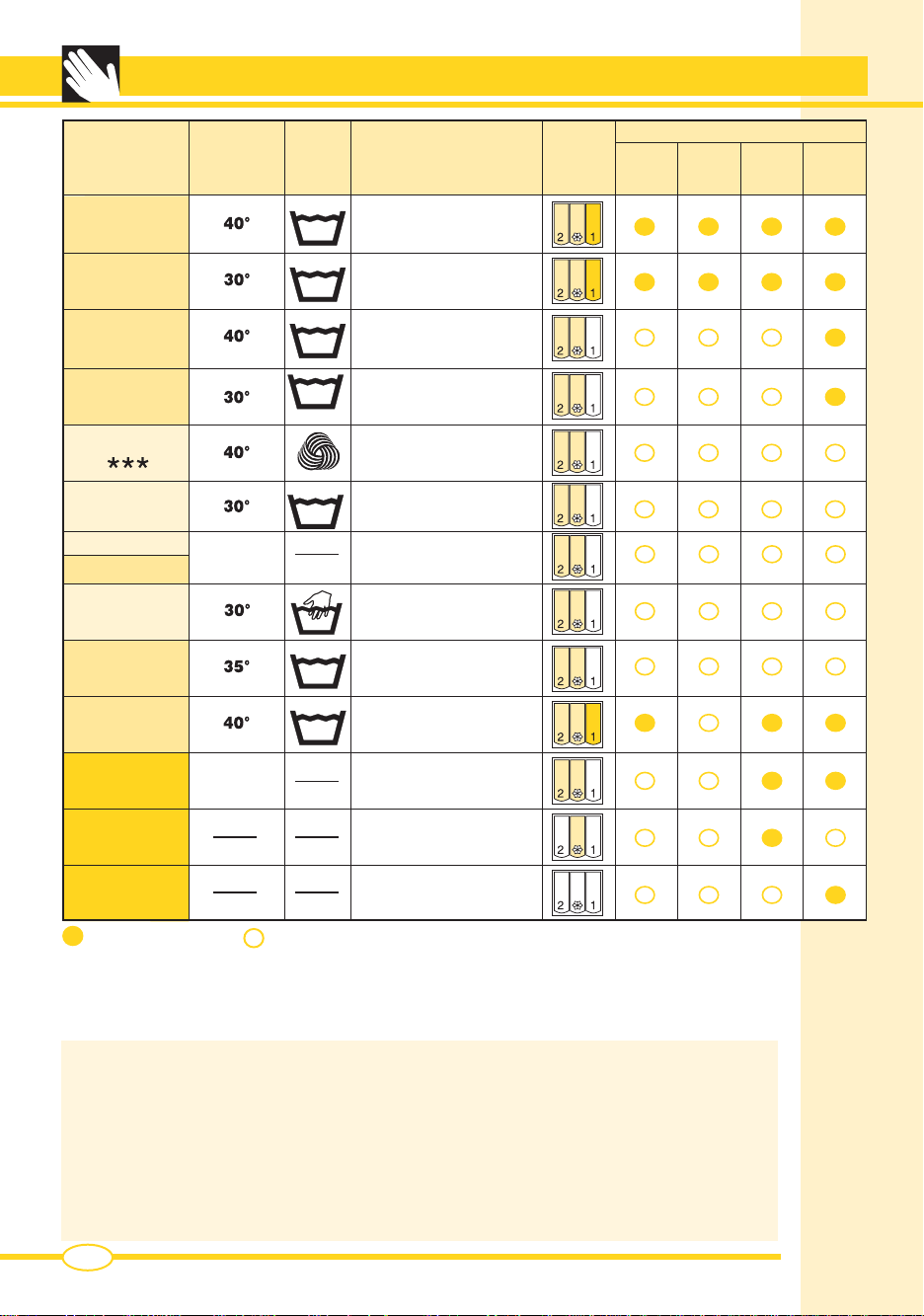

PROGRAMME TABLES
GB
90
75
60
40
30
60
FUNCTION ENABLED FUNCTION DISABLED OPTIONAL WITH PRE-WASH BUTTON PRESSED
* Reference programme for energy classification purposes according to standard EN 60456
3
Pre-wash
4
Intensive
wash
5
Extra rinse 6
Anticrease
COTTON
COTTON *
COTTON
COTTON
WHITE
/COLOURED
Detergent
compartment
PROGRAMMER
KNOB
WASH
TEMPERATURE
FABRIC TYPE
SYMBOL BUTTONS ENABLED
SYNTHETICS
Heavily soiled white cotton fabrics
with organic stains.
Sheets, shirts, tablecloths, towels
that are resistant and heavily soiled
For shirts, tablecloths, towels that
are resistant and normally soiled
White and coloured fabrics that
are resistant and heavily soiled
Delicate coloured fabrics
that are lightly soiled
Colourfast synthetic fabrics
that are heavily soiled

56
SM2209
PROGRAMME TABLES
GB
COLD
35
40
COLD
40
30
40
30
30
WOOL
HAND
WASH
FABRICS SILK
Machine washable wool
Hand washable fabrics
Delicate fabrics
To rinse and
refresh the washing
Drain and final spin
DRAIN AND
SPIN
RINSES
COLD WASH
COLD
Fabrics in delicate cotton,
viscose and mixed fibres, lightly
soiled, lasts about 35/40 min.
Fabrics in delicate cotton
and coloured fabrics, lightly
soiled and used daily
QUICK
WASH
DAILY
WASH
SYNTHETICS
SYNTHETICS
DELICATES
WOOL
WOOL
Delicate coloured synthetic fabrics
that are lightly soiled
Delicate coloured synthetic
fabrics that are lightly soiled
DELICATES
Delicate cotton, viscous and
mixed delicate fabrics
Delicate cotton, viscous and
mixed delicate fabrics
Machine washable wool
Machine washable wool
FUNCTION ENABLED FUNCTION DISABLED
Detergent
compartment
PROGRAMMER
KNOB
WASH
TEMPERATURE
FABRIC TYPE
SYMBOL BUTTONS ENABLED
3
Pre-wash
4
Intensive
wash
5
Extra rinse 6
Anticrease
*** The wool wash cycle of this machine has been approved by Woolmark for the washing of machine
washable Woolmark products provided that the garments are washed according to the instructions
on the garment label and those issued by the manufacturer of this washing machine. M0402-M0403-
M0404-M0405.
“EASY LOGIC”TECHNOLOGY
The electronic washing machine is fitted with an “EASY LOGIC” system that automatically
recognises the quantity of washing loaded. The machine can thus regulate the amount of
water to use for the wash and proportion the wash time accordingly, thus saving water, time
and energy. In the case where the amount of washing is less than the maximum recom-
mended load (see technical characteristics table), the quantity of water used for the wash
will be reduced by 2 litres for each kg less of washing. In the case of a half-load or less,
the machine will automatically carry out one rinse less than programmed. N.B. The “EASY
LOGIC” function is only active for cotton programmes.

57
SM2209
MAINTENANCE

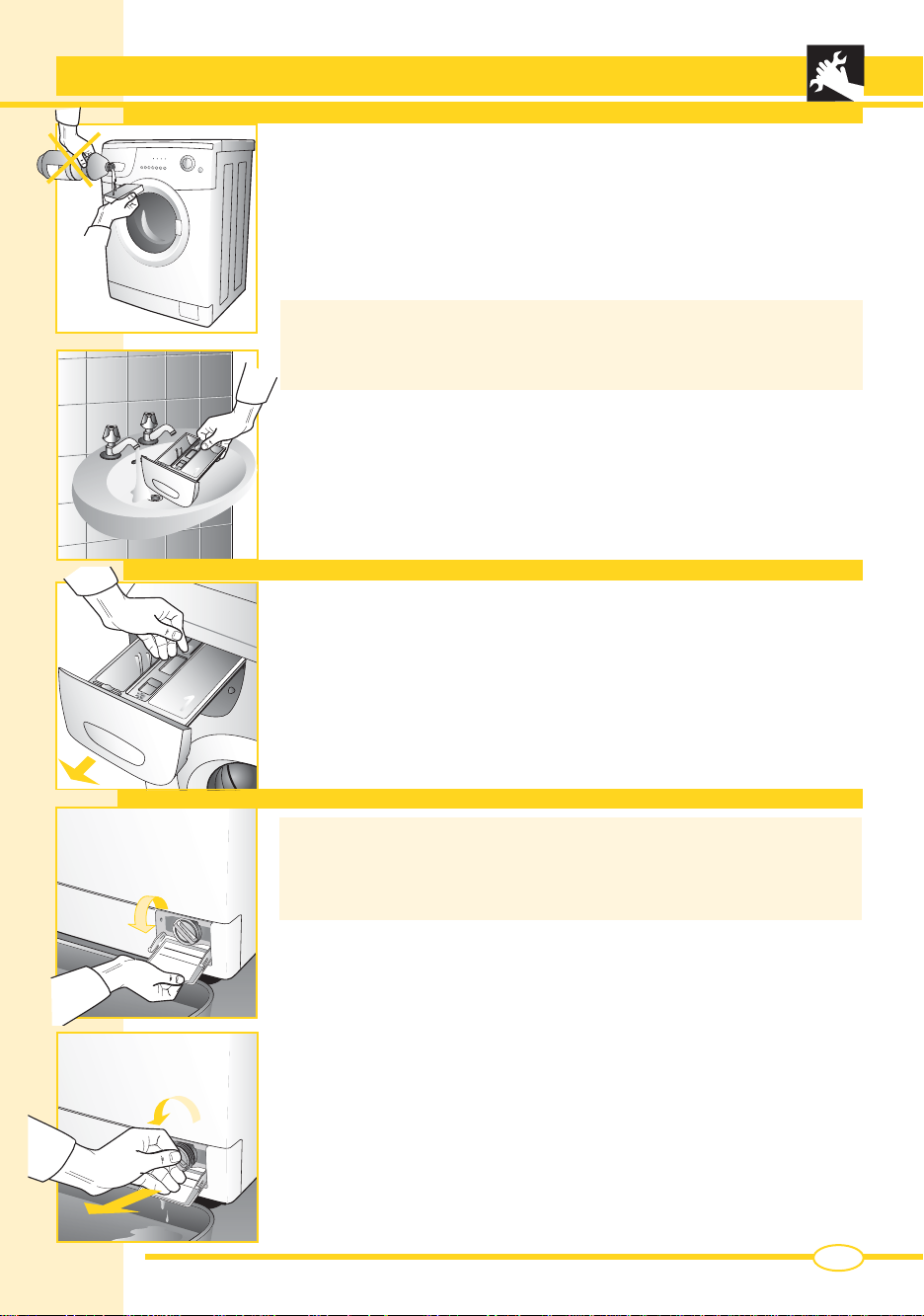

CLEANING THE FILTER
ATTENTION!! Before starting the operations described below, make
sure that the washing machine is empty. Do not remove
the filter while the machine is running, or when full of
water.
Place a cloth or flat plate under the filter to collect any water that may still be inside
it. Open the filter door, unscrew the filter and remove it, turning in an anticlockwise
direction (fig.24-25).
The filter must be cleaned periodically.
Rinse the filter under running water to eliminate all waste. Replace the filter, screwing
in a clockwise direction and making sure it is hermetically sealed.
CLEANING THE WASHING MACHINE
The washing machine has been designed to reduce maintenance to a minimum.
However, it is important that you remember to clean it regularly.
Before cleaning, make sure that the appliance has been disconnected from the power
supply and that the water supply tap has been turned off.
The external structure and the parts of the washing machine in plastic must be
cleaned with a soft damp cloth only.
WARNING!! Never use chemicals, abrasive products, alcohol, soap, petrol
or other solvents to clean the appliance as these may cause
damage. (fig.21)
After washing, leave the door open for a little while to allow rubber parts to dry.
Wash out the detergent compartments from time to time. To do this, extract the
detergent compartment and rinse it under running water, (fig. 22) then replace it.
REMOVING THE DETERGENT DRAWER
▼open the detergent drawer;
▼press on the word “PUSH” with the right hand and pull out the drawer with the
left hand (fig. 23)
22
23
GB
21
24
25

58
SM2209
TROUBLESHOOTING
If, after trying the above remedies, the machine still does not work, refer the fault to the nearest au-
thorised service centre.
When calling the service centre, inform them of the machine model, the serial number and the type of
fault.The data relating the appliance can be found on the rating plate affixed to the filter door.
This information will allow the technical service staff to select the appropriate spare parts, thus making
the repair service quicker and more efficient.
The washing machine does not work (warning
lights are off) (Display off)
• check that:
1) The mains power supply is working
2) The plug is inserted correctly in the socket
3) The On/Off button has been pressed, or if
there isn’t any, that the programming knob is
positioned on a program.
The washing machine does not work (warning
lights are off) (Display on)*
• check that:
1) The program has been selected
2) The glass door is properly closed
3) The ”Start” button has been pressed (elec-
tronic models only)
4) check the indications provided under ”The
washing machine does not fill with water”
The washing machine does not fill with water*:
• check that:
1) There is water in the water supply system
2) The water supply hose is connected to the
washing machine
3) The water supply tap is open
4) The filter is not blocked. If it is, clean the filter after
unplugging the appliance from the power supply
The washing machine continuously fills and
drains the water**:
• check that:
1) The drain hose has been installed at the
proper height (60-90 cm)
2) The end of the drain hose is not under water
The washing machine does not drain or spin**:
• check that:
1) The drain hose is properly connected
2) The drain hose is not bent
3) The drainage filter is not blocked
4) The no-spin function has not been selected
5) The “stop with water” function has not been
selected.
The washing machine vibrates and is noisy
• check that:
1) All the blocking elements used for transporta-
tion have been removed.
2) the washing machine is level
3) Bulky items such as sheets, tablecloths etc.
are not all in one part of the drum
The glass door does not open
• check that:
1) the wash cycle is finished.
2) the “stop with water” function has not been
selected (automatic on some models).
The washing has not been properly spun
• check that:
1) The washing is evenly distributed in the drum
2) The correct spin speed has been selected
The washing machine stops during the wash
• check that:
1) The mains power supply is working
There is still a lot of detergent in the compart-
ment
• check that:
1) The water supply tap is open
2) The filter between the tap and the supply
hose is clean
The washing is not clean at the end of the
wash cycle
• check that:
1) The drum is not overloaded
2) The correct amount of detergent has been used
3) The correct programme has been selected
The washing has shrunk or faded
• check that:
1) The correct washing programme has been
selected
2) The correct washing temperature has been
selected
The washing machine does not dry (washer-dryer
models only)
• Make sure that:
1) The water supply tap is open
2) The drainage filter is clean
3) The washing machine is turned on (spy light
or display on)
4) The drying program has been selected
5) The drying time has been set
If the appliance is not working properly, check through the following troubleshooting list before calling for
technical assistance.In some models malfunctions are shown with a code at the end of the cycle.
Code:
E:00 Carry out all checks listed in paragraphed marked with *
E:01 Carry out all checks listed in paragraphed marked with **
E:02 Technical malfunction “Call Customer Service”
E:03 Technical malfunction “Call Customer Service”
MAINTENANCE
GB

461306837 SM2209 23/10/2006
DE ITFR GB
