TC Electronic RebelHead450 User manual

RebelHead450
USER’S MANUAL

a
EN
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8 Do not install near heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of
time.
14 Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
• This equipment should be installed near the socket outlet and disconnection of the
device should be easily accessible.
• To completely disconnect from AC mains, disconnect the power supply cord from
the AC receptacle.
• The mains plug of the power supply shall remain readily operable.
• Do not install in a confined space.
• Do not open the unit – risk of electric shock inside.
Caution:
You are cautioned that any change or modifications not expressly approved in this
manual could void your authority to operate this equipment.
Service
• There are no user-serviceable parts inside.
• All service must be performed by qualified personnel.
IMPORTANT SAFETY INSTRUCTIONS
Voltage Line plug according to standard
110-125V UL817 and CSA C22.2 no 42.
220-230V CEE 7 page VII, SR section
107-2-D1/IEC 83 page C4.
240V BS 1363 of 1984.
Specification for 13A fused plugs and switched
and unswitched socket outlets.
Warning!
• To reduce the risk of fire or electrical shock, do not expose this equipment to
dripping or splashing and ensure that no objects filled with liquids, such as vases,
are placed on the equipment.
• This apparatus must be earthed.
• Use a three wire grounding type line cord like the one supplied with the product.
• Be advised that different operating voltages require the use of different types of line
cord and attachment plugs.
• Check the voltage in your area and use the correct type. Please refer to the
following table:

b
EMC/EMI
This equipment has been tested and found to comply with the limits for a Class B
Digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in residential installations. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For Customers in Canada:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
EMC / EMI & CERTIFICATE OF CONFORMITY
Certificate of Conformity
TC Electronic A/S, Sindalsvej 34, 8240 Risskov, Denmark,
hereby declares on own responsibility that the following
product:
RebelHead450
– Bass amplifier
that is covered by this certificate and marked with CE-label
conforms with following standards:
EN 60065 Safety requirements for mains operated
(IEC 60065) electronic and related apparatus for
household and similar general use
EN 55103-1 Product family standard for audio,
video, audio-visual and entertainment
lighting control apparatus for
professional use. Part 1: Emission.
EN 55103-2 Product family standard for audio,
video, audio-visual and entertainment
lighting control apparatus for
professional use. Part 2: Immunity.
With reference to regulations in following directives:
73/23/EEC, 89/336/EEC
Issued in Risskov, January 2009
Anders Faurskov
Chief Executive Officer

INTRODUCTION
Important Safety Instructions
& Certificate of Conformity . . . . . . . . . . . . . . . . . . .a-b
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Quick Setup Guide . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Rebel Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
APPENDIX
General Protection mode . . . . . . . . . . . . . . . . . . . . .17
Heat Protection mode . . . . . . . . . . . . . . . . . . . . . . .17
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .19
3
EN
TABLE OF CONTENTS

INTRODUCTION
4
Please note: We reserve the rights to change the contents of this
manual at any time. The latest manual revision can always be
downloaded from www.tcelectronic.com. If you need additional
information and support, be sure to visit TC Support Interactive – this
service can also be accessed via www.tcelectronic.com.

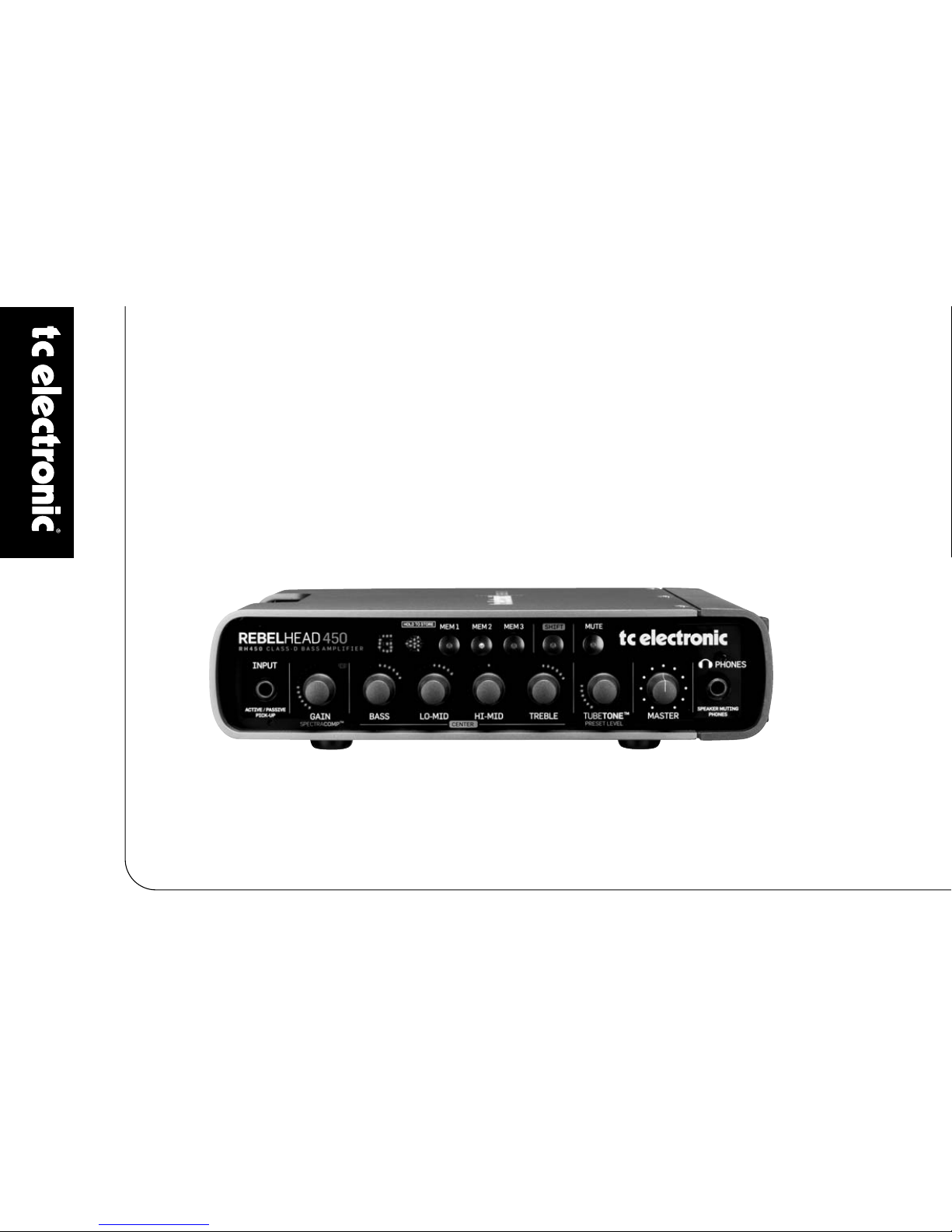

Congratulations on the purchase of your new RebelHead450 amp!
When it comes to designing revolutionary products, TC Electronic is used to ripping up the rulebook. After three decades of doing just
that in the guitar, studio and desktop music making markets – and designing many award-winning and revolutionary products along the
way – we have now applied this considerable expertise to the bass market. The result is the new RebelHead450 bass head,
RebelStack cabinets and RebelControl that combine to deliver an incredible bass rig, designed without compromise.
RebelHead450 is loud and proud but also hides extraordinary technology behind its traditional fascia. TC Electronic has a long
heritage of designing amps and, with its Active Power Management™, has effectively designed an amp that gives you all the character
of a tube amp while delivering 450 Watts of undiluted power.
RebelHead450 has traditional tone controls but also includes groundbreaking features giving the amp a personality and sound all of its
own. TubeTone™ emulates all of the characteristics of a traditional tube circuit to deliver an unparalleled and rich playing experience,
while SpectraComp™ gives you the best in studio quality compression for a live situation. With its “per string” compression,
SpectraComp™ delivers more bite and punch than any other compressor in any other bass amp system.
Ultimate flexibility, ultimate portability – Rebelhead450 is the ideal amp for the studio, road and rehearsal room. The compact 450 Watt
Class D amplifier design makes it easy to take anywhere and get great results, fast – no matter what the situation. With three on-board
user memories you can quickly swap sounds or instruments mid gig – an instant solution if you want to recall your favorite sonic
combinations or if you take more than one bass guitar with you on the road. And talking of the touring musician, Rebelhead450’s Auto-
sensing PSU means that you can plug and play safely in whatever country you find yourself in – no fuse changing necessary.
Finally a system that delivers everything that you need and more in a single amp.

If you just can’t wait…
Here are a few quick steps to get you playing within minutes
Unpacking
• Unpack your RebelHead450 amp.
• The box should contain the following items:
– RebelHead450 amplifier
– Power Cable
– RCA to mini jack cable
– Manual
• Inspect all items for signs of transit damage. In the unlikely
event of this having occurred, inform the carrier and supplier.
• Keep all the packaging if damage has occurred, as this will
show evidence of excessive handling force.
• It is also a good idea to keep the packaging for future
transportation.
Setting up
• Connect the Speaker Out jack of the amplifier to your
cabinet using a speaker cable. Both Speakon and ¼" jack
cables can be used. RebelStack cabinets come with a
speaker cable included, so if you have bought a RebelStack
cabinet, you are all set to go.
• You can connect up to three RebelStack cabinets or any
other two 8 Ohm cabinets of another brand to the amplifier.
(minimum load: 4 Ohm).
• Connect the power cable and power up. The RebelHead’s
power supply accepts voltages from 100 to 240 VAC.
• Connect your bass to the input jack on the front panel.
• Adjust the input gain using the GAIN knob.
• Adjust the output volume using the MASTER knob.
•Play!
Accessories
The following items can be purchased at your music dealer:
• RebelStack 210 and 212 cabinets.
• RebelControl: A pedal with four footswitches that can use to
switch between three memory locations and also to mute for
tuning purposes. This pedal also shows tuner information.
• 19" bracket that allows you to mount the amplifier in a
standard 19" rack.
• Soft bags for both the RebelHead amplifier and the
RebelControl.
• Flight cases for the RebelHead amplifier and the
RebelControl.
• Flight cases for both RebelStack cabinet models.
Be sure to check www.tcelectronic.com for latest news about
these and other TC products.
QUICK SETUP GUIDE
5
EN

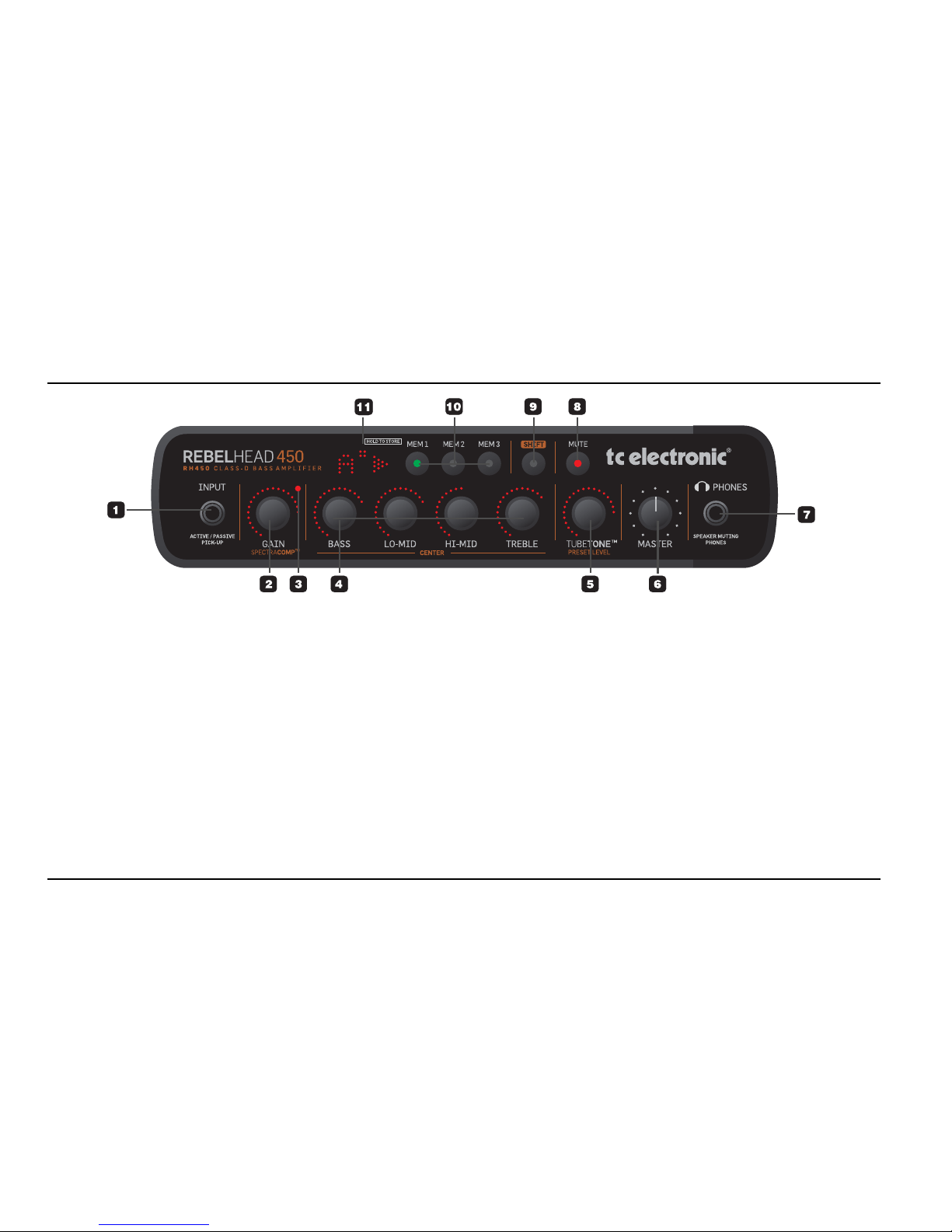

1 – INPUT
You can connect an active or passive bass to this ¼" input jack.
The RebelHead input stage is designed to adapt to any type of
pickup.
2+3 – GAIN & OVERLOAD LED
The input gain should be set to the highest possible level without
overloading the input stage. To find the correct setting, simply
plug in your bass, play and turn up the GAIN knob until the
OVERLOAD LED occasionally lights up. Then reduce the gain
slightly. When set, simply turn up the MASTER volume knob to
start playing.
2 – SPECTRACOMP™ (in Shift Mode)
Press the SHIFT button. Then turn the knob to adjust the
amount of SpectraComp compression.
SpectraComp™ uses a so-called spectral or multi-band
approach to compression, allowing for individual compression of
the low, mid and high frequency bands. Multiband compression
allows a significantly smoother and more transparent
compression without killing dynamics or tone.
SpectraComp™ is an advanced compressor, optimized to get
the best from a bass signal. If you simply want to hear it, press
the SHIFT button and turn the knob while playing. If you want to
know a bit more about what is going on behind the scenes,
please read the section “SpectraComp In Depth” below.
When you haven’t been using the RebelHead’s front panel
controls for about twenty seconds, the LED will flash rapidly, and
OPERATION – FRONT PANEL
6
Front Panel

the RebelHead will automatically return to normal mode. In
normal mode, the GAIN knob controls the amplifier’s gain level.
SpectraComp In Depth
Gain Reduction / Compression Meter
When using SpectraComp™, the light-ring around the GAIN
knob doubles as a compression meter, showing you how much
compression is applied to the signal.
Auto Make-up Gain
As compression by nature reduces the loudest parts and peaks
of the signal, you may feel that many conventional compressors
“eat” the level of your signal, resulting in a lower output volume.
SpectraComp™ automatically compensates for compression
gain reduction, giving you an even output volume.
Spectral Compression vs. Full Band Compression
Virtually any compressor on the market for bass is based on a
“full band” principle, meaning that the compressor will respond
and compress identically across the full (20 Hz to 20 kHz)
frequency range.
From the low E (or B) string to the G string: The electric bass
has a very wide dynamic range. When using standard
compressors, the low E string will – due to its higher energy –
control when and how the compressor responds to and shapes
the entire signal. The typical result is that either the G string is
not compressed at all or that – just when the G string starts to
sound right –, the low E string is compressed too strongly. In
other words: You are constantly dealing with a tight and difficult
compromise.
With Spectral Compression, the RebelHead amplifier uses a
different approach that allows for independent compression of
the Low, Mid and High frequency areas. This way, the right
amount of compression is added to the individual strings of your
bass, resulting in a smoother and much more transparent
compression.
4 – TONE Controls
The RebelHead has four tone controls: Bass, Lo-mid, Hi-mid
and Treble. These controls have been tuned carefully to address
four relevant bass frequency areas, and should allow you to dial
in your sound with ease.
As you know, each instrument has its own sound characteristics.
So if you feel that the RebelHead450’s tone controls don’t grab
exactly the frequencies your particular instrument requires, you
can change the center frequencies of the four EQ bands.
Changing Tone Control Frequency
You can change the control frequencies of all four frequency
bands. This is sometimes referred to as “parametric bands” or
“sweepable”.
Normally, the BASS, LO-MID, HI-MID and TREBLE knobs are
used to set the gain of each EQ band. To change the center
frequency of an EQ band, press the SHIFT button once and then
adjust a band’s center frequency by turning its knob.
OPERATION – FRONT PANEL
7
EN

Sometimes “sweepable” tone controls can be a bit
tedious to work with. Here is an easy step-by-step
guide to adjusting RebelHead’s Low-mid band to your
bass and setup:
• Boost the LO-MID band – the more you boost, the easier it
is to find the right frequency.
• Hit the SHIFT button to get access to the center frequency
of the EQ bands.
• Now, while playing your bass, slowly turn the LO-MID knob
to sweep the low-mid frequency across the frequency range.
• When you find the frequency that you prefer to control,
simply hit the SHIFT button again to switch back to gain
control and set the right amount of low-mid gain.
Example:
Press SHIFT and turn the
LO-MID knob to change the
center frequency of that
control.
While the RebelHead is in Shift mode, the SHIFT button
will be blinking to remind you that you are in Shift mode.
When you haven’t been using the RebelHead’s front
panel controls for about twenty seconds, the LED will
flash rapidly, and the RebelHead will automatically return
to normal mode.
Gain and Frequency Ranges
Bass Freq range: 71 Hz to 1120 Hz (default: 280)
Bass Gain range: -24 dB to +15 dB
(Shelving type)
Low Mid Freq range: 100 Hz to 1600 Hz (default: 400)
Low Mid Gain range: -24 dB to +15 dB
(Fixed 2.1 oct.)
High Mid Freq range: 200 Hz to 3150 Hz (default: 800)
High Mid Gain range: -24 dB to +15 dB
(Fixed 2.1 oct.)
Treble Freq range: 400 Hz to 6300 Hz (default: 1600)
Treble Gain range: -24 dB to +12 dB
(Shelving type)
OPERATION – FRONT PANEL
8

5 – TUBETONE™
Tubetone™ allows you to alter the “personality” and sound of
your RebelHead. The effects you can achieve range from a
small touch of classic tube amp response and character through
obvious, but pleasant “tube attitude” to highly overdriven.
Contrary to many tube simulations, Tubetone™ recreates both
the entire preamp section (located before the tone control
section) and the power amp section (located after the tone
controls). Not only does this give you the most realistic and
flexible recreation of the actual tube sound and response, but it
also allows you to alter the behavior and character of
Tubetone™ through the RebelHead tone controls as you would
on an actual tube amp.
The TUBETONE knob adjusts the amount of both the preamp
and the power-amp tube simulation.
5 – PRESET LEVEL (in Shift Mode)
Press SHIFT and then turn the TUBETONE knob to adjust the
level of the currently selected MEM/preset. When you haven’t
been using the RebelHead’s front panel controls for about
twenty seconds, the LED will flash rapidly, and the RebelHead
will automatically return to normal mode. In normal mode, the
TUBETONE knob controls the intensity of the Tubetone™ effect.
Range: -12 dB to 0 dB
6 – MASTER
Use the MASTER level knob to set the overall output level of the
amp. The master level also controls the level of the headphone
output.
7 – PHONES
This is a ¼" connector for headphones. Our studio quality
headphone amp – with a mild speaker filter added to the bass
sound – caters for great sound in the headphones.
The headphone output also plays back any signal connected to
the AUX IN (“Rehearsal”) input jack found on the rear panel of
the RebelHead. This feature allows you to play along with e.g.
an MP3 player (e.g. an iPod®), a signal from a computer
soundcard or any other audio source playing background tracks
– excellent for rehearsing or checking out new tracks without
disturbing the neighbors.
Notice that the RebelHead works equally well with or
without a speaker cabinet connected.
OPERATION – FRONT PANEL
9
EN

The headphone volume is controlled by the MASTER level knob.
When a set of headphones is connected to the PHONES jack,
the speaker output on the rear panel of the RebelHead is
disabled. This is a very convenient feature when you want to use
a “silent mode” at night: There is no need to disconnect the
speaker cabinet.
In order to set the right level balance between the
Auxiliary input signal and your bass sound, use the
preset level feature. Level settings are stored as a part
of RebelHead MEM’s.
8 – MUTE
The MUTE button not only mutes the speaker and headphones
outputs, but also the balanced output. This means that you can
tune up with no sound going to your own rig or to the PA.
9 – SHIFT
The SHIFT button is used to access the secondary functions
marked with red text on the RebelHead’s front panel. The
following controls have secondary functions:
Normal mode Shift mode (press SHIFT)
GAIN SpectraComp Depth
EQ (1-4) EQ Bands Center Frequencies
TUBETONE Preset/Memory Level Settings
When you haven’t been using the RebelHead’s front panel
controls for about twenty seconds, the RebelHead will return to
normal mode, where the knobs control the primary functions
printed in white.
10 – MEM 1/2/3
The RebelHead features three user memories which allow you
to effortlessly store and recall your favorite settings.
Storing settings is extremely simple:
– Dial in the settings that you like
– Press and hold one of the MEM buttons for circa two
seconds.
– When the MEM button blink, your settings have been stored.
– To recall a MEM-setting, simply press the corresponding
MEM button once.
What is stored?
Any parameter that is operated by a light ring knob is stored.
This means the settings of all front panel controls – apart from
the Master level, the SHIFT and MUTE buttons – are stored.
Why MEM-settings?
Even though a lot of bass players tend to play with the same
sound most of the time, a lot of players do have a couple of
different basses, playing styles, pickup settings or other factors
that requires amp settings to be changed. We figured that it
would be handy to simply push one button instead of fiddling
with several knobs.
OPERATION – FRONT PANEL
10

Remote Control
The RebelHead’s optional remote control – the “RebelControl” –
allows for floor recall of all three MEM-settings as well as mute
and tuner display.
11 – TUNER
The RebelHead is equipped with a fully chromatic, high
accuracy bass tuner. The tuner is always active, whether the
RebelHead is in Mute mode or not. Here is how you read the
display:
The played note is shown on the left side of the display.
On the right side of the display,
–acircle indicates that the note is in tune.
– an arrow pointing right indicates that the note is too low and
should be tuned up.
– an arrow pointing left indicates that the note is too high and
should be tuned down.
Too low – tune up Too high – tune down In tune
Sharp notes: C#, D#, F#, G# and A# are indicated as follows:
Example – A#
The tuner also offers a Mute mode with additional tuner
information. To activate Mute mode, simply press the MUTE
button. Now the BASS tone control turns into a high resolution
pitch indicator supporting the Note and Arrow field of the tuner.
Too low – tune up Too high – tune down In tune
Tuner information is also displayed in the optional RebelControl
footswitch. Yes, this is correct: If you have a RebelControl
footswitch, you do no longer need a separate tuner. Please refer
to the manual section “RebelControl” to learn more about the
footswitch.
Tuner Reference
The RebelHead’s default tuner reference is 440 Hz, like with any
other tuner. However, you can select any reference frequency
between 438 and 445 Hz.
This is how you select the tuner reference frequency:
– If the RebelHead is switched on, switch it off.
– Press and hold the MUTE button during power up.
OPERATION – FRONT PANEL
11
EN

– The RebelHead now powers up in Tuner reference mode,
which is illustrated by an “R” in the Display (see illustration
below).
Tune Reference mode
– Dial the BASS tone control to alter the tuner reference. The
center position equals 440 Hz, and each LED represents
one Hertz. So to set the tuner reference frequency e.g. to
438 Hz, turn the BASS knob counter-clockwise until the
second LED on the left lights up.
– Press the MUTE button to exit Tuner Reference mode.
Please note that the tuner’s reference frequency is
remembered even after powering the unit off.
OPERATION – FRONT PANEL
12

The optional RebelControl footswitch not only allows you to
remote access the RebelHead’s three memory locations (MEM
1/2/3), but also to mute the signal for silent tuning and even view
the tuner information. No power-supply is needed for the
RebelControl as it receives its power from the RebelHead amp.
1 – Memory Switches 1, 2 and 3
Press one of the three numbered buttons to recall the settings
stored in the associated MEM-location. A green light ring around
the switch indicates that this MEM-setting has been recalled (activated).
– Note that you can only recall a MEM-setting if a setting has
actually been stored in a memory location.
– Also note that as soon as you change one of the stored
settings on the RebelHead front panel, the green light ring
on the footswitch will be unlit. This indicates that the
positions of the front panel knobs no longer correspond with
the stored settings.
2 – MUTE button
Press the M(ute) button to mute the RebelHead’s outputs. This
is useful for tuning or e.g. unplugging/changing your bass.
The MUTE button also mutes the RebelHead’s
balanced output, allowing you to tune silently, even
when connected to the PA system.
3 – DISPLAY
The display always indicates tuner information in a couple of
different ways. The detected note is shown on the left side. On
the right side of the display, a circle indicates that the note is in
tune, an arrow pointing to the right indicates that the note should
be tuned up, and an arrow pointing to the left indicates that the
note should be tuned down. In addition to these indications (that
are also shown on the RebelHead tuner display), a line of nine
dots below the display indicates how far from the target pitch the
currently played note is. When only the center dot is lit, the note
is in tune.
Too low – tune up Too high – tune down In tune
REBEL CONTROL
13
EN

1 – MAINS IN – Power In & POWER switch
The RebelHead’s auto-sensing switchmode power-supply
accepts any mains voltage from 90 to 240 volts – you do not
have to change settings, fuses or anything else. Simply connect
a standard IEC three pin connector to the local mains voltage,
and you are up and running. This is particularly handy when you
use the RebelHead on a tour.
The ground pin of the PSU must be connected in order to
avoid voltage differences between e.g. the PA and the
RebelHead.
2 – SPEAKER OUT
Use the SPEAKER OUT combo connector for connecting the
RebelHead to your cabinet(s). You can use a speaker cable with
either Speakon or ¼" jacks. Do NOT use instrument cables!
The RebelHead can be used to drive any cabinet combination of
up to three RebelStack 210/212 units, or any other cabinet
combination with a 4 Ohm minimum load.
OPERATION – REAR PANEL
14
Rear Panel

3 – REMOTE IN
Use the REMOTE IN jack to connect the RebelHead to the
optional footswitch-remote “RebelControl”.
The RebelControl gives you access to the three memory
locations, the mute function, and has tuner indication as well.
The RebelControl
4 – DIGITAL OUT
Use the DIGITAL OUT jack to connect the RebelHead’s digital
output stage directly to a digital audio device, such as a
computer’s audio interface. This way, you can record your bass
sound straight into Pro Tools, Logic or any other DAW
application. The digital output signal is in 96 kHz/24 bit AES/EBU
format. This ensures the highest possible resolution and quality
of your recorded bass signal. To determine where in the signal
chain the signal for the digital output should be tapped, use the
PRE/POST switch located right beside the LINE DRIVER OUT
jack on the RebelHead’s rear panel. Your bass signal is present
on both Left and Right digital channel.
Setting up for recording:
In order to record straight from the RebelHead’s digital output,
follow these steps:
– Connect the RebelHead’s DIGITAL OUT jack to your DAW.
– Set your DAW to follow (slave to) “external clock”.
– Hit the record button in your DAW and start playing.
SPDIF Compatibility
While a simple XLR to RCA converter may suffice to allow
recording through an SPDIF interface, please note that AES/
EBU and SPDIF have different level and impedance specifications,
which in some cases can cause compatibility problems.
If you want to record with an analog signal instead, you
may also use the RebelHead’s balanced output signal
from the LINE DRIVER OUT jack.
5 – AUX IN Rehearse – Stereo Rehearsal Auxiliary Input
Any signal present on the stereo AUX IN jacks is played back
through the PHONES output on the front of the RebelHead. This
allows you to play along with a rehearsal track when checking
out new stuff or to practice to a beat or just a metronome click.
The included “Mini jack to RCA” cable allows you to use iPod®,
iPhone® or any other consumer playback device as a source for
rehearsing.
OPERATION – REAR PANEL
15
EN

In order to set the right level balance between the
Auxiliary input signal and your bass sound, use the
preset level feature. Level settings are stored as a part
of RebelHead MEM-settings.
6 + 7 – INSERT PREAMP I/O – Effects Loop/Break point
These jacks provide a break point between the RebelHead’s
preamp section (which includes SpectraComp™, Tone controls
and the TubeTone™ module) and the power amp section. This
break point can be used as a regular serial effects loop for
inserting e.g. modulation effects or other external devices.
Linking Two Amps
The break point may also be used to link two RebelHead units
together to achieve even more power.
– Use a standard ¼" jack instrument cable to connect the first
RebelHead PRE-AMP OUT (the upper) to the second
RebelHead’s POWER-AMP IN (the lower jack).
– Plug your bass into the INPUT jack on the first RebelHead
and adjust your sound using the controls on this RebelHead.
– Set the volume using the MASTER volume knobs of both
amps. You now have tons of amplification power at your
fingertips!
8 – LINE DRIVER OUT – Balanced Line Out
Use the LINE DRIVER OUT jack to connect the RebelHead to
the PA when you play on stage or to connect your amp to a
recording device when you are in the studio.
To determine where in the signal chain the signal for the
balanced output should be tapped, use the PRE/POST switch
located right beside the LINE DRIVER OUT jack.
The RebelHead’s MUTE button mutes the balanced
output (as well as the speaker and headphones
outputs). This means that you can tune up with no
sound going to your own rig or to the PA.
The RebelHead’s balanced output has been designed with the
utmost care for the sound. This is achieved through a galvanic
isolated transformer coupling. The active design by far out
performs most standard DI boxes around, and it is capable of
driving long cable hauls. No phantom power is required.
Ventilation
Be sure not to cover the black cooling plate of the RebelHead!
Insufficient ventilation may cause the amplifier’s temperature to
increase.
If the RebelHead is insufficiently ventilated, it may go into
Heat Protection mode, which is indicated by an “H” on the
front panel display.
OPERATION – REAR PANEL
16

Introduction
The RebelHead is equipped with an intelligent protection
system, ensuring that the amp does not suffer or malfunction if
operated wrongly or in extreme environments.
General Protection mode
If the RebelHead’s display indicates “P”, the amp is in Protection
mode.
Protection mode is invoked if for some reason a short-circuit
situation occurs. In Protection mode, the speaker outputs are
shut off so that the speakers cannot be damaged by a
shortcut.The balanced output, digital recording out and the
effects loop, however, are still passing audio in Protection mode.
To remedy the problem, try turning off the RebelHead for a
minute and then turn it on again. If the display still indicates “P”,
you will have to send the RebelHead to a qualified service-
center for inspection.
Heat Protection Mode
If the display indicates an “H”, the amp is too hot. This is rarely
seen, but a few extreme situations can invoke this mode:
a) If the amplifier is used in an environment that is too hot, or if
proper ventilation is not ensured.
b) Cabinets or combinations of cabinets must load the amplifier
with a minimum of 4 Ohm. A maximum of three RebelStacks
can be used or two 8 Ohm cabinets of any other brand.
If e.g. the speaker output is loaded with only 2 Ohm or less
and you drive the RebelHead at very high volumes over a
long period of time, the amplifier enters Heat Protection
mode.
In both situations, proceed as follows:
– Turn off the amplifier.
– Solve the issues.
– Allow the amplifier to cool off for a few minutes.
– Turn on the amplifier again.
APPENDIX – MISCELLANEOUS
17
EN

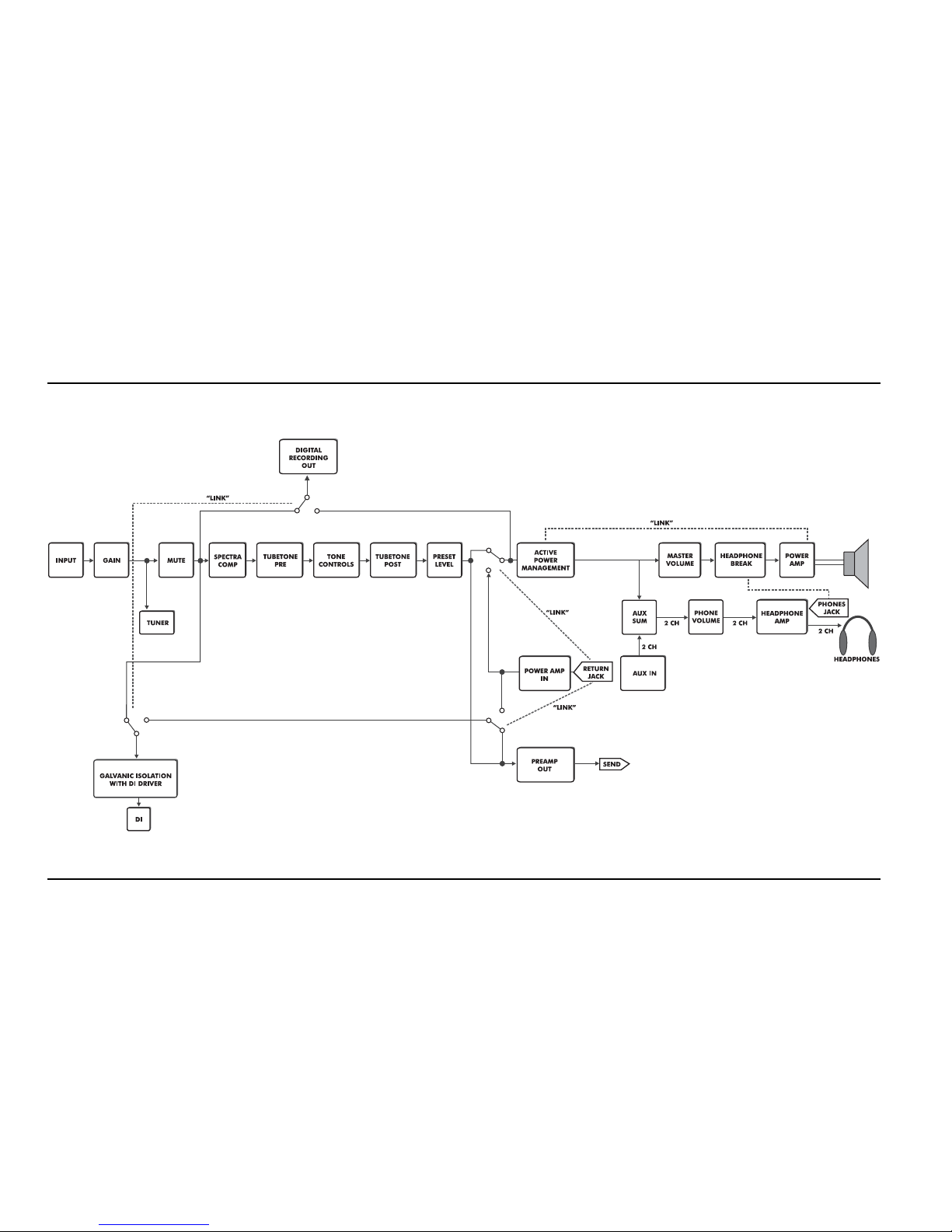

APPENDIX – SIGNAL FLOW
18
