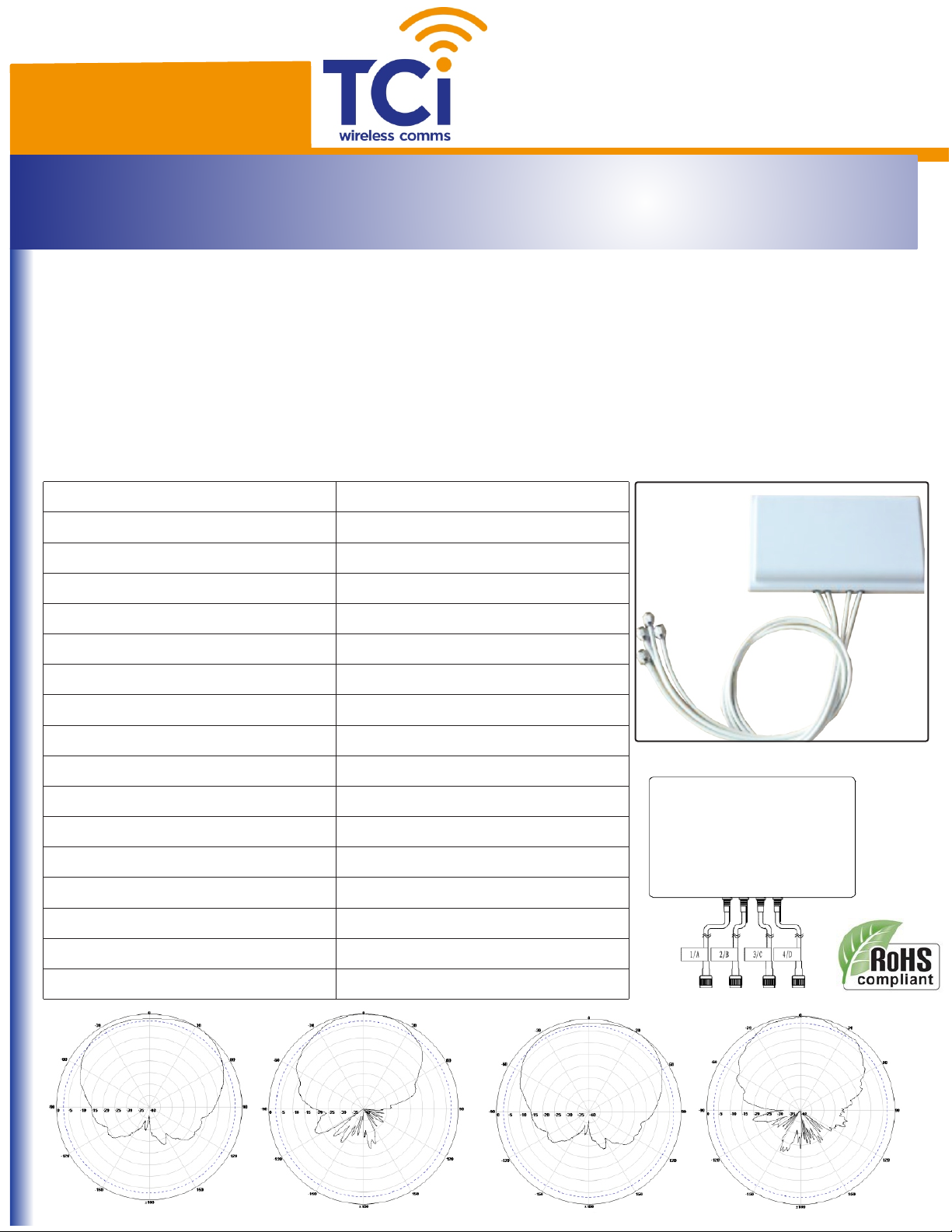

TCi TCANT441 Guide

Providing more 4 wireless
802.11n/ac 2.4/5 GHz quad patch antenna is designed to operate with many manufacturers' enterprise-class 802.11n
and 802.11ac MIMO access points (APs). Whether deploying a new 802.11ac-only network or overlaying 802.11ac
onto your existing 802.11n network, this quad patch antenna can operate in both environments.
The antenna comes with four RPTNC Plug connectors, 36" cables and an articulating mount. With dual-band leads,
each cable supports both 2.4 and 5 GHz, making it an ideal antenna to support demanding indoor or outdoor
applications utilizing 802.11n and 802.11ac wireless communication systems. The antenna radome is designed with
withstand challenging environments where this is exposure to moisture and dust. The articulating mount allows for
multiple mounting options on either a wall or a mast/pole.
Specifications
Part Number
TCANT441
Frequency Range
2400~2500 / 5150~5850 MHz
Bandwidth
100 / 700 MHZ
Gain
6 dBi
Vertical Beamwidth
60° / 70°
Horizontal Beamwidth
105° / 125°
VSWR
Typical < 2.0
Normal Impedance
50 Ohms
Polarization
Vertical
Isolation
< 20dB
Max Power
20W
Lightning Protection
N/A
Connector
4 x RPTNC Plug with 36" / 914mm Cable
Dimensions
10" x 5.6" x 1.4" / 254mm x 142mm x 35mm
Weight
1.2lbs / 0.544KG
Operating Temperature Range
-40°F to +158°F / -40°C to 70°C
Wind Load
60 mph
01487 710 555
www.tci-wireless.co.uk
Dual Band 6 dBi 802.11 n/ac Outdoor Directional
Antenna With RPTNC Connectors
5 GHz
2.4 GHz

Providing more 4 wireless
01487 710 555
www.tci-wireless.co.uk
Dual Band 6 dBi 802.11 n/ac Outdoor Directional
Antenna With RPTNC Connectors
Mounting Information
Installation Instructions:
1. Place the bracket on the back of the panel antenna. Attach the antenna to the mast
2. Use the client to test and adjust the receive signal strength(RSSI) and adjust the
azimuth and elevation to maximize the RSSI. Tighten each nut and seal the antenna
connector.
