TCL TS7010 User manual

2.1 Channel Home Theater Sound Bar
TS7010
User manual

Product Registration
Please register your purchase on-line at www.tcl.com. It will
make it easier to contact you should it ever be necessary.
Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service
and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These
numbers are located on the product.
Model No. ____________________________________________
Purchase Date ________________________________________
Serial No. ____________________________________________
Dealer/Address/Phone _________________________________

1
Contents
Contents
1 Important safety instructions 3
Important information 3
Important safety instructions 5
2 Welcome 10
What’s in the box 10
Overview of the Sound Bar main unit 12
Overview of the wireless subwoofer 14
Overview of the remote control 15
Set up your Sound Bar system 17
3 Connect your Sound Bar system 23
Connect with the HDMI cable 23
Connect with the optical cable 25
Connect with the 3.5mm-to-3.5mm audio cable 27
Connect your Sound Bar to power supply 28
Connect the Sound Bar with your Bluetooth device 29
Connect your wireless subwoofer to the Sound Bar 31
Connect the IR pass-through cable 33
4 Use your Sound Bar system 34
Use your Sound Bar with the top panel or remote
control 34
Sound settings 36
Listen to music from your Bluetooth device 37
Use the USB cable or device for music playback 38

2
5 Specications 40
6 Notice 41
Declaration of conformity 41
Disposal of your old product and battery 41
Trademarks 43
7 FAQ 44

3
1 Important safety
instructions
Important information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Thelightningashwitharrowheadsymbol,withinan
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the

4
product’senclosurethatmaybeofsucientmagnitudeto
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
This symbol indicates that this product incorporates
double insulation between hazardous main voltage and
user accessible parts. When servicing, use only identical
replacement parts.
Warnings
•To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on or near the product.
•The product is unstable if it is not properly placed
or mounted to the wall. Be sure to follow the wall
mounting instructions provided in this user manual to
ensure your safety.
•Do not expose batteries to excessive heat such as
sunshine, re, and so forth.

5
Important safety instructions
•Read these instructions - Read all the safety and
operating instructions before operating the product.
•Retain these instructions - Retain the safety and
operating instructions for future reference.
•Heed all warnings - Adhere to all warnings on the
product and in the operating instructions.
•Follow all instructions - Follow all operating and use
instructions.
•Do not use this apparatus near water – The appliance
should not be used near water or moisture – for example,
in a wet basement or near a swimming pool and the like
•Clean only with a dry cloth.
•Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers)thatproduceheat.
•Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plugdoesnottintoyouroutlet,consultanelectricianfor
replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where it exits from the product.

6
•Use only attachments/accessoriesspeciedbythe
manufacturer.
•Use only with the cart, stand, tripod, bracket, or table
speciedbythemanufacturer,orsoldwiththeapparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
•Unplug this apparatus during lightning storms or when
unused for long periods of time.
•Refer all servicingtoqualiedservicepersonnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.

7
Cautions
•To prevent electric shock, match wide blade of plug to
wide slot, fully insert.
•The product shall not be exposed to dripping or
splashing.
•Do not place any sources of danger on the product (for
example.liquidlledobjects,lightedcandles).
•Disconnectthepowercordtoshutowhenndtrouble
or not in use. The power cord shall be readily operable.
•Use of controls or adjustments or performance of
procedures other than those described herein, may
result in hazardous radiation exposure or other unsafe
operation.
•The power cord/appliance coupler is used as the
disconnect device, the disconnect device must remain
readily operable.
Battery caution and disposal information
•Install only new batteries of the same type in your product.
•Failure to insert batteries in the correct polarity, as
indicated in the battery compartment, may shorten the life
of the batteries or cause batteries to leak.
•Do not mix old and new batteries.
•Do not use rechargeable (Nickel Cadmium) or (Nickel
Metal Hydride) batteries.
•Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Nickel Cadmium) or (Nickel Metal Hydride)
batteries.

8
•Donotdisposeofbatteriesinreorwater.
•Recycle or dispose of batteries as per state and local
guidelines.
•Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
•When the remote control is not to be used for a long time
(more than a month), remove the battery from the remote
control to prevent it from leaking.
•If the batteries leak, wipe away the leakage inside the
battery compartment and replace the batteries with new
ones.
•Keep away the batteries from heat or moisture.
•Do not carry or store batteries with other metallic objects.
Doing so could cause batteries to short circuit, leak or
explode.
•Do not carry or store batteries with other metallic objects.
Doing so could cause batteries to short circuit, leak or
explode.
•Neverrechargeabatteryunlessitisconrmedtobea
rechargeable type.
Installation location
•Thisproductisdesignedtositonarm,atsurface.Do
not place the product on built-in installation such as a
bookcase or rack because the ventilation slots around
the product will be blocked, resulting in reduced lifetime
from overheating. To assure adequate ventilation for this
product, maintain a spacing of 7.8 inches (20cm) or more
around the product.

9
•Make sure the product on the furniture is of adequate size
and strength to prevent it from being accidentally tipped
over,pushedo,orpulledo.Thiscouldcausepersonal
injury and/or damage to the product.
•Installation of wall mount must be carried out by
qualiedpersonnelonly.Incorrectassemblycanresult
in severe personal injury and property damage (if you
intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing
that may be buried inside the wall). It is the installer’s
responsibility to verify that the wall will safely support the
total load of the product and wall mount brackets.

10
2 Welcome
Congratulations on the purchase of your new TCL Sound
Bar! After it is set up and connected, you can experience
a superb sound quality and state-of-the-art design to best
tyourhomeentertainmentsystem.Youarerecommended
to read through this user manual which helps you set up,
connect and operate the product easily and properly. For
more information, visit www.tcl.com
Let’s get started.
What’s in the box
Sound Bar main unit
Remote control
Wireless subwoofer
AAA battery x 2

11

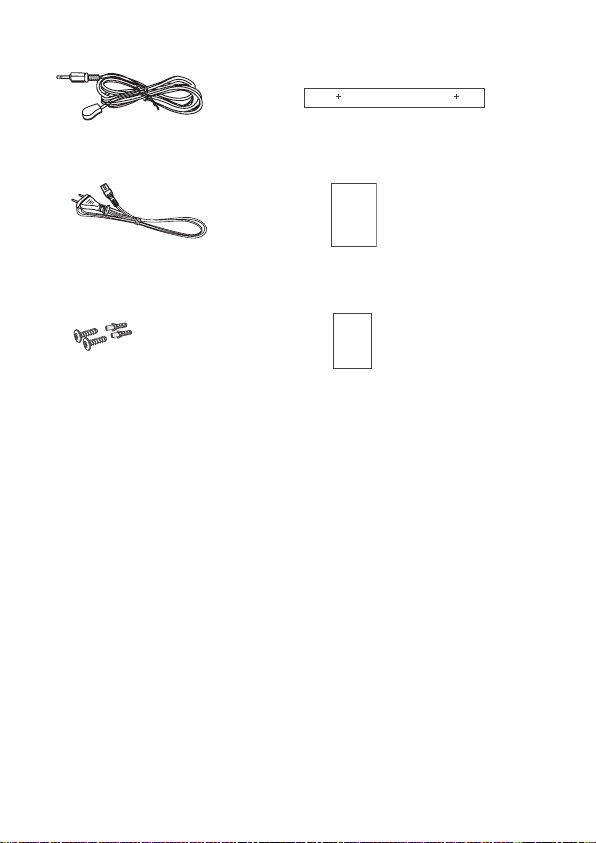

IR pass-through cable
AC power cord x 2
Wall screw (M3.6) x 2
Wall anchor x 2
Wall mount template
QSG
Quick start guide
Warranty
Warranty card

12

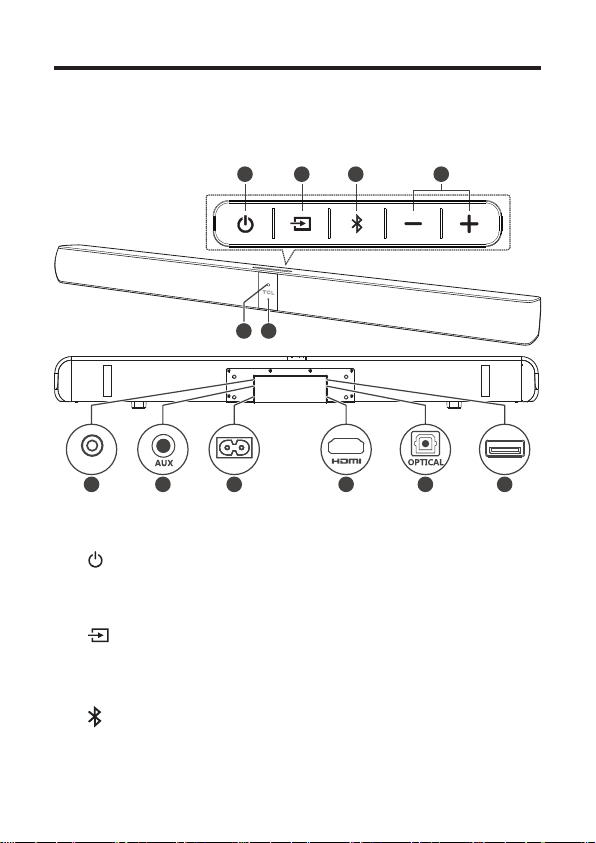

Overview of the Sound Bar main unit
65 7
1 2 3 4
USB
7 8 9 10 11 12
~AC IN
IR pass-through
1
Press to turn the Sound Bar main unit on or to standby
mode.
2
Press to switch the audio source among
HDMI/USB/AUX/Bluetooth/Optical modes.
3
Press to select the Bluetooth function.

13
4 +/-
Press to increase or decrease the volume level.
5 Remote control sensor
Receive signals from the remote control.
6 LED indicator
Red: in standby mode.
Purple: in HDMI mode.
Green: in AUX mode.
Blue: in Bluetooth mode.
Yellow:inOpticalmode.
White: in USB mode.
7 IR pass-through cable connector
8 AUX input connector
9 AC input power connector
10 HDMI ARC connector
11 Optical input connector
12 USB Type A connector (only for music playback)

14

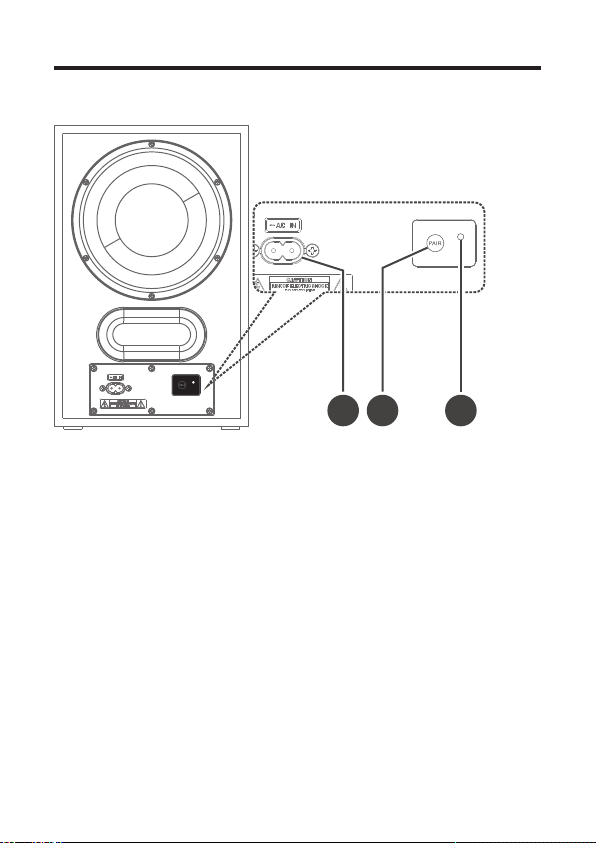

Overview of the wireless subwoofer
2 31
1 AC input power connector
2 PAIR
Press to activate pairing with the Sound Bar main unit.
3 Blue LED indicator
• ashesslowlywhenthesubwooferisinstandby
mode.
• ashesslowlywhenpairingisinprogress.
• remains on solidly when pairing is successful.

15

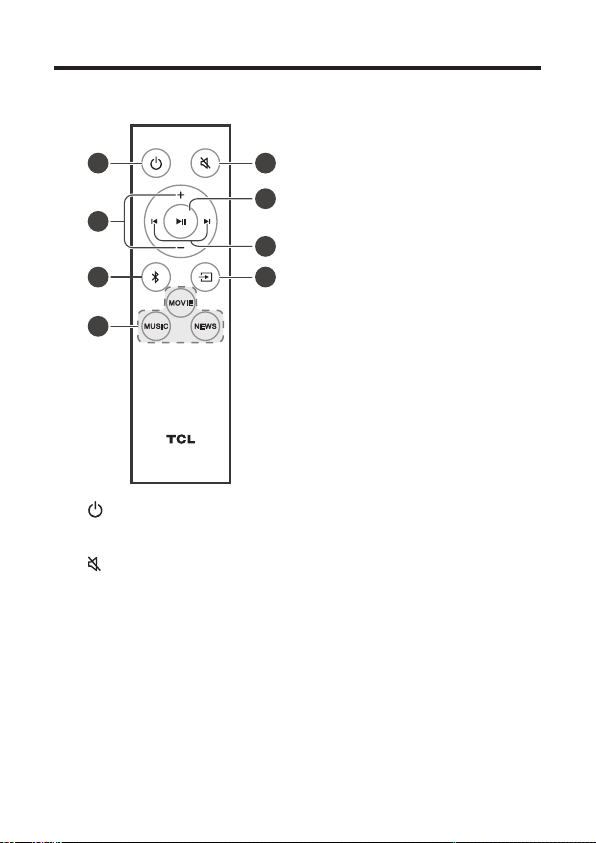

Overview of the remote control
1
6
8
3
4
5
2
7
1
Press to turn the Sound Bar on or to standby mode.
2
Press to mute or unmute the sound.
3 +/-
Press to increase or decrease the volume level.

16
4
Play/pause/resume playback in Bluetooth/USB mode.
Press and hold for 3 seconds to disconnect the
Bluetooth function.
5 /
Press to skip to previous or next track in Bluetooth/USB
mode.
6
Press to switch the audio source to Bluetooth mode.
7
Press to switch the audio source among
HDMI/USB/AUX/Bluetooth/Optical modes.
8 NEWS/MOVIE/MUSIC
Presstoselecttheequalizer(EQ)eectwhenyouare
watching news or movies or listening to music.

17
Set up your Sound Bar system
Notes
•Make sure you read all the safety information before
you mount the Sound Bar main unit on the wall. (see
‘Important safety instructions’ on page 5).
•Makesureyouusescrewsprovidedorspeciedbythe
authorized manufacturer.
•TCL Entertainment Solutions Limited bears no
responsibility for accidents or damage caused by
improper wall mounting and screws installation or
insucientwallstrength,etc.
•Additional tools (not supplied) are required for
installation.
Mount your Sound Bar main unit on the wall
YoucanchoosetoplaceyourSoundBarmainunitbelowthe
center of your TV or mount it on the wall.

18
A B
1 Place the supplied wall mount template on the wall.
Make sure the wall mount template is at least 2 inches
(5cm) below the center of the TV.
2 Use a level to make sure the Sound Bar is positioned
accurately.
3 Usethetapetostickthewallmounttemplatermlyon
the wall.
4 Mark on the wall using each marking on the template
through the mounting holes.
5 Take away the wall mount template.
6 Drill a screw hole at each marking on the wall.
> 5cm
TV
TV
