TDC 21880 User manual

5 Piece Sofa Set
Steel Frame with Powder Coating
INSTRUCTIONS
Chair Parts 3
Chair Assembly 4-7
Corner Chair Parts 8
Corner Chair Assembly 9-12
Table Parts 13
Table Assembly 14-16
Last Step 17
Warranty 18-19
Customer Service
1-800-599-8898

5 Piece Sofa Set
2 Item #21880
5 Piece Sofa Set
Item #21880 3
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898

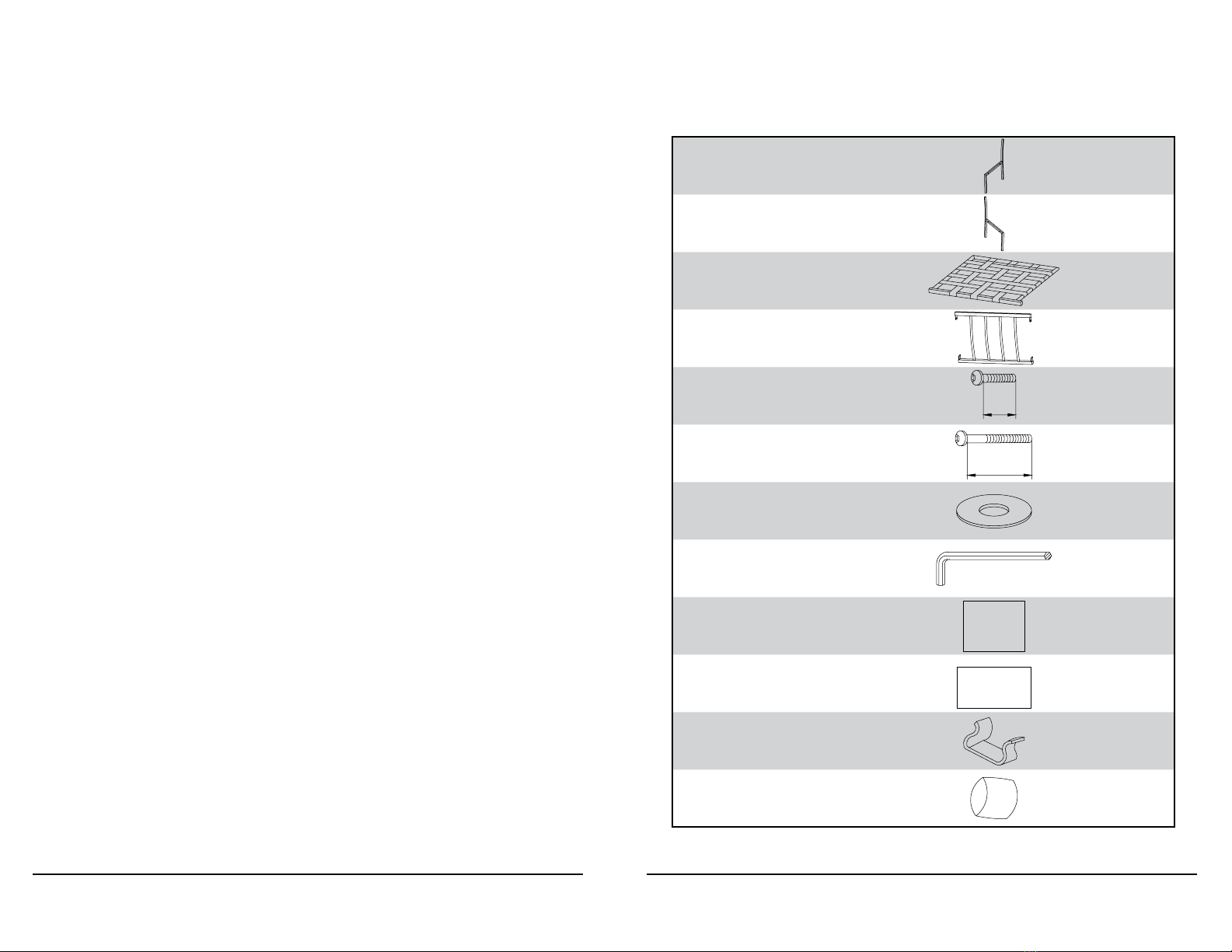

ARight Leg 2
BLeft Leg 2
CSeat 2
DBack 2
FM6 * 15 Screw 8
GM6 * 40 Screw 12
HWasher 20
AA Hex Key 1
XSeat Cushion 2
YBack Cushion 2
WClip 3
UPillow 2
Chair Parts
Identify all parts packaged in carton against the parts list. Remove
all protective materials and place parts on a non-abrasive surface
to avoid scratching. If any parts are missing or damaged, DO NOT
attempt to assemble. Please contact our customer service center
(Monday-Friday 9:00am – 5:00pm EST) at 1-800-599 -8898 or email:
[email protected].
Caution: Read all the instructions before assembly. Failure
to do so may result in faulty assembly and potential injury!
Assemble product on a soft, non-abrasive surface such as a
carpet or cardboard to avoid damaging the item. Seek assistance

sure all bolts and nuts are securely tightened with screw covers
pressed in place.
Getting Started
Getting Started
Chair Parts
M6×15
M6×40

5 Piece Sofa Set
4 Item #21880
5 Piece Sofa Set
Item #21880 5
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898

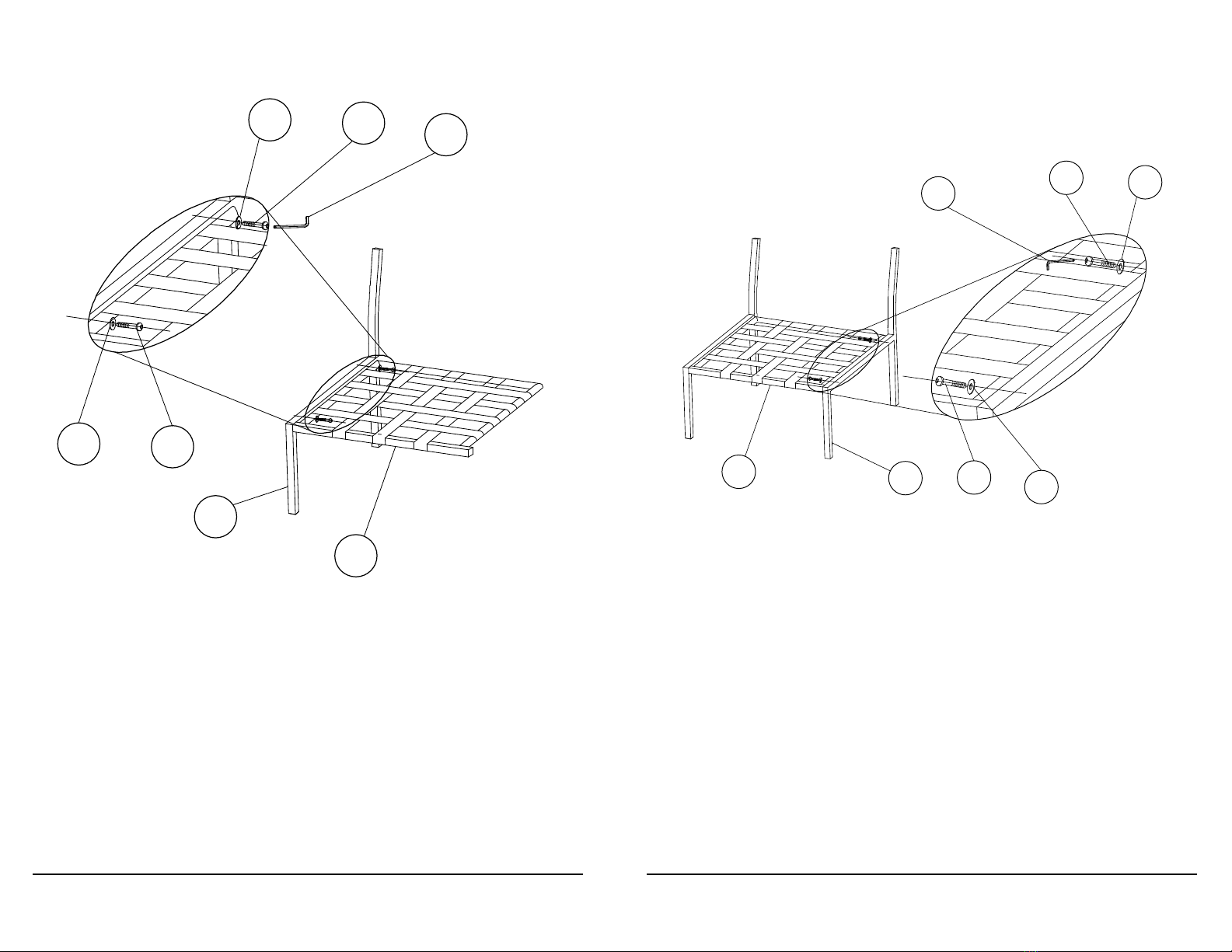

Step 1:
Attach Seat (C) to Right Leg (A) using Screw (G) and Washer (H).
Chair Assembly Instructions
Step 2:
Chair Assembly Instructions
Attach Seat (C) to Left Leg (A) using Screw (G) and Washer (H).
HG
AA
HG
A
C
GG
AA
H
C
G
BGH

5 Piece Sofa Set
6 Item #21880
5 Piece Sofa Set
Item #21880 7
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Chair Assembly Instructions Chair Assembly Instructions

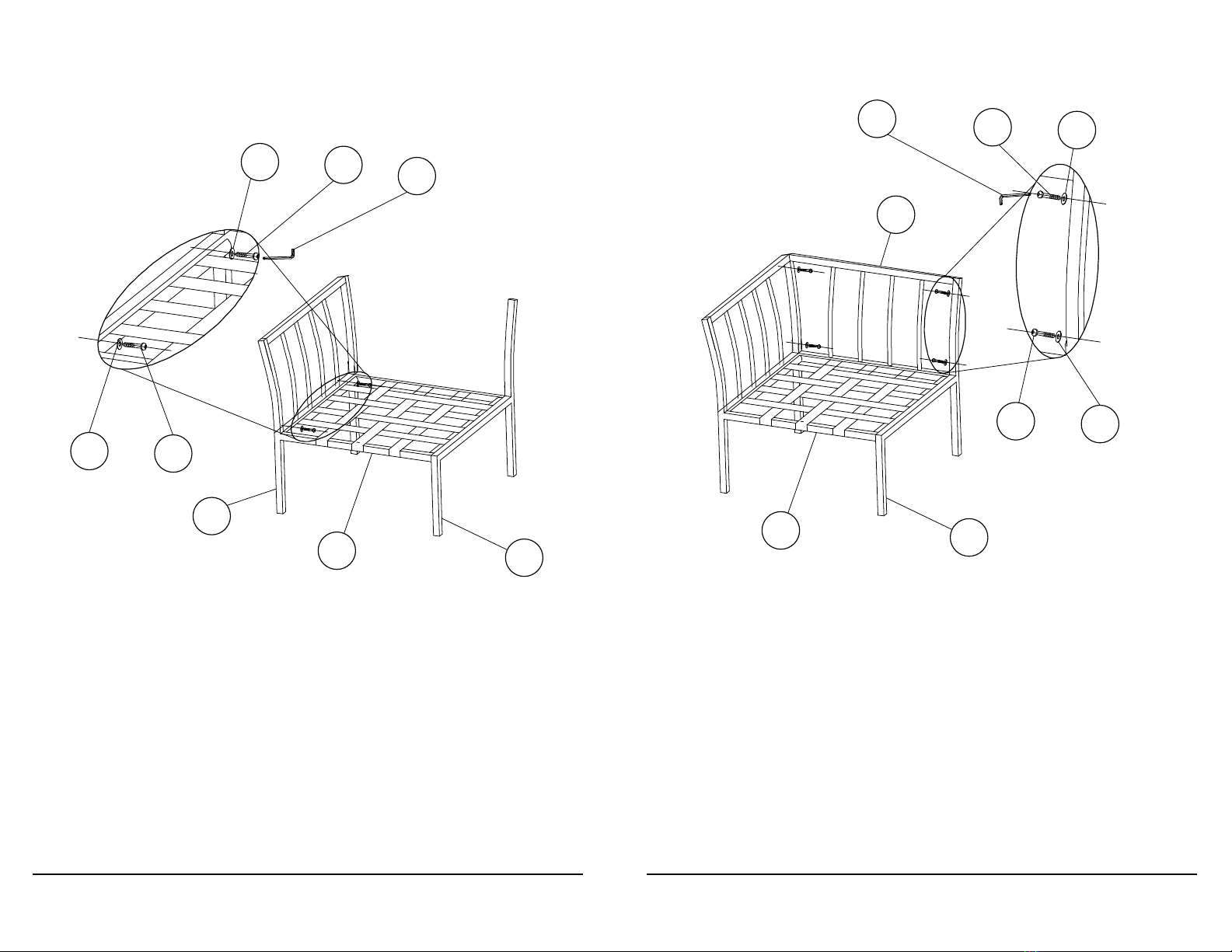

Step 3:
Attach the Back (D) to the Right & Left Legs (A & B) using Screw (F)
and Washer (H). Screw the Seat (C) to Back (D) using Screw (G) and
Washer (H).
Step 4:
Place the Seat Cushion (X) and Back Cushion (Y) onto the completed
frame. Add the Pillow (U).
AA
FH
D
C
FH
U
Y
X

5 Piece Sofa Set
8 Item #21880
5 Piece Sofa Set
Item #21880 9
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
A1 Right Leg 2
BLeft Leg 2
C1 Seat 2
D1 Back 2
FM6* 15 Screw 8
GM6* 40 Screw 12
HWasher 20
AA Hex Key 1
XSeat Cushion 2
YBack Cushion 2
ZSide Cushion 2
WClip 3
Corner Chair Parts
Corner Chair Parts
M6×15
M6×40
Step 1:
Attach Left Leg (B) to Seat (C1) using Screw (G) and Washer (H).
Corner Chair Assembly Instructions
AA
GH
C1
BGH

5 Piece Sofa Set
10 Item #21880
5 Piece Sofa Set
Item #21880 11
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Step 2:
Corner Chair Assembly Instructions
Attach the Seat (C1) to the Right Leg (A1) using Screw (G) and Washer
(H).
AA
G
A1
H
HG
C1
B
Corner Chair Assembly Instructions
Step 3:
Screw the Back (D1) into Right Leg (A1) and Left Leg (B) using Screw
(F) and Washer (H). Screw the Seat (C1) to Back (D1) using Screw (G)
and Washer (H).
AA
F
C1
H
H
F
B
D1

5 Piece Sofa Set
12 Item #21880
5 Piece Sofa Set
Item #21880 13
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Corner Chair Assembly Instructions
Step 4:
Place Seat Cushion (X) onto the Seat (C1). Place Back Cushion (Y)
upright onto the Back (D1). Place Side Cushion (Z) upright onto the
Right Leg (A1).
Y
Z
X
PTable Rim 1
QTable Glass 1
RTable Leg 4
FM6 * 15 Screw 8
HWasher 8
AA Hex Key 1
Table Parts
Table Parts
M6×15

5 Piece Sofa Set
14 Item #21880
5 Piece Sofa Set
Item #21880 15
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Step 1:
            
Table Legs (R) to the corner of the Table Rim (P) using Screw (F) and
Washer (H).
AA
F
H
R
P
Step 2:
Turn the assembled table to its upright position and place the Table
Glass (Q) onto the Table Rim (P).
Q
Table Assembly Instructions Table Assembly Instructions

5 Piece Sofa Set
16 Item #21880
5 Piece Sofa Set
Item #21880 17
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Last Step:
Position the chairs to your desire and place the Clip (W) onto two legs
to keep the chairs from separating. Clips will need to be placed in the
front and back of the adjoining legs.
W
Last Step Assembly Instructions
All furniture manufactured and sold by TDC USA, Inc. is warranted to the original
purchaser against defects in workmanship and materials. If a product manufactured by
TDC fails during the rst year from date of purchase under the terms of our limited
warranty, TDC will replace the item at no charge. After one year, it will be the original
purchasers’ responsibility to pay for freight and packing. TDC reserves the right, in the
case of discontinued or out of production models, to replace with an item of similar
quality. (Glass breakage is not warranted.)
Note: You must retain original receipt to obtain warranty!
Frames:
Frames are warranted against defects in materials and workmanship from the date of
original purchase. Damage to frames or welds due to commercial use, improper assembly,
exposure to water and sub-freezing temperatures, and/or abuse are not covered.
Fabric:
Fabric on cushions, slings, and umbrellas is warranted against separation at the seams.
Fading, mildew, and/or discoloration due to exposure to elements, chemicals, and spills
are not covered.
Powder coat and/or Paint:
The nish is warranted against blistering, peeling, or cracking. Fading resulting from
exposure to elements, chemicals, and spills are not covered. Scratches and chips due to
normal wear and use are not covered
Umbrella:
Umbrella frames are warranted against manufacturer’s defects in workmanship and
materials.
Safety Warning! Umbrellas must be closed when not in use and taken down in windy
conditions.
Limited Warranty
LIMITED WARRANTY
Please contact our service hotline by phone, email or fax before
sending the device. This allows us to provide support in the event
of possible operator errors.

5 Piece Sofa Set
18 Item #21880
Customer Service 1-800-599-8898
Limited Warranty
Freight & Packing:
TDC will be responsible for shipping, handling, and packaging charges for all valid
warranty claims.
Care & Maintenance:
Be careful to never allow water build up in frames as this will cause corrosion and freeze
damage in cold climates. Wash all frames with a solution of mild soap and water. Rinse
with clean water and dry with a soft absorbent cloth towel. Frames can be treated with
a liquid wax for maximum protection against UV rays and/or salty damp air. If your
set includes cushions, slings, and/or an umbrella, they may be cleaned by hand with a
solution of soap and water with a clean water rinse.
EXCLUSION:
• Damage caused by acts of nature
• Wind damage
• Failure caused by unreasonable, unanticipated or abusive use
• Failure caused by a lack of reasonable and necessary care and maintenance
• Normal fade of fabrics, upholstery or woven materials
• Glass table tops
• Bursting or cracking of tubing due to exposure to water and freezing
temperatures
• Changes in wood color due to the natural aging of the wood
Lack of original receipt will void warranty.
Customer Service: Monday-Friday 9:00am-5:00pm EST
By Phone: [phone]
By E-mail: suppor[email protected]
.

Distributed By T.D.C. USA INC.
Fairfield, NJ 07004
©2016 All Rights Reserved. Made in China
?/Comments: 1-800-599-8898 9am-5pm EST
www.tdcusainc.com
