General information
1
Manufacturer:
Street:
City:
Telefone:
E-mail:
Website:
Tec4med Lifescience GmbH
Otto-Hesse-Straße 19 | T9
64293 Darmstadt
+49 (0) 6151 - 360 37 00
www.tec4med.com
Thank you for choosing SmartTag
To ensure quick commissioning, it is necessary that you read and fol-
low the following instructions and descriptions thoroughly.
1.1 Identification of the manufacturer
1.2 Scope of delivery
Quantity
1x
1x
1x
SmartTag
USB-C charging cable (optional)
Probe (optional)
Description
Before commissioning the unit, check that all parts included in
the scope of delivery are present.
5

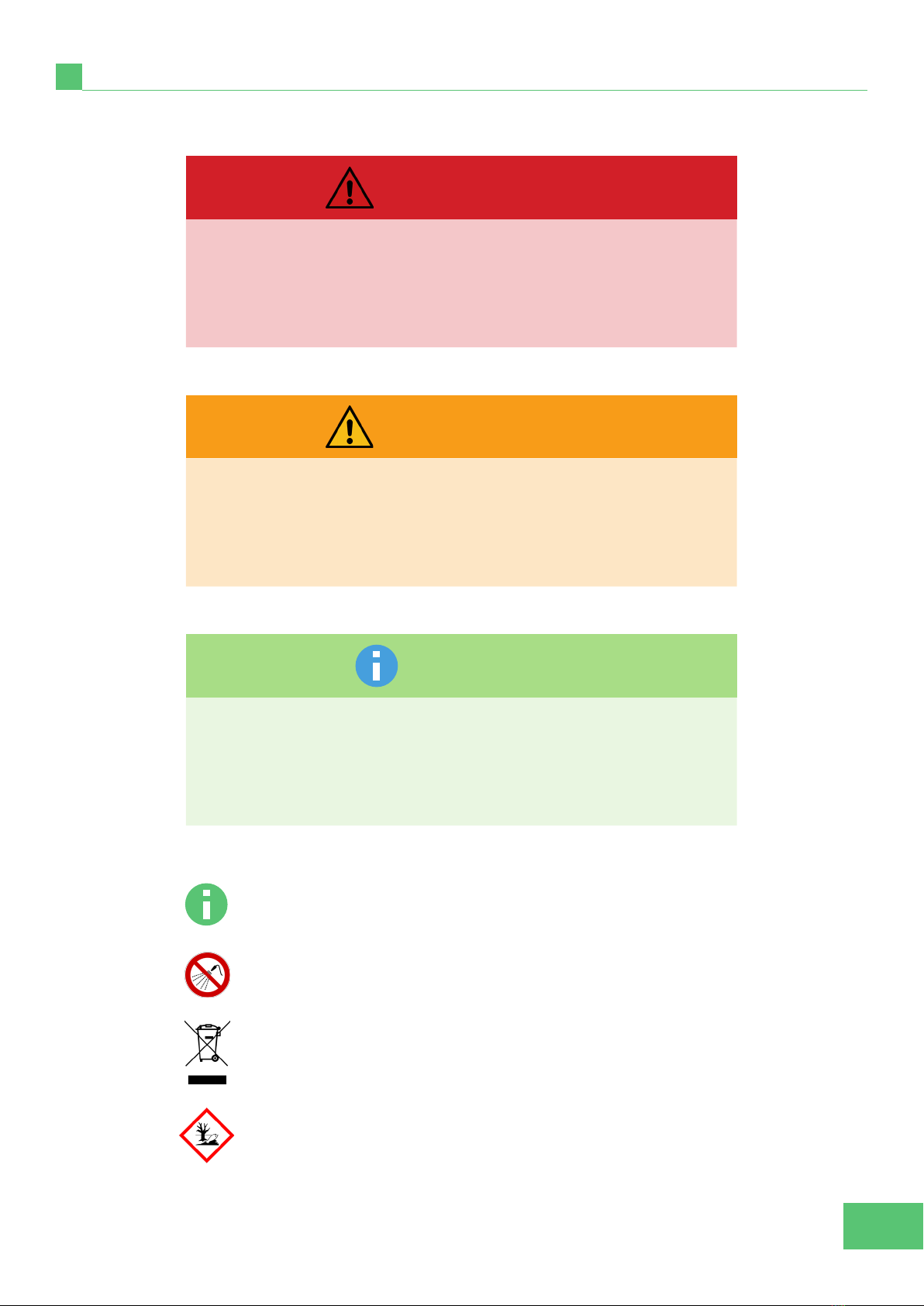

DANGER!
WARNING!
INFO!
This symbol means an immediate dan-
ger to the life and health of persons
This symbol indicates possible risks to
property and/or the environment.
This symbol indicates important facts
and particularly useful information.
Tips for saving energy.
No splash water.
Electrical appliances must not be dispo-
sed of with household waste.
Environmentally hazardous.
2Presentation of safety instructions
6
3Notes for the customer
3.1 Purpose of the operating instructions
This instruction manual contains important information for the safe,
correct and sustainable operation of the appliance. Following the in-
structions will help to avoid hazards, reduce repairs, increase reliability
and extend the life of the unit.
Please keep the operating instructions for future reference.
The latest version of these operating instructions can be downloaded
at any time. Use the following link or QR code to access the latest ver-
sion:
www.tec4med.com/support
3.2 Liability and warranty
All information in these operating instructions is given to the best of
our knowledge and belief based on our experience and knowledge to
date.
The original version of these operating instructions was prepared in
German and English and checked for technical accuracy by our com-
pany. The translation into the customer’s national language/contract
language was carried out by a recognised translation agency.
These operating instructions have been prepared with the utmost
care. Should you nevertheless find gaps and/or errors, please notify us
at the above address. Your suggestions for improvement will help us
to design a user-friendly manual.
3.3 Copyright
All rights are expressly reserved. These operating instructions may not
be reproduced or their contents passed on to third parties in any form
without our written consent.
Danger!
7
• If the unit has visible damage, it must not be put into operation. If the
charging cable of the appliance is damaged, it must be replaced by
the manufacturer or another qualified person to avoid danger.
• Repairs to this appliance must only be carried out by qualified
personnel. Improper repairs can pose significant risks.
• Disconnect the appliance from the power supply before any cleaning
and maintenance and after each use.
• Compare the voltage specifications on the rating plate with the
available power supply.
Only connect the appliance as follows:
• With the charging cable to a 5 V USB power supply.
• Never pull the plug out of the socket by the charging cable.
• The batteries may only be replaced by Tec4med Lifescience GmbH
or authorised partners.
• Risk of fire if battery is replaced by an incorrect type
• Do not dispose battery into fire or a hot oven, or mechanically crushing
or cutting of battery, that can result in an explosion; dispose according
to the local regulations
• Do not leave battery in an extreme high temperature surrounding
environment that can result in an explosion or leakage of flammable
liquid or gas
4Basic safety instructions
A basic requirement for the safe handling and trouble-free operation
of this appliance is knowledge of the basic safety instructions. It is not
permitted to use the unit for any purpose other than that specified by
the manufacturer.
Never open the housing of the unit. Repair work on the device may
only be carried out by Tec4med LifeScience GmbH or authorised
workshops. Defective parts or components may only be replaced by
parts approved by Tec4med LifeScience GmbH. Warning!
Warning!
Warning!
Danger!
Danger!
Danger!
4.1 Instructions to prevent reasonably foreseeable misuse
8
5Description of the unit
5.1 Functional description
The SmartTag is a multifunctional and flexible real-time tracking solu-
tion. It can be integrated into any interlogistic process at box, pallet,
container, truck or warehouse level. Integrated sensors measure tem-
perature, humidity, vibrations, light, air pressure, and geo-position and
send them to the cloud software via the mobile network.
The SmartTag itself can be used as a stand-alone real-time monitoring
system. It works as a live logger.
There are generally two versions of the SmartTag:
The single-use version (SmartTag S/SP) can only be used once with a
lifetime of up to one year. The multi-use version (SmartTag M/MP) can
be recharged and used multiple times.
The SmartTag operates as the link to the Tec4Cloud System, oering
full Internet-of-Things functionality via mobile connectivity worldwide.
5.2 Construction and components

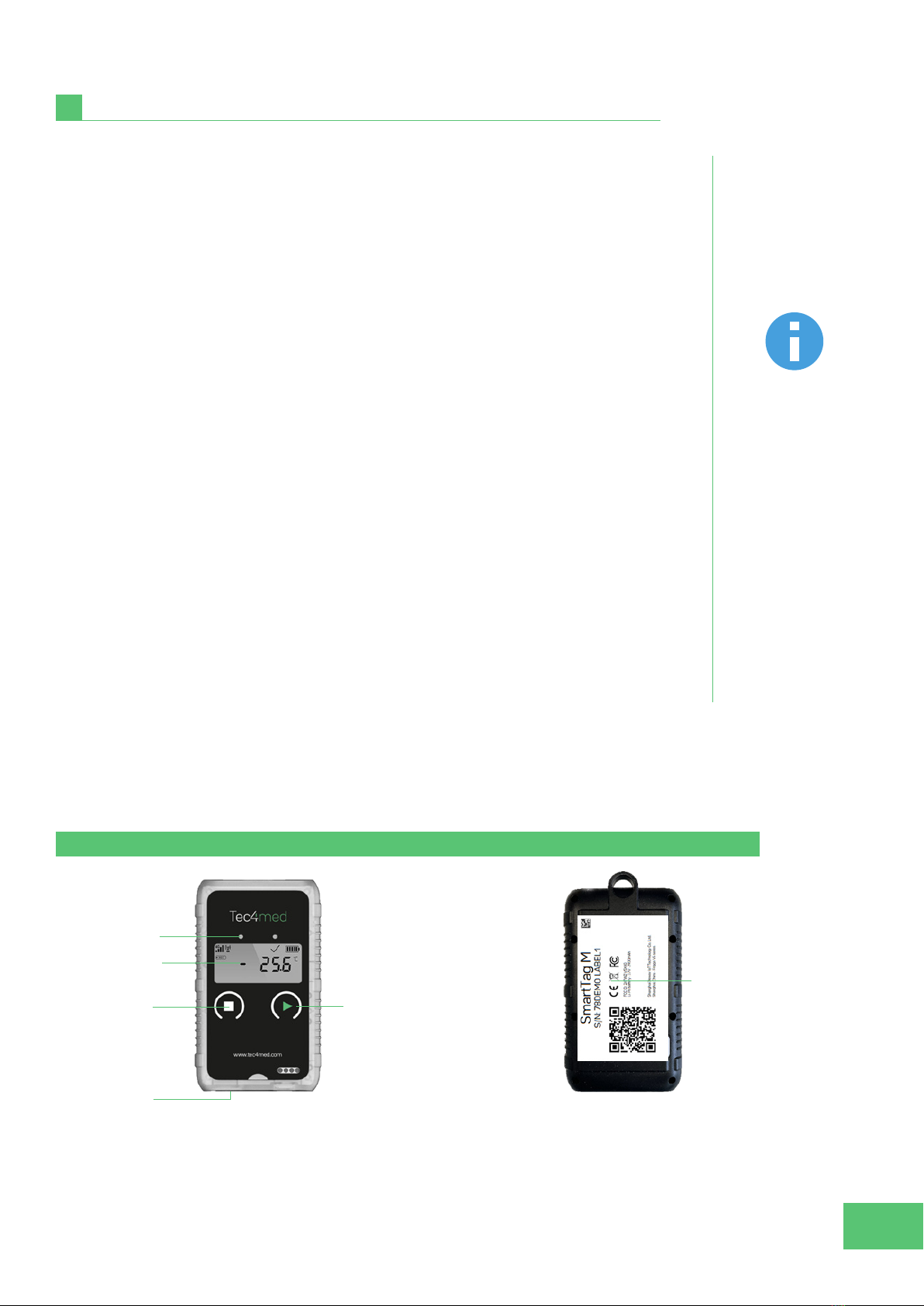

SmartTag S/M
LED indicator
ID label
Start/Status button
Display screen
Stop button
USB-C port
9
LED indicator
ID label
ID label
Connector
Probe
Start/Status button
Start/Status button
Probe
LED indicator
Display screen
Display screen
Stop button
Stop button
USB-C port
USB-C port
SmartTag SP/MP
SmartTag SP/MP (with replaceable probe)
5.3 Display description
1. Signal icon 6. Start delay icon
2. Probe mark 7. Temperature unit
3. MAX & MIN temp. 8. Humidity unit
4. Charging icon 9. Temperature value
5. Battery status icon 10. Recording icon
3 4 5
6
7
8
9
10
1 2
10
6Commissioning & operation
Before use, make sure that the charging cable and the plug are dry.
Only charge the device at ambient temperatures of 0 °C to +45 °C
• If the unit shows visible damage, do not operate it.
• Do not operate the appliance near open flames or other sources of
heat. Danger of overheating.
• Protect the appliance and cables from heat and moisture.
• Avoid excessive forces by throwing, skidding or the like.
Please read the following precautions carefully before using the logger:
• When no data is uploaded by the device, please assure whether the
device is in working state.
• Use this equipment within the working temperature range.
• Only use the standard charger.
• Do not use external force to impact the equipment.
• Do not disassemble the equipment without authorization.
• Keep the equipment away from fire or other excessive heat sources.
• Do not immerse the equipment in liquid or flush the equipment.
Danger!
Danger!
11
6.1 Tips for operating
6.2 Check battery status/ new logger
6.3 Turn on SmartTag
• Operating the unit in low temperatures may reduce battery life
• SmartTag S: Only push the start-button when you are sure that you
want to start recording your data

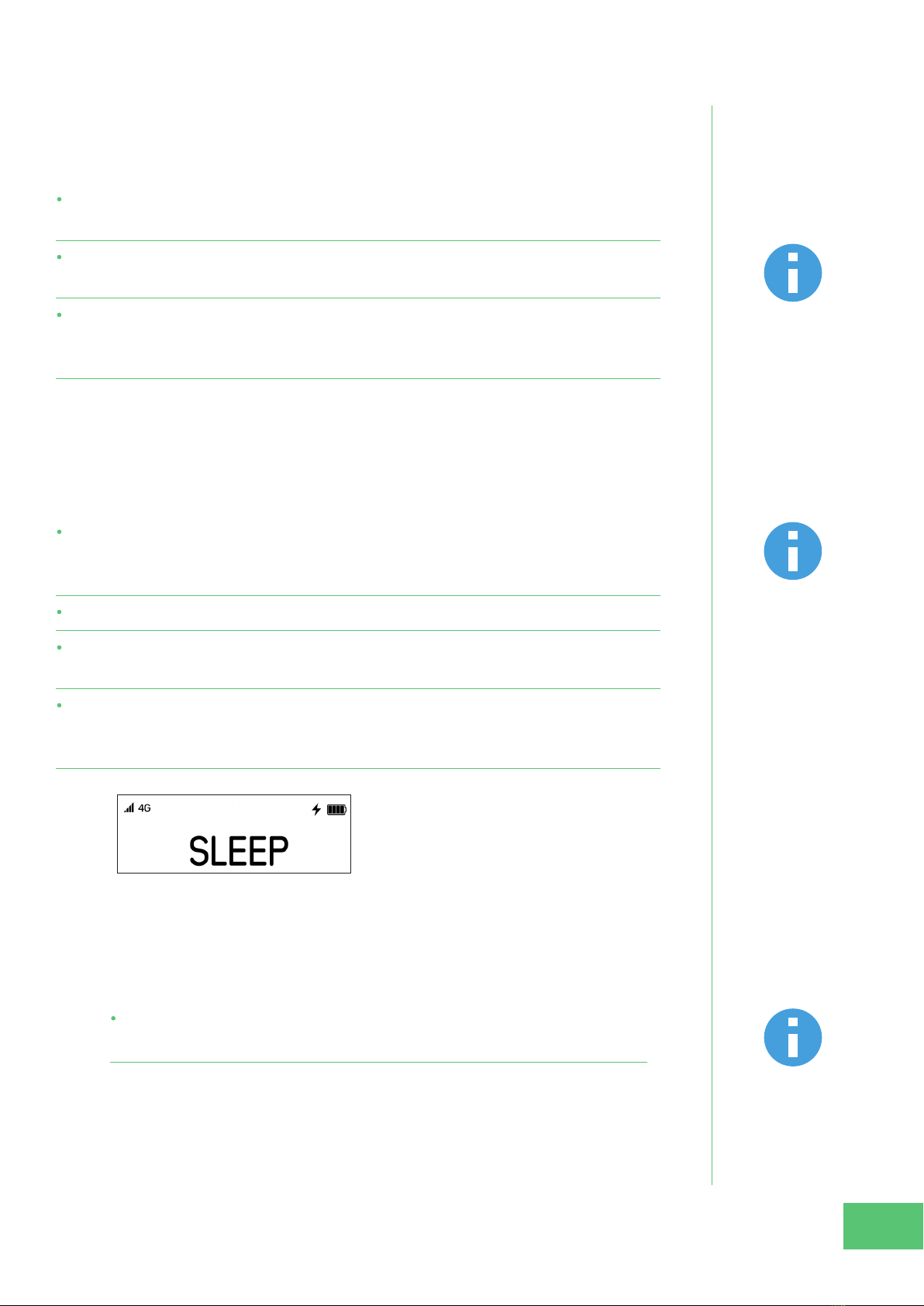

• Shortly press the white „STOP“ button. The screen will display the
word „SLEEP“ indicating that the logger is on sleep mode
(SmartTag S/SP: only for new, unused loggers)
• Press the green „START“ button for at least 5 seconds. When the
screen displays a flashing „START“ release the button (SmartTag
M/MP: also required after recharging).
• Be aware: SmartTag S/SP can not be turned o once turned o
• If the battery power is low, please recharge SmartTag M/MP first,
indicated by an nearly empty battery icon. (SmartTag S/SP can not
be recharged)
12
6.4 Start Delay/ Recording data
6.5 Stop recording
6.6 View information
• After the SmartTag is turned on, it enters the start delay modus,
indicated by the hourglass icon on the right.
• At the same time the recording icon should appear on the left.
• The SmartTag data recording can be stopped by pressing the
„STOP“ button.
• Note: USB connection to a computer or charging the device will
also stop the data recording (start again from „Step 2 Turn on
SmartTag“).
• After stopping you can display the MIN and MAX temperature
measured by the device. Shortly press the „STATUS“ button
therefore. The time also will be displayed.
• Once the start delay modus is finished the hourglass icon will
disappear. The SmartTag is now ready to use and records your
data.
13
6.9 Tracking functions
• For a list of airlines where the SmartTag is already approved
contact [email protected]
6.7 Export PDF Report
6.8 Charging
• Connect the SmartTag to a computer via the USB port at the
bottom of the device. Receive your PDF data report.
• The PDF reports can also be obtained at any time via the
Tec4Cloud platform, which can be accessed via any web browser.
• Note: USB connection to a computer or charging the device will
also stop the data recording (start again from Step „Turn on
SmartTag“).
• The battery of the SmartTag M/MP can be recharged. If the battery
is low before the first usage, please make sure to fully charge the
device.
• Note: Only use the provided charger.
• While charging the flash icon will be displayed next to the battery
icon.
• Note: USB connection to a computer or charging the device will
also stop the data recording (start again from Step „Turn on
SmartTag“).
14
6.10 Data recording/transmission interval
• SmartTag measures temperature, humidity, shock, light,
geo-position.
• The unit records the measured parameters in an adjustable
interval. Default record interval is 10 minutes.
• The device transmits the parameters to the Tec4Cloud in an
adjustable interval. Default transmission interval is 20
minutes.
• The intervals can be changed by the manufacturer on
request (shorter intervals ensure higher; longer intervals
lower power consumption).
6.11 Battery operation & battery change
• The batteries of the SmartTag M/MP are charged via the
supplied charging cable (USB Type-C).
• The batteries may only be replaced by the manufacturer or
an authorised partner.
• The batteries may only be charged indoors.
• Keep the device away from splashing water.
Warning!
15
8Troubleshooting and disposal
Electronic devices must not be disposed of with household waste!
Dispose of the device properly at the end of its life.
For more information about the web interface and dashboard
(Tec4Cloud), visit www.tec4med.com or ask for information at
Caution - The batteries used in this unit may present a fire hazard or
cause chemical burns if misused. Do not disassemble, heat above the
maximum temperature limit of 45 °C / 113 °F or incinerate. Do not re-
place the batteries yourself. There is a risk of fire or explosion if other
batteries are used!
Keep away from children. Do not disassemble or incinerate.
The unit and all its accessories must be disposed of properly by the
manufacturer. Please also contact the manufacturer in case of mal-
functions and emergencies.
Tel.: +49 (0)6151 - 360 37 00
E-mail: help@tec4med.com
Complaints to:
TEC4MED LifeScience GmbH, Otto-Hesse-Str. 19, T9,
64293 Darmstadt
Warning!
7Cleaning and care
Always disconnect the appliance from the power supply before clea-
ning and maintenance.
Never clean the appliance under running water or in rinse water. Do
not use strong detergents or hard objects for cleaning as they may
damage the appliance.
• Clean the outside of the unit from time to time with a damp
cloth.
• Make sure that the unit is free of dust and impurities.
Warning!
Danger!
Danger!
16
Shock sensor
Temperature sensor
Battery
Housing
GSM Module Config
Record & Transmission
SmartTag S
SmartTag M
Certifications
Version
Accessories
Humidity sensor
Light sensor
Description
3 axes: x, y and z 1-8 g
Lithium-Ion or
Alkaline battery
ABS housing
SmartTag S
SmartTag M
Global roaming included
Default
Record interval
Transmission interval
Record interval
Transmission interval
Compliancy
IP 64 protection
Dry Ice probe
LN2 probe
Calibrated by manufacturer
Calibrated by manufacturer
Detect whether box is open
• -30 °C ... 70 °C
• ±0,5 °C (-20 °C ... +40 °C);
• 0,1 °C resolution
• according to guideline DKD-R 5-1
• 5 % rH to 95 % rH non condensing
• ±3 % rH accuracy
• 1 % rH resolution
• 0 ... 52.000 Lux
• Battery life up to 120 days, depending on
configuration
• Dimensions:
103 x 61.3 x 33 mm
103 x 61.3 x 23 mm
• Global LTE 4G/5G
• Fallback 2G network
• Record: 10 min; Transmission: 20 min
• 10 / 30 / 60 min
• 20 / 30 / 60 / 120 / 240 min
• 1 / 2 / 5 / 10 / 30 / 60 min
• 10 / 20 / 30 / 60 / 120 min
• FCC
• CE
• RTCA/DO-160G
• UN38.3
• ROHS
• WEEE
• Sensor protection through membrane
• External Dry Ice probe (-78 °C) for low tem-
perature monitoring
• External Liquid Nitrogen probe (-200 °C) for
low temperature monitoring
• 1-8 g factory-calibrated
• Resolution: 1 g
Details
Weight SmartTag S
SmartTag M • 300 g
• 140 g
9Technical data
17

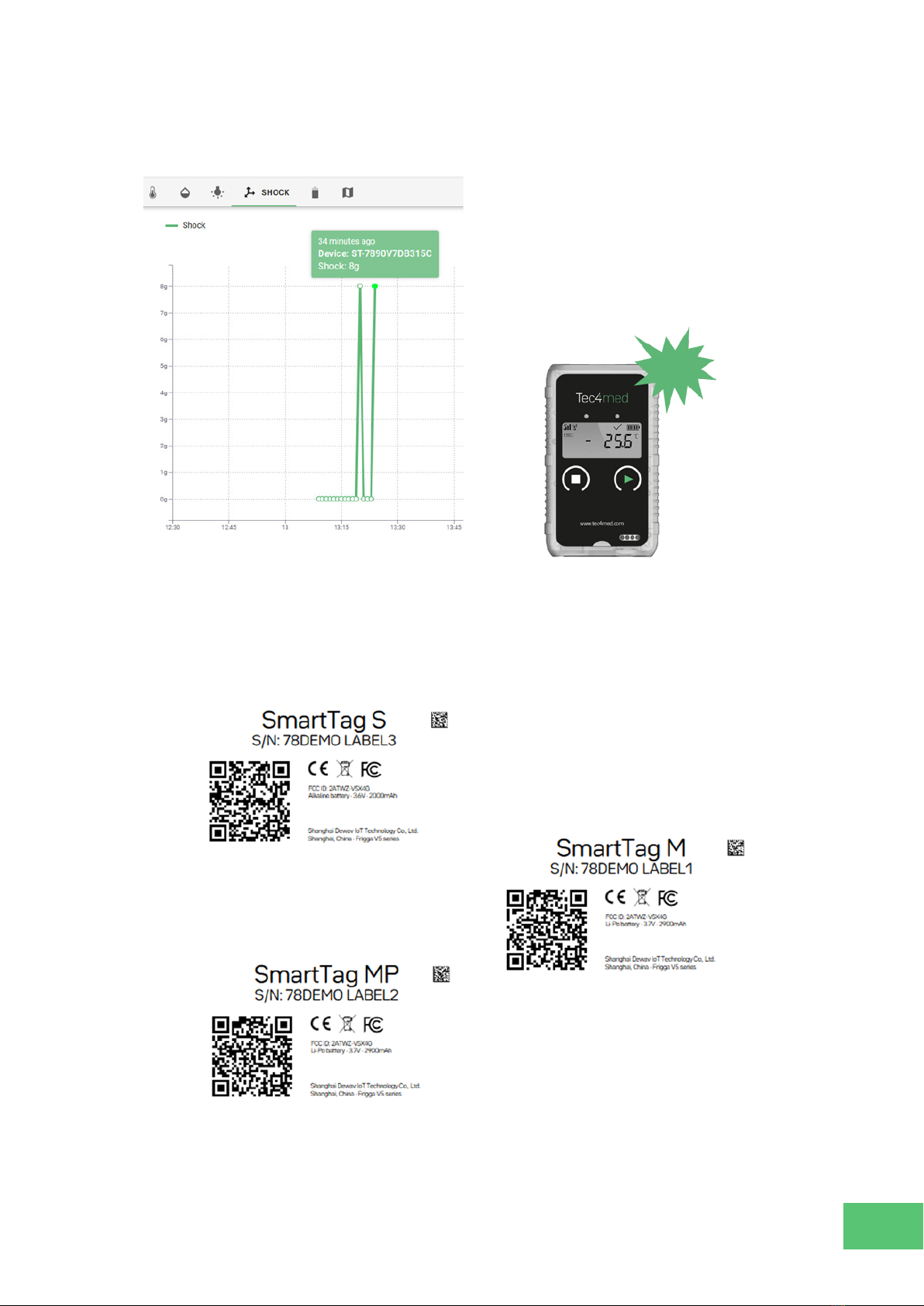

• The shock sensor indica-
tes the impacts and the
time when the impact
happened.
9.1 Shock sensor
9.2 Identification plates
18
Supplier’s Declaration of Conformity
Party issuing Supplier’s Declaration of Conformity:
TEC4MED LifeScience GmbH
Otto-Hesse-Str. 19 Block T9
Darmstadt, Hessen 64293 Germany
Telephone: +49(0)6151-360 37 00
Email: inf[email protected]
Website: www.tec4med.com
Responsible Party U.S. Contact Information / FDA-agent:
Mr. Michael Fritz
Email: [email protected]
Ms. Anastasia Wittich
Email: [email protected]
Company Name: BITO Storage Solutions US, Inc.
Address: 8314 Sherwick Ct/ 20794 Jessup (MD)
Tel.: +1 410 892 6658
Responsible Party Australia Contact Information:
Mr. Bruce Maule
Company Name: Braco Compliance Pty Ltd
Address: Unit 308, 469-481 High St, Northcote, VIC 3070, Austra-
lia
ACN/ARBN: 84156023504
Email: [email protected]
19
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to ra-
dio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause unde-
sired operation.
The Federal Communications Commission (FCC) warns the users
that changes or modifications to the unit not expressly approved by
the party responsible for compliance could void the user‘s authority
to operate the equipment.
20
EG Declaration
EU Declaration of Conformity
CE-Kompetenz • 52224 Stolberg • Vennstraße 38 • Tel.: +49 (0) 2408 / 98 190 87 • Fax.: +49 2048 / 98 190 89
EU Declaration of Conformity
We,
the company Tec4med Lifescience GmbH
Otto-Hesse-Straße 19 | T9
64293 Darmstadt
Germany
declare in sole responsibility that the products:
Description: SmartHub Alkaline, SmartHub LiPo, SmartLock
Serial-number: S/N 740000000000 to S/N 74FFFFFFFFFF
to which this declaration refers, complies with the following directives and standards
or other normative documents:
201435/EU Low voltage
201430/EU Electromagnetic compatibility
201453/EU Radio equipment
201165/EU RoHS
EN 62368-1 :2018
EN 62311:2018
ETSI EN 301 489-1 V2.1.1
ETSI EN 301 489-17 V3.2.0, -52 V1.1.0
ETSI EN 300 328 V2.2.2 + ETSI EG 203 367
ICES-003 Issue 6
RTCA/DO-160G, Section 21, Category H
Details of the signatory
Last name: Höler
First name: Nico
Position: Managing Director
Germany, Darmstadt, 2021-01-18 NICO HÖLER
________________________________ _______________________________
Place, Date Signature
21
Operating Manual
SmartTag
Intelligentes Datentracking
Table of contents
Languages:
