Technica 460158 User manual

1
Operation instructions
Desk Top Refrigerator
Models:
460158, 461158, 460178, 461178
58 litres 78 litres

2
Thank you for choosing and purchasing our product. Please carefully read the
operation instructions before use for a correct application and satisfactory ef-
fect. This appliance compliance with the requirement of directive 2006/42/EC. .
Contents
General
Structure and Parts
Handle and Erection
Preparation and Power Supply
Use and Caution
Maintenance
Trouble Shooting
Principle of Refrigeration System
Circuit Diagram
Major Parameters

3
General
1. Top brand fully enclosed compressor is used on the desk-top refrigerator.
The refrigerant R600a is of an environmentally friendly agent. It features
a rational configuration of refrigeration system with blower forced air cool-
ing. The temperature is quite even inside the refrigerator.
2. Double hollow transparent glasses are used on door and body. It features
an artistic and elegant appearance, perfect perspective and easy access.
3. It has a wide application in department store and house as well as the meet-
ing room and sitting room
Structure and Parts
Glass door
Air suction
Never block the suction.
Air is sucked in and cold
air is circulated inside the
refrigerator.
Rack
The height of rack is adjustable
for various goods. For adjust-
ment:
W celu wyregulowania:
1. Take out the rack.
2. Move the rack support on
suitable height.
3. Put the rack on the support.
Air outlet
Never block the air outlet.
Let inside circulating cold air
ow out.
Coping

4
Handle and Erection
Hand le with care
Unplug the wall socket first.
Never tilt it over 45 degree during handling
Dry place
Always locate the refrigerator at a dry place.
Sufficient space
The distance from both sides and back of refrigerator to wall or other substance
must not less than 10cm.The refrigeration capability might be decreased if its
surround space is too small to circulate air.
Well ventilation
Always locate the refrigerator at a place with fine ventilation. For the first time
use, wait for 2 hours after handling and then plug the wall socket and start it.
Far from heat source
Never place the refrigerator directly under the sunshine .Never locate it nearby
any heat source or heater to prevent it from reducing refrigeration capability.
No heavy load
Never put any heavy load on the top of the refrigerator.
No hole making
Never make hole on the refrigerator. Never install other matter on the refrig-
erator.
Stable location
To avoid the unexpected noise and vibration, Unpacking and locate the refrig-
erator on a flat and solid place.

55
Preparation and Power Supply
Exclusive power socket
Normally, the power supply should be 220-240V, single phase AC with exclusive
single phase three pin receptacle (250V 10A) and fuse (6A). The power receptacle
must have a reliable earth connection.
Earth bar
Power receptacle
No share on socket
Never let the refrigerator share the common socket with other appliance,
otherwise the cable becomes hot and fire might be resulted.
Protect cables
Never break or damage the cables otherwise current leakage and fire might
be resulted.
No water flushing
Never give the refrigerator surface a flush otherwise current leakage might
be resulted.
Prevent from flammables and explosive
Never put any flammable or explosive inside the refrigerator such as ether,
gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby
the refrigerator.
No spray
To spray the flammables such as paint or coating nearby the refrigerator is not
allowed, otherwise fire might be resulted
After power break
After power break or unplugging the refrigerator, always wail at least 5 minutes
and then you may plug the refrigerator and start it again.
No medicine
No medicine is allowed to keep inside the refrigerator.

6
Use and Caution
1. Before use:
Plug the refrigerator on 220-240V~ exclusive socket.
After the refrigerator running,put hand on the air suction to confirm it is suf-
ficient cold. Then you may put food inside the cold box.

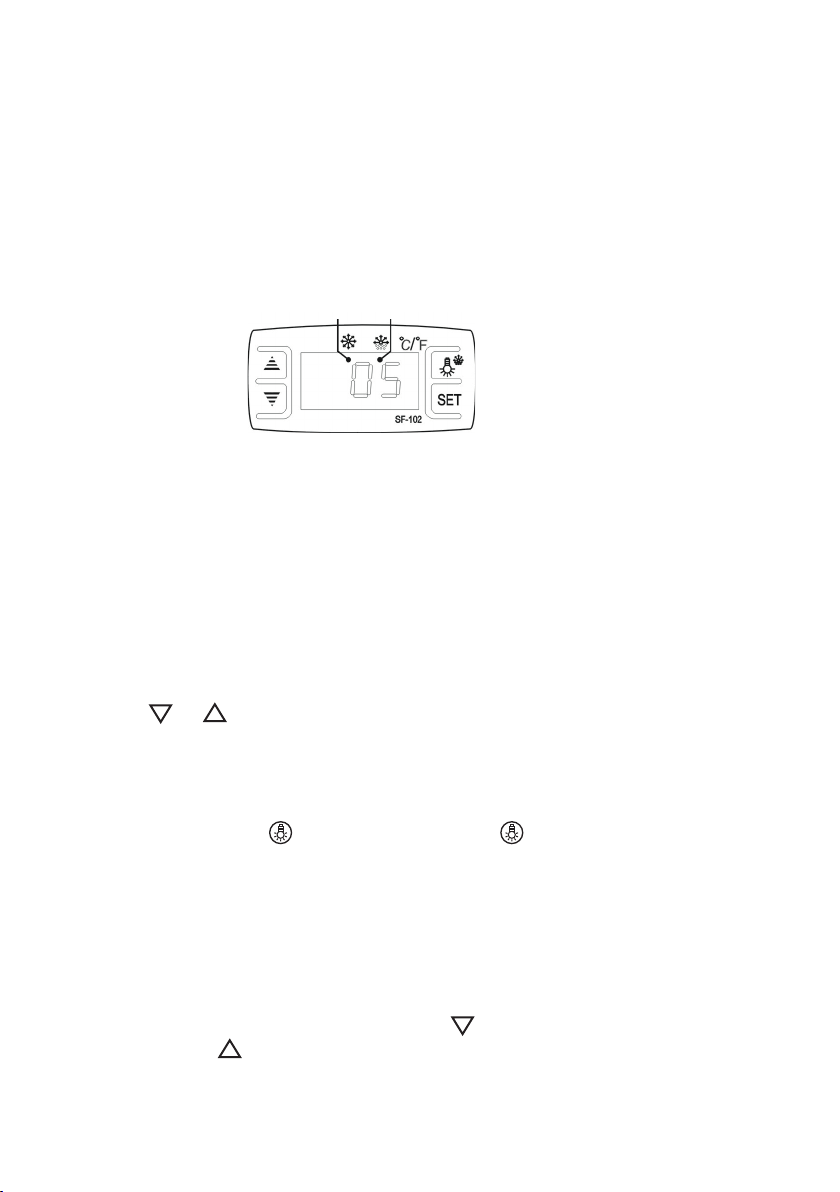

2. Digital Temperature controller
Refrigereant LED Defrost LED
Features Of Function
It is a mini-sized and integrated intelligent controller and applicable to the
compressor of one Hp.
The main functions are:Temperature Display/Temperature Control/
Manual,automatic defrost by burning off/Illumination Control/Value Storing/
self Testing/parameter Locking
Front Panel Operation
1. Set temperature
• Press „set“ button, the set temperature is displayed.
• Press or button to modify and store the displayed value.
• Press „set“ button to exit the adjustment and display the cold-room tem-
perature.
2. If no more button is pressed within 10 seconds, the cold-room temperature
will be displayed.
3. Illumination: Press button, it lights; Press again, it stops.
• Manual start/stop defrost:Press button and hold for 6 seconds to defrost or
stop defrost.
4. Refrigerant LED: During refrigeration, the LED is on; When the cold room temp.
is constant, the LED is off; During the delay start, the LED flashes.
5. Defrost LED: during defrosting, the LED is on; When is stops defrosting, the
LED is off, During the delay display of defrost, the LED flashes.
6. Digital controller reset
• When display shows "Disorder", press button for 2s until buzzer rings,
quickly press button for 6s until buzzer rings again, the display will flash
for 3s and it restores factory setting.
6

7
3. Cautions
• Shorten the door open time and reduce open frequency is good to keep
a cold temperature inside the refrigerator.
• Never block the air suction and outlet. Keep air circulation and refrigeration
capability.
• Do not make food congested as it will influence the cooling effect. Adjust
the rack height for proper food storage.
• Cool the hot food down to room temperature before you put it into the
refrigerator.
• Try to reduce the open times and keep refrigerator inside cold in case the
power is cut off.
• Only skilled service man is allowed to repair the damaged power cable with
special tools.
• Never touch compressor to avoid from scald.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concern-
ing use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• The operation manual are not suitable for the persons (including children)
with reduced physical, sensory or mental capabilities,or lack of experience
and knowledge.
• Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
• During normal operation, the emission noise level does not exceed 70dB(A)
• The maximum loading of the Shelf does not exceed 18kg.
• The climatic class of the appliance is 4,the Units are suggested to be used
at 16°C –32°C ambient temperature.
• To avoid damages or other problems, this product can not be put or stored
with any corrosive food.
7

8
Maintenance
1. Notice
• Often keep the refrigerator clean and periodical maintenance is necessary.
• Always unplug the socket before maintenance
• Never use damaged plug or loose socket to prevent from electric shock or
short circuit.
• Never flush the refrigerator. Never use alkali detergent, soap, gasoline, ac-
etone or brush.
2. Clean outside
• Dip soft cloth in neutral detergent(tableware detergent) to clean the outside
of the refrigerator and then wipe it with dry soft cloth.
3. Clean inside
• Take rack out for cleaning with water
4. Shut down refrigerator for a long time
• Take all food out and unplug the wall socket.
• Clean both inside and outside of the refrigerator thoroughly and open the
door for sufficient dry.
• The glass breaks easily. Keep the glass far from children.
• Clean the condensate tray and wipe it dry
8

9
Trouble Shooting
Trouble Cause and Remedy
No refrigeration • Is the plug in socket well?
• Is the fuse broken?
• Is there no power?
Unsatisfactory refrigeration • Is it under the sunshine?Is there any heat
source nearby?
• Is the surrounding ventilation bad?
• Does the door close well?Does door open
for a long time?
• Is the door seal strip deformed or dam-
aged?
• Is food congested or too much?
• Does food block the air suction or outlet?
• Regulate the temperature controller.
Dużo hałasu • The refrigerator does not level.
• The refrigerator contacts wall or other
matter.
• There is loose part in refrigerator.
Contact local service agent for help if simple trouble shooting does not solve
the problems.
Note
Following phenomena are not troubles
The murmur of water is heard when the refrigerator is working. It is a normal
phenomenon as the coolant is circulating in the system.
In wet season, condensation might be found on the outside of the refrigera-
tor. It is not a trouble, which is caused by high humidity. Simply use cloth to
wipe it.
9

10
Principle of Refrigeration System
The principle of compression refrigeration consists of “compression”, “con-
densation”, “throttling” and “vaporization”. The compression is undertaken by
compressor, the condensation is completed by condenser, the throttling valve
is executed by capillary and the vaporization is implemented by evaporator.
When the coolant is circulating in the closed refrigeration system, the compres-
sor sucks coolant, which has absorbs heat in evaporator, the coolant becomes
a high pressure and high temperature gas. In condenser, it dissipates heat in
air, while the coolant is re-liquefied and throttled in capillary and then enters
into evaporator with low pressure. The liquefied coolant quickly boils and
vaporizes into gas when the pressure suddenly drops. Meanwhile, it absorbs
heat inside the refrigerator. And the compressor sucks the low pressure and
low temperature gaseous coolant. It is circulating in this way up to realization
of intended refrigeration.
drying lter capillary device
gasliquid
compressor
evaporator
high pressure and high
temperature gas low preasure gas

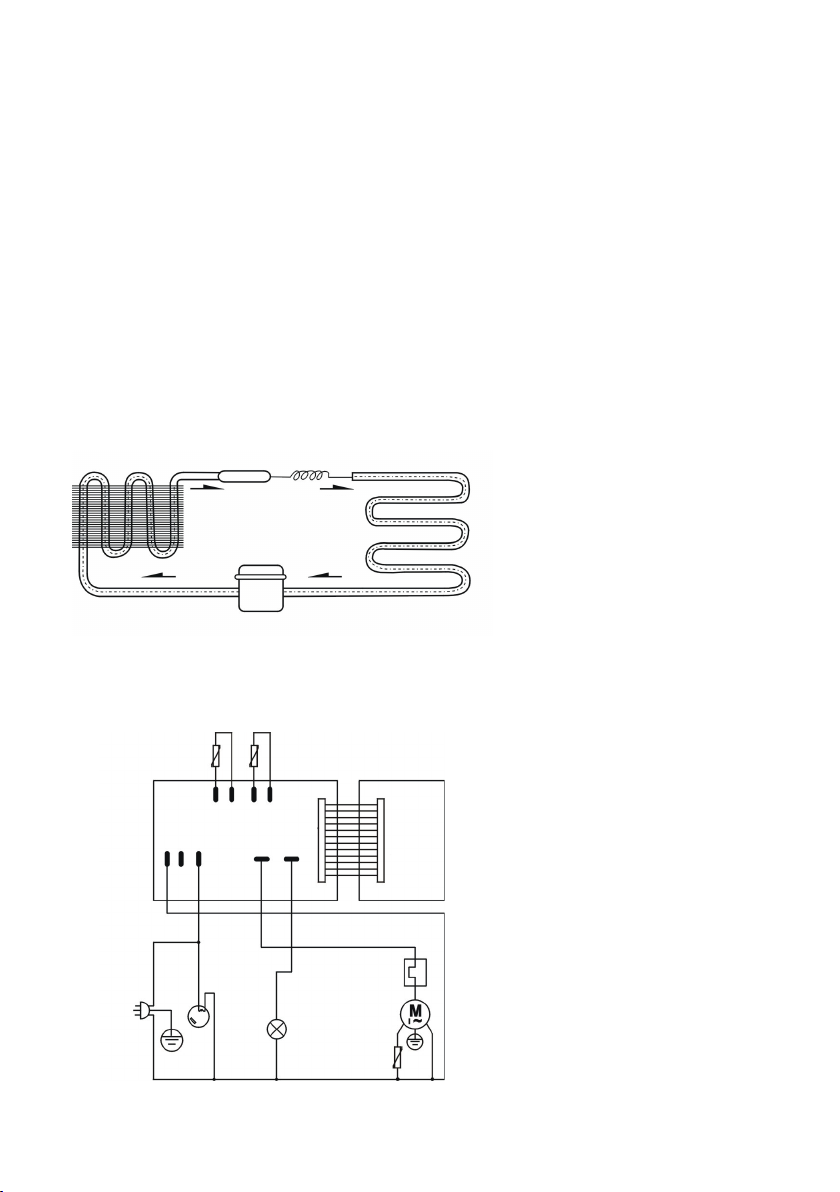

Circuit Diagram
Defrost
probe Thermostat probe
Display
panel
Digital temperature
controller
220-240~
50Hz
Fan mo-
tor
Lamp
Over Load
Protector
Compresor
PTC
10

1111
Major Parameters
Model 460158/461158 460178/461178
Coolant and injection quantity (g) R600a(40)
General Rated input power (W) 180
Type of Climate 4
Refrigeration Temperature(ºC) 0–12
Electric shock protection class I
Rated current (A) 1.2
Lamp power (W) 2.6 (LED)
Rated voltage (V) 220-240~
Rated frequency (Hz) 50
Total effective volume (L) 58 78
Net weight (kg) 30 33.8
Overall dimension (mm) (LxWxH) 428x386x810 428x386x960

12 TECHNICA GROUP spółka z ograniczoną odpowiedzialnością sp. k.
ul. Miłosna 2, 43-430 Ochaby Małe, tel.: [phone], www.sklep.technica.pl
12
Note
1. The electric circuit diagram and parameters on the product name plate are
final ones if they have been changed.
2. The design might be improved without notice.
3. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Warning:
Refrigerant is facility burning of R600a, please protect against fire
Meaning of crossed out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste,use sepa-
rate collection facilities.
Contact you local government for information regarding the collection systems
available.
If electrical appliances are disposed of in landfills or dumps, hazardous sub-
stances can leak into the groundwater and get into the food chain, damaging
your health and well-being.
