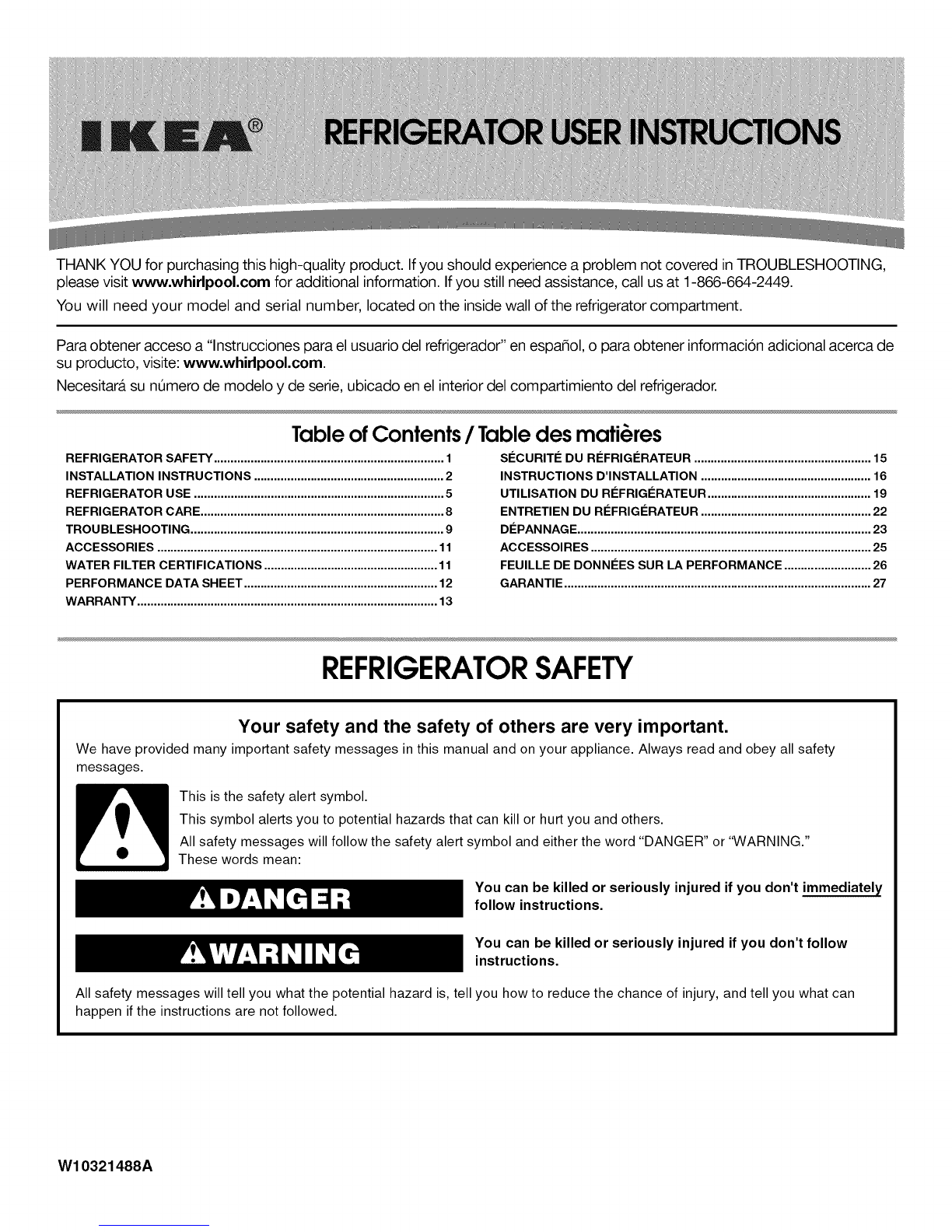

IKEA ID5HHEXWS03 User manual

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit www.whirlpool.com for additional information. If you still need assistance, call us at 1-866-664-2449.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
Para obtener acceso a "lnstrucciones para el usuario del refrigerador" en espa_ol, o para obtener informaci6n adicional acerca de
su producto, visite: www.whidpool.com.
Necesitara su nQmero de modelo y de serie, ubicado en el interior del compartimiento del refrigerador.
TableofContents/Tabledes mati_res
REFRIGERATOR SAFETY ..................................................................... 1
INSTALLATION INSTRUCTIONS ......................................................... 2
REFRIGERATOR USE ........................................................................... 5

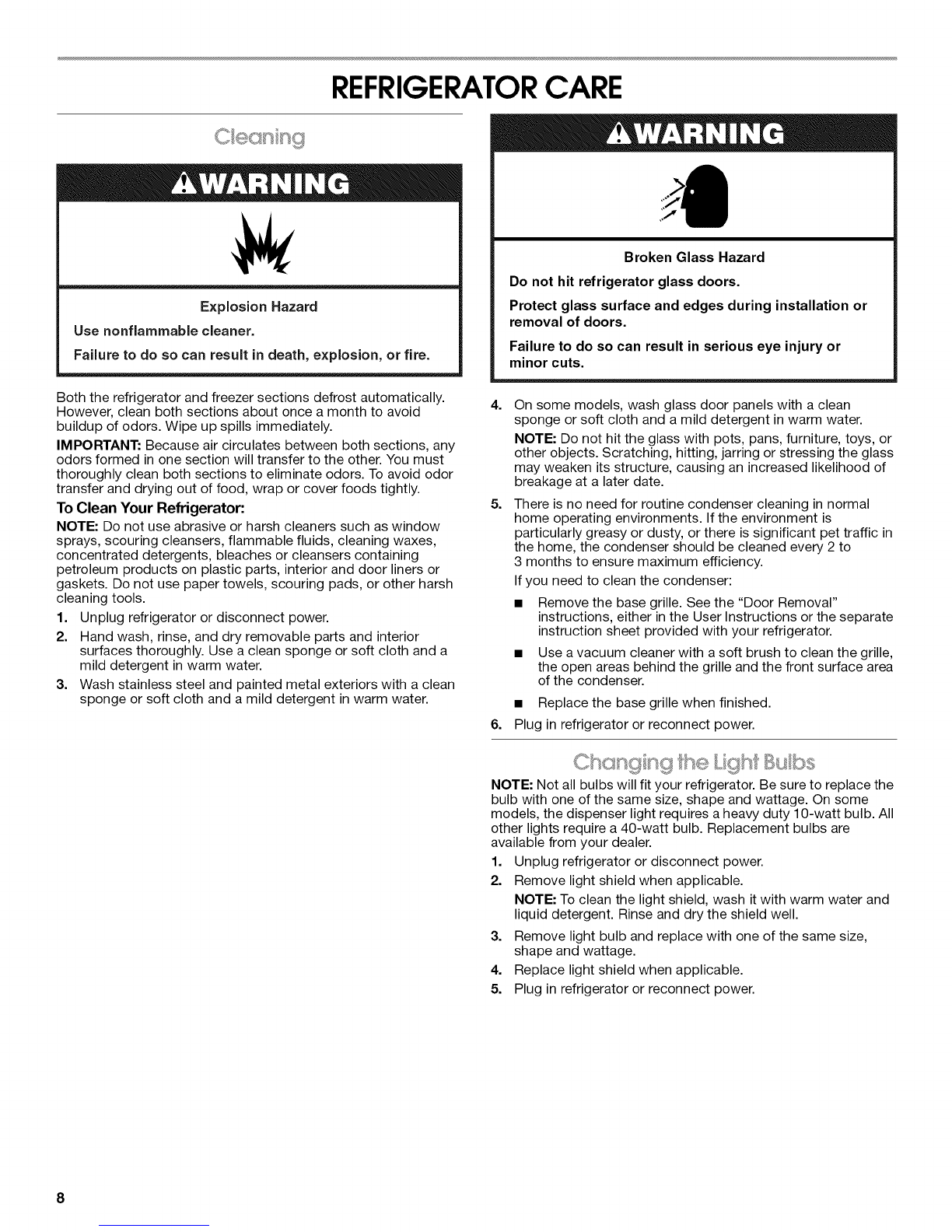

REFRIGERATOR CARE ......................................................................... 8
TROUBLESHOOTING ............................................................................ 9
ACCESSORIES .................................................................................... 11
WATER FILTER CERTIFICATIONS .................................................... 11

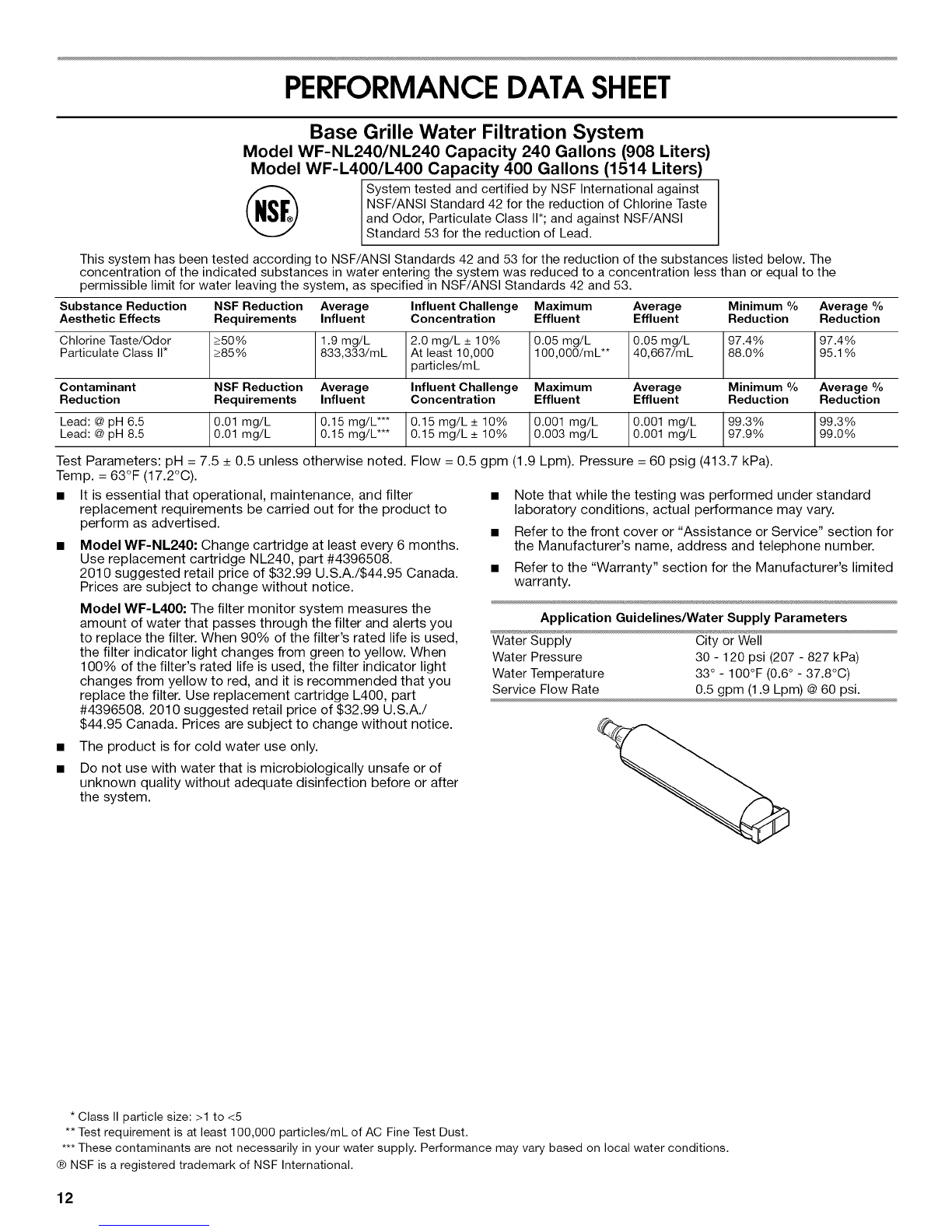

PERFORMANCE DATA SHEET .......................................................... 12
WARRANTY .......................................................................................... 13
SI_CURITI_ DU RI_FRIGI_RATEUR ..................................................... 15
INSTRUCTIONS D'INSTALLATION ................................................... 16

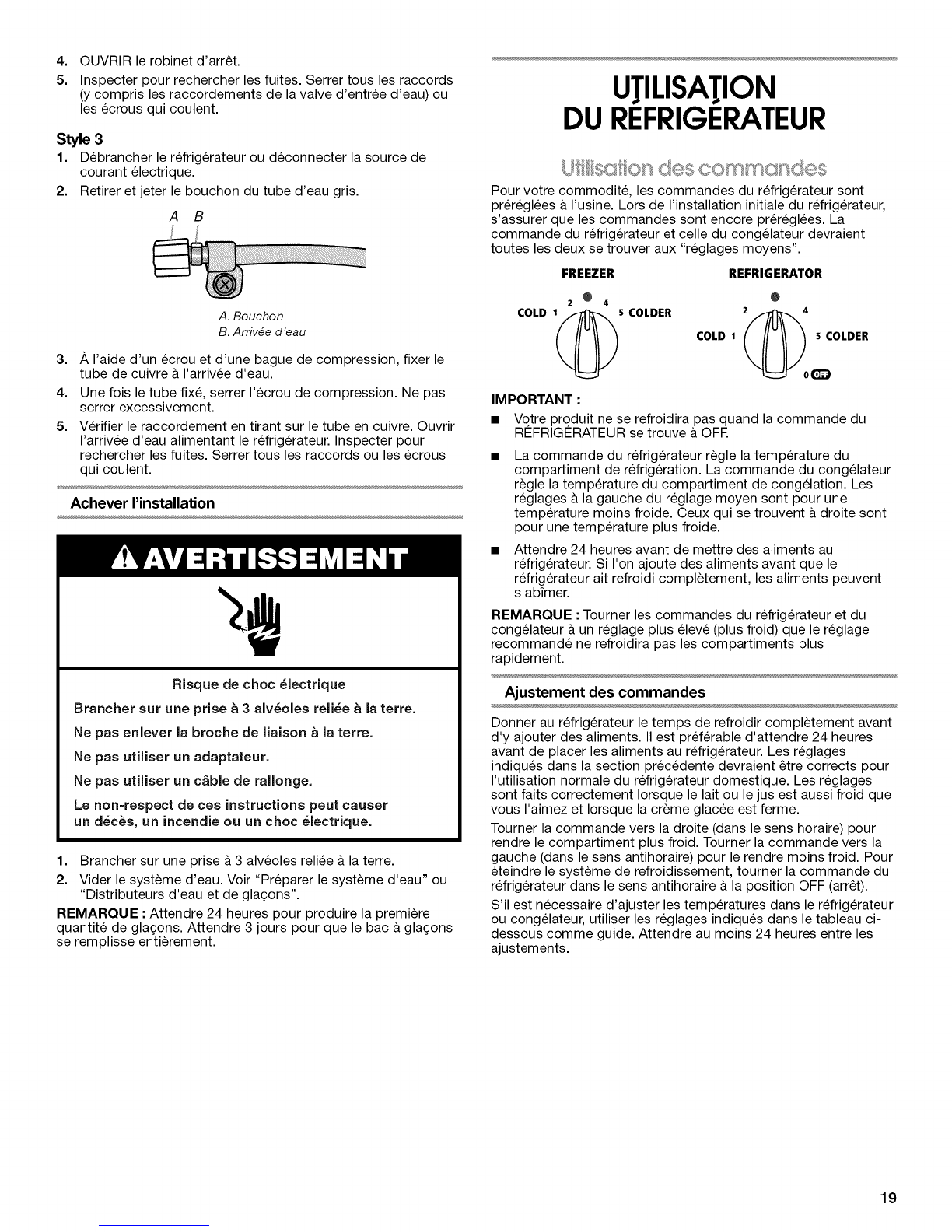

UTILISATION DU RI=FRIGI=RATEUR ................................................. 19
ENTRETIEN DU RI_FRIGI_RATEUR ................................................... 22
DI_PANNAGE ........................................................................................ 23
ACCESSOIRES .................................................................................... 25
FEUlLLE DE DONNI_ES SUR LA PERFORMANCE .......................... 26
GARANTIE ............................................................................................ 27
REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10321488A

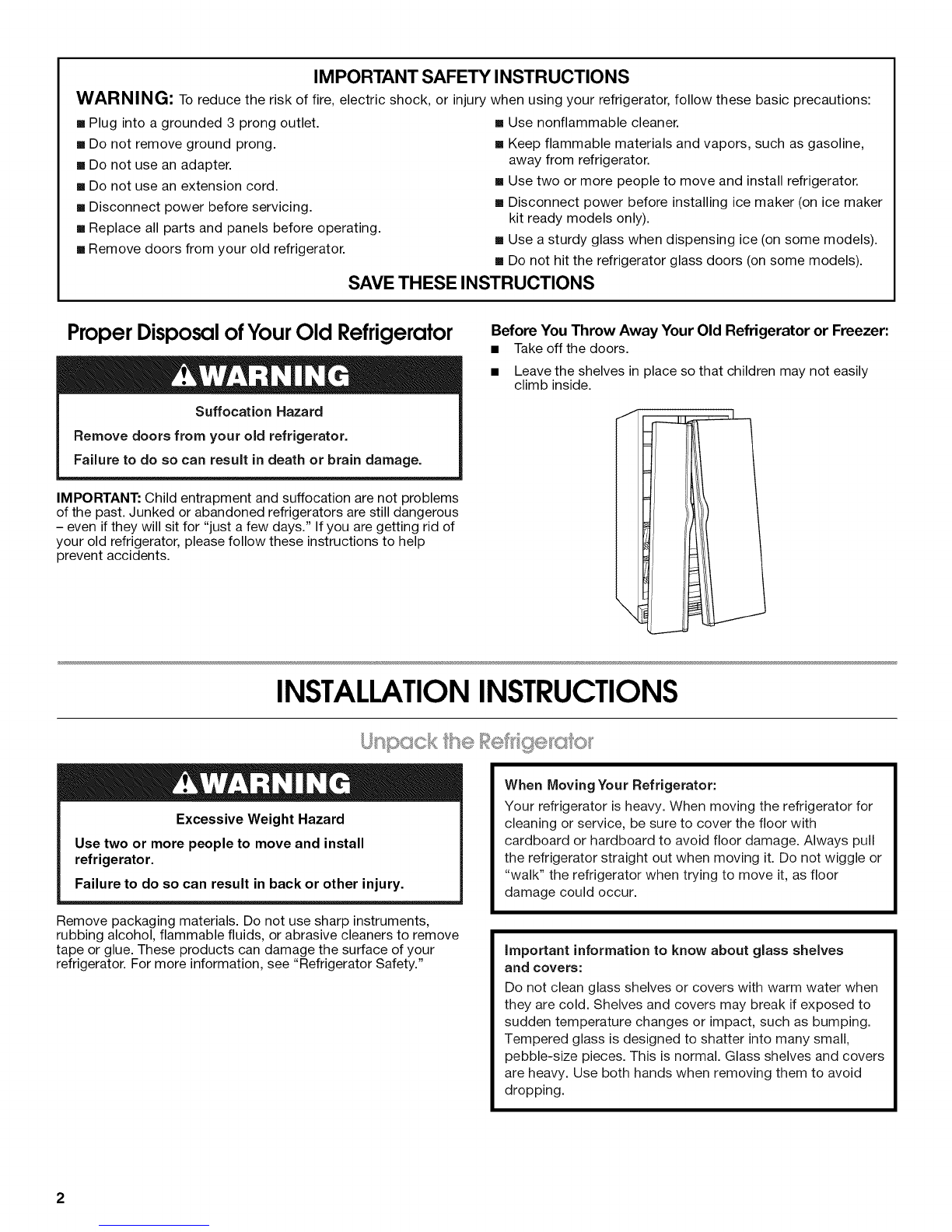

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice (on some models).
• Do not hit the refrigerator glass doors (on some models).
SAVE THESE INSTRUCTIONS
Proper Disposal of Your Old Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Takeoff the doors.
• Leave the shelves in place so that children may not easily
climb inside.
INSTALLATIONINSTRUCTIONS
When Moving Your Refrigerator:
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
Your refrigerator is heavy. When moving the refrigerator for
cleaning or service, be sure to cover the floor with
cardboard or hardboard to avoid floor damage. Always pull
the refrigerator straight out when moving it. Do not wiggle or
"walk" the refrigerator when trying to move it, as floor
damage could occur.
Remove packaging materials. Do not use sharp instruments,
rubbing alcohol, flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the surface of your
refrigerator. For more information, see "Refrigerator Safety." important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
2

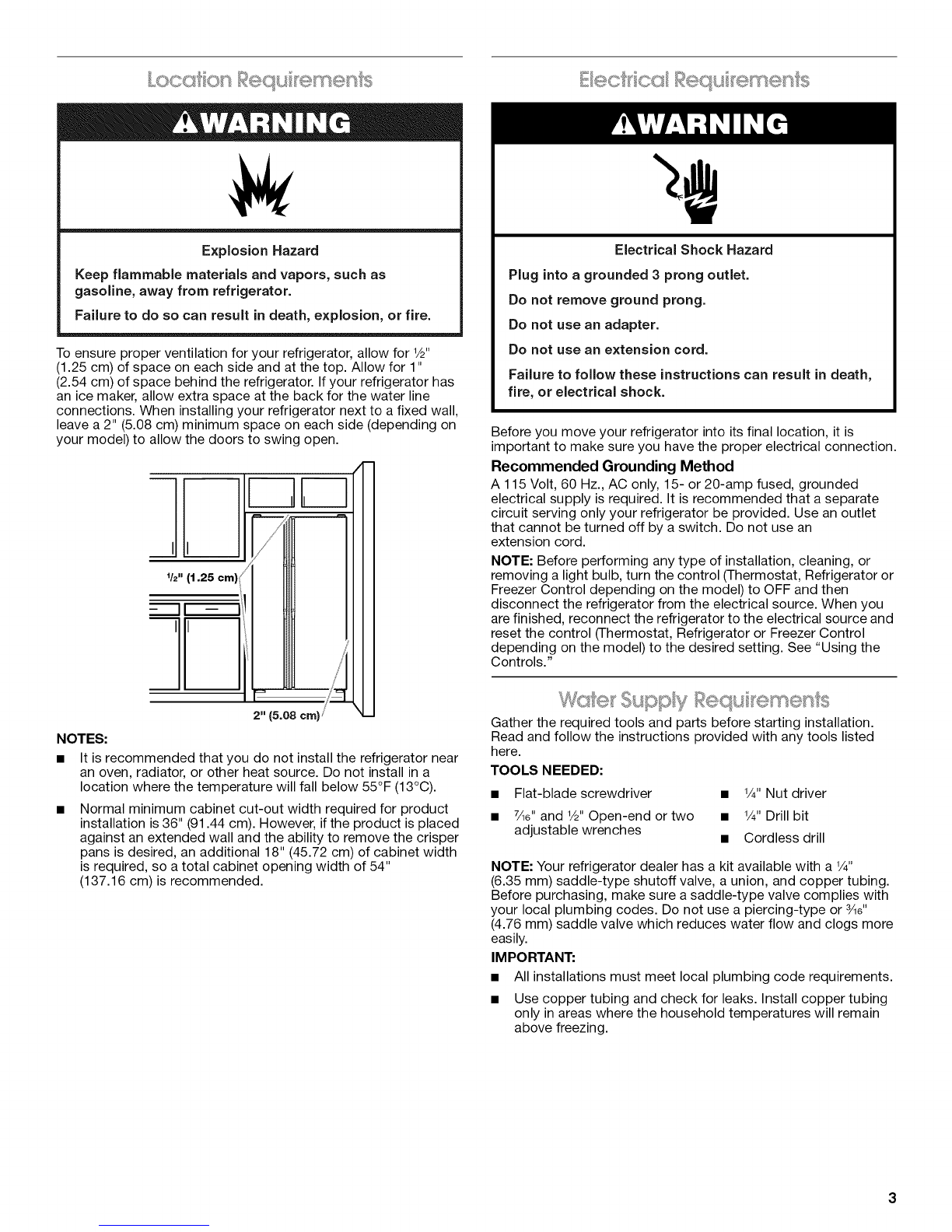

Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for 1/2"
(1.25 cm) of space on each side and at the top. Allow for 1"
(2.54 cm) of space behind the refrigerator. If your refrigerator has
an ice maker, allow extra space at the back for the water line
connections. When installing your refrigerator next to a fixed wall,
leave a 2" (5.08 cm) minimum space on each side (depending on
your model) to allow the doors to swing open.
NOTES:
/
2" (5.08 cm)/m
It is recommended that you do not install the refrigerator near
an oven, radiator, or other heat source. Do not install in a
location where the temperature will fall below 55°F (13°C).
Normal minimum cabinet cut-out width required for product
installation is 36" (91.44 cm). However, if the product is placed
against an extended wall and the ability to remove the crisper
pans is desired, an additional 18" (45.72 cm) of cabinet width
is required, so a total cabinet opening width of 54"
(137.16 cm)is recommended.
/ _ _: _ _, 4/
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source and
reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting. See "Using the
Controls."
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
TOOLS NEEDED:
• Flat-blade screwdriver • 1A"Nut driver
• 7/16"and 1/2"Open-end or two • 1A"Drill bit
adjustable wrenches • Cordless drill
NOTE: Your refrigerator dealer has a kit available with a 1/4"
(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or 34d'
(4.76 mm) saddle valve which reduces water flow and clogs more
easily.
IMPORTANT:
• All installations must meet local plumbing code requirements.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.

Wa_rPmssum
A cold water supply with water pressure of between 30 and
120 psi (207 and 827 kPa) is required to operate the water
dispenser and ice maker. Ifyou have questions about your water
pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi (207 and
827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter. See "Water Filtration
System."
If you have questions about your water pressure, call a licensed,
qualified plumber.
Read all directions before you begin.
IMPORTANT: Ifyou turn the refrigerator on before the water line is
connected, turn the ice maker OFF.

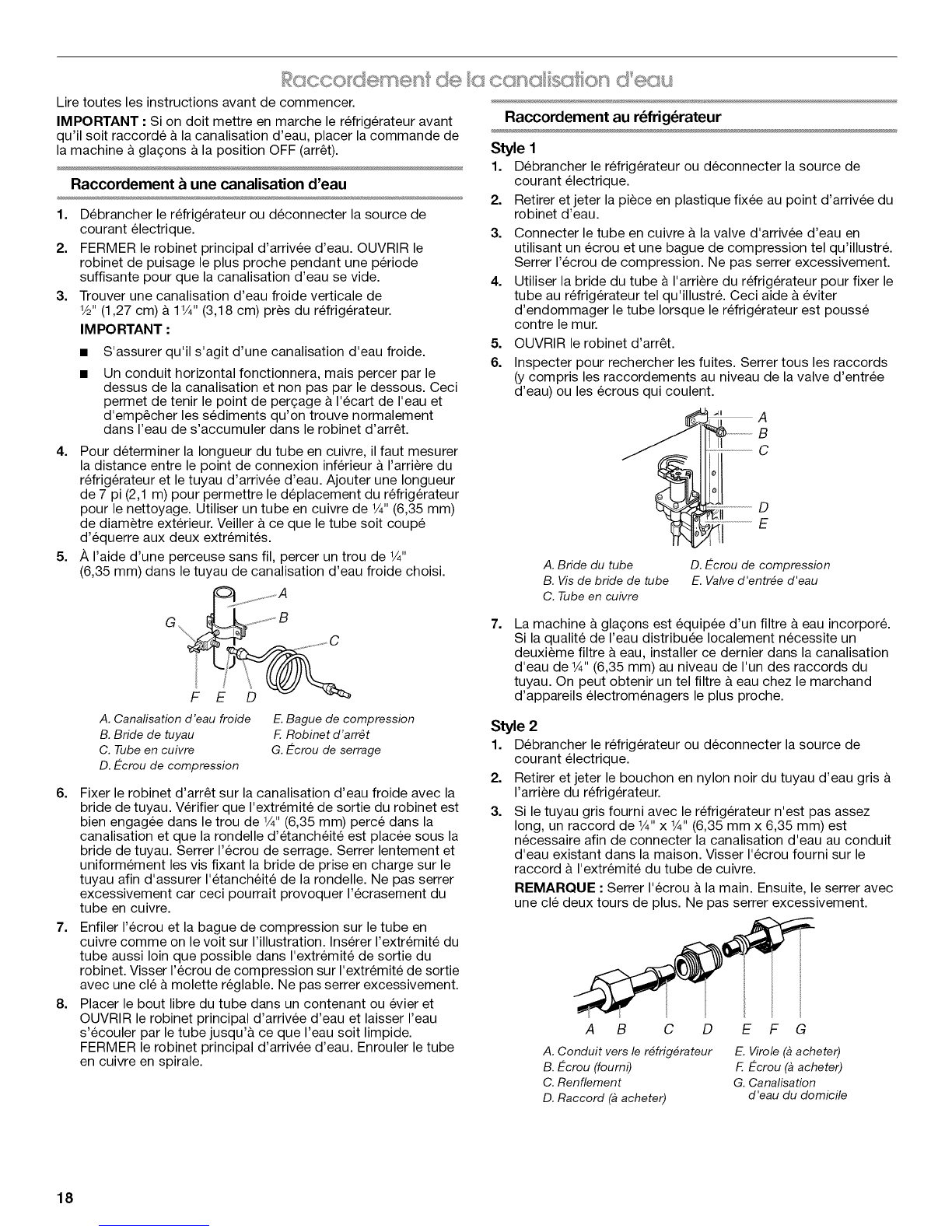

Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Locate a 1/2"(1.27 cm) to 11/4"(3.18 cm) vertical cold water
pipe near the refrigerator.
IMPC RTAN1"."
4=
5=
• Make sure it is a cold water pipe.
• Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
Determine the length of copper tubing you need. Measure
from the connection on the lower rear corner of refrigerator to
the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both
ends of copper tubing are cut square.
Using a cordless drill, drill a 1/4"(6.35 mm) hole in the cold
water pipe you have selected.
_iii/i ''' *A
G .............B .....................C
A. Co_ wa_rp_e
B.Pipe c_mp
C. Copper _b_g
D. Compression nut
E. Compression sleeve
F. Shutoff valve
G. Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"(6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so the washer makes a watertight
seal. Do not overtighten, or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw the compression
nut onto outlet end with adjustable wrench. Do not
overtighten.
8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear.
Turn OFF the shutoff valve on the water pipe. Coil the copper
tubing.
Connect to Refrigerator
Style 1
1. Unplug refrigerator or disconnect power.
2. Remove and discard the plastic part that is attached to the
inlet of the water valve.
3. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do not
overtighten.
4. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help avoid
damage to the tubing when the refrigerator is pushed back
against the wall.
5. Turn shutoff valve ON.
6. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
D
E
A. Tube clamp
B. Tube clamp screw
C. Copper tubing
D. Compression nut
E. Valve inlet
7= The ice maker is equipped with a built-in water strainer. Ifyour
water conditions require a second water strainer, install it in
the 1/4"(6.35 mm) water line at either tube connection. Obtain
a water strainer from your nearest appliance dealer.
Style 2
1. Unplug refrigerator or disconnect power.
2. Remove and discard the black nylon plug from the gray water
tube on the rear of the refrigerator.
3. If the gray water tube supplied with the refrigerator is not long
enough, a V4"x 1/4"(6.35 mm x 6.35 mm) coupling is needed in
order to connect the water tubing to an existing household
water line. Thread the provided nut onto the coupling on the
end of the copper tubing.

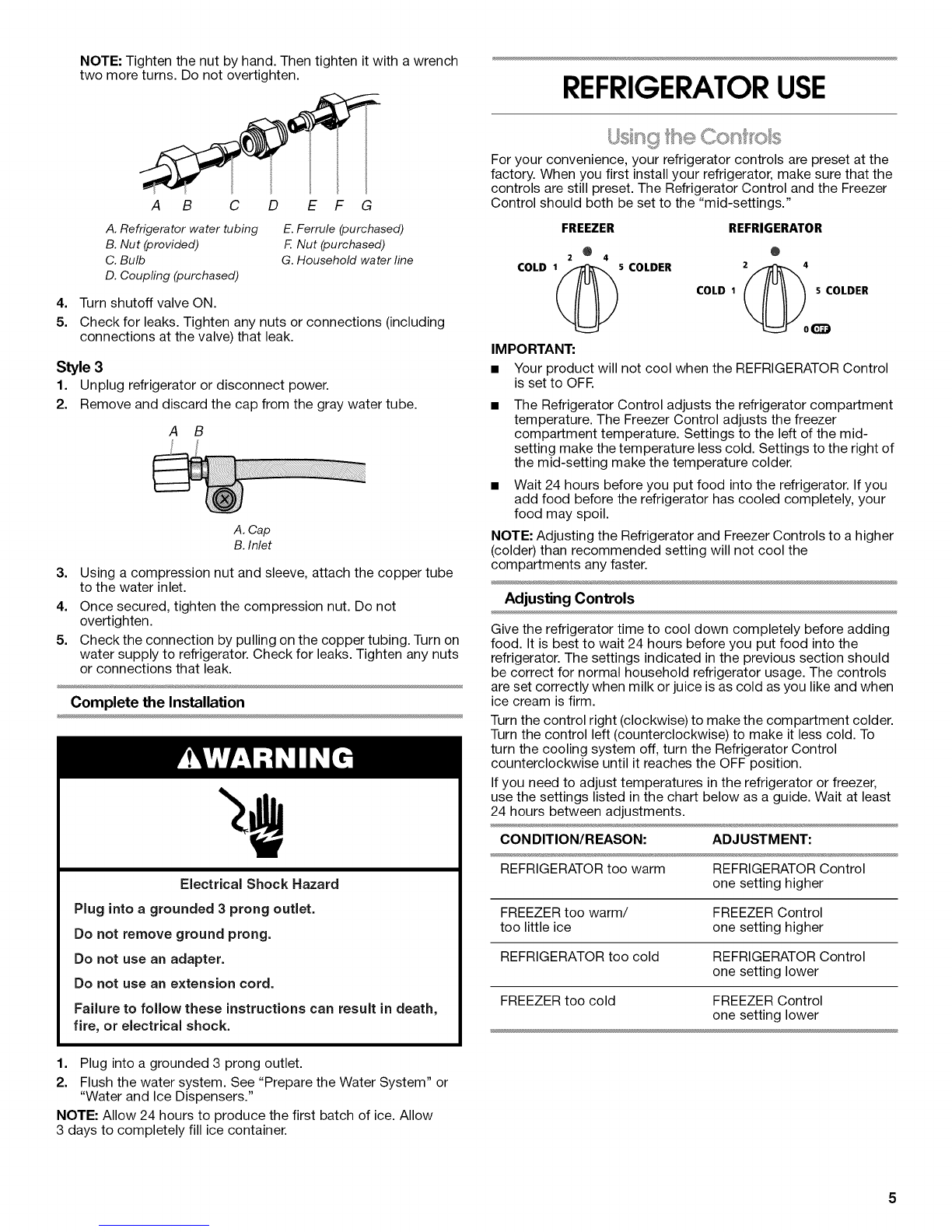

NOTE:Tightenthenutbyhand.Thentightenitwithawrench
twomoreturns.Donotovertighten. REFRIGERATORUSE
A B C D E F G
A. Refrigerator water tubing
B. Nut (provided)
C. Bulb
D. Coupfing (purchased)
E. Ferrule (purchased)
FNut (purchased)
G. Household water line
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Style 3
1. Unplug refrigerator or disconnect power.
2. Remove and discard the cap from the gray water tube.
A B
A. Cap
B. Inlet
3=
4.
5.
Using a compression nut and sleeve, attach the copper tube
to the water inlet.
Once secured, tighten the compression nut. Do not
overtighten.
Check the connection by pulling on the copper tubing. Turn on
water supply to refrigerator. Check for leaks. Tighten any nuts
or connections that leak.
Complete the Installation
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Flush the water system. See "Prepare the Water System" or
"Water and Ice Dispensers."
NOTE: Allow 24 hours to produce the first batch of ice. Allow
3 days to completely fill ice container.
For your convenience, your refrigerator controls are preset at the
factory. When you first install your refrigerator, make sure that the
controls are still preset. The Refrigerator Control and the Freezer
Control should both be set to the "mid-settings."
FREEZER REFRIGERATOR
o o
2 4
COLD __s COLDER 2_t,
COLD 1s COLDER
IMPC RTANT:
Your product will not cool when the REFRIGERATOR Control
is set to OFE
The Refrigerator Control adjusts the refrigerator compartment
temperature. The Freezer Control adjusts the freezer
compartment temperature. Settings to the left of the mid-
setting make the temperature less cold. Settings to the right of
the mid-setting make the temperature colder.
Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the Refrigerator and Freezer Controls to a higher
(colder) than recommended setting will not cool the
compartments any faster.
Adjusting Controls
Give the refrigerator time to cool down completely before adding
food. It is best to wait 24 hours before you put food into the
refrigerator. The settings indicated in the previous section should
be correct for normal household refrigerator usage. The controls
are set correctly when milk or juice is as cold as you like and when
ice cream is firm.
Turn the control right (clockwise) to make the compartment colder.
Turn the control left (counterclockwise) to make it less cold. To
turn the cooling system off, turn the Refrigerator Control
counterclockwise until it reaches the OFF position.
If you need to adjust temperatures in the refrigerator or freezer,
use the settings listed in the chart below as a guide. Wait at least
24 hours between adjustments.
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR too warm REFRIGERATOR Control
one setting higher
FREEZER too warm/ FREEZER Control
too little ice one setting higher
REFRIGERATOR too cold REFRIGERATOR Control
one setting lower
FREEZER too cold FREEZER Control
one setting lower

Thecontrolcanbeadjustedtoproperlychillmeatsorvegetables.
Theairinsidethepaniscooledtoavoid"spot"freezingandcan
besettokeepmeatsattheNationalLivestockandMeatBoard
recommendedstoragetemperaturesof28°to32°F(-2°to0°C).
Theconvertiblevegetable/meatdrawercontrolcomespresetat
thelowestmeatsetting.
To store meat:
Set the control to one of the three MEAT settings to store meat at
its optimal storage temperature.
To store vegetables:
Set the control to VEG to store vegetables at their optimal storage
temperatures.
NOTE: If food starts to freeze, move the control to the left (less
cold). Remember to wait 24 hours between adjustments.
some modes
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and HIGH.
LOW (open) for best storage of fruits and vegetables with skins.
NIGH (closed) for best storage of fresh, leafy vegetables.
Cool air from the freezer is directed to the refrigerator door bin
directly beneath the vents.
NOTE: The dairy compartment and can rack are not associated
with the Chilled Door Bin feature.
Chilled Door Bin Control
The chilled door bin control is located on the left-hand side of the
refrigerator compartment.
A......
A. Chilled door bin control
Slide the door chill control to the left to reduce the flow of cold
air to the bin and make it less cold.
Slide the door chill control to the right to increase the flow of
cold air to the bin and make it colder.
(o_'_sso "_'e re(des
Depending on your model, you may have one or more of the
following options: the ability to select either crushed or cubed ice,
chilled water, a special light that turns on when you use the
dispenser, or a lock option to avoid unintentional dispensing.
IMPORTANT: After connecting the refrigerator to a water source
or replacing the water filter, flush the water system. Use a sturdy
container to depress and hold the water dispenser lever for
5 seconds, then release it for 5 seconds. Repeat until water
begins to flow. Once water begins to flow, continue depressing
and releasing the dispenser lever (5 seconds on, 5 seconds off)
until a total of 3 gal. (12 L) has been dispensed. This will flush air
from the filter and water dispensing system, and prepare the
water filter for use. Additional flushing may be required in some
households. As air is cleared from the system, water may spurt
out of the dispenser.
NOTES:
•The dispensing system will not operate when the freezer door
is open.
•On some models: Allow 24 hours for the refrigerator to cool
down and chill water.
•Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The Water Dispenser
IMPORTANT: Dispense enough water every week to maintain a
fresh supply.
To Dispense Water:
1. Press a sturdy glass against the water dispenser lever.
2. Remove the glass to stop dispensing.
The Ice Dispenser
The dispensing system will not operate when the freezer door is
open. Ice dispenses from the ice maker storage bin in the freezer
when the dispenser lever is pressed.
NOTE: Some models dispense both cubed and crushed ice.
Before dispensing ice, select which type of ice you prefer.
For crushed ice, cubes are crushed before being dispensed. This
may cause a slight delay when dispensing crushed ice. Noise
from the ice crusher is normal, and pieces of ice may vary in size.
When changing from crushed to cubed, a few ounces of crushed
ice will be dispensed along with the first cubes.
To Dispense Ice:
1. Press the button to select the desired type of ice.
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
2= Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to the
lever in order to activate the ice dispenser. Pressing hard will
not make the ice dispense faster or in greater quantities.
3. Remove the glass to stop dispensing.
6

The Dispenser Light
Style 1
The dispenser light can be turned on by pressing the ON button.
The dispenser lights are LEDs which should not need to be
changed. See "Troubleshooting" for more information.
Style 2
When you use the dispenser, the lever will automatically turn the
light on. Ifyou want the light to be on continuously, you may
choose either ON or NIGHT LIGHT.
ON: Press the LIGHT button to turn on the dispenser light.
NIGHT LIGHT: Press the LIGHT button a second time to select
the Night Light. The dispenser light will automatically adjust to
become brighter as the room brightens, dimmer as the room
darkens.
OFF: Press the LIGHT button a third time to turn off the dispenser
light.
The dispenser lights are LEDs which should not need to be
changed. If it appears that your dispenser lights are not working,
be sure that the light sensor is not blocked (in Night Light mode).
See "Troubleshooting" for more information.
The Dispenser Lock (on some models)
The dispenser can be turned off for easy cleaning or to avoid
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the product, to
the ice maker, or to the dispenser light. It simply deactivates the
dispenser levers. The ice and water dispensers will not work.
Style 1: Press the LOCK button to lock the dispenser. Press the
UNLOCK button to unlock the dispenser.
Style 2: Press and hold the LOCK OUT button to lock the
dispenser. Press and hold the LOCK OUT button a second time to
unlock the dispenser.
Turning the Ice Maker On/Off
• To turn ON the ice maker, simply lower the wire shutoff arm.
• To manually turn off the ice maker, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click. Ice can still
be dispensed, but no more can be made.
NOTE: Your ice maker has an automatic shutoff. As ice is made,
the ice cubes will fill the ice storage bin, and the ice cubes will
raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
REMEMBER:
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Do not use anything sharp to break up the ice in the storage
bin. This can cause damage to the ice container and the
dispenser mechanism.
Do not store anything on top of or in the ice maker or storage
bin.
Removing and Replacing Ice Storage Bin
1. Pull the covering panel up from the bottom and then slide it
back toward the rear.
2. Lift the wire shutoff arm so it clicks into the OFF (up) position.
3. Lift up the front of the storage bin and pull it out.
4,
5.
Replace the bin by pushing it in all the way or the dispenser
will not work.
To restart ice production, push the wire shutoff arm down to
the ON position. Make sure the door is closed tightly.
3_
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
Water Filter Status Light (on some models)
The water filter status light will help you know when to change
your water filter. The light will change from green to yellow. This
tells you that it is almost time to change the filter. It is
recommended that you replace the water filter when the status
light changes to red OR water flow to your water dispenser or ice
maker decreases noticeably. The filter should be replaced at least
every 6 months depending on your water quality and usage.
After changing the water filter, reset the water filter status light.
The status light will change from red to green when the system is
reset.
Non-Indicator Water Filter (on some models)
If your refrigerator does not have the water filter status light, you
should change the water filter cartridge at least every 6 months
depending on your water quality and usage. If the water flow to
the water dispenser or ice maker decreases noticeably before
6 months have passed, replace the water filter more often.
Using the Dispenser Without the Water Filter
You can run the dispenser without a water filter. Your water will not
be filtered.
1. Remove the water filter.
2. Slide the cap off the end of the filter and replace the cap in the
base grille.
IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.

REFRIGERATORCARE
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid odor
transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
3. Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.
Broken Glass Hazard
Do not hit refrigerator glass doors.
Protect glass surface and edges during installation or
removal of doors.
Failure to do so can result in serious eye injury or
minor cuts.
4.
5.
On some models, wash glass door panels with a clean
sponge or soft cloth and a mild detergent in warm water.
NOTE: Do not hit the glass with pots, pans, furniture, toys, or
other objects. Scratching, hitting, jarring or stressing the glass
may weaken its structure, causing an increased likelihood of
breakage at a later date.
There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
If you need to clean the condenser:
• Remove the base grille. See the "Door Removal"
instructions, either in the User Instructions or the separate
instruction sheet provided with your refrigerator.
• Use a vacuum cleaner with asoft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
• Replace the base grille when finished.
6. Plug in refrigerator or reconnect power.
Chenc n<s ....
NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the
bulb with one of the same size, shape and wattage. On some
models, the dispenser light requires a heavy duty 1O-watt bulb. All
other lights require a 40-watt bulb. Replacement bulbs are
available from your dealer.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable.
NOTE: To clean the light shield, wash it with warm water and
liquid detergent. Rinse and dry the shield well.
3. Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable.
5. Plug in refrigerator or reconnect power.
8

TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
The refrigerator will not operate
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Power cord unplugged? Plug into a grounded 3 prong outlet.
Is outlet working? Plug in a lamp to see ifthe outlet is
working.
Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. If the problem continues,
call an electrician.
•Are controls on? Make sure the refrigerator controls are on.
See "Using the Controls."
•New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting will
not cool either compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The refrigerator may run
even longer if the room is warm, a large food load is added, doors
are opened often, or if the doors have been left open.
The refrigerator is noisy
Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are
listed some normal sounds with an explanation.
•Buzzing - heard when the water valve opens to fill the ice
maker
•Pulsating - fans/compressor adjusting to optimize
performance
Rattling - flow of refrigerant, water line, or from items placed
on top of the refrigerator
Sizzling/Gurgling - water dripping on the heater during
defrost cycle
Popping - contraction/expansion of inside walls, especially
during initial cool-down
Water running - may be heard when ice melts during the
defrost cycle and water runs into the drain pan
Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold
The doors will not close completely
•Door blocked open? Move food packages away from door.
• Bin or shelf in the way? Push bin or shelf back in the correct
position.
The doors are difficult to open
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Are the gaskets dirty or sticky? Clean gaskets with mild
soap and warm water.
The refrigerator rocks and is not stable
•What do I do if the refrigerator rocks and is not stable?
To stabilize the refrigerator, remove the base grille and lower
the leveling feet until they touch the floor.
The lights do not work
•Is a light bulb loose in the socket or burned out? See
"Changing the Light Bulbs."

Temperatureistoo warm
•New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
• Door(s) opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
Large load of food added? Allow several hours for
refrigerator to return to normal temperature.
Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in
24 hours. See "Using the Controls."
There is interior moisture buildup
NOTE: Some moisture buildup is normal.
• Humid room? Contributes to moisture buildup.
• Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
Ice cs 'd
The ice maker is not producing ice or not enough ice
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.
Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
The ice cubes are hollow or small
NOTE: This is an indication of low water pressure.
• Water shutoff valve not fully open? Turn the water shutoff
valve fully open.
•Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
• Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
•Questions remain regarding water pressure? Call a
licensed, qualified plumber.
Off-taste, odor or gray color in the ice
New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.
Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.
Odor transfer from food? Use airtight, moisture-proof
packaging to store food.
Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.
Is there a water filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration
system needs additional flushing.
The ice dispenser will not operate properly
•Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
•Ice bin installed correctly? Be sure the ice bin is firmly in
position.
• New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Ice clogged in the ice storage bin or delivery chute?
Remove clogged ice, using a plastic utensil if necessary.
Clean chute and bottom of storage bin using a warm moist
cloth, and dry both thoroughly. Toavoid clogging and maintain
afresh supply of ice, empty the storage bin and clean both the
bin and delivery chute every two weeks.
•Has the wrong ice been added to the bin? Use only cubes
produced by the current ice maker.
•Has the ice melted around the auger (metal spiral) in the
ice bin? Empty the ice container. Use warm water to melt the
ice if necessary.
10

Cut Hazard
Use asturdy glass when dispensing ice.
Failure to do so can result in cuts.
Is the ice dispenser stalling while dispensing "crushed"
ice? Change the ice button from "crushed" to "cubed." If
cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.
Has the dispenser arm been held in too long? Ice will stop
dispensing when the arm is held in too long. Wait 3 minutes
for dispenser motor to reset before using again.
The water dispenser will not operate properly
•Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Is the water pressure at least 30 psi (207 kPa)? The water
pressure to the home determines the flow from the dispenser.
See "Water Supply Requirements."
Kink in the home water source line? Straighten the water
source line.
•New installation? Flush and fill the water system.
• Water filter installed on the refrigerator? The filter may be
clogged or incorrectly installed.
• Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements."
Water is leaking from the dispenser
NOTE: One or two drops of water after dispensing is normal.
•Glass not being held under the dispenser long enough?
Hold the glass under the dispenser for 2 to 3 seconds after
releasing the dispenser lever/pad.
New installation? Flush the water system. See "Prepare the
Water System" or "Water and Ice Dispensers."
Recently changed water filter? Flush the water system. See
"Prepare the Water System" or "Water and Ice Dispensers."
The dispenser water is not cool enough
NOTE: Water from the dispenser is chilled to only 50°F (10°C).
• New installation? Allow 24 hours after installation for the
water supply to cool completely.
• Recently dispensed large amount of water? Allow 24 hours
for water supply to cool completely.
• Water not been recently dispensed? The first glass of water
may not be cool. Discard the first glass of water.
•Refrigerator connected to a cold water pipe? Make sure
the refrigerator is connected to a cold water pipe. See "Water
Supply Requirements."
ACCESSORIES
To order replacement filters, call 1-866-664-2449 and ask for the
part number listed below or contact your authorized Whirlpool
dealer.
Stainless Steel Cleaner and Polish:
Order Part #4396095
Standard Base Filter Cartridge:
Order Part #4396508 (NL240/L400)
WATERFILTER
CERTIFICATIONS
State of California
Department of Health Services
Water TreatmentDevice
CertificateNumber
03- 1550
Date Issued: January 21,2003
Trademark/Model Designation Replacement Elements Rated Ca_
Whm_ool WI:-NL24( NL240 240 gal
Whir tpt_t_l WF-I_4(X) 100 400 Izal
Manufacturer: Whirlpool (2ol3)
None
Organic Contaminants
Lead
Nate(t Set'rice Flow: 05gpm
Do not use with water that is microbiologically ansafe or of unknown quality, without adequate disinfection
before or after the _ysrem.
11

PERFORMANCEDATA SHEET
Base Grille Water Filtration System
Model WF-NL240/NL240 Capacity 240 Gallons (908 Liters)
Model WF-L400/L400 Capacity 400 Gallons (1514 Liters)
_} System tested and certified by NSF International against
NSF/ANSI Standard 42 for the reduction of Chlorine Taste
and Odor, Particulate Class I1'; and against NSF/ANSI
Standard 53 for the reduct on of Lead.
This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.
Substance Reduction NSF Reduction Average
Aesthetic Effects Requirements Influent
Chlorine Taste/Odor _>50% 1.9 mg/L
Particulate Class I1" _>85% 833,333/mL
Contaminant NSF Reduction Average
Reduction Requirements Influent
Lead: @ pH 6.5 0.01 mg/L 0.15 mg/L***
Lead: @ pH 8.5 0.01 mg/L 0.15 mg/L***
Test Parameters: pH = 7.5 _+0.5 unless otherwise noted.
Temp. = 63°F (17.2°C).
• It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to
perform as advertised.
Influent Challenge Maximum Average Minimum %Average %
Concentration Effluent Effluent Reduction Reduction
2.0 mg/L _+10% 0.05 mg/L 0.05 mg/L 97.4% 97.4%
Atparticles/mleast10,000L 100,000/mL** 40,667/mL 88.0% 95.1%
Influent Challenge Maximum Average Minimum %Average %
Concentration Effluent Effluent Reduction Reduction
0.15 mg/L + 10% 0.001 mg/L 0.001 mg/L 99.3% 99.3%
0.15 mg/L _+10% 0.003 mg/L 0.001 mg/L 97.9% 99.0%
Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).
Model WF-NL240: Change cartridge at least every 6 months.
Use replacement cartridge NL240, part #4396508.
2010 suggested retail price of $32.99 U.S.A./S44.95 Canada.
Prices are subject to change without notice.
• Note that while the testing was performed under standard
laboratory conditions, actual performance may vary.
• Refer to the front cover or "Assistance or Service" section for
the Manufacturer's name, address and telephone number.
• Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Model WF-L400: The filter monitor system measures the
amount of water that passes through the filter and alerts you
to replace the filter. When 90% of the filter's rated life is used,
the filter indicator light changes from green to yellow. When
100% of the filter's rated life is used, the filter indicator light
changes from yellow to red, and it is recommended that you
replace the filter. Use replacement cartridge L400, part
#4396508. 2010 suggested retail price of $32.99 U.S.A./
$44.95 Canada. Prices are subject to change without notice.
The product is for cold water use only.
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)
Water Temperature 33 ° - 100°F (0.6 ° - 37.8°C)
Service Flow Rate 0.5 gpm (1.9 Lpm) @ 60 psi.
* Class II particle size: >1 to <5
** Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
*** These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.
® NSF is a registered trademark of NSF International.
12

IKEAMAJOR APPLIANCE WARRANTY
How long is the IKEA limited warranty valid?
This limited warranty is valid for five years from the date of purchase, when this major appliance is operated and maintained according
to instructions attached to or furnished with the product, unless the appliance is named LAGAN in which case this limited warranty is
valid for one year from the date of purchase. This limited warranty is valid only in the United States or Canada and applies only when the
major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this
limited warranty.
Which appliances are not covered by the IKEA five (5) year limited warranty?
For major appliances named "LAGAN," this limited warranty is valid for one year from the date of purchase.
Who will execute the service?
This limited warranty is provided by Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool"). Service must be provided by
a Whirlpool designated service company.
What does this limited warranty cover?
The limited warranty will pay for factory specified parts and repair labor to correct defects in materials or workmanship that existed
when the major appliance was purchased. The exceptions are specified under the headline "What is not covered under this limited
warranty?".
What will be done to correct the problem?
The designated service company will examine the product and decide, at its sole discretion, if it is covered under this limited warranty.
If considered covered, the designated service company will then repair the defect. Your sole and exclusive remedy under this limited
warranty shall be product repair as provided herein.
What is not covered under this limited warranty?
• Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or
repair house fuses, or to correct house wiring or plumbing.
• Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
• Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used
in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
• Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved for use.
• Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage
results from defects in materials or workmanship and is reported within 30 days from the date of purchase.
• Any food loss or medicine loss due to refrigerator or freezer product failures.
• Pick up and delivery. This major appliance is intended to be repaired in your home.
• Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
• Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized servicer is not available.
• The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions.
• Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot
be easily determined.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
Disclaimer of Implied Warranties
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS (ONE YEAR FOR MAJOR APPLIANCES NAMED "LAGAN") OR THE
SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of
merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have
other rights that vary from state to state or province to province.
Limitation of Remedies; Exclusion of Incidental and Consequential Damages
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
How to reach us if you need our service
If outside the 50 United States and Canada, contact your authorized IKEA retailer to determine if another warranty applies.
If you need service, please read the Installation Instructions and/or the "Troubleshooting" section of the Use & Care Guide before
contacting us. Ifyou need additional help, do not hesitate to contact us in the U.S.A. and Canada at 1-866-664-2449. 2/09
13

14

Nous vous REMERCIONS d'avoir achete ce produit de haute qualit& Si vous rencontrez un probleme non mentionne
dans la section DI_PANNAGE, visiter www.whirlpool.com pour des informations supplementaires. Si vous avez toujours
besoin d'assistance, veuillez nous tel6phoner au 1-866-664-2449.
Vous aurez besoin de vos num@os de modele et de s@ie situes sur la paroi interne du compartiment de refrig@ation.
SECURITEDU REFRIGERATEUR
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous de
toujours lire tous les messages de s_curit_ et de vous y conformer.
Voici le symbole d'alerte de s_curit&
Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves & vous
eta d'autres.
Tousles messages de s_curit_ suivront le symbole d'alerte de s_curit_ et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
Risque possible de d_cbs ou de blessure grave si vous ne
suivez pas imm_diatement les instructions.
Risque possible de d_cbs ou de blessure grave si vous
ne suivez pas les instructions.
Tous les messages de s_curit_ vous diront quel est le danger potentiel et vous disent comment r_duire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
IMPORTANTES INSTRUCTIONS DE SI_CURITI_
AVERTISSEMENT :Pour reduire les risques d'incendie, de choc electrique ou des blessures Iors de I'utilisation du
refrig6rateur, prendre quelques precautions fondamentales, y compris les suivantes •
• Brancher I'appareil sur une prise a 3 alveoles reliee a la terre. • Garder les materiaux et les vapeurs inflammables, telle
• Ne pas enlever la broche de liaison & la terre.
• Ne pas utiliser un adaptateur.
• Ne pas utiliser un c&ble de rallonge.
• Debrancher la source de courant electrique avant I'entretien.
• Replacer pieces et panneaux avant de faire la remise en marche.
• Enlever les portes de votre vieux r6frigerateur.
• Utiliser un produit de nettoyage ininflammable.
que I'essence, loin du r6frigerateur.
• Utiliser deux ou plus de personnes pour deplacer et
installer le refrig6rateur.
• Debrancher le refrig6rateur avant I'installation de la
machine a glagons (seulement pour modeles pr_ts
recevoir une machine a glagons).
• Utiliser un verre robuste pour prendre des glagons (sur
certains modeles).
• Ne pas heurter les portes en verre du r6frigerateur (sur
certains modeles).
CONSERVEZ CES INSTRUCTIONS
15

Mise au rebut de votre vieux r( frig@rateur
Risque de suffoquer
Enlever les portes de votre vieux r_frig_rateur.
Le non=respect de cette instruction peut causer
un d_c_s ou des I_sions c_r_brales.
IMPORTANT : L'emprisonnement et I'etouffement des enfants ne
sont pas un probleme du passe. Les refrigerateurs jetes ou
abandonnes sont encore dangereux, m_me s'ils sont laisses
abandonnes pendant "quelques jours seulement". Si vous vous
debarrassez de votre vieux refrigerateur, veuillez suivre les
instructions suivantes pour aider &eviter les accidents.
Avant de jeter votre vieux r_frig_rateur ou cong_lateur :
• Enlever les portes.
• Laisser les tablettes en place de sorte que les enfants ne
puissent pas y penetrer facilement.
-_J$
J
INSTRUCTIONSD'INSTALLATION
Risque du poids excessif
Utiiiser deux ou plus de personnes pour d_placer et
installer le r_frig_rateur.
Le non=respect de cette instruction peut causer
une blessure au dos ou d'autre blessure.
Retirer les materiaux d'emballage. Ne pas utiliser d'instruments
coupants, d'alcool & friction, de liquides inflammables ou de
nettoyants abrasifs pour enlever le ruban adhesif ou la colle. Ces
produits peuvent endommager la surface de votre refrigerateur.
Pour plus de renseignements, voir "Securite du refrigerateur".
D_placement de votre r6frig6rateur :
Votre refrig6rateur est Iourd. Lors du deplacement de votre
refrigerateur pour le nettoyage ou un entretien ou reparation,
veiller & recouvrir le plancher avec du carton ou un panneau
de fibres dures pour eviter qu'il ne subisse tout dommage.
Toujours tirer le refrigerateur tout droit Iors de son
deplacement. Ne pas incliner le refrigerateur d'un c6te ou de
I'autre ni le "faire marcher" en essayant de le deplacer car le
plancher pourrait _tre endommag&
Importants renseignements a savoir au sujet des tablettes
et des couvercles en verre :
Ne pas nettoyer les tablettes ou couvercles en verre avec de
I'eau tiede quand ils sent froids. Les tablettes et les
couvercles peuvent se briser s'ils sent exposes a des
changements soudains de temp@ature ou & un impact tel
que coup brusque. Le verre tremp_ est con(2u pour _clater
en d'innombrables pieces minuscules. Ceci est normal. Les
tablettes et les couvercles en verre sont Iourds. Les saisir
deux mains Iors de leur d@ose afin d'_viter de les faire
tomber.
Risque d'explosion
Garder les mat_riaux et les vapeurs inflammables, telle
que ressence, loin du r_frig_rateur.
Le non=respect de cette instruction peut causer
un d_c_s, une explosion ou un incendie.
Pour obtenir une aeration appropriee pour votre refrigerateur,
laisser un espace de 1/2"(1,25 cm) de chaque c6te et au sommet.
Laisser un espace de 1" (2,54 cm) derriere le refrigerateur. Si votre
refrigerateur comporte une machine a glagons, s'assurer qu'un
espace additionnel est prevu a I'arriere pour permettre les
raccordements des conduits d'eau. En cas d'installation du
refrigerateur pres d'un mur fixe, laisser un minimum de 2"
(5,08 cm) de chaque c6te (selon le modele) pour permettre a la
porte de s'ouvrir sans obstruction.
/Z
2" (5,08 cm)
16

REMARQUES :
IIest recommande de ne pas installer le refrig6rateur pres d'un
four, d'un radiateur ou de toute autre source de chaleur. Ne
pas installer le refrigerateur dans un endroit oQ la temperature
baissera au-dessous de 55°F (13°C).
La largeur de la cavite d'encastrement dolt etre d'au moins
36" (91,44 cm) pour I'installation du produit. Cependant, si le
produit est place contre une paroi relativement Iongue et si on
veut pouvoir retirer les bacs & legumes et &viande, il convient
d'elargir la cavite de 18" (45,72 cm). On recommande donc
une cavite d'encastrement d'une largeur totale de 54"
(137,16 cm).
Risque de choc _lectrique
Brancher sur une prise a3alv_oles reli_e a la terre.
Ne pas enlever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiliser un c&ble de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _lectrique.
Avant de placer le refrigerateur & son emplacement final, il est
important de vous assurer d'avoir la connexion electrique
appropriee.
M_thode recommand_e de mise _la terre
Une source d'alimentation de 115 volts, 60 Hz, type 15 ou
20 amperes CA seulement, protegee par fusible et adequatement
mise & la terre, est necessaire. II est recommande d'utiliser un
circuit distinct pour alimenter uniquement votre refrigerateur.
Utiliser une prise murale qui ne peut pas etre mise hors circuit
I'aide d'un commutateur. Ne pas utiliser un c&ble de rallonge.
REMARQUE :Avant d'executer tout type d'installation, nettoyage
ou remplacement d'une ampoule d'eclairage, tourner la
commande (reglage du thermostat, du refrigerateur ou du
congelateur selon le modele) a OFF (arret) et deconnecter ensuite
le refrigerateur de la source d'alimentation electrique. Lorsque
vous avez termine, reconnecter le refrigerateur &la source
d'alimentation electrique et tourner de nouveau la commande
(reglage du thermostat, du refrigerateur ou du congelateur selon
le modele) au reglage desire. Voir "Utilisation des commandes".
Rassembler les outils et pieces necessaires avant de commencer
I'installation. Lire et suivre les instructions fournies avec les outils
indiques ici.
OUTILLAGE REQUlS :
• Tournevis & lame plate
• Cles plates de 74e"et _/_"ou
deux cles & molette reglables
• Tourne-ecrou de _/4"
• Foret de V4"
• Perceuse sans fil
REMARQUE :Votre marchand de refrigerateurs presente une
trousse disponible avec un robinet d'arret &etrier de V4"
(6,35 mm), un raccord et un tube en cuivre. Avant I'achat,
s'assurer que le robinet d'arret & etrier est conforme & vos codes
Iocaux de plomberie. Ne pas employer de robinet d'arret a etrier
de 3Ae"(4,76 mm) ou de type &percer, ce qui reduit le debit d'eau
et cause une obstruction plus facilement.
IMPORTANT :
• Toutes les installations doivent etre conformes aux exigences
des codes Iocaux de plomberie.
• Utiliser un tube en cuivre et verifier s'il a des fuites. Installer les
tubes en cuivre seulement a des endroits oQ la temperature se
maintient au-dessus du point de congelation.
Pression de I'eau
Une alimentation en eau froide avec une pression entre 30 et
120 Ib/po _(207 et 827 kPa) est necessaire pour faire fonctionner
le distributeur d'eau et la machine & glagons. Si vous avez des
questions au sujet de la pression de votre eau, appeler un
plombier qualifie agree.
Alimentation en eau par osmose inverse
IMPORTANT : La pression de I'alimentation en eau entre le
systeme d'osmose inverse et la valve d'arrivee d'eau du
refrigerateur dolt etre entre 30 et 120 Ib/po 2(207 et 827 kPa).
Si un systeme de purification de I'eau par osmose inverse est
raccorde &votre alimentation en eau froide, la pression de I'eau
au systeme dolt etre d'un minimum de 40 a 60 Ib/po 2(276
414 kPa).
Si la pression de I'eau au systeme d'osmose inverse est inferieure
&40 a 60 Ib/po _ (276 & 414 kPa) :
• Verifier si le filtre &sediment du systeme d'osmose inverse est
bloque et le remplacer si necessaire.
Laisser le reservoir du systeme d'osmose inverse se remplir
apres une utilisation intense.
Si votre refrigerateur a une cartouche de filtre & eau, celle-ci
peut reduire encore plus la pression de I'eau Iorsqu'elle est
utilisee avec un systeme d'osmose inverse. Retirer la
cartouche du filtre & eau. Voir "Systeme de filtration d'eau".
Si vous avez des questions au sujet de la pression de votre eau,
appeler un plombier qualifie agree.
17

Lire toutes les instructions avant de commencer.
IMPORTANT : Si on doit mettre en marche le refrig6rateur avant
qu'il soit raccorde & la canalisation d'eau, placer la commande de
la machine a glagons a la position OFF (arret).
Raccordement _une canalisation d'eau
1. Debrancher le refrigerateur ou deconnecter la source de
courant electrique.
2. FERMER le robinet principal d'arrivee d'eau. OUVRIR le
robinet de puisage le plus proche pendant une periode
suffisante pour que la canalisation d'eau se vide.
3. Trouver une canalisation d'eau froide verticale de
1/2"(1,27 cm) a 1V4"(3,18 cm) pros du refrigerateur.
IMPORTANT :
4=
5=
S'assurer qu'il s'agit d'une canalisation d'eau froide.
Un conduit horizontal fonctionnera, mais percer par le
dessus de la canalisation et non pas par le dessous. Ceci
permet de tenir le point de per_age &I'ecart de I'eau et
d'empecher les sediments qu'on trouve normalement
dans I'eau de s'accumuler dans le robinet d'arret.
Pour determiner la Iongueur du tube en cuivre, il faut mesurer
la distance entre le point de connexion inferieur & I'arriere du
refrigerateur et le tuyau d'arrivee d'eau. Ajouter une Iongueur
de 7 pi (2,1 m) pour permettre le deplacement du refrigerateur
pour le nettoyage. Utiliser un tube en cuivre de 1/4"(6,35 mm)
de diam_tre exterieur. Veiller & ce que le tube soit coupe
d'equerre aux deux extremites.
/_,I'aide d'une perceuse sans ill, percer un trou de 1/4"
(6,35 mm) dans le tuyau de canalisation d'eau froide choisi.
_ .....,,. ..............C
Raccordement au r_frig_rateur
2.
3.
Style 1
1. Debrancher le refrigerateur ou deconnecter la source de
courant electrique.
Retirer et jeter la piece en plastique fixee au point d'arrivee du
robinet d'eau.
4=
5.
6.
Connecter le tube en cuivre & la valve d'arrivee d'eau en
utilisant un ecrou et une bague de compression tel qu'illustr&
Serrer I'ecrou de compression. Ne pas serrer excessivement.
Utiliser la bride du tube &I'arriere du refrigerateur pour fixer le
tube au refrigerateur tel qu'illustr& Ceci aide & eviter
d'endommager le tube Iorsque le refrigerateur est pousse
contre le mur.
OUVRIR le robinet d'arret.
Inspecter pour rechercher les fuites. Serrer tousles raccords
(y compris les raccordements au niveau de la valve d'entree
d'eau) ou les ecrous qui coulent.
D
E
7=
A. Bride du tube D. E-crou de compression
B. Vis de bride de tube E. Valve d'entr_e d'eau
C. Tube en cuivre
La machine & glagons est equipee d'un filtre & eau incorpor&
Si la qualite de I'eau distribuee Iocalement necessite un
deuxieme filtre & eau, installer ce dernier dans la canalisation
d'eau de W' (6,35 mm) au niveau de I'un des raccords du
tuyau. On peut obtenir un tel filtre a eau chez le marchand
d'appareils electromenagers le plus )roche.
6.
A. Canafisation d'eau froide
B. Bride de tuyau
C. Tube en cuivre
D. E-crou de compression
E.Bague de compression
F. Robinet d'arr_t
G. E-crou de serrage
Fixer le robinet d'arret sur la canalisation d'eau froide avec la
bride de tuyau. Verifier que I'extremite de sortie du robinet est
bien engagee dans le trou de 1/4"(6,35 mm) perce dans la
canalisation et que la rondelle d'etancheite est placee sous la
bride de tuyau. Serrer I'ecrou de serrage. Serrer lentement et
uniformement les vis fixant la bride de prise en charge sur le
tuyau afin d'assurer I'etancheite de la rondelle. Ne pas serrer
excessivement car ceci pourrait provoquer I'ecrasement du
tube en cuivre.
Style 2
1. Debrancher le refrigerateur ou deconnecter la source de
courant electrique.
2. Retirer et jeter le bouchon en nylon noir du tuyau d'eau gris
I'arriere du refrigerateur.
3. Si le tuyau gris fourni avec le refrigerateur n'est pas assez
long, un raccord de W' xW' (6,35 mm x 6,35 ram) est
necessaire afin de connecter la canalisation d'eau au conduit
d'eau existant dans la maison. Visser I'ecrou fourni sur le
raccord a I'extremite du tube de cuivre.
REMARQUE : Serrer I'ecrou & la main. Ensuite, le serrer avec
une cle deux tours de plus. Ne pas serrer excessivement.
7. Enfiler I'ecrou et la bague de compression sur le tube en
cuivre comme on le voit sur I'illustration. Inserer I'extremite du
tube aussi loin que possible dans I'extremite de sortie du
robinet. Visser I'ecrou de compression sur I'extremite de sortie
avec une cle & molette reglable. Ne pas serrer excessivement.
8. Placer le bout libre du tube dans un contenant ou evier et
OUVRIR le robinet principal d'arrivee d'eau et laisser I'eau
s'ecouler par le tube jusqu'& ce que I'eau soit limpide.
FERMER le robinet principal d'arrivee d'eau. Enrouler le tube
en cuivre en spirale.
A B C D E F G
A. Conduit vers le r_frig_rateur E. Virole (_ acheter)
B. E-crou (foumi) F. E-crou (_ acheter)
C. Renflement G. Canalisation
D. Raccord (_ acheter) d'eau du domicile
18

4,
5. OUVRIR le robinet d'arr_t.
Inspecter pour rechercher les fuites. Serrer tous les raccords
(y compris les raccordements de la valve d'entree d'eau) ou
les ecrous qui coulent.
Style 3
1. Debrancher le refrigerateur ou deconnecter la source de
courant electrique.
2. Retirer et jeter le bouchon du tube d'eau gris.
A B
3,
4.
5.
A. Bouchon
B. Arriv_e d'eau
A I'aide d'un ecrou et d'une bague de compression, fixer le
tube de cuivre & I'arrivee d'eau.
Une fois le tube fixe, serrer I'ecrou de compression. Ne pas
serrer excessivement.
Verifier le raccordement en tirant sur le tube en cuivre. Ouvrir
I'arrivee d'eau alimentant le refrigerateur. Inspecter pour
rechercher les fuites. Serrer tousles raccords ou les ecrous
qui coulent.
Achever I'installation
Risque de choc _lectrique
Brancher sur une prise a3alv_oies reli_e a Jaterre.
Ne pas enJever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiJiser un c&ble de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _lectrique.
1. Brancher sur une prise &3 alveoles reliee & la terre.
2. Vider le systeme d'eau. Voir "Preparer le systeme d'eau" ou
"Distributeurs d'eau et de gla£sons".
REMARQUE :Attendre 24 heures pour produire la premiere
quantite de gla£sons. Attendre 3 jours pour que le bac a gla£sons
se remplisse entierement.
U]'ILISATION
DU REFRIGERATEUR
Ut! des co 'sc mc 'c ®s
Pour votre commodite, les commandes du refrigerateur sont
prereglees & I'usine. Lors de I'installation initiale du refrigerateur,
s'assurer que les commandes sont encore prereglees. La
commande du refrigerateur et celle du congelateur devraient
toutes les deux se trouver aux "reglages moyens".
FREEZER REFRIGERATOR
@ @
2 4
COLD 1@5 COLDER z@e,
COLD 1 s COLDER
oC_
IMPORTANT :
• Votre produit ne se refroidira pas quand la commande du
RI2FRIGERATEUR se trouve a OFE
La commande du refrigerateur regle la temperature du
compartiment de refrigeration. La commande du congelateur
regle la temperature du compartiment de congelation. Les
reglages & la gauche du reglage moyen sont pour une
temperature moins froide. Ceux qui se trouvent & droite sont
pour une temperature plus froide.
Attendre 24 heures avant de mettre des aliments au
refrigerateur. Si I'on ajoute des aliments avant que le
refrigerateur ait refroidi completement, les aliments peuvent
s'abimer.
REMARQUE :Tourner les commandes du refrigerateur et du
congelateur & un reglage plus eleve (plus froid) que le reglage
recommande ne refroidira pas les compartiments plus
rapidement.
Ajustement des commandes
Donner au refrigerateur le temps de refroidir completement avant
d'y ajouter des aliments. II est preferable d'attendre 24 heures
avant de placer les aliments au refrigerateur. Les reglages
indiques dans la section precedente devraient _tre corrects pour
I'utilisation normale du refrigerateur domestique. Les reglages
sont faits correctement Iorsque le lait ou le jus est aussi froid que
vous I'aimez et Iorsque la creme glacee est ferme.
Tourner la commande vers la droite (dans le sens horaire) pour
rendre le compartiment plus froid. Tourner la commande vers la
gauche (dans le sens antihoraire) pour le rendre moins froid. Pour
eteindre le systeme de refroidissement, tourner la commande du
refrigerateur dans le sens antihoraire a la position OFF (arr_t).
S'il est necessaire d'ajuster les temperatures dans le refrigerateur
ou congelateur, utiliser les reglages indiques dans le tableau ci-
dessous comme guide. Attendre au moins 24 heures entre les
ajustements.
19

CONDITION/RAISON : AJUSTEMENT :
RI2FRIGI2RATEUR trop tiede Regler la commande
du RI2FRIGI2RATEUR
un degre plus eleve
CONGI2LATEUR trop tiede/ Regler la commande
trop peu de glagons du CONGI2LATEUR
un degre plus eleve
RI2FRIGI2RATEUR trop froid Regler la commande
du RI2FRIGI2RATEUR
un degre plus bas
CONGI2LATEUR trop froid Regler la commande
du CONGI2LATEUR
un degre plus bas
f ;Dd de po4e
s,J_'_.,c®_'®;'_s'nod@®s
De I'air froid du congelateur passe directement dans le
compartiment de la porte du refrigerateur situe sous les events.
REMARQUE : Le compartiment a produits laitiers et le porte-
canettes ne sont pas associes a la caracteristique Compartiment
froid de la porte.
Commande du compartiment froid de la porte
La commande du compartiment froid de la porte se trouve sur le
c6te gauche du compartiment de refrigeration.
C " ' c nde de e C(,S
tRcs conve nb e
La commande peut _tre ajustee pour bien refroidir les viandes ou
les legumes. L'air a I'interieur du contenant est refroidi pour eviter
les "petits espaces" de congelation et peut _tre regle pour garder
les viandes aux temperatures de conservation de 28° a 32°F
(de -2° a 0°C) recommandees par I'Office national du betail et des
viandes. La commande du tiroir convertible a legumes/viande est
prereglee au reglage le plus bas pour la viande.
Pour conserver la viande :
Regler la commande a un des trois reglages MEAT (viande) pour
conserver la viande a la temperature ideale.
Pour conserver les I_gumes :
Regler la commande &VEG (legumes) pour conserver les legumes
la temperature ideale.
REMARQUE : Si les aliments commencent & congeler, deplacer
la commande vers la gauche (moins froid). Ne pas oublier
d'attendre 24 heures entre les ajustements.
@@UO3@S
On peut contr61er le degre d'humidite dans le bac & legumes
etanche. La commande peut _tre ajustee & n'importe quel reglage
entre LOW et HIGH.
LOW (bas)(ouvert) pour une meilleure conservation des fruits et
des legumes &pelures.
HIGH (eleve)(ferme) pour une meilleure conservation des legumes
frais et &feuilles.
A.....
A. Commande du compartiment froid de la porte
Deplacer le bouton de commande du compartiment froid de la
porte vers la gauche pour reduire la circulation d'air froid dans
le compartiment et le rendre ainsi moins froid.
Deplacer le bouton de commande du compartiment froid de la
porte vers la droite pour augmenter la circulation d'air froid
dans le compartiment et le rendre ainsi plus froid.
© SiS"b_.t®_.l's_..,"__',"°°c,,,.._.®tcJ®4g <s..,o_':;,."°_",>........"
Selon votre modele, vous pouvez choisir une ou plusieurs des
options suivantes • la possibilite de choisir de la glace concassee
ou en cubes, I'eau refrigeree, une lampe speciale qui s'allume
I'occasion de I'utilisation du distributeur, ou une option de
verrouillage pour eviter une distribution non intentionnelle.
IMPORTANT : Apres avoir raccorde le refrigerateur a une source
d'alimentation en eau ou remplace le filtre & eau, vidanger le
circuit d'eau. Utiliser un recipient robuste pour appuyer sur le
levier du distributeur d'eau pendant 5 secondes, puis rel&cher le
levier pendant 5 secondes. Repeter I'operation jusqu'a ce que
I'eau commence a couler. Une fois que I'eau commence a couler,
continuer d'appuyer puis de rel&cher le levier du distributeur
(appui pendant 5 secondes, rel&chement pendant 5 secondes)
jusqu'a ce qu'un total de 8 gal. (12 L) soit distribu& Ceci evacue
I'air du filtre et du systeme de distribution d'eau et prepare le filtre
eau pour utilisation. Une vidange supplementaire peut _tre
necessaire dans certains domiciles. Pendant I'evacuation de I'air
du systeme, de I'eau peut gicler du distributeur.
REMARQUES :
• Le systeme de distribution ne fonctionne pas Iorsque la porte
du congelateur est ouverte.
• Sur certains modeles •Accorder 24 heures pour que le
refrigerateur se refroidisse et refroidisse I'eau.
• Accorder 24 heures pour produire la premiere quantite de
glagons. Jeter les trois premieres quantites de glagons
produites.
20
