Technicolor TCV2480A User manual

Model:TCV2480A

ENERGY
SAVING MODE
6
19
20
23
26
27
17
15
13
13
13
12
10
11
10
10
9
8
8
9
7
6

28
29
32
34
35
37
38
39
40
41
42

*SAFETY PRECAUTIONCAUTIONWARNING:
PLACE ME NT INFORMATIONSAFE TY INFOR MATIONCONDENSATION INFORMATION
RATING PLATE LOCATION
FCC STATEMENTS
CLASS 1 LASER
PRODUCT
WARNING:
CAUTION MARKING WAS LOCATED AT THE REAR
OF THE APPARATUS.
WARNING:TO REDUCE THE RISK OF ELECTRIC
SHOCKˈDO NOT REMOVE COVER˄OR BACK˅NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle,is intended to
alert the user to the presence of uninsulated
“dangerous voltage”within the product's enclosure
that may beof sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
Triangle is intended to alert the user to
The presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCKS DEFEATED
AVOID EXPOSURE TO BEAM
This product
Contains a low
power laser device.
DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
TO REVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO
NOT PLACE OBJECTS FILLED WITH LIQUIDS ON
OR NEAR THIS UNIT.
SHOULD ANY TROUBLE OCCUR, DISCONNECT
THE AC POWER CORD AND REFER SERVICING
TO A QUALIFIED TECHNICIAN.
Do not use this unit in places that are extremely
hot, cold, dusty or humid.
Do not restrict the airflow of this unit by placing it
somewhere with poor airflow, by covering it with
a cloth, by placing it on bedding or carpeting.
When connecting or disconnecting the AC power
cord, grip the plug and not the cord itself. Pulling
the cord may damage it and create a hazard.
When you are not going to use the unit for a long
period of time, disconnect the AC power cord.
When left in a heated room where it is warm and
damp, water droplets or condensation may form
inside the equipment. When there is condensation
inside the unit, the unit may not function normally.
Let the unit stand for 1-2 hours before turning the
power on or gradually heat the room and let the
unit dry before use.
The rating plate is located on the rear of the unit.
NOTE: This unit has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation.
This unit generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communication. However, there
is no guarantee that interference will not occur in a
particular installation. If this unit does cause harmful
interference to radio or television reception, which
can be determined by turning the unit off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the unit and
receiver.
-Connect the unit into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications to this
unit not expressly approved by the party responsible
for compliance could void the user authority
to operate the unit.
1
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
“HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.”

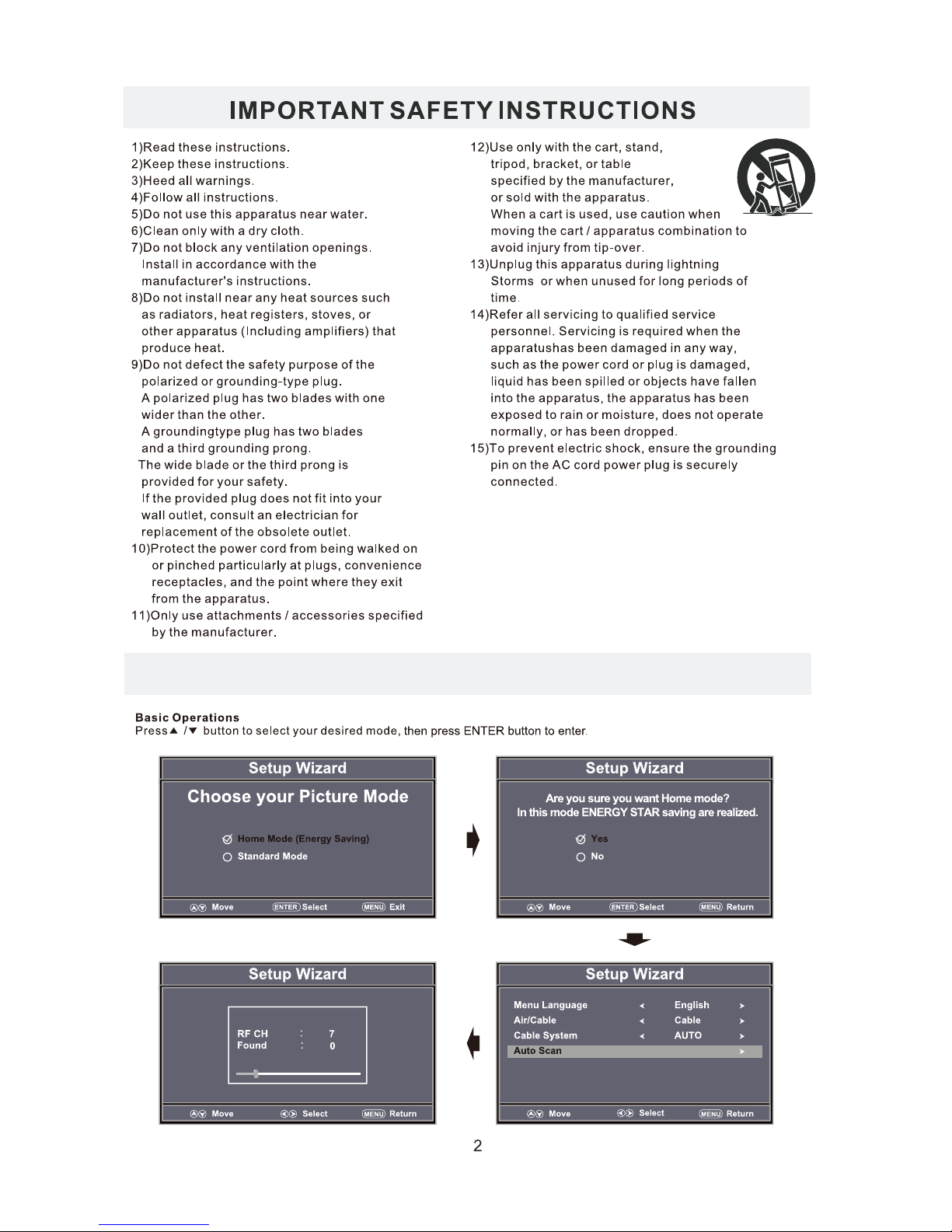

Energy saving mode

ACCESSORIES
Please check and identify the supplied accessories.
................................................................................................................
...........................................................................................................
GETTING STARTED

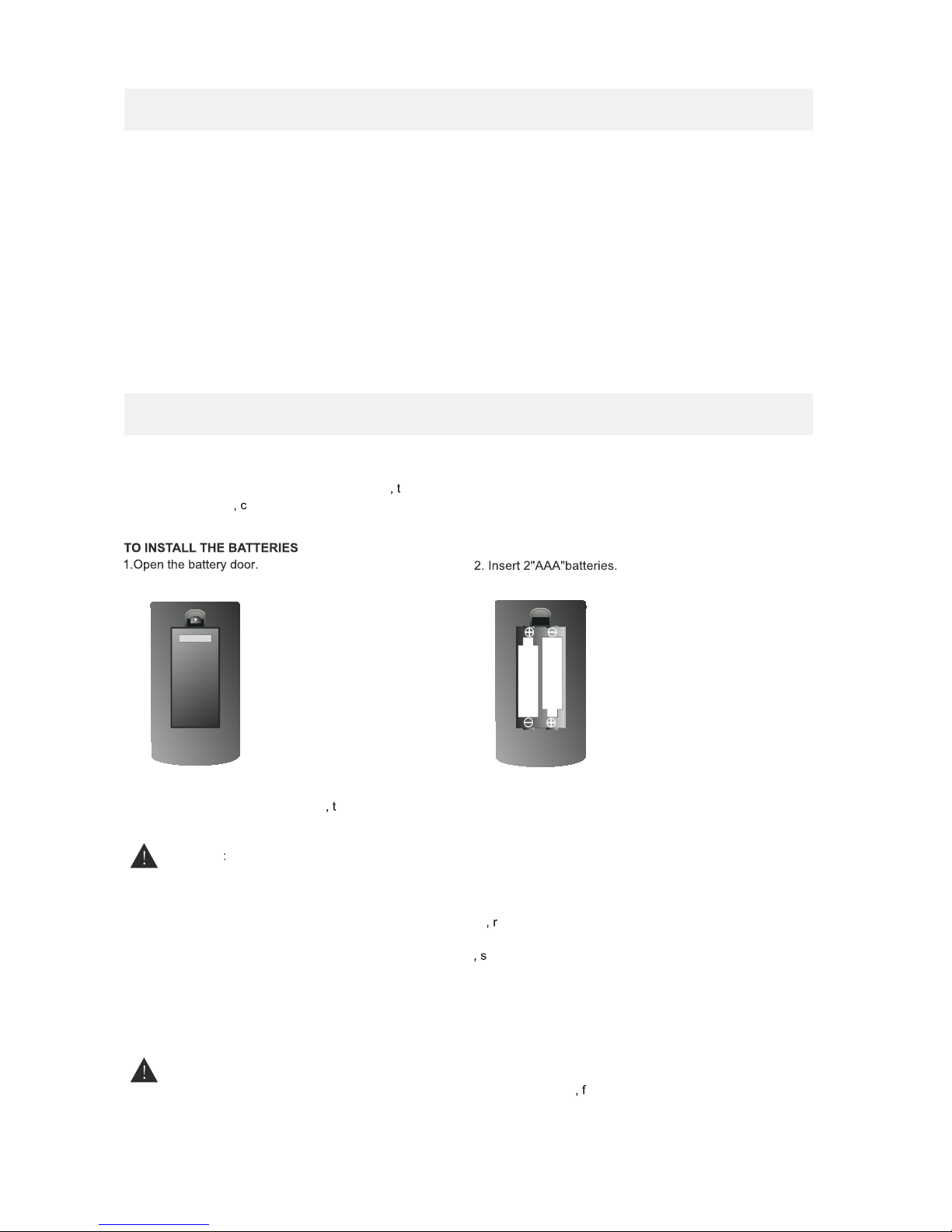

USINGTHEREMOTECONTROLBATTE RY R E PL ACE ME NTCAUTIONDanger of explosion if battery is incorrectly replaced.
NOTES WAR NING :3
x 2
x 1
x 1
x 1
Remote control .................................................................................................................
Remote control
Battery(AAA)
Warranty Card
Instruction Manual
·Point the remote control at the remote sensor located on the unit.
·When there is a strong ambient light source he performance of the infrared remote sensor
·may be degraded ausing unreliable operation.
·The recommended effective distance for remote operation is about 16 feet (5 meters).
When the batteries become weak he operating distance of the remote control is greatly
reduced and you will need to replace the batteries.
·If the remote control is not going to be used for a long time emove the batteries to avoid
damage caused by battery leakage corrosion.
·Do not mix old and new batteries. Do not mix ALKALINE tandard (CARBON-ZINC) or
rechargeable (NICKEL-CADMIUM) batteries.
·Always remove batteries as soon as they become weak.
·Weak batteries can leak and severely damage the remote control.
Do not dispose batteries in a fire. Batteries may explode or leak.
Batteries shall not be exposed to excessive heat such as sunshine ire or the like.
2Base stands and 4 screwsbase stand
..........................................................................
x 1
...................................................................................................................
Power adaptor ...........................................................................................................................................x 1

GOTO ANGLE REPEAT AB
SUBTITLE AUDIO
EJECT TITLE D.MENU D.SETUP
ENTER
10
10+
CC
EPG
AUTO
FAV

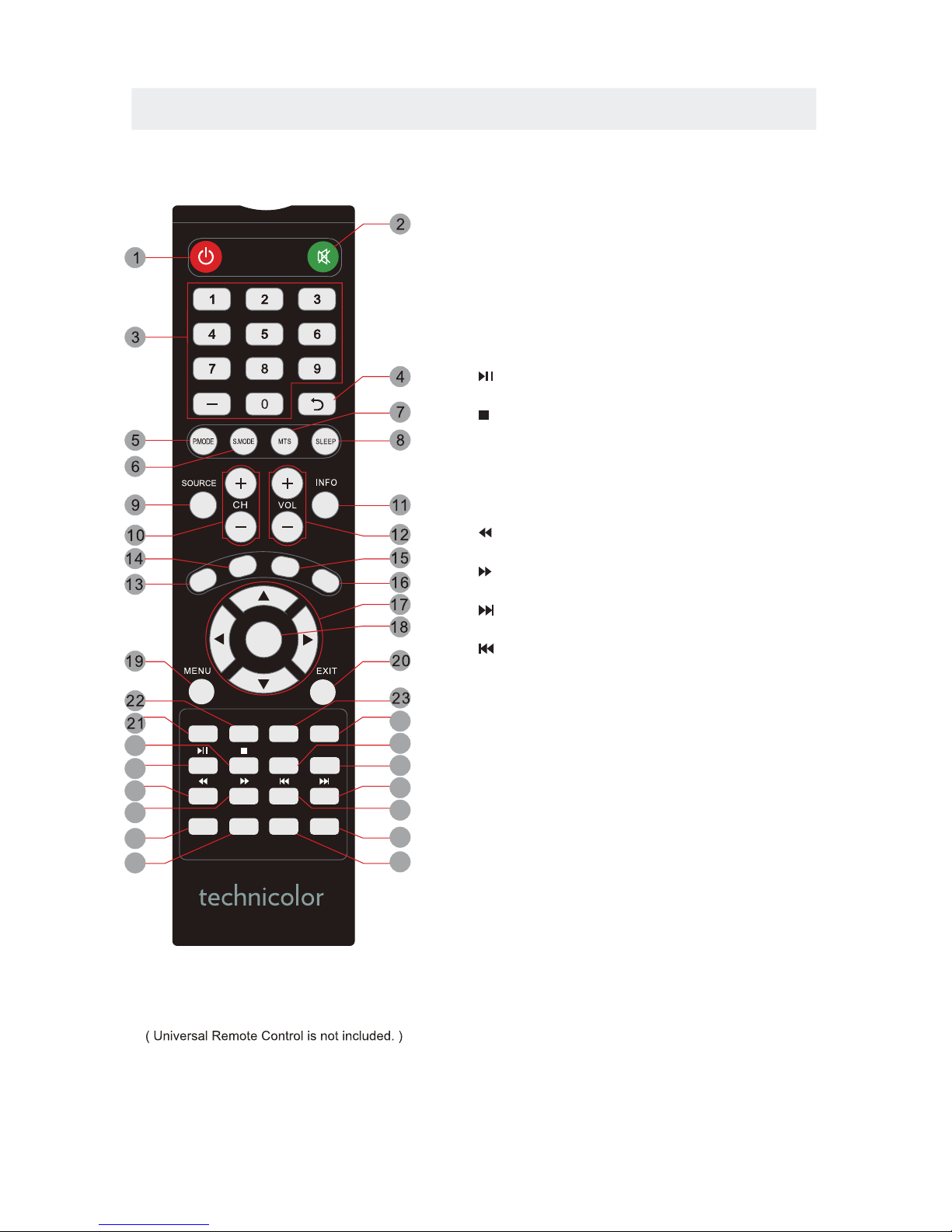

CONTROL REFERENCE GUIDE
4
REMOTE CONTROL
Universal Remote Code: 1218
24
27
26
25 28
29
30
31
32
33
34 35
36
1.STANDBY
To switch on the TV or make the TV into
standby mode.
2.MUTE
Press this button to mute or restore sound.
3.0-9
Allows you to change the channel of the TV.
4.
Switches back and forth between the current and previous
channels,or to edit the program list of your DVD disc in
DVD mode.
5.P.MODE
Press this button to select a picture mode for different
picture qualities.
6.S.MODE
Press this button to select sound setting for different
sound effects.
7.MTS
To change among STEREO, MONO and SAP. If there is no
second language available for the signal received, LED
Display audio will output to mono.
8.SLEEP
To select the amount of time before your TV turns
Off automatically.
9.SOURCE
Press this button to select an input source.
10.CH+/CH-
Skips to the next/previous channel on TV mode.
11.INFO
Show the information of the program you are watching.
12.VOL+/VOL-
Increases/Decreases the Volume control.
13.CC
Press the button to enter into the CC mode.
14.EPG
15.FAV
Press this button enter the favourite list.
16.AUTO
Press this button to autoadjust the screen in PC mode.
17.UP/DOWN/LEFT/RIGHT
Moves the cursor upward/downward/to the left/to the right
when making a selection.
18.ENTER
Press to confirm selections on a menu screen.
MENU
Displays the OSD Menu of the TV.
Exit
Press this button to exit the on screen display.
Press this button to select the electronic programme
guide in DTV mode.
19.
20.
PRO

CONTROL REFERENCE GUIDE
5
REMOTE CONTROL
Universal Remote Code: 1218
21.EJECT
To eject a disc.
22.TITLE
To goto the title menu if the DVD disc has a title page.
To show the menu of the DVD disc.
24.D.SETUP
Press this button to show the DVD SETUP menu.
25.
Press this button to play or pause the DVD you’re watching.
26.
Press this button to stop playing the DVD you’re watching.
27.SUBTITLE
To show the subtitle for the program you're watching.
28.AUDIO
Press this button to change the audio language of the DVD.
29.
Fast reverse in DVD mode.
30.
Fast forward in DVD mode.
31.
Next chapter in DVD mode.
32.
Previous chapter in DVD mode.
33.GOTO
Press this button to start playing the disc program from
the time you want.
34.ANGLE
To select different angles to which the picture suits your
preference.
35.REPEAT
Press this button for repeat the program.
36.AB
Press this button for repeat play point A and B.
23.D.MENU
GOTO ANGLE REPEAT AB
SUBTITLE AUDIO
EJECT TITLE D.MENU D.SETUP
ENTER
10
10+
CC
EPG
AUTO
FAV
24
27
26
25 28
29
30
31
32
33
34 35
36
PRO

CONTROL REFERENCE GUIDE

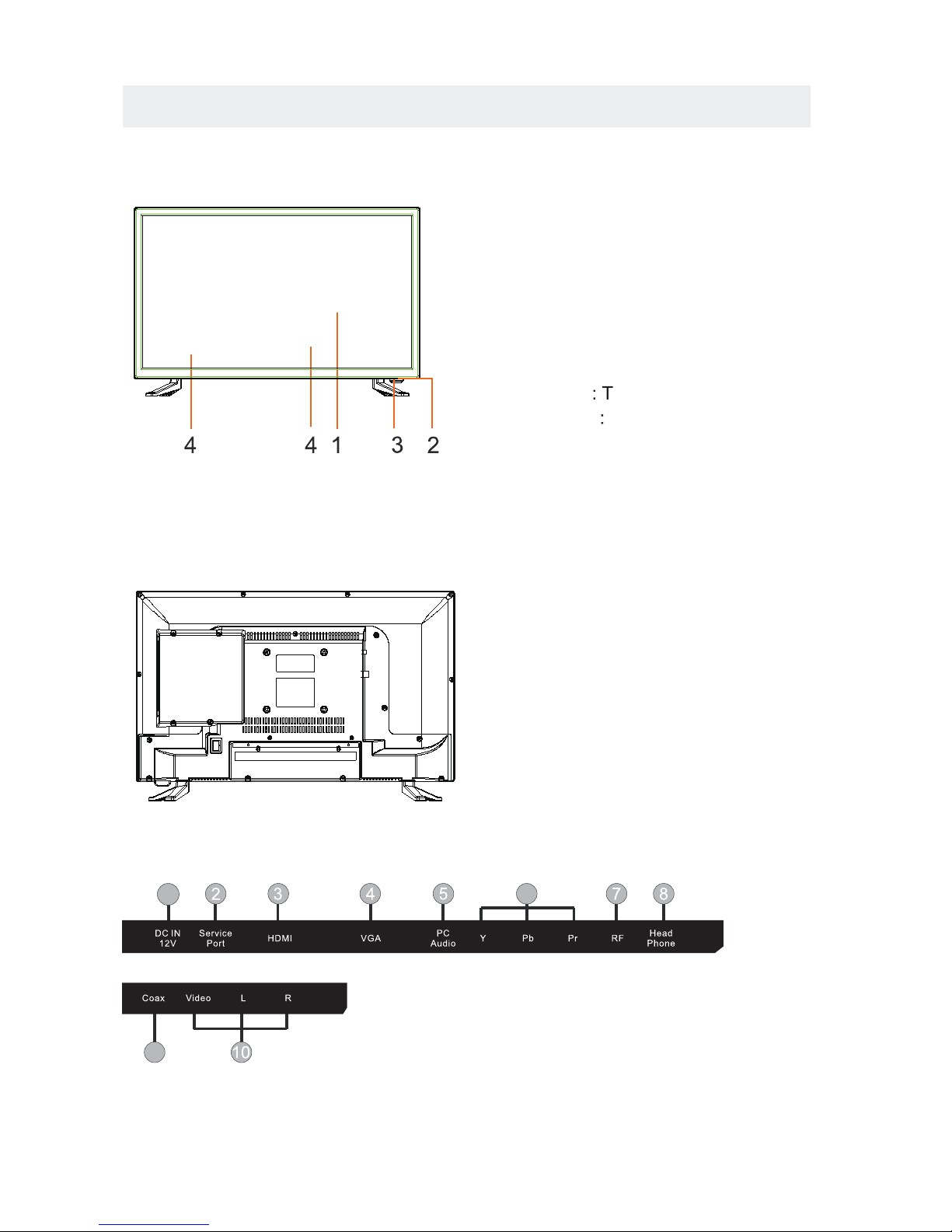

FRONT VIEW
6
BACK VIEW
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red he unit is in STANDBY.
Light in blue The unit is turned ON.
4. Speakers
1.DC IN
2.Service Port
3.HDMI IN Jacks
4.VGA IN Jack
5.PC ADUIO IN Jack
6.COMPONENT IN Jack
7.TV ANTENNA Terminal
8.Headphone Jack
9.Coax OUT Jack
10.AV IN Jack
9
6
1

SIDE VIEW
8
7
9
.
8.
Press to eject a disc.
Press this start pause or resume playback of
a disc.
9.Disc Slot
Insert discs to disc slot
(Right direction put the side of
the disc facing yourself
: mirror
)

CONNECTIONS

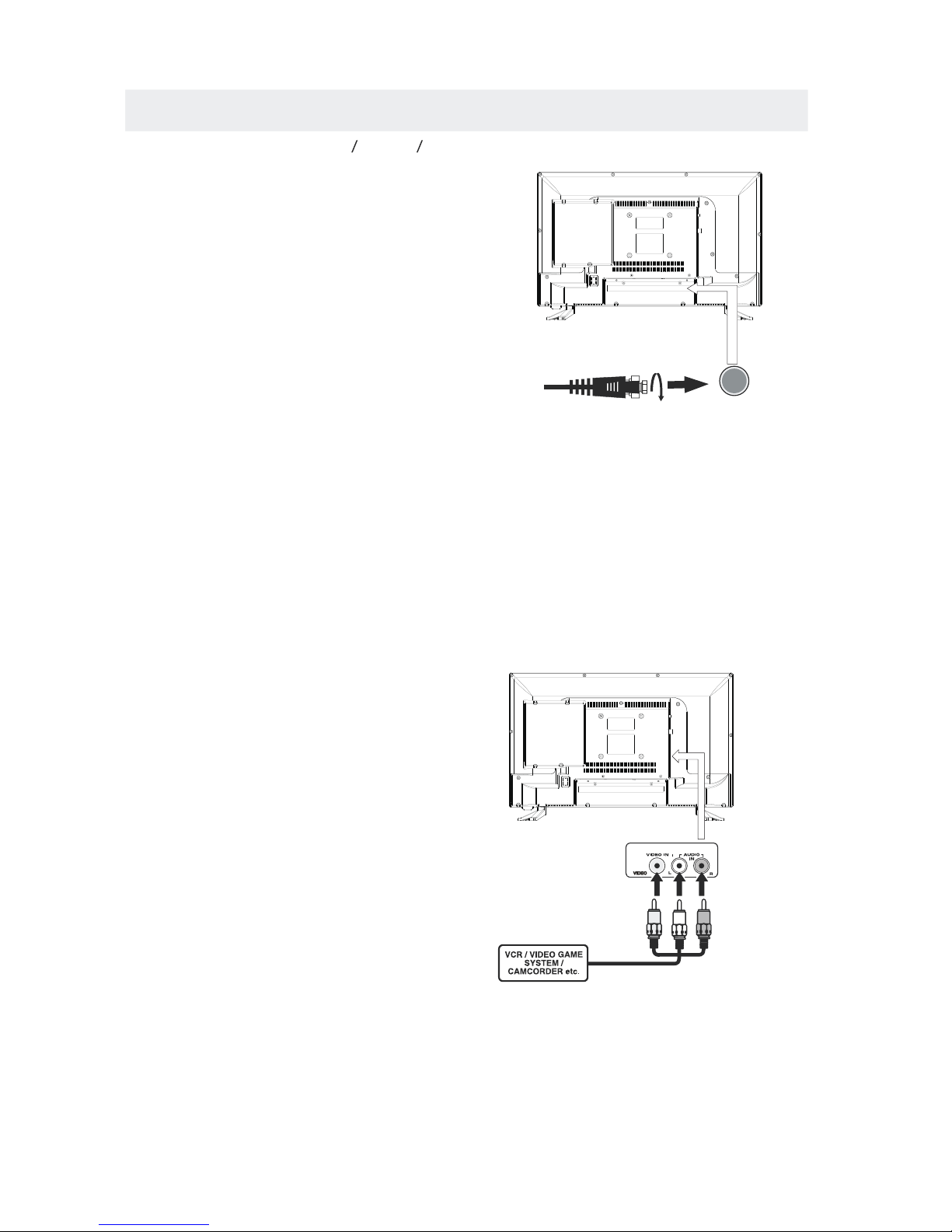

CONNECTING A TV ANTENNA CABLE SATELLITE
To view television channels correctly, a signal must
be received from one of the following sources:
- An indoor or outdoor aerial antenna
- A cable system
- A satellite system
For receiving over-the-air TV broadcasts, we
recommend that you use an external fixed antenna.
Should you require the use of a temporary antenna,
please ensure that you purchase an antenna with
sufficient ability to receive in weak signal areas.
Only when you are in close proximity to a transmitter
will a temporary antenna reproduce a signal as
strongly as a fixed antenna.
To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.
CONNECTING AN A/V DEVICE
NOTE
CONNECTING DEVICES WITH A COMPOSITE
VIDEO OUTPUT
Connecting to a VCR / Video Game System / Camcorder
AUDIO VIDEO OUT
NOTE
To connect A/V devices such as a VCR, video game system or camcorder.
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment ( and ) to this unit
1 P. lease refer to the user manual
.
for the other equipment for
more information.
Satellite, cable or TV antenna
cable to TV ANTENNA
terminal (cable not included)
8
(AV in)
2. Composite video input
(shared with component)
To AUDIO / VIDEO
IN jacks
To AUDIO / VIDEO
OUT jacks
YELLO W WH ITE RED

CONNECTIONS
CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CONNECTION
NOTE
COMPONENT
High-Definition (HD) Devices with component video output must be connected to the Y input.
Connect the component video cable and audio cable (not included) as shown.
Make sure you connect the component video cable and audio cable from the other equipment
When connecting a DVD player to the television,
the picture resolution is solely dependent upon
the resolution supported by the DVD player attached.
DVD player resolutions vary from 480i to 1080i.
and this television can support DVD players up to
a maximum resolution of 1080i.
PbPr
* May require a subscription
for receiving HD channels,
check with your cable/satellite
service provider for details.
To COMPONENT
VIDEO OUT jacks
CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION
HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection
for use with DVD players, DTV, set-top boxes and other digital AV devices. HDMI was developed to provide
the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface
(DVI) in one specification. HDCP is used to protect digital content transmitted and received by
DVI-compliant or HDMIcompliant displays.
HDMI has the capability to support standard, enhanced or high-definition video plus standard to
multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of
up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and
connectors), and communication between the AV source and AV devices such as DTVs.
To HDMI
IN jack To HDMI
jackOUT
To COMPONENT
VIDEO IN jacks
AUDIO IN jacks
To COMPONENT AUDIO
OUT jacks
Connect the HDMI cable (not included) as
shown:
Make sure you connect the cable from the
source equipment ( ) to this unit
( ).
HDMI OUT
HDMI IN
HDMI CABLE
(NOT INCLUDED)
˄COMPONENT OUT and AUDIO OUT˅to the unit COMPONENT IN.
COMPONENT IN
9
To COMPONENT

CONNECTIONS
CONNECTING A
AUDIO - PC OUT
VGA AUDIO - PC IN
PC
VGA

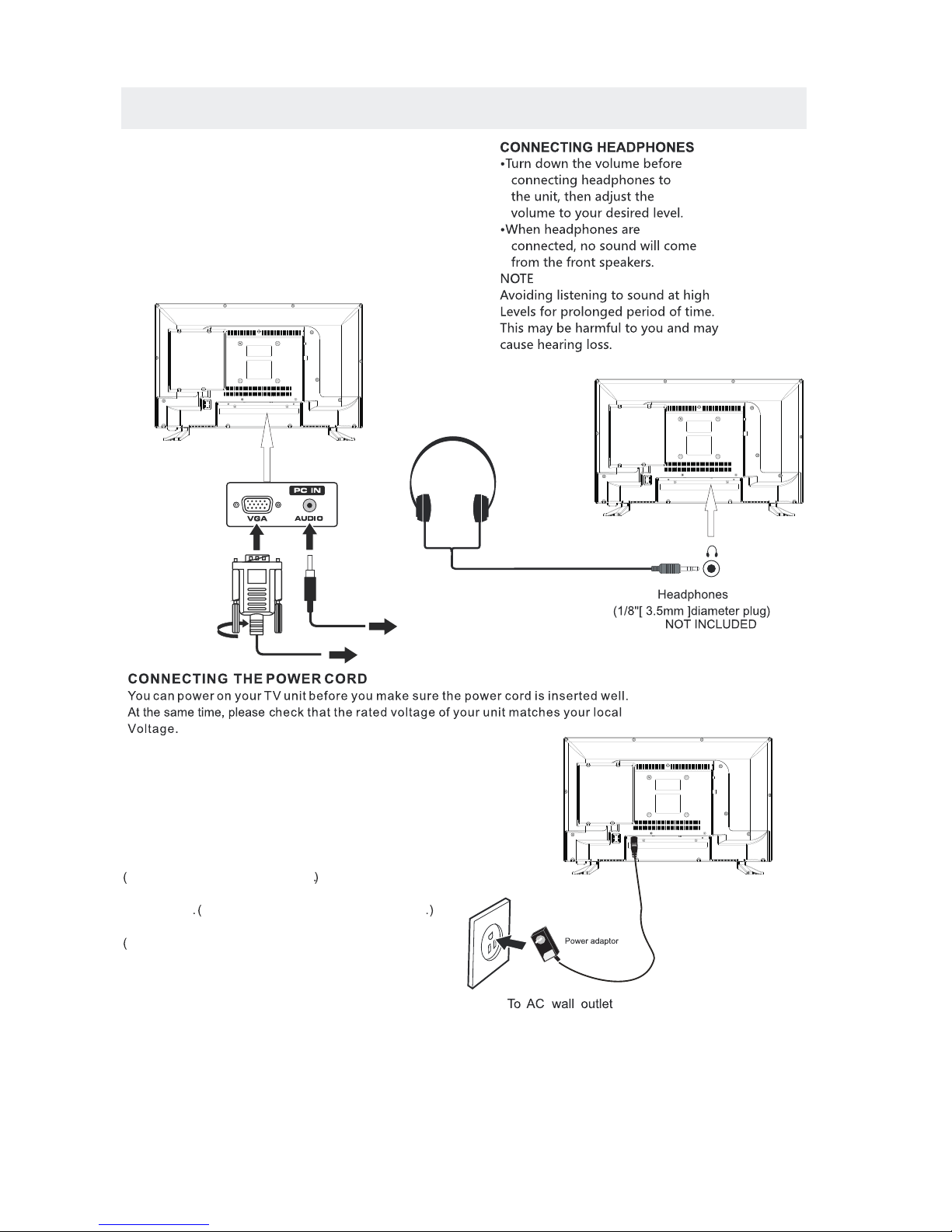

Connect the 15-pin D-SUB PC/VGA connector
from your computer to the 15-pin D-SUB PC/VGA
input on this unit using a monitor cable and an
audio cable (not included) as shown.
Make sure you connect the cable from the computer
( and ) to this unit
( and ).
TO PC Connector
TO AUDIO OUT jacks
NOTE
tInsert the power plug fully into the socket outlet
If the power plug is loose it could generate heat and
cause fire
Do not touch the power plug with a wet hand
This may cause electrical shock
Do not use any power cord other than that provided
with this TV This may cause fireor electrical shock
Do not damage the power cord
A damaged cord may cause fire or electrical shock
tDo not move the TV with the cordplugged in the
socket outlet.
tDo not place a heavy object on the cord or place
the cordnear a high-temperatureobject.
tDo not twist the cord,bend it ex cessively,or stretch it.
tDo not pull on the cord.Hold onto the power plug body when disconnecting cord.
tDo not use a damaged power plug or socket outlet.
.
( ,
.)
.
.
ttt
connected to prevent electrical shock.
Ensure that the power plug is easily accessible.
Ensure the earth pin on the power plug is securely
tt
10
.)

4”
4”
12

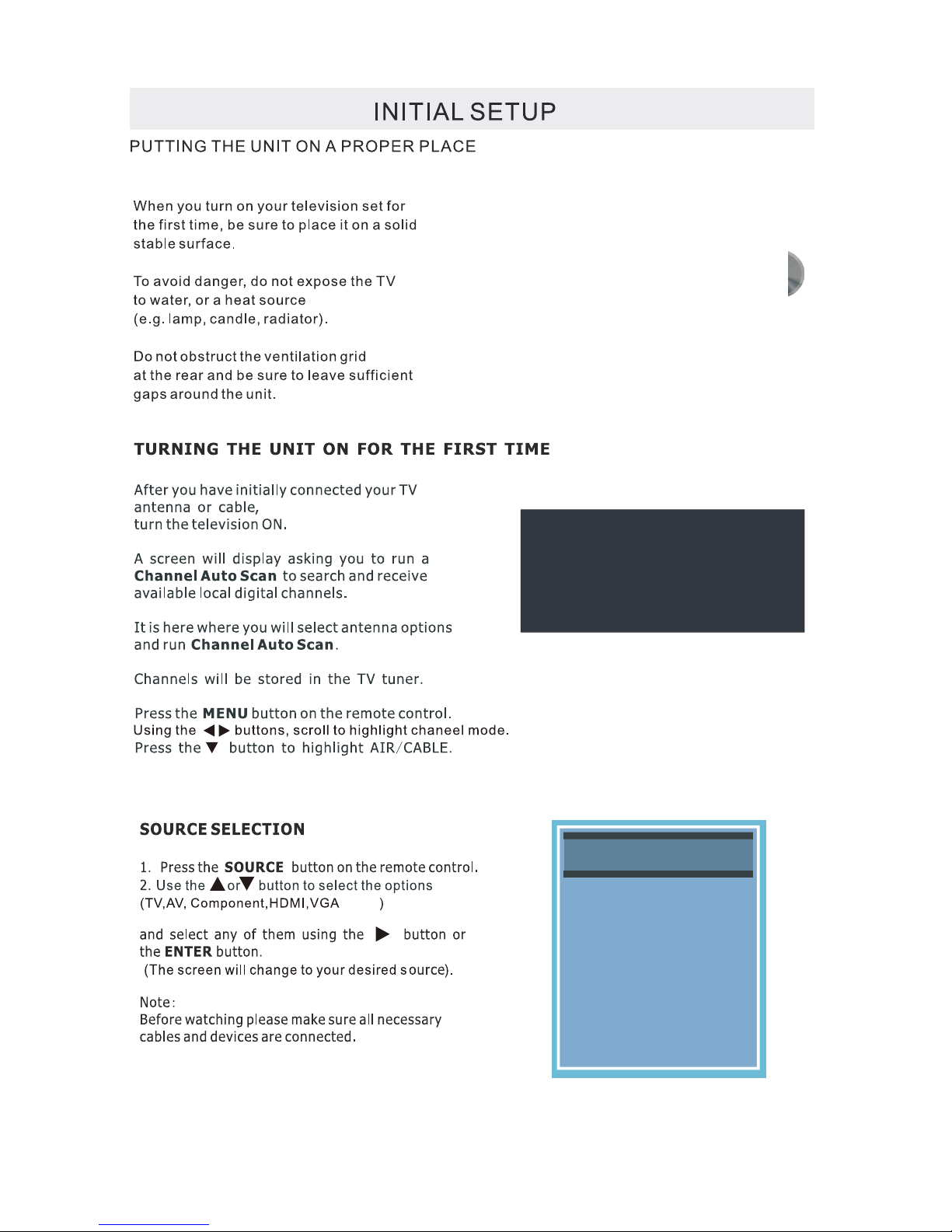

Please Run
Channel Auto Scan
INPUT SOURCE
TV
Component
HDMI
VGA
DV D
AV
,DVD
13

Good Good
14

temp.
15

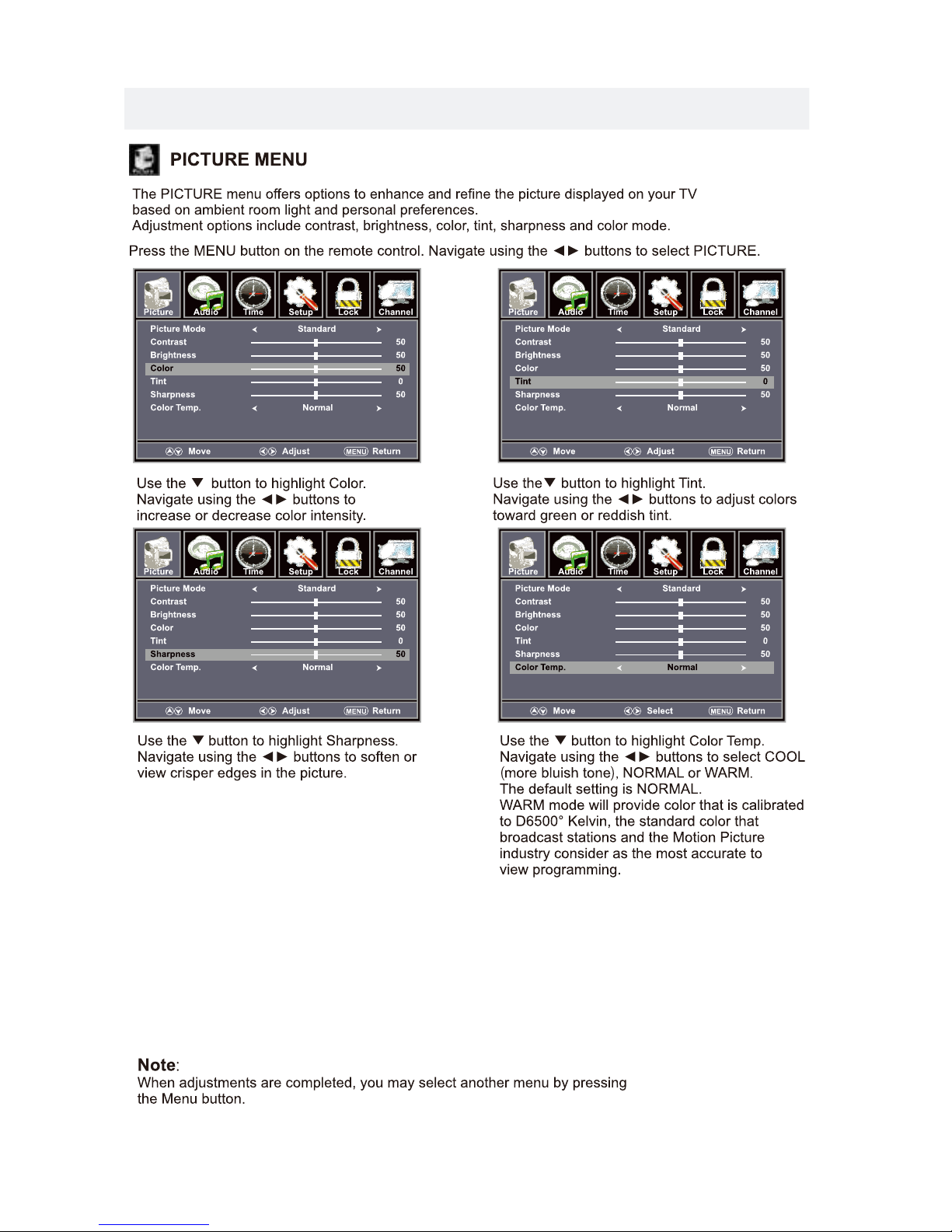

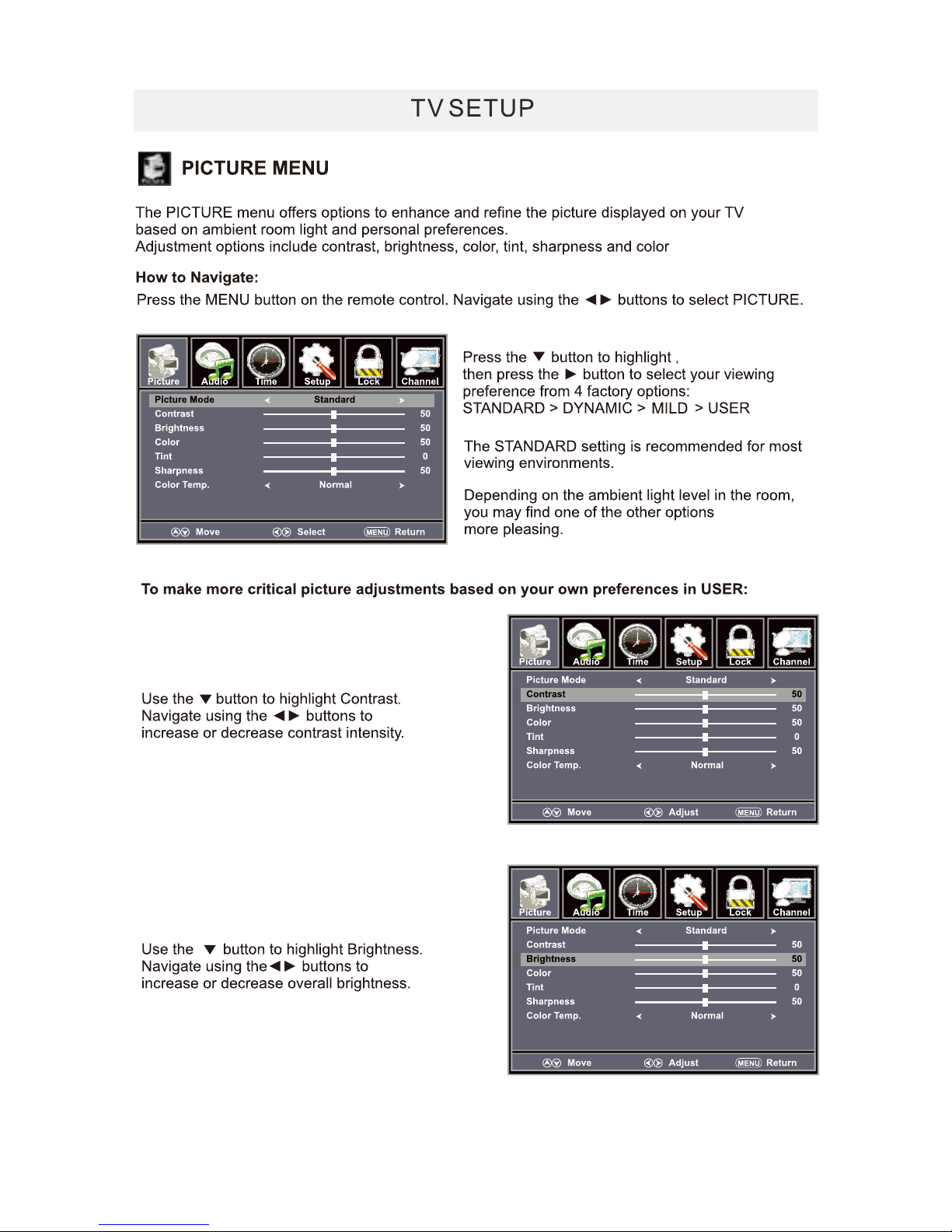

TV SETUP
16

TV SETUP
17
