Tecno TSP-W01 User manual

User Manual

smart watch
Model: TSP-W01
Hereby, TECNO MOBILE LIMITED.
Declares that this smart watch is in
compliance with the essential
requirements and other relevant
provisions of directive 2014/53/EU.

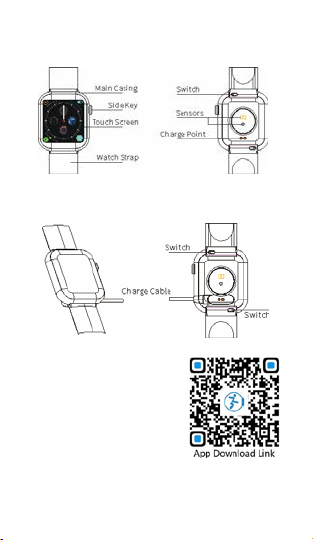

Description of Appearance
1) Product Introduction
2) Remove Watch Strap and Charging
Cable
Downloading & Binding
1. Long press the power button to turn
on. Please make a full charge before use

it for the first time. If the battery is
low, it cannot start normally.
2. Scan the QR code on the right to
download and install TECNO Watch APP; or
download and install “TECNO Watch ” from
Apple App Store or Android Google Play.
Compatible System: Android 4.4 and abov
e，iOS 9.0 and above, Bluetooth 4.0 and
above.

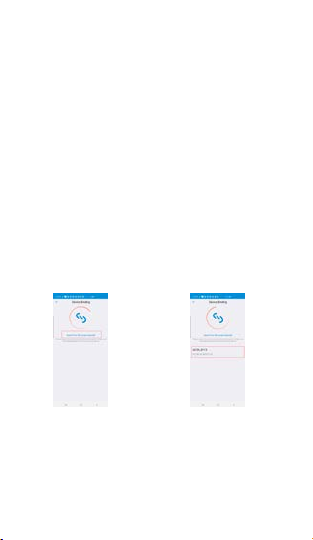

3. Binding the watch
1. Click the
“Device” in the
mobile APP.
2. Click to bind
“ Scanned
Device”.
3.Click the ID
number that is
consistent with
the watch MAC.
4.The binding is
successful.

The iOS system
will show a
request for
Bluetooth
pairing, and
click
“ Pairing ” . The
Android system
can be connected
directly.

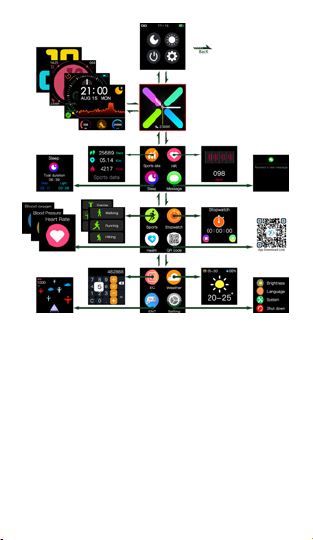

Operation Instruction
Press the side key or lift wrist to wake
up the screen, slide up/down/left/right
to switch the interface, click to enter
or confirm, slide right to return to the
previous interface or exit.

Smart Watch Functions
1. Time Interface
1.1 Power on：Long press the power button
for 3 seconds to power on and enter the
main interface.
1.2 Power off：On the time interface，
long press the power button for 3 seconds
and find “power off” interface , Or
choose “power off” on the“Other
Settings”, as the following pictures
show :

1.3 Lift wrist to wake up the screen :
Press the power button or lift wrist to
wake up the screen. Note : Please turn on
the function of lifting wrist to wake up
the screen on the APP.
2. Language Settings
3. Count Steps
Record steps, distance and calorie consum
ption of the day. Sync data with the APP.
4. Sleeping Monitor
Automatically monitor sleeping time and
status during 22:00PM to 8:00AM. Sync
data with the APP. Please wear the watch
to sleep in order to detect the data.
5. Heart Rate Monitor

Click the heart rate interface. Full-day
heart rate monitor : turn on this
function on the APP“Other Settings”.
6. Sports
Multiple sports modes : walking / running
/ hiking / exercise / cycling / badminton,
sync all exercise data with the APP after
successful Bluetooth connection.
Click “Start Test”on the exercise
interface, select the sports mode you
want. Enter the sports mode interface and
check the exercise data : distance,
calorie, heart rate. Slide left or right
on the screen to exit the sports mode.
7. Body Temperature Measurement

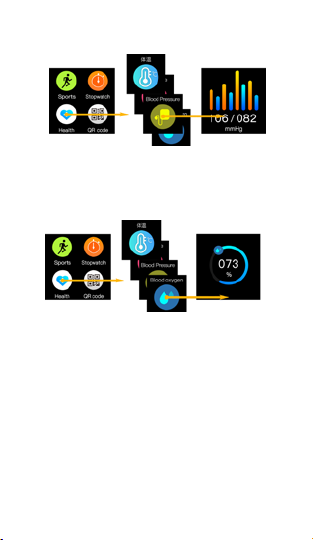

8. Blood Pressure Measurement

Please make sure you are relaxed when
measuring blood pressure.
9. Blood Oxygen Measurement
Click to enter blood oxygen measurement.
10. Notification
1. Open the APP “Notification Push” to
sync the Wechat/incoming call/QQ/SMS
message and other APP messages.
(For Android system, please turn on the
“Auxiliary Function”)
2. Open the “Message Reminder” in the
mobile phone "Settings", such as
QQ/Wechat/SMS message/Weibo/Skype, etc.
(Different devices have different phone
designs, generally in the settings menu).

3. When the mobile phone receives the
message, it will instantly sync with the
watch. The message content can be viewed
on the notification menu interface of the
watch.
11. Camera Remote Control
Android system : Turn on the mobile
phone APP, enter the ENT interface on the
watch and choose camera, click
“shutter”on the watch or shake the
watch to take photo.
iOS system : Enter the ENT interface on
the watch and choose camera, open the
camera function on the mobile phone,
shake the watch or click “shutter”on
the watch to take photo.

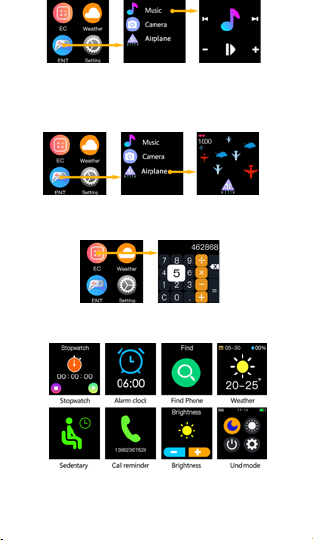

12. Music Control
Enter the music menu, click “play”to
play the music of the mobile phone; click
to pause or continue playing; click
to play the previous song; click
to play the next song.

13. Game
Enter the game menu, click to enter the
game, operate by touch mode or gravity
sensor mode.
14. Calculator
Support calculation function.
15. Other Functions
Notes

1. Bluetooth Connection :
1.1 Please turn on the mobile phone
Bluetooth and the smart watch before
connecting.
1.2 Please ensure the smart watch has not
been bound with other account when
searching for Bluetooth.
1.3 Please keep the smart watch as close
to the mobile phone as possible when
searching for Bluetooth.
2. Please turn on the mobile phone
notification push and allow permission of
backstage running if the mobile phone has
installed “Mobile manager” or other
similar APPs, otherwise the watch will
not receive and push the messages.
3. Charging instruction : Please use 5V
0.5~1A charger to charge the watch. If
the watch won’t be used for a long
period, please turn it off and charge the
watch once every month.
4. To ensure the accuracy of measuring
result, after entering the blood pressure
monitor mode, please hold the smart watch
at the same height as your heart, relax
yourself and calm down. Please do not
speak when measuring blood pressure.
Note : This function is to monitor the
blood pressure variation before and after

exercise. The data are for reference only
and should not be used as a basis for
medical purposes.
Disclaimer
Warning : This product is not a medical
device. The smart watch and its APP
should not be used as diagnosis,
treatment or preventive treatment for
diseases and sickness. Please consult
medical professionals before changing
exercise habit or sleeping habit to avoid
serious injuries. Our company reserves
the right to modify and improve any
functions described in this user manual
without further notice. Our company also
reserves the right to continuously update
the product content. This user manual is
for reference only and the smart watch
for selling is subject to the final
product.

CAUTION：
1. Risk of explosion if battery is
replaced by an incorrect type,
dispose of used batteries according
to the instructions.
2. The product shall only be connected
to a USB interface of version
USB2.0
3. Adapter shall be installed near the
equipment and shall be easily
accessible.
4. EUT Temperature:0°C ~+55°
C(Standalone),0°C ~+40°C(With
Parts).
Operating Frequency:
Bluetooth: 2402-2480MHz
Modulation mode:
GFSK
Max. Of Transmit power:
BLE:-3.34dBm

EU DECLARATION OF CONFORMITY
in accordance with
Annex VI of Directive 2014/53/EU of the
European Parliament and of the Council
1. For the following Radio equipment:
Model: TSP-W01
Product: smart watch
Trade name or Brand: TECNO
Software / Hardware number: V1.0.1/ V1.1
2. Name and address of the manufacturer
or his authorised representative:
Manufacturer: TECNO MOBILE LIMITED

Address: ROOM 604 6/F SOUTH TOWER WORLD
FINANCE CTR HARBOUR CITY 17 CANTON ROAD
TST KL.
3. This declaration of conformity is
issued under the sole responsibility of
the Manufacturer.
4. Object of the declaration
(identification of the radio equipment
allowing traceability; it may include a
colour image of sufficient clarity where
necessary for the identification of the
radio equipment):
5. The object of the declaration
described above is in conformity with the
relevant Union harmonization legislation:
Directive 2014/53/EU (RED)
6. References to the relevant harmonised
standards used or references to the other
technical specifications in relation to
which conformity is declared:

Article 3.1a Health: EN 62479:2010
Article 3.1a Electrical Safety: EN62638-
1:2014+A11:2017
Article 3.1b: ETSI EN 301 489-1 V2.2.3
(2019-11)
Draft ETSI EN 301
489-17 V3.2.2 (2019-12)
Article 3.2: ETSI EN 300 328 V2.2.2
(2019-07)
7. Notified Body Name: Eurofins MET
Laboratories, Inc.
Notified Body Number: 0980
Notified Body Assessment Performed:
Module B/C on Article 3.1a, 3.1b, 3.2 and
3.3
Technical File Identification Number: N/A

8. Where applicable, description of
accessories and components, including
software, which allow the radio equipment
to operate as intended and covered by the
EU declaration of conformity: User
instructions are provided in the User
Manual. The Software and Hardware
versions are specified above.
9. Additional information:
Referring to Article 10.2 of the
Directive, this equipment is so
constructed that it can be operated in
all Member States, without infringing
applicable requirements on the use of
radio spectrum.
Referring to Article 10.10 of the
Directive, there are no restrictions on
putting this equipment into service or of
requirements for authorisation of use.
Please refer to the User Manual for
details.
On behalf of:

Manufacturer: TECNO MOBILE LIMITED
Address: ROOM 604 6/F SOUTH TOWER WORLD
FINANCE CTR HARBOUR CITY 17 CANTON ROAD
TST KL.
(place and date of issue):Shenzhen, 2019-
12-23
(name, function): Yiting,Luo/ Manager
(signature):

Warning:
changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
NOTE: This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful
FCC
