TensCare perfect TENS User manual

INSTRUCTIONS FOR USE
PerfectTENS
READ INSTRUCTIONS CAREFULLY BEFORE USE
perfect tens instructions artwork.indd 1 02/09/2014 09:32

Perfect TENS
Instructions for Use
Section Page No
1 Introduction 1
2 How TENS works 1
3 Side Effects 3
4 Contents 3
5 Installation of Batteries 3
6 Belt clip 5
7 The Programmes 5
8 Programme Settings 7
9 Controls and Display 8
10 Controls 9
11 Using the Manual Programme M 13
12 Connecting Lead wires 14
13 Positioning of Electrode Pads 15
14 General Pad Advice 17
15 Troubleshooting 18
16 Cleaning 18
17 Caution and Warnings 19
18 Accessories and Spares 21
19 WEEE 22
20 Guarantee 22
21 TechnicalSpecications 23
22 EMC Precautions 24
perfect tens instructions artwork.indd 2-3 02/09/2014 09:32

in the spine as the nerves carrying
pain. A strong sensory signal will
block the pain signal travelling
up the spine to the brain. This is
known as closing the “Pain Gate”
and takes effect quite quickly after
1. INTRODUCTION
Device Description & Principles of Design
The TensCare Perfect TENS is a dual channel TENS.
It has:
• twoindependentstrengthcontrols
• 60mAoutputover500Ohmload
• 8pre-setmodesincludingBurst,Strengthand
FrequencyModulation,andHan
• Manual programme giving range of 2-150Hz in steps of 1;
50-250uSinstepsof10
• ProgrammeTimer10-60minutes
• ComplianceMemory
2. HOW “TENS” WORKS
T.E.N.S. stands for Transcutaneous Electrical Nerve Stimulation.
T.E.N.S. stimulates your body’s own natural defences against
pain,namelythereleaseofendorphins.TENSistotallysafeand
has been used successfully by thousands of pain sufferers.
TENS sends a gentle stimulation through the skin which
works in TWO ways:-
Pain Gate
It stimulates the sensory nerves, which carry touch and
temperature signals. These nerves go to the same connections
12
the unit is switched on. You can
useTENSseveraltimesaday,for
as long as you like.
Endorphin Release
At low frequency settings, and
slightly stronger outputs, TENS
drives the motor nerves to
produce a small repetitive muscle
contraction. This is seen by
the brain as exercise, and this
promotesreleaseofendorphins-
your body’s own natural pain killer.
The relief builds up and normally
takes about 40 minutes to reach a
maximum level which can last for
ENDORPHINS
PAIN
hours after the machine is switched off.
ByusingTENSyoucanexpecttoachieveasignicantreduction
in pain if not complete relief from pain.
• TENS is effective for pain from a very wide range of causes.
• It doesn’t appear to provide relief from internal pain other than
period pain.
• Youcanuselowfrequency(<10Hz)programmesonacupuncture
points,toachievesimilareffectstoacupuncture.
• With neurogenic pain (caused by inamed nerves) such as
shinglesandneuralgia,TENSmaystartbyincreasingthepain.
We recommend that you only use TENS for these conditions
under medical supervision.
• You can safely use TENS as long as it gives you pain relief.The effect
maywearoffafterafewhours(thisiscalled“accommodation”).
Ifthishappens,takeabreakofanhourorsobeforetryingagain.
If you use settings that cause muscle movement for more than
about 40 minutes, you may experience aching muscles a few
hours later.
BLOCK
perfect tens instructions artwork.indd 4-5 02/09/2014 09:32

Whenthebatteriesarerunninglow,alowbatteryindicator
will show on the screen and it is important to change the
batteries as soon as possible.
Rechargeable batteries
Theunitwillworkwithrechargeablebatteries,butthedisplaymay
appear dim.
Storage
Remove batteries from your TENS machine if the unit is unlikely
to be used for a long period. Some types of battery may leak
corrosive uid.
Disposal of batteries
Always dispose of batteries safely.
Donotthrowbatteriesontoare.Risk of explosion.
Battery Life
Batteries should last about 48 hours at full power.
Unusedbatterieshaveanominalshelflifeof3years,butwillusually
last longer than this.
Warning
• Keepbatteriesoutofthereachofsmallchildren.
• Ifbatteryleakageoccursandcomesincontactwiththeskin
oreyes,washthoroughlywithplentyofwater.
• Donotattempttorechargealkalinebatteries.
34
3. SIDE EFFECTS
TherearenoknownsideeffectstoTENSuseandlong-termTENS
use is not harmful.
4. CONTENTS
The pack contains:
• PerfectTENSPainReliefunit
• BeltClip
• 2xLeadwire
• Packof4,50x50mm,Self-adhesive
Electrode Pads
(itemcode:E-CM5050)
• 2xAA1.5V(TypeLR6)
Alkaline Batteries
• InstructionManual
• StoragePouch
5. INSTALLATION OF BATTERIES
i) Removebeltclipbyslidingdown
ii) Removebatterycoverbypullingontag
iii) Insertbatteries
Ensure that the batteries are inserted the
right way as shown in battery compartment
and that the ribbon is behind them
iv) Replacebatterycoverandbeltclip
perfect tens instructions artwork.indd 6-7 02/09/2014 09:32

56
Pr Output Sensation SpecicUses Frequ- Pulse
encyHz Width
 μS
A Constant Tingling/Pins and needles sensation. Pain Gate 110 50
Increase strength slowly until a strong
but comfortable sensation is felt.
B Constant Pulsing or tapping sensation associated Not for injured 4 200
with muscle contractions. Increase the muscles
strength to a level that just produces Endorphin
muscle activity. Release
C Burst Stimulusisdeliveredinbursts,i.e.a Notforinjured 100 200
groupofpulsesratherthanasingle muscles in2Hz
pulse. You will get muscle activity at a burst
lowerstrengthandthusyoumayndit Pain Gate/
more comfortable. Endorphin
D Constant IssimilartoB,buthasaFreqspecically Menstrualpain, 10 200
recommendedfornausea,travelsicknessand nausea,travel
morning sickness. sickness and
morning sickness.
Not for injured
muscles
Endorphin
Release
E Constant ThisissimilartoA,buthasdeeperpenetration Pain Gate 110 200
and a stronger feel. It is more likely to produce
muscle contractions at a lower strength
F Strength ThisissimilartoE,butwiththestrength Pain Gate 110 200
Modulated modulatingcontinuously,thisgivesapleasant
slow relaxing massage sensation.
G Frequency Thischangesthefrequencyevery3minutes, Pain Gate 2-110 200
Modulated steppingfrom2to110Hz.Thisconstantchange in
helps to prevent accommodation occurring. 7 steps
2,10,50,80,90,100,110Hz
H HAN Thischangesthefrequencyfrom2to100Hz Pain Gate/ 100/2 100
Alternating every 3 seconds. It is claimed to be the most Endorphin /200
effectiveformofTENS,butmaybe
less comfortable.
M Manual ThisallowsyoutoselectyourownFrequency 2-150
50-250
Pulse,Width,andBurstorConstantmodes.
6. BELT CLIP
A belt clip is provided to allow you to attach the Perfect TENS
to your clothing. It can be inserted either way up. Slide the clip
along the base of the unit until it locks in position.
You can also hang the unit from your neck using the holes on each
shoulder of the unit. For safety use thread or wool that will snap
easily if the unit snags on something.
7. THE PROGRAMMES
Thereisnooneprogrammeforaparticularcondition,andthe
bestchoicevariesfromonepersontoanother,eveniftheyhave
the same type of pain.
Each user needs to select both the programme and the positioning
of the pads that is best for them. You may need to try a few
positions/programmesbeforendingtheonethatsuitsyou.
IfyouareusingTENSforthersttime,itisrecommendedthat
youstartwithProgrammeA,whichgivesthegentleststimulation.
ThePerfectTENShas8pre-setpainreliefprogrammes.
Research has shown that some programmes are particularly
effective for certain pains. These have been indicated under the
“SpecicUses”section.
The following grid summarises the programmes available and
how they vary.
* F-Theuserincreasesthestrengthtothedesiredlevelintherst7seconds.Thestrength
drops down 90% over a period of 6 seconds and then gradually starts increasing again to the
original setting over a period of 6 sec.
* G-Thefrequencystartsat2Hzandafterevery3minutesshiftstothenextfrequencysetting.
After21minutesitreturnsbackto2Hzandstartsthecycleoveragain.NBSpecicationsare
nominal and subject to variation from the listed values.
perfect tens instructions artwork.indd 8-9 02/09/2014 09:32

78
ON/OFF
Channel 1
Strength DOWN
Channel 1
Strength UP
Channel 2
Strength UP
Channel 2
Strength
DOWN
Time Selected
Programme
Selector
Channel 1
Strength
Channel 2
Strength
Programme
Selected
Keypad Lock
Low Battery
Timer and
Manual Setting
Selector
9. CONTROLS AND DISPLAY
USAGE - TENS can be used for as long as is necessary.
Continuous treatment is ne, but electrode pads should be
repositionedregularly(atleastevery12hours)toallowtheskin
to be exposed to the air.
The Endorphin Release programmes work better when the
strength is high enough to cause small muscle contractions. Best
results are achieved at between 20 and 40 minutes. Longer use
may cause muscle ache.
8. INFORMATION ABOUT THE PROGRAMME SETTINGS
• Frequency (measured in Hz - pulses per second)
PAIN GATE: A high frequency of 110Hz is good at blocking
pain signals.
ENDORPHINERELEASE:Alowfrequencyof4or10Hzallows
forthereleaseofendorphins,thebody’snaturalmorphine-like
substances.
• Pulse Width (measure in μS - millionths of a second)
The Perfect TENSunithaspulsewidthsof50to250μS.Higher
pulse widths are more likely to cause muscle contractions.
Smaller muscles will contract at lower pulse widths.
• Constant and Burst Modes
Constant mode is when the sensation is continuous versus
Burstmodewhenthesensation,isitsnameimplies,isoneofon
and off. Burst gives a combination of Pain Gate and Endorphin
Release,butthesqueezingfeelingmaynotbeascomfortable.
• Modulation Modes
Modulation is when either the frequency or pulse width sweep
across range of settings. This enables the body to receive many
differentsignalsandcanbeverybenecialandlessenany
effect of accommodation. See programmes F and G.
• HAN Stimulation
InventedbyaProfessorHan,thisalternatesbetweenhighand
lowfrequenciestogive-intheory-thebestpainrelief.
perfect tens instructions artwork.indd 10-11 02/09/2014 09:32

910

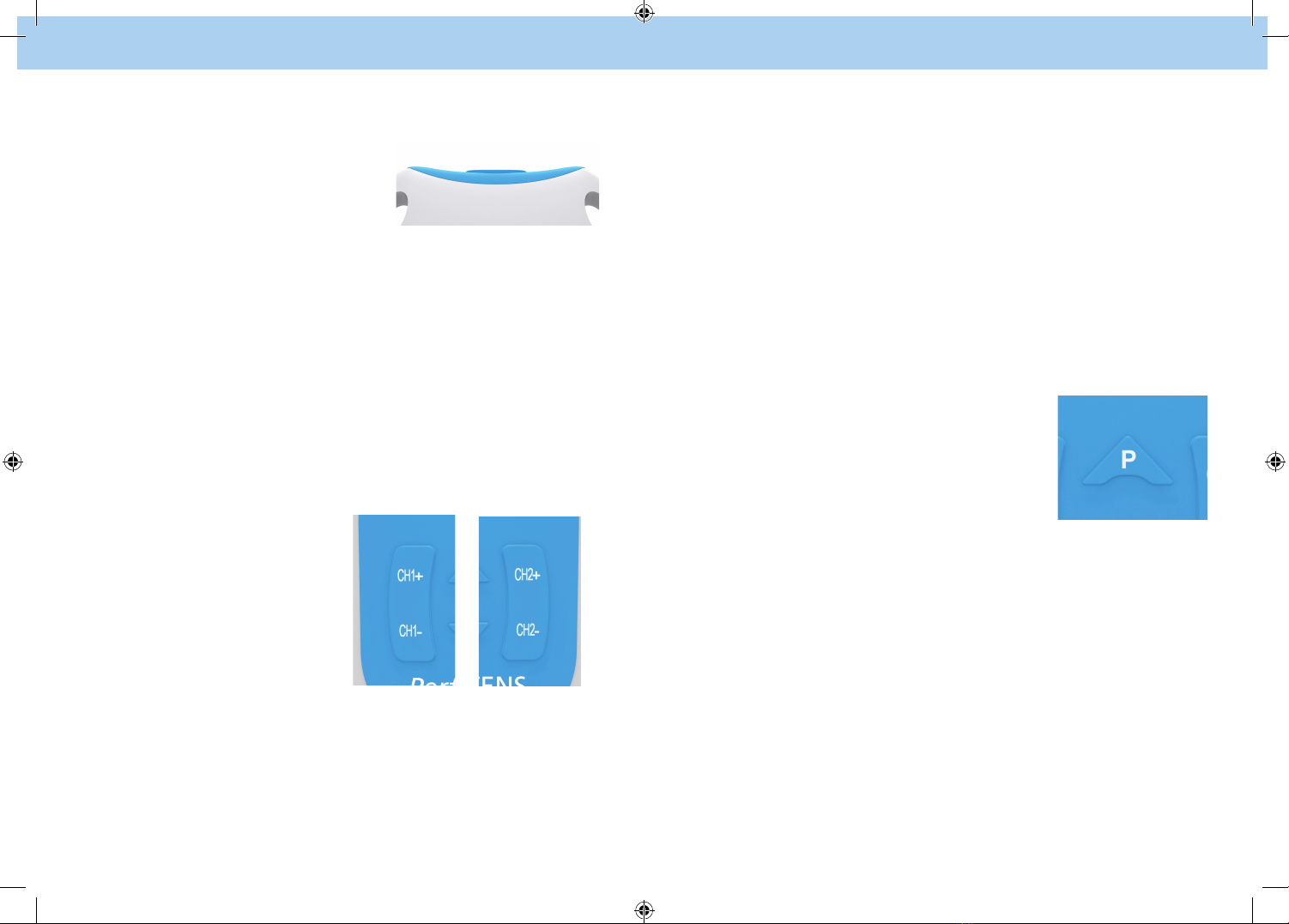

STRENGTH CONTROLS
The buttons marked Ch1+,
Ch1-, Ch2+, Ch2- are
strength controls.
The left hand buttons change
strength in the left hand lead,
Ch1,andtherighthandbuttons
changetherighthandlead,Ch2.
Toincreasestrengthinstepsof1,pressandreleasethetoppart
ofthetwochannelbuttons,marked+.
The strength levels are shown on the LCD.
The strength control buttons will not operate until the
unit is properly connected to you. Perfect TENS
detects a disconnection and automatically returns the
strength to zero.
The unit has 60 levels of strength. If you hold down the button for
2seconds,thestrengthwillstartscrolling.
You may feel nothing over the rst few presses. Continue
pressing until the sensation is strong but comfortable. Further
increases during use may be necessary if your body becomes
used to the sensation.
Todecreasethestrength,pressandreleasethelowerpartof
the buttons marked Ch1-,Ch2-.
PROGRAMME CONTROL
The button marked Pis the programme
control. The Perfect TENS has eight
different,speciallydevelopedprogrammes
letteredA-H,plusamanualprogrammeM.
When the unit is rst switched on it
automatically enters Programme A.
Each time you press and release the Pbutton,theprogramme
changes and the letter is shown on the LCD.
Eachtimeyouchangetheprogramme,thestrengthlevelreverts
back to zero. This is a safety feature to alleviate any sudden
feelingofasurge,aseachprogrammegivesadifferentsensation.
The unit will turn OFF automatically:
• WhentheTimerreacheszero,
• Ifitisleftatzerostrengthformorethan5minutes.
TheunitwillstartwiththeProgrammeyouusedlast,and,ifyou
wereusingtheTimer,athalfofthestrengthyouwereusing.
Atrstuse,orafterchangingbatteries,thedisplayshowsthat
theunitisautomaticallysetinProgrammeAatzerostrength.
On the front of the unit there are six buttons:
10. CONTROLS
ON/OFF
To turn the unit ON,pressthe
ON/OFF button on the top of the unit
and hold for 2 seconds until the
display shows.
To turn the unit OFF,presstheON/OFFbuttononthe top of
the unit and hold for 2 seconds until the display stops
perfect tens instructions artwork.indd 12-13 02/09/2014 09:32

11 12
MEMORY
The Perfect TENS has a Memory with three functions:
1) Programme Retention.Whenyouswitchtheuniton,itwill
automatically start in the programme which was being used
when it was switched off.
2) Usage. Press Tand Ch2- together and hold down for 3
seconds. The display will show for no. of times used and duration
in hours used.
Press the same buttons again to return to
normal controls.
3) Memory Reset. Toresetmemorytozero,holddowntheT
and Ch1- buttons together for 3 seconds.
To unlock, press either CH1- or CH2- keys.
OPEN CIRCUIT CUTOUT
If the Perfect TENS is not correctly connected to your body,
the strength in the channel which is not properly connected will
automaticallyresettozero.Thisistopreventsuddenchangesif
abrokenconnectionisre-made.
TREATMENT TIMER
The Tbutton can be used to set the session
duration and to select manual parameters
for adjustment.
When you switch the unit on, it is
automatically set at Continuous,(displayed
as C)inallprogrammesbutB, C & H,whichmeansthattheunit
will continue functioning until you switch it off.
When you press the Tbutton,theclocksymbolwillash.
Youcansetsessiontimesof10,20,30,40or60minuteswiththe
Ch1+ and Ch1- buttons.
Press Tagain to save your selection.
The LCD shows the session duration next to the clock symbol.
The unit automatically counts down the minutes set and switches
offwhenthisreacheszero.
LOW BATTERY
An empty battery symbol will show when you need
to change the batteries. The unit will shut down
about 2 minutes after this.
KEYPAD LOCK
If you do not press any keys for 30 seconds, the
keypad will lock so that only the keys marked
CH1- or CH2- will work. This is to avoid accidental
changes in setting.
No. of uses
Time used
in hours
perfect tens instructions artwork.indd 14-15 02/09/2014 09:32

Attaching the electrode pads to Lead wire
13 14
Push the pin ends rmly
into the pigtail ends of the
electrode pads.
Theleadwiresmaybedamagedbyroughhandling,andshould
be treated with care.
Lead wire colour coding
The ends of the lead wire are coloured white or red. This coding
is provided for some professional uses, For most purposes,
the orientation makes no difference, and you can ignore this
colour coding.
11. USING THE MANUAL PROGRAMME M
a Press the Pkey till you reach programme M
b Press the Tkey.TheHzsymbolwillashnexttothenumber
at bottom centre
c Press Ch1+ and Ch1- to adjust the setting.
Youcanselect2-150Hz
d Press the Tkey again to save your change and advance to
the next setting µS.
You can select 50 to 250µs
e Press the Tkey again to select C or B.
C = Constant B = Burst
fFinally,youcanselecttheTreatmentTimer
Continuous,10,20,30,40or60minutes
g Press Tonce more to return to start using.
See Section 8 for more information on the choice of settings.
12. CONNECTING LEAD WIRES
Insert the leadwire plug into the base of the unit.
perfect tens instructions artwork.indd 16-17 02/09/2014 09:32

15 16
13. POSITIONING OF ELECTRODE PADS
• TENSworksonevertebraatatime.Youneedtostimulatethe
sensory nerves that enter the spine at the same level as the
nerve carrying your pain. Since you don’t know exactly where
yournervesare,thesimplestthingisapplythepadsaround/
near to the source of the pain.
• TENS activates the nerves best if it travels along the nerve
rather than across it. So place one pad farther from the spine
thanthesourceofthepain,andonecloser.
• Thenerveswraparoundthelimbsandtorso,soyoumayhave
to try a few positions before you get the best effect.
• Ifthepainisin,orcloseto,yourspineyoucanplaceonepad
either side of the spine.
• Youmayfeelmoresensationinonepadthantheother.Thisis
normal – it depends on where the pads are in relation to your
nerves.
The following pictures show some typical pad positions for a
range of common complaints.
NOTES: For symptoms not illustrated, seek advice from
your doctor or physiotherapist.
The electrode pads must always be used in pairs (two pads on
eachchannel),sothatthesignalcanowinacircuit.
Always check unit is OFF before attaching or removing pads.
Perfect TENS resets strength to zero if the pad or lead is
disconnected from your body. This is to prevent sudden
changes in sensation when the pad is re-connected.
Forareasthataredifculttoreach,whynotaskafriendtohelp
you attach the pads?
See Section 17 for information on where you should not
place pads.
Whereonlytwopadsareshownonthearm,shoulder,andleg,use the
other two pads either on the opposite limb or place all four pads on the
same limb in a square pattern with each pad being 4 inches apart.

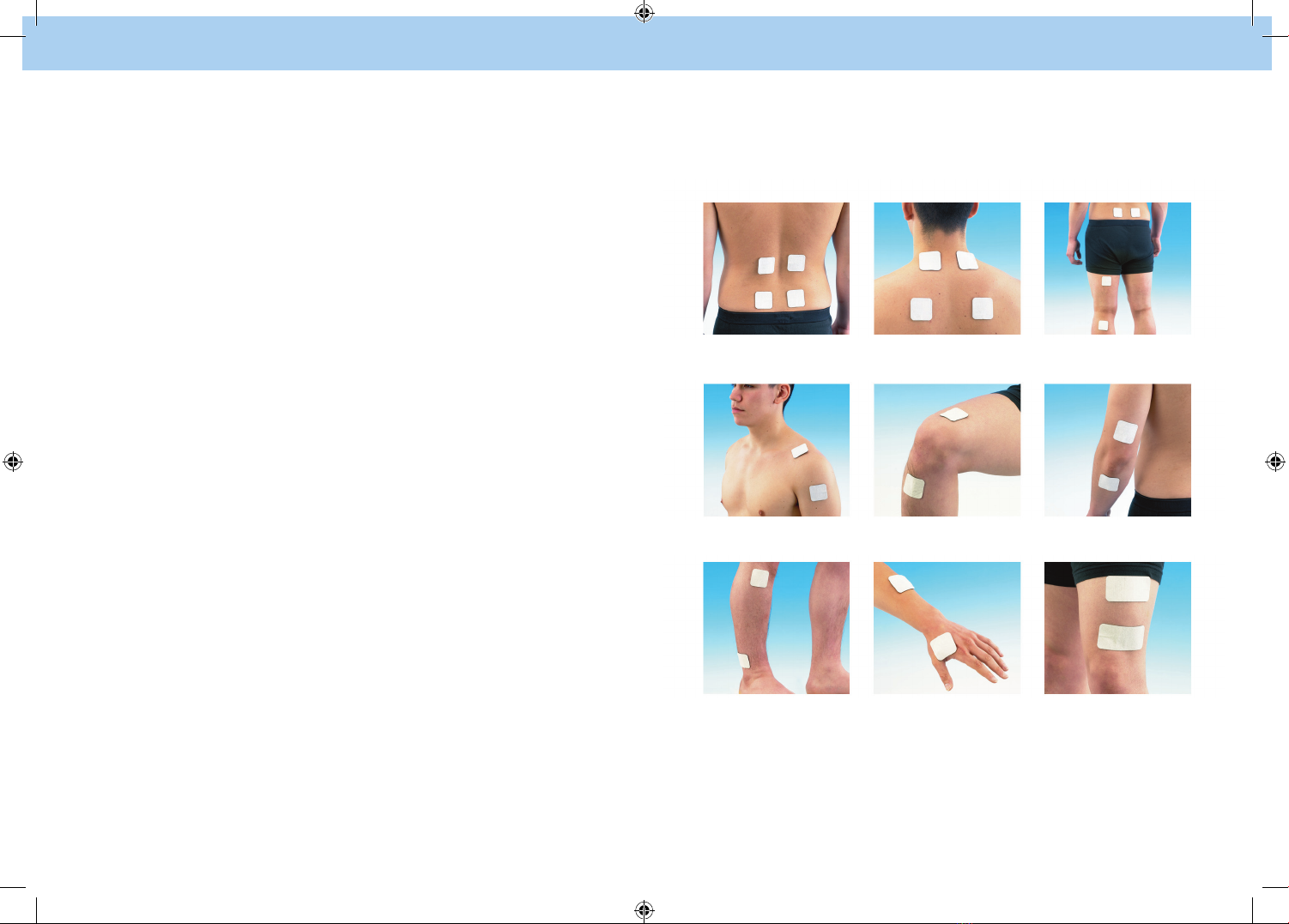

ELECTRODE PAD POSITIONS
Low Back Pain Sciatica Neck and
Shoulder Tension
Shoulder Pain Elbow Pain Knee Pain
Ankle Pain Leg Pain Wrist Pain
perfect tens instructions artwork.indd 18-19 02/09/2014 09:32

15. TROUBLESHOOTING
If your TENS machine is not working properly please check
the following:
17 18
If the above review has failed to resolve your problem, or to
report unexpected operation or events, call TensCare or your
localdealer(addressonbackcover)foradvice.
16. CLEANING
Clean the case and lead wires at least once a week by wiping
with a damp cloth and a solution of mild soap and water. Wipe dry.
Do Not immerse your TENS machine in water.
Do Not use any other cleaning solution than soap and water.
14. GENERAL PAD ADVICE
• The electrode pads supplied are reusable but are for single
patient use.
• Inordertoobtainthebestconductivitythroughthepadsalways
ensure that they are in good condition and tacky.
• Beforeusemakesureyourskiniscleananddry.
• Peeltheelectrodepadsfromtheirprotectiveplasticshieldby
holding and lifting one corner of the pad and pulling. Do not pull
on the pigtail wire of the pad.
• After use always replace the pads on the plastic liner and
replaceinthere-sealableplasticbag.
• Ifthepadsdryoutthenitisbesttobuyareplacementpackof
electrodes. In an emergency it may be possible to restore some
of the tackiness of the pad by adding a tiny drop of water on
each pad and spreading around. If too much water is added the
pads will become too soft. If that happens then it is suggested
inordertotryandre-establishsomeadhesiveness,placethem
sticky side up in a refrigerator for a few hours.
• Inveryhotweatherthegelonthepadsmaybecomesoft.In
suchcasesplacethepads,stillontheirplasticlinersandintheir
bag into a fridge until they return to their normal condition.
• Thepadsprovidedarelatex-free.
• Replacepadswhentheylosetheirstickiness.
Poor connection may cause discomfort and skin irritation
• 
Storage life of an unopened pack of electrodes is 2 years. This
may be affected by very high temperatures or very low humidity.
Problem Possible causes Solution
No display Flat batteries Replace batteries
Batteries inserted incorrectly Check
Damaged springs in battery compartment Contact supplier
Low battery Low batteries Replace batteries
display
No sensation Incorrect connection Have you applied both electrode
pads(perleadwire)to
ensure a complete circuit?
Not strong enough Increase strength.
Most users will feel something
at a setting below 20
Output will Opencircuitcut-out Ensuremachineisattached
not increase operating. to your body correctly.
above zero Lead not connected to Try using the second lead.
body or faulty/damaged Purchase replacement if necessary.
(Leadwirescanbreakatthebendwheretheyleavethemachine,giving
no,orintermittent,output)
Sudden Ifyoudisconnectandre-connect Alwaysincreasestrengthgradually
change in afewminuteslater,thesignal afterdisconnectingtheleadorpads.
sensation will feel quite a lot stronger.
perfect tens instructions artwork.indd 20-21 02/09/2014 09:32

17. CAUTIONS & WARNINGS
If you are in any doubt about any of these warnings please
consult your medical adviser.
Do Not Use TENS:
• If you have a heart pacemaker or have a heart
rhythm problem.
TENS in the direct vicinity of a pacemaker may affect some models.
If TENS is applied on the front of the neck this can affect your heart rate.
Very strong TENS across the chest may cause an extra heartbeat.
• Ifyouhaveepilepsy
TENS may affect seisure threshold.
• Duringtherstthreemonthsofpregnancy
It is not known whether TENS may affect foetal development.
• Ontheabdomeninthelaterstagesofpregnancy
Stop using immediately if you experience unexpected contractions.
• Whendriving,operatingmachinery,orsimilaractionsneeding
necontrol
loose pads, damaged leads, or sudden changes in contact may cause brief
involuntary muscle movements.
• Tomaskorrelieveundiagnosedpain
may delay diagnosis of progressive condition.
Caution:
• Observe caution when using the Perfect TENS at the same
time as being connected to monitoring equipment with body
worn electrode pads
it may interfere with the signals being monitored.
• Strong electromagnetic elds (electrosurgery/microwave
cookers/mobilephones)mayaffectthecorrectoperationofthis
unit-Seesection22.Ifitappearstobehaveunusually,moveit
away from these devices.
• Usecautionfollowingrecentsurgicalprocedures
stimulation may disrupt the healing process.
Do Not place electrode pads :
• Onbrokenskin
The pads could encourage infection.
• Onskinwhichdoesnothavenormalsensation.
If the skin is numb, too great a strength may be used, which could result in
skin inammation.
• Onthefrontoftheneck
Could cause the airway to close, giving breathing problems. May cause
sudden drop in blood pressure (vasovagal response).
• Overtheeyes
May affect eyesight or cause headaches.
• Acrossthefrontofthehead
Effect on patients who have had strokes or seizures is not known.
May affect sense of balance.
The effects of stimulation of the brain are unknown.
• Nearmalignanttumours
In vitro experiments have shown that electricity can promote cell growth.
Do Not:
• Ignoreanyallergicreactiontotheelectrodepads:
If a skin irritation develops stop using TENS, and try a different type of
electrode. Alternative pads specially made for sensitive skin are available,
see section 16. Pads supplied have no measurable latex content.
Also Do Not :
• Immerse your TENS unit in water or place it close to
excessive heat.
It may cease to operate correctly.
• AttempttoopenuptheTENSunit.
This will invalidate the guarantee.
• Mixold,newordifferenttypesofbatteries.
• Usethisdeviceleads,electrodes,andaccessoriesotherthan
those recommended by the manufacturer.
Performance may vary from specication and will invalidate the
product warranty.
19 20
perfect tens instructions artwork.indd 22-23 02/09/2014 09:32

19. DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC
PRODUCTS (WEEE)
One of the provisions of the European Directive 2002/96/CE
is that anything electrical or electronic should not be treated
as domestic waste and simply thrown away. To remind you of
this Directive all affected products are now being marked with a
crossed-outwheeliebinsymbol,asdepictedbelow.
To comply with the Directive you can return your old
electro-therapy unit to us for disposal. Simply print a
postage-paidPACKETPOSTRETURNSlabelfromourwebsite
www.tenscare.co.uk,attachthistoanenvelopeorpaddedbag
withtheunitenclosed,andpostitbacktous.Uponreceiptwewill
process your old device for components recovery and recycling
to help conserve the world’s resources and minimise adverse
effects on the environment.
21 22
18. ACCESSORIES AND SPARES
Expected Service Life
• The machine will often last for more than 5 years, but is
guaranteedfor2years.Accessories(leads,pads,andbatteries)
are not covered by the guarantee.
• Lead life depends greatly on use. Always handle the leads
with care
• Padsshouldlast12-20applications,dependingonskincondition
and humidity.
• 
AA Alkaline Batteries should last about 48 hours continuous use.
Replacementelectrodepads,newbatteriesandleadwiresare
available from your supplier or distributor (see back cover for
contactdetails),bymailorderfromTensCare,bytelephoneusing
acreditordebitcard,orthroughtheTensCarewebsite.
The following replacement parts may be ordered from Tenscare
atwww.tenscare.co.ukor+44(0)1372723434
E-CM5050 Packof450x50electrodepads:
E-696-SS-3 Packof450x50hypoallergenicelectrodepads
L-CPT Leadwire
B-AA Batteries1.5VAAbatteries
X- BC-PT Replacementbeltclip
X- BL-PTT ReplacementBatteryHolder
20. GUARANTEE
Your TensCare device is guaranteed for two years from the date
of purchase. If a fault develops return the unit to TensCare at the
addressbelow,togetherwithacopyofyourinvoiceanddetailsofthe
problem.Theguaranteedoesnotcoveraccessories(thebatteries,
electrodepadsorleadwires).
Please note that the Guarantee is invalidated if incorrect batteries
havebeentted,ortheunithasbeenimmersedinwater,maltreated
or tampered with.
perfect tens instructions artwork.indd 24-25 02/09/2014 09:32

23 24
21. TECHNICAL SPECIFICATION
Waveform AsymmetricalBi-Phasic
Amplitude 60mAzerotopeak+vein60steps.
(over500ohmload) +/-10%
Output plug Fully shielded: touch proof
Channels Dual Channel
Batteries 2xAAAlkaline(TwoAAbatteries)
Weight 75 gms without batteries
Dimensions 120 x 60 x 20 mm w/o clip
SafetyClassication Internalpowersource.TypeBFDesigned
for continuous use.
No special moisture protection.
Operating: Temperature range: 5 to 40C
Humidity:15to93%RHnon-condensing
Environmental
Specications:
Storage: Temperaturerange:-25-+70CRH93%
non condensing
TYPE BF Equipment providing a degree of protection
EQUIPMENT againstelectricshock,withisolated
applied part.
This symbol on the unit means “ Refer to
Instructions for use”
IP22 Theunitisnotwaterresistant,andshould
be protected from liquids.
Complies with EU WEEE regulations
NB.Theelectricalspecicationsarenominalandsubjecttovariationfromthe
listed values due to normal production tolerances of at least 5%.
22. EMC PRECAUTIONS
Use special precautions regarding EMC according to the
information provided below.
Other portable and mobile RF communications equipment can
affect performance. Do not use when adjacent to or stacked with
other electrical equipment. Use of leads or probes other
than those listed in section 18 may affect EMC performance.
Wireless communications equipment such as wireless home
network devices, mobile phones, cordless telephones and their
base stations, walkie-talkies can affect this equipment and
should be kept at least a distance d = 3,3 m away from the
equipment.
(Note: As indicated in Table 6 of IEC 60601-1-2:2007 for ME
EQUIPMENT, a typical cell phone with a maximum output power
of 2 W yields d = 3,3 m at an IMMUNITY LEVEL of 3 V/m).
perfect tens instructions artwork.indd 26-27 02/09/2014 09:32

EC Declaration of Conformity
TensCare Ltd hereby declare that an examination
of the production quality assurance system has
been carried out following the requirements
of the UK national legislation according to
AnnexVoftheDirective93/42/EEConmedicaldevices.
We certify that the production quality system conforms
with the relevant provisions of the aforementioned
legislation,andtheresultentitlestheorganizationtouse
the CE 0473 marking on this product.
perfect tens instructions artwork.indd 30-31 02/09/2014 09:32

TensCareLtd,9BlenheimRoad,
Epsom,SurreyKT199BE,UK
Tel:+44(0)1372723434
www.tenscare.co.uk
Distributed by:
PubNo.:I-PT-UKVersion1.109/14
Manufactured by:
perfect tens instructions artwork.indd 32 02/09/2014 09:32
