THE-ONE Smart Keyboard Pro Essential User manual

www.smartpiano.com
USER GUIDE

TON Piano Body
Left Base Board
Right Base Board
Pedal Component Box
Back Base Board
Transverse Nuts φ10*13（M6）(4pcs)
Phillips Screws
BM6x50 (4pcs)
Self-tapping Screws
PA6x50 (4pcs)
Screw Gum
Caps (8pcs)
Tighten Screws
M6 (4pcs)
Pedal Wire
3
2
11
10
5
6
7
8
9
4
678 9 10

3.Put the ‘①TON Piano Body’ on the base board already been placed, use the ‘⑩Tighten Screws M6 (4pcs)’ to fix the right hole.
Like the following pic:
4.Insert the ‘⑪Pedal Wire’ into the right jack near to the bottom of ‘①TON Piano Body’ , connect the power, turn on the piano.
Like the following pic:

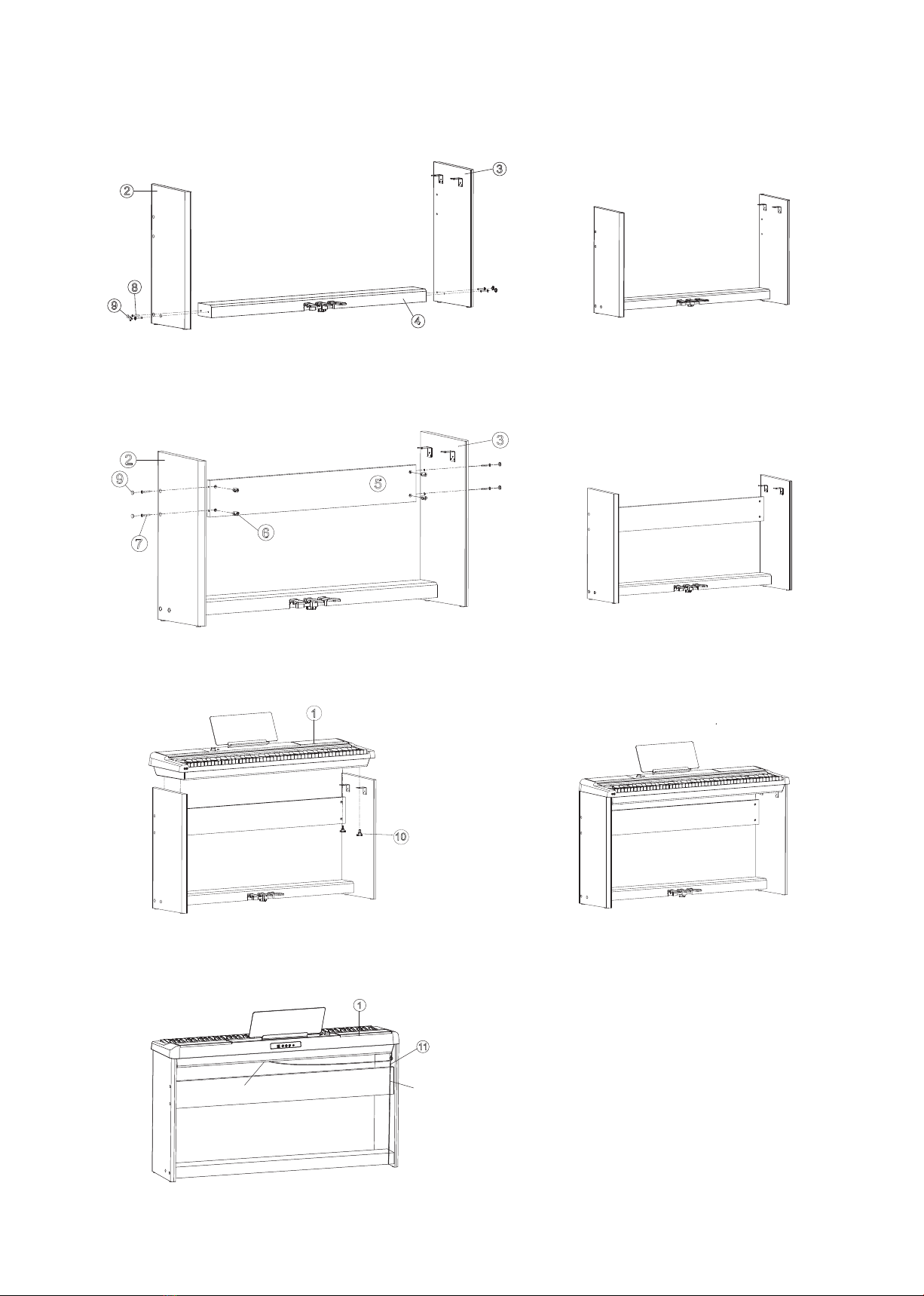

1.Place the ‘②Left Base Board’ to the left side of ‘④Pedal Component Box’, the ‘ ③Right Base Board ’ to the right side. Then set the
‘⑧ Self-tapping Screws PA6x50 (4pcs) ’ through the ‘②Left Base Board ’ and ‘③Right Base Board ’. Aligning the screw holes of
‘④Pedal Component Box ’, tighten with a screwdriver, then cover with the ‘ ⑨Screw Gum Caps (4pcs) ’. Like following pic:
2.Put the ‘⑥Transverse nuts φ10*13（M6）(4pcs) ’ into the hole of ‘ ⑤Back Base Board ’. Screw up the ‘⑤Back Base Board ’ to the
‘②Left Base Board’ by using the ‘⑦Phillips Screws BM6x50 (4pcs)’ . Then cover the ‘⑨Screw Gum Caps (4pcs)’ . Like the following pic:
The First Installation Completed Pic
The Second Installation Completed Pic
The Third Installation Completed Pic
Pedal Connector Pedal Wire

NO.1805023
