THERMOSTAHL Airvent Series Guide

HOT AIR WOOD STOVE
AIRVENT
TECHNICAL DOCUMENTATION
V. 1.1

2
Index
1TEHCNICAL CHARACTERISTICS ............................................................................... 3
2GENERAL DESCRIPTION ......................................................................................... 3
3SAFETY DIRECTIONS ............................................................................................. 4
4INSTALLATION DIRECTIONS ................................................................................... 4
4.1 Electrical diagram.............................................................................................. 4
5USE DIRECTIONS .................................................................................................. 5
5.1 General directions ............................................................................................. 5
5.2 Use of control panel........................................................................................... 5
6CLEANING AND MAINTENACE.................................................................................. 8

3
1TEHCNICAL CHARACTERISTICS
The Airvent hot air wood stove has advanced design and best quality of construction. It is
equipped with fireproof glass. The hot air is delivered by the frontal and lateral blinds of the
stove. Main advantages are high efficiency, quick response to heat demand, digital control, and
low cost of operation.
Technical characteristics
Type
Airvent 15
Airvent 25
Nominal power
kW
15
25
Minimum power
kW
7
12
Efficiency
%
85
85
Dimensions
mm
484x482x1025
546x562x1105
Weight
kg
120
150
Chimney
mm
150
150
Heated surface
m2
110
150
Fuel
Wood-Briquette
Wood-Briquette
Fuel consumption
kg/h
2-3
2-4,5
Air supply
m3/h
550
700
El. consumption
W
50-70
50-70
Voltage
V/Hz
230/50
230/50
2GENERAL DESCRIPTION
Legend
1.
Chimney
2.
Exhaust damper
3,5.
Lateral blinds
4,6.
Frontal blinds INOX
7.
Secondary air setting
8.
Primary air setting
9.
Door with fireproof glass
10.
Ash box
11.
Fan
12.
Digital control panel
13.
Air inlet

4
3SAFETY DIRECTIONS
This device shall not be used by people with lower physical or mental abilities,
children, or people without experience. Children should always be supervised not to
touch the device. There are hot surfaces that might cause injury!
It is recommended not to install the stove on floor made of flammable material. If so, a
protective layer of non flammable material, of minimum thickness of 15 mm, should be
positioned between the floor and the device.
All electrical connections must be performed by an authorized professional. The device must be
grounded. Connect the device plug to a grounded inlet. Make sure that the cable is not pressed
under the stove or touching any hot surfaces.
It is important to use dry wood (humidity≤ 20%), cut at least one year before use, of 40 cm
length for Airvent 25 and of 35 cm length for Airvent 15.
In case of blackout, stop immediately the combustion by closing the air inlet (7,8) and open
completely the exhaust damper (2). If you have a UPS with battery installed, do not add any
more fuel in the fire chamber. If no UPS is installed, remove wood from the fire and reduce the
fire to minimum possible.
4INSTALLATION DIRECTIONS
Choose the installation area so that the frontal face of the stove is directed to the space you
want to be heated.
Set the adjustable feet so that the stove is in horizontal position.
Make sure the chimney installation is appropriate. Connect tight with the chimney. If there are
horizontal parts of the chimney, they should have an inclination of at least 30owith the floor.

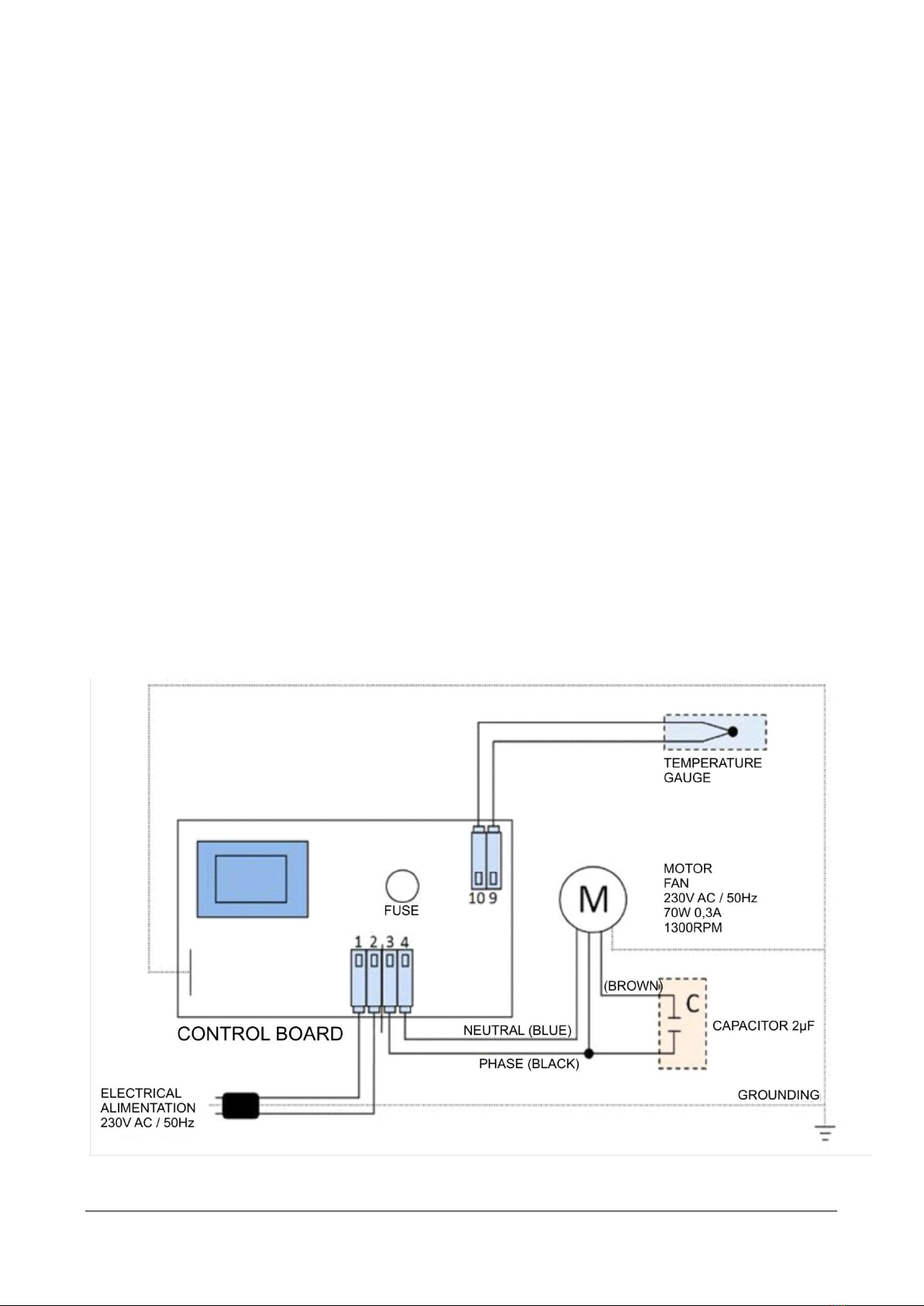

4.1 Electrical diagram

5
Electrical data
Voltage
230V ± 10% - 50Hz
Protection
Internal fuse
Sensor temperature
-50oC÷250oC
Output
Fan 230V –200W max.
Dimensions
Inserted 120 x 80 x 50 (mm)
Norms complying
EN60730-1 50081-1 EN60730-1 A1 50081-2
5USE DIRECTIONS
5.1 General directions
Before you put the stove in function check the following:
The exhaust damper (2) must be in fully open position.
The air inlets (7, 8) must be open.
The stove is connected to electricity.
The ash box is clean.
Add some small pieces of wood in the furnace, and ignite with an appropriate tinder (DO NOT
USE gasoline, alcohol or similar flammable liquids) and close the door. If necessary,
open a little the ash drawer for some additional air inlet.
Add some bigger wood logs, 1-2 every time, without opening the door too fast, to avoid smoke
leakage. Do not add too much wood, because it will create excessive smoke and heat. ‘
DO NOT USE AS FUEL THE FOLLOWINGS:
Wood with moisture or that has been processed
Wood shavings
Cardboards and paper
Plastic or other waste materials
Before you clean the ash, make sure there are no burning remains. Even if the ash seems cool,
there can still be hot particles in the interior.
5.2 Use of control panel
The control panel is already preset for the device. It activates the fan at the temperature of
50oC and above.

6
In PROP mode, the fan speed modulates according to the sensor temperature; the higher the
temperature, the higher the fan speed.
If you want to change some parameters (activation temperature, min/max fan speed etc.) you
can enter the control panel menu.
ON/OFF function
Keep pressed the P1 button for ON/OFF function. In OFF mode the lamp L1 will be activated.
Mode selection
MANUAL: The MAN indication is highlighted. The fan functions at a steady speed, regardless
the temperature of the sensor.
AUTOMATIC: The AUT indication is highlighted. The fan starts to function at a steady speed
when the selected temperature has been reached (SET).
PROPORTIONAL: The PROP indication is highlighted. The fan speed is modulated according to
the sensor temperature, within the limits (SET÷ SET+dEL).
STANDBY: (If Stb=1) If the control panel is set to OFF and the sensor temperature is higher
than the tSI value, then the control panel automatically changes to ON function.
SECURITY: (If SIC=1 If the sensor temperature is higher than the tSI value and the MANUAL
mode is activated at P0, then the control panel switches automatically to PROP mode after 10
seconds.
ALARM: (If Enb=1) If the sensor temperature is higher than the tAL value, then a sound
alarm is activated. This alarm can be deactivated for 5 minutes by pressing any button. After 5
minutes it is reactivated if the temperature is still higher than the safety limit.
Main menu
Mode selection
Press the P4 button for the current mode to appear on screen. By pressing again the P4
button you can cycle through the modes which will appear on screen.
The mode is selected automatically after 5 seconds.
The L5 led indicates the fan mode.
Mode selection
Press the P4 button for the current mode to appear on screen. By pressing again the P4
button you can cycle through the modes which will appear on screen.
The mode is selected automatically after 5 seconds.
The L5 led shows the fan mode.
Fan speed selection
By pressing the P2 or P3 buttons you can check the current fan speed (P0=OFF at Manual,
P1=minimum speed, P10=maximum speed).
This function is not available on PROPORTIONAL mode
In AUTOMATIC mode the fan speed can be set from P1 to P10.

7
Alarm or Error signals
Lo=low temperature (temperature below 0oC: sensor not connected)
Hi=high temperature (temperature higher than 180oC: sensor short-circuited)
ATTENTION: The sensor cable is designed for temperature until 250oC. It must not come in
contact with metallic parts of the stove that have a temperature higher than 250oC.
All electrical connections of the device must be executed by an experienced professional. Make
sure there is no voltage when electrical works are executed.
Parameters menu
To enter the parameters menu keep presses P2 and P3 buttons for 5 seconds.
Press the P2 or P3 button to check all the parameters, then press P4 to see the value
assigned to each parameter. Afterwards, press again P2 or P3 to change the value. Press P4
to store changes and return to the parameter list.
Changes are stored and you exit from the menu after 5 seconds of inactivity.
PARAMETERS MENU
Parameter
Screen
Minimum
Preset value
Maximum
Set
value
Fan activation temperature
SET
30
45
99
60
Thermostat hysteresis
iSt
1
2
35
2
ALARM activation temperature
tAL
100
120
180
180
SAFETY activation temperature
tSI
80
100
140
85
Fan activation temperature at
SAFETY mode
tSA
100
135
180
135
SAFETY mode
SIC
0 (off)
1 (on)
1 (on)
1
Fan activation temperature
function at SAFETY mode
SAF
0 (off)
0 (off)
1 (on)
0
STANDBY mode
Stb
0 (off)
1 (on)
1 (on)
1
ALARM mode
Enb
0 (off)
1 (on)
1 (on)
1
Fan speed Ρ01
U01
0
16
100
25
Fan speed Ρ09
U09
0
70
100
70
Fan speed Ρ10
U10
0
100
100
100
Temperature for Proportional
mode (oC)
dEL
20
20
100
50
If the fan must not function in too low speed, you can set the minimum fan speed
(parameter UUE):
Choose the MANUAL mode.
Assign the minimum fan speed to parameter P01.
Enter the parameters menu and change the UUE parameter to desired value.
Store the changes by pressing the P4 button.
Wait 10 seconds to exit the menu.

8
6CLEANING AND MAINTENACE
Once a year it is necessary to clean the stove and the chimney from the ash and dust remains.
When you clean the stove have the ash drawer closed.
Clean the door glass with a wet cloth or mild cleaners. Do not use active substances.
Clean the exterior painted surfaces of the stove with a wet cloth, and not with drastic liquids.
7WARRANTY
The factory warranty for this device is 5 years after purchase, as long as all the regulations
and directions of this manual are respected. For all electrical parts warranty is 1 year. If there
is any dysfunction or flaw in the device during the warranty period, any repairs will be applied
or spare will be provided with no charge.
Problems that may occur from wrong use or application of the device, are not covered by
warranty.

9
THERMOSTAHL ROMÂNIA
SISTEME TERMICE S.R.L.
DRUMUL OSIEI 57-59, sector 6
Bucureşti 062395, România
Tel: [phone]
Fax: [phone]
