Thermosteel THSPB074 User manual
www.polibox.com
55W
DC 12V/24V
AC 115-240V
50-60 Hz
+5°C/-18°C R134a
L
O
W
E
N
E
R
G
Y
P
R
O
D
U
C
T
BOX
PLAR
SAA
THPB065D 65 L 495 x 790 x 465 mm 29,5 Kg
THPB092D 92 L 615 x 790 x 465 mm 32,5 Kg
THPB118D 118 L 740 x 790 x 465 mm 35,5 Kg
THSPB074 74 L 495 x 790 x 465 mm 28 Kg
THSPB100 100 L 615 x 790 x 465 mm 31 Kg
THSPB130 130 L 740 x 790 x 465 mm 34 Kg
USER’S GUIDE
Publication 2014 – rel.01
Data, descriptions, and illustrations in this publication are for informational
purpose and may be amended without prior notice”.
REFRIGERANT SYSTEM
Hermetic compressor Secop
BD50F, formerly Danfoss, with
adjustable speed and integrated
electronic control. The
evaporator is foamed inside the
four walls of the refrigerator in
order to reduce any perforation
risk.
MATERIAL
The lids and bins are made of
painted steel sheet.
The corners of the refrigerator
are covered by protective plastic
angles. The handles are sturdy
and retractile in order to reduce
the overall size.
PORTABLE REFRIGERATORS
The ultimate
line of products
THERMOSTEEL®
Polar Box oers the
best of electronic
technology.
SINGLE BASKET VERSION 74 / 100 / 130 LT
DOUBLE DOOR VERSION 65 / 92 / 118 LT
2
11
2
3
45 6
30°
INSTALLATION
It is important that the Fridge / Freezer is installed according to the instructions of the user manual, in order to have
guaranteed performance, efficiency and proper operation.
• Place the Fridge / Freezer in a safe and dry place.
Limit exposure to extreme heat or direct sunlight as this may change the performance and efficiency of the Fridge
/ Freezer.
• The normal operation of the device and its compressor located at the rear of the Refrigerator / Freezer requires an
adequate flow of air for cooling, avoiding phenomena of overheating.
• The cooling system is designed to function properly when the Fridge / Freezer is positioned at angles up to 35
degrees.
It is recommended not to place the Fridge / Freezer at angles above 30 ° for a maximum of four (4) hours of
continuous operation
go to next pagego to the site www.polibox.com

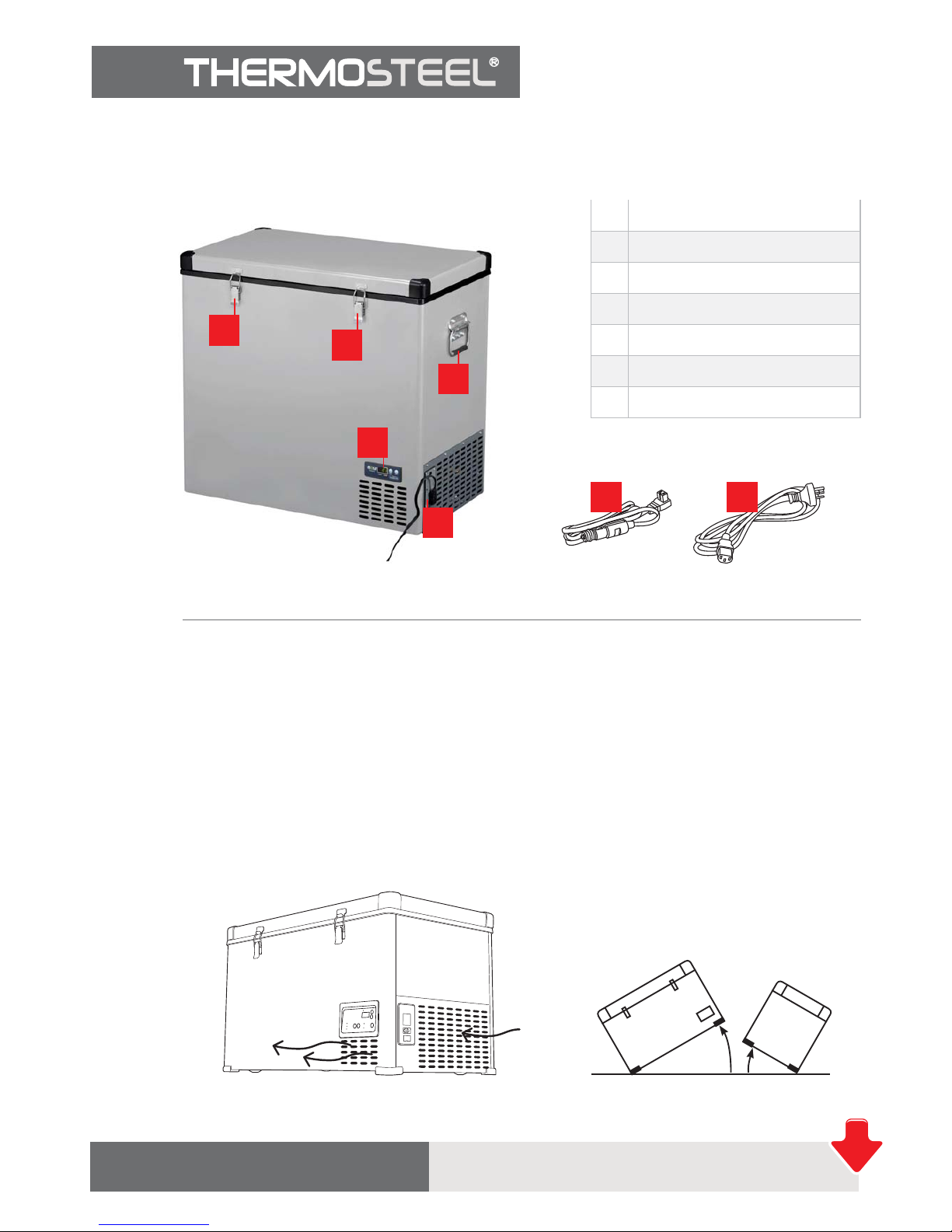

Pos Description
1Lid Latches
2Control Panel
3Carry Handle
4Power Input Panel
512V/24V DC Power Cable
6240V AC Power Cable
GETTING TO KNOW your Portable Fridge/Freezer
IDENTIFICATION
3
AC
POWER
FUSE
FUSE
15A
15
AC
100-240V
50-60Hz
DC
POWER
DC
12/24V

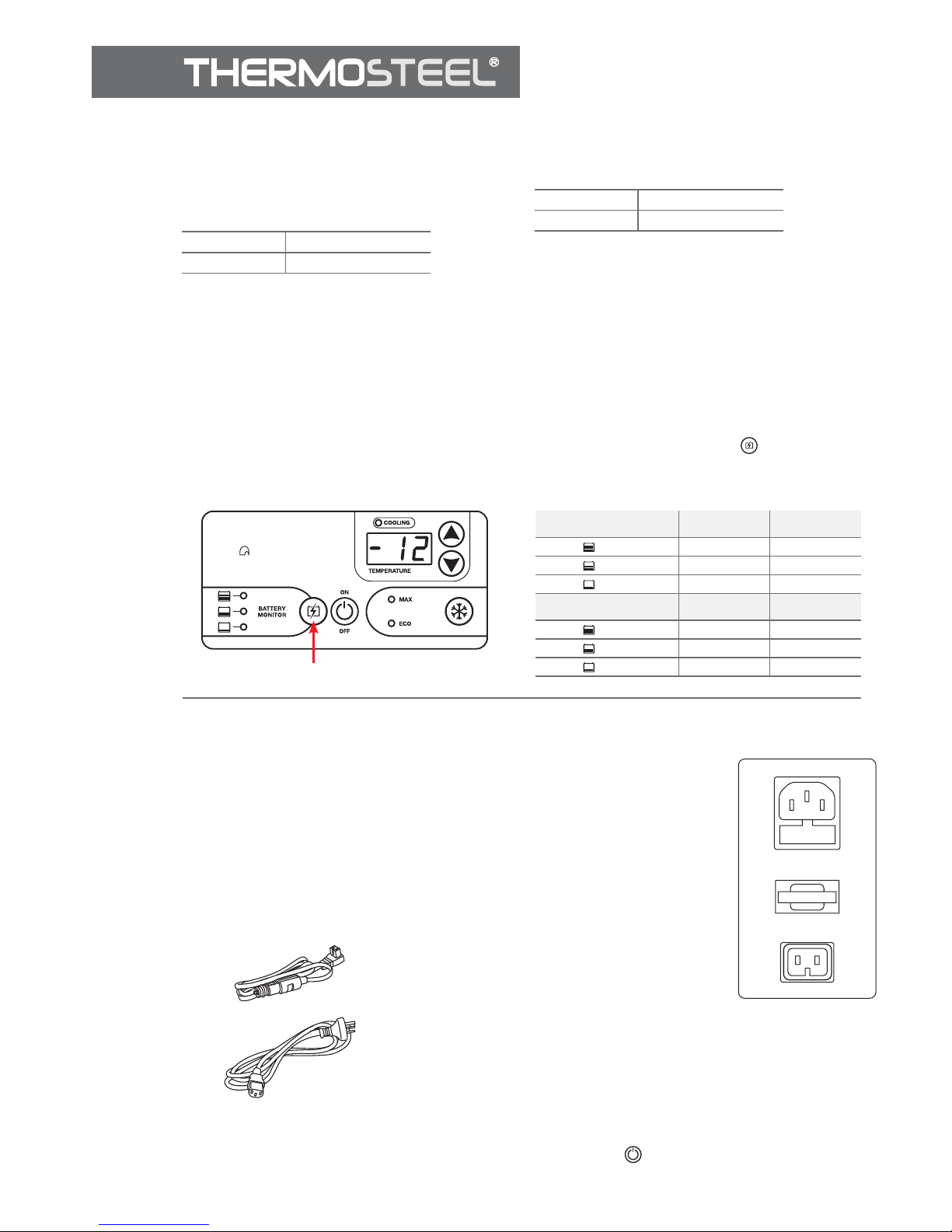

POWER MANAGEMENT
POWER REQUIREMENTS
The Fridge / Freezer is designed to operate connected
to the AC and car or van cigarette lighter DC.
AC input 220-240V AC at 50Hz
DC input 12V or 24V DC
In order to provide an optimal and efficient performance,
the Fridge / Freezer is equipped with a safety fuse 15A.
It is recommended a direct connection to the battery as
it reduces the risk of interruption of the power supply
voltage.
We recommend using the supplied cable. It is important
to use the correct cable size for the installation of the
support DC, the voltage may be reduced if you use an
incorrect cable.
REMOTE POWER CABLE DC
4.5m or less 2.1mm2 (AWG14)
4.6m and over 3.3mm2 (AWG12)
BATTERY MONITOR
The unit is equipped with a system of controls that
allow the protection of the vehicle battery to prevent
excessive discharge when the function fresh-freezer is
connected to 12/24 V.
In case the Fridge / Freezer is in function when the
vehicle is off, the fridge-freezer turns off automatically
as soon as the voltage reaches its setting level.
The Fridge / Freezer will reset as soon as the battery is
recharged.
Press, hold and release the button until the desired
setting is reached.
Battery Monitor Control
12V DC Input Cut out Cut in
High 11.7 V 12.7 V
Med 10.7 V 11.7 V
Low 10.2 V 11.2 V
24V DC Input Cut out Cut in
High 24.6 V 26.0 V
Med 22.6 V 24.0 V
Low 21.6 V 23.0 V
BEFORE USING THE FRIDGE/FREEZER
CABLE DC
The Fridge / Freezer is equipped with an electronic
control system which prevents the inversion of
polarity.
In case the connection to the battery is inverted, the
unit will not be able to start and operate. The input
socket is equipped with a 15A fuse protection.
Connect the power cord to the DC 12/24V connection
at the back and then plug in the cigarette lighter or a
suitable power source from 12V or 24V.
CABLE AC
The Fridge / Freezer is
equipped with a multi-
voltage power supply unit
with priority circuit for
connection to a source
AC 100-240V. The power
supply automatically
switches to the operation
of the electricity grid, if
the device is connected
to a 100-240V, though the
12/24V connection cable is
still attached.
The air inlet supply is
equipped with a 15A fuse
protection.
Connect the power cord 12/24V to the AC connection
at the back and then connect to a suitable source of
12V or 24V.
POWER
Connect the Fridge / Freezer to the desired voltage and press the button to turn on your Fridge / Freezer, the
display will show the internal temperature of the cell.
DC Power Cable
AC Power Cable
BOX
P LAR
4
BOX
P LAR
go
t
THERMOSTAT / CONTROL OF TEMPERATURES
The thermostat temperature programs the desired
temperature that will appear on the display of the unit.
The thermostat has been programmed to maintain a
constant temperature.
The compressor will start when the temperature inside
the container increases between 0.5 ° and 1.5 ° C
SETTING THE TEMPERATURE
When the Fridge / Freezer is connected to the network with the AC or DC cable, the digital led shows the current
temperature inside the unit. To set the temperature use the up and down keys:
to increase the temperature press the button up to the desired temperature setting; press to lower the
temperature to the desired temperature.
ECO/MAX FUNCTION
This function allows to slow the speed of the compressor
to increase operational efficiency (ECO) or to increase
the speed of the compressor to provide rapid cooling
times (MAX).
Press the button to activate the ECO mode, the ECO
indicator will light up.
Press again the button to select the MAX mode, the
MAX red indicator will light up.
ENERGY SAVING SUGGESTIONS
Choose a well ventilated and protected from direct
sunlight location to allocate the Fridge/Freezer and
allow air to circulate around the refrigerator.
Cool food before placing it in the refrigerator.
Do not open or do not leave the lid open for longer than
is actually necessary.
If ice forms on the inside walls or on the lid, defrost the
refrigerator.
SETTING THE TEMPERATURE FOR FRIDGE / FREEZER DOUBLE DOOR
The temperature stated on the left side of the display corresponds to the left side of the container;
the temperature stated on the right side of the display corresponds to the right side of the container.
The temperature can be set independently for each of the two compartments in a range from -18 ° C to
+10 ° C.
Consider the compartment on the right for lowest temperatures similar to the freezer of a home
refrigerator.
Always set first the temperature of the compartment on the right.
The control panel will allow to set the temperature of the left area identical or warmer than the
the right area but it will not allow you to set a lower temperature compared to the right area.
Caution: the right area must always be set to a temperature equal or lower than the temperature of
the left area. If the right area is set at a temperature warmer than the temperature of the left area, the
temperature of the left area will be automatically adjusted to be equal to the right area temperature.
POWER OF A SINGLE COMPARTMENT
This Fridge-Freezer offers the possibility of keeping off the left area when it is not necessary to use it and
use the area on the right as a Fridge / Freezer.
To turn off the left area simultaneously press the 2 buttons to turn off or reactivate the area.
go to next pagego to the site www.polibox.com
go to the site www.polibox.com SDS srl
SPECIFICATIONS
SINGLE BASKET VERSIONS
THSTPB074 THSTPB100 THSTPB130
Capacità lorda 74L 100L 130L
Capacità nea 28kg 31kg 34kg
Dimensioni 790L x 465W x 495Hmm 790L x 465W x 615Hmm 790L x 465W x 740Hmm
Connessioni C 220V - 240V : DC 12V/24V
Consumo elerico 4.6°A/12V : 2.3°/24V
Campo di temperatura +4 a -18°C
Ingresso alimentazione 55W
Isolamento POLIURETANO ESPANSO
Compressore ermeco SECOP BD50F
Termostato Controllo eleronico
Materiale Contenitore e coperchio rivesto in metallo
TWO BASKETS AND DOUBLE DOOR VERSIONS
THSTPB065 THSTPB092 THSTPB118
Capacità lorda 65L (39L + 26L) 100L (53L + 39L) 130L (66L + 52L)
Capacità nea 29.5kg 32.5kg 35.5kg
Dimensioni 790L x 465W x 495Hmm 790L x 465W x 615Hmm 790L x 465W x 740Hmm
Connessioni C 220V - 240V : DC 12V/24V
Consumo elerico 4.6°A/12V : 2.3°/24V
Campo di temperatura +4 a -18°C
Ingresso alimentazione 55W
Isolamento POLIURETANO ESPANSO
Compressore ermeco SECOP BD50F
Termostato Controllo eleronico
Materiale Contenitore e coperchio rivesto in metallo
Metal cabinet, lid and lining
Metal cabinet, lid and lining
Electronic control
Electronic control
EXPANDED POLYURETHANE
EXPANDED POLYURETHANE
Material
Thermostat
Compressor
InsulaƟon
Power Input
Cooling Range
Dimensions
Current Draw (average)
Net capacity
ConnecƟons
Gross capacity
Material
Thermostat
Compressor
InsulaƟon
Power Input
Cooling Range
Dimensions
Current Draw (average)
Net capacity
ConnecƟons
Gross capacity
This manual suits for next models
