ThinkGizmos TG950 User manual

TG950 - INDOOR HEATED
CLOTHES DRYER
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE.
DUE TO CONTINUAL IMPROVEMENTS ACTUAL PRODUCT MAY BE DIFFERENT TO ILLUSTRATIONS
User Manual
Any packaging ties, bags and screws are not part of the product. For safety, please
remove and discard any packaging ties, bags and screws before using this product.

ENGLISH MANUAL - CONTENTS
1. 1.1 Safety Information ................................................................................................3
1.2 Electrical Shock Hazards ......................................................................................3
IMPORTANT INFORMATION
2
2. 2.1 Important Safety Tips ...........................................................................................4
IMPORTANT INFORMATION CONTINUED
If you have any issues with your product or have any questions,
please contact us via email:
[email protected]
This is the quickest way to resolve any problems. You will be
surprised how fast we will get back to you on email with a
resolution.
All our products are covered by our manufacturer’s warranty,
details can be found on page 9.
For more of our brilliant products, search Amazon for
“Think Gizmos”.
ThinkGizmos “Small enough to care big enough to deliver”.
Warranty Information .................................................................................................9
WARRANTY
3. 3.1 Knowing Your Indoor Heated Clothes Dryer .....................................................5
3.2 Included Parts ........................................................................................................5
INDOOR HEATED CLOTHES DRYER MACHINE PARTS
4. 4.1 Assembling the Indoor Heated Clothes Dryer ..................................................6
4.2 Disassembling the Indoor Heated Clothes Dryer .............................................7
GETTING YOUR DRYER READY FOR USE
5. 5.1 How to Operate Your Dryer .................................................................................7
OPERATING YOUR DRYER
6. 6.1 Problems, Possible Causes and Solutions .........................................................8
TROUBLESHOOTING
7. 7.1 Technical Features ................................................................................................8
7.2 Electrical Diagram .................................................................................................8
TECHNICAL SPECIFICATIONS

1. IMPORTANT INFORMATION
1.1 Safety Information
3
We have provided many important safety messages in this manual and on the appliance.
Always read and obey all safety messages.
Your safety and the safety of others are very important.
This is the safety alert symbol.
All safety messages will follow the safety alert symbol and either the word ‘DANGER’ or
‘WARNING’.
DANGER
WARNING
These words mean:
You can be killed or seriously injured if you don’t immediately follow instructions
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
WARNING
Electrical Shock Hazard
Plug Into a grounded outlet.
Do not use an extension cord.
Failure to follow these instructions can result in
death, re, or electrical shock.
This unit should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets, to
minimize the possibility of electric shock.
Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not
under any circumstances, cut or remove the third (ground) prong from the power cord.
Any questions concerning power and/or grounding should be directed toward a certied
electrician.
1.2 Electrical Shock Hazards

2. IMPORTANT INFORMATION CONTINUED
2.1 Important Safety Tips
4
When using electrical appliances, basic safety precautions should be followed to reduce the
risk of re, electric shock, and injury to persons or property.
Read all instructions before using any appliance.
●Please always keep away from water and re; place the appliance on a hard and at oor
and in an area with good air circulation.
●Clean using a soft cloth only, do not soak the Indoor Heated Clothes Dryer in water.
●Spin dry clothing before using the dryer, do not allow clothing to drip.
●Never touch the heating vent and metal materials while using the clothes dryer, to avoid
burns.
●Maximum loading of the indoor heated clothes dryer is 15kgs. Refer the clothing label
before use.
●This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
●Never cover the wind inlet and outlet.
●Please unplug the heated clothes dryer before installation and moving.
●If the supply cord is damaged, please return to authorized service center for repair. Do
not attempt to disassemble or repair yourself.
●Do not allow children to play with the dryer, keep away from children and pets.
●Do not leave the Indoor clothes dryer when in use unattended.
●WARNING: This appliance is only intended for drying textiles washed in water.
WARNING: This appliance must be earthed.

3. INDOOR HEATED CLOTHES DRYER PARTS

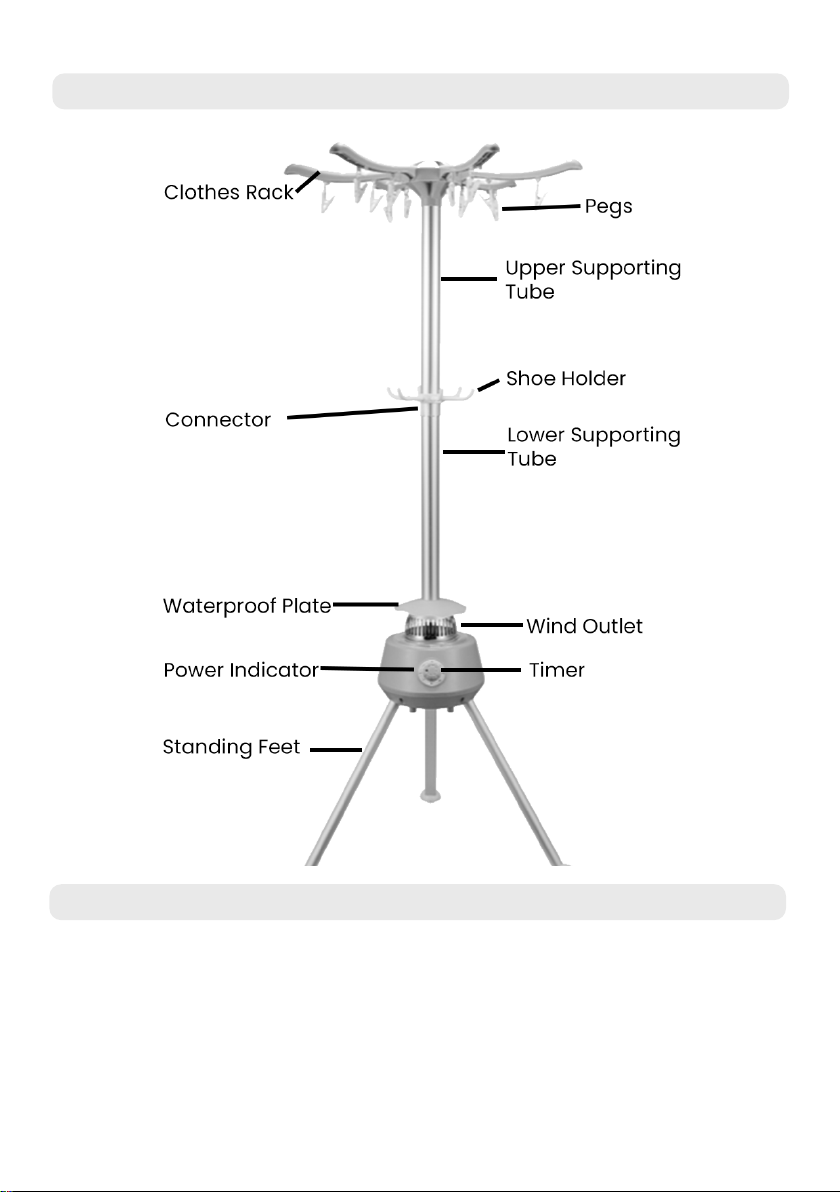

3.1 Knowing Your Indoor Heated Clothes Dryer
5
3.2 Included Parts
●Motor unit - 1 set
●Upper supporting - 1 pc
●Lower supporting tube - 1 pc
●Connector - 1 pc
●Standing feet - 3 pcs
●Shoe Holder - 1 pc
●Pegs - 12 pcs
●Cover - 1 pc
●User manual - 1 pc
●Waterproof plate - 1 pc
●Clothes rack - 1 pc

4. GETTING YOUR DRYER READY FOR USE
4.1 Assembling the Indoor Heated Clothes Dryer
6
1. Remove all parts from the box and check all parts match the Included Parts list.
2. Insert the 3 standing feet parts into the corresponding holes provided at the bottom
of the motor unit.
3. Fit the water proof plate onto the lower supporting tube. Place the lower supporting
tube with the waterproof plate into the top of the motor unit. Screw it clockwise until
it can not go any further.
4. Place the upper supporting tube into the connector, and screw it clockwise until it
can not go any further.
5. Place the cover over the top of the dryer, put the clothes on the hangers or clips and
close with the zip. Only place the clothes on the hangers or clips provided. Do not
place clothes freely in the bottom of the heated dryer.

5. OPERATING YOUR DRYER
7
5.2 How to Operate Your Dryer
1. Insert the power plug into an earthed power socket.
2. Rotate the centre knob until the machine starts to work, the power indicator will illuminate.
3. Rotate the knob clockwise to the required pre-set time.
4. Rotate the knob anti-clockwise to reduce the timer or stop the dryer.
4.2 Disassembling the Indoor Heated Clothes Dryer
1. Follow the steps for Assembling the Indoor Heated Clothes Dryer in reverse.

8
6. TROUBLESHOOTING
6.1 Problems, Possible Causes and Solutions
PROBLEM POSSIBLE CAUSE SOLUTION
Drying time too long
(>180minutes)
Clothes may be very thick. Thick clothing may take longer
to dry.
Clothes may not have been
spun before drying.
Put clothes on a spin cycle
before drying.
Cover may not have been
closed properly and hot air
escaped.
Ensure cover is closed correctly.
Machine suddenly stopped
working
Wind outlet or inlet locked
or covered by clothing or
something else.
This is an Auto Shutdown
Protection if blocked.
Remove anything blocking wind
outlet or inlet.
May have exceeded set
time.
Increase time to restart the
dryer.
7. TECHNICAL SPECIFICATIONS
7.1 Technical Features
Brand Think Gizmos
Model TG950
Drying Capacity 15kg
Timer 0-180 Minutes
Rated Voltage 220-240V
Rated Frequency 50Hz
Rated Power 1200W
Cable Length 1.5m
7.2 Electrical Diagram

WARRANTY
Warranty Information
Think Gizmos, Unit 19, Lawson Hunt Industrial Park,
Broadbridge Heath, West Sussex, RH12 3JR
Tel.: [phone]
[email protected] ●uk.thinkgizmos.com
What is Covered:
This warranty covers any defects in materials or workmanship, with the exceptions stated
below.
How Long Coverage Lasts:
This warranty runs for 2 Year from the date your Think Gizmos Indoor Heated Clothes Dryer
is delivered.
What is not covered:
Any problem that is caused by abuse, misuse, or an act of God (such as a ood) are not
covered.
What We Will Do:
If the Product proves defective during the warranty period, we will provide you with the
instructions for the return, and we will take one of the following actions: (i) replace the
Product with a product that is the same or equivalent to the Product you purchased; (ii)
repair the Product; or (iii) refund to you the whole of or part of the purchase price of the
Product.
How to Get Service:
To obtain instructions on how to obtain service under this warranty, contact our customer
service by phone or email. You will nd the contact details of our customer service below.
Customer service may ask questions to determine your eligibility under this warranty, and
if you are eligible you’ll be given instructions for returning the defective Product. If we send
you a replacement or repair your Product, we will pay the cost of delivering the replacement
or repaired Product to you.
Do not return the item to the original place of purchase, please contact Think
Gizmos direct.
9

It is possible to request a full copy of Declaration of compliance from the Distributor:
This product complies with the rules of RoHS Directive(2011/651EU)
Think Gizmos is a registered trademark of Paramount Zone Ltd.
uk.thinkgizmos.com
Think Gizmos brand is owned and operated by Paramount Zone Ltd.
Manufactured and Distributed by:
Paramount Zone Limited,
Unit 19, Lawson Hunt Industrial Park,
Horsham, Sussex, RH12 3JR, UK.
Meaning of the ‘Dustbin’ Symbol:
To protect our environment, do not dispose of electrical equipment in with domestic waste.
Please return any electrical equipment that you will no longer use to the collection points
provided for their disposal.
This helps to avoid the potential eects of incorrect disposal on the environment and human
health.
This will contribute to the recycling and other forms of reutilisation of electrical and electronic
equipment.
Information concerning where the equipment can be disposed of can be obtained from your
local authority.
