1/16
PC – PS4™ – Xbox One®
User Manual

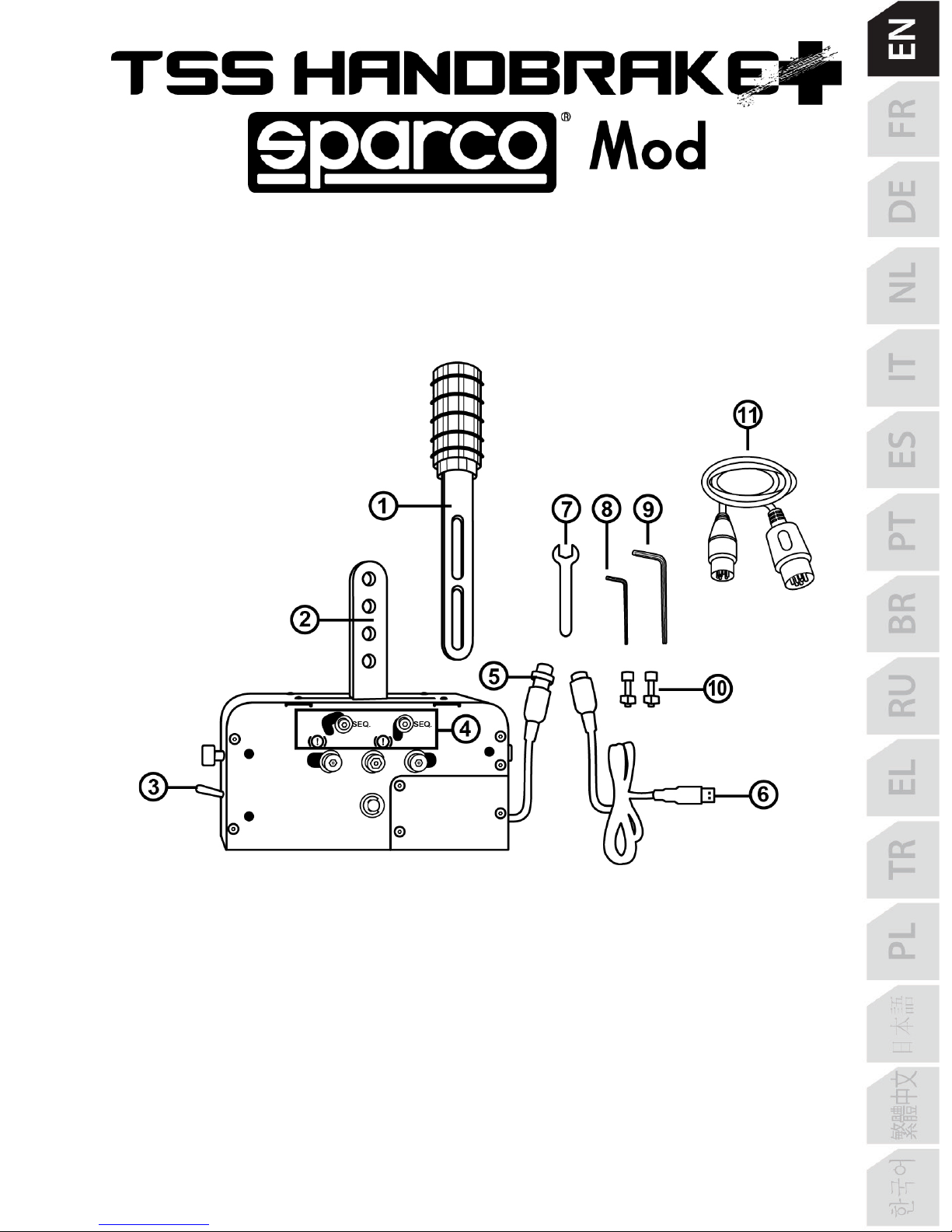

TECHNICAL SPECIFICATIONS
1Detachable lever (not installed by default)
2Lever attachment arms
3HANDBRAKE / SEQUENTIAL SHIFTER
selector
4Mechanical switching system (for
switching between the HANDBRAKE and
SEQUENTIAL SHIFTER modes)
5DIN cable and female connector on base
6Detachable male DIN / USB cable
713 mm wrench key
83 mm Allen wrench
96 mm Allen wrench
10 2 BTR M8 screws + 2 M8 nuts
11 Detachable mini-DIN / DIN cable

2/16
WARNING
Before using this product, be sure to read through this manual carefully. Retain this manual for
future reference.
Warning – Electric shock
* Keep this product in a dry place, and do not expose it to dust or sunlight.
* Respect the direction of insertion for connectors.
* Do not twist or pull on the connectors and cables.
* Do not spill liquid on the product or its connector.
* Do not short-circuit the product.
* Do not dismantle this product (apart from for the possible adjustments described in this manual),
do not attempt to burn the product and do not expose the product to high temperatures.
Warning – Injuries due to repetitive movements
Using a shifter or a handbrake may cause muscle and joint pains. In order to avoid any problems:
* Avoid playing for extended periods of time.
* Take a 10 to 15 minute break after each hour of playing.
* Should you experience fatigue or pain in your hands, wrists or arms, stop playing and rest for a
few hours before starting to play again.
* If the symptoms or pains described above persist when you resume playing, stop playing and
consult your doctor.
* Verify that the base of the TSS HANDBRAKE is properly mounted, as described in the instructions
found in this manual.

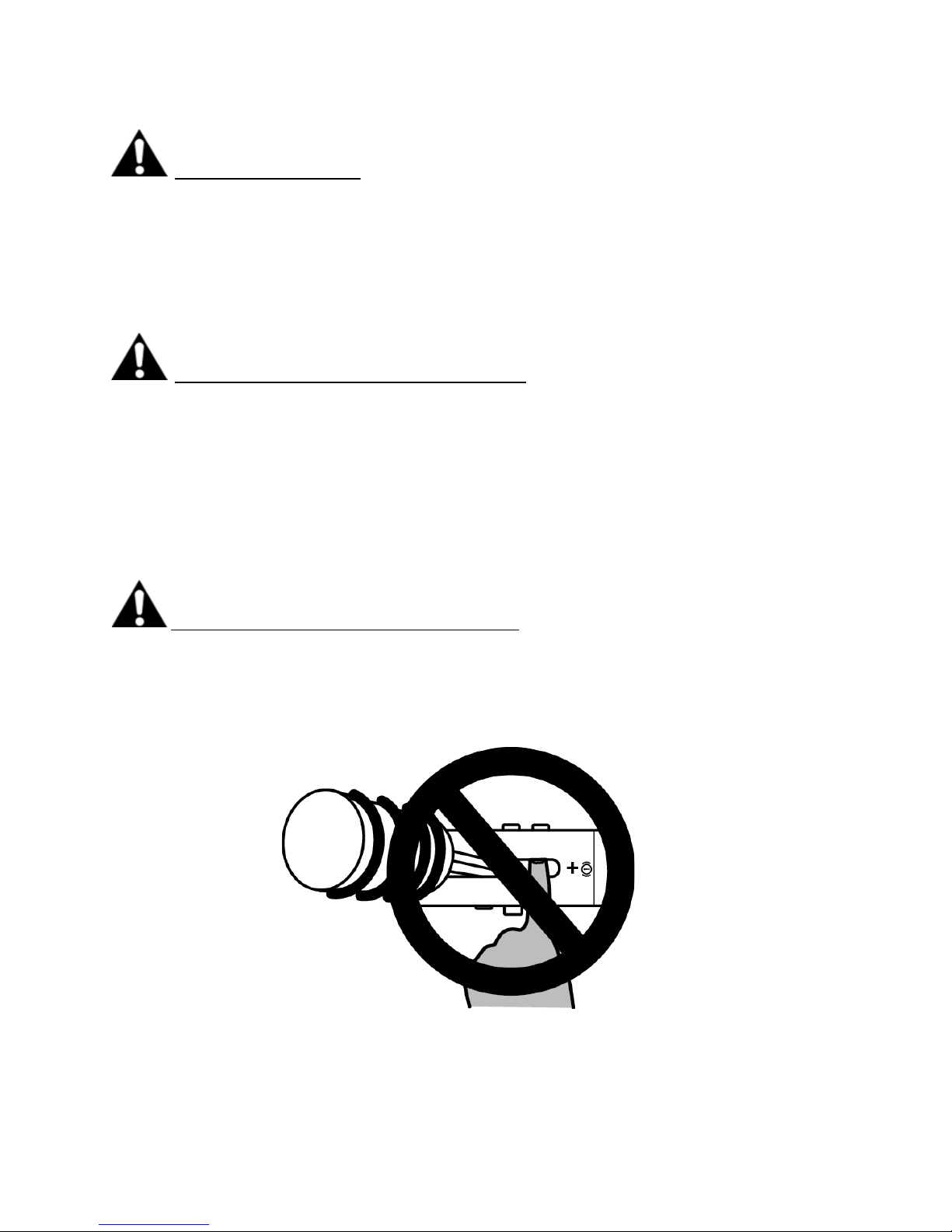

Warning – Pinching risk in shift plate openings
* Keep out of the reach of children.
* When playing a game, never place your fingers (or any other parts of your body) in the openings in
the shift plates of the TSS HANDBRAKE.
NEVER

3/16
INSTALLING THE DETACHABLE LEVER (1) ON THE ATTACHMENT ARMS (2)
1. Slide the detachable lever (1) between the attachment arms (2).
2. Adjust the lever at the desired height.
The lever’s total height (knob included) can be adjusted between 21 cm and 30 cm.
3. Attach the lever to the attachment arms using 2 BTR M8 screws (10), 2 M8 nuts (10) and the 6 mm
Allen wrench (9).

4/16

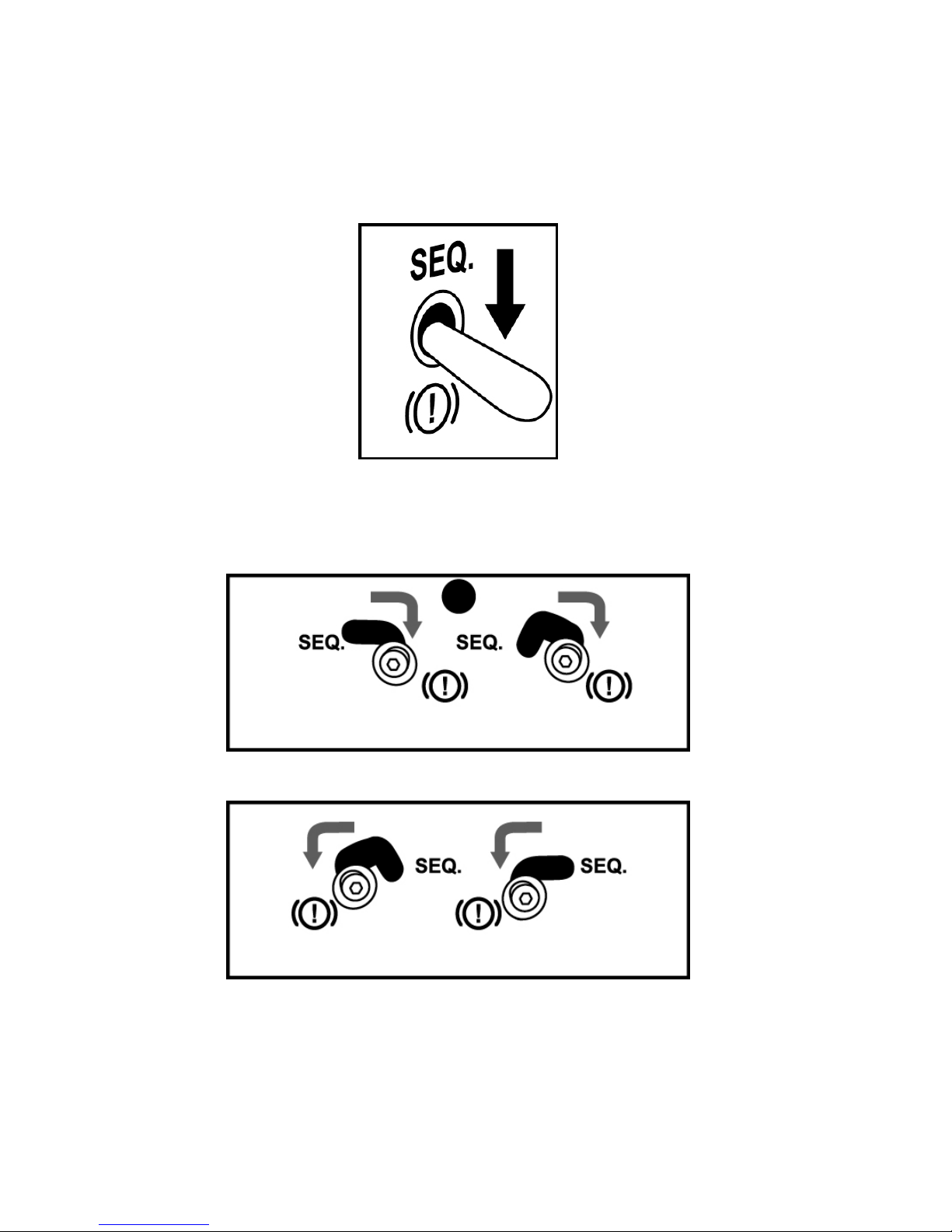

CONFIGURING THE HANDBRAKE MODE
By default (when unboxing the device), the TSS HANDBRAKE is configured in the HANDBRAKE
mode.
1. The HANDBRAKE / SHIFTER selector (3) is lowered in the HANDBRAKE mode position.
Front face of base
2. The mechanical system that lets you switch from the HANDBRAKE mode to the SEQUENTIAL
SHIFTER mode (4) is preset in the HANDBRAKE position.
Left side of base
Right side of base

5/16
CONFIGURING THE SEQUENTIAL SHIFTER MODE
1. Raise the HANDBRAKE / SHIFTER selector (3) in the SEQUENTIAL SHIFTER mode position.
Front face of base
2. To switch from the HANDBRAKE mode to the SEQUENTIAL SHIFTER mode (4), use the 3 mm
Allen wrench (8) to slightly unscrew the mechanical system’s screws (2 screws, located to either
side of the base).
3. Move these 4 screws (2 screws, located on either side of the base) to the SEQ position.
Left side of base
Right side of base
4. Check that these 4 screws (2 on either side of the base) are perfectly repositioned, then tighten
them using the 3 mm Allen wrench (8).

6/16
INSTALLING THE TSS HANDBRAKE
The TSS HANDBRAKE can be attached to a variety of compatible supports (sold separately), using
the M6 threaded holes located on either side of the device and under its base:
•3 threaded holes are located on the left side of the base.
•3 threaded holes are located on the right side of the base.
•8 threaded holes are located under the base.
The TSS HANDBRAKE cockpit installation template is available from
http://support.thrustmaster.com. Select Racing Wheels / TSS HANDBRAKE, then Template -
Cockpit Setup.

7/16
DO NOT TIGHTEN OR LOOSEN THESE SCREWS
With the exception of the screws relating to the mechanical system used to switch from the
HANDBRAKE mode the SEQUENTIAL SHIFTER mode (4), never tighten or loosen any screws
located on the TSS HANDBRAKE base.
Left side of base = Never tighten or loosen these screws:
Right side of base = Never tighten or loosen these screws:
Front and rear sides of base = Never tighten or loosen these screws:

8/16
INSTALLATION INSTRUCTIONS FOR PC
1. Go to http://support.thrustmaster.com to download the PC drivers.
Select Racing Wheels / TSS HANDBRAKE, then select Drivers.
2. Once the download is finished, run the installation program, and follow the instructions displayed
onscreen.
3. When prompted to do so by the installation program, connect the TSS HANDBRAKE to one of your
PC’s USB ports using the detachable male DIN / USB cable (6), and finish installing the driver.
4. Once the installation is finished, click Finish and restart your computer.
5. Select Start / All Programs / Thrustmaster / TH8 Shifter / Control Panel to open the Game Controllers
window.
The Game Controllers window displays the name TSS HANDBRAKE Sparco® Mod, with the status OK.
6. Click Properties to view the TSS HANDBRAKE in the Windows Control Panel:

9/16
On PC, when the TSS HANDBRAKE is connected to a USB port using the
detachable male DIN / USB cable (6), the TSS HANDBRAKE is compatible:
- with HANDBRAKE mode [Progressive] and SEQUENTIAL SHIFTER mode [+/-];
- in all games supporting multi-USB, separate handbrakes and shifters;
- with all racing wheels on the market.
On PC, when the TSS HANDBRAKE is connected to the back of a compatible
Thrustmaster racing wheel base using the detachable mini-DIN / DIN cable (11),
the TSS HANDBRAKE is compatible:
- with SEQUENTIAL SHIFTER mode [+/-] only;
- in all games (as the TSS HANDBRAKE is combined with the racing wheel’s UP and DOWN paddle
shifters);
- with compatible Thrustmaster racing wheel bases only (TS-PC Racer, T-GT, T300, TS-XW Racer and
TX).
IMPORTANT:you must update the firmware of your racing wheel base
(TS-PC Racer, T-GT, T300, TS-XW Racer and TX) with the latest version
available at http://support.thrustmaster.com/ to be able to connect a TSS
HANDBRAKE to the racing wheel base.
General notes on PC:
* Remember to always completely close the Game Controllers window by clicking on OK before
starting your game.
* The TSS HANDBRAKE’s firmware version is displayed in the upper right section of the Control Panel
tabs.
* If you choose to use a USB connection, we recommend connecting your racing wheel and the TSS
HANDBRAKE directly to the USB 2.0 (not USB 3.0) ports on your PC, without using a hub.
* Some games let you use 2 TSS HANDBRAKE devices simultaneously:
•1 TSS HANDBRAKE configured in HANDBRAKE mode;
•1 TSS HANDBRAKE in SEQUENTIAL SHIFTER mode.

10/16
INSTALLATION ON PS4™ AND XBOX ONE®
On PS4™ and Xbox One®, the TSS HANDBRAKE is compatible with the following racing wheel bases:
•Thrustmaster T-GT and T300 on PS4™
•Thrustmaster TS-XW Racer and TX on Xbox One®
IMPORTANT: in order to ensure optimal performance of the TSS
HANDBRAKE on PS4™ and Xbox One®, you must update the firmware of
your racing wheel base (T-GT, T300, TS-XW Racer or TX) with the latest
version available at http://support.thrustmaster.com/.
Installation:
1. Using the detachable mini-DIN / DIN cable (11), connect the TSS HANDBRAKE directly to the
female mini-DIN port located at the back of your racing wheel’s base.
2. Connect your racing wheel to the console.
YOU ARE NOW READY TO PLAY!
General notes on PS4™ and Xbox One®:
- Never use and connect the detachable male DIN / USB cable (6) on PS4™ and Xbox One®. The
TSS HANDBRAKE must always be connected to a compatible Thrustmaster racing wheel base,
and not to the console.
- When the TSS HANDBRAKE is connected to a compatible Thrustmaster racing wheel base:
-SEQUENTIAL SHIFTER mode [+/-] works in all games, as it is combined with the racing
wheel’s UP and DOWN paddle shifters.
-HANDBRAKE mode [Progressive] works in games that support the handbrake function*.
* List of PS4™ and Xbox One® games compatible with handbrakes available at
http://support.thrustmaster.com/. In the Racing Wheels section,select TM SIM HUB or TSS
Handbrake Sparco® Mod.

11/16
TSS HANDBRAKE CONNECTION SUMMARY ACCORDING TO THE
PLATFORM USED
TSS HANDBRAKE connection
PC
(HANDBRAKE mode
and SEQUENTIAL
SHIFTER mode)
To the PC, using the detachable male DIN / USB
cable (6). Compatible with all racing wheels on the
market.
PC
(SEQUENTIAL
SHIFTER mode only)
At the back of a compatible Thrustmaster racing
wheel base, using the detachable mini-DIN / DIN
cable (11).
PS4™
(HANDBRAKE mode
and SEQUENTIAL
SHIFTER mode)
At the back of a compatible Thrustmaster racing
wheel base, using the detachable mini-DIN / DIN
cable (11).
XBOX ONE®
(HANDBRAKE mode
and SEQUENTIAL
SHIFTER mode)
At the back of a compatible Thrustmaster racing
wheel base, using the detachable mini-DIN / DIN
cable (11).
UPDATING THE TSS HANDBRAKE’S FIRMWARE
The firmware included in the TSS HANDBRAKE’s base can be updated (meaning that it can be
upgraded to a more recent version, featuring product enhancements).
To display the TSS HANDBRAKE’s firmware version and update it, if required: on a PC, go to
http://support.thrustmaster.com, select Racing wheels / TSS HANDBRAKE, then select Firmware
and follow the instructions and the download and installation procedure.

12/16
ADVANCED CALIBRATION SOFTWARE
The TSS HANDBRAKE’s calibration procedure is automatic.
An advanced calibration software application for PC is also available at
http://support.thrustmaster.com: select Racing Wheels / TSS HANDBRAKE, then Software. This
software allows you to adjust the following:
•Analog travel in HANDBRAKE mode;
•Analog travel in SEQUENTIAL SHIFTER mode.
Once the settings have been adjusted, they will immediately be saved in the TSS
HANDBRAKE’s internal memory and will therefore be effective in all of your games, whether on
PC, PS4™ or Xbox One®.
TIPS & HINTS (not included in this manual)
Various tips and hints are available from the http://support.thrustmaster.com website; select Racing
Wheels / TSS HANDBRAKE.

13/16
ECOSYSTEM
The TSS HANDBRAKE is also compatible with other accessories sold separately:
* The TM RACING CLAMP: a sturdy support bracket allowing gamers to securely mount their TSS
Handbrake and their TH8A shifter directly on a table or desk, without the need for a cockpit.
* The TM SIM HUB: a hub allowing users to simultaneously connect up to four accessories directly to the
mini-DIN connector located at the back of compatible Thrustmaster racing wheel bases.

14/16
CONSUMER WARRANTY INFORMATION
Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P.
97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this
Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period
which corresponds to the time limit to bring an action for conformity with respect to this product. In
the countries of the European Union, this corresponds to a period of two (2) years from delivery of
the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to
bring an action for conformity with respect to the Thrustmaster product according to applicable laws
of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster
product (if no such action exists in the corresponding country, then the warranty period shall be one
(1) year from the original date of purchase of the Thrustmaster product).
Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6)
months from the date of original purchase.
Should the product appear to be defective during the warranty period, immediately contact
Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product
must be returned to its place of purchase (or any other location indicated by Technical Support).
Within the context of this warranty, the consumer’s defective product shall, at Technical Support’s
option, be either replaced or returned to working order. If, during the warranty period, the
Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during
which the product is out of use shall be added to the remaining warranty period (this period runs
from the date of the consumer’s request for intervention or from the date on which the product in
question is made available for reconditioning, if the date on which the product is made available for
reconditioning is subsequent to the date of the request for intervention). If permitted under
applicable law, the full liability of Guillemot and its subsidiaries (including for consequential
damages) is limited to the return to working order or the replacement of the Thrustmaster product. If
permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a
particular purpose.
This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered
damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any
other cause unrelated to a material or manufacturing defect (including, but not limited to, combining
the Thrustmaster product with any unsuitable element, including in particular power supplies,
rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product);
(2) if the product has been used for any use other than home use, including for professional or
commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to
comply with the instructions provided by Technical Support; (4) to software, said software being
subject to a specific warranty; (5) to consumables (elements to be replaced over the product’s
lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to
accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at
public auction.
This warranty is nontransferable.
The consumer’s legal rights with respect to laws applicable to the sale of consumer goods in his or
her country are not affected by this warranty.

15/16
Additional warranty provisions
During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical
Support is the only party authorized to open and/or recondition any Thrustmaster product (with the
exception of any reconditioning procedures which Technical Support may request that the
consumer carry out, by way of written instructions – for example, due to the simplicity and the lack
of confidentiality of the reconditioning process – and by providing the consumer with the required
spare part(s), where applicable).
Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall
not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product
whose warranty period has expired.
In the United States of America and in Canada, this warranty is limited to the product’s internal
mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any
third party for any consequential or incidental damages resulting from the breach of any express or
implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty
lasts or exclusion or limitation of liability for consequential or incidental damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from State to State or Province to Province.
Liability
If permitted under applicable law, Guillemot Corporation S.A. (hereinafter “Guillemot”) and its
subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the
product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3)
inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5)
the use of the product for any use other than home use, including for professional or commercial
purposes (game rooms, training, competitions, for example). If permitted under applicable law,
Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or
manufacturing defect with respect to the product (including, but not limited to, any damages caused
directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable
element, including in particular power supplies, rechargeable batteries, chargers, or any other
elements not supplied by Guillemot for this product).
TECHNICAL SUPPORT
http://support.thrustmaster.com

16/16
DECLARATION OF CONFORMITY
CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment on and off, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
COPYRIGHT
© 2018 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of
Guillemot Corporation S.A. Sparco is a registered trademark of Sparco S.p.A. All other trademarks are
the property of their respective owners. Illustrations not binding. Contents, designs and specifications
are subject to change without notice and may vary from one country to another. Manufactured and
distributed by Guillemot Corporation S.A. under official license from Sparco S.p.A. Made in China.
ENVIRONMENTAL PROTECTION RECOMMENDATION
In the European Union: At the end of its working life, this product should not be
disposed of with standard household waste, but rather dropped off at a collection
point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for
recycling.
This is confirmed by the symbol found on the product, user manual or packaging.
Depending on their characteristics, the materials may be recycled. Through recycling
and other forms of processing Waste Electrical and Electronic Equipment, you can
make a significant contribution towards helping to protect the environment.
Please contact your local authorities for information on the collection point nearest you.
For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.
Retain this information. Colors and decorations may vary.
Plastic fasteners and adhesives should be removed from the product before it is used.
www.thrustmaster.com
*Applicable to EU and Turkey only
*
*

1/16
PC – PS4™ – Xbox One®
Manuel de l’utilisateur
CARACTÉRISTIQUES TECHNIQUES
1Levier amovible (non installé par défaut)
2Bras de fixation du levier
3Sélecteur FREIN À MAIN / SÉQUENTIEL
4Système mécanique pour basculer de
FREIN À MAIN vers SÉQUENTIEL
5 Câble et connecteur DIN femelle de la
base
6Câble détachable DIN mâle / USB.
7Clé plate 13 mm
8 Clé Allen 3 mm
9 Clé Allen 6 mm
10 2 vis CHC M8 + 2 écrous M8
11 Câble détachable mini-DIN / DIN

2/16
AVERTISSEMENT
Avant d’utiliser ce produit, lisez attentivement cette documentation et conservez-la pour pouvoir la
consulter ultérieurement.
Avertissement – Chocs électriques
* Conservez le produit dans un endroit sec et ne l’exposez ni à la poussière ni au soleil.
* Respectez les sens de branchement.
* Ne tordez pas et ne tirez pas sur les connecteurs et câbles.
* Ne renversez pas de liquide sur le produit et son connecteur.
* Ne mettez pas le produit en court-circuit.
* Ne démontez jamais le produit (hormis pour les réglages possibles notifiés dans ce manuel), ne le
jetez pas au feu et ne l’exposez pas à des températures élevées.
Avertissement – Blessures dues aux mouvements répétitifs
Jouer avec une boîte de vitesses ou un frein à main peut causer des douleurs aux muscles et aux
articulations. Afin d’éviter tout problème :
* Evitez les périodes trop longues de jeu.
* Faites une pause de 10 à 15 minutes après chaque heure de jeu.
* Si vous éprouvez fatigue ou douleur au niveau des mains, des poignets ou des bras, cessez de jouer
et reposez-vous pendant quelques heures avant de recommencer à jouer.
* Si les symptômes ou les douleurs indiqués ci-dessus persistent lorsque vous reprenez le jeu, arrêtez
de jouer et consultez votre médecin.
* Vérifiez que la base du TSS HANDBRAKE est correctement fixée, conformément aux instructions du
manuel.
Avertissement – Risque de pincement au niveau des grilles de passage de vitesses
* Laissez hors de portée des enfants.
* Lors des phases de jeu, ne placez jamais vos doigts (ou autres parties du corps) dans les grilles du
TSS HANDBRAKE.
JAMAIS

3/16
INSTALLATION DU LEVIER AMOVIBLE (1) SUR LES BRAS DE FIXATION (2)
1. Insérez le levier amovible (1) dans ses bras de fixation (2).
2. Positionnez le levier à la hauteur qui vous convient.
La hauteur totale du levier (pommeau inclus) est ajustable de 21 cm à 30 cm.
3. Fixez l'ensemble à l’aide des 2 vis CHC M8 (10), des 2 écrous M8 (10)et de la clé Allen 6 mm (9).
