Tianhoo Eos play User manual

EOS play

Bluetooth-Speaker

USER MANUAL

tianhootech.com

01.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions – All the safety and operating instructions should be read

before this product is operated.

• Keep these instructions – The safety and operating instructions should be retained

for future reference.

• Heed all warnings – All warnings on the appliance and in the operating instructions

should be adhered to.

• Follow all instructions – All operating and use instructions should be followed.

WARNING!

• WARNING –To reduce the risk of ﬁre or electric shock, do not expose this

apparatus to rain or moisture. The apparatus shall not be exposed to

dripping or splashing.• WARNING –do not cover.

• WARNING –only use attachments/accessories speciﬁed by the

manufacturer (such as the exclusive supply adapter, battery etc). the plug

is the main disconnect device and should be used as such. The

disconnect device should remain readily accessible.

• WARNING – do not listen too close to the active loudspeaker.

• WARNING – do not listen for an extended period of time at a high sound

pressure level.

• WARNING – do not attempt to remove the active loudspeaker chassis,

there are no user serviceable parts.

• DANGER – of dropping the product.

MOISTURE AND HUMIDITY

• The active loudspeaker should be located in a place free from moisture

and water.

• Do not use this apparatus near water

• Do not expose it to rain or dripping water. Do not splash water on it.

02.

INSTALLATION

• Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including ampliﬁers) that produce heat.

• Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

CONNECTION

• Connect the active loudspeaker according to the instructions in the manual.

• Connect the active loudspeaker only to the correct mains voltage as shown

on the equipment.

• Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit the

apparatus.

• Use only power cables of the type speciﬁed in the operating instructions or

as marked on the active loudspeaker.

• Unplug this apparatus during lightning storms or when unused for long

periods of time.

• Do not install in an area that impedes access to the power plug.

Disconnecting the power plug is the only way to completely remove power

to the product and the plug must be readily accessible at all times.

CLEANING

• Clean only with dry cloth.

MAINTENANCE

• Refer all servicing to qualiﬁed service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

• CAUTION: These servicing instructions are for use by qualiﬁed service

personnel only. To reduce the risk of electric shock, do not perform any

servicing unless you are qualiﬁed to do so.

03.

COMPLIANCE MARKS

Any changes or modiﬁcations not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with

any other antenna or transmitter.NOTE:

This equipment has been tested and found to comply with the limits for a Class B

digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference

in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment oﬀ and on, the user is

encouraged to

try to correct the interference by one or more of the followingmeasures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit diﬀerent from that to which the

receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

To maintain compliance with FCC’s RF Exposure guidelines, The 20cm is the

minimum

distance that has to be maintained between your body and the device.

FCC ID :2AXAX-ESOPLAY

1. EOS play CONFERENCE SPEAKER

2. POWER ADAPTER

3. MICRO USB CABLE

4. USER MANUAL AND WARRANTY CARD

04.

BOX CONTENS

3. 4.

05.

GENERAL DESCRIPTION

1.UPPER COVER

3.USBC

4.LIGHTNING

5.KEY PAD

6.INDICATORS LIGHT

7.MICROPHONE

8.LOUDSPEAKER

2.MICRO USB

9.MICRO USB PORT

1. Short Press : Play / Aanswer.

2. Short Press : Volume Down.

Hold Down 3 Seconts : Previous Song.

3 Short Press : Microphone oﬀ.

4. Short Press : Volume Up.

Hold Down 3 Seconts : Next Song.

5. Short Press : Hang Up.

Hold Down 3 Seconts : Disconnect and re-pair

06.

KEYPAD OVERVIEW

1 2 3 4 5

07.

IMPORTANT:

Before proceeding to point 1 below, check the included power

cord and plug and your EOSplay Bluetooth speaker are compatible

with your mains electricity supply and associated wall socket.

1. Insert the micro usb cable into the micro usb port on the back of

the speaker.

2. Insert the micro usb cable into the usb port on the POWER

ADAPTER

3. Connect the POWER ADAPTER to the wall socket.

PLUGGING IN THE EOS play

1 2

08.

BLUE LIGHT ON : Bluetooth connection ; Microphone on.

BLUE - GREEN FLASHING : Bluetooth is connecting.GREEN LIGHT FLASHING : Incoming call.GREEN LIGHT ON : Calling.RED LIGHT ON : Microphone oﬀ.RED LIGHT FLASHING : Pairing.

Follow these steps to pair the EOSplay wirelessly to your

bluetooth device.

1. Ensure that the EOSplay is powered on.

2. The RED indicator starts to ﬂash.

3. Enable bluetooth functionality on your device. (smartphone,

tablet, computer).

4. On your device, select the EOS play from the bluetooth list and

accept pairing.

5. The bluetooth indicator on the speaker turns to a steady blue

and the units are now connected.

INDICATORS LIGHT

CONNECTING VIA BLUETOOTH PAIRING

09.

If a bluetooth connected device is moved outside the range

of the stanmore bluetooth (approximately 10 metres without

obstacles), it is disconnected. The device is automatically

connected again when it is moved back within range.

Every time the speaker starts up, it will tries to connect to the

last connected bluetooth device.

BLUETOOTH AUTO CONNECTION

Note: Only the original 5V 2A power adapter can be used.

Do not use non-original power adapters.

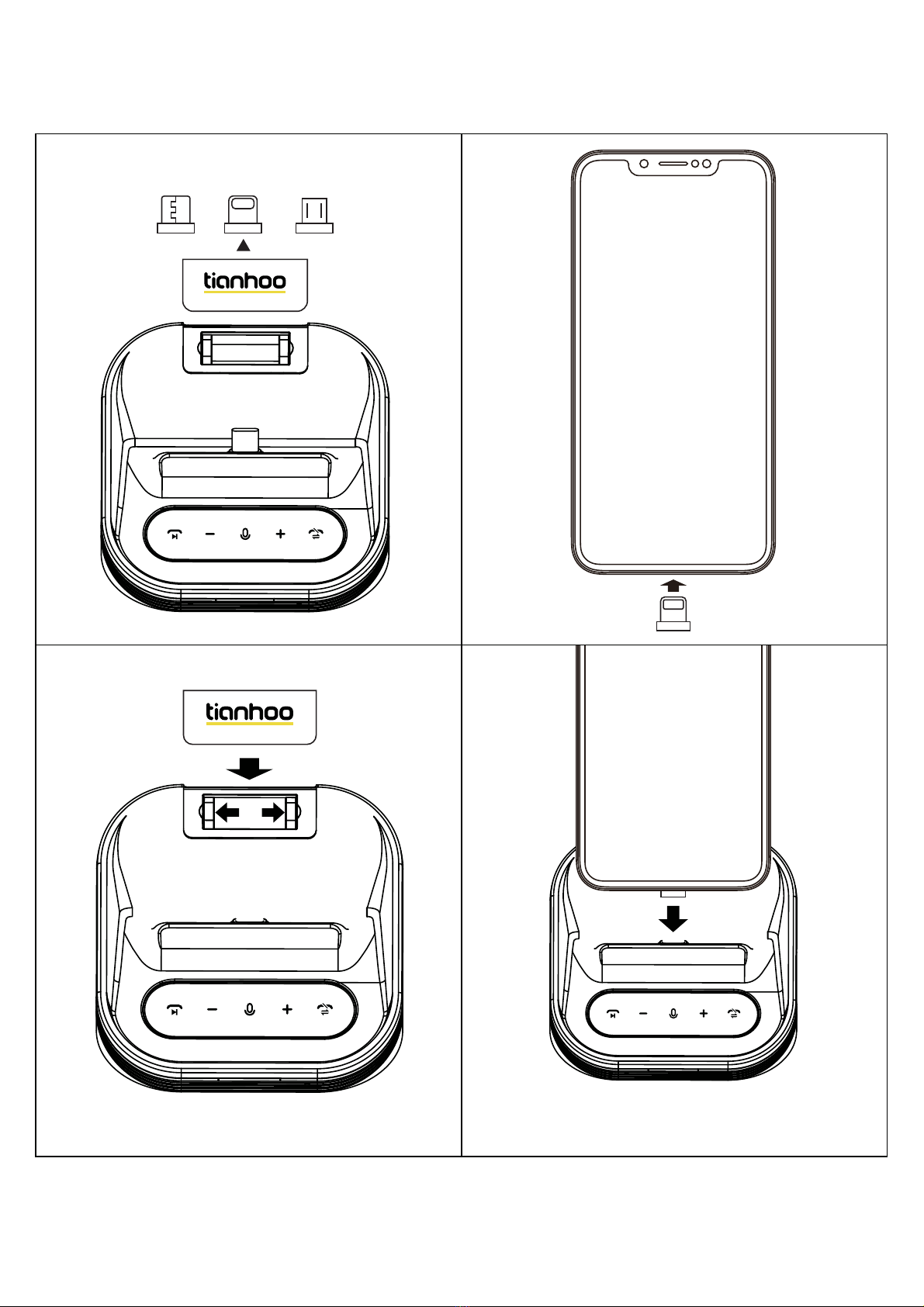

1. Open the upper cover and take out the magnetic plug. Choose

the magnetic plug that matches your smartphone.

2. Insert the magnetic plug into the port of your smartphone.

3. Put the remaining magnetic plug back into the slot and close the

top cover.

4. Put your smartphone into the magnetic port.

CHARGE YOUR SMARTPHONE.

1. 2.

3. 4.

10.

11.

1. Only compatible with smartphones with I/O ports in the

bottom middle.

2. Only compatible with mobile phones whose width does not

exceed 78.1mm (3.07inch).

3. Compatible device :

 All iphone after iphone5.

 Samsung Galaxy S series.

 Samsung Galaxy Note series.

 Google Pixel seris.

...

 And all I/O ports are in the middle of the bottom, and the

width does not exceed 87.1mm(3.07inch) for mobile

phones.

4. Suitable for most common thickness Case.

COMPATIBILITY

12.

SOUND SPECIFICATION

• DIGITAL CLASS D AMPLIFIER: 1X3.9W

• MAX POWER OUTPUT: 5W RMS

• 1.6” lOUDSPEAKER: 1X

• 5W Output

• FREQUENCY RESPONSE: 45 - 16 000Hz +-3db

CONNECTIVITY:

• BLUETOOTH: STANDARD V5.0 + SBC CODEC

TECHNICAL INFORMATION

• MAINS INPUT VOLTAGE: 100-240V~ /200W • NOMINAL

RATING: 100-240V~

• ABSOLUTE MIN/MAX: 100-240V~

• MAINS FREQUENCY: 50-60Hz

• POWER ADAPTER OUTPUT VOLTAGE: 5V 2000mA

• MAX PEAK POWER CONSUMPTION: 66W

• WEIGHT: 202g

• SIZE: 120 X 90 X 68mm

TECHNICAL INFORMATION

13.

TROUBLE SHOOTING

PROBLEM CAUSE ACTION

BLUETOOTH DOES

NOT TURN ON.

The speaker is not

connected to AC

mains.

Ensure that the

EOS play is

plugged into a

working AC wall

socke

THERE IS NO

SOUND

THE SOUND IS

DISTORTED

Sound source not

connected via

Bluetooth.

Volume is set too

low on either the

sound source.

Volume is set too

high on the sound

source.

The sound le

(mp3) is of poor

quality.

Slightly increase

the volume on

your sound

source.

Turn down the

playback volume

on the sound

source.

Try another sound

le (mp3) or music

player.

Connect the

sound source to

the speaker. see

08 or 09.

14.

TROUBLE SHOOTING

PROBLEM CAUSE ACTION

CANNOT

CONNECT OR PAIR

WITH A

BLUETOOTH

DEVICE

The two Bluetooth

devices are too far

apart.

Bluetooth is not

enabled on your

device.

The Bluetooth auto

Connection timed

out.

Ensure that

Bluetooth is

enabled on your

device.

the EOS play auto

searches for

devices for 3

minutes.

If it times out, you

need to manually

connect to the

device.

Move the devices

closer so that they

are within10

metres, and

unobstructed by

obstacles such as

walls or doors.

15.

Move the devices closer

so that they are within10

metres, and unobstruct-

ed by obstacles such as

walls or doors.

TROUBLE SHOOTING

PROBLEM CAUSE ACTION

BLUETOOTH

CONNECTION

DROPS OUT

The two

Bluetooth devices

are too far apart

or the connection

is aected due to

obstacles.

There is a strong

electric eld

surrounding the

EOS play

Items such as microwave

ovens, wireless network

adapters, uorescent

lights and gas cookers

use the

same frequency range as

the Bluetooth device. This

may lead to electrical

disturbances.

ERRATIC

PERFORMANCE

Interference from

another electronic

device.

Move the EOS play to

another spot.

Turn o or move the

interfering electronic

device.

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. 2AXAX-ESOPLAY
