Tigerstop Amp2c Use and care manual

2008-E2 AMP2C

Amplifier Replacement

Versions 3.0 to 4.7

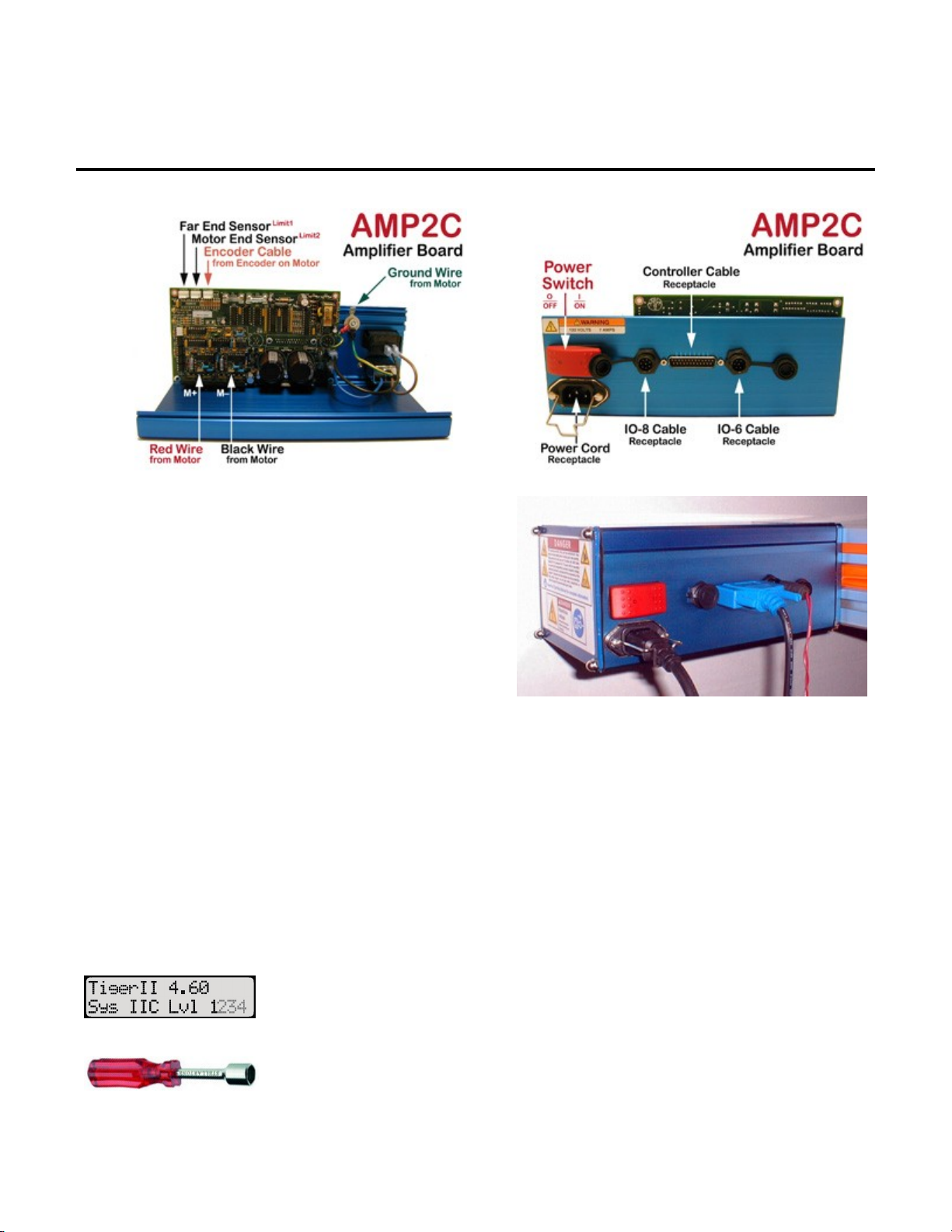

Fig. 1

Fig. 2

Description and Use

The amplifier (Figs. 1, 2), located inside the motor

box (Fig. 3), is the electronic device the drives all

TigerStop machines.

The procedure for removal and replacement of

the amplifier is simple to understand, easy to do.

The motor box is disassembled, the half that the

amplifier is mounted to is removed and replaced,

and the box is reassembled. As easy as that!

Fig. 3

Serial Number Information

AMP2C starts with TigerStop serial number 982567.

Before the use of the internal line filter, an external line filter was sold with most machines.

AMP2C with internal line filter starts with TigerStop serial number 0611226.

AMP2C with internal line filter starts with TigerFence and TigerCrossCut serial number

0611027.

Your TigerStop serial number is stamped into the metal of the fence beam on the forward face

at the far end. You can also see the serial number on TigerStops version 3.5 or higher by

accessing the service menu.

Software Version and Level

…Your TigerStop's software version and level are displayed at startup.

Tools Required

…3/8" nut driver or socket wrench to remove and replace acorn nuts.

Amplifier 2C Replacement 3.0 ~ 4.7

Replacement Instructions

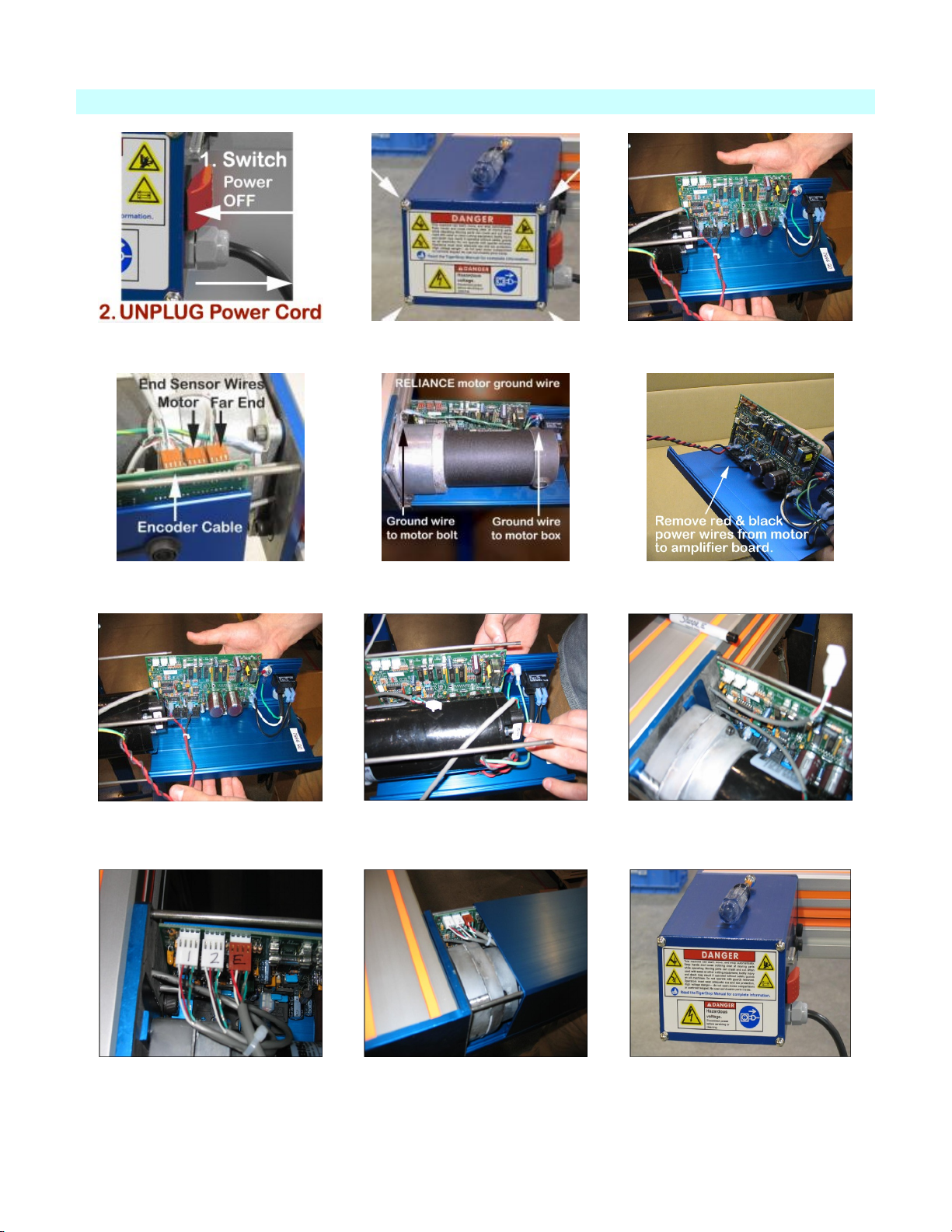

Fig. 4 - Switch power OFF, and then

UNPLUG the machine.

Fig. 5 - Using a 3/8" nut driver or socket

to loosen and remove the 4 acorn nuts

securing the motor box end cap.

Fig. 6 - Remove the motor box cover,

and then slide out the amplifier, so you

can detach the cable connections.

Fig. 7 - Disconnect the encoder cable

and end sensor wires from the

amplifier.

Fig. 8 - Disconnect the motor ground

wire from the amplifier.

Fig. 9 - Remove the amplifier and

disconnect the red and black power

cables. Discard the old amplifier.

Fig. 10 - Slide the replacement

amplifier onto the stud bolts. Connect

the red and black wires from the motor

to the amp: RED to M+, BLACK to M–.

Fig. 11 - Slide the amplifier fully onto

the stud bolts. Connect the GREEN

ground wire from the motor to the

amplifier.

Fig. 12 - Connect the far end sensor

wire (the TOP wire) to the contact

marked Limit1.

Fig. 13 - Connect the motor end sensor

wire (the BOTTOM wire) to the contact

marked Limit2.

Fig. 14 - Connect the encoder wire to

the contact marked Encoder. Use a

snap tie to bind all three wires. Slide

the cover back on.

Fig. 15 - Fasten the motor box end cap

over the stud bolts, thread the four

acorn nuts on, and tighten them down.

Amplifier Replacement

Run Home routine and Auto Test

1. When everything is reassembled, plug the power cord back in.

2. Power up TigerStop, and push twice to home the machine.

3. Press to access the Calib* Motion menu.

4. Enter your password and press .

5. Press repeatedly until you see , enter your password again,

and then .

6. Make sure NOTHING is in the path of the stop! Press .

7. TigerStop immediately starts running the auto-test, coursing back and forth between the

close and far positions programmed in hot keys 1 to 10.

8. Press to stop running auto-test.

RGA Instructions

Repack the damaged amplifier board inside the

pink anti-static bag and return it for a possible core

credit, following the instructions on the sticker.

Place the RGA (Returned Goods Authorization)

sticker on the outside of the return package.

Metal contamination of this part voids the core

credit! You must return amplifier boards,

controllers, or any other electronic parts in the anti-

static bag in which the replacements were shipped,

using only the original packing foam. NO CREDIT

will be given for any electronic parts that are not

returned in this bag!

TigerStop LLC, Assembly Plant, 12909 NE 95th St.

Vancouver, WA 98682 USA

Customer Service 360.448.6102 —Fax 360.260.0755

Web www.tigerstop.com
