Times Square V200 User manual

V200 Projector
User Manual

SAFETY INSTRUCTIONS
CAUTION
Be careful with your operations.With a dangerous voltage you can suffer
a dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person. The device shall only be used
with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat
radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
1
IMPORTANT
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.

Unpacking
Thank you for choosing our PROFILE 200 RGBW. For your own safety, please read this manual
before installing the device. This manual covers the important information on installation and
applications. Please install and operate the fixture with following instructions. Meanwhile, please
keep this manual well for future needs.
The PROFILE 200 RGBW is made of a new type of high temperature strength of PVC with nice
outlook. The fixture is designed and manufactured strictly following CE standards, complying with
international standard DMX512 protocol. It's available independently controlled and linkable with
each other for operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
The PROFILE 200 RGBW adopts 1PCS 200W COB LED (available for red, blue, green, white)

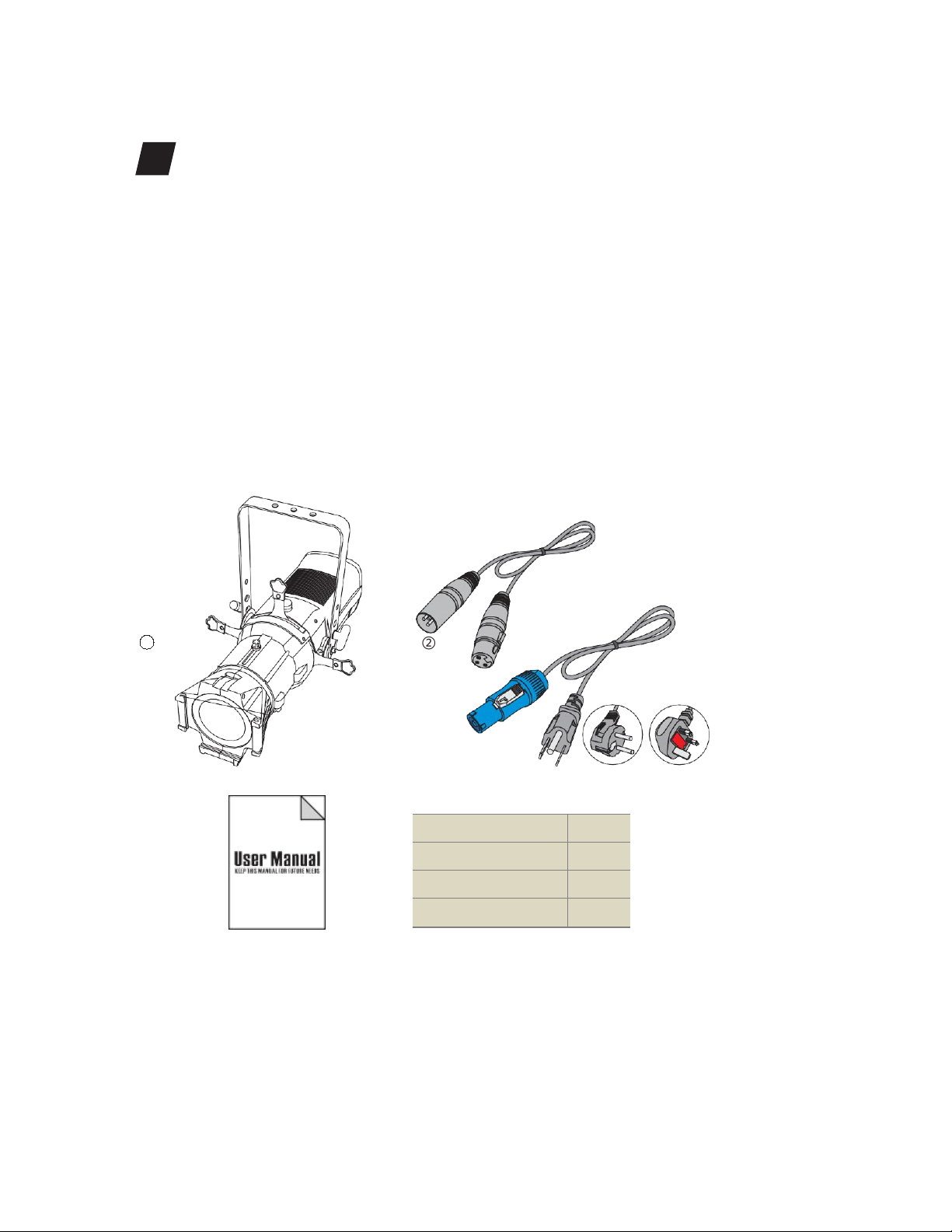

which features high brightness and stability. Please carefully unpack it when you receive the
fixture and check whether it is damaged during the transportation. And please check whether the
following items are included inside the box:
1②
④
①PROFILE 200 RGBW
1PC
② Signal Cable
1PC
③Power Cable
1PC
④User Manual
1PC
2
③
③

FEATURES & SPECIFICATIONS
• 1*200W COB LED (available for Red, Green, Blue, White)
• 50,000 hours life span and low power consumption
• Optimized high definition optical system for improved photometric performance and
field uniformity
• Projector-quality, high contrast aspheric lens
• Glass reflector that removes greater than 90% infrared radiation (heat) and reflects
greater than 95% of visible light
• Lens tube interchangeable with filed angles available for 19°/26°/36°/50°
• Housing made by high intension fireproof black ABS
• 4 Metal spot cutting slots
• 0-100% Smooth and precise linear dimmer
• 25T/sec high speed shutter/strobe effect with variable speed
• 4/8 DMX channels USITT DMX-512
• DMX512, master-slave, and sound control or auto operation
• 4-Button LCD display
• POWRECON connector IN/OUT
• 3-Pin XLR connectors IN/OUT (5-Pin option)
• Low noise fan integrated with copper liquid cooling system
• -30~40°C Max ambient temperature
• IP20 protection rating
• Max. Power: 200W
• Dimensions: 640(D)*186(W)*394(H)mm
• Packing Size: 300(D)*730(W)*310(H)mm
• Net Weight: 7.5kg
• Gross Weight: 9.5kg
3
394
186
640
175

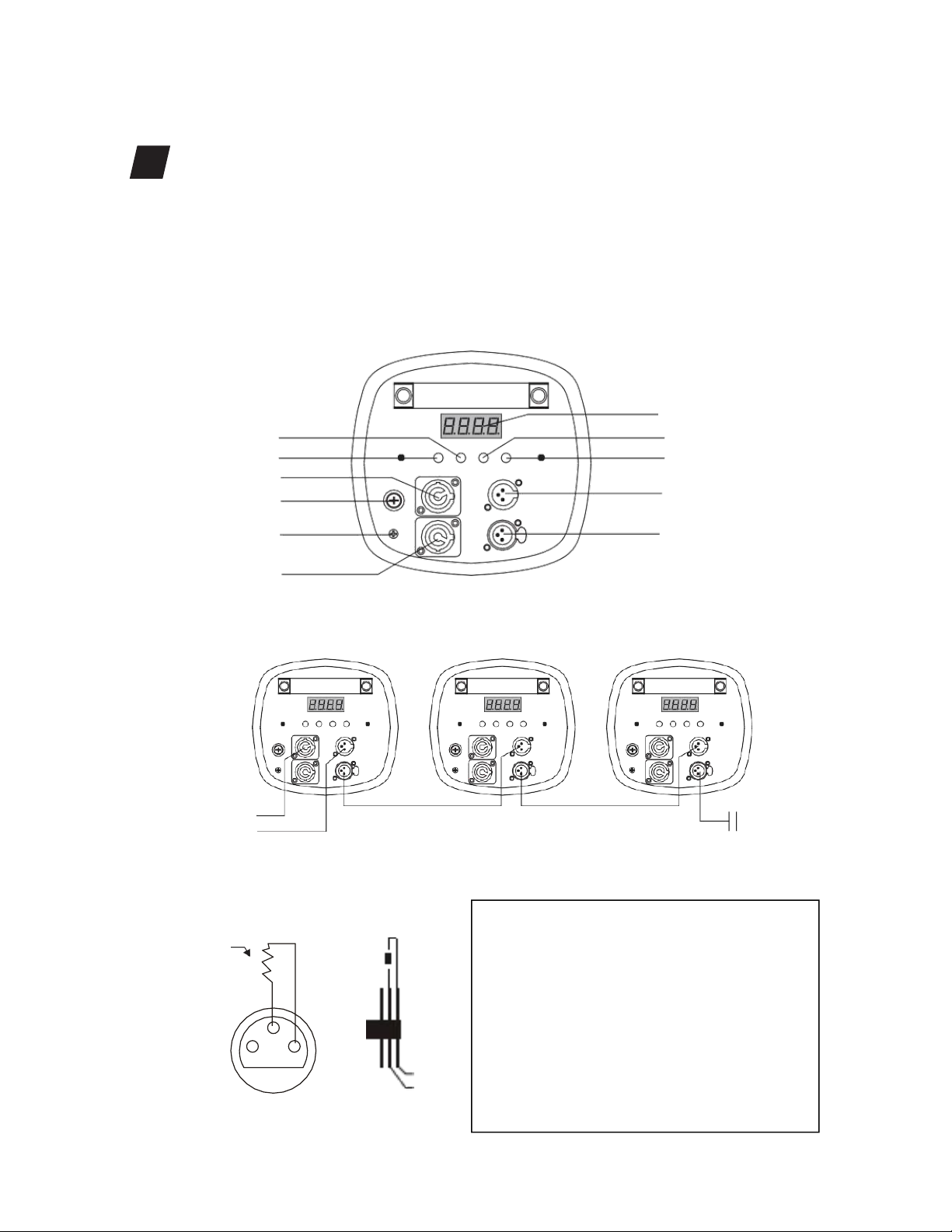

DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator
4
LCD DISPLAY
DOWN
DMX IN
ENTER
DMX OUT
UP
MENU
POWER IN
FUSE
GROUND
POWER OUT
POWER IN
DMX IN
120Ω
Pin2
Pin3
For installations where the DMX cable has to run a
long distance or is in an electrically noisy
environment, such as in a discotheque, it is
recommended to use a DMX terminator. This helps
in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ωresistor
connected between pins 2 and 3,which is then
plugged into the output XLR socket of the last
fixture in the chain. Please see illustrations below.

MENU OPERATIONS
Menu
description
Sub menu
description
Display
Keys operation
Standard
channel
model(8
channel)
DMX(8CH)
Addr:001
UP/DOWN change the address code
Simple channel
model
(4channel)
DMX(4CH)
Addr:001
UP/DOWN change the address code
Static mode
Dimmer:
Color1(red)
Static >
R: 000
UP/DOWN : dimmer
ENTER : switch sub menu
Dimmer:
Color2(Green)
Static >
G: 000
UP/DOWN :dimmer
ENTER :switch sub menu
Dimmer:
Color3(blue)
Static >
B: 000
UP/DOWN :dimmer
ENTER :switch sub menu
Dimmer:
Color4(White)
Static >
W: 000
UP/DOWN :dimmer
ENTER :switch sub menu
Strobe
Static >
Strob: 00
UP/DOWN :strobe
ENTER :switch sub menu
Temperature
control
Display the
current
temperature
Temp >
Curr :0
ENTER :switch sub menu
Setting the
temperature
protection
Temp >
Top: 080
UP/DOWN :temperature value
ENTER :switch sub menu
RESET TO
DEFAULT
Reset
After press ENTER, prompted for a password, as
follows:
Reset
Pwd:
Press the UP/DOWN key to enter the password,
input a password will display a "*". As follows:
Reset
Pwd:****
Press ENTER to confirm password. Password
correct will reset to default. Otherwise will remove
all the "*", in order to enter the password again.

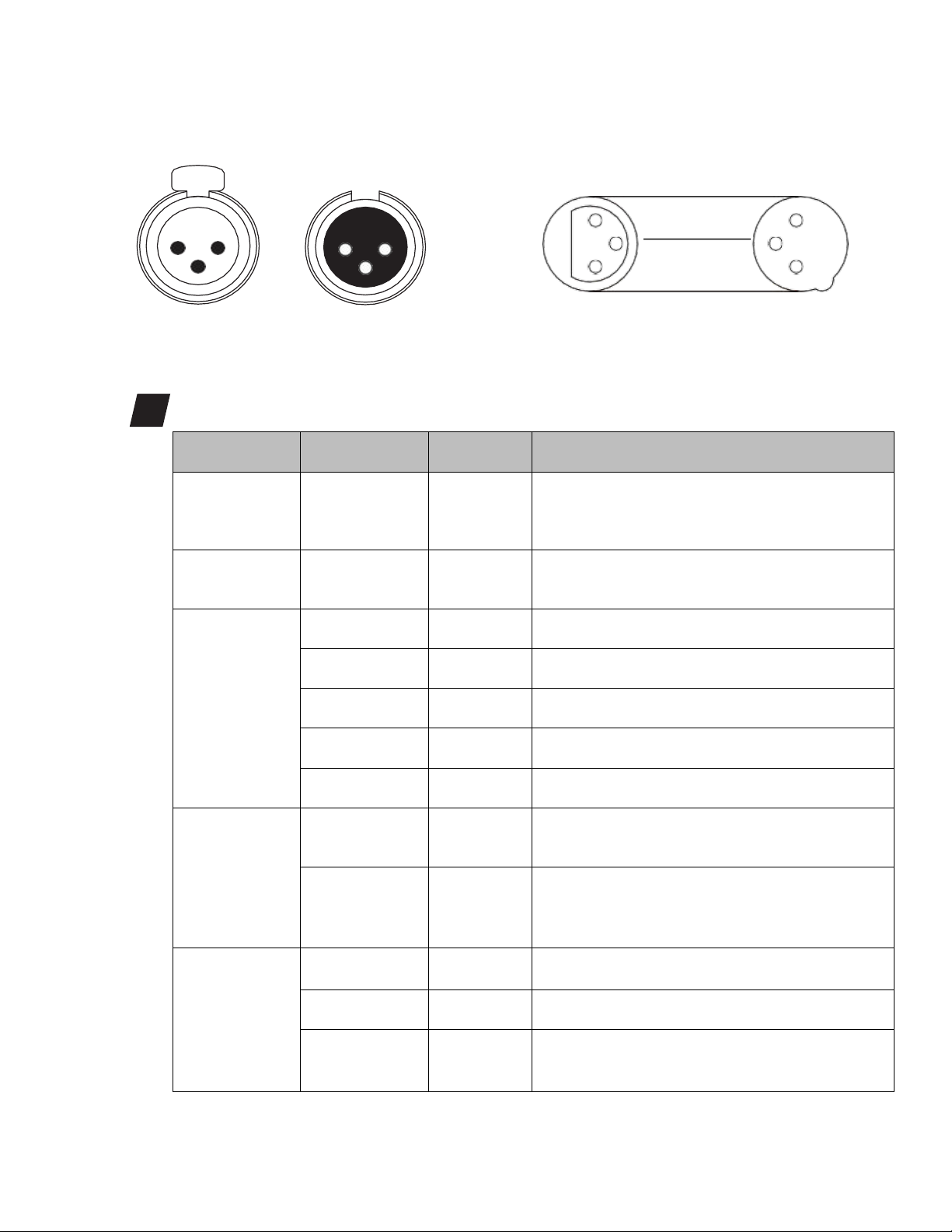

DMX Output
3-Pin XLR Socket
DMX Input
3-Pin XLR Socket
1:Ground
2:Data(-)
3:Data(+)
COMMON
DMX+
DMX-
DMX 512 OUT
3-PIN XRL
DMX 512 IN
3-PIN XRL
5

DMX CHANNELS
8 CH Mode
Channel
Function
Value
Description
1
Dimmer
0-255
Dimmer
2
Color wheel
0-255
color1 (red)
3
0-255
color2 (green)
4
0-255
color3 (blue)
5
0-255
Color4 (white)
6
Temperature
0-30
no effect
31-200
multi color change
201-205
color temperature1(3200K)
……
color temperature 2~10(each 5 data is a color
temperature level)
250-255
color temperature11(10000K)
7
Strobe
0-10
no strobe
11-255
speed of strobe (255 is the fastest)
8
Dimmer
speed/
program
0-20
speed of dimmer 4 (the slowest and softest)
21-40
speed of dimmer 3
41-60
speed of dimmer 2
61-80
speed of dimmer 1
81-99
speed of dimmer off (fastest and no any delay)
100-109
inner program1
……
each 10 data is a program
190-199
inner program10
200-240
change color by sound control
241-255
strobe by sound control
4 CH Mode
Channel
Function
Value
Description
1
Color wheel
0-255
color1(red)
2
0-255
color2(green)
3
0-255
color3(blue)
4
0-255
color4(white)
6

OPERATION INSTRUCTIONS
·The PROFILE 200 RGBW is an LED wash light for on-site decoration purpose.
·Don't turn on the fixture if it's been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
·This light should be keep away from strong shaking during any transportation or movement.
·Don't pull up the light by only the head, or it might cause damages to the mechanical parts.
·Don't expose the fixture in overheat, moisture or environment with too much dust when installing
it. And don't lay any power cables on the floor. Or it might cause electronic shock to the people.
·Make sure the installation place is in good safety condition before installing the fixture.
·Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
·Make sure the lens are in good condition. It's recommended to replace the units if there are any
damages or severe scratch.
·Make sure the fixture is operated by qualified personnel who knows the fixture before using.
·Keep the original packages if any second shipment is needed.
·Don't try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
·It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
INSTALLATIONS
For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas
were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device's weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
7
8

Please ensure that the led profile spotlight is hung using the appropriate "C" clamp or half
cheeseboro. A safety chain or cable should also be used as a secondary point of holding the
fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable.
There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded
through and then hung from the secondary point. Make sure the Gel frame (Gel holder) is clipped
into position correctly and cannot come loose.
If you are not qualified or have any doubts about hanging the led profile spotlight then do NOT
hang it.
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.
A secondary safety point is any point that will adequately hold the led profile spotlight if the "C"
clamp or half cheesboro fails.
Then the safety cable would be the backup and stop the fixture from falling to the ground. So do
NOT fix the safety cable to the same place that the "C"clamp is attached
Safety Clamp
Safety Cable
Floor Projection

Cleaning and maintenance
Now ignoring maintenance and cleaning is very good way of creating problems "down the
road" and many companies and installations do just that. However the net result is, no
matter what the fixture, premature failure!
Changing the oil in a car, most people do on a regular basis.
So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures
to last.
So what is the maintenance for the fixture?
Clean the fans!
•Turn off the led profile spotlight.
•Using a small vacuum cleaner, suck the dust and “fur balls” out.
•Do not use a can of co². That will just blast the dust and dirt everywhere!
•The fans keep the LED cool and keep the electronics cool too.
•Without the fan working efficiently and dust free, the fixtures will fail and that will be
a lot more costly than having someone vacuum the fixtures on a regular basis.
•How often should the fans be cleaned? It depends on where the fixtures are; in a
very dusty atmosphere once a week. So check the fans on a regular basis, they
may not need cleaned every week but a quick “visual inspection” should be done.
•The front lens should be cleaned so the light output is maintained.
•The shutter blades sometimes require cleaning as well.
•With the led profile spotlight turned off, use only a moist lint-free cloth. Never use
alcohol or solvents to clean the fixture.
•Never spray anything onto the fixture at the front or in any place on the fixture.
10
