5200 ANSI LUMENS zTRUE XGA zDIGITAL MULTIMEDIA PROJECTOR
Issued 3/03 © 2003 SANYO

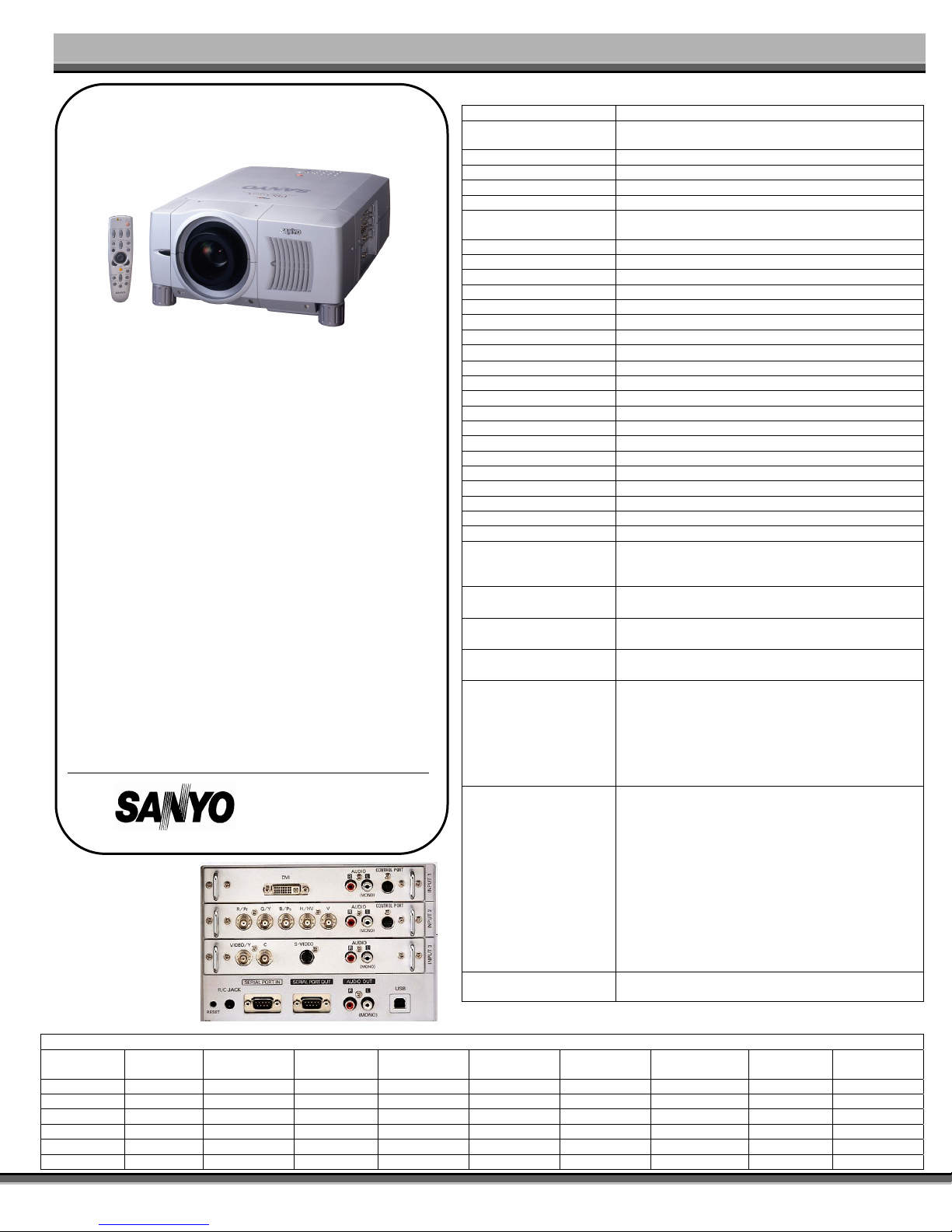

PLC-XF31N/NL
XGA Digital Multimedia Projector
INCREDIBLY BRIGHT 5200 ANSI LUMENS
A pair of high-output 200 watt UHP lamps delivers an incredible
5200 ANSI lumens of brightness.
OUTSTANDING CONTRAST RATIO – 800:1
Through its new high-contrast optical system the PLC-XF31N/NL
is able to achieve an outstanding contrast ratio of 800:1. By
employing a 10-bit digital gamma correction circuit , excessive
whites in bright images and overwhelming blacks in dark images
are effectively suppressed.
SANYO NEW PROGRESSIVE IC
A newly developed progressive integrated circuit provides highly
improved playback of moving images. 1080 interlaced signals
are converted into progressive signals while 2-3 pulldown
doubles the resolution of images from DVD playback.
NETWORK CONTROL/ADMINISTRATION
An optional network board allows for simple control and
management of the projector via a CAT5 network connection.
The network board, which can memorize and store up to 55 PC
modes, can also be used in parallel with RS-232 controllers.
REAL COLOR MANAGER
The Real Color Manager System provides white balance
adjustment and gamma correction from a PC using the included
image adjustment software by simply comparing the on-screen
image to a printed color chart.
NEW ONE-TOUCH LENS REPLACEMENT
Attaching the included One-Touch lens mount adapters to your
projector and lenses makes installation and removal of our
optional lenses quick and easy.
PRESENTATION TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax [phone]
www.sanyolcd.com
PLC-XF31N/NL
Multi-Versatile
Interface
(POA-MD11DVI)
(POA-MD16VD1)
(POA-MD03VD2A)
Specifications
Resolution XGA (1024 x 768)
Brightness 5200 ANSI Lumens (two-lamp mode)
2600 ANSI Lumens (1-lamp mode)
Uniformity 90% (corner to corner)
LCD Panel System 1.8” TFT polysilicon type x 3
Number of Pixels 2,359,296 (786,432 x 3)
Contrast Ratio 800:1 (full on/off)
Projection Lens Standard Zoom 2 - F2.0-2.3 (PLC-XF31N only)
(Model PLC-XF31NL shipped without lens)
Image Size (diagonal) 40”-600”
Aspect Ratio 4:3
Throw Distance 4.9’ – 107.2’’
Zoom/Focus Powered
Throw Ratio 2.0 – 2.6:1
Zoom Ratio 1:1.3
Power Lens Shift Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Digital Keystone Correction + 40 / - 20°
Projection Lamp 200W UHP x 2
Scanning Frequency H Sync: 15-120kHz, V Sync: 50-120Hz
Dot Clock 230MHz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, MAC
Voltage 100-240V AC; 50/60 Hz
BTU Rating 1877
dB Rating 45.0
Power Consumption 550W
Dimensions (WxHxD) 17.3”x9.1”x23.9” (PLC-XF31N) / 23.8” (PLC-XF31NL)
Net Weight PLC-XF31N – 50.5 lbs. / PLC-XF31NL – 46.3 lbs. (w/o lens)
User Maintenance Clean air filters, replace lamp assembly
Detachable Input Panels
POA-MD11DVI
Digital Visual Interface (DVI-I) •Left & Right Audio (RCA x 2)
•Control (Min DIN 8-pin)
POA-MD16VD1 RGB & Component (BNC x 5) •Left & Right Audio
(RCA x 2) •Control (Min DIN 8-pin)
POA-MD03VD2A Composite & Y/C (BNC x 2) •S-Video
•Left & Right Audio (RCA x 2)
Fixed Input/Output Panel Serial in & Serial out (D-Sub 9 x 2) •Audio out
(RCA x 2) •USB •Wired RC jack (Stereo mini)
Included Accessories Wired/Wireless I/R Remote Control w/Mouse Pad and Laser
Pointer •AC power cord •VGA and DVI Cable •Wired remote
cable •PS/2, Serial, MAC Mouse Control Cables •MAC/VGA
and DVI/VGA Adapter •Lens cover (XF31N only) •Lens Mount
Adapters (POA-LNA01 & POA-LNA02)•Dust cover •Light
Block Sheets •Owner’s manual •Real Color Manager CD-
ROM
Optional Accessories POA-MD03VD2A - Y/C & S-Video Board
POA-MD04VGA - D-Sub15 VGA Board
POA-MD08HD - HD-SDI Input Panel
POA-MD09VD3 - Faroudja™ Input Panel
POA-MD11DVI - DVI Board
POA-MD13NET - Network Board
POA-MD16VD1 - 5-BNC RGBHV Board
POA-LNA02 - Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
6102924848 - Replacement Lamp
PLC-CSE16 - ATA Hard Shipping Case
POA-LLB02 -Lamp and Ballast Kit for100W UHP lamps
Warranty Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations.
Lens Specifications
Type Short Fixed Short Zoom On-Axis
Short Fixed Standard Zoom 1 Standard Zoom 2 Standard Zoom 3 Semi-Long Zoom Long Fixed Long Zoom
Part No. LNS-W01 LNS-W02 LNS-W03 LNS-S01 LNS-S02 LNS-S03 LNS-M01 LNS-T01 LNS-T02
Zoom No Yes (power) No Yes (power) Yes (power) Yes (power) Yes (power) NO Yes (power)
Throw Ratio 1.2:1 1.35 – 1.8:1 0.8:1 1.8 – 2.9:1 2.0 – 2.6:1 2.6 – 3.5:1 3.5 – 4.6:1 7.0:1 4.6 – 6.0:1
F Stop 2.5 2.5 – 2.9 2.6 2.6 – 3.5 2.0 – 2.3 1.7 – 2.6 2.0 – 2.6 2.0 2.0 – 2.9
Lens Shift 8:1 – 1:8 8:1- 1:8 1:1 10:0 – 0:10 10:0 – 0:10 8:1- 1:8 8:1- 1:8 8:1- 1:8 8:1- 1:8
Weight 12.8 lbs. 5.5 lbs. 6.6 lbs 3.7 lbs. 4.2 lbs. 8.2 lbs. 4.2 lbs. 8.4 lbs. 6.8 lbs.
