Tipronet Blue+ 10 Installation guide

BLUE+ 10
Versatile USB Graphic Display
TECHNICAL OVERVIEW
Description and Application
BLUEplus10_TO_05.doc
Version 05
May 17, 2011

TABLE OF CONTENTS II
BLUEplus10 – TECHNICAL OVERVIEW
TABLE OF CONTENTS
A. GENERAL INFORMATION ................................................................................... A-1
A.1. Highlights ......................................................................................................... A-1
A.2. Technical Characteristics................................................................................... A-1
B. INTEGRAL PARTS AND FUNCTIONALITY........................................................ B-1
B.1. Video Controller Board ..................................................................................... B-1
B.2. Transparent Protective Cover............................................................................. B-1
B.3. Mounting/Integration......................................................................................... B-2
B.4. Installation and Operation.................................................................................. B-2
B.5. Accessory.......................................................................................................... B-3
B.6. Kensington Lock ............................................................................................... B-3
C. ORDERING CODES................................................................................................ C-1
D. REFERENCES......................................................................................................... D-1
E. NOTICES ..................................................................................................................E-1
E.1. Disclaimer ..........................................................................................................E-1
E.2. Copyright Notice ................................................................................................E-1

A. GENERAL INFORMATION A-1
BLUEplus10 – TECHNICAL OVERVIEW
A. GENERAL INFORMATION
The BLUE+ 10 (originally referred to as CashTray) was originally designed as a
combination of a display and a tray for change (banknotes, receipts, coins, etc.) at a point
of sale, but it can also be used (without the tray) as a generic display in various
applications. Electrically it represents a USB graphic display device, operating as a
secondary computer display, either in “Extended Desktop” (as an extension of the primary
monitor). Various operating systems are supported as well as a number of standard video
formats.
A.1. Highlights
FEATURES
♦10.2” wide-screen TFT LCD protected by glass
♦replaceable antiglare protective cover
♦retractable leg enables two different inclinations (5°and 30°)
♦provision for VESA 75 mounting
♦high-speed USB video device
♦secondary display operating in “Extended Desktop” mode
♦more than 100 displays can be connected to a single computer
♦DVD quality video playback
APPLICATIONS
♦CashTray with integrated graphic display
♦customer display
♦information/advertisement display
A.2. Technical Characteristics
ELECTRICAL
♦power supply: 12V ±5% (from an external AC/DC adapter, e.g. TM-VPF)
♦current consumption (12V): 700mA TYP (1000mA MAX )
♦current consumption (USB): 1 mA TYP (10 mA MAX )
♦power connector: 2.1 mm DC power socket/jack
♦interface connector: USB B receptacle

A. GENERAL INFORMATION A-2
BLUEplus10 – TECHNICAL OVERVIEW
MECHANICAL
♦casing: plastic ABS
♦colour (top part): aluminium – C5
♦colour (other parts): black – C15
♦net dimensions: 299 x 194 x 56 (W/D/H) [mm]
♦weight: 1550 g (approximately)
♦protection (sealing) grade: IP 40 (according to EN 60529)

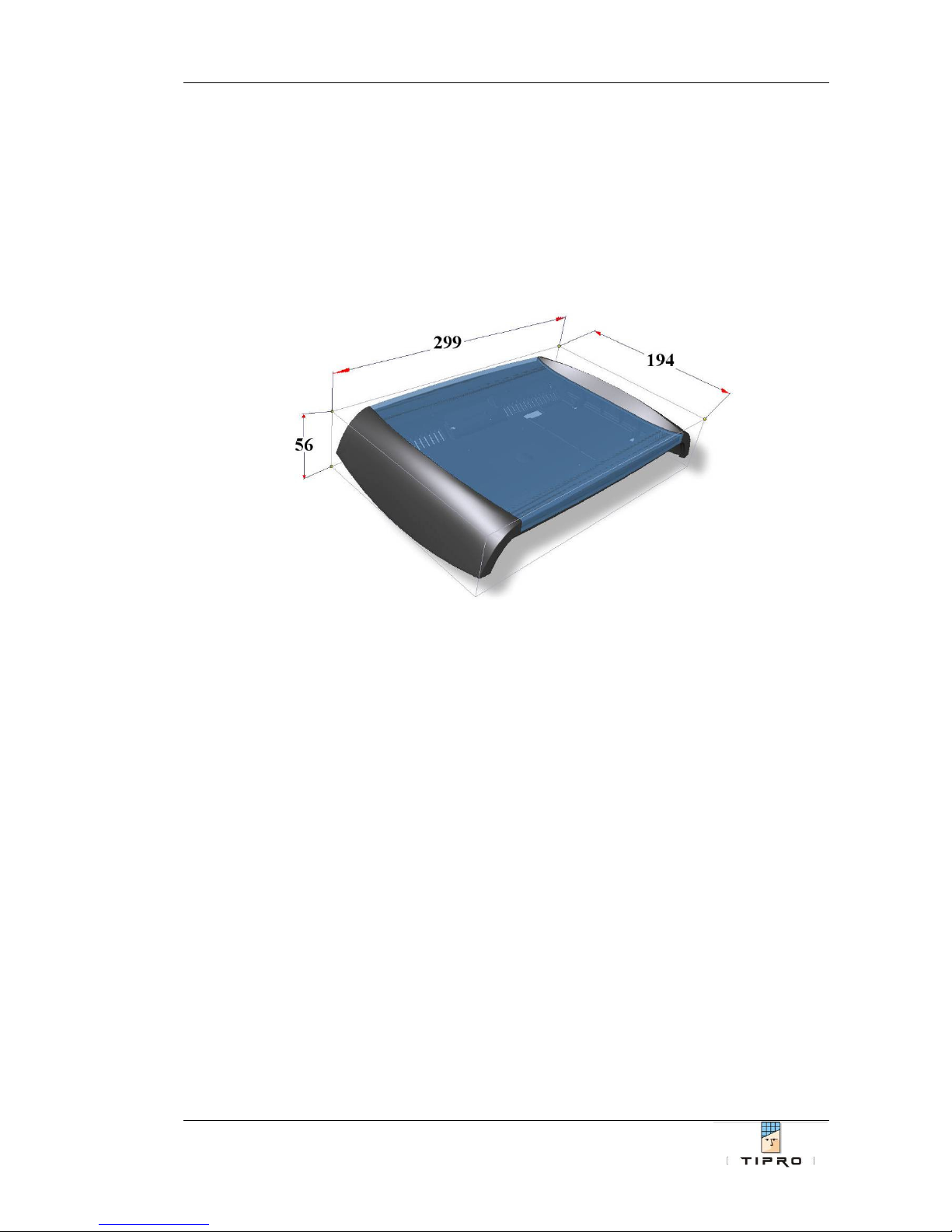

Figure A.1 Physical dimensions
ENVIRONMENTAL
♦operating ambient temperature range: 0°C to +40°C
♦storage ambient temperature range: -10°C to +50°C
♦relative humidity range: 20% to 80% (non-condensing)
TFT LCD
♦size: 10.2” diagonal
♦aspect ratio: 17:10
♦native resolution: 1024 x 600 pixels
♦luminance (brightness): ≥200 cd/m
2
(typical)
♦contrast ratio: ≥300 : 1 (typical)
♦backlight type: LED
♦backlight lifetime: 20,000 hours (minimal)

B. INTEGRAL PARTS AND FUNCTIONALITY B-1
BLUEplus10 – TECHNICAL OVERVIEW
B. INTEGRAL PARTS AND FUNCTIONALITY
B.1. Video Controller Board
Integrated video controller board translates USB video input signals into the respective
LVDS signals for the TFT LCD. It requires installation of specific drivers in order to
operate properly as a secondary display in “Extended Desktop” mode. Various operating
systems are supported as well as a number of standard video formats (e.g. WMV, QT, …).
SUPPORTED OPERATING SYSTEMS
♦Windows XP (32-bit)
♦Windows 7 (32-bit and 64-bit)
♦Windows Server 2003 (32-bit)
B.2. Transparent Protective Cover
The protective cover acts as a tray for banknotes, coins, receipts, … in the CashTray
applications. It is made of polycarbonate with a special coating providing an antiglare
effect (light transmission is approximately 80% over the visible light spectrum from
400 nm to 700 nm) and improved surface hardness (approximate pencil hardness is 2H per
ASTM D 3363).
Figure B.1 Protection cover

B. INTEGRAL PARTS AND FUNCTIONALITY B-2
BLUEplus10 – TECHNICAL OVERVIEW
B.3. Mounting/Integration

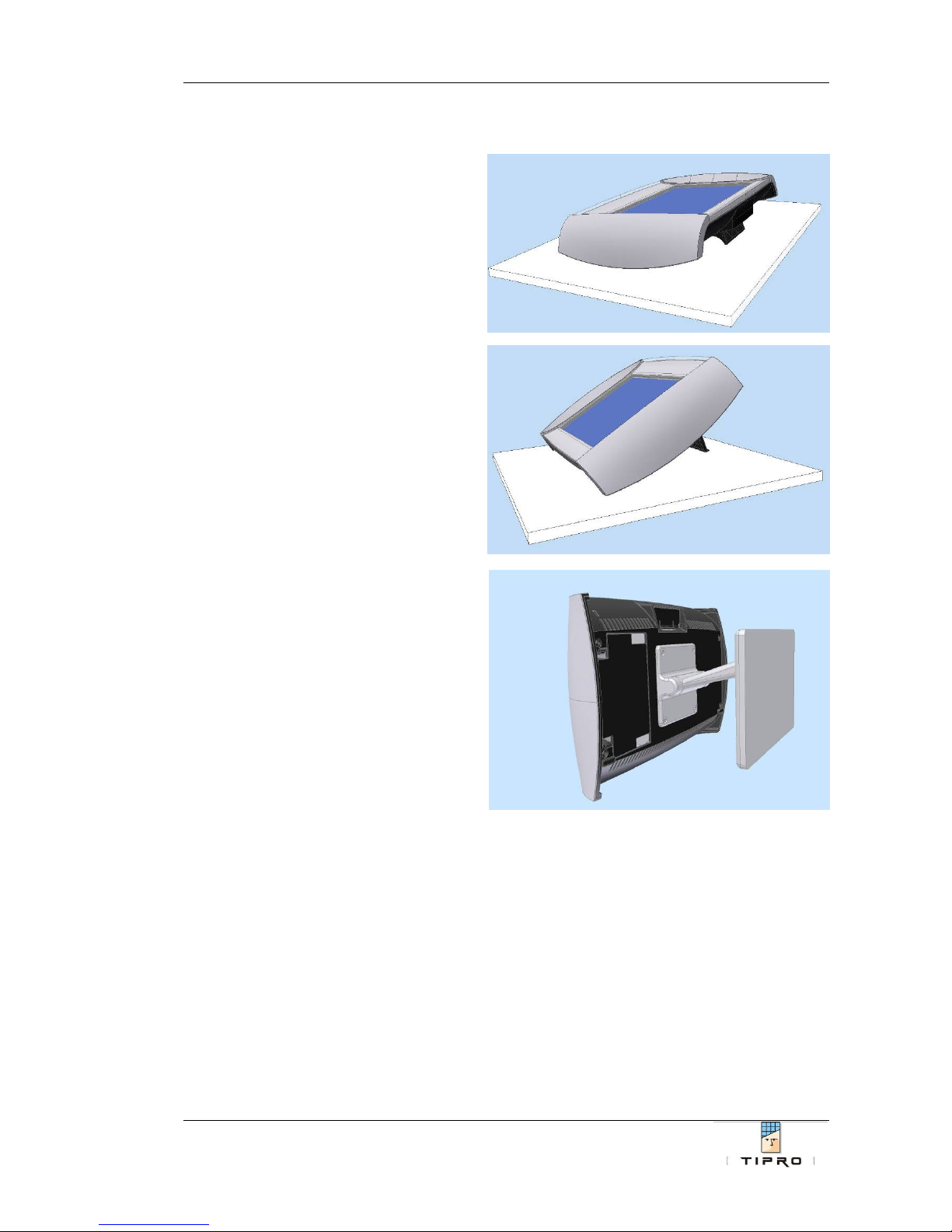

Figure B.2 Mounting methods
B.4. Installation and Operation
Detailed instructions on how to install the drivers and use the display are described
within the Getting Started document enclosed within the packaging.
As a d
esktop customer display
♦display inclination is 30°
As a VESA mount display
♦using VESA 75 fixing holes
As a CashTray
♦display inclination is 5°

B. INTEGRAL PARTS AND FUNCTIONALITY B-3
BLUEplus10 – TECHNICAL OVERVIEW
B.5. Accessory
BLUE+ 10 is supplied with a USB interface cable (USB B plug to USB A plug, 2.5 m
long), 12V Power Supply Unit (AC/DC adapter) and European power cord. The respective
Getting Started document is enclosed within the packaging.
B.6. Kensington Lock
The small aperture (see Figure B.3 below) in the rear side of the BLUE+ 10 can be
utilized by a locking device in order to securely attach the BLUE+ 10 to a neighbouring
fixed object (as a protection against theft).
Figure B.3 Kensington lock

C. ORDERING CODES C-1
BLUEplus10 – TECHNICAL OVERVIEW
C. ORDERING CODES
1 2 3 4 5 6 7
C T - 1 0 2 B - U A C - C15 C5 - xxx
CT – CashTray (BLUE+ 10)
1 – TFT LCD
102B : 10.2” wide-screen TFT LCD, 1024 x 600 pixels, 400 cd/m2
2 – Video Interface
U: USB
3 – Video Controller Board
A: based on Artista USB video controller
4 – Display Cover Option
0: without protective cover
C: with protective cover
5 – Housing Colour (bottom part)
C15 : black
6 – Housing Colour (top part)
C5 : aluminium
7 – Custom Version
Three-digit number reserved for product customizations. It is omitted in case of
standard version.

D. REFERENCES D-1
BLUEplus10 – TECHNICAL OVERVIEW
D. REFERENCES
1. “BLUE+ 10” – Getting Started

E. NOTICES E-1
BLUEplus10 – TECHNICAL OVERVIEW
E. NOTICES
E.1. Disclaimer
Information furnished by Tipro is believed to be accurate and reliable. However, Tipro
makes no representations or warranties regarding the accuracy or completeness of the
contents of this document and reserves the right to make changes to specifications and
product descriptions at any time without notice.
E.2. Copyright Notice
2007-2011 Tipro. All rights reserved. Trademarks and registered trademarks are the
property of their respective owners.
