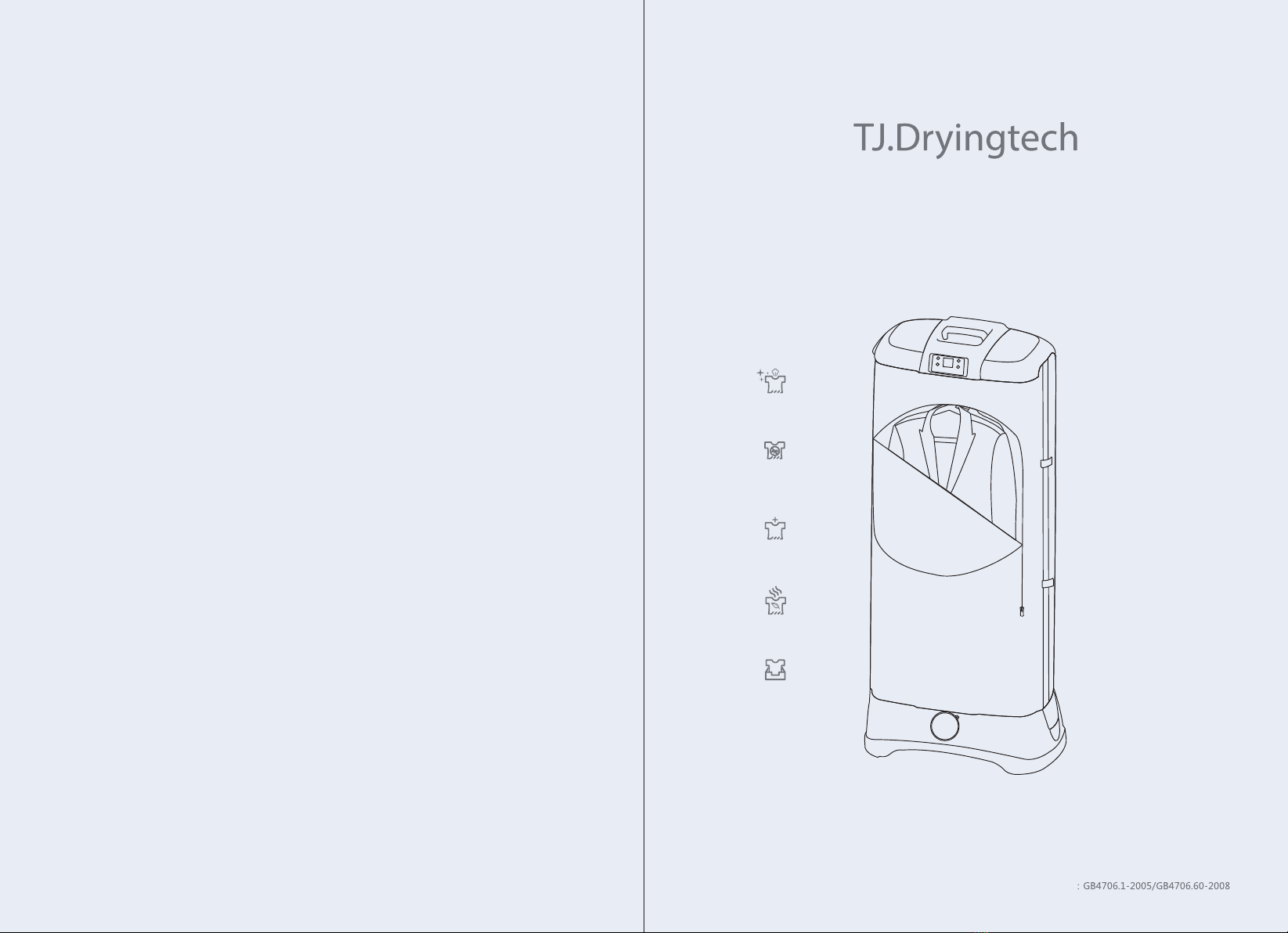

TJ.Dryingtech TJ-SM801E User manual
Portable clothes dryer
Remove
mites
Drying
Bacteriostat
Perfuming
Travelling
collection
Operative norm
Manual
The product is available for above mention occasion,Can improve the moldy,prculiar smell,
and secondary pollution efficiently.
◎Product feature
1. PTC heating drying.
2. Electronic & Mechanical different control option.
3. Ultra quiet high speed fan, lower noise, faster drying ,energy saving.
4. Avoid the second pollution,prevent the dust and worm enter the dryer.
5. Ultra quiet high speed fan increase interior temperature in a short time.
6. Perfuming.
◎Notice for use
1. Stay away from water and fire 1.5 meters, when clean with dry cloth to wipe, can not
wash with water.
2. This product cannot be used outdoors and bathroom.Need to check whether the power
and the machine first before using the voltage required on the label.
3. This product is only applicable to dry washed fabric.
4. Please dehydration or twist dry to no drop of water before drying the clothes, to reduce
the drip, avoid the wetland surface, and can improve the insulation safety coefficient,
shorten the drying time.
5. Do not touch the air outlet when the machine working.
6. DO not cover the air inlet and outlet when the machine working.
7. Only applies to more than 75℃ of heat-resistant clothes drying,Capacity 4 pcs≤5KG.
8. Contact with the seller or manufacturer if the cable damaged.
9. This product does not apply to physically weak, slow response or mental disorders,
unless the security responsibility to its safe use under the guidance or help.
10. In order to avoid drying effect is reduced, please check and clean the air inlet filter,
maintain cloth cover with a certain air flow during a drying room.
11. Do not use the machine continually for long period. Max working time is 360 minutes,
then stop for 30 minutes.
12. The clothes on ventilated place after dehydration, drying to no drop of water, then put
into the machine drying, can achieve the effect of energy conservation and environ-
mental protection.
◎Security considerations
● Need to check whether the power and the machine first before using the voltage requir-
ed on the label. Cut off the power before pull out the plug,do not touch the plug with wat
hands.
● Get an electric shock may start a fire.
● Before use, please check whether the wire and plug is damaged, the power cord do not
bend, pulling. The power cord for dedicated power supply cord, please do not arbitrarily
change.
● Poor contact will has risk of electric shock.
● Do not cover the air outlet.
● Do not cover the air inlet.
● Machines in very high surface temperatures will cause the shell deformation and disco-
loration.
● Do not use the machine below the stock or outdoor.
● Do not use the machine on unflat floor.
● Please do not use this machine near the curtain or other flammable material,keep away
at least 50CM.
● Do not spray propellant, the pesticides to the body shell, can be damaged by shell, have
get an electric shock risk.
● Absolutely forbidden when using insert foreign bodies, or touch outlet and inlet , so as to
avoid burns.
● Do not use the machine in children, disabled elderly, or people with disabilities occasion,
so as to avoid the accident.
● Do not use or storage the machine in long-term moist, dust place, is likely to be caused
by corrosion leakage.
● Do not use the machine in the place with Gas, paint, cid alkali oil or other flammable
materials was storaged. Avoid causing fire accident.
● Only applies to more than 75℃of heat-resistant clothes drying,or will damage the fabric.
● The clothes on ventilated place after dehydration, drying to no drop of water, then put into
the machine drying, can achieve the effect of energy conservation and environmental pro-
tection.
◎Specification
Model
Input
Power
Capacity
Timing
N.W
G.W
Packing size
TJ-SM801E
220V~ 50Hz
600W
4pieces of clothing≤5kg
15-360min
4.90kg
6.90kg
67×39.5×33.5cm
◎Function
●Working principle
Portable clothes dryer use PTC ceramic heater, more safety, high efficiency, Large air
supply, more energy saving.
The working principle of the products is: using the fan drive air, air through filtered, after
PTC h eating element into the dryer, clothes hanging in the static when subjected to hot
air, rapid moisture evaporation and discharge, thus achieve the purpose of drying clothes.
●Using application
① Winter, less sunlight.
② Plum rain wet weather.
③ High frequency of clothing replacement.
④ The living environment of space is small.
⑤ School dormitory.
⑥ Travelling.
-1- -2-
◎Circuitry
1. Electronic switch on the upper cover of the dryer (Remote control).
2. “ On ” button start the dryer.
3. “ Off ” button stop the dryer.
4. Each press on Time+ or Time- button will increase or minus 15 minutes,setting from
15~360 minutes,Time+ and Time- function is available when machine working.
5. The controller is the remote controller. Please load the AAA battery on the first time using
the dryer.
6. When the low bettery light on,need to be change bettery.
◎Machine using instruction
1. Open the packing and pull out the cable.
◎Installation
2. Push up the lock on the both side to loose the upper cap.
3. Pull out the Aluminum pole from the bottom,and insert it into the whole on both side
and lock.
Crew off the cap on the fragrance box ,fill in the fragrance oil,screw up the cap.
◎Perfuming function
-3- -4-
◎Retraction
1. Disassemble and shrink up the pole.
2. Collect the cover shape between the upper cap and lower part,fasten the switch on
the both side.
3. Turn over the machine,collect the cable on the bottom.
4. Mount the pole on the bottom clips.
Warm prompt:
Electronic control dryer,if
the remote controller un-
available,Can be started
the machine with theem-
ergency switch on the
bottom of the dryer.
●Clean the machine
1. Clean the machine follow instruction of below image.
2. Cut off the power and when the machine cool down when cleaning.
3. Must be cleared surface besmirch, avoid cause discoloration and broken.
4. Load up all the part into the packing after cleaning.
5. Storage in the place without moisture.
6. Only the surface cleaning need to be done.
7. Wipe the machine with the detergent.
8. Do not spray the water to the machine.
9. Please do not use thinner, toluene, acidic detergent, oil, alcohol, or chemicals to clean.
◎Maintaining & Storage
◎Declaration of hazardous substances
Above table made by SJ/T11364 standard
○ :Stand for the volume of harmful substance suitable for GB/T 26572 standard.
× :Stand for the volume of harmful substance over GB/T 26572 standard limit.
Note: All parts marked with “×” means that some hazardous substances exceed the standard, since the
limited current technology level of the industry cannot provide a replacement or reduction for the present.
◎Environmental protection use period
The number of years marked in this label is based on the SJ/T 11364 Marking for the
Restricted Use of Hazardous Substances in Electronic and Electrical Products, and is
applicable to “Environmental Protection Use Period” for imported electronic and electrical
products manufactured in the territory of the People’s Republic of China (except for
Taiwan, Hong Kong, and Macao).
In the context of complying with “Attentions” for the safety and usage of the product in
“Instruction for Use”, without other exemptions specified by laws and regulations, and
within the above-mentioned years from the date of production, the hazardous substances
in this product will not leak or mutate, and the use of this product will not cause serious
pollution to the environment or serious damage to the body and property of the user.
The “Environmental Protection Use Period” shall not be regarded as the “Safe Use Period”,
and especially shall not be regarded as the service life set for factors such as safety of
electrical performance and safety of electromagnetism.
If the product is to be discarded after proper use, it is suggested that this should to be
handled according to the laws and regulations for the recycling and reuse of electronic
and electrical products.
◎Warm prompt
Dear customer, in order to make sure that you can be safe and comfortable to use this
product, please note the following before using.
1. To avoid fire, before use, please check your electrical socket is safe and reliable,
whether to meet AC220V through more than 10 a current.
2. In order to ensure the machine has the best performance, please regular cleaning
machine inlet filter (usually use 5 days clean once).
3. Please read the instructions before use, if you have questions, please contact the
seller or the manufacturer of professionals.
◎Special statement
1. This manual carefully checked, if there are any printing or the errors in the content,
the company reserves the power of interpretation.
2. If this product have any technology change in the future, without prior notice2.
3. Product appearance or color changes, if any, please in kind prevail.
4. Machines have QC lable on screw hole at the bottom, if any man-made damage or
tear for the lable, this product can not enjoy free warranty service.
