Samsung DV431AEP User manual

Electric Dryer
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service or accessory
parts, please register your product at or
contact
www.samsung.com/register
DV431AE*
This manual is made with 100% recycled paper.
DV431AEP-03021E_EN_v7.indd 1DV431AEP-03021E_EN_v7.indd 1 11/25/2011 12:56:58 AM11/25/2011 12:56:58 AM

2_ Features
features
1. Extra Large Capacity
Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our ultra
large 10 kg dryer circulates more air through your clothes, drying them faster for a wrinkle-
free result.
2. Sanitize course
This course allows you to sanitize garments by permeating high temperature heat deep into
the fabric during the drying cycle. Use this course to keep your bedding and curtains clean.
When selecting this cycle, 99.9 % of all bacteria is eliminated through high temperature heat.
Use this cycle for clothing, bedding, towels, or other items needing sanitization.
3. Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 13 automatic drying cycles, including cotton,
heavy duty and towels, or let the Fuzzy Logic Control measure the degree of dampness and
automatically set the drying time. Precision drying has never been easier than with Samsung.
4. Energy Saving
Energy efficiency has been optimized to minimize unnecessary power consumption.
5. Easy Reversible Door
Our dryers will fit just about anywhere and without a door conflict. The direction of our easy
reversible door can be changed with just four screws.
6. Pedestal with Storage Drawers
An optional 15” pedestal is available to raise the dryer for easier loading and unloading. It
also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent
7. Stacking (MODEL NO: SK-5A/XAA)
Samsung’s Washers and Dryers can be stacked to maximize usable space.
The Dryer legs need to be removed to stack the Washer and Dryer. You can purchase an
optional stacking kit from your Samsung retailer.
8. 4-way Vent
You can install the exhaust vent in the following four (4) positions: back, either side, bottom.
DV431AEP-03021E_EN_v7.indd Sec9:2DV431AEP-03021E_EN_v7.indd Sec9:2 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

Safety information _3
safety instructions
Congratulations on your new Samsung Dryer. This manual contains valuable
information on the installation, use, and care of your appliance. Please take the
time to read this manual to take full advantage of your dryer’s many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal
(foil type) duct is installed, it must be of a specific type identified by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
WARNING - Risk of Fire
DV431AEP-03021E_EN_v7.indd Sec1:3DV431AEP-03021E_EN_v7.indd Sec1:3 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

4_ Safety information
safety instructions
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
INSTRUCTION ABOUT THE WEEE MARK
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types of
waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
WARNING
WARNING
DV431AEP-03021E_EN_v7.indd Sec1:4DV431AEP-03021E_EN_v7.indd Sec1:4 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

Safety information _5
SEVERE WARNING SIGNS FOR INSTALLATION
The installation of this appliance must be performed by a qualified technician or service
company.
- Failure to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product
Do not install or keep the product exposed to the outdoor elements.
WARNING
DV431AEP-03021E_EN_v7.indd Sec1:5DV431AEP-03021E_EN_v7.indd Sec1:5 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

6_ Safety information
safety instructions
SEVERE WARNING SIGNS FOR USING
Do not let children or pets on or into the product. In addition, when disposing of this
product, disassemble the door lock (lever).
- This may result in children falling and injuring themselves.
- If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
- This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene,
benzene, thinner, alcohol, etc.
- This may result in electric shock, fire or explosion.
Do not let pets chew or play with the dryer.
- This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of
the product.
- Failing to do so may result in damage to the power code or an injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse. In this case, the product will not
be covered by the standard warranty provided by Samsung and no responsibility can be
attributed to Samsung for malfunctions or damages resulting from such misuse.
Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions. You must also have the skills necessary to
service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
center.
- Failure to do so may result in electric shock, fire, problems with the product, or injury.
WARNING
DV431AEP-03021E_EN_v7.indd Sec1:6DV431AEP-03021E_EN_v7.indd Sec1:6 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

Safety information _7
CAUTION SIGNS FOR USING
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
- This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of
the oil.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
- If forming rubber is heated, it may start a fire.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil
will not be removed when washing the laundry. In addition, use the Cool Down cycle so that
the laundry is not heated.
- The oxidization heat of the oil may start a fire.
Make sure that the pockets of all clothing to be washed are empty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not wash clothing with large buckles, buttons, or other heavy metal.
Do not use softener or a static electricity remover unless recommended by the
manufacturer.
- This may result in damage to the laundry.
Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.
- This may result in electric shock, fire or an explosion.
Do not place inflammable materials near the product.
- This may result in toxic gases from the product, damage to parts, electric shock, fire or
an explosion.
- The appliance should not be placed behind lockable doors etc.
SEVERE WARNING SIGNS FOR CLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, cut off the power supply to the appliance.
- Failure to do so may result in electric shock or fire.
Clean the filter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service engineer.
Clean the condenser with water once a month.
The interior of the dryer should be cleaned periodically by qualified service personnel.
CAUTION
WARNING
DV431AEP-03021E_EN_v7.indd Sec1:7DV431AEP-03021E_EN_v7.indd Sec1:7 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

8_ contents
contents
INSTALLING YOUR DRYER
9
9Tools needed for installation
9See dryer exterior
10 Ducting requirements
11 Important to installer
11 Location considerations

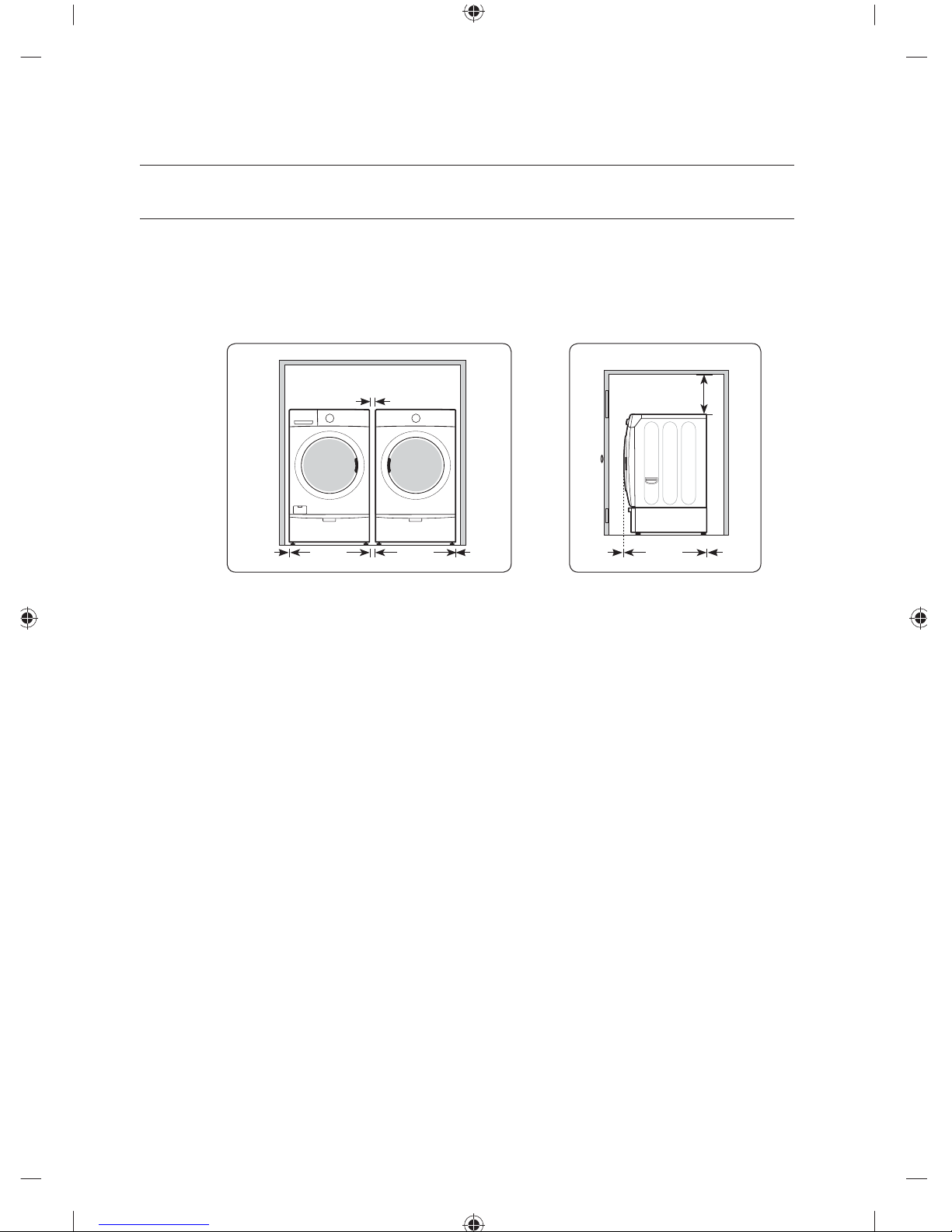

12 Alcove or closet installation
14 Mobile home installation
14 Exhausting
14 Electrical requirements
14 Grounding
15 Replacement parts and accessories
15 Installation
16 Final installation checklist
17 Dryer exhaust tips

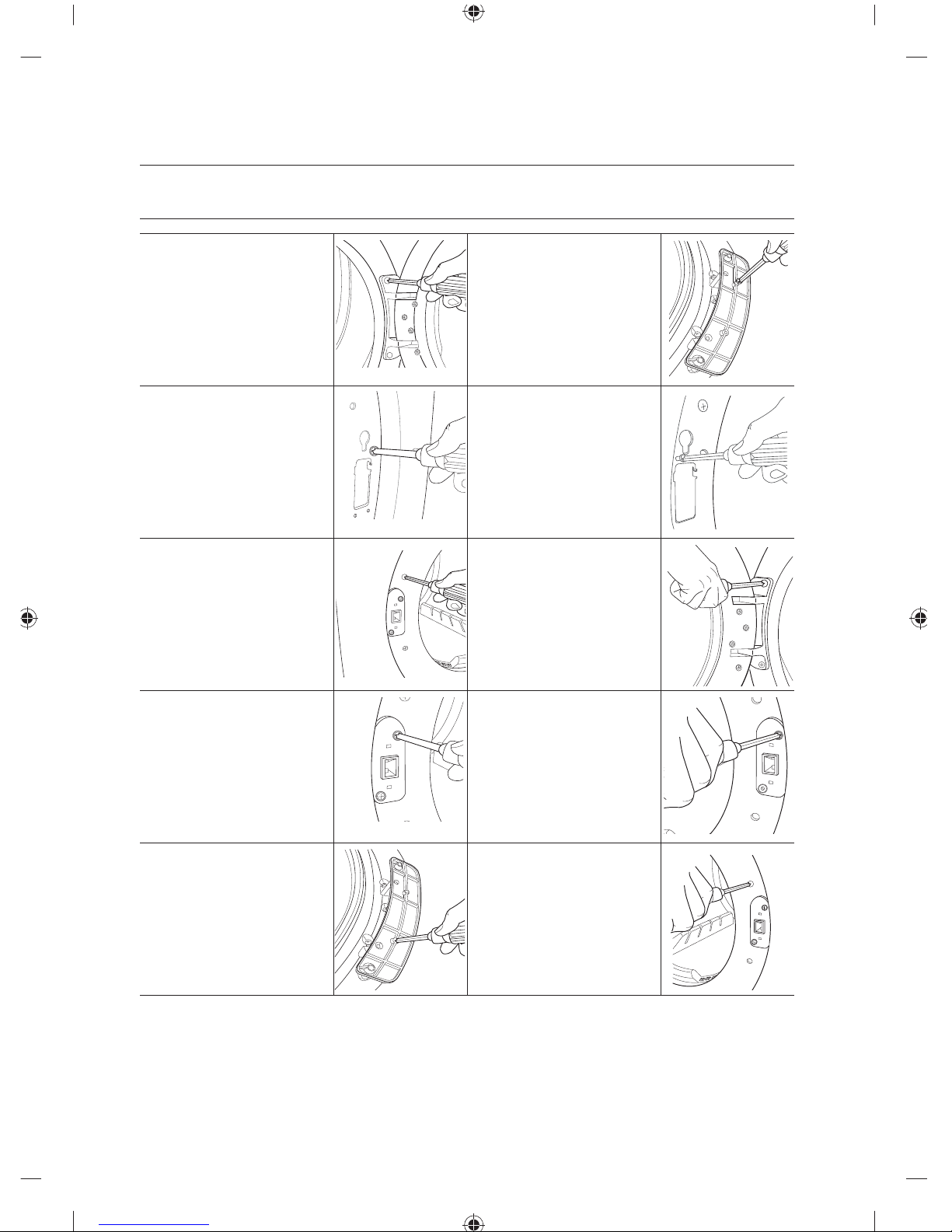

18 Door reversal
OPERATING INSTRUCTIONS, TIPS
19

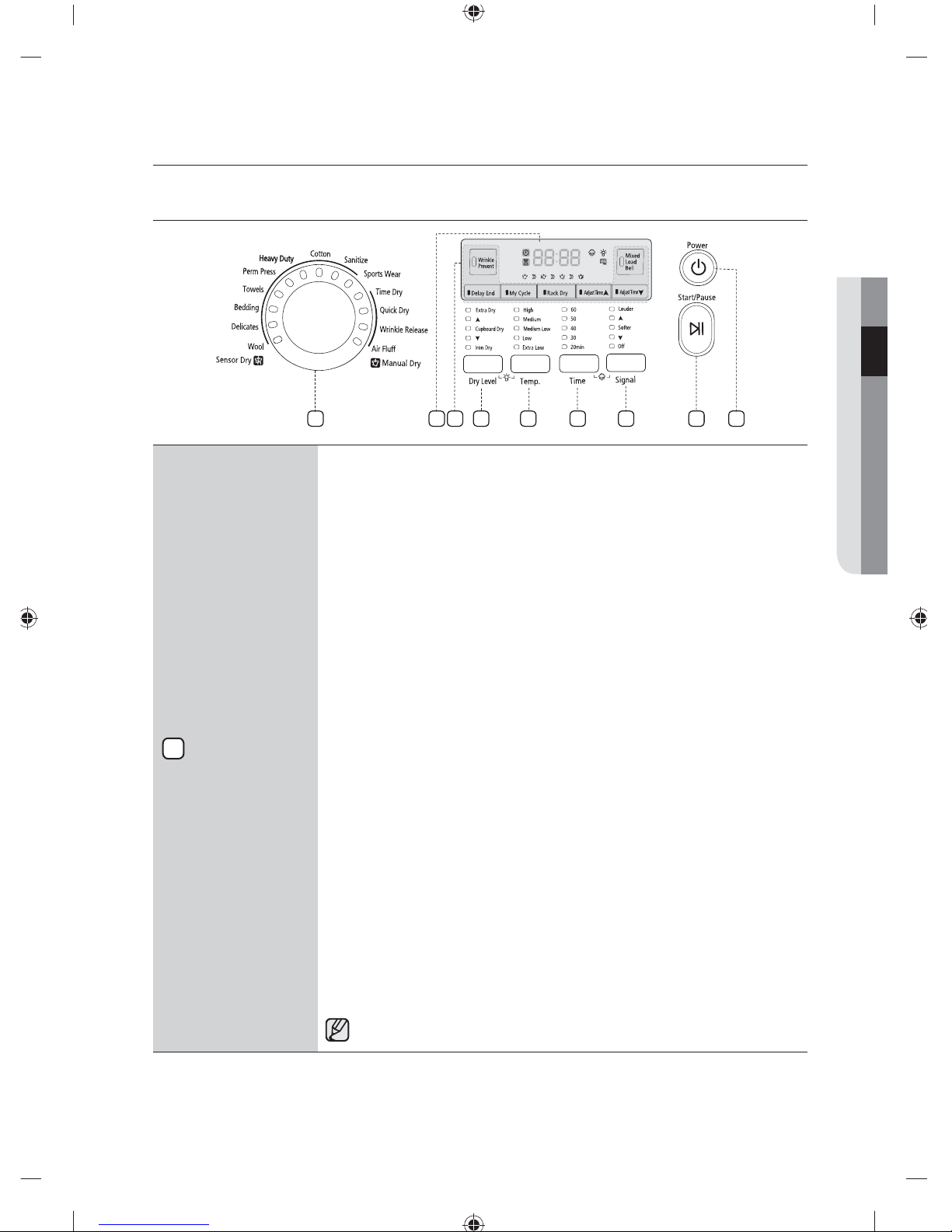

19 Overview of the control panel
22 Child lock
22 Drum light
22 My cycle
23 Rack dry
24 Clean the lint filter
24 Load the dryer properly
24 Getting started
CARE AND CLEANING
25
25 Control panel
25 Tumbler
25 Stainless steel tumbler
25 Dryer exterior
25 Dryer exhaust system
SPECIAL LAUNDRY TIPS
26
26 Special laundry tips
TROUBLESHOOTING
27
27 Check these points if your dryer…
28 Information codes
APPENDIX
29
29 Fabric care chart
30 Protecting the environment
30 Declaration of conformity
30 Specifications
31 Cycle chart
DV431AEP-03021E_EN_v7.indd Sec3:8DV431AEP-03021E_EN_v7.indd Sec3:8 11/25/2011 12:57:15 AM11/25/2011 12:57:15 AM

installing your dryer _9
installing your dryer
UNPACKING YOUR DRYER
Unpack your Dryer and inspect it for shipping damage. Make sure you have received all of the items
shown below. If your Dryer was damaged during shipping, or you do not have all of the items, contact
0330 SAMSUNG (7267864)
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.
Packing materials can be dangerous to children; keep all packing material (plastic bags, polystyrene,
etc.) well out of the reach of children.
SEE DRYER EXTERIOR
01 installing your dryer
Adjustable legs
Control panel
Door
WARNING
DV431AEP-03021E_EN_v7.indd Sec5:9DV431AEP-03021E_EN_v7.indd Sec5:9 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

10_ installing your dryer
DUCTING REQUIREMENTS
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
• Do not use a smaller duct.
• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct
with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
• Only a rigid or flexible metal duct should be used for exhausting.
• Keep the exhaust duct as straight and short as possible.
• Secure joints with duct tape. Do not use screws.
• Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building, gas vent, or
any other common duct or chimney. This could create a fire hazard from lint expelled by the dryer.
• A plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer
operation.
• Exhaust systems longer than recommended can extend drying times, affect machine operation, and
may collect lint.
• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and
entry of wildlife. Never use an exhaust hood with a magnetic damper.
• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and
the ground or other obstruction. The hood opening should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house
or porch.
• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly
down towards the exhaust hood to reduce condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year.
• Check frequently to be sure the exhaust hood damper opens and closes freely.
• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then
check ducting for obstructions.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended Use only for short-run installation
4” (10.16 cm) 2.5” (6.35 cm)
No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*
0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)
1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)
2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)
3 14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)
* Do not use non-metallic flexible duct.
installing your dryer
DV431AEP-03021E_EN_v7.indd Sec5:10DV431AEP-03021E_EN_v7.indd Sec5:10 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

installing your dryer _11
If the new dryer is installed into an existing exhaust system you must make
sure:
• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To Inspect and clean all lint buildup from inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be
less than 0.
This can be measured with the dryer running with a manometer at the point where the exhaust
duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be
empty and the lint filter clean.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
Remove the door from all discarded appliances to avoid the danger of a child suffocating.
LOCATION CONSIDERATIONS
The dryer should be located where there is enough space at the front for loading the dryer, and enough
space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the
bottom or the right or the left, use the accessory exhaust kit. Instructions are included with the kit. It’s
important to make sure the room has enough fresh air. The dryer must be located where there is no air-flow
obstruction.
On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air
for combustion and proper dryer operation.
The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The
dryer area is to be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A
dryer produces combustible lint. The area around the dryer should be kept lint-free.
01 installing your dryer
WARNING
DV431AEP-03021E_EN_v7.indd Sec5:11DV431AEP-03021E_EN_v7.indd Sec5:11 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

12_ installing your dryer
ALCOVE OR CLOSET INSTALLATION
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 5 in / 127 mm
Top – 17 in / 432 mm
Closet Front – 2 in / 51 mm
If the washer and dryer are installed together, the closet front must have at least a 72 in² (465
cm²) unobstructed air opening.
A. Recessed area
B. Side view - closet or confined area
installing your dryer
B
2 in.
(5 cm)
31.1 in.
(78.9 cm)
5 in.
(12.7cm)
17 in.
(43.2 cm)
A
1 in.
(2.5 cm)
27 in.
(68.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
DV431AEP-03021E_EN_v7.indd Sec5:12DV431AEP-03021E_EN_v7.indd Sec5:12 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

installing your dryer _13
With optional pedestal base or stacking kit
Required Dimensions for Installation With Pedestal
Required Dimensions for Installation With Stacking Kit
01 installing your dryer
31.1 in
78.9 cm
5 in.
(12.7 cm)
49.6 in (126 cm) to clear open door
27 in.
(68.6 cm)
39 in.
(99.1 cm)
53.6 in.
(136.2 cm)
31.1 in
78.9 cm
3 in.
(7.6 cm)
Closet or Door
48 in.² *
(310 cm²)
3 in.
(7.6 cm)
24 in.² *
(155 cm²)
1 in.
(2.5 cm)
5.5 in.**
(14 cm)
2.5 in.
(6.3 cm)
6 in. *
(15.2 cm)
1 in.
(2.5 cm)
78 in.
(198.1 cm)
27 in.
(68.6 cm)
* Required spacing
** External exhaust elbow requires
additional space.
DV431AEP-03021E_EN_v7.indd Sec5:13DV431AEP-03021E_EN_v7.indd Sec5:13 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

14_ installing your dryer
MOBILE HOME INSTALLATION
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
Locate an area that has adequate fresh air.
A minimum of 72 in² (465 cm²) of unobstructed space is required.
Call 0330 SAMSUNG (7267864) for information on purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination securely
fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the
room.
The dryer must be exhausted to the outside to reduce the risk of fire when installed in an
alcove or closet.
Never use a plastic or non-metal flexible duct.
If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,
heat, and lint.
ELECTRICAL REQUIREMENTS
• Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes.
• The impedance of power supply system must be maintained under 0.0018. Not connect a dryer to
general power supply system.
GROUNDING
This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk of
electrical shock by providing a path of least resistance for the electrical current.
Electric models
Your dryer has a cord with an equipment-grounding conductor and a grounding plug, sold
separately.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
If a power cord is not used and the electric dryer is to be permanently wired, the dryer must
be connected to a permanently grounded metal wiring system, or an equipment grounding
conductor must be run with the circuit conductors and connected to the equipment grounding
terminal.
installing your dryer
WARNING
WARNING
WARNING
DV431AEP-03021E_EN_v7.indd Sec5:14DV431AEP-03021E_EN_v7.indd Sec5:14 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

installing your dryer _15
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your
dryer or the SAMSUNG customer care center at 0330 SAMSUNG (7267864).
INSTALLATION
Gather the required tools and parts before starting the installation.
Read and follow the instructions provided with any tools listed here.
Tools and Parts
Pliers Cutting knife Pipe wrench (gas only) Nut drivers
Level Phillips Screwdriver Duct tape Wrench
For proper installation, we recommend that you hire a professional. To install:
1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-
by-side, to allow access to gas, electrical, and exhaust connections.
Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both
cushion-tops.
2. Set your dryer back in an upright position.
3. To ensure that the dryer provides optimal drying performance, it must
be level. To minimize vibration, noise, and unwanted movement,the
floor must be a perfectly level, solid surface.
To set the dryer to the same height as the washer, fully retract the
levelling feet by turning them counterclockwise, then loosen the legs
by turning them clockwise
Adjust the levelling feet only as much as necessary to level the dryer.
Extending the levelling feet more than necessary can cause the dryer
to vibrate.
01 installing your dryer
Level
Leveling feet
Retract fully Then loosen
DV431AEP-03021E_EN_v7.indd Sec5:15DV431AEP-03021E_EN_v7.indd Sec5:15 11/25/2011 12:57:16 AM11/25/2011 12:57:16 AM

16_ installing your dryer
4. Review the Exhausting section before installing the exhaust system. Install the ductwork from your dryer
to the exhaust hood. The crimped end of the duct sections must point away from your dryer.
DO NOT use sheet metal screws when assembling ducting. These joints should be taped.
Never use plastic flexible exhaust material.
Tip for tight installations: install a section of exhaust system to your dryer before putting it in place.
Use duct tape to secure this section to your dryer, but do not cover ventilation slots at the back of the
unit in the dryer cabinet.
5. Review Electrical Requirements section.
BEFORE OPERATING OR TESTING, follow the grounding instructions in the Grounding section.
IMPORTANT – The dryer is produced for a 3-WIRE SYSTEM CONNECTION.
The dryer frame is grounded to the neutral conductor at the terminal block.
Remove the terminal block cover plate.
Insert the power cord through the hole provided in the cabinet near the terminal block.
A strain relief must be used.
Do not loosen the nuts already installed on the terminal block. Be sure they are tight.
Use a 3/8” (1cm) deep well socket.
3-WIRE system connections
A. External ground connector
B. Neutral grounding wire (green/yellow)
C. Center silver-colored terminal block screw
D. Earth wire
E. strain relief
1. Loosen or remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the
power cord to the center, silver-colored terminal screw
of the terminal block. Tighten screw.
3. Connect the other wires to outer terminal block screws.
Tighten screws.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your
Dryer’s rear panel slot. Secure the cover with a hold-down screw.
F. The power cable H05 VV-F (min.1.9m, min.2.5mm²) must be of sufficient length to be
connected to the dryer.
6. With a level, check your dryer and make necessary adjustments to the levelling legs.
7. At this time, make sure all exhaust and electrical connections are complete. Connect your dryer to the
power supply, and check operation by using the checklist below.
8. A minimum 30A circuit breaker should be used, and a switch with a minimum contact separation of 3
mm in both poles must be incorporated into the fixed wiring for dryer disconnection. The dryer should
be positioned so that the disconnection switch is easily accessible to the user.
FINAL INSTALLATION CHECKLIST
Dryer is connected to the power supply and is properly grounded.
Exhaust ductwork is hooked up and joints are taped.
Plastic flexible duct is NOT used.
Used rigid or stiff-walled flexible metal vent material.
Dryer is leveled and is sitting firmly on the floor.
Start your dryer to confirm that it runs, heats, and shuts off.
installing your dryer
A
B
C
D
E
F
DV431AEP-03021E_EN_v7.indd Sec5:16DV431AEP-03021E_EN_v7.indd Sec5:16 11/25/2011 12:57:17 AM11/25/2011 12:57:17 AM

installing your dryer _17
DRYER EXHAUST TIPS
Plastic or non-metal flexible duct presents a potential fire hazard.
1. Make sure your dryer is installed properly so it exhausts air
easily.
2. Use a 4” diameter rigid metal duct. Tape all joints, including
at the dryer.
Never use lint-trapping screws.
3. Keep ducts as straight as possible.
4. Clean all old ducts before installing your new dryer.
Be sure the vent flap opens and closes freely.
Inspect and clean the exhaust system annually.
Don’t let a poor exhaust system slow drying by:
1. Restricting your dryer with a poor exhaust system.
2. Using a plastic, thin foil, or non-metal flexible duct.
3. Unnecessarily using long ducts that have many
elbows.
4. Having crushed or clogged ducts and vent.
01 installing your dryer
WARNING
1 2
3 4
DV431AEP-03021E_EN_v7.indd Sec5:17DV431AEP-03021E_EN_v7.indd Sec5:17 11/25/2011 12:57:17 AM11/25/2011 12:57:17 AM

18_ installing your dryer
DOOR REVERSAL
1. Cut off the power supply.
2. Remove two door hinge
screws.
3. Lift the door and remove
it.
8. Reinsert the screw in the
other hole.
4. Remove a screw on the
Frame Front
9. Reinsert the screw (Step
4) on the Frame Front
5. Remove the two screws
on the opposite side of
the door hinge.
10. Place the door on the
other side and reattach it
to the dryer.
6. Remove two screws from
the holder lever.
11. Reattach the holder lever.
7. Remove a screw from the
door hinge.
12. Reattach the screws in
the remaing holes.
installing your dryer
DV431AEP-03021E_EN_v7.indd Sec5:18DV431AEP-03021E_EN_v7.indd Sec5:18 11/25/2011 12:57:17 AM11/25/2011 12:57:17 AM

operating instructions, tips _19
operating instructions, tips
OVERVIEW OF THE CONTROL PANEL
Cycle Selector
To select a cycle, rotate the Cycle Selector dial to the desired cycle.
The indicator light by the cycle name will illuminate. The Sports Wear,Sanitize,
Cotton, Heavy duty, Perm Press, Towels, Bedding, Delicates and wool cycles are
Sensor Dry cycles.
Sensor Dry automatically senses the moisture in the load and shuts the dryer off
when the selected dryness level (very dry to damp dry) is reached.
Cotton – Use this cycle to dry loads such as cotton, underwear, and linen.
Heavy Duty – Use this cycle to get high heat for heavy fabrics such as jeans,
corduroys, or work clothes.
Perm Press – Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent
press fabrics automatically.
Towels – Dry loads such as bath towels.
Bedding – For bulky items such as blankets, sheets and comforters.
Delicates – The Delicates cycle is designed to dry heat-sensitive items at a low
drying temperature.
Wool – For machine washable and tumble dryable wool only.
Sanitize - This course allows you to sanitize garments by permeating high
temperature heat deep into the fabric during the drying cycle. Use this course to
keep your bedding and curtains clean through sanitization.
Sports Wear - Use for water-proofed or proofed garments to keep their good
looks and fresh feel (except Gore-Tax).
For better drying results, turn the laundry inside out before drying it.
Time Dry – Time Dry allows you to select the desired cycle time in minutes.
Turn the Cycle Selector dial to Time Dry, then press the Adjust Time up arrow to set
the drying time.
Press the arrow repeatedly to scroll through the time settings.
Quick Dry – Provides a 30 minute drying cycle.
Air Fluff – The Air Fluff cycle tumbles the load in room temperature air.
Wrinkle Release – The Wrinkle Release cycle will release wrinkles from items that
are clean, dry, and only slightly wrinkled, such as clothes from a crowded closet,
suitcase or items that have been in the dryer too long after the cycle has ended.
Wrinkle Release can be used with any temperature selection.
Overloading the dryer may not yield the same results..
02 operating instructions, tips
1
1 654 7 9 82 3
DV431AEP-03021E_EN_v7.indd 19DV431AEP-03021E_EN_v7.indd 19 11/25/2011 12:57:17 AM11/25/2011 12:57:17 AM

20_ operating instructions, tips
Digital Graphic
Display
T
he display window shows the estimated time remaining in the cycle after the
Start/Pause button is pressed. The estimated time remaining may fluctuate as the
cycle progresses. ( )
The Drying light will illuminate and remain lit until the cycle is complete. ( )
When your dryer is in the cool-down phase, the Cooling light will illuminate. ( )
When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will
illuminate. ( )
When the cycle is complete, “End” will appear in the display panel until the dryer door
is opened or the Power button is pushed. ( )
If your dryer is paused during a cycle, the indicator lights will blink until the Start/
Pause button is pressed.
Select Cycle
Option
Wrinkle Prevent -Wrinkle Prevent provides approximately 180 minutes of
intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling.
Press the Wrinkle Prevent button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle Prevent is selected.
The load is dry, and can be removed at any time during the Wrinkle Prevent cycle.
Mixed Load Bell - This is an alarm that notifies the user when the average dry
level is damp dry (80 % dried). This is useful when the laundry contains various
types of clothing you do not want to dry completely. An alarm sounds for five (5)
seconds while continuing to perform the cycle.
This function can only be selected in the Sensor Dry course, and the dry level can
only be selected from Cupboard Dry to Extra Dry.
Delay End : You can set the dryer to finish your drying cycle automatically at
a later time, choosing a delay of between 4 to 24 hours (in 1 hour increments).
The hour displayed indicates the time at which the dry will be finished. ( )
1. Manually or automatically set your drying machine according to the type
of laundry you are drying.
2. Press the Delay End button repeatedly until the required delay time is set.
If the delay time is set, the “Delay End” function becomes ON state.
3. Press the Start/Pause button. The “Delay End ” indicator will blink and the
clock will begin counting down until it reaches the set time.
4. To cancel a Delay End function, press the Power button and then turn the
dryer on again.
My Cycle : Choose your favorite cycle including cycle, temp, dry level option,
etc. (See page 22 for detail.)
Rack Dry : Rack Dry is available at Time Dry cycle. Temperature will be set
only to Extra Low. (See page 23 for detail.)
Adjust Time – Time can be added or subtracted from the automatically set times
in the Manual Dry cycles (Time Dry, Quick Dry, Air Fluff cycles).
To add or subtract time from the cycle, press the Adjust Time arrow pad up or
down until the desired time is displayed.
Dry Level
Selection Button
To select the dry level in the Sensor Dry cycles, press the Dry Level button. An
indicator light will illuminate next to the desired dryness level.
Press the button repeatedly to scroll through the settings.
operating instructions, tips
4
3
2
DV431AEP-03021E_EN_v7.indd 20DV431AEP-03021E_EN_v7.indd 20 11/25/2011 12:57:17 AM11/25/2011 12:57:17 AM
