anko MZX-Y90 User manual

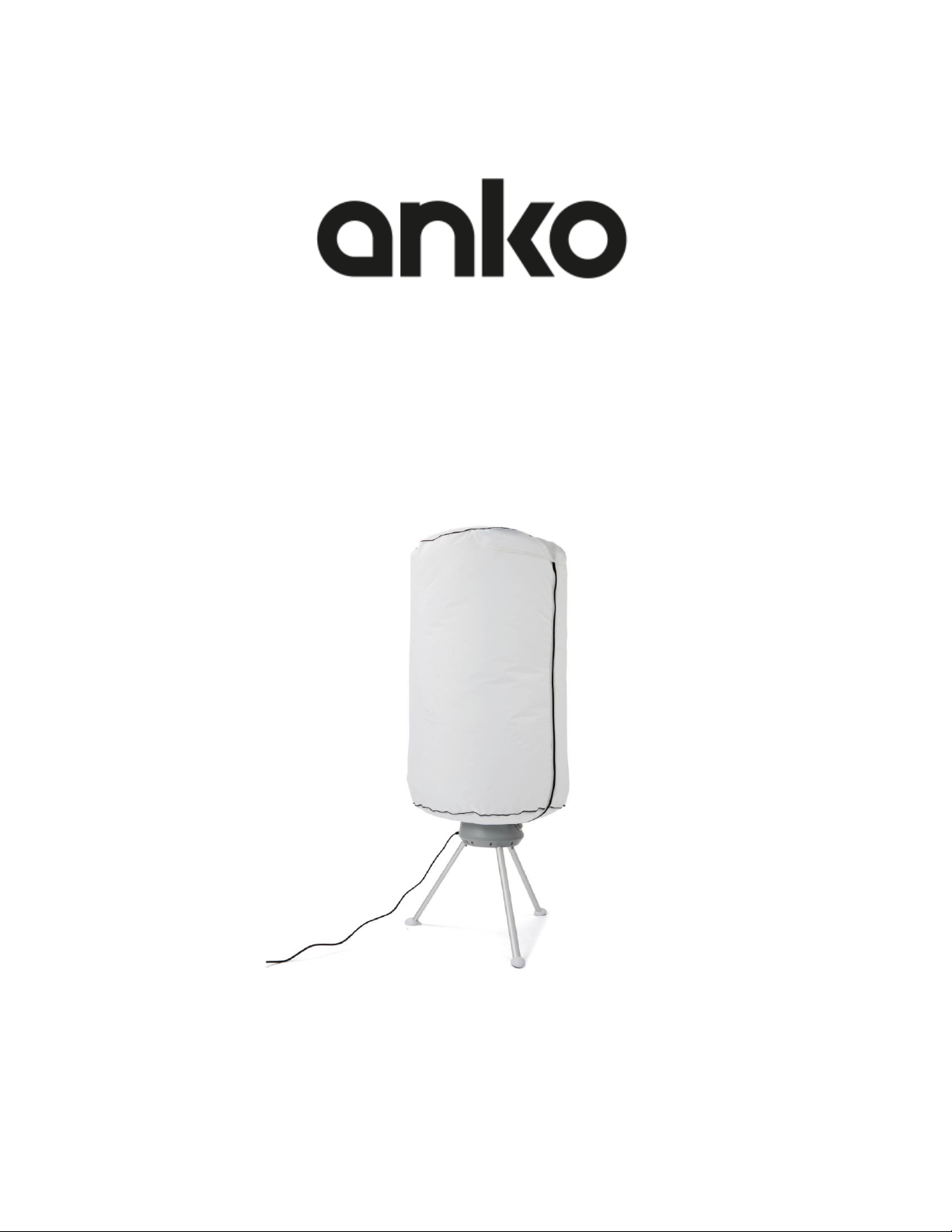

Portable Clothes Dryer
MZX-Y90
User Manual
PLEASE READ AND SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS
WARNING! Failure to follow these safety instructions could damage the clothes dryer or your
clothes.
Only plug this appliance directly into an AC power supply which is properly earthed and had the correct
voltage. Refer to the appliance rating plate (located on the rear of your clothes dryer) for the voltage
information.
Do not connect the appliance to the mains electricity supply by an extension lead, multi-socket powered
board, double adaptor or similar.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instructions concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
IMPORTANT!
➢If supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly
qualified person in order to avoid a hazard.
➢These dryers are for drying clothes, towels and linen at home. They are not designed or intended for
use in Commercial environments. Do not use them for any other purpose.
➢The dryer is not to be used with any clothing articles which have had industrial chemicals used for
cleaning.
➢This appliance is intended for use indoors only under cover within a domestic environment. Never
use outdoors exposed to weather.
➢Adequate ventilation must be provided when using the clothes dryer.
➢Never use your clothes dryer to dry items such as latex, foam rubber, waterproof textiles, rubber
backed articles, or pillows fitted with foam.
➢Ensure all objects are removed from pockets.
➢Always check your clothing items care labels to ensure they are suitable for use in clothes dryer.
➢To protect against electric shock do not immerse the appliance, power cord, plugs in water or other
liquids.
➢Close supervision is necessary when any appliance is used by or near children.
➢DO NOT TOUCH hot metal surfaces.
➢Unplug the unit when not in use. Allow to cool before taking off parts.

➢DO NOT use the accessories other than what is provided with the appliance.
➢Do not pull the cord around sharp edges or corners.
➢Keep the cord away from heated surfaces.
➢Always operate the appliance on a flat, stable surface. Make sure that there is enough ventilation,
so that hot steam can be released safely during use.
➢DO NOT wash the cover, it can be wiped clean with a soft cloth.
➢Always ensure the clothes have been spin-dried or hand-wrung well to avoid water dripping
onto the main unit and floor.
➢NEVER touch the vent on top of the cover.
➢DO NOT cover the air inlet, hot air outlet and vents.
➢Unplug the unit after use, before assembly or disassembly and before cleaning.
➢NEVER attempt to move the unit during operation.
➢WARNING: This appliance is intended only for drying textiles and garments washed in water.
CAUTION! hot surface. Motor unit and metal parts may become hot during use. NEVER
touch any metal parts as they may cause burns to skin. Keep the appliances away from children
during and immediately after use.
WARNING! The appliance must not be supplier through an external switch device, such as a timer, or
connected to a circuit that is regularly switched on and off by a utility.
Fire Hazards
➢Some fabrics are not suitable for use in the clothes dryer. The following MUST NOT be placed in
your clothes dryer due to the risk of a fire or an explosion:
➢Item(s) that have been spotted or soaked with vegetable oil, cooking oil, suntan oil, linseed oil, salad
oil, lubrication oil or grease. Oil affected items can ignite spontaneously, especially when exposed
to heat sources such as in a clothes dryer. The items become warm, causing as oxidation reaction in
the oil. Oxidation creates heat. If heat cannot escape, the items can become hot enough to ignite.
Pilling, stacking or storing oil-affected items can prevent heat from escaping and create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by
hair care products be placed in a clothes dryer, they should first be washed is hot water with extra
detergent - this will reduce, but not eliminate the hazard.
➢Item(s) that have previously been cleaned in, washed in, or spotted with petrol/gasoline, industrial
chemicals used only for cleaning, dry-cleaning solvents or other flammable or explosive substances
are highly flammable. Highly flammable or explosive commonly found around the house include
acetone, (nail polish remover) denatured alcohol, petrol/gasoline, kerosene, some spot removers,
turpentine, waxes and wax removers should not be put in the dryer. Items containing foam rubber
(also known as latex foam) or similarly textured rubber-like materials. Foam rubber materials can
produce fire by spontaneous combustion when heated.

➢Rubber-backed articles, clothes fitted with foam rubber pads, pillows, rubber boots and rubber-
coated sports shoes.
For your safety, and to reduce the risk of fire or an explosion, DO NOT store or use petrol or other
inflammable vapours and liquids near your clothes dryer.
To avoid potential fire hazards, we recommend that you pay for a qualified appliance technician to
inspect and clean your dryer periodically.
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY

KNOW YOUR PORTABLE CLOTHES DRYER
WARNING:
This appliance is intended only for drying textiles washed in water.
Do not use plastic coat hangers in the dryer.
1
Clothes rack
8
Motor unit
2
Clips (12pcs)
9
Timer with On/off indicator
3
Upper support pole
10
Air inlet
4
Pole connector
11
Legs (3pcs)
5
Lower support pole
12
Vent (on top of cover)
6
Waterproof plate
13
Cover
7
Hot air outlet

Before First Use
The appliance has been packaged carefully to ensure the product reaches you in good condition. If the
product has been damaged, dropped, has a malfunction in any way, or if the supply cord is damaged,
do not use. Return the product to Kmart for replacement.
Carefully unpack your appliance. Make sure you do not discard any packaging material until all parts
of the appliance have been found.
Carefully wipe the exterior of the appliance to remove any dust that may have accumulated during
production. Dry with a dry towel. Do not use harsh abrasive cleaners.
Assembling the Dryer
1. Attach 3 legs to the bottom of the motor unit. Ensure they are all fitted tightly and evenly.
2. Place the Lower support pole through the Waterproof plate, then screw the pole onto the Motor
unit until tight.
WARNING! The waterproof plate must be correctly assembled to avoid electrical shock.

3. Screw the Upper support pole onto the Lower pole until tight. Place the Clothes rack on top of the
Upper pole.
4. Put on the clips if needed.
5. Place the Cover around the Clothes rack, make sure no obstruction at top vents. The bottom black
ring of the Cover shall sit around the metal grill on Motor Unit.
Note: Ensure the cover aligns with the motor unit and there is no air leakage
6. Zip up Cover. Flip down the zip cover at top rim.
7. To disassemble the portable clothes dryer, follow the assemble steps in reverse.

HOW TO USE
Ensure the air inlet/outlet and the vent are not blocked and adequate airflow exists with your chosen
location.
Always check your clothing articles care instructions to ensure they are suitable for use within a
clothes dryer. Not all fabric types/clothing articles are suitable for use in clothes dryers.
CAUTION! Do not overload the dryer. The maximum amount of textile in one load is 15kg.
DO NOT touch the metallic parts of the unit while the appliance is operating. These can become
very hot.
IMPORTANT! Always ensure the clothes have been spin-dried or hand-wrung well to avoid water
dripping onto the main unit and floor.
1. Put the dewatered clothes on the hangers or clips and zip up the cover.
2. Connect the appliance to the mains power.
3. Rotate the on/off switch to the preset time, the power indicator will
illuminate.
4. The appliance will automatically stop when the set time is up.
5. Unplug the appliance after finished drying the clothes.
6. Unzip the cover to allow the appliance and the clothes cool down.
7. Remove your clothes from the dryer.
Tips
➢Clothes should never be dripping when placed inside the unit.
➢Long clothes that may obstruct the hot air outlet need to be placed correctly, so that there is no
obstruction to air out.
➢The air inlet vent should be checked for any sign of dust/ fluff and this should be removed where
possible.

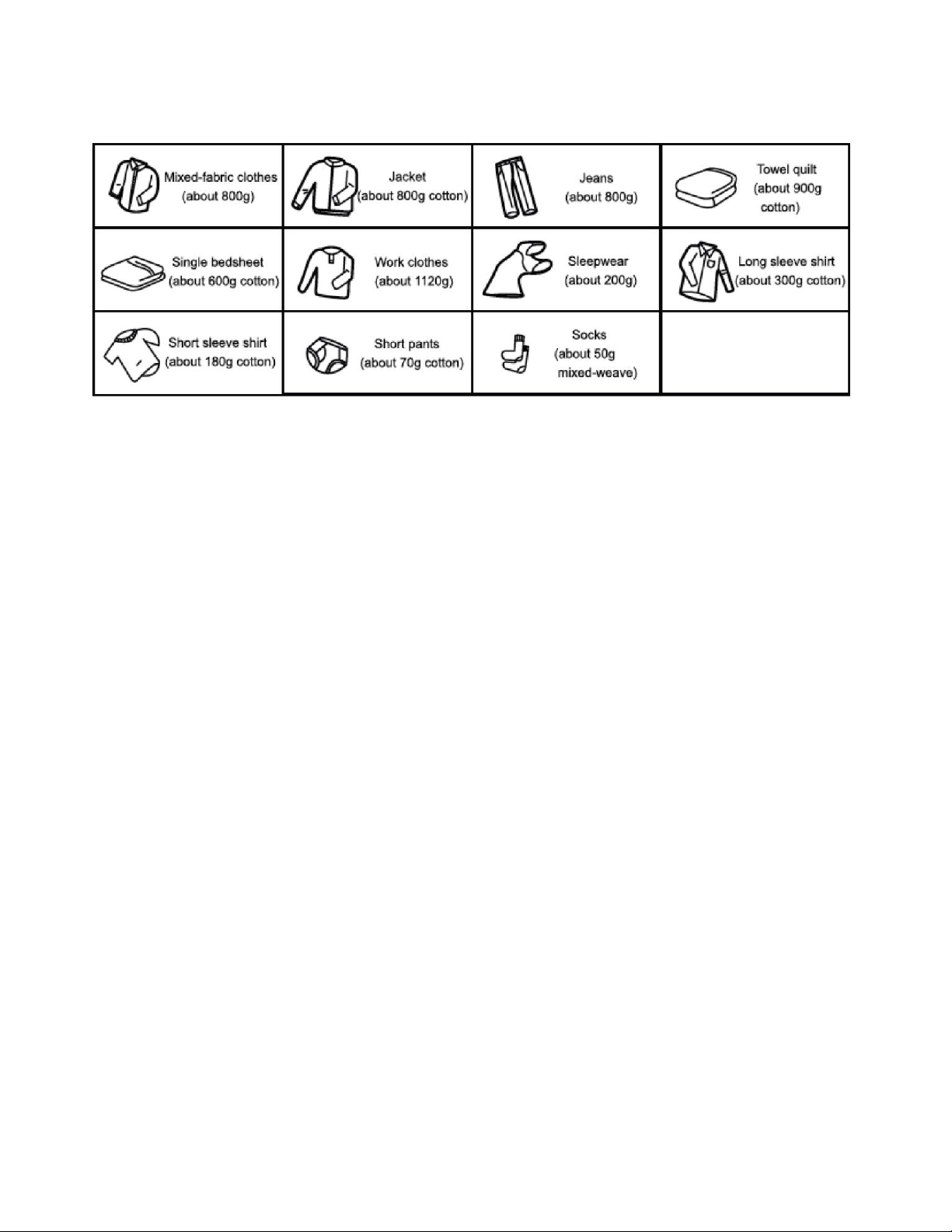

Refer to below reference weights of clothes articles (when dry), to assist with avoiding
overloading your dryer.
GENERAL HINTS
➢Clothes should be washed before use within the dryer.
➢Always ensure the similar types of clothes are dried together.
➢Try to sort your clothes to be dried into load that take a similar time to dry (for example heavier
items separate from light items).
➢Make sure any decorations or buttons on your clothing items are safe for high temperatures and well
protected.
➢It is recommended to turn your clothes inside-out.
➢Check and empty pockets. Clip, pens, nails and pins can damage your clothes. Other item such as
matches or cigarette lighters will cause a fire.
➢Drying time will depend on fabric type and construction, load size and wetness.
➢The laundry must be thoroughly spun before drying. Do not place hand washed items that have not
been spun, into the dryer.
➢To avoid static charge when drying is completed, use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for clothes dryers.
➢Due to variations in dryer load fabric texture and thickness it is possible that not all items will be
dried evenly. If you experience uneven dryness, set the extra time but be mindful of the type of
fabric being dried to avoid over drying certain types of fabric.
➢Drying time will also be affected by room temperature and humidity. Clothes will dry more slowly
on a cool or humid day.
➢For best results, sort the load according to fabric. Such as heavy items which may take longer to dry
(i.e. towels, flannelette sheets, etc) than ones which dry quickly (i.e. cotton shirts and sheets).

➢If individual items are still damp after drying, you may need to run extra time, or allow the items to
finish drying naturally outside the dryer. This will be necessary particularly for multi-layered items
(i.e. collars, pockets, etc).
CLEANING AND MAINTENANCE
CAUTION: Make sure the appliance is unplugged from mains power and allow the appliance to
cool down completely before cleaning.
Wipe the appliance with a damp soft cloth.
DO NOT wash any part of the appliance including the cover.
Allow the appliance get dry before next use or storage.
STORAGE
1. Ensure the appliance is disconnected from mains power.
2. Allow the appliance to cool down completely.
3. Do not wrap the power cord around the appliance.
4. Store the appliance in a cool dry location and out of the reach of children.
TROUBLE SHOOTING
No.
PROBLEMS
POSSIBLE CAUSES
1
Drying time too long
Clothes may be very thick.
Clothes may have not been sufficiently dewatered.
Cover may have not been closed properly and hot air escaped.
The room temperature is too low.
2
The appliance doesn’t work
Air outlet or inlet blocked or covered, the fuse tripped.
Plug is not firmly in its power socket, or the power outlet is
not switched ON.
TECHNICAL DATA
Voltage : 220-240V~ 50-60Hz
