POWER MEGAPHONES
DESCRIPTION FEATURES
●
●
●
●
●
●
●
●
●

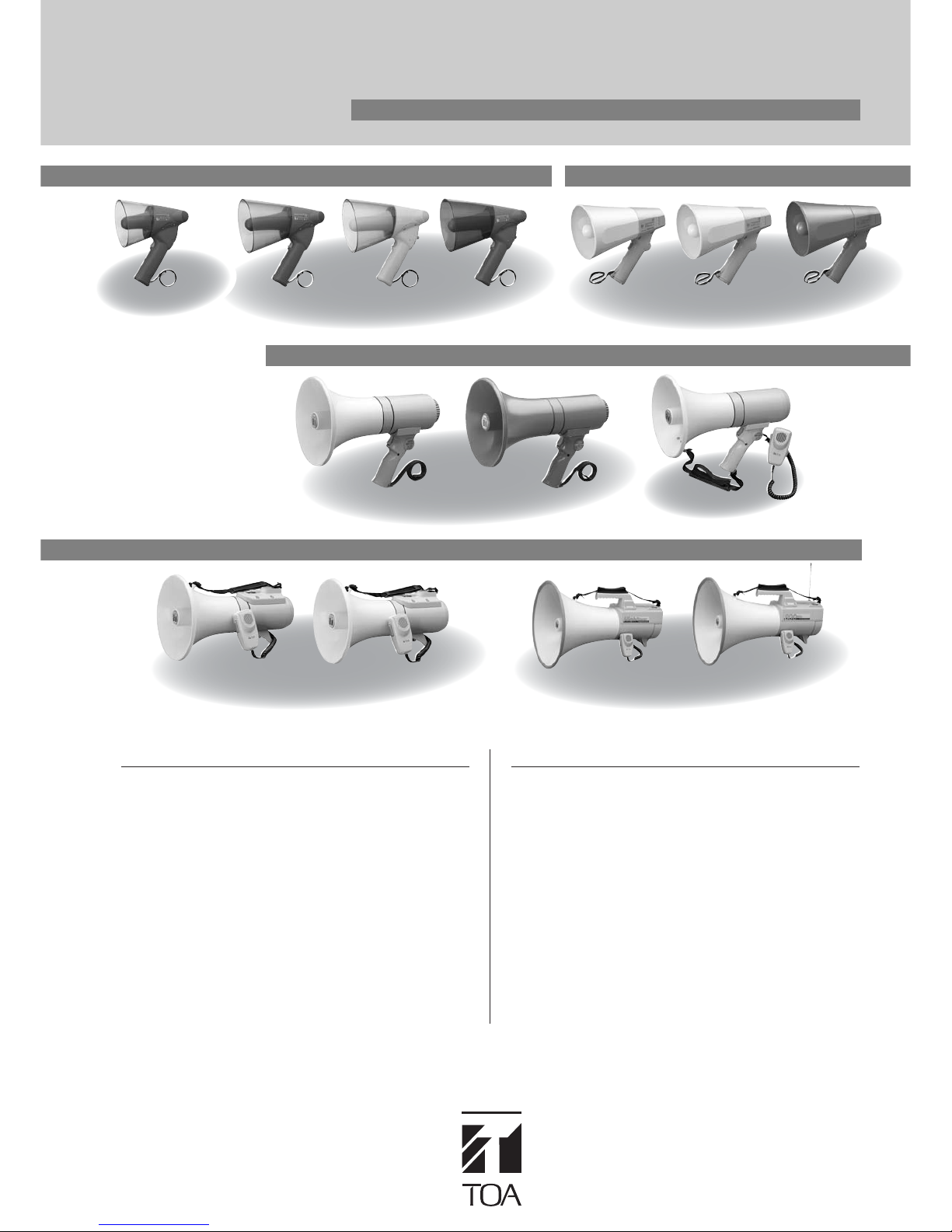

TOA portable power megaphones are available in different
configurations to meet different user needs. Every model now
has been treated for antibacterial properties to cope with use
in multi-user environments. From light and compact
configurations to high-performance shoulder-mounted types,
TOA power megaphones offer exceptional reliability and
performance. Models are available with resistance to water
and humidity, meeting ISO splash-resistance guidelines. There
are also other models for enhanced power output as well as a
choice of a whistle or siren feature. The top-of-the-line
shoulder types provide the greatest output power as well
range, also incorporating status indicators as well as AUX
input and ETX. mic input. In addition, wireless microphone
connectivity is available on one model for more flexible use.
Featuring rugged construction for speaker elements and
horns, TOA power megaphones prove ideal for voice
reinforcement in almost any situation.
Anti-bacterial treatment for all models
(mouthpiece/microphone and handle)
Long-lasting battery life
High durability ABS or ASA resin construction
Compact and lightweight
Wide frequency range for enhanced audio quality
Neodymium magnets for high audio performance
Polyimide speaker diaphragms
Extended audible range
Wireless Function (ER-2930W only)
ER-1203
ER-1215 ER-1215S ER-3215
ER-2215 ER-2215W ER-2230W ER-2930W
ER-1206 ER-1206W ER-1206S ER-520 ER-520S ER-520W
Anti-bacteria Treatment
Splash-proof Hand Grip Type Megaphone Compact Hand Grip Type Megaphone
Hand Grip Type Megaphone
Shoulder Type Megaphone

Splash-proof Hand Grip Type Megaphone
ø137 210
Approx. 600
257.8
Unit: mm
ER-1203
The ER-1203 is a compact splash-proof megaphone rated at 3W
output and features IPX5 water-jet-resistant designs.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
ER-1206W
(with Whistle signal)
The ER-1206W is a compact splash-proof megaphone rated at 6W
output featuring a built-in whistle. It features IPX5 water-jet-resistant
designs. A whistle tone can be used for attracting attention. It operates
with 6 R6P batteries, or 4 R6P batteries when the battery spacer
(accessory) is used. Handle and microphone with anti-bacteria
treatment improve hygiene and safety during use.
ER-1206
The ER-1206 is a compact splash-proof megaphone rated at 6W
output and features IPX5 water-jet-resistant designs. It operates with 6
R6P batteries, or 4 R6P batteries when the battery spacer (accessory)
is used. Handle and microphone with anti-bacteria treatment improve
hygiene and safety during use.
ø154 250
266
Approx. 600
Unit: mm
ER-1206S
(with Siren signal)
The ER-1206S is a compact splash-proof megaphone rated at 6W
output featuring a built-in siren. It features IPX5 water-jet-resistant
designs. A whistle tone can be used for attracting attention. It operates
with 6 R6P batteries, or 4 R6P batteries when the battery spacer
(accessory) is used. Handle and microphone with anti-bacteria
treatment improve hygiene and safety during use.
ø154 250
266
Approx. 600
Unit: mm
ø154 250
266
Approx. 600
Unit: mm

Hand Grip Type Megaphone
ø210 346
291
ø91
Approx. 500
Unit: mm
ø210 346
291
ø91
Approx. 500
Unit: mm
ø210
381
45 52
291
100
Curled cord length: 340 mm
(Max. 1700 mm)
1000 mm in length
Unit: mm
ER-1215
The ER-1215 is an easy-to-operate, hand grip type megaphone rated
at 15W output.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
ER-1215S
(with Siren signal)
The ER-1215S is a hand grip type, 15W output megaphone with siren.
Pressing the siren button sounds a siren continuously in emergency
conditions.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
ER-3215
The ER-1215S is an easy-to-operate, hand grip type
15W megaphone.
It can be used as a shoulder-type megaphone when, the microphone
is detached.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
OPTIONS
SP-1100
Wall Mounting Bracket
for ER-1203, ER-1206, ER-1206W, ER-1206S.
ST-16
Microphone Stand
for ER-2215, ER-2215W, ER-2230W,
ER-2930W.

Shoulder Type Megaphone
336
52
ø210
ø92
100
Curled cord length:
400 mm
(Max. 1800 mm)
1000 mm in length
Spacer
(supplied with ST-16)
ST-16
(option)
Whistle switch
Unit: mm
336
52
ø210
ø92
100
Curled cord length:
400 mm
(Max. 1800 mm)
1000 mm in length
Spacer
(supplied with ST-16)
ST-16
(option)
Whistle switch
Unit: mm
52
136.568
100 95
400 mm
(1800 mm in length)
ST-16*
(option)
512
ø351
1000 mm in length
* The spacer supplied with
the ST-16 is not used.
Unit: mm
52
136.568
100 95
400 mm
(1800 mm in length)
ST-16*
(option)
512
ø351
1000 mm in length
* The spacer supplied with
the ST-16 is not used.
Unit: mm

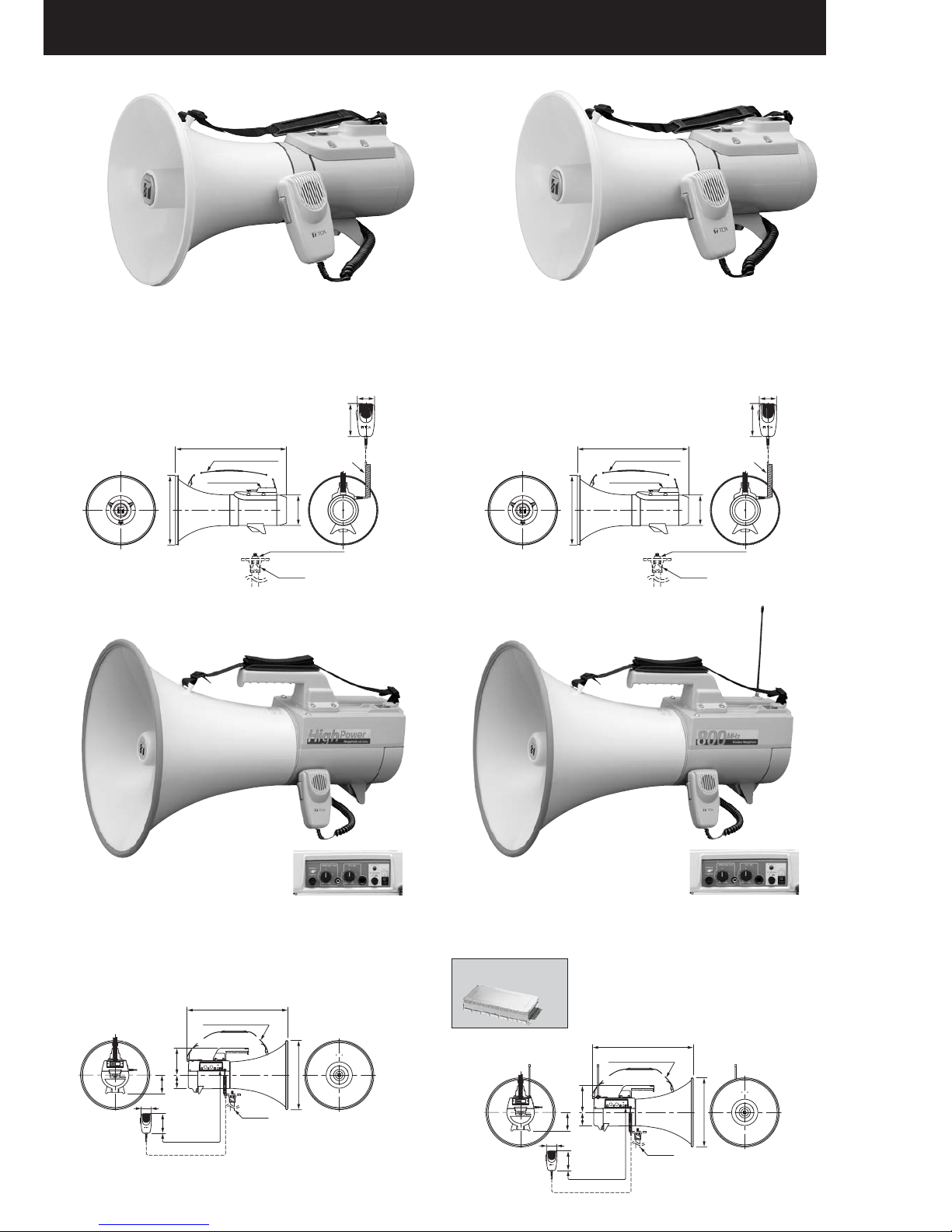

ER-2215
The ER-2215 is an easy-to-operate, shoulder megaphone rated at
15W of output and having a separate microphone.
It can be mounted to the optional ST-16 speaker stand.
Microphone with anti-bacteria treatment improve hygiene and safety
during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
ER-2215W
(with Whistle signal)
The ER-2215W is a shoulder megaphone rated at 15W output. The
ER-2215W comes with a whistle and has a separate microphone.
It can be mounted to the optional ST-16 speaker stand.
Microphone with anti-bacteria treatment improve hygiene and safety
during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
ER-2230W
(with Whistle signal)
The ER-2230W is a shoulder megaphone having an EXT. mic input,
AUX input, DC power input, battery meter and whistle function. It can
be mounted to the optional ST-16 speaker stand.
Its microphone assembly is germ-resistant treated.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
ER-2930W
(with Whistle signal)
The ER-2930W is a shoulder megaphone having an EXT. mic input,
AUX input, DC power input, battery meter and whistle function. It can
be mounted to the optional ST-16 speaker stand.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
Its microphone assembly is germ-resistant
treated.
The newly developed polyimide diaphragm
is employed to ensure high sound quality.
A wireless function is also provided.
Control panel
Control panel
Optional Wirless Tuner unit
UHF: WTU-4800
VHF: WTU-3800

Compact Hand Grip Type Megaphone
ER-520
Small in size and light in weight, the ER-520 megaphone can be easily
carried by a single hand.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
The newly developed polyimide diaphragm is employed to ensure high
sound quality.
ER-520W
(with Whistle signal)
Small in size and light in weight, the ER-520W megaphone can be
easily carried by a single hand. It can also provide a whistle tone.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
160 260
150
256
Unit: mm
160 260
150
256
Unit: mm
ER-520S
(with Siren signal)
Small in size and light in weight, the ER-520S megaphone can be
easily carried by a single hand. It can also provide a siren tone.
Handle and microphone with anti-bacteria treatment improve hygiene
and safety during use.
The newly developed polyimide diaphragm is employed to ensure
high sound quality.
160 260
150
256
Unit: mm
Voice Whistle Siren
ER-520
ER-520W
ER-520S
ER-1215
ER-1215S
0 250 500 750 1000m
ER-2215
ER-2215W
ER-3215
ER-2930W
ER-2230W
0 250 500 750 1000m
ER-1203
ER-1206
ER-1206W
ER-1206S
0 125 250 500 750 1000m
Audible Range

Specifications are subject to change without notice.
Printed in Japan (0506) 833- U
TOA Corporation
URL : www.toa.jp/
Power Source
Rated Output
Maximum Output
Battery Life
Audible Range
Signal Sound
Frequency Response
Magnetic Circuit
Diaphragm
Anti-bacteria Treatment
Water Protection
Operating Temperature
Finish
Dimensions
Weight
Accessory
Option
ER-1203 ER-1206 ER-1206W ER-1206S
R6P (AA) ×4 (6V DC) R6P (AA) ×6 (9V DC) or R6P (AA) ×4 with battery spacer (6V DC)
3W 6W
4W 10W
Approx. 8 hours (JEITA)*2When using six R6P batteries (JEITA)*2When using six R6P batteries (JEITA)*2When using six R6P batteries (JEITA)*2
Voice: Approx. 8 hours Voice: Approx. 8 hours, Voice: Approx. 8 hours,
—Whistle: Approx. 20 minutes Siren: Approx. 20 minutes
When using four R6P batteries (JEITA)*2When using four R6P batteries (JEITA)*2When using four R6P batteries (JEITA)*2
Voice: Approx. 5 hours Voice: Approx. 5 hours, Voice: Approx. 5 hours,
—Whistle: Approx. 10 minutes Siren: Approx. 10 minutes
Voice: Approx. 125m (JEITA)*2Voice: Approx. 250m (JEITA)*2Voice: Approx. 250m (JEITA)*2Voice: Approx. 250m (JEITA)*2
——Whistle: Approx. 315m (JEITA)*2Siren: Approx. 315m (JEITA)*2
——Whistle Siren (sounds of 5 seconds intervals)
500 – 6,000Hz (SPL –20dB) 450 – 6,000Hz (SPL –20dB)
Neodymium magnet, inner magnet type
Polyimide film (voice coil, bobbin)
Mouth and handle
IPX5
–10°C to +40°C
Horn: ASA resin, clear dark gray Horn: ASA resin, clear dark gray Horn: ASA resin, clear dark gray Horn: ASA resin, clear red
Other: ASA resin, dark gray Other: ASA resin, dark gray Other: ASA resin, yellow Other: ASA resin, red
Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black
137 (W) ×257,8 (H) ×210 (D)mm 154 (W) ×266 (H) ×250 (D)mm
610g (without batteries) 660g (without batteries) 680g (without batteries) 680g (without batteries)
—Battery spacer ×1
Wall mounting bracket for megaphone : SP-1100
Note: Batteries are optional
*
1
0dB = 1V
*
2
JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
*
3
Do not the unit in heavy rains or strong winds, or in locations where the unit is directly
exposed to water even using with the supplied splash-proof cover.
Power Source
Rated Output
Maximum Output
Battery Life
Audible Range
Signal Sound
Diaphragm
Anti-bacteria Treatment
Operating Temperature
Finish
Dimensions
Weight
ER-520 ER-520W ER-520S ER-1215 ER-1215S
R6P (AA) ×8 (12V DC) R14P (C) ×6 (9V DC)
6W 15W
10W 23W
Approx. 10 hours (JEITA)*2Voice: Approx. 10 hours (JEITA)*2Voice: Approx. 10 hours (JEITA)*2, Voice: Approx. 14 hours (JEITA)*2Voice: Approx. 14 hours (JEITA)*2,
—Whistle: Approx. 30 min (JEITA)*2Silent: Approx. 40 min (JEITA)*2—Siren: Approx. 20 min (JEITA)*2
Voice: Approx. 250m (JEITA)*2Voice: Approx. 250m (JEITA)*2, Voice: Approx. 250m (JEITA)*2Voice: Approx. 315m (JEITA)*2Voice: Approx. 315m (JEITA)*2,
—Whistle: Approx. 315m (JEITA)*2Silent: Approx. 315m (JEITA)*2—Siren: Approx. 500m (JEITA)*2
—Whistle Siren — Siren
Polyamide film (voice coil, bobbin)
Mouth and handle
–10°C to +40°C
Horn: ABS resin, light gray Horn: ABS resin, light gray Horn: ABS resin, red Horn: ABS resin, light gray Horn: ABS resin, red
Others: ABS resin, gray Others: ABS resin, gray Others: ABS resin, red Others: ABS resin, gray Others: ABS resin, red
Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black
160 (W) ×256 (H) ×260 (D)mm 210 (W) ×291 (H) ×346 (D)mm
620g (without batteries) 650g (without batteries) 650g (without batteries) 1.1kg (without batteries) 1.2kg (without batteries)
Power Source
Rated Output
Maximum Output
Battery Life
Audible Range
Signal Sound
AUX Input Sensitivity
EXT Mic Input
Receiving Frequency
Antenna
Diaphragm
Anti-bacteria Treatment
Remaining
Battery Indication
Operating Temperature
Finish
Dimensions
Weight
Accessories
Option
ER-2215 ER-2215W ER-3215 ER-2230W ER-2930W
R14P (C) ×6 (9V DC) Battery: R20P (D) x 10 (15V DC)
External Power: 12V DC Battery
15W 30W
23W 45W
Approx. 9 hours (JEITA)*2Voice: Approx. 9 hours (JEITA)*2Voice: Approx. 9 hours (JEITA)*2Voice: Approx. 17 hours (JEITA)*2
—Whistle: Approx. 20 min (JEITA)*2—Whistle: Approx. 90 min (JEITA)*2
Voice: Approx. 400m (JEITA)*2Voice: Approx. 400m (JEITA)*2, Voice: Approx. 400m (JEITA)*2Voice: Approx. 800m (JEITA)*2,
—Whistle: Approx. 500m (JEITA)*2—Whistle: Approx. 1000m (JEITA)*2
—Whistle (1,600Hz to 2,400Hz) — Whistle (1,600Hz to 2,400Hz)
——— –10dB*1(300mV), 10kΩ(ø3.5 mini jack, stereo plug acceptable), volume control
——— 600Ω, unbalanced, ø6.3 phone jack, volume control
———— UHF (800MHz band) and VHF (200MHz band)
————Fold-down flexible antenna
Polyimide film (voice coil, bobbin)
Microphone Mouth and handle Microphone
——— LED (also serves as a power indicator)
Stereo ON: Normal use, Flashing: Batteries need replacement
–10°C to +40°C
Horn: ABS resin, light gray Horn ring: Vinyl chloride, gray
Microphone and others: ABS resin, gray Horn: Aluminum, light gray, paint
Strap: Nylon, black Case top: Die-cast aluminum, gray, paint
Strap: Nylon, black, Others: ABS resin, gray
ø210 ×336mm 210 (W) x 291 (H) x 381 (D)mm ø351 x 512mm
(when attaching the microphone)
Body: 1.1kg Body: 1.2kg Body: 1.15kg 3.6kg (without microphone and batteries) 3.8kg (without microphone and batteries)
(without microphone and batteries) (without microphone and batteries) (without microphone and batteries) Microphone: 150g Microphone: 150g
Microphone: 150g Microphone: 150g Microphone: 150g
——— ø3.5 mini plug (AUX input x 1, External power supply cord (1m) x1,
Splash-proof cover x 1*3
Speaker stand: ST-16 — Speaker stand: ST-16, Speaker stand: ST-16,
Microphone: DM series Microphone: DM series
Wireless Microphone: WM-3220 series,
WM-3310 series, WM-4200 series,
WM-4300 series
Wireless tuner: WTU-3800 series,
WTU-4800 series
SPECIFICATIONS
Note on the audible range and battery life
1. The indications of the audible range and battery life are based on the JEITA Standard*
2
.
2. Audible Range presumes that the megaphone employs new batteries and is used on a quiet street.
It varies depending on such conditions as battery consumption, ambient noise, wind direction and obstacles.
3. Battery Life assumes that megaphone is used for 30 minutes a day.
