Tomahawk COACH BY COLOR User manual

ENG
MANUFACTURED BY:
Indoorcycling Group GmbH
Happurger Str. 86
90482 Nuremberg | Germany
[email protected]om
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
COACH
BY COLOR®
COMPUTER
PART NO:320-00-00009-01
ENG
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
CONTENTS
IMPORTANT PRECAUTIONS P.3
ASSEMBLY P.4
DEFINITION, TERMS AND ABBREVIATIONS P.5
TURNING THE COMPUTER ON AND OFF P.7
COACH BY COLOR® TRAINING ZONES P.8
MEDICAL DISCLAIMER P.9
KEY FUNCTIONS P.10
SETTINGS P.11

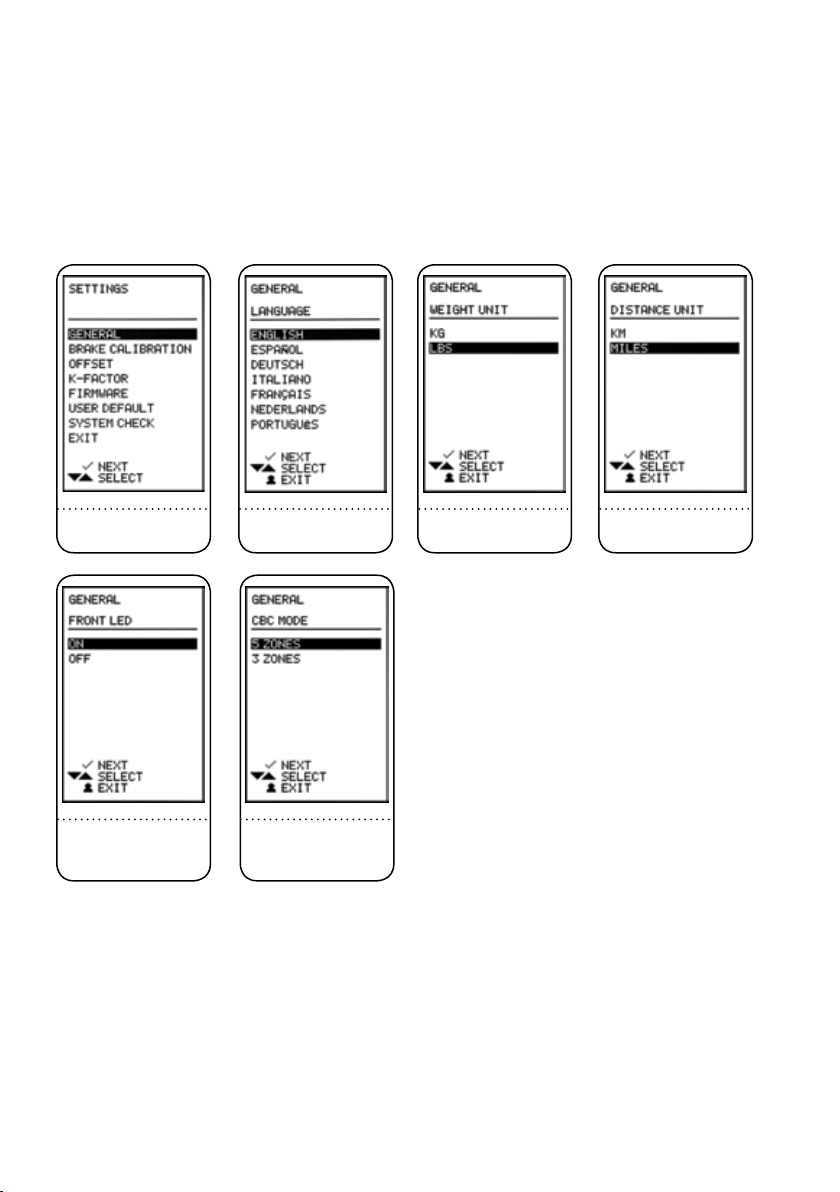

SETTINGS - GENERAL P.12
SETTINGS - BRAKE CALIBRATION P.13
SETTINGS - OFFSET P.14
SETTINGS - FIRMWARE P.15

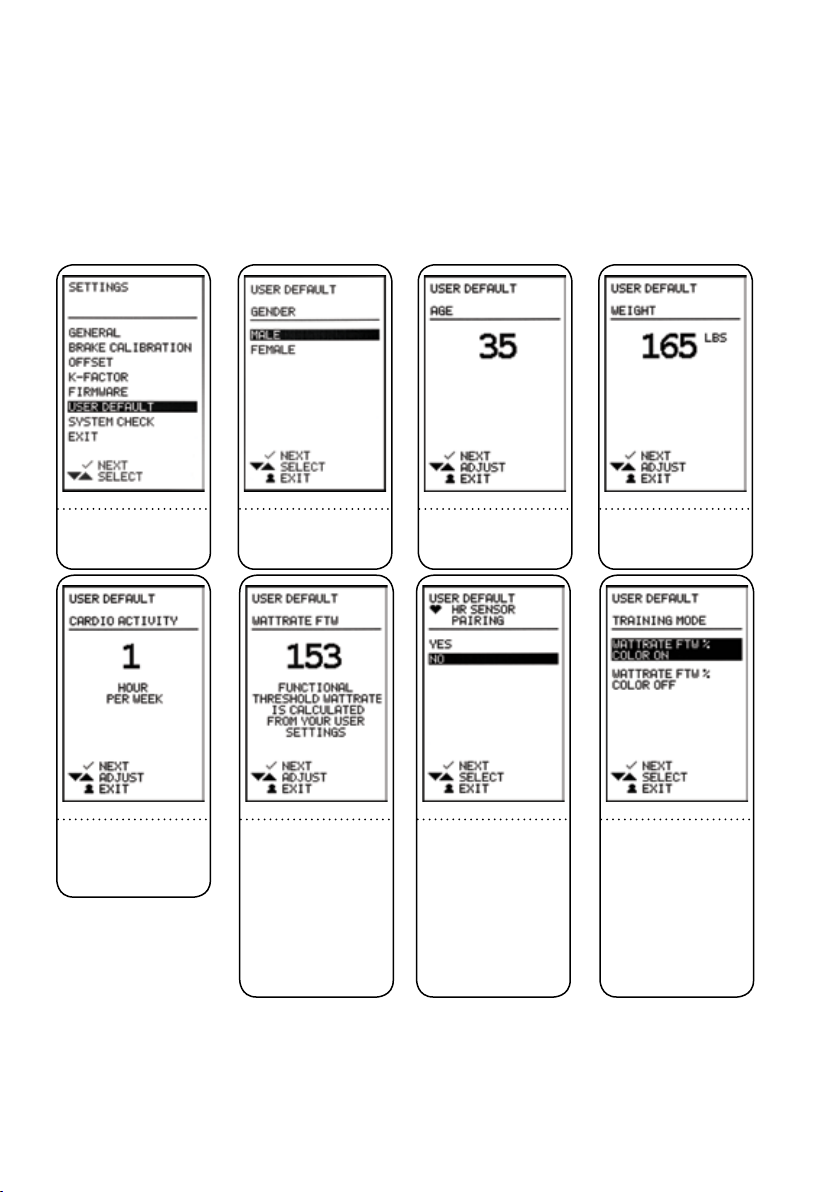

SETTINGS - USER DEFAULT P.16
SETTINGS - SYSTEM CHECK / EXIT SETTINGS P.17
FUNCTIONS P.18
TRAINING MODES P.19
QUICK-START MODE P.21
STANDARD MODE P.22
ADVANCED MODE P.25
PAUSE MODE P.31
FTW (POWER) TEST P.32
MAXIMUM DISPLAY RANGES P.34
FAQ P.37

3
ENGENG
IMPORTANT
PRECAUTIONS
WARNING!
To reduce the risk of serious injury due to improper use, carefully read and adhere to the safety
precautions and information before using the device. Please also take note of the precautions in
the Indoor Cycle Manual, with which this computer is to be used.
1. It is the responsibility of the owner to ensure that all users are informed of all warnings and
precautions for proper use, and are only authorized to use the bike independently after being
successfully briefed by a qualied trainer or instructor.
2. Keep the indoor cycle indoors, away from moisture and dust. Do not place the indoor cycle
outdoors in a garage or covered patio or near water or pools. Operating temperature of the
indoor cycle has to be between 15°C ~ 40°C Celsius (59°F~104°F) at a maximum humidity of 65%.
3. Children under the age of 14 shall only be allowed to use the indoor cycle with parental
approval and supervision of a qualied Trainer or Instructor. Use of the bike by persons over
the age of 14 only to be allowed after a qualied Trainer or Instructor briefs them. Unsupervised
children should be kept away from the training device at all times.
4. All data shown on the display, especially the Watt values generated by the integrated power
sensor, serve merely as information and to help guide training. Only exercise within your physical
limitations.
5. If you feel pain or dizziness while exercising, stop immediately. It is recommended that you
consult a doctor if the pain does not subside for an extended period of time.
CAUTION
If you have pre-existing health problems or a disability, it is recommended that you consult
your physician, in order to nd the training method which is best suited to you. Incorrect or
extensive training can result in serious health injuries. The manufacturer expressly assumes
no responsibility for health risks, personal injury, property damage or consequential damages
sustained by or through the use of this device, unless it is a case of consequential damage
which can be traced back to faulty material and/or manufacturing, and which come under the
responsibility of the manufacturer.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
Assembly
Required tool:
1x Allen key - 3 mm
1. Slide the computer into the holder as shown in picture 1.
2. Make sure that the computer is fully inserted in the bracket.
3. Feed the Allen bolt included with delivery through the holder for the handlebar
clamp and fasten the bolt“hand tight“.
ASSEMBLY
1. 2.
Please rst check the contents of the package to make sure nothing is missing.
Included with delivery
1x Coach By Color® Console
1x Holder for handlebar clamp
1x Allen bolt M4 x 25 x 0.8P, stainless steel, DIN6912
1x User manual

5
ENG
DEFINITION
TERMS & ABBREVIATIONS
Power-orientated (WattRate®) or heart rate oriented training
guidance based on individual user settings by training zones
depicted in color.
Unit of power which is calculated based on the time during which
the work is done.
The calculation is carried out using the formula:
Watts = power x speed.
With respect to cycling this means:
Watts = the pressure applied by the cyclist to the pedal
/traction x peddling frequency/cadence.
In Indoor Cycling, the power rendered is regulated using the
resistance dial. The speed is regulated by the cadence.
Direct measurement of the power rendered by the cyclist in real time.
Functional Threshold WattRate®, also termed FTW Index.
Power delivered in Watts to the functional threshold power
(FTW = 100% corresponds to the aerobic/anaerobic power threshold)
Functional Threshold WattRate® in per cent.
Information on the current power with respect to the FTW value in
per cent FTW% = (current power in Watts / FTW) x 100
Revolutions Per Minute, Cadence, pedaling frequency (PFQ),
Revolutions Per Minute (R/min)
Heart Rate
Information on the current heart rate with respect to the maximum
heart rate in percent
HR MAX % = (current HR / HR max) x 100
Beats per Minute
In this manual, this relates to the heart rate of the user.
LiPo = Lithium-Polymer battery. A rechargeable battery with a high
energy density
COACH BY COLOR® (CBC)
WATT
WATTRATE®
FTW
FTW%
RPM
HR
HR MAX %
BPM
LIPO

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
INTEGRATED ENERGY SUPPLY
The IC7 Indoor Bike is equipped with an independent energy supply by means of an integrated
generator and a rechargeable lithium polymer (LiPo) accumulator. No additional equipment in
the form of batteries is necessary to ensure that the bike’s computer is operational.
INTEGRATED ENERGY MANAGEMENT
For low pedaling frequencies under 50 RPM, the energy is supplied by a built-in LiPo accumulator.
When the cadence exceeds around 50 RPM, enough energy is generated to supply the system
with power and if necessary charge the LiPo battery.
ACCURACY OF THE POWER DISPLAY
The power values shown on the display exceed the requirements according to DIN EN 957-5 for
Class A ergometers. The accuracy with an average deviation of just ± 1 % is maintained within a
revolution range of 40 - 120 RPM and with a braking eciency of between 50 - 900 watts.
BATTERY STATUS DISPLAY
If the charge capacity of the battery has almost been depleted, a ashing battery symbol is
shown on the left side of the display.
If you pedal with a cadence of > 50 RPM for several minutes, the ashing battery symbol
disappears. It is then possible to operate the computer in battery mode for several minutes,
during which user settings can be input.
If the battery status display is active and the cadence reduces or if you brake or stop pedaling
after a short period of time, the background lighting and the front display are switched o. This
protects the battery during this operating mode.
Please note that as long as the battery status display is active, the console may be switched o
suddenly even while a key is being pressed.

7
ENG
TURNING THE
COMPUTER ON AND OFF
SWITCH ON
The computer remains in deep sleep mode while the ywheel is not moving. To switch the
computer from standby mode to operational mode, simply perform one full revolution with
the pedal. After approx. 5 seconds, the computer is then switched on and the display activated.
If the computer will not switch on after one complete revolution of the pedals, this could mean
the battery is empty. In order to charge the battery or to activate the computer, you must pedal
the bike with a cadence > 50 RPM.
You can nd further INSTRUCTIONS on a battery low status in this manual.
SWITCH OFF
The computer is automatically switched o if the wheel is not moving. The switch o period is
extended if the console is operated or if you switch to pause mode.
• The console is automatically switched o after two minutes if it is not operated and
the ywheel is not moving.
• The switch o time lasts for 10 minutes if it is in pause mode and the ywheel is not
moving.
• Each time a button is pressed, the switch o time is reset to the time interval entered
here.
COACH BY COLOR® TRAINING CONCEPT
The 5 color zones used by ICG (white, blue, green, yellow, red) can be used based on the power
(watts) of every user of the bike. The training zones are based on the current power in relation
to the individual FTW (Functional Threshold WattRate®) value. The same principle of calculating
training zones applies when using the maximum heart rate (HR max) and an analogue POLAR®-
compatible chest belt. As soon as the max HR or the individual FTW value are known, the
personal training zones can be worked out accordingly and in doing so the intensity can be
displayed by the colors during the training session based on the heart rate or watts.
Using the FTW power test (ramp test integrated into the computer), the user has the option to
monitor both current performance and progress.
CAUTION
The power test should only be carried out under the supervision and guidance of a qualied
Instructor or Trainer.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
COACH BY COLOR®
TRAINING ZONES
>150% 5-10 seconds >100%
MaximalNeuromuscular
Power
106–150% 1 - 10 minutes 91 – 100% Maximal
Anaerobic
Capacity
91 – 105% 10 - 60 minutes 81 – 90% Hard
Lactate Threshold
VO2 Max
Light56 – 75% 3 hrs - wks 61 – 70%
Endurance
76 – 90% 3 - 8 hrs 71 – 80% ModerateTempo
COACH BY COLOR® - 5 ZONES
5 COLORED ZONES
Active recovery < 55% Innity <60% Very Light
POWER %FTW TIME % HR MAX LOAD
>150% 5-10 seconds >100%
Neuromuscular
Power
106–150% 1 - 10 minutes 91 – 100% Hard
Anaerobic
Capacity
76 – 105% 10 - 60 minutes 71 – 90% ModerateLactate Threshold
Light
<75% Innity
3 hrs - wks
<60%
61 - 70%
Active recovery
Endurance
Tempo
COACH BY COLOR® - 3 ZONES
3 COLORED ZONES POWER %FTW TIME % HR MAX LOAD

9
ENG
MEDICAL
DISCLAIMER
CAUTION
The division of the training zones for power or heart rate oriented training is based on an average
person’s performance. The zones may sometimes vary dramatically depending on the nature of
the training, the state of your health (e.g. whether you are taking any medications) and your
physical capabilities. It is recommended to always work out sensible training parameters for your
own personal training under medical supervision, and to plan your personal training based on
this data.
WARNING
• Do not exercise beyond your ability.
• If you feel physical discomfort or dizziness, stop training and consult a physician.
• Color zones are for guidance only.
• If the user requires medication that has an eect on their performance capabilities
and/or cardio-vascular system, it is imperative that they consult a doctor in order to
adjust the personal entries accordingly.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com

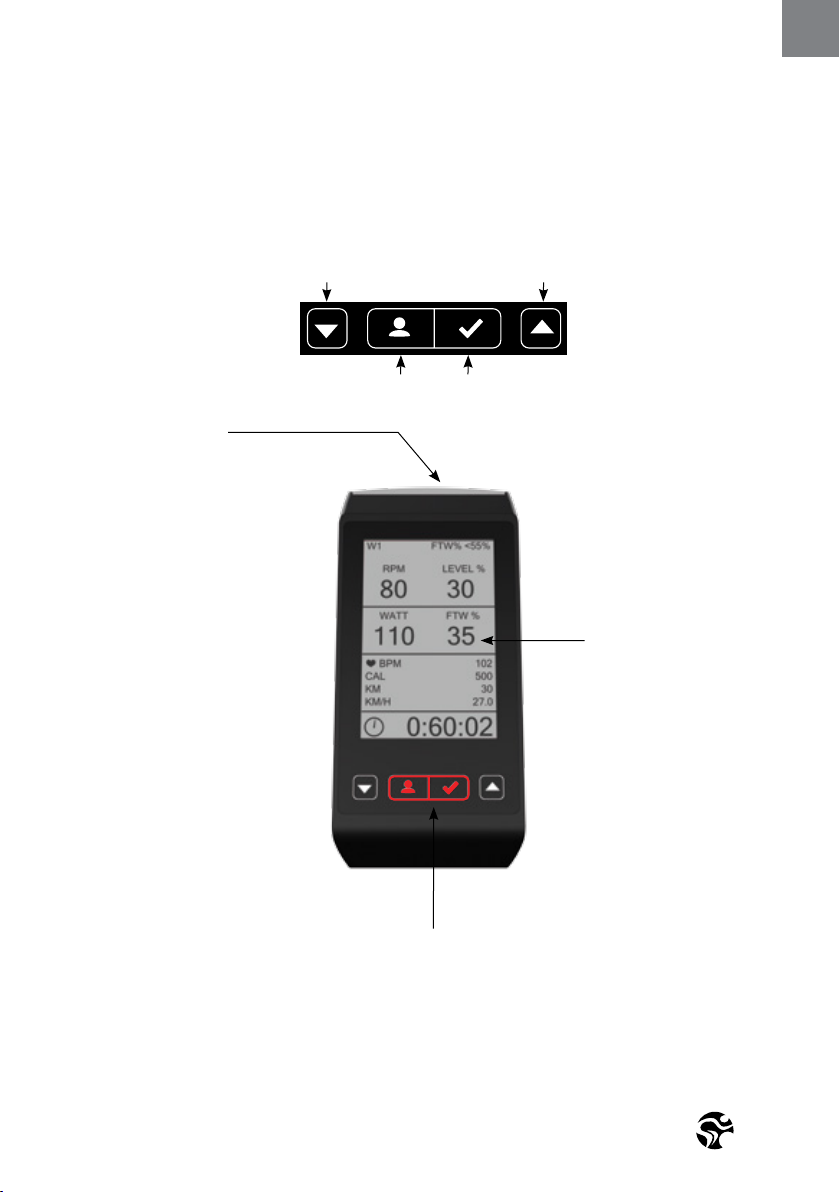

KEY FUNCTIONS
The key functions within the various modes are as follows:
Down arrow
Down arrow
Up arrow
Up arrow
User
Conrm
Down arrow
Down arrow
Up arrow
Up arrow
User
Conrm
Down arrow
Down arrow
Up arrow
Up arrow
User
Conrm
User & Conrm Press simultaneously for 3 seconds Open settings menu
User & Conrm
User & Conrm
Press
Press and hold
Press
Press and hold
Press
Press
Press
Press
Press
Press
Press and hold
Press and hold
Press
Press and hold
Press
Press
Press
Press and hold
Press simultaneously for 3 seconds
Press simultaneously for 3 seconds
Scroll down / reduce value
Reduce the value incrementally
Scroll up / increase value
Increase the value incrementally
No function / exit menu, back
Conrm entry
Scroll down / reduce value
Reduce the value incrementally
Scroll up / increase value
Increase the value incrementally
Exit settings menu
Conrm entry
Switch to previous screen
No function
Switch to next screen
No function
Open user menu
Start pause mode
Open settings menu
Exit settings menu
SETTINGS MODE
USER MODE
TRAINING MODE

11
ENG
SETTINGS
To access the settings for the computer, a special key combination must be conrmed. This
protects the settings menu from unauthorised access.
Use the arrow keys within the menu navigation to navigate up or down as well as the conrm
key to enter/conrm the relevant selection.
5-COLOR FRONT
LED LIGHTING
5-COLOR SCREEN
BACKGROUND LIGHTING
DOWN ARROW UP ARROW
USER CONFIRM
TO OPEN THE SETTINGS MENU, PRESS THE USER KEY
AND THE CONFIRM KEY AT THE SAME TIME FOR A
MINIMUM OF 3 SECONDS.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
SETTINGS
- GENERAL
SELECTING GENERAL
MENU ITEM
SWITCHING ON AND
OFF FRONT LED LIGHT
(1)
SELECTING
TRAINING ZONES
(2)
SELECTING THE
STANDARD LANGUAGE SELECTING THE WEIGHT UNIT SELECTING THE DISTANCE UNIT
INSTRUCTIONS
1. By deactivating, the user receives no color indication via the front LED during a CBC course,
and the possibilities for training guidance are therefore limited. The background lighting of the
display remains unaected by this setting.
2. Selecting the number of CBC color zones for CBC-led courses. It is recommended to train with
5 zones. The 5-zone color training has been established as an international standard and is used
by numerous manufacturers and providers of training guidance systems.

13
ENG
SETTINGS
– BRAKE CALIBRATION
SELECTING BRAKE
CALIBRATION MENU
ITEM
CALIBRATION
FAILED ERROR, PLEASE CALIBRATE
TURN THE RESISTANCE
DIAL ALL THE WAY TO
THE LEFT (MINIMIUM
POSITION)
TURN THE RESISTANCE
DIAL ALL THE WAY TO
THE RIGHT (MAXIMUM
POSITION)
CALIBRATION
SUCCESSFUL
If the values lie outside a certain range, the calibration fails and a red screen appears. Reattempt
the calibration and make sure you follow the instructions carefully. If the calibration fails again,
the resistance system must be adjusted mechanically. Please refer to technical service in this
case.
It is necessary to calibrate if:
• The level display of the resistance does not reach 0% or 100% at the end positions.
• An exclamation mark (!) is shown instead of the level as a % on the display.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
SETTINGS
– OFFSET
SELECT OFFSET IN THE
SETTINGS MENU
CADENCE DISPLAY
TURN RESISTANCE DIAL
TO THE MINIMUM
POSITION
STOP PEDALING
INSTRUCTION
PEDAL CADENCE OF
OVER 100 RPM & LET
FLYWHEEL RUNDOWN
PERFORMING
CALCULATION
CADENCE DISPLAY (NO
MOVEMENT)
OFFSET SUCCESSFUL
The Oset setting is required, if:
• Work has been carried out on the drive, e.g. adjusting the belt tension, replacing the
belt or other drive parts.
• An exclamation mark (!) is shown instead of the wattage.
If the Oset measurement fails and a red screen is displayed, please follow the instructions in
this manual.

15
ENG
SETTINGS
– OFFSET
IF WATT IS DISPLAYING AN EXCLAMATION MARK (!)
THEN CARRY OUT THE OFFSET MEASUREMENT IF YOU RECEIVE THIS ERROR MESSAGE, PLEASE REFER TO OUR TECHNICAL SERVICE ERROR CODES
SETTINGS
– K FACTOR SETTINGS – FIRMWARE
The K-Factor doesn‘t have any relevant
signicance for everyday use. It is a special
service menu for the manufacturer, and is
therefore not accessible to the user.
Firmware updates can be downloaded at
www.indoorcycling.com.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
SETTINGS
– USER DEFAULT
SELECT USER DEFAULT IN
THE SETTINGS MENU
ENTER THE HOURS
OF THE INDIVIDUAL
CARDIO ACTIVITY PER
WEEK
SELECT WHETHER YOU
WISH TO CONNECT WITH
HR SENSOR YES OR NO
SELECT WHETHER YOU
WANT COLOR OR NOT
FOR TRAINING WITH
WATTRATE
HERE, THE CALCULATED
FTW INDEX IS
DISPLAYED USING THE
PREVIOUSLY ENTERED
USER SETTINGS.
ALTERNATIVELY, YOU
CAN ADJUST THIS VALUE
TO YOUR INDIVIDUAL
FTW INDEX.
SELECT GENDER ENTER AGE ENTER WEIGHT
PLEASE NOTE:
If you want to change the basic settings individually, you can do this here. With the next entry
of user settings in standard or advanced mode, the individually adjusted values are used
here. Respective adjustments can also be made to these values in the user menu. The values
highlighted or specied in the diagrams above represent the basic default factory settings.
(Recommendation: Only adjust for private use)

17
ENG
SETTINGS
- SYSTEM CHECK
SETTINGS
- EXIT
The System Check serves as a means of diagnosing errors for the Technical Service Team.
If errors should occur in the electronics, it is recommended to carry out the System Check. If
error messages (error codes) are shown on the display, these can be reset by pressing down the
conrm button for 2 seconds. After resetting the error message, the system is checked again.
If the error messages (error codes) are displayed again, please pass them onto the Technical
Service Team.
Exits the settings menus and returns to training mode.

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
FUNCTIONS
AVAILABLE TRAINING MODES
You can train in three dierent modes:
• Quick Start: Quick start, without entering any user settings.
• Standard Mode: Quick entry of basic user settings, no heart rate.
• Advanced Mode: Detailed entry of user settings including index values
(for FTW and max HR) as well as optional connection to a
POLAR®-compatible chest belt.
DISPLAYING THE SELECTED TRAINING MODE
So that you know which training mode you‘re currently in at all times, an abbreviation is
displayed representing the respective mode in the top left hand corner of the display.
COACH BY COLOR® - OPTIONS
The Coach By Color® function enables a color controlled workout. Coach By Color® training is
only possible after entering the user settings, i.e. it is only available in standard and advanced
training mode.
• Quick-Start: D1–D2
• Standard Mode: W1–W3 (W4*)
• Advanced Mode (Wattrate): W1–W3 (W4*)
• Advanced Mode (Heart Rate): H1–H3 (H4*)
*Views W4 and H4 are only displayed in
Pause Mode after selecting summary.
In the advanced training mode, it is possible to carry out Coach By
Color® training guidance based on watts or heart rate. A function
can also be selected here, which deactivates the color display of the
training zones during training (e.g. to protect the private sphere). All
training values continue to be displayed on the screen.
PLEASE NOTE
If you have selected the “OFF“ option under Settings > FRONT LED,
Coach By Color® is only displayed with the background lighting.

19
ENG
TRAINING MODES
AVAILABLE VALUES IN THE VARIOUS TRAINING MODES
In the table below, you can gain an overview of all available values which are displayed in the
various training modes.
• To display the heart rate, a chest belt must be linked or connected in advanced
training mode (Optional 1).
• The Coach By Color® computer has an integrated POLAR® chip which can receive
analogue signals in the 5,5 kHz range.
• You can switch between the dierent screen views using the arrow keys
during the workout.
RPM
TRAINING MODE
LEVEL%
WAT T
FTW %
HR
KCAL
KM/MILES
TIME
SCREEN 1
SCREEN 2
SCREEN 3
SCREEN 4
PAUSE FUNCTION
COACH BY COLOR®
(WATTRATE®)
COACH BY COLOR®
(HEART RATE)
ADJUSTING THE
INDIVIDUAL FTW
VALUE
ADJUSTING THE
INDIVIDUAL MAXIMUM
HEART RATE
X X X
X X X
X X X
X X
X X X
X X X
X X X
X X X
X X X
X X
X X
X
X
X X X
QUICK-START
(D1–D2)
- - -
- - - - - -
- - -
- - -
- - - - - -
- - - - - -
- - - - - -
- - - - - -
OPTIONAL (1)
OPTIONAL (1)
OPTIONAL (1)
STANDARD
(W1–W3) ADVANCED (W1–W3 / H1–H3)

Version 1.0 Coach By Color Computer | Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling. com
TRAINING MODES
Here is an overview of the screen displays, with a chest harness connected in Advanced Mode.
QUICK-START STANDARD ADVANCED WATTS ADVANCED HR
SCREEN 1SCREEN 2SCREEN 3SCREEN 4
