Toro PowerPlex 51880 User manual

FormNo.3417-970RevC
PowerPlex™14in40VMAX
Chainsaw
ModelNo.51880—SerialNo.318000001andUp
ModelNo.51880T—SerialNo.318000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3417-970*C

Ifyouhavequestionsor
problems,calltollfree
1-855-340-7689before
returningthisproduct.
WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemical
orchemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orreproductiveharm.
Introduction
Thischainsawisdesignedforcuttingtreebranches,
logs,andwoodenbeamsofadiameternolongerthan
thecuttinglengthoftheguidebar.Itistobeused
onlybyadults.Itisdesignedtouseonlybatterypack
Model88540(providedwithModel51880)orModel
88541.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
YoumaycontactT orodirectlyatwww.Toro.comfor
productandaccessoryinformation,helpndinga
dealer,completewarrantydetails,ortoregisteryour
product.
Model51880Tdoesnotincludeabatterypackor
acharger.
Safety
Whenusingelectricpowertools,basicsafety
precautionsshouldalwaysbefollowedtoreduce
theriskofre,electricshock,andpersonalinjury,
includingthefollowing:
WARNING
Failuretofollowallwarningsandinstructions
mayresultinelectricshock,reand/or
seriouspersonalinjury.
Readallsafetywarningsandallinstructions.
Saveallwarningsandinstructionsforfuture
reference.
Theterm“powertool”inallthewarningsrefersto
yourcordedpowertoolorbattery-operated(cordless)
powertool.
1.Workareasafety
A.Keepworkareacleanandwelllit.
Clutteredordarkareasinviteaccidents.
B.Donotoperatepowertoolsinexplosive
atmospheres,suchasinthepresence
ofammableliquids,gasses,ordust.
Powertoolscreatesparks,whichmayignite
thedustorfumes.
C.Keepchildrenandbystandersaway
whileoperatingapowertool.Distractions
cancauseyoutolosecontrol.
2.Personalsafety
A.Stayalert,watchwhatyouaredoing,
andusecommonsensewhenoperating
apowertool.Donotuseapowertool
whileyouaretiredorundertheinuence
ofdrugs,alcohol,ormedication.A
momentofinattentionwhileoperatingpower
toolscouldresultinseriouspersonalinjury.
B.Usepersonalprotectiveequipment.
Alwaysweareyeprotection.Protective
equipmentsuchasadustmask,non-skid
safetyshoes,hardhat,orhearingprotection
usedforappropriateconditionsreduces
personalinjuries.
C.Preventunintentionalstarting.Ensure
thattheswitchisintheOFFposition
beforeyouconnectthetooltoapower
sourceand/orbatterypack,pickitup,
orcarryit.Carryingpowertoolswith
yourngerontheswitchorenergizing
powertoolsthathavetheswitchoninvites
accidents.
D.Removeanyadjustingkeyorwrench
beforeturningthepowertoolon.A
©2018—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedinChina
AllRightsReserved

wrenchorakeyleftattachedtothepower
toolmayresultinpersonalinjury.
E.Donotoverreach.Keepproper
footingandbalanceatalltimes.This
enablesbettercontrolofthepowertoolin
unexpectedsituations.
F.Dressproperly.Donotwearloose
clothingorjewelry.Tiebackandkeep
yourhair,clothing,andglovesaway
frommovingparts.Looseclothes,jewelry,
orlonghaircangetcaughtinmovingparts.
G.Ifdevicesareprovidedforthedust
extractionandcollection,ensurethat
theseareconnectedandproperly
used.Usingthesedevicescanreduce
dust-relatedhazards.
H.Keepyourhandsandfeetawayfromthe
cuttingarea.
3.Powertooluseandcare
A.Donotforcethepowertool.Usethe
correctpowertoolforyourapplication.
Thecorrectpowertoolwilldothejob
betterandsaferattherateforwhichitwas
designed.
B.Donotusethepowertooliftheswitch
doesnotturnitonandoff.Anypowertool
thatcannotbecontrolledwiththeswitchis
dangerousandmustberepaired.
C.Disconnecttheplugfromthepower
sourceand/orthebatterypackfromthe
powertoolbeforeadjustingit,changing
accessoriesonit,orstoringit.Such
preventivesafetymeasuresreducetherisk
ofstartingthepowertoolaccidentally.
D.Storeidlepowertoolsoutofthereach
ofchildren,anddonotallowpersons
unfamiliarwiththepowertoolorthese
instructionstooperatethepowertool.
Powertoolsaredangerousinthehandsof
untrainedusers.
E.Storeidleappliancesindoors.Whennot
inuse,appliancesshouldbestoredindoors
inadryandhighorlocked-upplace,outof
thereachofchildren.
F.Maintainpowertools.Checkfor
misalignmentorbindingofmoving
parts,brokenparts,andanyother
conditionthatmayaffecttheoperation
ofthepowertools.Ifdamaged,havethe
powertoolrepairedbeforeuse.Many
accidentsarecausedbypoorlymaintained
powertools.
G.Keepcuttingtoolssharpandclean.
Properlymaintainedcuttingtoolswithsharp
cuttingedgesarelesslikelytobindandare
easiertocontrol.
H.Usethepowertool,accessories,
toolbits,etc.inaccordancewith
theseinstructionsandinthemanner
intendedfortheparticulartypeofpower
tool,takingintoaccounttheworking
conditionsandtheworktobeperformed.
Usingthepowertoolforoperationsdifferent
fromthoseintendedcouldresultina
hazardoussituation.
I.Keepguardsinplaceandinworking
order.
J.Useonlyreplacementguidebarsand
chainsspeciedbythemanufacturer.
Incorrectreplacementguidebarsand
chainsmaycausechainbreakageand/or
kickback.
K.Followthemanufacturer’ssharpening
andmaintenanceinstructionsforthe
sawchain.Decreasingthedepthgauge
heightcanleadtoincreasedkickback.
4.ChainSawSafety
A.Holdthepowertoolbyinsulatedgripping
surfacesonly,becausethesawchain
maycontacthiddenwiringoritsown
cord.Sawchainscontactingalivewiremay
makeexposedmetalpartsofthepowertool
liveandcouldgiveyouanelectricshock.
B.Wearsafetyglasses,hearingprotection,
andprotectiveequipmentforyourhead,
hands,legs,andfeet.Wearingadequate
protectiveclothingreducespersonalinjury
byyingdebrisoraccidentalcontactwith
thesawchain.
C.Cuttingtreescanbehazardousand
requiresexpertise.Donotusethechain
sawtofelllargetreesthathaveadiameter
greaterthanthelengthoftheguidebar.
D.Donotoperateachainsawinatree.
Operatingachainsawwhileupinatree
mayresultinpersonalinjury.
E.Alwayskeepproperfootingandoperate
thechainsawonlywhenstandingona
xed,secure,andlevelsurface.Slippery
orunstablesurfacessuchasladdersmay
causealossofbalanceorcontrolofthe
chainsaw.
F.Whencuttingalimbthatisunder
tension,bealertforspringback.When
thetensioninthewoodberisreleased,the
springloadedlimbmaystrikeyouand/or
throwthechainsawoutofcontrol.
3

G.Useextremecautionwhencuttingbrush
andsaplings.Theslendermaterialmay
catchthesawchainandbewhippedtoward
youorpullyouoffbalance.
H.Carrythechainsawbythefronthandle
withthechainsawswitchedoffand
awayfromyourbody.Whentransporting
orstoringthechainsaw,alwaysuse
theguidebarcover.Properhandlingof
thechainsawreducesthelikelihoodof
accidentalcontactwiththemovingsaw
chain.
I.Followtheinstructionsforlubricating,
chaintensioning,andchanging
accessories.Improperlytensionedor
lubricatedchainmayeitherbreakor
increasethechanceforkickback.
J.Keephandlesdry,clean,andfreefrom
oilandgrease.Greasy,oilyhandlesare
slippery,causinglossofcontrol.
K.Avoidkickback.Kickbackmayoccurwhen
thenoseortipoftheguidebartouchesan
object,orwhenthewoodpinchesthesaw
chainwhileyouarecutting.Tipcontactmay
causeasuddenreversereaction,kicking
theguidebarupandbacktowardyou;
pinchingthesawchainalongthetopofthe
guidebarmaypushtheguidebarrapidly
backtowardyou.Eitherofthesereactions
maycauseyoutolosecontrolofthesaw,
whichcouldresultinaseriouspersonal
injury.Youcanavoidkickbackbytaking
properprecautionsasgivenbelow:
•Usebothhandswheneveryou
operatethechainsaw.Maintaina
rmgrip,withthumbsandngers
encirclingthechainsawhandles,
withbothhandsonthesaw,andwith
yourbodyandarminpositionthat
allowsyoutoresistkickbackforces.
Youcancontrolkickbackforcesifproper
precautionsaretaken.Donotletgoof
thechainsaw!
•Donotoverreachanddonotcut
aboveshoulderheight.Thishelps
preventunintendedtipcontactand
enablesbettercontrolofthechainsaw
inunexpectedsituations.
5.Service
Haveyourpowertoolservicedbya
qualiedrepairpersonusingonlyidentical
replacementparts.Thisensuresthatthesafety
ofthepowertoolismaintained.
6.BatterySafety
A.Donotchargethepowertoolinrainorin
wetlocations.
B.Donotuseabattery-operatedpowertool
intherain.
C.Useonlythefollowingtypeandsizeof
battery(ies):TorobatteryModel88540or
88541andbatterychargerModel88542.
D.Removeordisconnectthebatterybefore
servicing,cleaning,orremovingmaterial
fromthepowertool.
E.Donotdisposeofthebatteryinare;the
cellmayexplode.Checkwithlocalcodes
forpossiblespecialdisposalinstructions.
F.Donotopenormutilatethebattery.
Releasedelectrolyteiscorrosiveandmay
causedamagetotheeyesorskin.Itmay
betoxicifswallowed.
G.Donotopenormutilatethebattery.
Releasedelectrolyteisammableandcan
causedamageifexposedtore.
H.Exercisecareinhandlingbatteriesto
preventshortingthebatterywithconducting
materialssuchasrings,bracelets,andkeys.
Thebatteryorconductormayoverheatand
causeburns.
I.Chargingtimeincreasesifthebattery
packisnotchargedwithintheappropriate
temperaturerange.
SAVETHESEINSTRUCTIONS
4

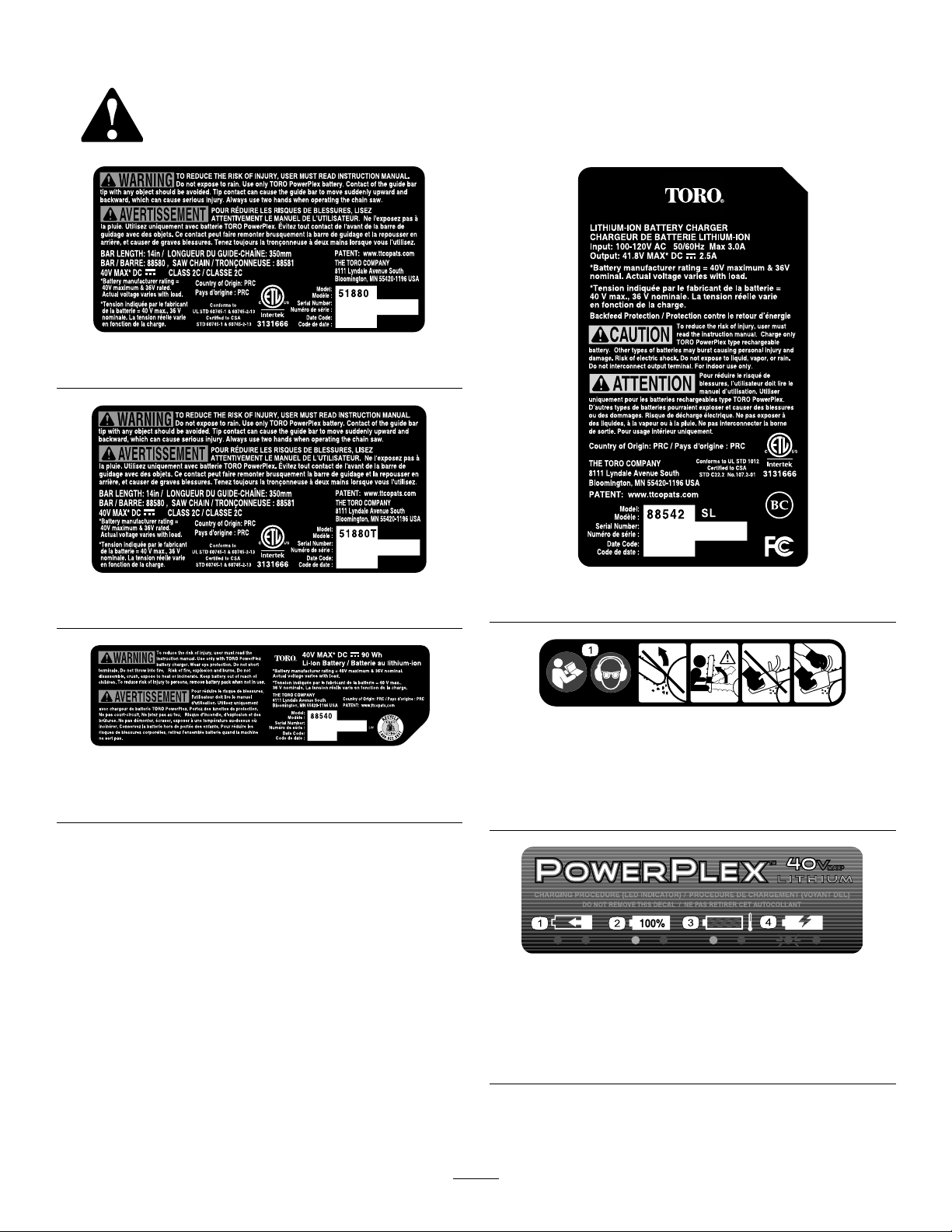

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal136-2469
136-2469
decal136-2470
136-2470
decal136-2471
136-2471
Model88540
decal136-2473
136-2473
decal136-2475
136-2475
1.ReadtheOperator’sManual;wearhearingandeye
protection;donotcontactobjectswiththeguidebartip;tip
contactcancauseseriouspersonalinjury;alwaysuse2
handswhenoperatingthechainsaw.
decal136-2476
136-2476
1.Thebatterypackis
charging.
3.Thebatterypackistoo
warm.
2.Thebatterypackisfully
charged.
4.Replacethebatterypack.
5

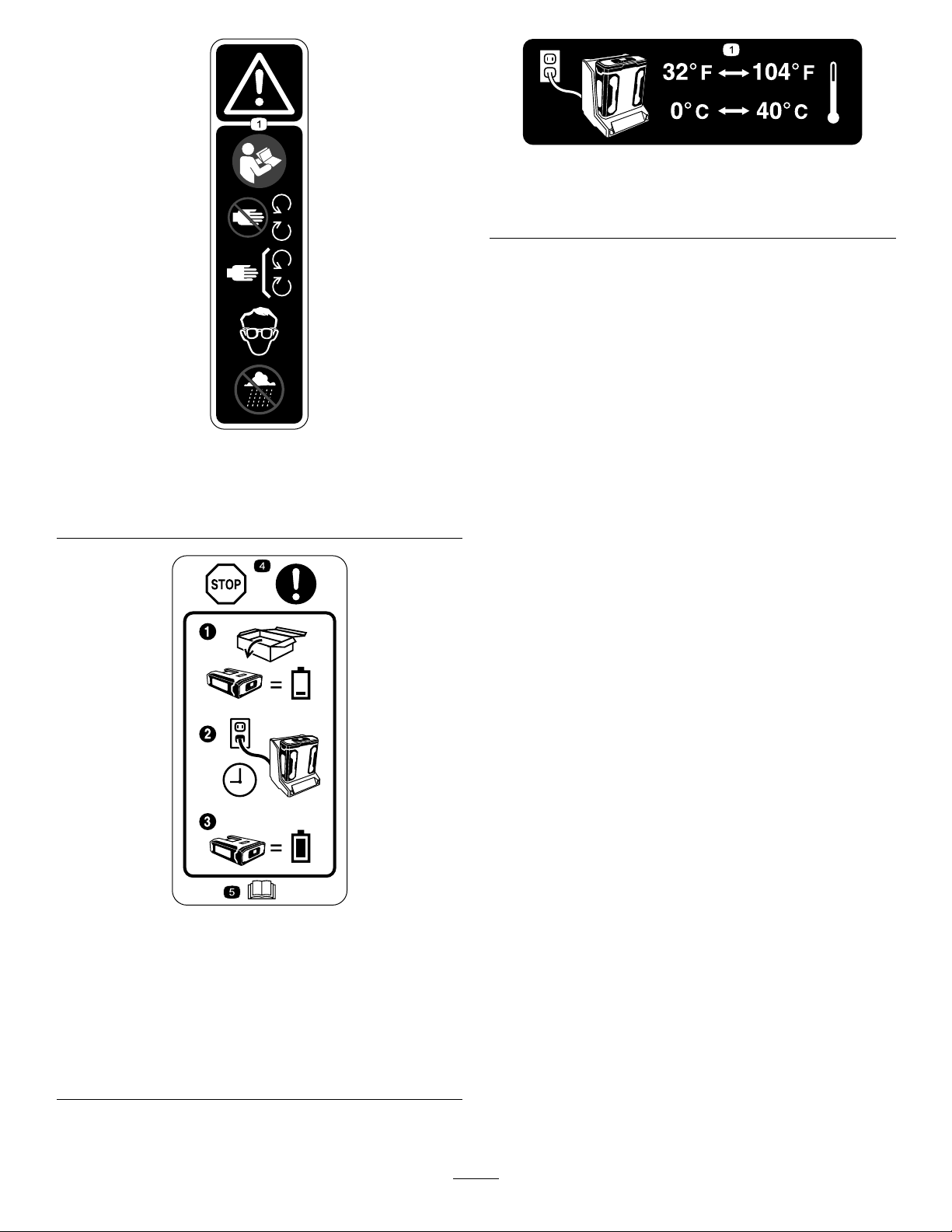

decal136-2533
136-2533
1.Warning—readtheOperator’sManual;keepawayfrom
movingparts;keepallguardsandcoversinplace;wear
eyeprotection;donotoperateinwetconditions.
decal136-2534
136-2534
1.Thebatterydoesnot
comeoutoftheboxfully
charged.
4.Stop—followthese
instructionsbeforerst
use.
2.Placethebatteryinthe
batterycharger.
5.ReadtheOperator’s
Manual.
3.Waituntilthebatteryis
fullychargedbeforethe
rstuse.
decal136-2539
136–2539
1.Chargethebatterywherethetemperatureisbetween0°C
and40°C(32°Fand104°F).
6

Setup
Note:Thebatterypackisnotfullychargedwhenyou
purchaseit.Beforeusingthetoolforthersttime,
refertoChargingtheBatteryPack(page14).
FillingtheChainSawwith
BarandChainOil
Important:Useonlybarandchainoil(sold
separately).
1.Placethechainsawonalevelsurface.
2.Cleantheareaaroundtheoilcap(Figure1).
Note:Makesurethatyoudonotallow
debris/woodchipstoentertheoiltank.
g192110
Figure1
1.Oilcap2.Oilwindow
3.Removethecapandpouroilintothechainsaw
untiltheoilllsthewindow(Figure1).
Donotllthechainsawhigherthanthebottom
ofthellneck.
4.Cleanupanyspilledoilandreplacetheoilcap.
MountingtheBattery
Charger(Optional)
Ifdesired,mountthebatterychargersecurelyona
wallusingthewall-mountkeyholesonthebackof
thecharger.
Mountitindoors(suchasagarageorotherdryplace),
nearapoweroutlet,andoutofthereachofchildren.
RefertoFigure2forassistanceinmountingthe
charger.
Note:Slideandtwistthechargeroverthe
appropriatelypositionedhardwaretosecurethe
chargerinplace(hardwarenotincluded).
g194202
Figure2
7

ProductOverview
g192115
Figure3
LeftSideofChainSaw
1.Chain6.Batterypack
2.Guidebar7.Triggerlock
3.Oilwindow8.Trigger(onrearhandle)
4.Oilcap9.Guidebarcover
5.Fronthandle
g192114
Figure4
RightSideofChainSaw
1.Chainbrake3.Wingnut
2.Chaintensioningknob
Specications
AppropriateTemperatureRanges
Chargethebatteryat0°C(32°F)to40°C(104°F)*
Useproductsat-15°C(5°F)to60°C(140°F)
Storeproductsat-15°C(5°F)to60°C(140°F)
UnplugthechargerifBelow0°C(32°F)orabove
40°C(104°F)
*Chargingtimewillincreaseifyoudonotchargethe
batterywithinthisrange.
Storethetool,batterypack,andbatterychargerinan
enclosedclean,dryarea.
Operation
BeforeUsingtheChainSaw
Beforeusingthechainsaw,dothefollowing:
•Checkthechaintension;refertoAdjustingthe
ChainT ension(page17).
•Cleanandcheckthechaincomponentsfor
excessivewearordamageandreplacethemas
needed;refertoServicingtheGuideBar,Chain,
andDriveSprocket(page17)andSharpeningthe
Chain(page19).
•Checktheoillevel;refertoCheckingtheOilLevel
andAddingBarandChainOil(page16).
•Checkthechainbrake;refertoCheckingthe
ChainBrake(page16).
StartingtheChainSaw
1.Makesurethattheventsonthechainsaw
(Figure5andFigure6)arefreefromdustand
debris.
g197204
Figure5
1.Vent
g197205
Figure6
1.Vent(insidethebattery
cavity)
2.Vent
8

2.Setthechainsawdownonalevelsurface.
3.Alignthetongueofthebatterypackwiththe
batterycavityinthechainsaw(Figure7).
g228731
Figure7
4.Pushthebatterypackintothebatterycavityuntil
thebatterypacklocksintoplace.
5.Removetheprotectivecoverfromthechain.
6.EnsurethatthechainbrakeisintheOPERATING
position(Figure8).
g192111
Figure8
1.Chainbrake(OPERATING
position)
2.Chainbrake(STOP
position)
7.With1handonthefronthandleandtheother
ontherearhandle,pressthetriggerlock,then
squeezethetrigger(Figure9).
g192113
Figure9
1.Fronthandle3.Triggerlock
2.Chainbrake4.Trigger
ShuttingOfftheChainSaw
Toshutoffthechainsaw,releasethetrigger.
Wheneveryouarenotusingthesaworare
transportingthesawtoorfromtheworkarea,move
thechainbraketotheSTOPposition(Figure8)and
removethebattery.
CuttingwiththeChainSaw
WARNING
Operatingachainsawimproperlycancause
seriouspersonalinjuryordeath.
Readandfollowalloperatinginstructions
carefullytoavoidpossiblepersonalinjury.
WARNING
Kickbackcancauseseriousorfatalinjuryto
you.
Alwaysensurethatthechainbrakesystem
isworkingproperlybeforeyouoperatethe
chainsaw.
Avoidtouchingobjectstobecutwiththetip
ofthechainsaw.
Thereare2typesofkickback:
•Afastupwardmotionofthechainsawthatresults
whenthechainatthenoseortopofthebar
contactsanobject
•Afastbackwardmotionofthechainsawthat
resultswhenthechainatthenoseortopofthebar
ispinchedbytheobjectbeingcut
Figure10showstheareaofthebartoavoid
contactinganobjecttopreventkickback.
g026070
Figure10
1.Gripthechainsawwith2hands,withyourleft
handonthefronthandleandyourrighthandon
therearhandleasshowninFigure11.
9

Note:Keepingyourleftarmstraightwithyour
elbowlockedhelpsreducekickback.
g204033
Figure11
2.Standtotheleftsideofthechainsawandnot
inlinewiththechain,andpositionyourselffor
balanced,stablefootingwhilesawing.
3.Standonsolid,evengroundinfrontofthewood
tobecut.
4.Whilecutting,havethewoodnearthechainsaw
head,attheexposednearendoftheguidebar.
Youcanusethebuckingteeth(Figure12)toadd
pressurebutitworksbestwithasharp-toothed
chain.
g200720
Figure12
1.Buckingteeth
5.Pressthechainsawlightlyagainstthewood,
allowingtheweightofthechainsawtodrivethe
cutting.
6.Keepsteadypressureonthechainsaw
throughoutthecut,andreleasepressureonly
neartheendofthecut.
PruningaTree
WARNING
Cuttinghigherlimbsfromatreeofftheground
canputyouinanunstablepositionthatcould
beunsafeforyouwhilehandlingachainsaw,
resultinginpossibleseriouspersonalinjury
ordeathtoyouorbystanders.
Whencuttinglimbsfromastandingtree,use
thefollowingpractices:
•Donotclimbonlimbsorbrancheswitha
chainsaw.
•Donotoverreach,andcutwithbothhands
onthechainsaw.
•Ensurethatallbystandersareawayfrom
theareawherebranchesmayfall.
1.GripthechainsawasshowninFigure11.
2.Whilecuttingsmallbranches,applylight
pressuretothebranchtobecut.
3.Whilecuttinglargerbranches,makeashallow
undercutandthencompletethecutfromthe
topsideofthebranch.
A.Cutfromtheundersideofthelimbabout15
cm(6inches)fromthetrunk.Cutathirdof
thewaythroughthelimb.
B.Cut5.0to10.0cm(2to4inches)farther
outonthelimbandfromabove.Cutthe
limbuntilitfalls.
C.Cutaboutathirdofthediameterofthelimb
stubfromunderneathasclosetothetrunk
aspossible.
D.Cutthelimbstubfromabovesothatit
meetsthepreviouscutasclosetothetrunk
aspossible.
FellingaTree
WARNING
Cuttingstandingtreesrequiresexpertiseand
poseshazards.
•Beforeattemptingtocutabigtree,practice
cuttingafewbranches,limbs,orsmalllogs
tofamiliarizeyourselfwiththechainsaw.
•Donotusethischainsawtofelllargetrees
withadiameterlargerthanthelengthof
theguidebar.

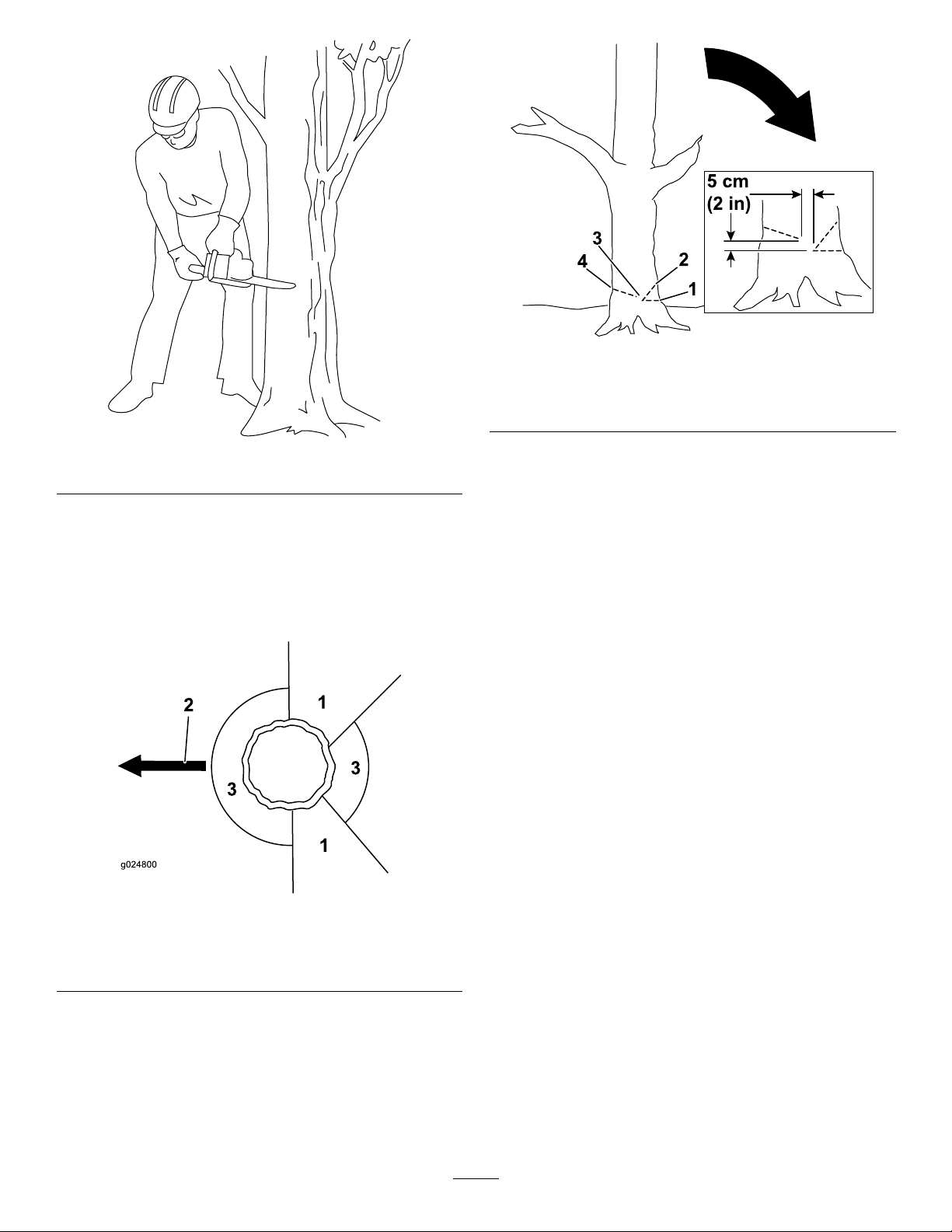

Theproperoperatorstanceforfellingatreeisshown
inFigure13.
10

g195831
Figure13
1.Determinethedirectionthatthetreewillfall.
Considerthewinddirection,ifthereareheavier
limbson1sideofthetree,andthenaturaltilt
ofthetree,ifany.
2.Determineaclear,saferetreatpathawayfrom
thedangerarea;refertoFigure14.
g024800
Figure14
1.Retreatpath3.Dangerarea
2.45degreeangle
3.Gripthechainsawasshownin(Figure11).
4.Maketherstcutathirdofthewaythroughthe
treediameteronthesidewhereyouwantthe
treetofall(Figure15).
Note:Makingthiscutpreventsthechainsaw
frombeingpinchedwhilemakingthenextcut.
g228707
Figure15
1.Firstcut3.Hinge
2.Secondcut4.Backcut
5.Makeasecondcuttoformanotch,startingthe
cutatleast5cm(2inches)aboveandaway
fromtherstcut(Figure15).
6.Makethebackcutfromtheoppositesideofthe
notchandabout5cm(2inches)higherthanthe
bottomofthenotchasshowninFigure15.
Important:Stopthethirdcut2.5to5.0cm
(1to2inches)fromthenotchtoformahinge
betweenthecuts(Figure15),whichkeeps
thetreefromfallinginthewrongdirection
ortwistingasitfalls.
Note:Asthebackcutnearsthehinge(Figure
15),thetreeshouldbegintofall.
7.Whenthetreebeginstofall,removethechain
saw,shutitoff,putitdown,andretreatalongthe
pathyoudeterminedinstep2.
Important:Ifthetreebeginstofallinan
undesireddirection,immediatelystopthe
cut,shutoffthechainsaw,putthechainsaw
down,anduseawedgetoopenthecutand
pushthetreeinthedesireddirection.
11

LimbingaFallenTree
1.GripthechainsawasshowninFigure11.
2.Cutoffthesmallerlimbsfromthetreethatare
notsupportingitsweightofftheground.
g194824
Figure16
g194825
Figure17
3.Cutthelargerlimbsthatsupporttheweightof
thetreefromthebottomupwardsothatthe
limbsdonotpinchthesawblade(Figure18).
g194822
Figure18
12

BuckingaLog
•Ifyouarecuttingbranchesfromafallentreeor
cuttingalogintolengths,supportthelogoffthe
ground(preferablyonasawbuck);refertoFigure
19.
g194820
Figure19
•Ifthelogissupportedonanend,cutfromthetop.
Ifthechainsawbindsinthecut,donotattempt
tofreeitbyrunningthemotor.Shutoffthesaw,
thenuseawedgetopryopenthecutandrelease
thesaw.
•Ifthelogissupportedonbothends,startfrom
thetopandcutaboutathirdofthewaythrough
thelog(Figure19A).Makeasecondcutfromthe
undersidetomeettherstcut(Figure19B).This
keepsthelogfrompinchingthesaw.
•Ifthelogissupportedalongitsentirelength,cut
allthewaythroughthelogfromthetop.
•Ifthelogissupportedonbothendsbutnotinthe
middle,cutathirdofthediameterfromthetop,
theneithercutfromthebottomorrollthelogover
tomeettherstcut(Figure20).
g194819
Figure20
•Ifthelogisonahill,alwaysstandontheuphill
sideofthelog(Figure21).
g024807
Figure21
1.Directionofslope
13

RemovingtheBatteryPack
1.Placethechainsawonaatsurface.
2.Pressdownonthelatchandremovethebattery
packfromthecavity.
g192109
Figure22
1.Latch
ChargingtheBatteryPack
Important:Readallsafetyprecautions.
Important:Chargethebatterypackonlyin
temperaturesthatarewithintheappropriate
range;refertoSpecications(page8).
Note:Atanytime,pressthebattery-charge-indicator
buttononthebatterypacktodisplaythecurrent
charge(LEDindicators).
1.Makesurethattheventsonthebatterypackare
clearofanydustanddebris.
2.Lineupthecavityinthebatterypack(Figure23)
withthetongueonthecharger.
g228487
Figure23
1.Batterypackcavity4.Battery-charge-indicator
button
2.Batterypackterminals5.LEDindicators(current
charge)
3.Batterypackventingareas
3.Makesurethattheventsonthebatterycharger
areclearofanydustanddebris.
4.Slidethebatterypackintothechargeruntilitis
fullyseated(Figure24).
g194423
Figure24
1.Chargerventingareas3.Rightindicatorlight
2.Leftindicatorlight
5.Toremovethebatterypack,slidethebattery
backwardoutofthecharger.
6.RefertothefollowingtabletointerprettheLED
indicatorsonthebatterycharger.
14

LeftLightRightLightIndicates:
OffRedChargerison;nobattery
packinserted
RedRedBatterypackischarging
GreenRedBatterypackischarged
OrangeRedBatterypackistoowarm
RedBlinkingRedReplacethebatterypack
InstallingtheBatteryPack
1.Setthechainsawdownonalevelsurface.
2.Alignthetongueofthebatterypackwiththe
batterycavityinthechainsaw(Figure25).
g192108
Figure25
3.Pushthebatterypackintothebatterycavityuntil
thebatterypacklocksintoplace.
15

Maintenance
RecommendedMaintenanceSchedule(s)
MaintenanceService
IntervalMaintenanceProcedure
Beforeeachuseordaily
•Checktheoillevelandaddbarandchainoilifnecessary.
•Checkthechainbrake.
•Checkthechaintensionandadjustitifnecessary.
•Checkthechainforsharpness;contactanAuthorizedServiceDealertohavethe
chainsharpenedorreplaced.
Aftereachbatterydrain
cycle
•Checktheoillevelandaddbarandchainoilifnecessary.
•Checkthechainbrake.
•Checkthechaintensionandadjustitifnecessary.
Yearlyorbeforestorage
•Servicetheguidebar,chain,anddrivesprocket.
•Checkthechainforsharpness;contactanAuthorizedServiceDealertohavethe
chainsharpenedorreplaced.
CheckingtheOilLeveland
AddingBarandChainOil
ServiceInterval:Beforeeachuseordaily
Aftereachbatterydraincycle
1.Placethechainsawonaatsurfaceand
removethebatterypack;refertoRemovingthe
BatteryPack(page14).
2.Checktheoillevelinthewindow.Ifyoucannot
seeoilinthewindow,addbarandchainoilto
thechainsaw(Figure26).
g192110
Figure26
1.Oilcap2.Window
3.Cleantheareaaroundtheoilcap(Figure26).
Note:Makesurethatyoudonotallow
debris/woodchipstoentertheoiltank.
4.Removethecapandpouroilintothechainsaw
untiltheoilllsthewindow(Figure26).
Note:Donotllthechainsawhigherthanthe
bottomofthellneck.
5.Cleanupanyspilledoilandreplacetheoilcap.
CheckingtheChainBrake
ServiceInterval:Beforeeachuseordaily
Aftereachbatterydraincycle
1.Placethechainsawonaatsurfaceand
removethebatterypack;refertoRemovingthe
BatteryPack(page14).
2.Engagethechainbrakebymovingthechain
brakeforwardtotheSTOPposition(Figure27).
g192111
Figure27
1.Chainbrake(OPERATING
position)
2.Chainbrake(STOP
position)
3.Gripthechainwithaglovedhandandattempt
topullitaroundtheguidebar;thechainshould
notmovearoundtheguidebar.Ifitdoes,take
thechainsawtoanAuthorizedServiceDealer
forrepair.
4.Disengagethechainbrakebymovingthe
chainbrakerearwardtotheOPERATINGposition
(Figure27).
5.Gripthechainwithaglovedhandandattempt
topullitaroundtheguidebar;thechainshould
16

movearoundtheguidebar.Ifitdoesnot,take
thechainsawtoanAuthorizedServiceDealer
forrepair.
AdjustingtheChain
Tension
ServiceInterval:Beforeeachuseordaily
Aftereachbatterydraincycle
Ensurethatthechainisproperlytensioned.Aloose
chainwillshortenthelifeofthedrivesprocketandthe
guidebarandmaybreakthechain.Anovertightened
chainwilloverheattheguidebarandchain,causing
rapidwearandpossiblemotorburnout.Also,check
thechaintensionafterafewcuts.Anewchainusually
stretchesandrequiresadjustmentafteritsrstuse.
Thechaintensioniscorrectwhenyouareabletouse
aglovedhandtopullthechainsmoothlyaroundthe
guidebar.Thechainshouldremainincontactwith
thebottomedgeoftheguidebar.
DANGER
Contactwiththechainsawteethcancause
seriouspersonalinjury.
•Removethebatterypackbeforeadjusting
ormaintainingthechainsaw.
•Alwaysweargloveswhenadjustingor
maintainingthechainsaw.
1.Placethechainsawonalevelsurfaceand
removethebatterypack;refertoRemovingthe
BatteryPack(page14).
2.Unfoldthewing-nuttabandloosen,butdonot
removethewingnutonthecover(Figure27).
3.Holdupthetipoftheguidebar(Figure28).
g192117
Figure28
4.Adjustthechain.
•Totightenthechain,turnthechain
tensioningknobclockwise.
•Toloosenthechain,turnthechain
tensioningknobcounterclockwise
Adjustthechainuntilthechaintouchesthe
bottomedgeoftheguidebar,thentightenthe
knobanadditional1/8to1/4turn.
5.Tightenthewingnutuntilitissnugandfoldthe
wing-nuttab(Figure29).
6.Checkthechaintension;ifthechainisloose,
repeatthisprocedure.
ServicingtheGuideBar,
Chain,andDriveSprocket
ServiceInterval:Yearlyorbeforestorage
DANGER
Contactwiththechainsawteethcancause
seriouspersonalinjury.
•Removethebatterypackbeforeadjusting
ormaintainingthechainsaw.
•Alwaysweargloveswhenadjustingor
maintainingthechainsaw.
1.Placethechainsawonaatsurfaceand
removethebatterypack;refertoRemovingthe
BatteryPack(page14).
2.Unfoldthewing-nuttabandremovethewingnut
thatsecuresthecover(Figure29).
g228710
Figure29
1.Chaintensioningknob3.Wingnut
2.Cover4.Wing-nuttab
3.Loosenthechainbyturningthechain-tightening
screwcounterclockwise(Figure29).
4.Separatethechainfromtheguidebarandset
themaside.
5.Removetheclip,spacer,anddrivesprocket
fromthechainsaw(Figure30).
17

g192116
Figure30
1.Oilpassage3.Spacer
2.Clip4.Drivesprocket
6.Inspectthedrivesprocket;ifitisexcessively
wornordamaged,replaceit.
7.Checktheoilpassage(Figure30)fordebrisand
cleantheareaifnecessary.
8.Installthedrivesprocket,spacer,andclip.
9.Cleantheguidebarandchain;useawireora
smallat-headscrewdrivertoremovedirtand
debrisfromthegroovealongtheedgeofthe
guidebar,startingfromthesprocketonthefront
endandmovingrearward.
Iftheguidebarorgroovesaredamagedorthe
sprocketonthefrontenddoesnotrotatefreely,
replacetheguidebar;ifthechainisexcessively
wornordamaged,replaceit.
10.Placethechainaroundthedrivesprocketon
thefrontendoftheguidebar,withthecutting
edgeofthechainteethonthetopofthebar
facingforwardasshowninthediagramonthe
sideofthechainsaw(Figure31C).
g192112
Figure31
11.Feedthechainaroundtheguidebarandalign
thechainteethintothegrooveofthebar.
12.Positiontheopenloopofthechain(notonthe
guidebar)aroundthedrivesprocketonthe
chainsawandinstalltheguidebarandattached
chainontothechainsawasshowninFigure31.
Important:Ensurethatthechainadjusting
studisinsertedintotheholeindicatedbythe
arrowinFigure31C.Youmayneedtorotate
thechaintensioningknobtotthestudinto
theholeintheguidebar.
13.Installthecoverandthewingnut,butdonot
fullytightenthewingnut(Figure31D).Foldthe
wing-nuttab.
14.Adjustthechaintension;refertoAdjustingthe
ChainT ension(page17).
18

SharpeningtheChain
ServiceInterval:Beforeeachuseordaily
Yearlyorbeforestorage
Thechainneedssharpeningorreplacementwhen
youmustforceitontothewoodoritproducessmaller
chipsthanwhenitwasnew.
ContactanAuthorizedServiceDealertohavethe
chainsharpenedorreplaced.
PreparingtheBatteryPack
forRecycling
Important:Uponremoval,covertheterminalsof
thebatterypackwithheavy-dutyadhesivetape.
Donotattempttodestroyordisassemblethe
batterypackorremoveanyofitscomponents.
Recycleorproperlydisposeoflithium-ionbattery
packsatabatteryrecyclingfacility.
Formoreinformationonrecyclinglithium-ion
batterypacksandtolocatethebattery
recyclingfacilityclosesttoyou,visit
www.Call2Recycle.org(USandCanadaonly).
IfyouarelocatedoutsideoftheUSand
Canada,pleasecontactyourauthorizedT oro
distributor.
Service
Shouldthechainsawneedservice,taketheproduct
toyourAuthorizedServiceDealer.
Storage
Important:Storethetool,batterypack,and
chargeronlyintemperaturesthatarewithinthe
appropriaterange;refertoSpecications(page8).
Important:Ifyouarestoringthetoolforayear
orlonger,removethebatterypackfromthetool
andchargethebatterypackuntil2or3LED
indicatorsturnblueonthebattery.Donotstorea
fullychargedorfullydepletedbattery.Whenyou
arereadytousethetoolagain,chargethebattery
packuntiltheleftindicatorlightturnsgreenon
thechargerorall4LEDindicatorsturnblueon
thebattery.
•Cleanallforeignmaterialfromtheproduct.
•Storethetool,batterypack,andbatterycharger
inawell-ventilatedplacethatisinaccessibleto
children.
•Keepthetool,batterypack,andbatterycharger
awayfromcorrosiveagentssuchasgarden
chemicalsandde-icingsalts.
•T oreducetheriskofseriouspersonalinjury,do
notstorethebatterypackoutsideorinvehicles.
•Storethetool,batterypack,andbatterycharger
inanenclosedclean,dryarea.
19

Troubleshooting
Performonlythestepsdescribedintheseinstructions.Allfurtherinspection,maintenance,andrepairwork
mustbeperformedbyanauthorizedservicecenterorasimilarlyqualiedspecialistifyoucannotsolvethe
problemyourself.
ProblemPossibleCauseCorrectiveAction
1.Thechainbrakeisengaged.1.Disengagethechainbrakebymoving
thechainbrakerearward.
2.Thebatterypackislowoncharge.2.Chargethebatterypack.
3.Thebatterypackisnotfullyseated.3.Ensurethatthebatterypackisinserted
allthewayintothehousing.
4.Thebatterypackistoohot.4.Allowthebatterypacktocool.
5.Thebatterypackhasexceededhigh
amperagelimits.
5.Releasethetrigger,thenpressthe
triggerswitch.
Themotordoesnotrunorruns
intermittently.
6.Thereisdebrisunderthecover.6.Removethecoverandcleanoutany
debris.
Themotorruns,butthechaindoesnot
rotate.
1.Thechainisnotproperlyseatedonthe
drivesprocket.
1.Installthechainandensurethatthe
linksareproperlyseatedinthedrive
sprocket.
Thechainbrakedoesnotengage.1.Thereisachainbrakemalfunction.1.Immediatelytakethechainsawtoa
AuthorizedServiceDealer.
1.Thechainisnottensionedcorrectly.1.Setthepropertensiononthechain.
2.Thechainisdull.2.Replacethechain.
3.Thechainisinstalledbackward.3.Installthechaincorrectly.
Thechainsawdoesnotproperlycut.
4.Thechainisdry.4.Checktheoillevel.
1.Theoilportisplugged.1.Cleanoutdebrisfromtheoilport.
2.Theoilgrooveintheguidebaris
plugged.
2.Cleanoutdebrisinthebar.
Thechainoilisnotlubricatingproperly.
3.Thestrainerintheoiltankisplugged
(ifequipped).
3.Cleandebrisoutofthestrainerinthe
oiltank(ifequipped).
Thebatterypackloseschargequickly.1.Thebatterypackisoverorunderthe
appropriatetemperaturerange.
1.Movethebatterypacktoaplace
whereitisdryandthetemperatureis
between0°C(32°F)and40°C(104°F).
1.Thebatterychargerisoverorunder
theappropriatetemperaturerange.
1.Unplugthebatterychargerandmove
ittoaplacewhereitisdryandthe
temperatureisbetween0°C(32°F)
and40°C(104°F).
Thebatterychargerisnotworking.
2.Theoutletthatthebatterychargeris
pluggedintodoesnothavepower.
2.Contactyourlicensedelectricianto
repairtheoutlet.
1.Thereismoistureontheleadsofthe
batterypack.
1.Allowthebatterypacktodryorwipeit
dry.
Thechainsawdoesnotrunorrun
continuously.
2.Thebatterypackisnotfullyinstalled
intothechainsaw.
2.Removeandthenreplacethebattery
packintothechainsawmakingsure
thatitisfullyinstalledandlatched.
Thebatterypackshowsonly3LED
indicatorsafteronlyafewsecondsof
usingafullychargedbattery.
1.Thisisanormaloccurrence.1.Shutoffthetoolandpressthe
battery-charge-indicatorbuttonorthe
removethebatteryfromthetoolto
displaytheactualbatterycharge.
All4LEDindicatorsareblinkingon
thebatterypackafteryoupressthe
battery-charge-indicatorbuttononthe
batterypackandthecurrentcharge
displays(whenthebatterypackisnotin
use).
1.Thebatterypackisoverorunderthe
appropriatetemperaturerange.
1.Movethebatterypacktoaplace
whereitisdryandthetemperatureis
between0°C(32°F)and40°C(104°F).
20
