Total 74-00 Technical specifications

ATA 26-24-05 I 74/76-00 dated May 2014
Page 1 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: January 2005
MAINTENANCE INSTRUCTIONS
WITH
ILLUSTRATED PARTS LIST
HALON 1/ 1,2/ 2,5 AIR TOTAL
List of Portable Fire Extinguishers
Part No. Type:
74-00 HAL 1,0
74-20 HAL 1,2
74-21 HAL 1,2 (LH)
76-00 HAL 2,5
COMPONENT MAINTENANCE MANUAL
TOTAL Feuerschutz GmbH
Industriestr. 13
D-68526 Ladenburg

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 2 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: August 2003
Inspection Record
Inspec. No.
Date
issued
Performed
date
Inspec.No.
by
Date
issued
Performed
date by
Total
weight

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 3 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: May 2014
Table of contents
Index Page Release
Cover page 1 January 2005
Inspection record sheet 2 August 2003
Table of contents 3 May 2014
Description 4 August 2003
Operating instructions 5 August 2003
Technical data 5 January 2005
Inspection regulations 6 October 2012
Disassembly and cleaning 7 August 2003
Filling instructions 8 May 2008
Filling instructions 9 May 2014
Filling instructions 10 May 2014
Storage 10 August 2003
Parts list 11 January 2005
Parts list illustration 12 May 2014

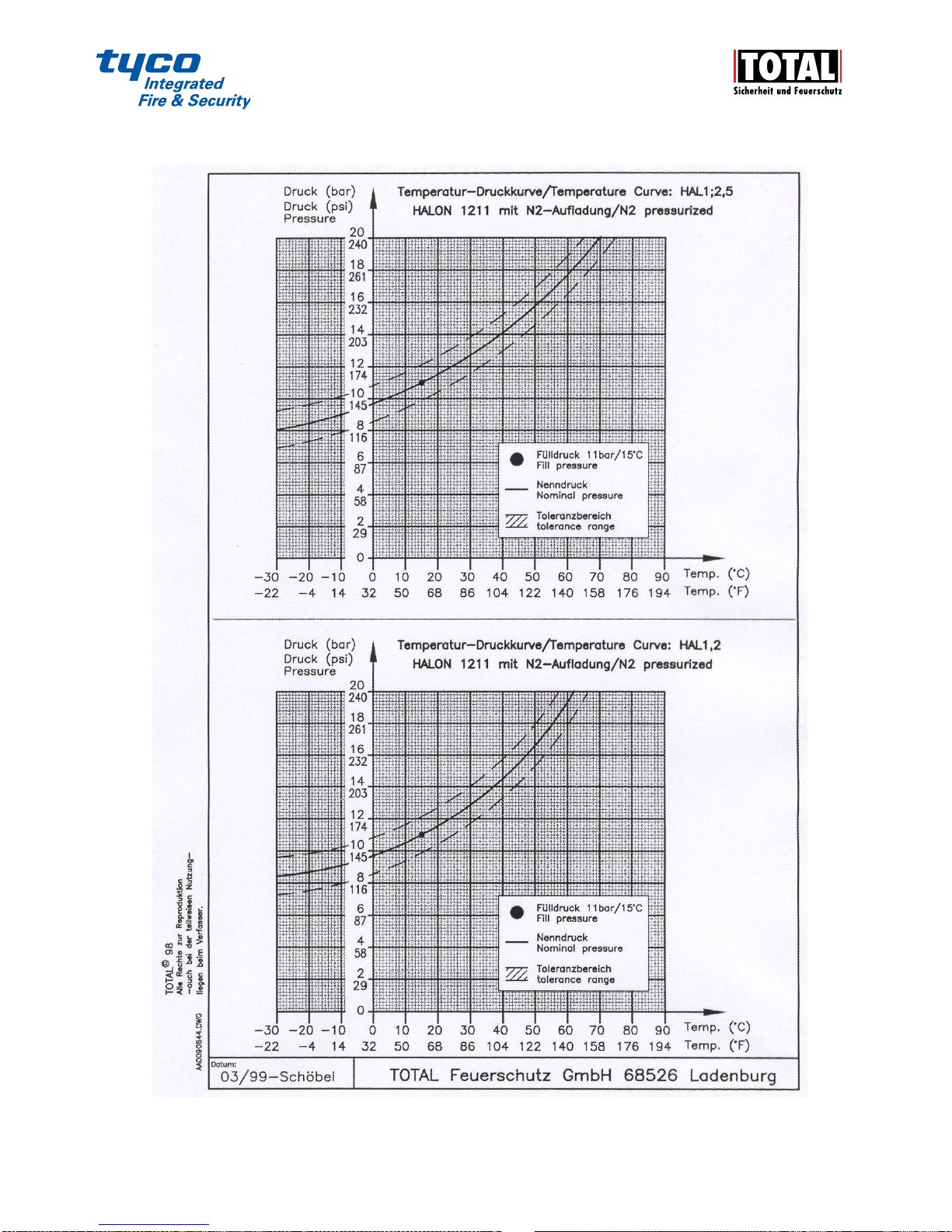

Annex temperature curves 13 August 2003

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 4 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: August 2003
Description (see illustration 1)
(1) Portable fire extinguishers type HAL 1, HAL 1,2 and HAL 2,5 are intended for use in
aircraft pilot- and passenger cabins.
They are filled with HALON 1211. The fire extinguishers are approved for the attack
on flammable solids, flammable liquids, flammable gases and for fires in the presents
of electrical tensions up to 1000 Volt.
The extinguishers are designed for a one hand operation.
(2) Range of application
(a) Fire Class
ABC
(b) Extinguishing agent
HALON 1211
(3) The fire extinguisher consists of 3 main components
(a) The cold drawn steel container, pressure tested to 30 bar (427 psi),
painted red RAL 3000.
(b) The discharge valve with siphon tube and pressure gauge.
The valve is pressure lever operated and can be shut-off.
The carrying handle is movable.
(c) The extinguishing agent HALON 1211 is nitrogen super pressurized.
Filling pressure: 11 bar (156.5 psi) at 15°C (59°F).
Illustration 1

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 5 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
*
*
*
*
Release: Operating instructions: August 2003
Technical data: January 2005
Operating instructions
When held in place with a strap, open fastener and remove extinguisher from bracket. Bent
down safety lever (black), remove seal wire and than squeeze release lever (red). Attack fire with
the discharging extinguishing agent.
Attack the fire starting from front. Discharge agent in shots according to requirements.
Technical data
Part. No.
Dimensions
Height Dia.
Weight w/o
bracket and
fastening strap
Kg Lbs
Weight bracket
and fastening
strap approx.
Kg Lbs
Nominal
pressure
by 15C/
59F
Container
test
press.
Filling
Kg Lbs
Discharge
time
approx.
Heights
74-00
265mm
10.4 in.
82mm
3.2in.
1.99
4.39
0.21
0.46
11 bar
156.5 psi
30 bar
427 psi
1
2.2
7 sec
20.000m
65.616 ft.
74-20
265mm
10.4 in.
82mm
3.2in.
2.19
4.83
0.21
0.46
11 bar
156.5 psi
30 bar
427 psi
1.2
2.65
9 sec
20.000m
65.616 ft.
74-21
265mm
10.4 in.
82mm
3.2in.
2.19
4.83
0.5
1.10
11 bar
156.5 psi
30 bar
427 psi
1.2
2.65
9 sec
20.000m
65.616 ft.
76-00
380mm
15 in.
100mm
4in.
4.02
8.86
0.41
0.90
11 bar
156.5 psi
30 bar
427 psi
2.5
5.51
10 sec
20.000m
65.616 ft.
* for exact weight see the check note label on the extinguishers backside.
(1) Operating temperature range
All fire extinguishers can be operated at temperatures of between -40°C and +70°C
(-40°F and +158°F).
(2) Throw distance
Throw distance for the extinguishers 74-00, 74-20, 74-21 and 76-00 is 3.50 m
(11.5 Ft) at +20°C (+68°F).

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 6 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: October 2012
Inspection regulations
In case of security relevant damages the fire extinguisher has to be scrapped immediately.
If the pressure is reduced the fire extinguisher has to be basically overhauled immediately.
(1) Pre-flight inspection
Check the pressure gauge. At room temperature the indicator must be in the green section.
The seal wire on the safeguard lever must not be damaged.
(2) Periodical check
The inspection should be carried out every 2 years, or in shorter intervals, depending on
internal regulations.
  Integrity of wire seal visual inspection
  Condition of extinguisher, mounting bracket and visual inspection
fastening strap
  Legibility of label visual inspection
  Container pressure / gauge visual inspection
At room temperature the pointer must be in the
green section of the dial.
  Weight control / scale
Permissible deviation: 2% of fill capacity / year, but not more than 10% of fill capacity
(3) Characteristics after 5 years
After expiration of 5 years, in case of filling / refilling, the container of the fire extinguisher has
to be inspected inside. Should defects be detected, the extinguisher has to be hydrostatically
pressure tested.
(4) Basic overhaul
Container hydrostatic pressure test
All fire extinguishers, listed in that maintenance procedure instruction, must be hydrostatically
pressure tested at regular 10 year intervals. The 10 year period starts with the date of
production of the extinguisher (see label on back). Should defects be detected at a regular
inspection, this pressure test must be performed earlier. These tests shall only be carried out
by an authorized aviation equipment inspector, well adverted with the safety standards
applicable to this test. Furthermore, also required is an adequate room and the necessary
test equipment. After the hydrostatic pressure test the cylinder has to be desiccated inside.
If the second hydrostatic pressure test is due, the manufacturer recommends to replace the
extinguisher!

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 7 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: August 2003
Disassembly and cleaning
 Empty the extinguisher (observe environmental protection regulations concerning HALON
1211).
  Unscrew valve (50*, 50A*) with open-end wrench size 17.
  Unscrew the siphon tube (220*, 220A*).
 Visually inspect valve and container threads and O-ring seat for damage.
Press operation lever and check mobility of valve spindle.
  Visually inspect inside of container for corrosion.
 Screw siphon tube back up to the limit stop with a torque of 20 Nm.
 Screw valve with new O-ring (20*) back on to the container.
(Apply a light layer of acid free vaseline to thread and O-ring).
Torque: 30 Nm
 Clean container. Check label, mounting bracket and fastening strap for damage.
* see page 12 fire extinguisher parts list

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 8 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: May 2008
Filling (see illustration 2)
The fire extinguisher shall only be refilled by a maintenance service shop with an approval to
“Commission Regulation (EC) No 1702/2003”.
When filling HALON extinguishers the filling station must observe the following instructions:
(1) Determining net weight:
After assembly the empty extinguisher must be placed on a scale to determine the
weight. This net weight must be entered in the check note.
(2) Refilling:
Place the extinguisher on a scale and connect it to the fill station. During the filling process
the release lever of the extinguisher must be held down with a clamp. The weight of this
clamp must be taken into consideration in the weighing process.
The extinguishing agent is filled according to weight. Care must be taken to observe the
permissible fill tolerances.
Portable Fire Extinguishers:
HAL 1 1 Kg HALON 1211 (+0 -0.02 kg)
HAL 1,2 1.2 Kg HALON 1211 (+0 -0.02 kg)
HAL 2,5 2.5 Kg HALON 1211 (+0 -0.02 kg)
After the filling the extinguisher must be pressurized with gaseous nitrogen (99.0 to 99.8
degree of purity, dew point -40°C, (-40°F)). The pressurization for HAL 1, HAL 1,2 and
HAL 2,5 should be according to temperature-pressure curves T565*.
The nominal fill pressure at +15°C is 11 bar (mark in green section of gauge dial). Than
move the closed extinguisher horizontally back and forth to mix HALON and nitrogen
together. In this process the container pressure drops. Depressurize the extinguisher to
the specified pressure. Remove the clamp from container release lever. Secure release
lever. The fill line can than be depressurized and also closed.
* see page 13

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 9 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: May 2014
(3) Determination of total weight:
After the fill process is completed and the extinguisher disconnected from the fill line, the
extinguisher must be placed back on the scale again to determine the total weight. This
weight must be entered in the inspection record card and on the extinguisher check note
(when weighing the extinguisher, the weight of seal, seal wire and the approval label must
be included).
Seal the extinguisher (Seal wire tensile strength 40 N).
(4) Acceptance of filled extinguisher:
Acceptance and clearance of the extinguisher must be made by authorized staff.
Acceptance test:
  General visual inspection of the extinguisher
  Checking operating pressure (see page 5 technical data)
  Tightness control. Checking the unit after 3 weeks in storage

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 10 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: May 2014
Illustration 2
Filling Station
Schematic arrangement
Storage
The storage temperature shall not exceed 70°C (158°F). Ambient air should be dry and free of
corrosion causing components. The extinguisher must be inspected every 2 years (or in shorter
periods according to internal regulations) as described in item 1.

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 11 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: January 2005

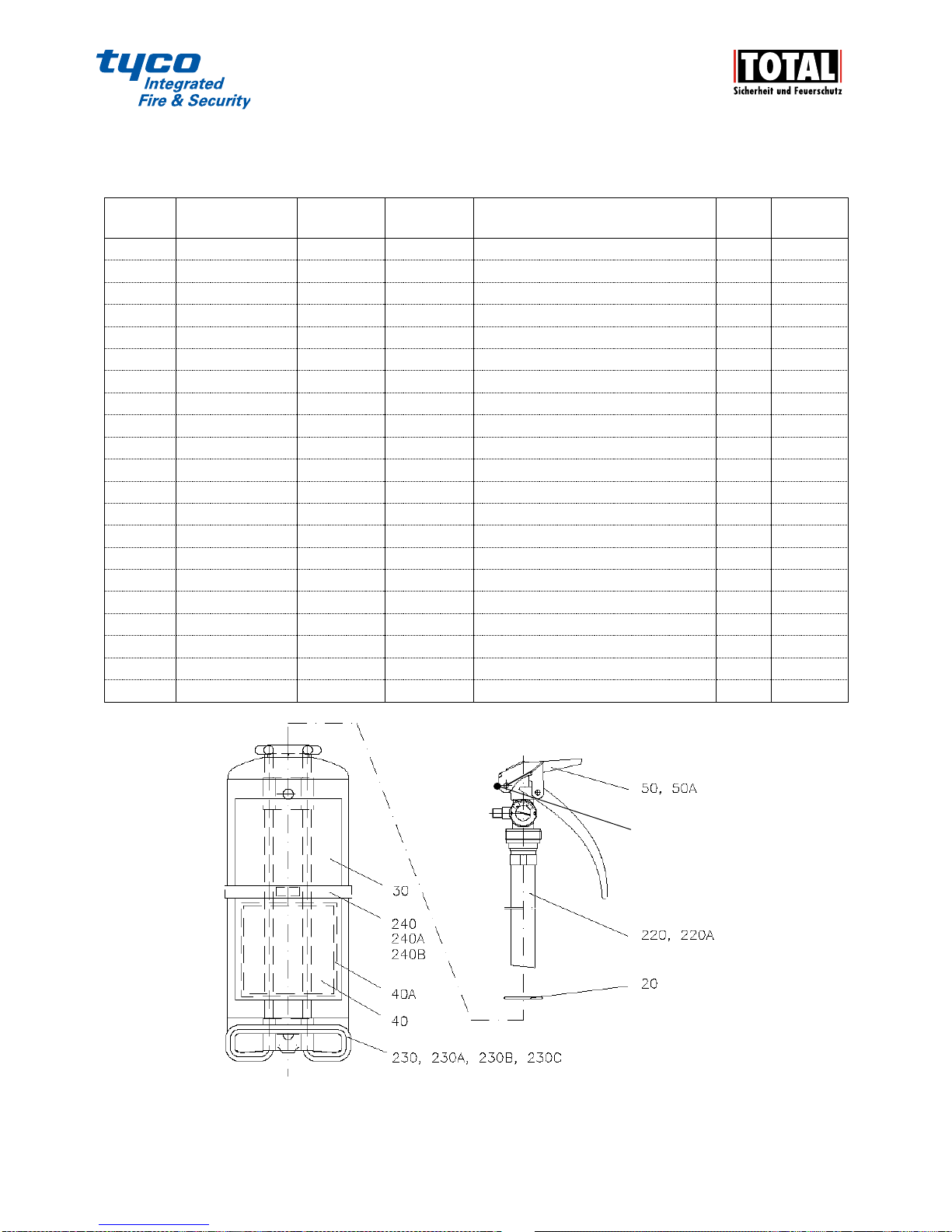

Parts List (see page 12)
This parts list contains all subassemblies and components of the above listed fire extinguishers.
Definition of parts list:
(1) Item numbers
The first number in the first line is the number of the depicted extinguisher.
The second number is the item number shown on illustration 3.
A stroke in front of the item number indicates that this part is not shown on the
illustration.
(2) Part number
Manufacturers original part number.
(3) Ident number
Manufactures EDP-number
(4) Airlines part number
This section remains free for use of the airline
(5) Description
The section description contains the name of every subassembly or extinguisher
component.
(6) EFF-Code
Section EFF-code refers to the association of similar subassemblies / components.
These parts are identified with the letters A, B, C. Is a component used in all
extinguishers this section remains empty.
(7) Quantity per extinguisher
Number of identical pieces per extinguisher.

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 12 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: May 2014
60, 70
Item
No.
Part No.
Ident No.
Airlines
part No.
Description
EFF-
Code
Number
per unit
1
74-00
0821166
Extinguisher HAL 1
A
1A
74-20
0821164
Extinguisher HAL 1,2
B
1A
74-21
0821226
Extinguisher HAL 1,2 (LH)
B
1B
76-00
0821165
Extinguisher HAL 2,5
C
20
E000-02785
0120101
O-ring
1
30
0074-45
0240166
Instruction label
1
40
0074-46
0240169
Check note label
1
40A
0074-47
0255479
Protective foil
1
50
0074-U12
0621087
Valve assembly HAL 1 / 1,2
A, B
1
50A
0076-U04
0621303
Valve assembly HAL 2,5
C
1
60
E000-11936
220295
Copper seal wire
A,B,C
1
70
E000-00101
120006
Plastic seal green
A,B,C
1
220
0074-U07-1
0621088
Siphon tube HAL 1 / 1,2
A, B
1
220A
0076-U14
0621029
Siphon tube HAL 2,5
C
1
230
0140-00
0621139
Bracket HAL 1 / 1,2 *
A, B
1
230A
0119-2
0621101
Bracket HAL 2,5 *
C
1
230B
0140-02-1000
0254303
Bracket HAL 1,2 (LH) *
B
1
230C
0140-03-1000
0255295
Bracket HAL 1,2 CFK (LH) *
B
1
240
0140-U51
0254076
Fastening strap HAL 1 / 1,2
A, B
1
240A
0119-2-U51
0254077
Fastening strap HAL 2,5
C
1
240B
0140-02-1010
0254304
Fastening strap HAL1,2 (LH)
B
1
Illustration 3 (Fire extinguisher parts)
* installation with fastening strap

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 13 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: August 2003
