!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Sienna.
This Quick Reference Guide is not a full description of Sienna
operations. Every Sienna owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
29
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Tire bag
Jack handle
Wheel nut wrench
Jack
Adapter
Spare tire
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
Two-wheel drive models
All-wheel drive models are equipped with run-flat tires. Refer to the
Owner’s Manual for more detail.
Sparetireclampbolt
Tu r n
Socket adapter
Two-wheel drive models
Four-wheel drive models
(1) Remove the lid.
(2) Loosen and remove the bolt.
(2)
(1)
Four-wheel drive models
Information Provided by:

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 7
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1
6
Air Conditioning/Heating 22-23
Audio 20-21
Auto lock functions
2
8
Automatic Transmission 8
Bottle holders 25
Clock 13
Console box 13
Cruise control 18
Cup holders 26
Door-Power back 12
Doors-Sliding 12
Dynamic Laser Cruise Control 18-19
Front seat console table 13
Light control-Instrument panel 19
Lights
1
& turn signals 9
Moonroof 11
Multi-information display (HomeLink
®
)
3
24
Parking brake 10
Power outlets-12V DC 25
Power outlets-115V AC 25
Rear seat entertainment system 24
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat arrangements 15
Seat heaters 11
Seats-Head restraints 15
Seats-Stowing third row seats 16-17
Seats-Tumble/Remove second row seats 16
Sunshade-Side 17
Telephone controls (Bluetooth
®
)21
Tilt and telescopic steering wheel 8
Windows 11
Windows-Power quarter 10
Windshield wipers & washers 10
Door locks 27
Doors-Child safety locks 27
Seatbelt comfort guide 27
Seatbelts 28
Seatbelts-Shoulder belt anchor 27
Sparetire&tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Information Provided by:

2
OVERVIEW
Instrument panel
Overhead console
Steering wheel switches
Headlight, turn signal and front fog light1controls
Wiper and washer controls
Rear window and outside rearview mirror defogger1and windshield
wiper de-icer1switch
Emergency flasher button
Audio system or navigation system2
115V AC Power outlet ON/OFF button1
AUX adapter
Intuitive parking assist switch and indicator1
Front Air Conditioning controls
Front passenger occupant classification indicator
Seat heater switches1
12V DC Power outlets
Interior lights main switch
Ignition switch
“TRAC OFF” (Traction Control “OFF”)1
Cruise control or Dynamic Laser Cruise Control1
Information Provided by:

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Tilt and telescopic steering lock release
Tire Pressure Monitoring (warning) System reset
Power rearview mirror controls
Power quarter window switch1
Headlight beam level control dial1
Conversation mirror
Front personal lights
Microphone1,2
Power sliding door button1
Power back door button1
Electric moonroof switch1
Steering wheel audio controls1,2
Telephone controls1,2
Dynamic Laser Cruise Control distance switch1
Speech command button1,2
1If equipped
2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
Information Provided by:

4
OVERVIEW
Driver seatbelt reminder2
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder2
(alarm will sound if speed is over 12 mph)
Brake system warning1,2
Charging system warning1,2
Malfunction/Check Engine indicator1,2

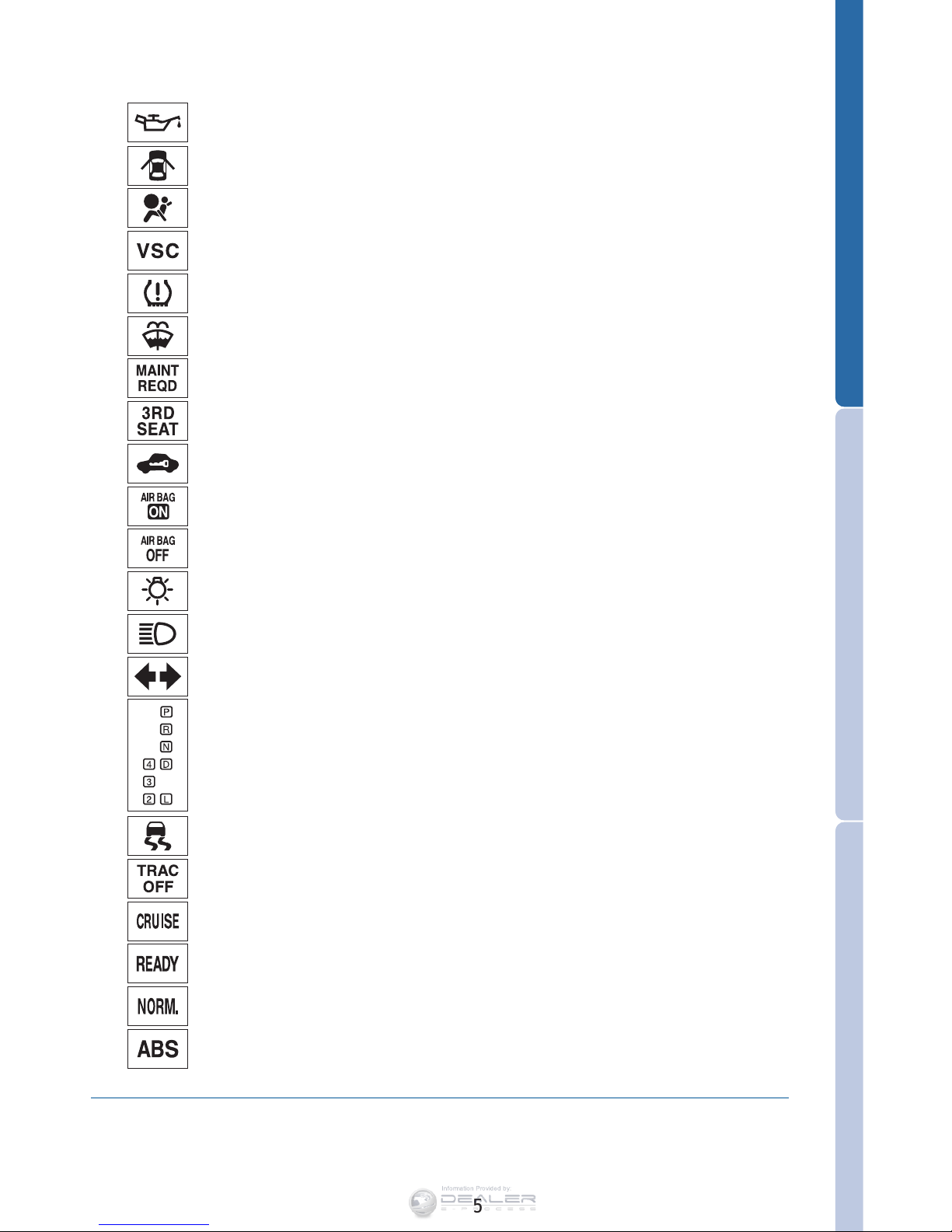

Indicator symbols
Instrument cluster
Service indicator and reminder
Speedometer
Engine coolant temperature
Low fuel level warning
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Tachometer
Dynamic Laser Cruise Control master warning
Dynamic Laser Cruise Control display
Optitron type meters
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
2For details, refer to “If a warning light turns on or a warning buzzer sounds...,”
Section 5-2, 2010 Owner’s Manual.
Non-optitron type meters
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Information Provided by:

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Low engine oil pressure warning1,2
Anti-lock Brake System warning1,2
Open door warning2
Low Tire Pressure Warning1,2
Engine oil replacement reminder1,2
Third seat fold incomplete warning2
Theft deterrent/Engine immobilizer system indicator
AIR BAG ON indicator1
AIR BAG OFF indicator1
Headlight low beam indicator
Turn signal indicator
Headlight high beam indicator
Cruise control indicator3or Dynamic Laser Cruise Control indicator4
Dynamic Laser Cruise Control ready mode indicator1
Conventional cruise control mode indicator
Automatic Transmission indicator
Slip indicator1
Traction Control OFF indicator1
Airbag SRS warning1,2
Vehicle Stability Control/Traction Control warning1,2
Low windshield washer fluid level warning2
3If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
4If this light flashes, refer to “Dynamic laser cruise control,” Section 2-4, 2010
Owner’s Manual.
Information Provided by:

6
OVERVIEW
Keyless entry
Locking operation Unlocking operation
NOTE: If a door is not opened
within 60 seconds of unlocking, all
doors will relock for safety.
Push
Push ONCE: Driver door
TWICE: ALL doors
Power sliding door operation (if equipped)
Right side power
sliding door
Push and hold
Left side power
sliding door
Push and hold
Hood release
Pull Pull up latch
and raise hood
Panic button
Push and hold Push and hold
Power back door operation
(if equipped)
Information Provided by:

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Fuel tank door release and cap
Pull up
Store
Tu r n
Power steering fluid reservoir
Windshield and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Driver seat
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Information Provided by:

8
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when the engine key is turned to the “ACC” or “LOCK”
position and driver’s door is opened.
-Doors unlock when shifting into Park.
Tilt and telescopic steering wheel
Length
Lock release lever
Angle
Automatic Transmission
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Information Provided by:

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
AUTO*
* If equipped
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30
seconds when any of the doors are opened and closed with the engine
off. Lights may also be turned off by pushing lock button on remote once
more after locking.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Tu r n
Lane change
Lane change
Left turn
Low beam
Headlight beam level control (if equipped)
Higher number will lower the beam.
Up
Down
Down
Up
High beam flasher
High beam
Information Provided by:

10
FEATURES/OPERATIONS
Windshield wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust frequency*
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Windows-Power quarter (if equipped)
Open Close
Parking brake
Set: Depress
Release: Depress again
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Information Provided by:

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Windows
Automatic operation (driver side only) (If equipped) Push the switch
completely down or pull it completely up and release to fully open or
close. To stop window midway, lightly push the switch in the opposite
direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE: If battery is disconnected, the windows need to be reinitialized.
Refer to the Owner’s Manual for more details.
Window lock switch
Up
Up
Down
Down
Driver side
Moonroof (if equipped)
Tilting operationSliding operation
Open
Close
Close
Tilt
Seat heaters (if equipped)
Passenger’s seat
Driver’s seat
NOTE: If battery is disconnected, the moonroof needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Information Provided by:

Opening/Closing
ON/OFF switch
12
FEATURES/OPERATIONS
Door-Power back (if equipped)
Power
• Sliding doors will not fully open if the sliding door window is open.
• When the engine switch is in the “ON” position, power sliding doors will
open only when gear selector is in the “P” (Park) position, and doors are
unlocked. Refer to the Owner’s Manual for more details.
• An alarm will sound if a sliding door is open and the vehicle is shifted
out of Park.
• If battery is disconnected, the power sliding doors need to be
reinitialized. Refer to the Owner’s Manual for more details.
Manual
• Sliding doors will not lock into the open position if the sliding door
window is open.
Doors-Sliding
Front overhead console
Instrument panel
Push
Center pillar
On Off
Open: Push
Close: Push again
On Off
Push
Push
Instrument panel Front overhead console
Open: Push
Close: Push again
NOTE: If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manual for more details.
Open: Push
Close: Push again
Opening/ClosingON/OFF switch
Information Provided by:

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Clock
With manual
Air Conditioning system
With automatic
Air Conditioning system
H- Hour set
M- Minute set

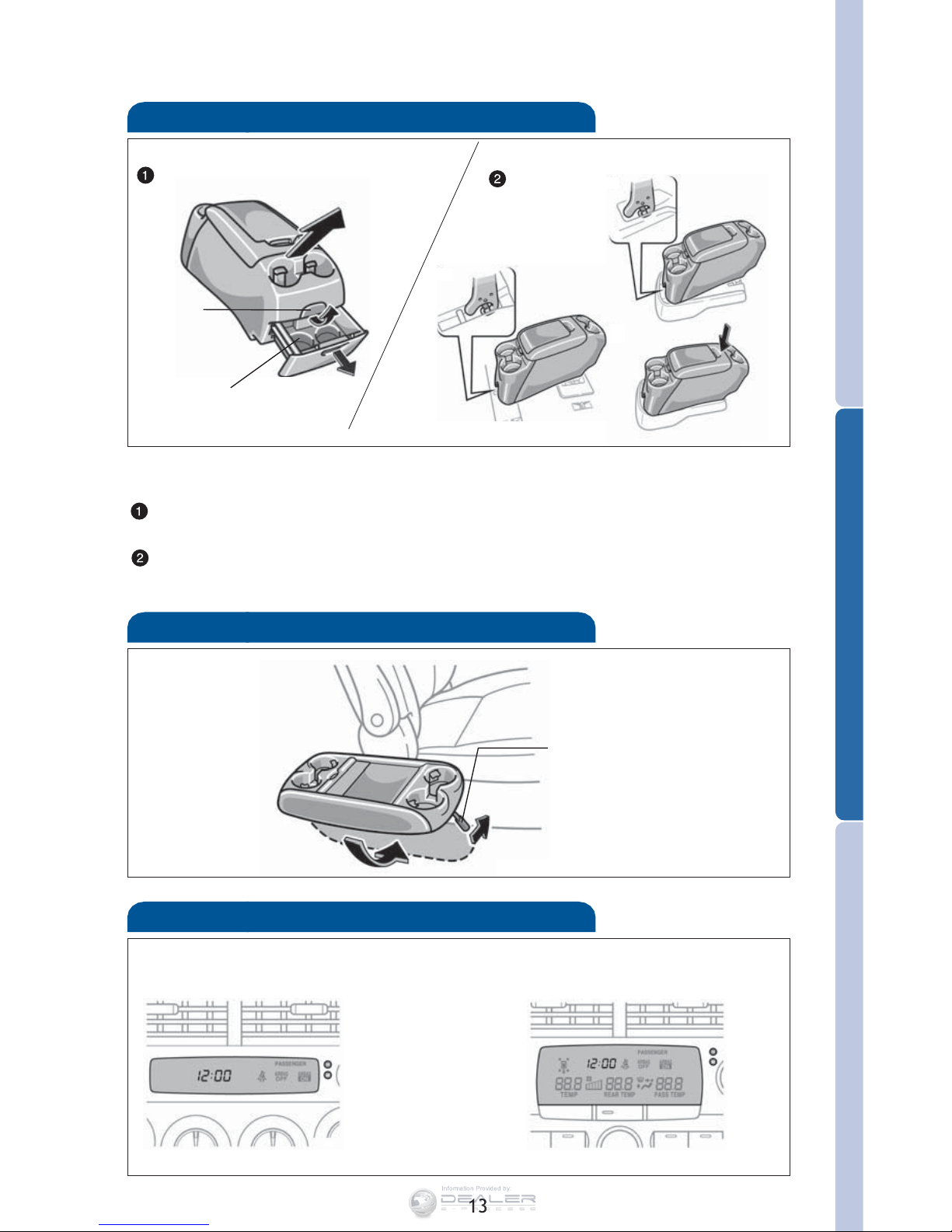

The console box can be removed and installed between the front or
second row seats.
To remove Open the auxiliary box on the rear side, and pull the lock
release lever. Lift the box from the rear to release it from the hook.
To install Place the hook into the striker. Lower box and push down to
engage the rear lock.
Console box (if equipped)
Front seat
Second row seat
Lock
release
lever
Lock release lever
Front seat console table (if equipped)
Remove Install
Auxiliary box
Information Provided by:

14
FEATURES/OPERATIONS
Seat adjustments-Rear
Second row seat
Third row seat
Seatback release (from third row seat)
Seatback release (from second row seat)
Seat position (forward/backward)
Seatback angle
Refer to the Owner’s Manual for more details.
Outer
Manual
Center
Power
Seat adjustments-Front
Manual seat Power seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)(If equipped)
Seat position, cushion angle and height
Seatback angle
Information Provided by:

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Seat arrangements (examples)
7-passenger models Therightseatcanbeplacedintheinsideoroutboard
position.
8-passenger models Thecenterseatcanbeplacedintheforwardposition
or even with the other seats.
7-passenger models 8-passenger models
These are some possible seat arrangements. Please read the following
section and refer to the Owner’s Manual for more information about seat
positions.
Seats-Head restraints
Lock release button Lock release button
Front Rear
Information Provided by:

16
Seats-Tumble/Remove second row seats
(1) Lower the head restraint and slide the seat to the rear-most
locked position.
(2) Pull the strap or lever and tumble the seat.
(3) Pass the strap through the assist grip.
(4) Pull and hold the strap, then fold down the seat to disengage from
front hooks.
(2) Lower
(1) Push (3) Pull
(5) Pull up
(7) Push
(4) Fold
down
(6) Push
down
Seats-Stowing third row seats (manual)
(2)
(4)
(1)
(3)
FEATURES/OPERATIONS
Information Provided by:

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Lower
Push
Stowing seat
Push and hold Push and hold
Returning seat
* This light will remain ON until the seat is fully open or stowed.
An alarm will also sound for 10 seconds, and the indicator will light
up on the instrument panel.
Refer to the Owner’s Manual for more details.
Sunshade-Side (if equipped)
Side window Quarter window
Hook
Pull
Hook
Pull
Third seat fold
incomplete warning light*
Third seat fold
incomplete warning light*
Seats-Stowing third row seats
(power)(if equipped)
Information Provided by:

18
To set, cancel and resume a speed Refer to “Functions” in the Cruise
Control section above, and to the Owner’s Manual for more details.
Fixed speed mode
(1) Push
System ON/OFF
(2) Push and hold
Dynamic Laser Cruise Control (if equipped)
Refer to the Owner’s Manual for more details and complete safety
precautions before attempting to use the “Dynamic Laser Cruise
Control.”
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed reaches 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
FEATURES/OPERATIONS
Information Provided by:
