1SERVICE MANUAL
LASER HEATING SYSTEMS
Description
The Laser Heating System is a completely new type of
sophisticated and fuel-efficient vented system featuring
its own housing, combustion and air circulation systems
and a micro computer control system.
In addition to superior design and technology, rigorous
testing for quality and safety have made the Laser
Heating System unmatched for efficiency, convenience,
economy and flexibility. Plus, the Laser is easy to
maintain and requires minimal service.
The following section outlines the Laser Heater and its
various components.
Listed below, are the physical specifications that apply
to the Laser:
Laser 60AT
W × D × H (inches): 30"× 24" × 19"
(760 × 608 × 483 mm)
Weight: 77 lbs. (35kg)
Flue Pipe Hole: 2-3/4" to 3" diameter
(70 to 75 mm)
See Fig. 1-1.
The heating cycle begins with a purge of any existing
fuel vapors along with a pre-heat period. The fuel and air
are then delivered to the heated burner, resulting in
ignition.
After several minutes of low and medium mode
combustion, the circulation fan starts to blow air through the
heat exchanger and automatically maintains the proper
burn rate. An easy to use selector allows for regulation of
room temperature while the indicator panel allows
monitoring of the Laser’s heating condition. When the room
temp. increaces sufficiently, the heater shuts down and
goes through a post-purge mode for approx. 3 minutes.
Laser 60AT is equipped with a programmable set-back
timer which allows for fully automatic operation 24 hours
a day. The heater will run at four stages "HIGH",
"MEDIUM", "LOW" and "OFF" cycle to maintain the
desired temperature setting.
The Laser 60AT is composed of the following:
• A drip tray
• A cabinet
• A forced flue venting system
• A combustion system
• An air circulation system
• A fuel delivery system
• Electrical and electronics systems
• A variety of safety mechanisms
In the combustion system a mixture of fuel and air is
burned to produce heat. Air is drawn from outside the
dwelling to the burner. At the same time, fuel is metered
from a storage tank into this same burner. Within the
burner, the air/fuel mixture is ignited to produce heat.
The Laser combustion systems are safeguarded by an
overheat protector switch that will shut down the heater
(to protect it from damage) in the event of excessive
heat build-up. The error code "EE-6" or "EE-2" will be
displayed on the digital indicator at this time. The
overheat protector switch will be reset after the cooling
down period. Turn the ON/OFF switch to "ON" again to
restart.
Section 1
1-1 INTRODUCTION
SHUTDOWN
OFF
HEATING
POST-PURGE
COMBUSTION
IGNITION
Figure 1-1 SIMPLIFIED OPERATIVE CYCLE
1-2 PHYSICAL SPECIFICATIONS
1-3 DESCRIPTION OF FUNCTIONS
1-4 DESCRIPTION
1-5 COMBUSTION SYSTEM

Description
The combustion chamber consists of two main parts;
one is the heat chamber and the other is the heat
exchanger. The heat chamber is secured to the top of
the burner. The heat chamber is made of a heatproof
glass. The exhaust vapors pass through the heat
exchanger. While exhaust vapors are moving through
the heat exchanger, the heat is extracted from the heat
exchanger by the air circulation fan. The heat exchanger
is connected to the top of the heat chamber.
The burner is positioned on the cabinet base.
The burner has a double wall construction and contains
an igniter tube, a fuel inlet fitting and a series of air holes
on the inner wall.
Connected to the burner are the igniter (located within
the burner) , a fuel line and a flame sensor. Within the
burner is the burner ring. An airway in the cabinet base
channels air from the intake fan of the combustion
blower to the base of the burner. The flame rod sensor
is mounted through the wall of the burner.
This assembly is designed to promote efficient burning.
The burner ring assembly is held by spring clips to
mounting posts within the burner.
The textured burner coating insures the even
vaporization of fuel for proper combustion.
The flame rod sensor checks the condition of the flame
for proper burning.
The flame rod sensor is mounted through the wall of the
burner.
The ceramic-type igniter is designed to pre-heat the burner
pot and to vaporize and ignite the air/fuel mixture to start
the combustion process.
The forced flue venting system channels air to and from the
heater. Outside air is drawn into the heater by the combustion
blower through the flue pipe and is blown into the bottom of the
burner. It then combines with the vaporized fuel and ignites.
As the heated air passes through the heat exchanger, a
room air circulation fan blows air past the heat exchanger
and out again into the room from the front of the heater.
Exhaust vapors are vented out of the room through the
flue pipe.
The wall thickness which the flue pipe can be installed is from
4 in. to 9 in. The extension flue pipe (option) is available for
installation in wall thickness from 9 in. to 13 in. This provides
the flexibility to meet the installation requirements of dwellings
of various wall thicknesses up to 13 inches (330 mm).
The flue pipe assembly is a “pipe-within-a-pipe”design
which consists of two concentric tubes. Outside air is drawn
through the cylindrical space between the tubes.
Combustion by-products are vented through the inner tube.
As cool air the enters the flue pipe, it is heated by the hot
air that is exiting the system.
The blower motor assembly on Laser 60AT is a dual
function fan with the intake air and exhaust air fans
mounted on a common shaft. Inside they are separated
into two compartments by a sealed plate. One side is
the intake air and the other is the exhaust air. The intake
fan draws in outside air through the flue pipe for internal
combustion. The exhaust fan, which runs on a common
shaft with the intake fan, expels all combustion by-
products through the flue pipe.
The Laser 60AT blower motor has a 2-stage, 3-speed
intake/exhaust fan. The larger diameter exhaust fan
keeps the air pressure within the combustion/exhaust
system lower than the room air. A magnetic sensor
insures proper fan speeds for each burning mode.
The blower motor will keep running for 180 seconds
after the heater is turned off to exhaust vapor in the
system and cool off the unit.
Section 1
SERVICE MANUAL 2
LASER HEATING SYSTEMS
1-6 HEAT CHAMBER
1-7 BURNER
1-8 BURNER RING ASSEMBLY
1-9 BURNER COATING
1-10FLAME ROD SENSOR
1-11 IGNITER
1-12 FORCED FLUE VENTING SYSTEM
1-13 FLUE PIPE
1-14 BLOWER MOTOR ASSEMBLY

3SERVICE MANUAL
LASER HEATING SYSTEMS
Description
The air circulation fan forces room air through the heat
exchanger, then out of the front panel to be distributed
throughout the room. The Laser 60AT circulation fan
motor has three speeds. The circulation fan will keep
running for 180 seconds after the heater shuts down.
This cools the heater.
Fuel moves by gravity from the external fuel storage
tank to the fuel sump.
Fuel must be maintained at the level corresponding to
the burn mode so that combustion can be conducted
efficiently.
The fuel pump meters the flow of fuel from the fuel sump
to the burner through a copper fuel pipe and a fuel
nozzle.
The external tank (which generally is dealer installed)
should contain at least one shutoff valve, a fuel filter and
a vent. Installation of the tank should conform to local
regulations.
The fusible link valve is mounted as a standard item.
Located inside on the base of the heater cabinet, it is
connected to the fuel sump. The fusible link valve is a
spring-loaded device that cuts off the supply of fuel to
the heater when the temperature level (at the valve)
exceeds a predefined maximum limit.
The constant level valve has an automatic shutoff safety
mechanism that prevents fuel from flooding or
overflowing from the fuel sump.
A manual reset button allows the valve to resume
operation after the heater has been moved.
Fuel enters the constant level valve through an inlet at
the bottom. As the level of fuel rises, it passes through a
fuel inlet strainer which removes most particles and
foreign matter from the fuel and then it flows up through
an open inlet valve and enters the tank. See Fig. 1-2.
The fuel pump is mounted on top of the fuel sump. The
pump assembly consists of the pump solenoid and the
control circuit.
All electronic diagrams, such as the wiring diagram, the
circuit board layout, and the electrical schematic can be
found in Section 6 of this Service Manual.
Section 1
1-15 AIR CIRCULATION FAN
1-16 FUEL DELIVERY SYSTEM
1-17 EXTERNAL FUEL TANK
1-18 FUSIBLE LINK VALVE
1-19 FUEL SUMP
(FUEL CONSTANT LEVEL VALVE)
IMPORTANT: Within the valve, a float mechanism
controls the level of fuel in the
sump. As the fuel level drops, the
float drops down to increase the
inlet valve opening to admit more
fuel into the sump. When the fuel
level reaches its maximum volume,
the float rises to shut the valve.
In the event that fuel within the
sump rises to an abnormally high
level, the float within the sump rises.
A trip magnet pulls the float up and
closes the valve to prevent fuel from
entering into the sump.
Should a foreign substance cause
the inlet valve to stick (or prevent it
from opening), the reset button is
utillized to free the mechanism and
to admit fuel to the sump.
The fuel inlet strainer should be
cleaned or replaced periodically.
Time intervals will depend on purity
and quality of fuel.
CAUTION: Care must be taken to prevent dust, dirt
or other debris from clogging or
blocking the inlet valve.
1-20 FUEL PUMP
1-21 ELECTRICAL SYSTEM

Description
Section 1
SERVICE MANUAL 4
LASER HEATING SYSTEMS
The control circuit board provides safety timings,
controls relays and provides clock and thermostat
functions for the Laser Heater. A componet layout of the
printed circuit boad is found in this Service Manual.
The room temperature sensor, which is capable of
sensing room temperature within range of 50°F (10°C)
to 90°F (32°C), can be wall mounted.
Approx. 8 feet (2.5 m) of wire is supplied with the sensor
to facilitate wall mounting is a favorable location. You
can also use radio wire or speaker wire to extend the
mounting location up to 20 feet (6m).
Figure 1-2 FUEL SUMP (FUEL CONSTANT LEVEL VALVE) (Part #20478534)
1-22 CONTROL CIRCUIT BOARD 1-23 ROOM TEMPERATURE SENSOR
(THERMISTOR)

5SERVICE MANUAL
LASER HEATING SYSTEMS
Description
Several safety mechanisms have been built into the
Laser Heating System. These devices protect the user
against personal injury, protect the heater against
damage, shut down the heater and display an error code
on the digital indicator if a malfunction occurs.
When an electric power failure occurs while the heater is
in operation, the heater will automatically re-start and
run in “NORMAL”mode after the power is restored.
Insulating cloth covers are to be placed over all metal
surfaces of the exhaust line during installation. Since
combustion by-products are vented at elevated
temperatures, the exhaust pipe will become hot during
operation. The insulating cloth covers protect the user from
accidental contact burn with these heated metal surfaces.
This fan cover is an integral part of the fan assembly
and protects the user against physical injury which could
occur from accidental contact with the revolving metal
fan blade.
In the event of a power surge or an internal wiring
hazard, the fuses will open and power to the heater will
be cut off. The fuses are rated at 125 V AC, 10-amps
and 125 V AC, 3-amps.
The electrical outlet into which the heater connected
should be protected by at least a 15-amp. fuse or circuit
breaker.
Overheat protector switch is rated at 195°F (90°C).
Should a heater overheat (internal temperature rises
beyond 195°F (90°C)), the overheat protector switch
(also called a high limit switch) will open to shut off the
heater. Error code “EE12”will be displayed on the digital
indicator at this time. The overheat protector switch will
automatically reset after the heater has cooled down.
Once the heater has cooled to 150°F (65°C), the system
can be restarted manually as follows:
1. Press ON/OFF switch to “OFF”.
2. Allow heater to cool down.
3. Resolve the cause of the overheat.
4. Press ON/OFF switch to “ON”to start.
The heater will start with normal operation.
Automatic igniter cleaning system
The heater will automatically turn to the “OFF”cycle at
2:00 AM everyday and the igniter will be on for self-
cleaning for ten (10) minutes. “CL:10”will be shown on
the digital indicator at this time.
Manual igniter cleaning system
you can clean the igniter manually for ten (10) minutes
as follows:
1. Press both the “HOUR”button and “MINUTE”button
at the same time for more than three (3) seconds
when ON/OFF switch is “OFF”.
2. “CL:10”will be shown on the digital indicator.
Cleaning will begin and end without any additional
input.
3. Disconnect the heater from power source during the
off season.
Section 1
1-24 SAFETY MECHANISMS
1-25 POWER FAILURE RECOVERY
SYSTEM
1-26 CLOTH COVERED EXHAUST PIPE
IMPORTANT: Do not operate the heater without
the insulating covers. During
installation make sure that all
exhaust lines are tightly connected.
1-28 FUSE
1-29 OVERHEAT PROTECTOR SWITCH
1-30 IGNITER CLEANING SYSTEM
IMPORTANT: Cleaning the igniter is important to
prolong igniter life. It is recom-
mended that the igniter be cleaned
at least once a week.
1-27 AIR CIRCULATION FAN COVER
IMPORTANT: The digital clock on the heater
must be set to the correct time.

Description
Section 1
SERVICE MANUAL 6
LASER HEATING SYSTEMS
Exhaust fan
Exhaust gas
5. Flue pipe
Intake air
Blower motor
Adjustable leg
Draft pipe Burner
Drip tray
2. Fuel strainer
Fuel sump
Fuel pump
Reset button
Fuel pipe
Burner ring
Ceramic log
Glass cylinder
Intake fan
Igniter 1. Flame sensor
Heat exchanger
3. Overheat protector
Model Laser 60AT
Figure 1-3 CONSTRUCTION

7SERVICE MANUAL
LASER HEATING SYSTEMS
Installation
Installing the Laser System at the user's location can be
performed quickly and economically.
Laser 60AT is strictly an externally fueled system, is fully
vented and will need the installation of an external fuel
storage tank.
By completing each step of the easy-to-follow
installation instruction (each step should be completed in
the exact order specified), the technician is directed
through the installation process.
This section contains all relevant installation information
including:
•Installation specifications
•List of installation tools
•Alternative types of venting systems
(and installation procedures for each)
•Basic requirements for fuel tank installation
•Instructions to install the Laser System
The heater can be located almost anywhere within the
dwelling provided that electrical, fuel, and exhaust
specifications are met.
In addition to the space taken up by the heater, interior
space must also be reserved for free air circulation.
Remove all combustibles from the heating area.
Unless building or fire codes dictate otherwise, the Laser
System can be placed on any floor surface (including
carpeting or other combustible material) and provide safe
operation. Check clearances as instructed in Figure 2-1.
Through-the-wall flue pipe installation requires that a 2-
3/4" to 3" (70 to 75 mm) hole be drilled through the
dwelling wall (interior or exterior). The hole must be
pitched downward toward the outside at an approx.
angle of 2 degrees.
The appropriate wall area (in which hole will be drilled)
must contain no internal obstacles such as piping,
wiring, air ducts or studs.
RECOMMENDED TOOL KIT FOR SERVICE TECHNICIANS
1) #2 Phillips Head Screwdriver
2) Steel Tape Measure
3) Felt Tip Pen or Pencil
4) Caulking Material (exterior grade)
5) Electrical Drill (reverse capability recommended)
6)
Hole Saw, Saber (Jig) Saw or other appropriate
tool for cutting a 2-3/4" to 3" (70 to 75 mm)
diameter hole for flue pipe
7) Long Drill Bit-1/2"
8) 1/4" ×6" Standard Screwdriver
9) Adjustable Wrenches (various sizes)
10) Copper Tubing Cutter
11) Copper Tubing Flaring Tool
12) Volt, OHM, Meter with shielded probes
13) Level (small circular type)
14) Plumber's Pipe Thread Tape
15) Small Assortment of Self-Tapping Screws
16)
Assorted Pliers (Slip Joint, Needle nose, Cutting,
Lock Joint)
17) Phenolic Probe or Insulated Screwdriver
18) Floor Mat to cover carpeting
19) Quart Size Pan for draining fuel
Section 2
2-1 INTRODUCTION
IMPORTANT: Before beginning installation of the
Laser Vented Heating System
(including any electrical wiring and
fuel supply equipment), check local
building, electrical, mechanical and
fire codes. The requirements of
these codes must be followed to
insure lawful installation and use.
IMPORTANT: The heater is designed to be used
no more than 3000 FT. (1000 m)
above sea level.
If using at a altitudes higher than
3000 FT. (1000 m) above sea
level, follow the procedure on
paragraph 2-13.
2-2 PHYSICAL PLACEMENT OF HEATER
2-3 DRILLING REQUIREMENTS

Installation
Line current to the system should be 120 V AC at 60 Hz.
The electrical system should be protected against
current overload by means of at least a 15-amp. fuse or
circuit breaker.
NOTE: The wall outlet should supply electricity for the
Laser System only. Do not connect any other
electrical appliance to it.
Heater fuel (ASTM D3699 1-K Kerosene or ASTM D396
No.1 Fuel Oil) can be stored in externally located
storage tanks ranging from 55 gallon (200R) drums to
275 gallon (1000R) tanks. When using large tanks a
pressure regulator with a max. of 2.5 PSI should be
installed near the heater inlet.
A wall-mounted temperature sensor gauges room
temperature to automatically regulated the heating
cycles of the Laser System. The standard sensor wire is
8 feet (2.5 m) long and can be mounted on a wall. You
can also use radio wire or speaker wire to extend the
mounting location up to 20 feet (6m).
Fire regulations, as well as electrical and other local
building codes, may govern the installation and use of a
vented heater and related fueling systems. Prior to
installation, check and comply with all codes. Additional
requirement may be met for Mobile Home installation.
Save all shipping materials until the Laser has been
completely installed and is working properly.
A. Remove or cut the two plastic straps that hold the
shipping carton together.
B. Lift off the carton top.
C. Remove the template and the Owner's Manual from
the shipping carton.
NOTE: The dealer should complete the registration
card at time of customer purchase and return it
to TOYOTOMI U.S.A., INC. as soon as
possible.
D. Remove the flue pipe kit from shipping carton.
E. Remove the shipping carton.
F. Remove the plastic bag covering the heater.
G. Remove the plastic bags containing the heater parts
and set it aside.
H. Firmly grasp cabinet handles (one on each side of
heater cabinet) and lift heater from the cardboard
shipping base.
I. Remove the flue pipe from the cardboard shipping
base.
J. Check for parts as listed in Laser Owner's Manual.
Section 2
SERVICE MANUAL 8
LASER HEATING SYSTEMS
2-4 POWER REQUIREMENTS
2-5 FUEL TANK REQUIREMENTS
WARNING: The Laser power cord must be
plugged into a directly accessible wall
outlet. Do not use an extension cord to
make this electrical connection.
WARNING: Installation of any externally located
fuel tanks must comply with all local
standards and/or building codes.
2-6 ROOM TEMPERATURE SENSOR
WIRING REQUIREMENTS
CAUTION: Choose a location for the sensor that is
not in the path of direct sunlight, draft or
the flow of warm air from the heater, as
this will cause an inaccurate
temperature reading.
2-7 BUILDING CODES
2-8 UNPACKING
IMPORTANT: Only the standard-size flue pipe is
shipped with the heater. The
TOYOSTOVE Distributor/Dealer will
also stock the long flue pipe, the
window kits, extension pipe kits, and
other accessories that may be
required for non-standard installation.

9SERVICE MANUAL
LASER HEATING SYSTEMS
Installation
Section 2
OVERHEAD CLEARANCE FOR FLUE PIPE FRONTAL AND SIDE CLEARANCES
FOR FLUE PIPE
HEATER CLEARANCE
More than 5 ft. (1.5 m)
Non combustible materials.
More than 12 in. (30 cm) for maintenance
or inspection.
[ ]
*
More than 6 in. (15 cm)
More than 6 in. (15 cm)
[(4 in.) (10 cm)]*
More than 4 in. (10 cm)
More than 6 in. (15 cm)
[(4 in.) (10 cm)]*
;;;;
;;;;
;;;;
;;;;
Combustible object
Not less than 6 in.
Combustible object
Noncombustible object
Not less
than 2 ft.
Not less than 1 ft.
Flue pipe
* Not less than 8 in.
45˚
;;;
;;;
Not less than
1.5 ft.
Not less than 1.5 ft.
Figure 2-1 HEATER/FLUE PIPE CLEARANCE

Installation
Section 2
SERVICE MANUAL 10
LASER HEATING SYSTEMS
;;;;
;;;;
Wind break
Strong wind
Not less than
1.5 ft. (45 cm)
Not less than
1.5 ft. (45 cm)
IMPORTANT: In open areas with strong wind, a wind break may be necessary.
Figure 2-2 WIND BREAK

11 SERVICE MANUAL
LASER HEATING SYSTEMS
Installation
In choosing a location for your Laser Vented Heater, the
following safety tips must be considered.
•Intake and exhaust flue pipe openings must be
fully exposed to outside air. Do not vent into
garage, basement, under the floor, or into any
enclosed area.
•Do not install flue pipe in close proximity to other
objects or materials. See Figure 2-1.
•Before making a hole in your wall for the flue pipe,
make sure the area is free of electrical wires, gas
pipes and other obstacles.
•Do not install flue pipe where it will be exposed to
heavy snow, collected leaves or strong drafts. See
Figure 2-2.
•Do not install the flue pipe down from the heater.
•Do not install the flue pipe into a chimney.
NOTE: After using the installation template as a guide
for drilling the flue pipe hole, the Laser flue
pipe can be normally installed according to the
illustration procedure in the Owner's Manual.
If the template was misplaced or the unit is to
be relocated, the approx. flue pipe hole
location measurements are as follows:
a. Remove four (4) screws from top plate and remove
the top plate.
b. Remove four (4) screws from canopy guard and
remove the canopy guard. Remove the heat chamber
lid from the heat exchanger.
c. Gently insert the ceramic logs into three (3) brackets
inside of burner properly. After inserting the ceramic
logs, install log supporter on the upper holes of the
ceramic logs. Adjust the log supporter so as to place
the logs at the center of the burner.
Section 2

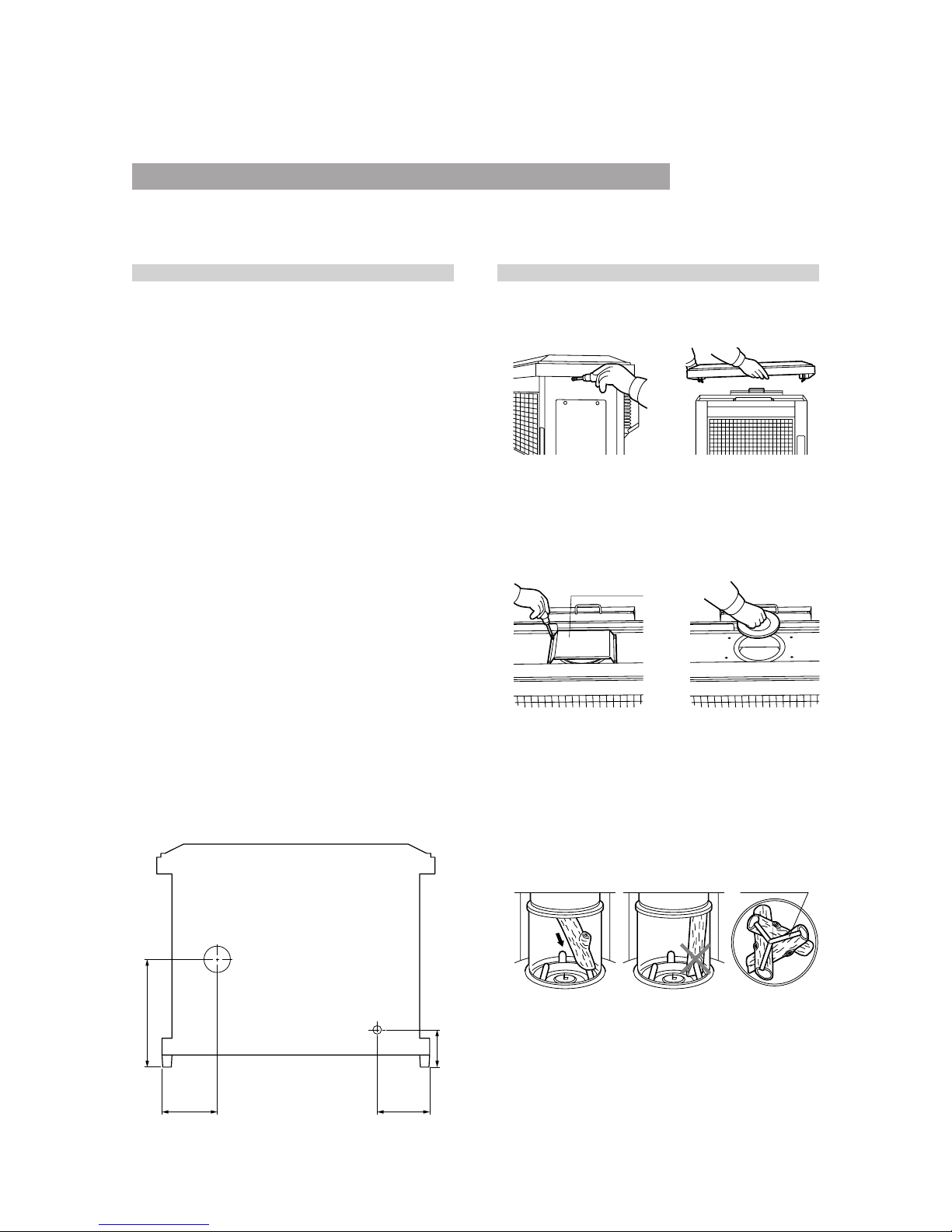

2-9 HEATER INSTALLATION
11-9/16”(294mm)
5-13/16”
(148mm)
5-21/32”
(143mm)
4”(101mm)
Figure 2-3 TEMPLATE
2-10 INSTALLING CERAMIC LOG
Canopy guard
<Heat Chamber Lid><Canopy Guard>
Log supporter
Top View
Wrong
Correct
Figure 2-4 Figure 2-5
Figure 2-6 Figure 2-7
Figure 2-8

Extension pipe kits are available in three different
lengths. For exact dimensions refer to Table 2-1.
Installing an extension pipe kit requires the construction
of an intake pipe and the exhaust pipe. The intake pipe
is connected between the L-shaped hose at the rear of
the heater and the air inlet port on the flue pipe.
Similarly, the exhaust pipe is connected between the
bent joint at the rear of the heater, and the exhaust port
on the flue pipe.
SERVICE MANUAL 12
LASER HEATING SYSTEMS
Installation
Section 2
•Always set pipes parallel
IMPORTANT: Do not run pipes down from heater.
(Through floor, for example)
IMPORTANT: The intake hose is longer than the
exhaust pipe and may need to be
cut to size.
IMPORTANT: Total length of extension pipe
between heater and flue pipe must
be no longer than 10ft. (3 m), and no
more than three(3) bends may be
used.
Figure 2-10 INSTALLATION EXAMPLE
2-11 INSTALLING AN EXTENSION KIT
Extension Kit
Extension Kit (S)
Extension Kit (M)
Extension Kit (L)
Length Part #
20479896
20479897
20479898
12-5/8”—19-5/8”
(32 cm —50 cm)
22-1/2”—39-3/8”
(57 cm —1 m)
61-3/4”—78-3/4”
(175 cm —2 m)
NOTE: Use “L”-shaped Exhaust Joint if necessary.
INSTALLATION WITH EXTENSION PIPE KIT (L)
Adjustable
Exhaust
Pipe
Insulation
cloth cover
Exhaust
Extension
Pipe (long)
Pipe
holder
Intake Hose
Pipe
Support
Hardware
Figure 2-9 EXTENSION PIPE KIT
Table 2-1 EXTENSION PIPE KITS

13 SERVICE MANUAL
LASER HEATING SYSTEMS
Installation
For more detailed information, see a fuel lifter pump
manual.
Section 2
2-12 TYPICAL FUEL LIFTER PUMP
INSTALLATION
NOTE: Pressure reducing valve required if lifter is
more than 8 ft. (2.5 m) higher than fuel inlet
to heater. Limit: 2.5 LBS/SQ in MAX
Fuel lifter pump
location example
Fuel tank
FUEL LIFTER PUMP FUEL LIFTER PUMP
FUEL LIFTER PUMP/GRAVITY FUEL LIFTER PUMP
(Can be located behind the heater)
Figure 2-11
Fuel
tank
Fuel lifter
pump
location
example
NOTE: Pressure reducing valve required if lifter is
more than 8 ft. (2.5 m) higher than fuel
inlet to heater. Limit: 2.5 LBS/SQ in MAX

SERVICE MANUAL 14
LASER HEATING SYSTEMS
Installation
Fuel tank installation is illustrated (Figure 2-5). Since fuel
tank installation techniques vary from place to place
(ofter dependent upon applicable codes), a particular
installation procedure cannot be specified. However,
certain criteria govern the fuel hook-up of the heater.
Use the following check list as a guide to the fuel
storage facilities.
Fueling Options Available
Fueling of the Laser Heating Systems can be
accomplished in one of two ways:
1. Gravity-fed large capacity external tank:
Practical for large heating needs where bulk delivery
of fuel is available. This system should be installed
by a qualified plumber or fuel supply technician.
2. Large capacity external tank with pump (*):
For large heating needs where a gravity-fed system
is not practical, an electric pump (the fuel lifter
pump) may be used.
(*) The inlet pressure to the heater must not exceed
2.5 psi. Use a pressure reducing valve with a 2.5
psi max. rating.
To install a large capacity, gravity-fed external tank,
follow the instructions below. Use of a qualified installer
is recommended.
•Installation height of the bottom of the fuel tank
should be 16 inches (40 cm) or more above the
floor surface on which the heater stands. This
insures that inlet fuel pressure will be sufficient.
The top of the fuel tank should be no higher than
8-1/2 feet (2.6 m) above the floor under the
heater. This insures that inlet fuel pressure will
not be excessive.
•The horizontal length of piping should not
exceed 100 feel (30 m) and should be free of
sharp bends or obstructions.
•Piping should include no inverse U-type bends
(to avoid air locks, which could block the fuel
supply).
•A water block filter recommended for use on the
fuel line near tank, and a shutoff valve should
installed on the tank.
•Flare connections should be used at the fusible
link valve connection on the heater and at the
fuel filter to be installed at the tank.
•Use of a shutoff valve just before line enters
building will minimize fuel to be drained should
heater require service.
•If fuel line inside building is more than 3 ft. (90
cm), use another shutoff valve for the above
reason.
•The fuel tank should be located no closer than 6
feet (1.8 m) to a source of heat.
•The fuel tank should have an opening for filling
on the top and a vent with a weather-proof cap
on the side. On some tanks the vent and fill
spout use the same opening.
•3/8" OD copper tubing should be used for fuel
line.
•External tank installation must comply with
National Fire Protection Association Code
NFPA31 or locally applicable codes. Check with
local building officials.
Section 2
2-13 FUEL TANK INSTALLATION
WARNING: Use only ASTM D3699 1-K Kerosene
or ASTM D396 No. 1 Fuel Oil. Never
use gasoline, white gas, camp fuel or
other flammable liquids. Use of such
fuels can result in an explosive fire and
cause severe injury.
IMPORTANT: Make sure that fuel line is free from
any particles from cutting the fuel
pipe. Otherwise it may cause trouble
in the fuel sump.

15 SERVICE MANUAL
LASER HEATING SYSTEMS
Installation
Section 2
Laser 60AT
Fuel filter
8-1/2 ft. maximum
16 in. minimum
Tank Vent
Outdoor Fuel Tank
Shut-off Valve
Loop
3/8 in. OD Copper Tubing
Shut-off Valve
Fusible link valve
(inside)
Figure 2-12 FUEL LINE CONNECTION
The heater is designed to be used no more than 3000
FT. (900 m) above sea level. No restrictions other than a
maximum length of extension pipes of 10 FT. (3m) with
three (3) bends up to 3000 FT. (900m) above sea level.
For between 3000 FT. to 6000 FT. (900 m to 1800 m)
use, the following procedure should be used:
•Straight - through installation only (no extension pipe).
•Change jumper wire “JX2”(See Fig. 2-13) from “Lo”
position to “Hi”position, this will result in reduction of
fuel flow of approximately 10% or change wire
position to High Altitude post.
NOTE: All installations over 3000 FT. (900m) above
sea level may require a trimming adjustment of
the fuel flow rate on fuel pump.
When you adjust the fuel flow rate, wait until
unit has been in high burn mode for 20 min.
and follow instructions in this manual.
2-14 FOR HIGH ALTITUDE USE
G
F
E
C.P.U.
C
K
B
Lo
A
L
Hi
JX2
Figure 2-13 MAIN CIRCUIT BOARD

SERVICE MANUAL 16
LASER HEATING SYSTEMS
Operation
The Laser 60AT is an easy-to-operate vented heater.
Routine operation features high BTU output, automatic
adjustment of room temperature, low fuel and power
consumption, and choice of automatic or manual heater
operation.
The section provides all information necessary to
operate the Laser Heating System. All operation
procedures specified should be performed in the order in
which they are described.
The following specifications apply to the operation of
Laser 60AT.
•Rated Efficiency
(as applied to kerosene heaters): 93% (*)
•Rated Efficiency
(as applied to central heating system): 86% (*)
•Power Consumption: as follows.
•Circulation Fan Output: 350/270/185 cubic feet/min.
(9.9/7.6/5.2 cubic meter/min.)
•Fuel Source: external tank
•
Potential Heating Area: 630 - 2000 SQ. FT. (59 - 186 m
2
).
(*) The energy from the combustion process is
released in the form of heat and vaporized water.
Normally, heating systems discharge water from
combustion to the atmosphere without condensing
it. The 93% efficiency rating means that, assuming
the water cannot be condensed, 93% of the heat
produced by the combustion process is recovered.
Assuming the water can be condensed, the
efficiency is 86%.
NOTE: Actual effective heating area depends upon
numerous factors such as type and severity of
climate, type of dwelling construction, condition
of dwelling, and thickness and effectiveness of
dwelling insulation.
Table 3-1 lists Laser 60AT performance specifications at
user-selected heat output settings.
Section 3
3-1 INTRODUCTION
3-2 OPERATING SPECIFICATIONS
Low
12,000
0.095
6.6 days
52.6 hrs
72.4 days
24.1 days
361.8 days
120.6 days
Rating (BTU/hr)
Fuel consumption (gal/hr)
8-hrs/day burntime (5-gal.tank) (18L tank)
Continuous-use burntime (5-gal.tank) (18L tank)
8-hrs/day burntime (55-gal.tank) (200L tank)
Continuous-use burntime (55-gal.tank) (200L tank)
8-hrs/day burntime (275-gal.tank) (1000L tank)
Continuous-use burntime (275-gal.tank) (1000L tank)
Setting
Medium
21,000
0.161
3.9 days
31.1 hrs
42.7 days
14.2 days
213.5 days
71.2 days
Specifications for Laser 60AT
High
30,000
0.23
2.7 days
21.7 hrs
29.9 days
10.0 days
149.5 days
49.8 days
(0.36 L/hr) (0.609 L/hr) (0.871 L/hr)
Table 3-1 HEATER PERFORMANCE SPECIFICATIONS
280 watts 76 watts 53 watts 46 watts 4 watts
IGNITION HIGH
BURN
MEDIUM
BURN
LOW
BURN OFF

17 SERVICE MANUAL
LASER HEATING SYSTEMS
Operation
Section 3
ROOM
SET
TEMP
BURNER
LO MED HIGH
BURNING MODE
TIME/CLOCK SET
TEMP SELECT
HOUR
BURNER
(NORMAL POSITION)
CLOCK SET
CLOCK / TEMP
START
SET-BACK
50
10
70
21
90ºF
32ºC
END SET-BACK
SET - BACKNORMAL
AUTO
AM PM
HOUR
AUTO
8. ON/OFF lamp
10. Normal temper
-ature lamp
1. ON/OFF switch
5. Timer selector
3. Temperature selectors
11. Set-back temperature lamp
4. Timer & clock set
7. Burning mode lamp
9. Auto lamp
6. Digital Indicator
2. Auto switch
1. ON/OFF switch:
Main switch to turn heater burner on and off.
When pressed “ON”, the heater begins operation
and combustion starts after 3 - 9 minutes pre-
heat period. Heater will run at 4 stages “High”,
“MEDIUM”, “LOW”and “OFF”.
2. Auto switch:
The switch turns automatic operation mode on
and off which have been programmed into timer.
3. Temperature selectors:
“NORMAL”and “SET-BACK”temperature selec-
tors allow user to select desired temperature dur-
ing manual or automatic operation. And it’s easy
to adjust.
4. Timer & clock set:
Timer and clock set modes can be set by press-
ing hour or minute buttons.
5. Timer selector:
When you program the timer, you have to slide
timer selector at each position and always return
it to “CLOCK”position for timer indicator. Start
time and end time of “SET-BACK”are also set
by this switch.
6. Digital indicator:
Displays clock, set temperature, room tempera-
ture and error code.
7. Burning mode lamps:
Indicate whether heater is operating at “HIGH”,
“MEDIUM”, or “LOW”combustion. All burning
mode lamps will be off in the “OFF”cycle.
8. ON/OFF lamp:
Lights on when heater is in operation and flash
when heater is in prepurge or postpurge.
9. Auto lamp:
Lights on when automatic operation is in use.
10. Normal temperature lamp:
Lights on when heater runs with manual or in
“NORMAL”mode of automatic operation.
11. Set-back temperature lamp:
Lights on when heater runs with “SET-BACK”
mode of automatic operation.
Figure 3-1 CONTROL PANEL
3-3 OPERATING CONTROLS AND
INDICATORS
The following operating controls are used to run the
heater and you monitor its performance by indicator
lamps.
