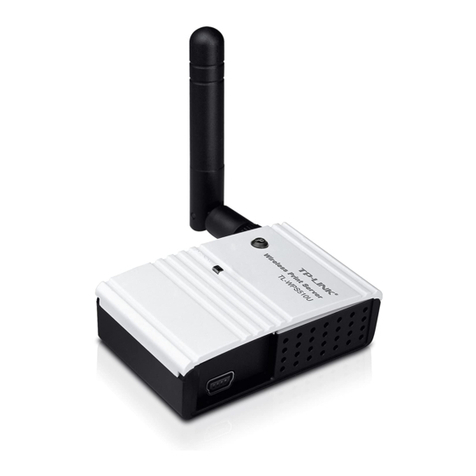

TP-Link TL-WPS510U User manual

TL-WPS510U
Pocket-sized Wireless Print Server
Rev: 2.0.0
1910010376

I
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com

II
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
¾Reorient or relocate the receiving antenna.
¾Increase the separation between the equipment and receiver.
¾Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
¾Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Trademarks
NetWare is a registered trademark of Novell Inc and Windows 95/98/Me and Windows
NT/2000/XP /2003/Vista/7 are registered trademarks of Microsoft Corp. All other brands and
product names are trademarks or registered trademarks of their respective owners.
Copyright
No part of this publication may be reproduced in any form or by any means or used to make any
derivative (such as translation, transformation or adaptation) without the express written consent
of the manufacturer as stipulated by the United States Copyright Act of 1976.

III
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
2400.0-2483.5 MHz
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor use
and public service
France
Outdoor use limited to
10 mW e.i.r.p. within
the band 2454-2483.5
MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow
current relaxed regulation. Full implementation
planned 2012
Italy If used outside of own premises, general
authorization is required
Luxembourg None General authorization required for network and
service supply(not for spectrum)
Norway Implemented
This subsection does not apply for the geographical
area within a radius of 20 km from the centre of
Ny-Ålesund
Russian Federation Only for indoor applications
Note：It not used outdoors in France.
All contents and specifications are subject to change without notice.

IV
CONTENTS
Chapter 1. Introduction.........................................................................................1
1.1 Product Overview......................................................................................................1
1.2 Components and Features........................................................................................1
1.3 LED Indicator.............................................................................................................1
1.4 Factory Defaults ........................................................................................................1
Chapter 2. Hardware Installation .........................................................................3
2.1 Preparation................................................................................................................3
2.2 Typologies.................................................................................................................3
2.2.1 Ad-Hoc..............................................................................................................................3
2.2.2 Infrastructure.....................................................................................................................3
2.3 Connection ................................................................................................................4
Chapter 3. How to Configure the Print Server....................................................5
3.1 On Ad-Hoc Mode.......................................................................................................5
3.2 On Infrastructure Mode............................................................................................15
3.2.1 Using PSWizard in Windows XP/ Windows Vista/ Windows 7...................................... 15
3.2.2 Using Web Management Page in Windows XP/ Windows Vista/ Windows 7............... 35
3.2.3 Using Web Management Page on MAC OS ................................................................. 40
3.3 Printer Installation....................................................................................................50
3.3.1 If You Have Installed A Printer Before........................................................................... 50
3.3.2 If You Never Install A Printer Before.............................................................................. 55
Chapter 4. More Configuration for the Print Server .........................................61
4.1 Login........................................................................................................................61
4.2 Status ......................................................................................................................62
4.2.1 System:.......................................................................................................................... 63
4.2.2 Printer: ........................................................................................................................... 64
4.2.3 Wireless:........................................................................................................................ 65
4.3 Setup.......................................................................................................................66
4.3.1 System Setup ................................................................................................................ 66
4.3.2 Wireless Setup:.............................................................................................................. 67
4.3.3 TCP/IP Setup:................................................................................................................ 69
4.4 Misc.........................................................................................................................70
4.4.1 Factory Default .............................................................................................................. 70
4.4.2 Firmware Upgrade......................................................................................................... 70

V
4.5 Restart.....................................................................................................................71
Appendix A: How to Resset the Print Server.......................................................72
Appendix B: Troubleshooting...............................................................................73
Appendix C: Frequently Asked Questions...........................................................75
Appendix D: Additional Installation Instructions.................................................77

TL-WPS510U Pocket-sized Wireless Print Server
1
Chapter 1. Introduction
1.1 Product Overview
The external print servers enhance capability by letting you place your printers at convenient
locations directly on the Ethernet network, and by increasing network printer performance and
management. Please note that the print server does not support printing with host-based printers,
e.g. CAPT, GDI, PPA.
1.2 Components and Features
Dongle-sized Wireless Print Server
¾1-USB2.0 High Speed port(PID1)
¾1 Setup CD contains driver and manual for Windows system
¾One external AC power adapter
¾One Quick Installation Guide
¾Built-in Reset Button
1.3 LED Indicator
LED Status Indication
On (Red) The Print Server’s power is on.
Power Off The Print Server’s power is off.
WLAN Blinking (Green) Indicating the linkage and data transmission via wireless
connectivity.
1.4 Factory Defaults
¾Username: admin
¾Password: 0000
¾Wireless Mode: Ad-Hoc (Peer-to-Peer)
¾Channel: 1
¾SSID: WLAN-PS
¾Encryption: None

TL-WPS510U Pocket-sized Wireless Print Server
2
¾IP Address: 192.168.0.10
¾Subnet Mask: 255.255.255.0
¾DHCP Client: off

TL-WPS510U Pocket-sized Wireless Print Server
3
Chapter 2. Hardware Installation
2.1 Preparation
Before you start, you should prepare the following items:
¾One printer
¾One printer cable
¾One wireless router / Access Point (optional)
¾A PC with wireless adapter installed
¾One Windows-based computer with print server setup CD
2.2 Typologies
2.2.1 Ad-Hoc
In this mode, there’s no any center of the wireless network, and every host is connecting with each
other. The host which wants to print a document will communicate directly with the TL-WPS510U.
Figure 2-1 Ad-Hoc Mode
2.2.2 Infrastructure
In this mode, the wireless router is the center of the wireless network. Every host, TL-WPS510U
included will communicate with the wireless router. The hosts communicate with TL-WPS510U
through the wireless router.

TL-WPS510U Pocket-sized Wireless Print Server
4
Figure 2-2 Infrastructure Mode
2.3 Connection
Follow the instructions below to install the print server.
¾Power off the printer.
¾Connect the print server to your printer with the supplied USB cable.
¾Power on the printer.
¾Power on print server.
¾Wait 40 seconds as part of the print server’s Power On Self Test (POST).

TL-WPS510U Pocket-sized Wireless Print Server
5
Chapter 3. How to Configure the Print Server
3.1 On Ad-Hoc Mode
To connect to the print server, the configuration for Windows XP, Windows Vista and Windows 7
are similar. Here we take Windows XP for example.
1. On the Windows taskbar, click the Start->Control Panel.
Figure 3-1
2. Select and double-click Networking Connections.
Figure 3-2
3. Right click Wireless Network Connection, and select Properties.

TL-WPS510U Pocket-sized Wireless Print Server
6
Figure 3-3
4. Select Internet Protocol (TCP/IP), and then double click it or click Properties.
Figure 3-4
5. Select “Use the following IP address” and input a static IP address 192.168.0.X (1<X<10 or
10<X<255, for 192.168.0.10 is the default IP address of the print server), Subnet mask
255.255.255.0. Click OK.
)Note:
The IP address must be within the same subnet as your wireless print server. For example, if the
IP address of your print server has been changed to 192.168.1.10, the IP address should be
configured as 192.168.1.X (1<X<10 or 10<X<255).

TL-WPS510U Pocket-sized Wireless Print Server
7
Figure 3-5
6. Right click the icon at the right bottom on your desktop and then select View Available
Wireless Networks. (Here we use Windows Zero Configuration as an example. You can also
use vendor utility of wireless adapter. )
Figure 3-6
7. Find the SSID WLAN-PS of wireless print server. Select it and then click Connect.

TL-WPS510U Pocket-sized Wireless Print Server
8
Figure 3-7
8. Once the connection is successful, you will see the following screen shown in Figure 3-8.
Figure 3-8
9. Open a web-browser and type in the IP address of the print server (the default is 192.168.0.10)
in the address field of the browser to login to the web management of the print server.

TL-WPS510U Pocket-sized Wireless Print Server
9
Figure 3-9
10. After a moment, a login window will appear, similar to the Figure 3-10. Enter admin in
lowercase for the User Name and 0000 for the Password. Then click the OK button or press
the Enter key.
Figure 3-10
11. Then the print server web management page will appear. Suppose the local network is
192.168.1.0/255.255.255.0, therefore the IP of TL-WPS510U is required to set to 192.168.1.X
(1<X<255). Here we recommend 192.168.1.10. Click “Setup” > “TCP/IP”, change the TCP/IP
settings of the print server to 192.168.1.10/255.255.255.0 as shown in Figure 3-11. Click
Save/Restart to save the changes as shown in Figure 3-12.

TL-WPS510U Pocket-sized Wireless Print Server
10
Figure 3-11
Figure 3-12
12. Reenter the “Internet Protocol (TCP/IP) Properties” page. Change the wireless adapter’s IP
to 192.168.1.101/255.255.255.0. Click OK.

TL-WPS510U Pocket-sized Wireless Print Server
11
Figure 3-13
13. Connects to the network WLAN-PS again.
Figure 3-14
14. Log into the TL-WPS510U and configure the wireless parameters according to your wireless
network. In this example, the SSID is WLAN-Ad-Hoc, and the security type is WEP-64bit with
the password set to 12345. After the configuration, the TL-WPS510U also needs to save and
reboot.

TL-WPS510U Pocket-sized Wireless Print Server
12
Figure 3-15

TL-WPS510U Pocket-sized Wireless Print Server
13
Figure 3-16
15. Connect your laptop to the TL-WPS510U with a new SSID. As mentioned above, the SSID is
WLAN-Ad-Hoc and the password is 12345.
Figure 3-17
16. Try to ping the TL-WPS510U (Press WIN key + R, input cmd to launch the command line
interface, input ping 192.168.1.10). If the result shows as Figure 3-18, it means that your
adapter can login to the print server again as shown in Figure 3-19.

TL-WPS510U Pocket-sized Wireless Print Server
14
Figure 3-18
Figure 3-19
17. Add a Standard TCP/IP port for the printer.
¾If you’ve already installed the printer on your computer, please refer to 3.3.1 If You Have
Installed A Printer Before to add a Standard TCP/IP port.
