We would like to congratulate and thank you that you decided for GoldHunter
metal detector and joined people around the globe that enjoy this fun and
rewarding hobby.
GoldHunter was designed as rst metal detector on the market that uses advanced smartphone
technologies that enables users to not only nd gold nuggets, coins and treasure, but also visualize
them on screen before digging�
Here at TreasureHunter3D we are constantly focusing on innovating in order to provide high quality,
affordable & easy to use products that incorporate high technology to our customers, by purchasing
this device you are helping us to push metal detecting to the next level�
TreasureHunter3D team wishes you successful treasure hunting.
Welcome
The latest product instruction manuals and
detector software updates are available at:
https://www.treasurehunter3d.com
I loved the idea of GoldHunter from the first
place. Augmented reality 3D scan preforms so
smooth that it is hard to believe such technology
is available for such an affordable price. Device
performs great in all soil conditions even in
highly mineralized areas.
GoldHunter is most advanced metal detector I
have ever own. It is very helpful to observe shape
of the objects, this gives me more insight into
buried WWII relics before I dig.
Felix Wilkins USA
Viviano Dellucci Italy

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 5
Metal detector safety warnings
Any piece of equipment can be dangerous if not operated properly� It is YOU who is responsible for the safe operation of this
equipment� Any metal detector may discover explosives, underground power lines, sharp objects or other items that could
cause personal injury�
The company or the manufacturer of the metal detector device DOES NOT ACCEPT responsibility for any personal injury or
personal property damage!
To make your search more secure, please follow this precautions:
• never treasure hunt in a zone where bombs or other explosives may be buried,
• never treasure hunt in an area where there might be underground electric lines or pipes
buried at a shallow depth,
• never treasure hunt in an area with ammable gas or liquid pipelines,
• always use reasonable caution in digging, especially in areas where you are uncertain of
underground conditions,
• for safety reasons do not use headphones near trac or other dangers like rattlesnakes.
Treasure hunter’s code of ethics
• Respect the rights and property of others� Do not enter private property without
the owner’s permission�
• Always check Federal, State, County and local laws before searching
• Never destroy historical or archaeological treasures�
• Take care to rell all holes and leave the land and vegetation undamaged
• Always Appreciate and protect our inheritance of natural resources, wildlife and private property�
• Remove and dispose of any and all trash and litter found� Be extremely careful while probing,
picking up, or discarding trash items�
• Keep in mind that all treasure hunters may be judged by the example you set
Safety precaution for use
• In order to prolong metal detector device life it is important to follow these precautions:
• Do not modify, disassemble, or open this product�
• When device is not used for a longer period of time always remove the battery
• Do not expose your detector to extreme temperatures, particularly inside a car in full sun�
• Use and store the metal detector only in normal temperature environments� Temperature
extremes can shorten the life of electronic devices and distort or melt plastic parts�
• The metal detector device is not waterproof� Make sure that you protect it in wet weather�
• Do not use solvents or alcohol to clean the detector. Soapy water is sucient.
• Handle the metal detector gently and carefully� Dropping it can damage electronic components�
• avoid strong magnetic elds generated by large magnets, loudspeakers or motors
Read before use -
important notes

Assembly &
getting started
TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 6

Assembly
1. Attach coil to lower shaft�
2. Connect coil�
3. Fix smart control unit and make sure the batteries
are inserted�
4. Mount smartphone�
Make sure home button is on right side and that
the path between smartphone camera and
searchcoil is clear�
5. Adjust the height of the shaft�
Your arm should be relaxed and the search coil
position approximately 5 cm above the ground�
6. Learn to sweep properly�
Battery
The detector requires a single 9-volt ALKALINE or rechargeable
Lithium-Ion or nickel-metal hydride battery�
The battery is located on the back side of the smart control
unit�
Battery Status Indicator
The battery status indicator shows the current battery level�
When battery is empty, LED indicator on the smart control
unit will start to blink�

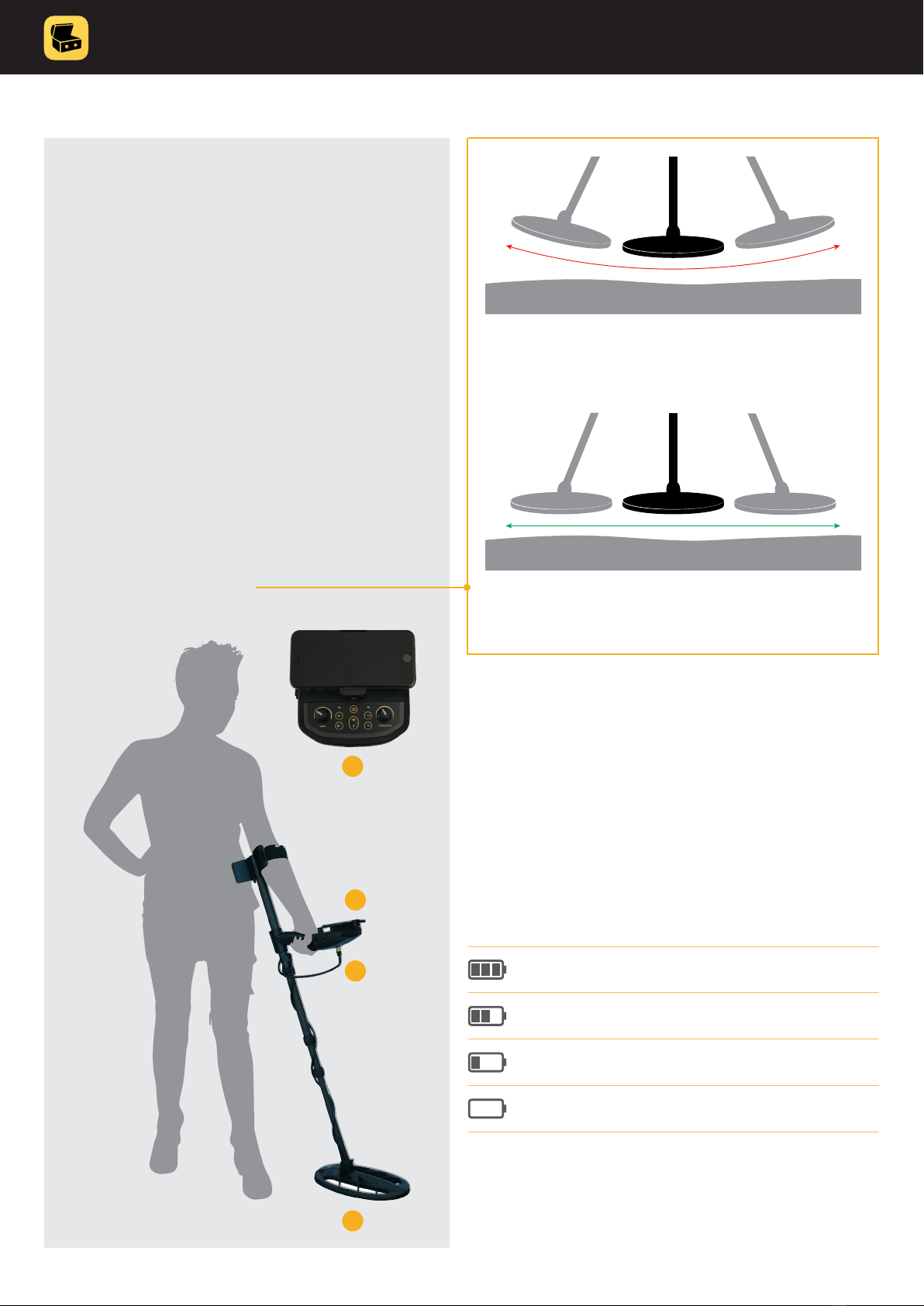

Correct way of sweeping
The search coil must be parallel to the ground
at all times.
70% – 100%
30% – 70%
<30%
<5% (Battery is empty)
Instruction manual 7
TREASUREHUNTER3D
Makes underground treasures visible
Incorrect way of sweeping
In order to get the best results it is important to keep the
search coil parallel to the ground.
1
2
3
4

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 8

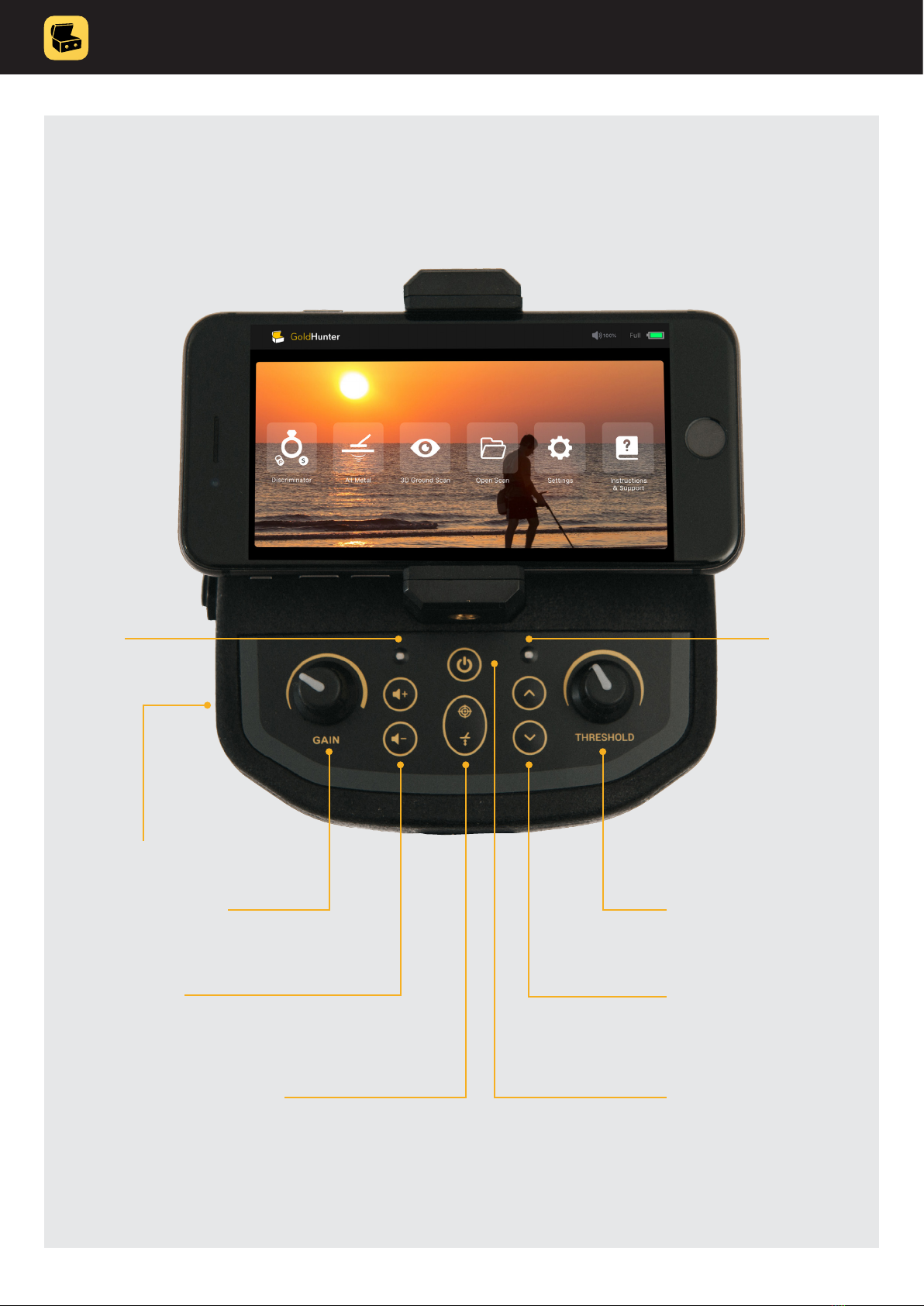

Power button:
Holding this button for
3 seconds turns device
ON / OFF
Volume buttons
Discrimination /
ground balance
buttons
Pin-point / Ground grab button
Sensitivity / gain knob
GREEN
device
turned ON
BLUE
smartphone
connected
Headphones connector
Threshold knob
Smart control unit

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 9
Smartphone application
GoldHunter uses iOS application to display detector
information as well as 3D object scans�
In order to use all GoldHunter features, iPhone 6s or later
model must be used�
1. Install GoldHunter application
Applications can be downloaded from
http://www�treasurehunter3d�com/downloads
or installed from AppStore�
2. Make sure bluetooth is turned on�
3. Turn metal detector ON & run the application�
LED indicator will turn blue indicating smartphone is
connected with metal detector device�
4. Congratulations, metal detector is now ready
to be used!
Quick start guide
BLUE
smartphone
connected
1. From the main menu select Discriminator
mode�
2. Turn Sensitivity knob to middle position
(12:00)�
3. Set volume to 50%�
4. Use test sample that was included, move
it above the coil, gold icon indicator should
lit and you should hear sound from the
speaker�
1
2
3
4

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 10
Detector basics &
operating modes

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 11
How does detector work?
Metal detectors work by 1� transmitting
a magnetic eld generated by coil
and then 2. analyzing that eld as it
returns from the environment that the
signal was transmitted� 3. Processing
of the signal is done by control unit
that 4. generates audio tones when it
detects that return signal has changed�
1
2
3
4

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 12
GOLDHUNTER DETECTOR OPERATES
IN THREE MODES
DISCRIMINATION MODE
This mode is recommended for starters and beginners, it is simple and easy to
use, it provides quick information of type and depth of buried object and good
performance.
ALL METAL MODE
This mode provides even better performance since it enables user to eliminate
false signals caused by soil mineralization and achieve more depth and higher
sensitivity. We recommend to start using it when you are already familiar with
Discrimination mode.
D GROUND SCAN MODE
This mode enables user to scan the ground and visualize targets on the screen.
Before start using this mode, we recommend to rst learn about basics of metal
detecting get familiar with Discrimination mode.
1
2
3

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 13
Discrimination mode

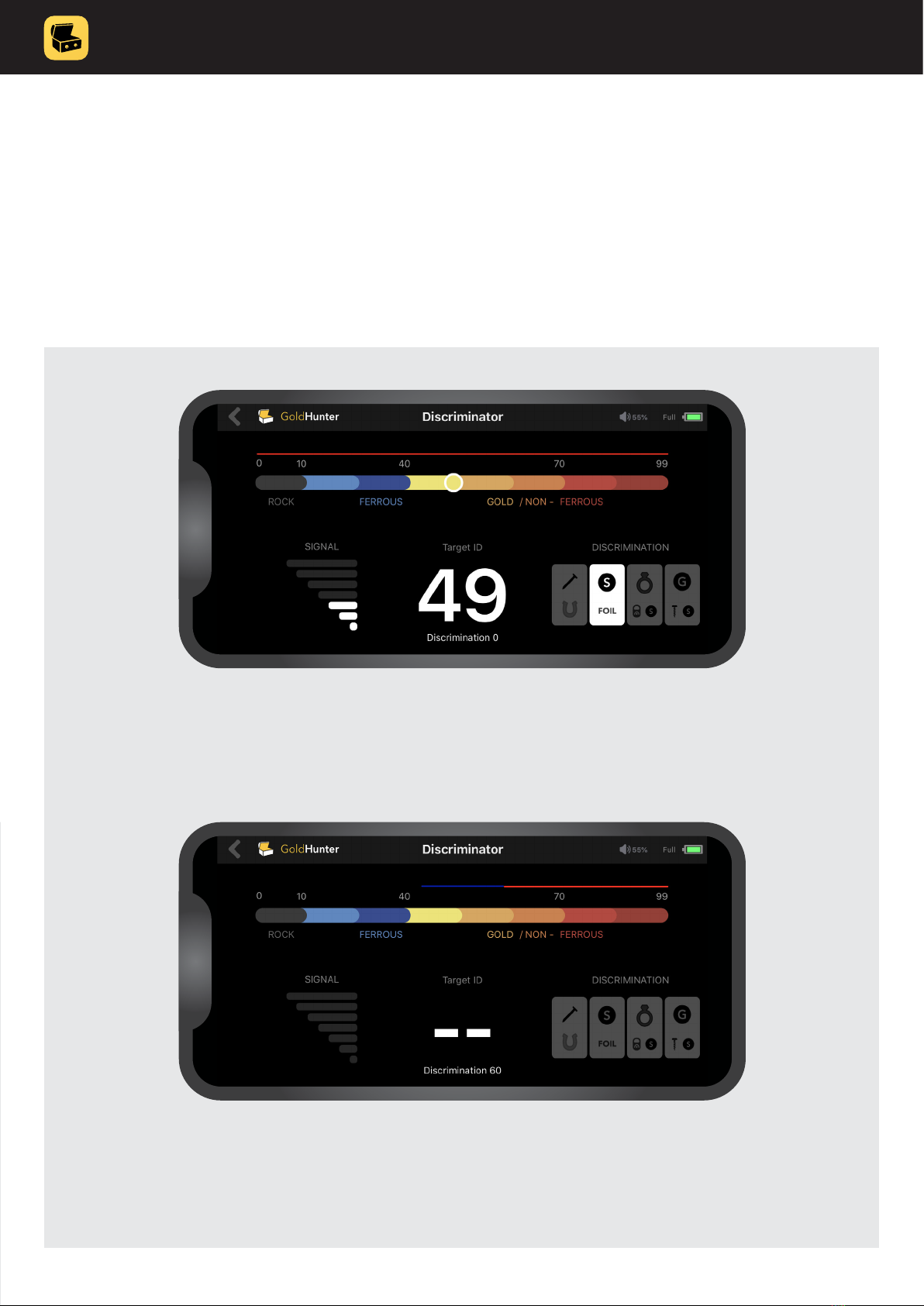

How to identify buried objects or what is Target ID?
Target ID is used to distinguish one type of metal target from other� GoldHunter detector offers three Target ID
presentations for beginners and also for advanced / experienced users�

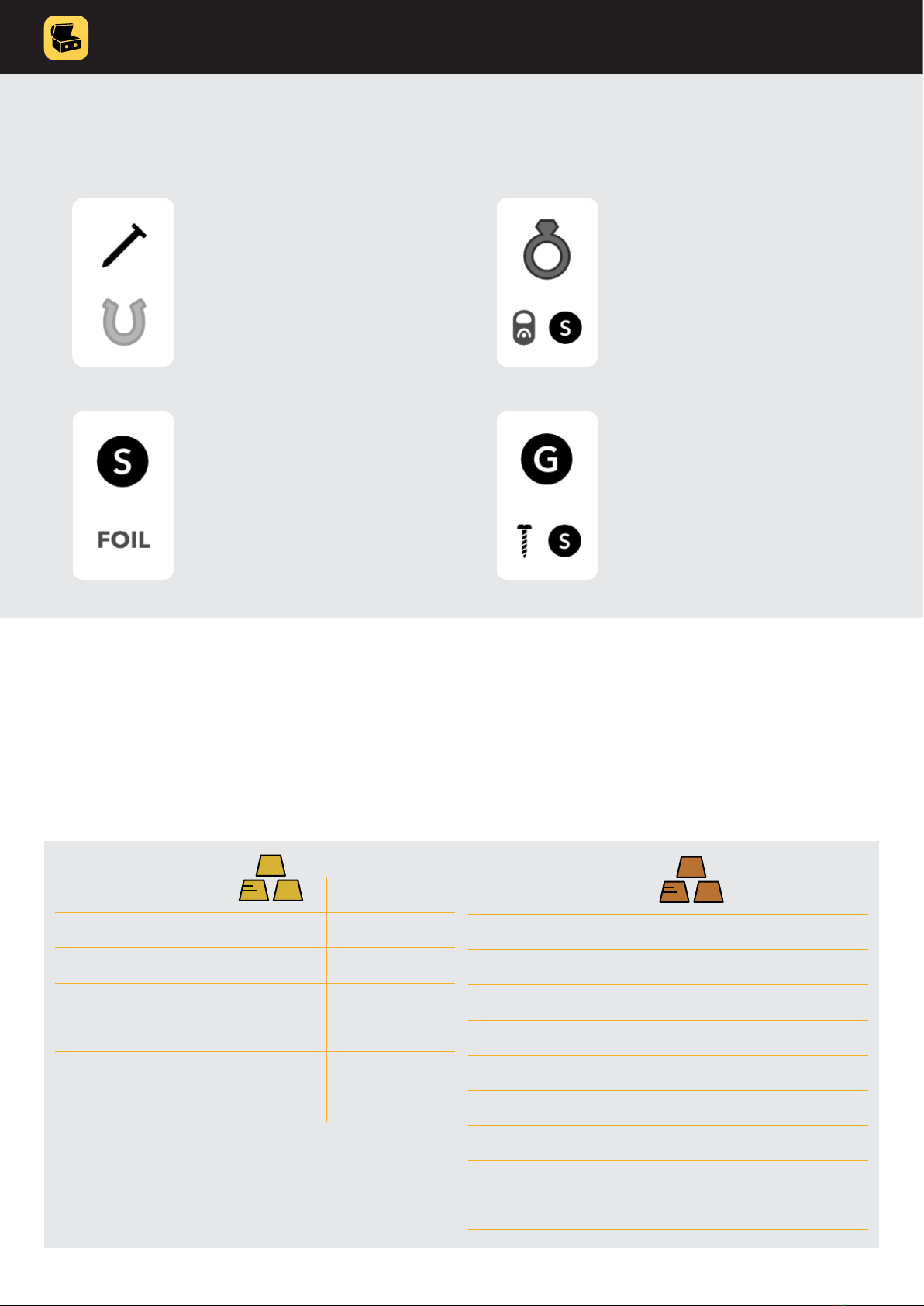

TARGET ID ICONS are most
simple way of expressing metal
target type�
When search coil is moved over
the target icon presenting type of
metal will be highlighted�
TARGET ID SCALE helps user to which group of metal types target belongs to�
When search coil is moved over the target, dot on the Target ID scale classies metallic object as ferrous (iron) or
targets with lower conductivity, nonferrous (gold) targets with higher conductivity�
TARGET ID VALUE - numeric
presentation of target ID�
When search coil is moved over
the target, target ID will be updated
with number form 0-100�

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 14
GOLD TARGET ID
Small Gold Earring 14k 28
Thin Gold Ring 14k 45-46
Gold 10k Ladies Classic Ring 65
Gold ring with Gem Stone, Large 72-74
Heavy gold ring 14k 80-81
Gold Band 80-86
Target ID accuracy
There are many factors that inuence on Target ID accuracy, like soil mineralisation or angle between target and coil, by
gaining experienced in the eld, you should be able to recognised many types of targets by Target ID value.
TARGET ID ICONS
E.g. Iron objects, nails and
horseshoes.
E.g. Aluminium foil and lower
value coins.
E.g. Low and high value coins
and screwcaps.
E.g. Rings, pull tabs and lower
value coins.
COPPER TARGET ID
3-Cent, copper/nickel 1865-1889 61-62
Big at Copper Button 79-80
Large Copper/Bronze Ring 81-83
Large Copper/Bronze Ring next to nail 76-78
Large at Copper button d=21mm 83-84
Large at copper button d=35mm 85-86
Copper Half cent 88-89
Copper – King George III panny 94
Connecticut copper 94
TO GET SOME FILLING ABOUT TARGET ID VALUES,
HERE IS A TABLE WITH SOME COMMON VALUES:

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 15
OTHER MATERIALS TARGET ID
Brass head of gun shell 53-55
Platinum Ring 64
Lead bale Seal 72-74
Wedding band 75
30x30 Brass casing 78
Lead coat weight 82-83
WAR ARTIFACTS TARGET ID
.22 Bullet casing 39
Civil War button 49
Cuff Button 74-76
7.62 Bullet casing 82
Iron Musket ball 90
TRASH TARGET ID
Foil 34
Can 65-70
Small size Ring Tab 71-72
Medium size Ring tab 73-74
Large size Ring Tab 75-76
Screw Cap 88-89
Beer bottle cap 89-96
Rusty sheet Iron 91-96
Rock 0-8
Hot rock 97-100
Salt 0-2
OTHER COINS TARGET ID
Jefferson nickel 2004 63
Jefferson nickel next to nail 43-45
Flying Eagle cent 74-75
Indian Head cent (1859) 75-76
Indian head cent (1864-1909) 84-85
Zinc Memorial cent (1982-2008) 85-86
Memorial cent 91-93
Larg cent classic head 94
Half dime, Seated Liberty 84-85
Dime Rosevelt 91-93
Dime Barber 91-93
Dime Seated liberty 91-93
Quarter stand liberty 95
Quarter Washington 95
Quarter Barber 95
Half dollar kennedy 96
Half dollar walking liberty 96
Half dollar Franklin 96
Dollar Eisenhower (1971-1978) 96-99
Dollar Peace (1921-1935) 96-99
Dollar Morgan (1878-1921) 96-99
SILVER TARGET ID
Silver engagement ring 82
Silver Sterling stud earrings 83-85
Silver engagement Ring
with Gem stone 83-86
Silver shamble 84-89
.925 Silver Ring 92
Silver Love/Friendship ring 91-92
Silver signet ring 95-97
Silver signet ring next to nail 69-71
Silver ring with small diamond 95-96
Silver ring with small diamond
next to nail 82-85

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 16
How to determine depth and exact
location of buried objects?
Press and hold pin-point button will help to narrow down the
location of buried object�
During the pin-point mode approximate target depth will be
displayed on the screen in inches�
Relative depth is always displayed on the display as SIGNAL
bars� Strong signal indicates that target is large and massive
or it is small but very close to the surface�
Notice that depth estimation is always approximation & works
well only under ideal conditions, but in reality there are many
factors that can affect depth estimation and also how deep
What does gain knob do?
The higher sensitivity, the deeper or smaller objects can be
detected�
In DISCRIMINATION mode, sensitivity can be adjusted using
GAIN knob�
For beginners it is recommended to start with
gain at middle position or lower, so that you don’t
hear any sound when sweeping with search coil
over clear ground where no metal is present�
Target Size
Large targets can be
detected deeper than
small targets�
Target Shape
Circular shapes (e�g�
coins and rings) can
be detected deeper
than long thin shapes
(e�g� nails or screws)�
Target Orientation
A horizontal coin
(e.g. lying at) can be
detected deeper than
a vertical coin (e�g�
standing on its edge)�
Target Composition
Highly conductive
metals (e�g� silver)
can be detected
deeper than less
conductive metals
(e�g� lead)�
Ground Mineralisation
A target in benign
(unmineralized)
ground can be
detected deeper than
a target in heavily
mineralised ground�
BEEP!
Move 90° and repeat
The intersection of the
two lines marks the exact
location of the target

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 17
How to setup detector to ignore items
like nails, cans & aluminium foil?
Discrimination is ability of metal detector device to eliminate
unwanted targets like trash & metal objects from detection�
When GoldHunter operates in DISCRIMINATOR mode, user
is able to set discrimination level using + - buttons on the
control box�
When discrimination is set to zero (default setting), all targets will generate high tone, indicated by red line.
From the above screen we can see that discrimination level is set to 60, all items with Target ID <45 will not be detected
and will not generate any tone, LOW tone will be generated for targets with ID between 45 and 60 (blue line) while all
others above 60 will generate HIGH tone (red line)�
BLUE and RED line on top of Target ID scale indicates weather
certain target types will only generate lower tone sound or
they will be completely discriminated - this means detector
will not generate any sound for them�
EXAMPLE:

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 18
All-metal mode
How to eliminate interference of ground minerals?
Soil contains iron minerals that can cause much higher signals than buried targets we are interested in� With ground balancing
we calibrate detector device to local ground, this eliminates false signals from minerals , enabling detector to detect deeper
and provide more accurate Target ID results�

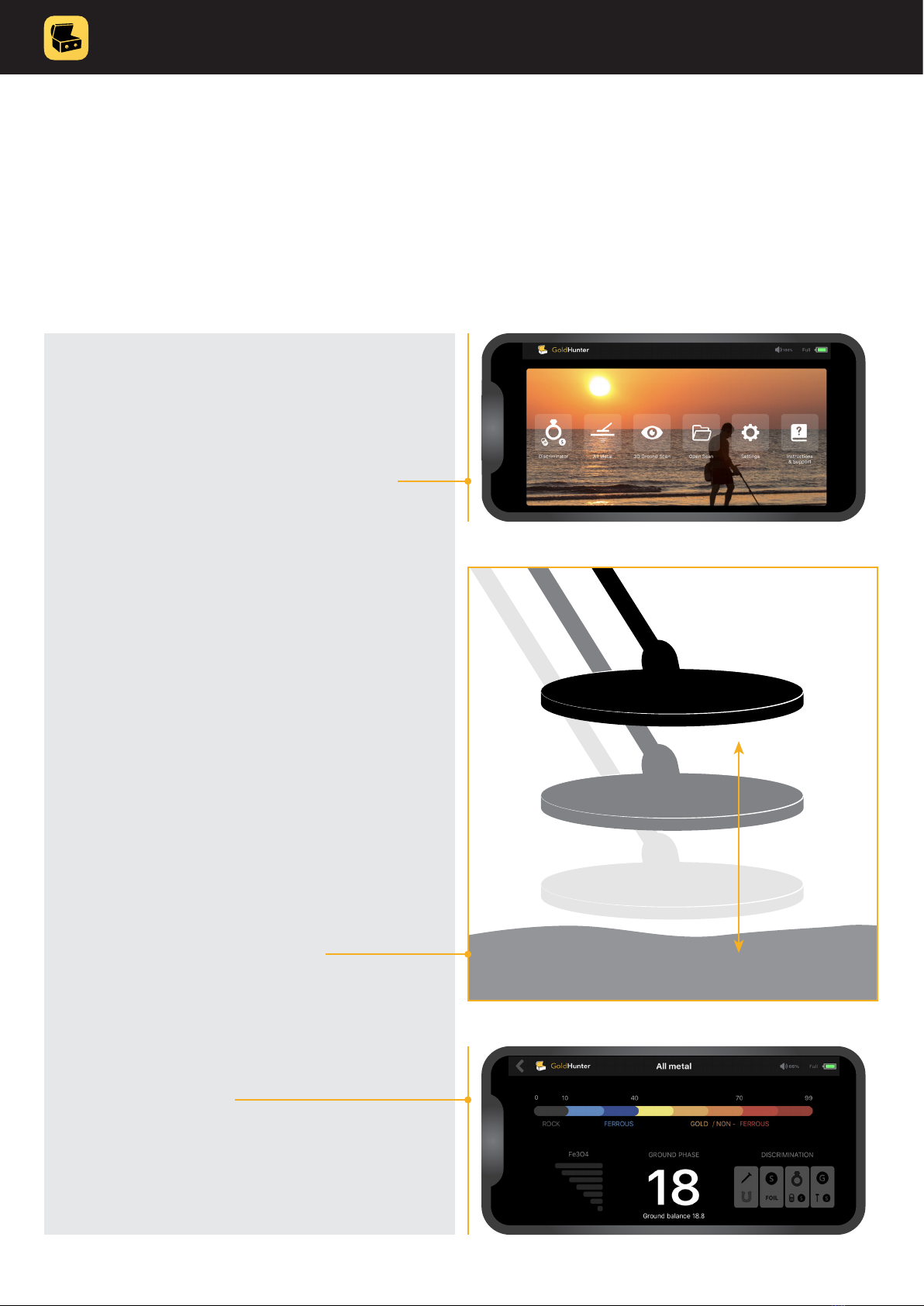

TO GROUND BALANCE GOLDHUNTER FOLLOW
THIS PROCEDURE:
1. Enter ALL METAL mode from the main menu�
2. Set Gain to middle position�
3. Rotate Threshold know to the point where you hear
background hum�
4. Sweep search coil across the ground� Make sure you
have found a clear place with no metal present�
5. Press & Hold GG button & raise and lower the coil
repeatedly over clear patch of soil�
6. Observe GND PHASE value, when is settles down to
1 or 2 numbers in variation, release GG button, while
still pumping the coil�

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 19
What is best adjustment of Gain & Threshold?
In order to achieve best performance in ALL METAL mode, user must learn how to properly set Gain & Threshold�
FOR BEST PERFORMANCE & MAXIMUM SENSITIVITY:
1. Set Gain at low level�
2. Set Threshold to positive value >0, so that you will
hear some background hum�
3. Then increase Gain to a comfortable level�
FOR MORE COMFORTABLE SILENT SEARCHING:
1. Set Threshold to zero or negative value.
2. Reduce gain if necessary�
Manual adjust
User is also able to manually set or adjust Ground Balance
values by + an - button on the control box�
For ne adjustment user should continue to raise and lower
the coil repeatedly over clear patch of soil, if the sound is
louder as you rise search coil, user should increase ground
balance, if sound is louder while lowering search coil, ground
balance should be decreased�
Notice that in the ALL-METAL mode value in the middle
presents GND PHASE or type of ground mineralization and
not Target ID as in DISCRIMINATION mode�
Fe3O4 indicates amount of ground mineralization. If amount
of mineralization is too high detector will not be able be
usable anymore in this scenario try to keep the coil higher
above the ground�
SOME TYPICAL GROUND MINERALIYATION
TYPES ARE:
Wet salt and alkali 0 - 10
Metallic iron. Very few soils in this
range. You are probably over metal. 5 - 25
Very few soils in this range -
occasionally some saltwater beaches 26 - 39
Red, yellow and brown iron bearing
clay minerals 40 - 75
Magnetite and other black iron
minerals 75 - 95

TREASUREHUNTER3D
Makes underground treasures visible Instruction manual 20
Observing & processing scan results
1. Press button in order to observe & process
scanned results in 3D ground scan viewer�
2. Use iOS native touch functions to rotate, zoom or
move 3D scan�
3. Press to enable smart 3d scan processing�
4. Use sliders to adjust processing parameters and then
press to apply them and enhance
target shape�
3D ground scan mode
Performing 3D ground scanning
3D ground scan mode enables user to visualize buried objects.
In order to perform 3D scan of an object user should do the
following:
1. Enter 3D ground scan mode�
2. Hold nger on the circle and align it with the metal -
detector coil, so that the circle will be right in
the middle of the coil�
3. Press Pin-point/Ground Grab button to start
scanning process�
4. Move device left and right in order to calibrate
positioning sensor� Once the sensor is calibrated,
“Scan in progress” message will appear on screen�
5. Move detector coil slowly from left to right over the
area you would like to scan�
6. Once area is scanned, press Pin-point/Ground Grab
button to stop scanning�
Table of contents
Popular Metal Detector manuals by other brands

Garrett
Garrett AT Pro owner's manual

Garrett
Garrett SuperScanner user manual

Fisher Research Labs
Fisher Research Labs F22 owner's manual

Radio Shack
Radio Shack Metal Detector with Depth Read-Out owner's manual

Tesoro
Tesoro Mojave Operator's instruction manual

Fisher Research Labs
Fisher Research Labs Gold Bug owner's manual

Treasure Cove
Treasure Cove Fortune Finder JUNIORTC-1010 owner's manual

Bounty Hunter
Bounty Hunter Sharp Shooter II owner's manual

Barska
Barska WINBEST Pro-400 manual

Treasure Cove
Treasure Cove Vibra-Probe 570 Original manual

AQUASCAN INTERNATIONAL
AQUASCAN INTERNATIONAL AQ1B user manual

Bounty Hunter
Bounty Hunter Land Star owner's manual
