tri-art audio S Series User manual

*Read the user manual
before operating.
User Manual
S-Series
*Read the user manual
Product #21672
open
towers

safety
information
Before you start...
Warning of a hazard for the user, the unit or possible misuse. Important notice.
Thank you for buying a Tri-Art Audio product. Please read through this manual to
understand and operate this product correctly. Please keep this manual in a safe place so
that you may refer to it whenever necessary. Please ensure the product you are using is
rated for your country’s electrical system, or it will not be covered under our warranty.
Warning:
To prevent re or shock hazard, do not expose this product to rain or moisture.
Important Notice:
The serial number for this equipment is located on the bottom of this component. Please
write this serial number on the enclosed warranty card and follow the instructions to register
your product for our three (3) year limited warranty.
This equipment is designed for consumer use, such as home audio systems. It is not
designed to operate in a business environment or a mobile application. Mobile, pro or
commercial businesses such as restaurants will not be covered under warranty.
Caution:
To reduce the risk of electric shock, or damage do not remove drivers. No user serviceable
parts inside. Refer servicing to qualied service personnel.

safety
information
Safety Instructions
Read Instructions:
All the safety and operating instructions should be read before operating this equipment.
Retain Instructions:
The safety and operating instructions should be retained for future reference.
Heed All Warnings:
All warnings, set up procedures, and operating instructions should be strictly adhered to.
Follow all instructions carefully.
Water and Moisture:
Under no circumstances should this audio component be used near water.
It is not to be used in a bathroom, water closet, shower, kitchen, wet basement,
pool/spa/sauna area, or outside.

safety
information
Safety Instructions
Heat:
This product should be located well away from all the heat sources such as but not limited to
heaters, forced air heat, radiators, stoves, and replaces.
Cleaning:
Your Tri-Art product was soaked and nished in hemp oil. Do not use lacquers or aerosol wax
products with this product. Do not pour water on the surface at any time.
Heavy Objects:
Do not place heavy objects on this component.

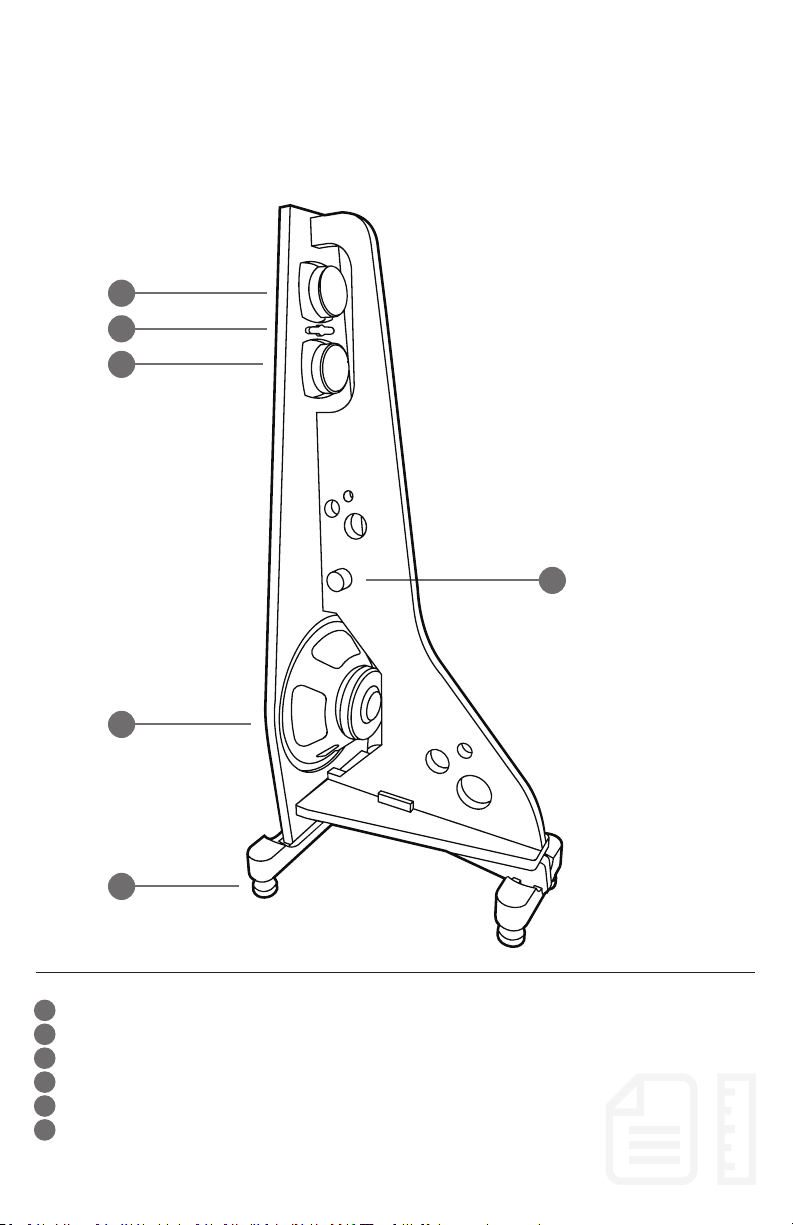

speaker front
1
2
3
4
6
5
1
2
3
4
5
6
Full Range 3" Driver
Super Tweeter
250Hz 3" Driver
10" Driver
Inputs
Bamboo Spike Cup Feet

speaker back
1
2
3
4
5
6
Full Range 3" Driver
Super Tweeter
250Hz 3" Driver
Volume Control
10” Driver
Bamboo Spike Cup Feet
1
2
3
5
6
4

speaker specs
Crafted with bamboo and natural sheep’s wool.
Learn more at triartaudio.com
Speaker Details:
Design: Open Bafe
Nominal Impedance: Single Input 8 Ω
Recommended Ampliers: 25 Up to 150 Watts RMS
Sensitivity: 88 dB SPL
Volume Matching: Attenuator for Full Range Speaker Section
Frequency Range: 45 – 20,000 Hz (+/- 3dB)
Driver Details:
Top: 2 x 3" (76.2 mm) Paper Poly-Sandwich Cone Emitters
Super Tweeter (40,000 Hz)
Bottom: One (1) 10″ Paper Cone
High: 45Hz – 20,000Hz
Mid: 45Hz – 250Hz
Bass: 45Hz – 125Hz (+/- 3dB) 1st Order 6 dB Slope
Body Details:
Mode: Floor Standing
Finish: Bamboo Laminate Soaked in Hemp Oil
Stands: Bamboo Stand with 4 Brass-Collared, Bronze Spikes
with Bamboo Spike Cups
Dimensions: H: 45" (114.0cm) x W: 15.6" (39.5cm) x D: 19.5" (49.0cm)

included
in the box
Initial Check
Upon receiving the boxes please check their condition and ensure the arrows on the box are
pointing upward. If any of the packaging is or even appears to be damaged, please report it to the
shipping company immediately for insurance veri cation. We always suggest keeping the original
packing for maximum resale value or for safely moving the equipment to a different location.
Please  ll out the warranty card.
The serial numbers for the speakers are located at the bottom of the speakers.
The following items are recommended for this procedure:
• Spirit Level
• Digital Measuring Tool
Removing the Speaker from the Box
Note: These speaker enclosures are very heavy, and care should be taken to prevent injury.
1. With the arrow labels facing up, carefully cut or remove the binding tape.
Gently remove the lid.
2. Select the speaker by lifting it by grasping any one of the holes and secure it. Pay mind not to
squeeze any wiring and do not touch the drivers.
3. Firmly grasp the back of wood panel with both hands. Carefully, so as not to hit the speaker
on the side of the box, carefully lift the enclosure out of the box.
4. Ensure that you place the speakers on the  oor carefully positioning them in their cradle feet.

included
in the box
Checklist: What’s in the Box?
Now that you have unpacked all your open tower boxes, you can review your inventory to
ensure you have everything you need.
• 1 – Owner’s Manual
• 1 – Warranty Registration
• 8 – Adjustable Spikes (4 per speaker)
• 1 – 2 Piece Front and Back Bamboo Stand
• 8 – Bamboo Spike Cups
• 2 – S-Series Open Tower Speakers

use &
guidelines
Setting up the Open Tower Speakers
The open Series of speakers is an open Bafe design. There is no box to add
colourations or enhance the sound. Therefore it is important to place the speakers
as far away from the back wall as possible. We suggest to use the rule of thirds.
Ensure the power is off, the volume at 0 or mute switch is on before connecting
your speakers or inputs.
In most cases the best sound will come from positioning your speakers against
the back walls with the long walls on the side.
1. If possible, Place the speaker approximately 1/3 of the way into the room.
2. Locate the spikes and install them on the base feet.
3. With the speakers in their desired position in the room, the spikes on the
base feet, you are now ready to level the speakers. Adjust the adjustable
spike feet by turning the dials located above each one of the spike feet until
the speaker is level. PLEASE NOTE: Open Bafe speakers perform best
when positioned 1/3 into the room. If this is not possible, try 1/6 of the room.
We strongly suggest you use a laser measure for accurate placements.
See Figure 1.

use &
guidelines

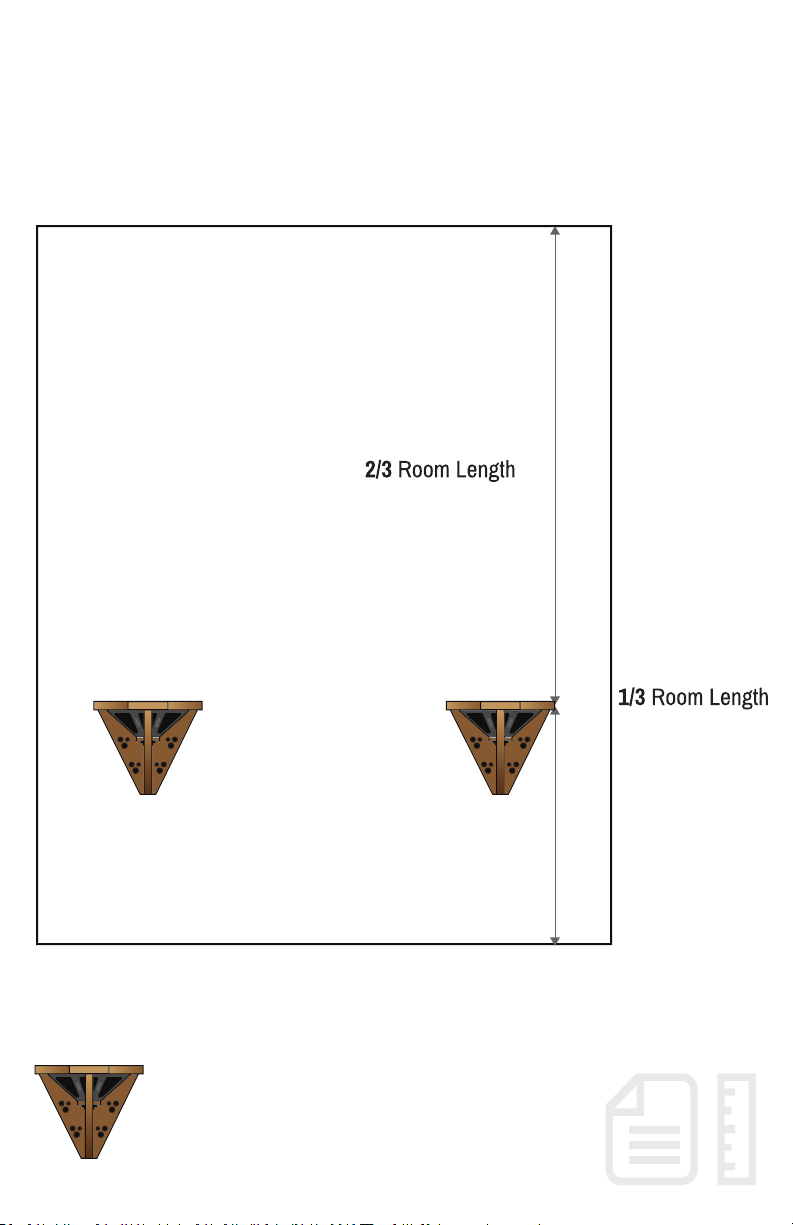

S-Series Open Tower Placement
Figure 1
of the
total room

use &
guidelines
Make sure your power amplier or receiver is turned off.
Turn the volume of your pre-amplier/amplier or receiver to zero.
Connect your amplier speaker output terminals to the
appropriate Open Tower input terminals of your amplier,
with careful attention to maintaining correct polarity.
Turn your amplier/receiver on.
Select your source and initiate start/play.
Adjust the volume to the desired level.
Enjoy the music.
Connecting your Open Tower Speakers

congratulations!
Your Tri-Art Audio speakers is
operational and fully set up.
Now, go play your favourite record!
Our Bamboo Design
We have selected bamboo to construct many of the structural parts of our
systems rather than metal or plastic.
The sonic virtues of bamboo are evident. We use the latest CNC machinery to
manufacture to precise tolerances. Due to the nature of the material, there may
be slight variations that do not comprise the sound. Every component is hand
nished and then inspected by the designer before it leaves the factory.
Crafted with bamboo and natural sheep’s wool.
Learn more at triartaudio.com

warranty
information
For Your Protection:
Completely and immediately mail the product registration card so that we may contact you
directly in the event a safety notication is issued in accordance with the 1972 Consumer
Safety Act, or for other reasons Tri-Art Audio may deem necessary.
Technical Support Hotline
1-877-541-0299
Our technical department will gladly answer any questions you may have about our
products. Monday through Thursday, 9am to 5pm and Friday, 9am to 3pm EST.
Manufacturer’s Limited Three
Year Warranty:
Tri-Art Audio warrants this unit to be free from defective material or workmanship and will
repair or replace this unit or any part thereof if it proves defective in normal use or service
within three (3) years from the date of original purchase.
This warranty will be considered void if the unit has been tampered with, improperly
serviced, subjected to abuse or misuse or if installed in a commercial vehicle. This warranty
does not cover accidental damage.
For all warranty information please see Tri-Art Audio’s warranty
information card included with your new equipment.

Thank you for your
purchase!

triartaudio.com
Designed. Fabricated. Assembled.
In Canada
