Triad Speakers InCeiling R28D User manual

TRIAD SPEAKERS INC. | PORTLAND, OR
www.triadspeakers.com
Copyright ©2017, Control4 Corporation. All rights reserved. Control4 and the Control4 logo are
registered trademarks or trademarks of Control4 Corporation or its subsidiaries in the United
States and/or other countries. All other names and brands may be claimed as the property of
their respective owners. All specifications subject to change without notice.
R-20 SERIES ROUNDS
InCeiling R28DT
Round Grill
(included)
Square Grill
(not included)
InCeiling R28
InCeiling R26
InCeiling R25
InCeiling
Product Family
InCeiling R25
Cabinet dimensions
Inside ring diameter: 6 3/8" (16.2 cm)
Mounting depth: 3 3/4" (9.52 cm)
Hole cutout: 6 1/2" (16.5 cm) / NCB: R5
Grill: 8 5/16" (21.11 cm)
Product weight (pair)
7.36 lbs. pair (3.34 kg)
Shipping weight (pair)
10.5 lbs. (4.75 kg)
Drive units
(1) 1" (25 mm) fabric dome tweeter
Sensitivity
86dB/1W/1 m
Installed frequency response
68 Hz - 20 kHz (+/-3dB)
Power handling
Rec. amp. power 25 - 75W
Impedance
Nominal impedance 8 ohms
InCeiling R26
Cabinet dimensions
Inside ring diameter 7 3/4" (19.6 cm)
Mounting depth 4" (10.1 cm)
Hole cutout: 7 7/8" (20 cm) / NCB: R6
Grill: 9 11/16" (9.68 cm)
Product weight (pair)
8.33 lbs. pair (3.78 kg)
12.23 lbs. (5.55 kg)
Drive units
(1) 1" (25 mm) fabric dome tweeter
Sensitivity
87dB/1W/1 m
Installed frequency response
50 Hz - 20 kHz (+/-3dB)
Power handling
Rec. amp. power 25 - 125W
Impedance
Nominal impedance 8 ohms
InCeiling R28
Cabinet dimensions
Inside ring diameter 9 7/16" (23.9 cm)
Mounting depth 4 3/8" (11.1 cm)
Hole cutout: 9 1/2" (24.1 cm) / NCB: R8
Grill: 11 5/16" (28.7 cm)
Product weight (pair)
9.0 lbs. pair (4.1 kg)
Shipping weight (pair)
13.8 lbs. pair (6.26 kg)
Drive units
(1) 1" (25 mm) fabric dome tweeter
Sensitivity
88dB/1W/1 m
Installed frequency response
40 Hz - 20 kHz (+/-3dB)
Power handling
Rec. amp. power 25 - 125W
Impedance
Nominal impedance 8 ohms
SPECIFICATIONS
(1) 8 1/2" (22 cm) carbon-fiber woofer
InCeiling R28DT
Cabinet dimensions
Inside ring diameter 9 7/16" (23.9 cm)
Mounting depth 4 3/8" (11.1 cm)
Hole cutout: 9 1/2" (24.1 cm) / NCB: R8
Grill: 11 5/16" (28.7 cm)
Product weight (each)
5.0 lbs. each (2.3 kg)
Shipping weight (1 per box)
7.5 lbs. pair (3.4 kg)
Drive units
(2) 1" (25 mm) fabric dome tweeter
Sensitivity (each channel)
87dB/1W/1 m
Installed frequency response
40 Hz - 20 kHz (+/-3dB)
Power handling
Rec. amp. power 100W max
Impedance
Nominal impedance 8 ohms
(1) 8 1/2" (22 cm) carbon-fiber woofer
(1) 6 1/2" (17 cm) carbon-fiber woofer(1) 5 1/4" (14 cm) carbon-fiber woofer
Shipping weight (pair)

MESSAGE FROM TRIAD
About your new Triad InCeiling R-20 Series Speakers
FINISH MAINTENANCE AND CARE
CUSTOM PAINTING
The paint finish on all Triad speakers is designed to last a lifetime with
minimal care. If cleaning the surface becomes necessary, gently wipe the
speaker grill with a soft cloth lightly dampened with a mild soap-and-water
solution.
Custom painting is an option available from Triad at the time your speaker
is ordered.
If you supply us with an actual paint sample or your paint’s make and
model number, we can paint your new speaker any color you wish. The
results will be superior, and you will also be supplied with a small bottle of
touch-up paint.
GRILL SCRIM
Our round grills come with white scrim. Square grills come with black scrim to
minimize the contrast of the black speaker bae over a light-colored surface.
Either scrim can be removed and carefully reinstalled when repainting grill.
SPEAKER GRILL INSTALLATION AND REMOVAL
Attach the metal grill to the frame by placing the grill over the edge of the
frame. Grill will self-center onto the magnet system. To remove the grill,
grab the edge of the grill and gently pull away.
TUNING
Tweeters on all R-20 series
models can be aimed up to
15 degrees in any direction
around the axis of their
arms to vary their sound
distribution pattern as
desired.
pg. 2 - Triad InCeiling R-Series Quick Start Guide Triad InCeiling R-Series Quick Start Guide - pg. 7
Triad Speakers warranty information
Limited Hardware Warranty—Triad Speakers warrants its hardware product
to be free from defects in material and workmanship during the warranty
period. If the hardware proves to be defective in material or workmanship
during the warranty period, Triad Speakers will, at its sole option, repair or
replace the product with a like product. The warranty extends only to
products purchased directly from Control4 Corporation or an Authorized
Control4 Dealer. For complete limited warranty information, including
details on purchaser legal rights as well as limited warranty exclusions, visit
www.triadspeakers.com/legal/warranty.
Return Merchandise Authorization (RMA) information
For Sales RMAs, contact your Inside Sales Associate. Your ISA information
can be found in the My Account section of the Dealer Portal under
Control4 Contacts.
Technical support information
Phone: [phone]
Hours: 9:00 a.m. – 5:30 p.m. PST (Monday – Friday)
Email: [e-mail]
WARRANTY
Thank you...
For purchasing Triad’s line of round, compact InCeiling speakers designed
for cost-conscious music lovers.
We designed and engineered each loudspeaker with pride in the United
States of America with the utmost attention to quality, décor-friendly
design, and high-performance sound—eliminating costly frills and features
that add nothing to sound quality.
With ultra-slim microframed grills, optional square grills, and custom paint
matching in Triad’s Portland factory, these speakers blend perfectly into
any interior design. All RS models, even the smallest, are fully engineered to
deliver the rich, natural sound Triad is famous for in open acoustical
environments, especially in locations lacking the depth required for sealed
enclosures.
All models share:
• Low-mass carbon-fiber woofers for detailed sound and dynamics
• Premium fabric dome tweeters for sweet, airy high frequencies
• High-quality crossover parts for smoothness and clear vocals
We trust that you will hear the benefits of this engineering each time you
play them.
Thanks again and happy listening.
Triad Speakers, Inc.
Features
Information
DOC-00282

pg. 6 - Triad InCeiling R-Series Quick Start Guide Triad InCeiling R-Series Quick Start Guide - pg. 3
TABLE
OF
CONTENTS
2
8
9

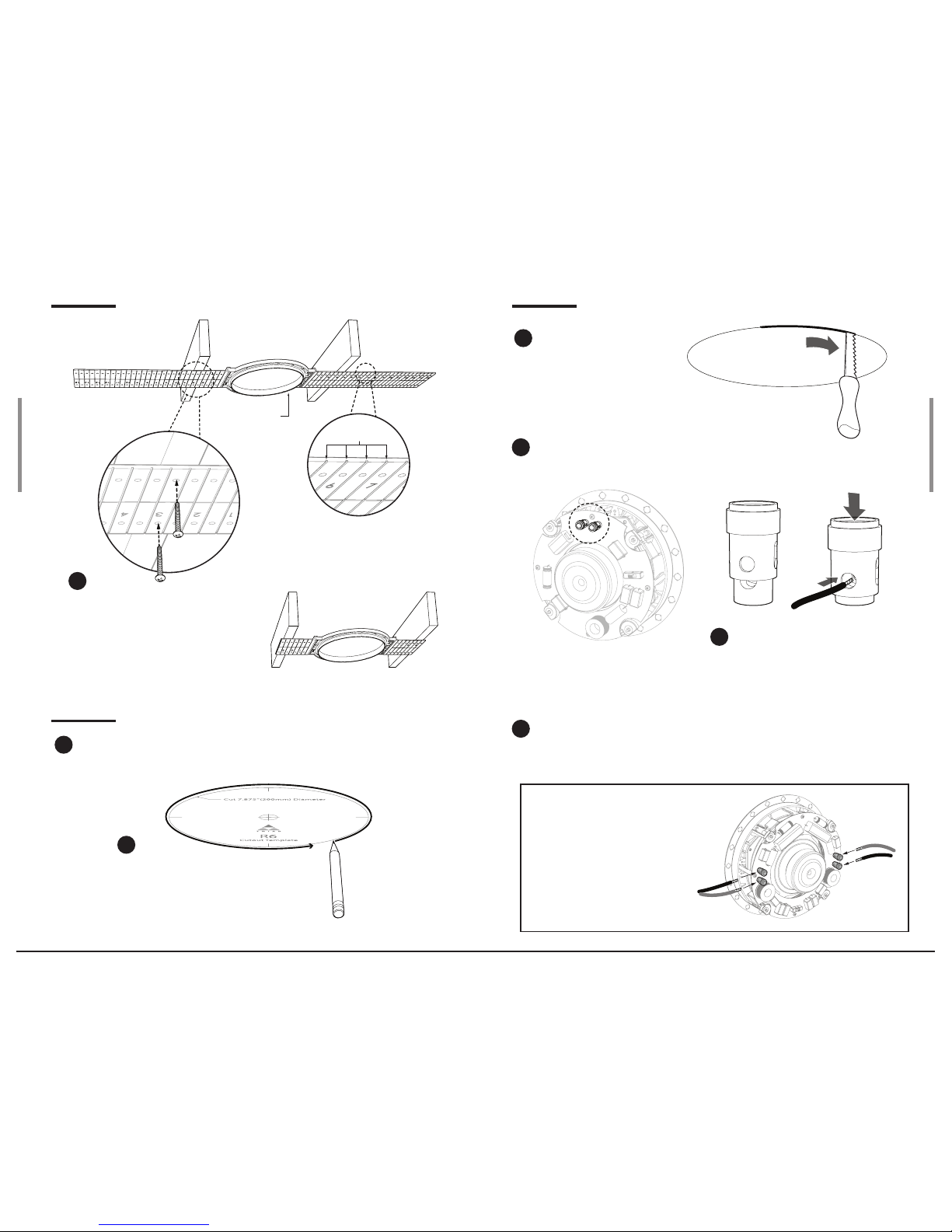

Locate the area where the speaker will be placed in the wall or ceiling, keeping
in mind that when the speaker is installed, it may take up the full ceiling cavity
within the NCB location (keep free from electrical wires, HVAC, and plumbing).
Position the bracket beneath the two joists so the flange protrudes down for
drywallers to sheetrock around.
NCB : R5, R6, and R8
NEW CONSTRUCTION INSTALLATION
1Attach New
Construction
Bracket (NCB)
Wings before use.
flange
RETROFIT AND WIRING INSTALLATION cont.
7Adjust the tweeter level
switch on the back of the
speaker to -3dB, 0dB, or +3dB
if desired.
Insert the
speaker into
the hole.
(A) Tighten the four Phillips screws located on the speaker’s front
bae (see drawing below) to rotate and tighten the dogs to the
sheetrock. (B) Dogs will move outward and tighten to secure speaker
to sheetrock.
3
7
2
2
Installation
New construction, retrofit, and wiring
Speaker grill installation and removal
Features
Message from Triad
Finish care and custom painting
Specifications
InCeiling R-Series BC
Installation
AB
Information
Tuning and warranty 7

pg. 4 - Triad InCeiling R-Series Quick Start Guide Triad InCeiling R-Series Quick Start Guide - pg. 5
RETROFIT INSTALLATION AND WIRING
Use a stud finder to locate the two joists flanking the location in
which you wish to install the speaker.
On the back of the speaker, you’ll
find a pair of push-type speaker
wire connectors.
NEW CONSTRUCTION INSTALLATION cont. RETROFIT INSTALLATION AND WIRING cont.
3
1
2
Press the connector head
down, exposing a hole.
Insert speaker wire into the
hole, then release the head
to lock it onto the wire.
Fasten each NCB flange to the
joist with two screws through
attachment holes.
Note: NCB R5, R6, and R8
Bracket wings are scored so that
you can easily break them o to
shorten them if they are too long.
scores
flange
Using the enclosed hole
cutout template as a guide,
mark the outline on the
ceiling with pencil.
3
4
6
5
Slowly cut along the
outlined mark with a
drywall knife/saw, trying
not to chip out the
drywall excessively.
To keep polarity correct, connect the amplifier’s + (positive) channel to
speaker’s + (positive) channel and the amplifier’s - (negative) channel
to the speaker’s - (negative) channel. To avoid shorts, keep stray
strands clear of adjoining connectors.
For R28DT only
The R28DT has has four
binding posts for its
dual-voice-coil woofer and
two tweeters. Connect the
two left channel wires to one
pair of binding posts and the
two right channel wires to the
other pair of binding posts.
Left channel
Right
channel
Installation
Installation
