Promate MW-1309 User manual

B
BR RA AN ND D
P
Po or rt ta ab bl le e B Bl lu ue et to oo ot th h S Sp pe ea ak ke er r
PLEASE READ BEFOREOPERATINGTHISEQUIPMENT.
Model No. :MW-1309
IMPORTANT SAFETYINSTRUCTIONS
When used in the directed manner,thisunithasbeen designed and manufactured toensure
your personal safety.However,improper usecan resultin potential electricalshock orfire
hazards. Pleaseread allsafety andoperating instructionscarefully before installation and use,
and keep theseinstructions handy for futurereference.Takespecial noteofallwarnings listed
in theseinstructions and ontheunit.
Water andMoisture
The unitshould notbeusednearwater orwetspace . Suchas bathtub,washbowl, kitchen sink,
laundry tub, swimming pool or basement.
Ventilation
The unitshould be situated in the location or position whichplaceswon’t interfere its proper
ventilation.For example,it shouldnot be situated onabed, sofa, rug orsimilarsurfacethat may
blocktheventilationopenings.Also,itshouldnotbeplacedin abuilt-ininstallation, suchasa
bookcaseor cabinet,whichmay impede theflowofair through theventilation openings.
Heat
The unitshould be situatedawayfrom heatsourcessuchasradiators, heatregisters,stovesor
other appliances(including amplifiers)that produceheat.
Power Charger
The unitshouldbe connectedtoapower charger(notincluded) only of thetypedescribed in the
operating instructions oras markedon theappliance.
Cleaning
The unit shouldbe cleaned only as recommended. See thesection « Care andMaintenance »
ofthis manual for cleaning instructions.
Objectand LiquidEntryCareshould betakensothatobjectsdonotfallandliquidsarenot
spilled intoany openings or vents located ontheproduct.
DamageRequiring Service

1
This unitshould be serviced byqualified servicepersonnelwhen:
Objectshavefallen intoor liquidhasbeen spilledintothe enclosure.
The unit has beenexposed torain.
The unit has beendropped or the enclosure damaged.
The unit exhibits amarked changein performanceor doesnot operatenormally.
PeriodsofNonuse
If theunitis tobeleft unusedfor anintended periodoftime, suchas aweekorlonger,the power
cord shouldbe unplugged fromthe unittoprevent damage or corrosion.
Servicing
The usershouldnotattempttoservicethe unit beyondthosemethodsdescribedinthe user’s
operating instructions.
Servicemethodsnotcovered in the operatinginstructionsshould bereferred toqualified
servicepersonnel.
CAUTION:
Danger ofexplosion ifbattery is incorrectly replaced.
Replaceonly withthe sameor equivalent type.
WARNING:
uBatteriesshall not beexposed toexcessiveheat suchassunshine,fire or thelike.
uToreducethe riskof fire or electricshock, do not exposethisapparatus torain or moisture.
The apparatusshallnotbeexposed todripping or splashing andthatobjectsfilled with
liquids, suchas vases, shall not be placed onapparatus.
CAREANDMAINTENANCE
uDonotsubjectthe unittoexcessiveforce,shock,dustor extremetemperature.
uDonottamper theinternal components of the unit.
uClean the unitwithadamp(never wet)clothexceptmetal contactor speaker grille, Solvent
or detergentshould never be used.
uAvoid leaving your unit in hot,humid or dustyplaces.
uKeep your unitawayfromheating appliancesandsourcesofelectricalnoisesuchas
fluorescent lamps ormotors.
uAlways keep your finger dryand clear before touching all the buttons.
uDonotdisposeofbatteries infire, batteriesmay explode or leak.

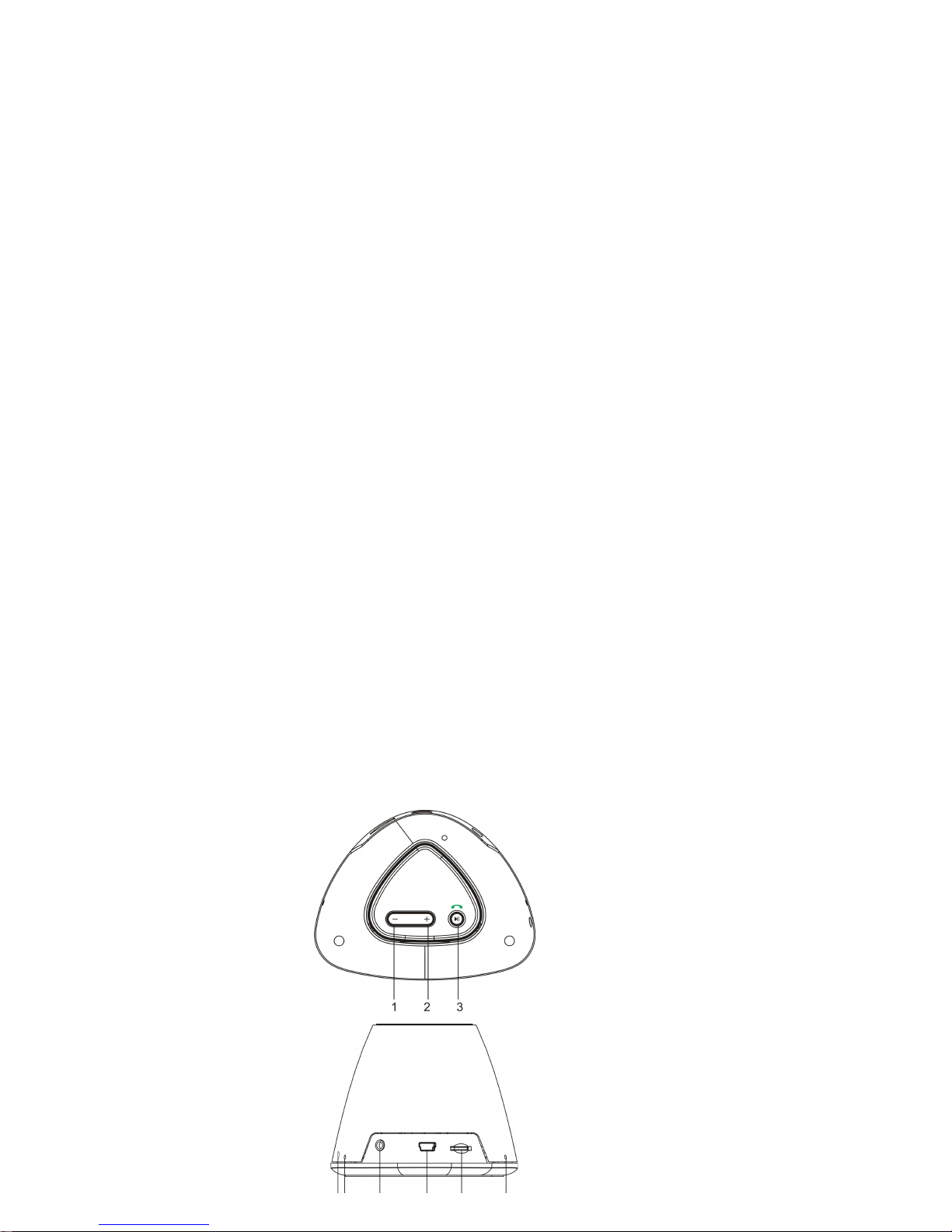

LOCATION OFCONTROLS
Front View
Back View

2
Bottom View
1. -Button
uIn Bluetooth mode :
Press thisbuttontoadjustvolumelevel down during
Bluetooth mode .
uInTFcard Playbackmode :
lPress and hold this button toadjustvolumelevel down.
lShort press this buttononce toreturn tothebeginning of
currenttrack or previoustrack.
2. + Button
uIn Bluetooth mode :
lPress thisbuttontoadjustvolumelevel up during Bluetoothmode
lInTFcard Playbackmode :
lPress and hold this button toadjustvolumelevel up.
lShort press this buttononce toreturn to go tonext track.
3. Button
lWhileunitisin BluetoothorTFcard Playback mode, press oncetoplayorpausethe
currenttrack.
lInBluetoothmode,when receiving an incoming call on your cell phone,tap thisbutton
oncetoanswer thephone, pressthis buttonagain orpressandholdthis buttontoend the
call or ignore the incoming call.
4. Built-in Microphone
5. BatterychargingIndicator (Redcolor)
lRapid flashing =lowbattery
uWhilecharging :
lFlashing =charging
lSteadyRed= full charged
6. Aux-In Jack
7. Mini USBChargingjack
8. TF cardslot
9. Operating modeindicator(Red/Blue/Purple)
lBlue color =Bluetoothmode
lPurple color= TF card playback mode
lRed=Aux-in mode
10 Power On/Off selector

3
BATTERYCHARGINGINSTRUCTION
Thisunit operates on abuilt-inLi-ion batterythat canbe recharged either usingthe USB port on
your computer or fromaUSB power adaptor (notincluded) witharated outputofDC 5V 500mA
and up(upto1.2A).
Note:The mini USBCHARGINGJACKlocatedon thisunitisonlydesigned forcharging the
built-in Li-ion battery.
CHARGINGTHEBATTERYFORFIRSTTIME
1.)Charge the built-inLi-ion batteryaminimumof2hours prior tofirstuse.
Plug the unitintothe USB porton your computer or intoaUSB power adaptor (notincluded)
using theincluded USB cable.
2.)The batterycharging indicator flashes while charging and itstopsflashing when the unitis
fully charged.
Unplug the USB cable fromthe power sourceoncethebattery is fullycharged.
RECHARGINGTHEINTERNALBATTERY
After prolonged use, the internal batterywill becomeweakandtheoperationmaybecome
intermittent.When theinternalbattery capacity isvery low, the battery Indicator will rapidly flash
in red to alert you torecharge theinternal battery assoonaspossible.
Plug the speakerintoaUSB portonyour computer by usingthe included USBcable orintoa
DC 5V,500mAand up (upto1.2A).USB power adaptor (notincluded).Disconnectthe USB
cable fromthe speaker assoonasitis fullycharged.
Notes:
1. Charging timewill vary ifyou are listening tomusic while charging the internal battery. We
recommend you switchoff the speaker power during the charging process.
2. Toprolong the lifeofarechargeable battery,itisrecommended tocompletelydischarge it
before fully charging itagain .
3. Rechargeable batteriesneed tobe cycled for maximum performanceand longer batterylife.
If youdon't usethe playerthat often,besure torechargethebattery at least onceamonthin
order tokeep theinternal battery working properly.
BatteryNote andCare
Donotburn or bury batteries.
Donotpunctureor crush.
Donotdisassemble.
Li-ion batteriesmustbe recycled.Donotdisposeofin the trash.
Useonly chargers ratedfor Li-ion cells. Be sure the charger's voltage and currentsettings are
correctfor the battery pack beingcharged.
Charge batterieson afireproofsurfaceand awayfromflammable itemsor liquids.Batteries
should NEVER be left unattendedwhile charging. Only adultsshould charge the
batteries.
Followthe manufacturer's instructions for charging the product anddo notcharge longer than
recommended. Unplug the charger when thebattery ischarged or not inuse.
Note:The speaker isnot magnetically shielded and maycausecolor distortionon the screen of
someTVsor video monitors. Toavoid this,youmayneed tomovetheunitfurther awayfrom
the TV or monitor ifan unnatural color shifts orimage distortion occurs.
TURNTHESPEAKER POWER ON/OFF
1. Slide the Power ON/OFF selector onthe bottomof the unit toONposition (where the orange
round markontheselectorcannotbeen seen),avoiceprompt “Poweron” andabeep
sound isheard in2-3seconds. Meanwhile,the Operating modeindicator will flash in blue.
2. Toturn the unit off, slide the Power ON/OFF switchtoOFF
position (where theorange round mark ontheselector can
been seen).

4
OPERATINGTHESPEAKERINBLUETOOTH MODE
Bluetoothinvolves atechnology for wirelessradio connection ofdevicesover ashort distance.
DeviceswithBluetooth standard aretransmitting between 2.402and 2.480 GHz in the ISM
band (Industrial,Scientificand Medical).Interference canbe caused, forexample by
WLAN-networks,DAB radios, cordless phones, ormicrowaveovens whichwork on the
samefrequency band.
lThis speaker offersyou the possibilitytouseaBluetooth enabled device.The functional
radius islimited toapprox.10 metres depending on thesurroundingsand the unitused.
lIfyour playing devicesupportsthe A2DPprofile (Advanced Audio Distribution Profile) and
hasa music-playerfunction, then youcanalsowirelesslytransfer musictothedevice.The
A2DPprofile involvesamulti-vendor Bluetoothprofile.By streaming,stereo-audio signals
are wirelesslytransferred between the playingdevice(source) and the receiving device.
lDue tothe differentdevicemanufacturers, models, and software versions, afull functionality
cannot beguaranteed.
Pairing (Linking) A Bluetooth Enabled CellPhoneOr OtherBluetoothEnabledDevice To
TheSpeaker
If the speaker hasnever been paired withaBluetoothdevicebefore .You need tofollowthe
pairing instructionsbelowtolinkthe speaker withyour Bluetoothdevice.
1. When the speaker turned on,the Operating mode Indicator flashes in blue.The speaker is
ready topair (link)withyour Bluetoothdevice.
2. ActivateBluetoothonthe compatible device,and set ittosearchfor compatible devices.
3. Select the speaker name:”1308” fromthe listoffound devices.
Tips: Onlyone playback unitcan beconnected tothe speaker.Ifthespeakerisalready
connectedto another playbackunit, thespeaker will notappear in the BTselection list.
4. Ifyour deviceasks for apasskey(depending on the devicemanufacturers,model,and
software version), then enter digits “0000”(four zeros)and pressOK.
Ifpairinghasbeencarriedoutsuccessfully, avoiceprompt “Pairing completed” and abeep
sound isheard, meanwhile, theBlue colorindicator stopsflashing.
If thespeaker has everbeenpairedwithaBluetooth device before.You needtofollow
thepairinginstructionsbelowtolinkthespeaker with yourBluetoothdevice .
1. After turning on the speaker,the speaker will searchfor the lastpaired device.The
operating modeindicator will flashin blue. If the unit findsthe paired Bluetoothdevice,a
beep sound isheard and operating modeindicator will keep in blue andstop flashing .
2. After successfullypairing(linking), youcanbeginplayingmusic from your Bluetoothdevice
wirelesslytothe speaker .
3. Press the + / - buttonon the speaker toadjusttothe desiredvolumelevel .
Using The Speaker asaHandfree Bluetooth Speakerphone
1. Link yourcell phonetothe speaker via Bluetoothas described above.
2. Whenreceiving an incoming call on your cell phone ,tap button onthespeakerto
switchtheincoming callfromcellphone tothe speaker.Ashortbeepsoundwill be heard
confirming the callwasanswered.Completeyour call using the built-in microphoneand
speaker.
3. Adjust the volumecontrol of your cell phone to obtainthedesired sound level.
4. Toend the call,justtapthe button again, a shortbeep sound will be heardand thecall
will end. Ifyouwere playing music from yourcellphonetothe speakerbefore answering the
call,the musicwill automatically resumeplaying when youhang up .

5
5. Toignore an incoming call,simplypressand hold the buttonon the speaker for about 2
seconds, abeep sound will beheard and the call will be ignored .
OPERATINGTHESPEAKERIN TF-CARDMODE
uInsert theTF card carefully tothe speaker toaccess TF card mode,the operating mode
indicatorwill bechangedtoPurple color.The TF card will startplayingautomatically infew
seconds.
uPress button topauseor resumeplayback.
u-Press and hold the “+” or“-”button toraiseup/lower the volumelevel.
uShort Press “+”buttontoskip tonext track or press“-”button tothe previoustrack.
uToremoveyour TF card,simply pause the playback andgentlyunplug itfromthe slot.
Remember toturn off the speaker,too.
OPERATINGTHESPEAKERINAUX-IN MODE
If youare using aniPod,MP3/MP4player orother mobile phone whichcannot connect this unit
via bluetooth directly,you canstill playiton the speaker via an audioconnecting cable.
1. Plug one end ofthe 3.5mm audio cable(excluded) intotheheadphone or lineoutjackon
your player, plug the other end of cable intotheunit AUX-INjack of the speaker.
2. Turn on the external audio sourceand playyourdevice.
3. Slide the Power ON/OFF switchtoONposition toturn on the unit, the operating mode
indicator will lightup inRed.
4. The volumelevel can nowbecontrolledthrough the mainunit.Operateall otherfunctions
on the external deviceas usual.
Notes:
1).Ifyou're connected tothe Line outJackof yourexternal device,then you onlyneedtoadjust
the volumecontrolofthis speaker.Ifyou'reconnected totheHeadphone Jack of yourexternal
device,then youmayneedtoadjustboththevolumecontrolofyourexternal deviceandthe
volumecontrol ofthisunittofind the mostdesirable volumesetting.
2) Slide the Power ON/OFF selector toOFF position toturn off the unit when you finish
listening.
Don't forgettoswitchoff thepower ofyour external deviceas well.
3) DuringAUXmode, ifyou plug TF card intothe unit, theplaymode will automaticallychange
to TFCard playbackmode.
TroubleshootingGuide
Should you experiencedifficulties in the useofthisplayer, pleaserefer tothe following chart.
Fault Cause Solution
No Charging
The USB power
adaptor (not included)
is not plugged into a
wall outlet or theUSB
cable(included)isnot
plugged into the mini
USB jack on the
bottomof the
MW-1309
Plug the USB power
adaptor (not included) into a
wall outletand plugthe
USB cable(included) into
the miniUSBjackonthe
MW-1309
Walloutletis not
functioning.
Plug another deviceinto the
sameoutletto confirmthe
outlet isworking.
Computer USB port is
not function.
Makesure your computer
power is turned on and try
another USB port.

6
NOSound The MW-1309 battery
is dead. Recharge the MW-1309 battery.
The MW-1309 isnot
linked with the cell
phone.
Gothrough “Speaker
Operations” processto link
the speaker.
Volumeset too low. Increasethe volumeof your
device.
No audio
signalviathe
Bluetooth
connection
Speaker isnot paired
to the audiosource.
Check whether a
connection exists.If
necessary, pair thespeaker
again to the audiosource.
Volume too low
Increasethe volumeon the
speaker
Increasethe volumeon the
audio source.
Speaker
cannot be
connected
Pairing doesnot work Check whether the audio sourcesupportsthe A2DP
protocol
Audio source
is switched off Switchon the audio source
Bluetoothisswitched
off at the audiosource.
Switchonthe Bluetooth
function inthe audio
source.
Bluetoothversion is
not supported. Useadifferent playback unit.
Poor sound
qualityfroma
Bluetooth®
device
Bluetooth deviceis
almostoutof rangeof
the MW-1309
Move your Bluetooth device
closer to the MW-1309
SPECIFICATIONS
Batterycapacity (included): 660 mAH
Charging Voltage: DC5V, 500Ma andup.
MaxPlay Time: 3Hours
Working Temperature: -5 ~+ 40
Working Humidity：20%~80%
The righttomaketechnicaland design modificationsinthe courseof Continuousproduct
development remains reserved.
Thisdevicehasbeen tested according toall relevantcurrentCEguidelines, suchas
electromagneticcompatibilityand lowvoltage directives, and hasbeen constructed in
accordancewiththelatestsafetyregulations.
NOTE:
Changes orModifications notexpressly approved bythe partyresponsiblecould
void the user’sauthoritytooperatethis device.
NOTE:Thisequipmenthasbeen tested and found tocomplywiththe limits for a Class Bdigital
device, pursuanttoPart 15oftheFCC Rules.Theselimitsare designedtoprovide reasonable
protectionagainstharmful interferencein a residential installation. Thisequipment generates,
uses andcan radiateradio frequencyenergyand, ifnot installed andused inaccordancewith
the instructions,may causeharmful interferencetoradiocommunications.However, there is no
guarantee thatinterferencewill not occur inaparticular installation.
If thisequipmentdoescauseharmful interferencetoradio or television reception, whichcan be

7
determined by turningthe equipment off and on, theuseris encouraged totrytocorrect the
interferenceby oneor more ofthefollowing measures:
-- Reorientor relocatethe receiving antenna.
-- Increasethe separation between the equipment and receiver.
-- Connectthe equipment intoan outlet onacircuitdifferent fromthattowhichthe receiver is
connected.
-- Consultthe dealer oran experienced radio/TVtechnician for help.
