Trieste TRWTL-70 User manual

Washing Machine
OWNER’S MANUAL
Before using your washing machine, please read
this manual carefully and keep it for future reference.
Inside you will find many helpful hints on how
to use and maintain your washing machine properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your washing machine. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
Read This Manual
TRWTL-70

Notes
2
5
7
8
11
12
13
14
15
16
17
1
Contents Observe the following items in order to prevent from injuring yourself, others and the
damage of property:
Please observe following contents of graphics.
！！！
！
Warning
Warning
Caution
This indicates serious injury or death to human being
may be caused.
This will remind you that injury to people and damage
to property may occur.
Please do not directly rinse the
machine with water when
cleaning.
Please do not install the machine in
damp and raining environment to avoid
electric shocking, catching fire, faults
and distortion
accidents.
No dismantling No touching
No dampness No rinsing
!
This graphics represents［operation prohibited], and detailed prohibitive
items will be displayed inside the graphics.
This graphics represents［cause attention］,and detailed cautions
will be displayed inside the graphics.
This graphic represents [forcible execution], and detailed forcible
execution items will be displayed inside the graphics.
Please do not disassembly
and assembly the
machine without
authorization.
Please do not insert your hand
and take out clothes inside the
spin barrel before
it is fully stopped.
2
Safety and precautions
Safety and precautions........................................................................
Installation of the washer......................................................................
Preparation before washing..................................................................
Parts identification of the washer...........................................................
Instruction of the washer operation panel...............................................
Quick start..........................................................................................
The main wash....................................................................................
Special features..................................................................................
Application of detergent, softener and bleach...............................................................
Cleaning and Maintenance of the washing machine..............................................
Identify usual trouble of washer..............................................................................
Following phenomena are not faults of washer......................................................
Specifications and technical parameters of washer..........................................................
9
18

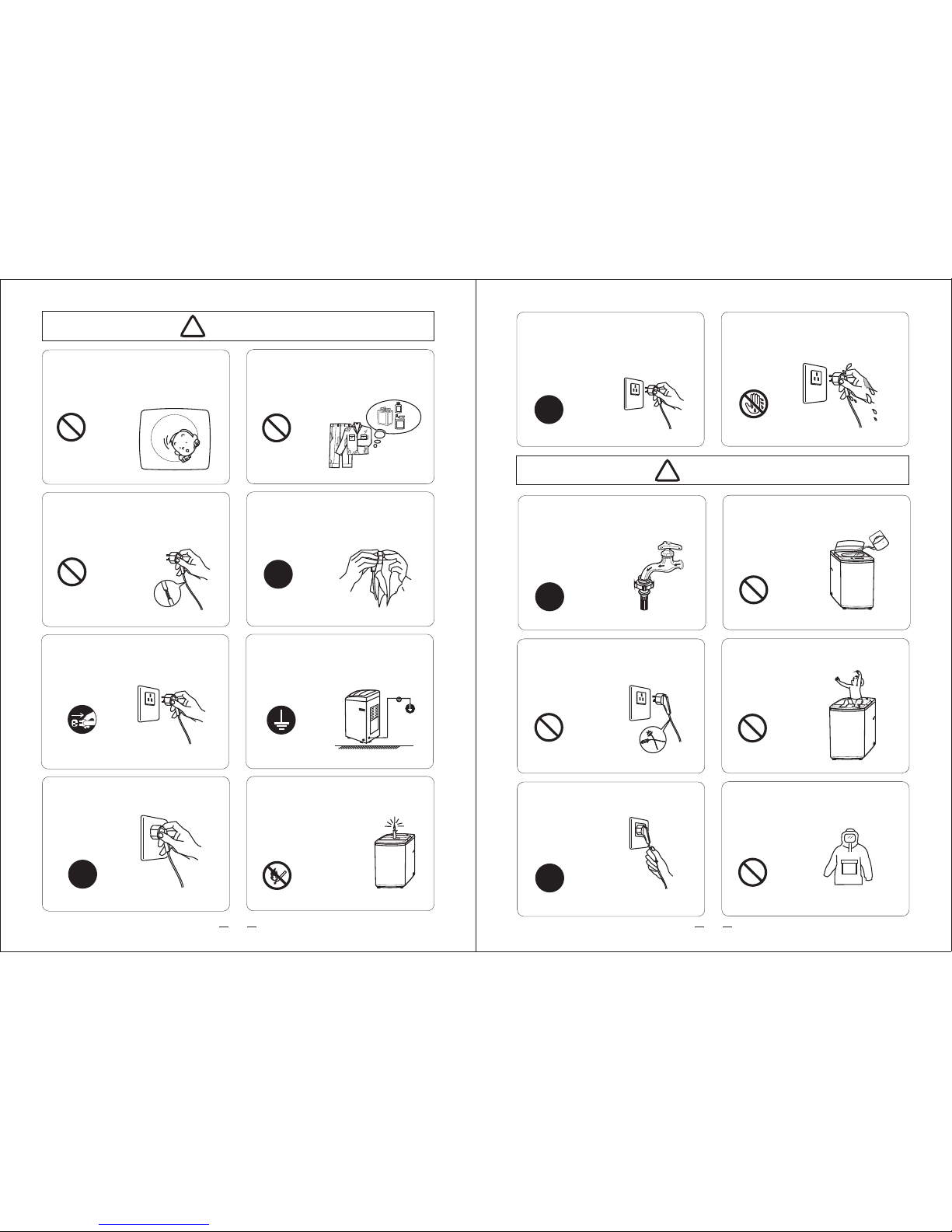

Please do not let children climb the
machine or peer into the rotating
spin barrel to avoid accidents.
It is prohibited to wash the clothes
touching with kerosene, gasoline,
alcohol and other flammable materials.
Please do not damage power flexible
cord and power plug to avoid electric
shocking, short circuit and catching
fire.
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
Please pull out plug from the socket
if the machine is not in use.
Please well connect the earth line of
socket to avoid electric shocking by
accidental leakage.
（earthing）
Please insert the power plug tightly.
！
!
!
Prohibited
Prohibited
Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Please do not place on the washer
burning candle, mosquito-repellent
incense, cigarette and other
flammable things, as well
as electric stove, air
heating fan and other
heating
sources.
3
Please use correct power source. Please do not pull out or insert the
plug with wet hands to avoid electric
shocking.
Please ensure that the water inlet pipe
is connected and the tap is opened
before washing
clothes.
Customers are not allowed to change
the power line without permission.
It is strictly prohibited to place and sit
children or lay
weights on the
washer.
Please do not pull the electric cord
when pulling out the
plug.
Please do not wash down jacket,
raincoat, fishing coat and similar
clothes in the
washer.
！
!
!
!
Wet hands are
prohibited
+
+
>50 C
The water temperature shall not exceed
50℃ when washing
with warm water.
Prohibited
Prohibited Prohibited
Prohibited
Caution
4

5
+
+
+
+
+
+
Small ball
Junk ring
Connect: Push down the slide jacket of
speedy connector ( 4 small
balls must be exposed ),
insert it into the connection
socket and then push upward
Release the connection of
water tap with speedy
connector is completed. If it
is required to feed water,
simply open the water tap.
Separate: Close the water tap, push down
the slide jacket of speedy
connector and pull out the
speedy connector.
Unscrew four screws of part
A and sleeve part A horizontally
over the mouth at the end of
water tap (the mouth at the end
of water tap must be flat and
smooth. Flatten it by filing if it is
not flat) and push it upward with
force making the rubber washer
firmly press the plane center of
water tap mouth. Then tighten
the screw sequentially.
After that, tightly screw on part B.
Connect Separate
The connection socket
consists of A and B two
parts. Before installation,
A and B two parts must
be unscrewed to about
5mm, or directly
disconnected. If the
bore of water tap is
larger, remove the
plastic junk ring of
part A.
Push down the slide jacket
to expose the small ball and
enable separation of connector
socket from speedy connector.
5mm
+
+
A
B
+
+
+
+
1
6
+
+
7
5
4
3
2

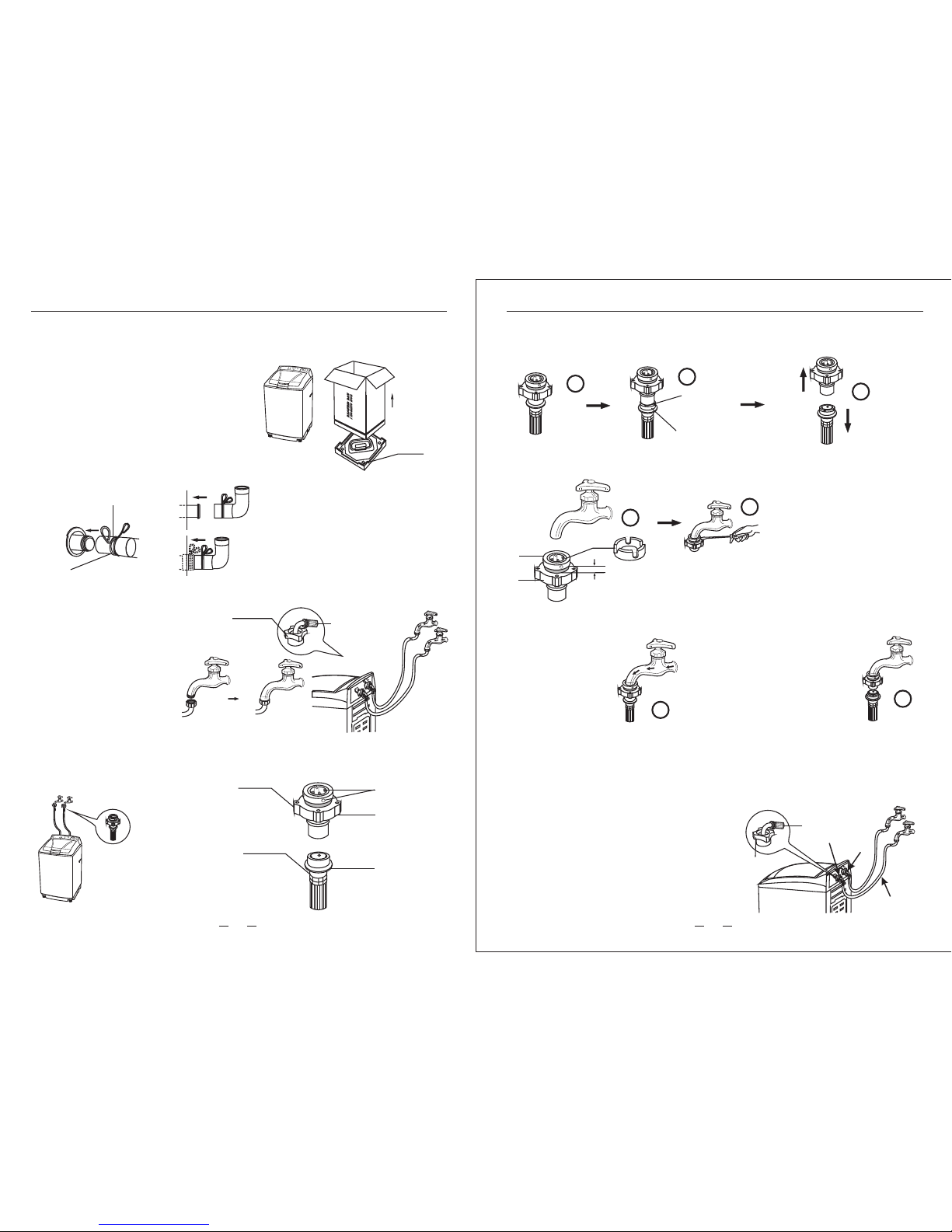

Installation of water inlet pipe
6
Installation of the washer Installation of the washer
Tightly screw another end of water inlet hose on
water inlet valve . (with rubber seal ring inside).
Note: When tightening the clamping nut, evenly
apply the force and do not twist the water inlet
valve to avoid breaking of water inlet valve joint.
Remove package
Installation of drain hose
! Remove package and take out the bottom board of
the cabinet on the foam cover.
! Open the lid of washer's door and take out accessories.
! A trial operation or washing on the foamed cushion is
strictly forbidden.
Base foamed cushion
Installation of water inlet hose
Water inlet adapter
Connector socket Fastening screw
Lock nut
Speedy connector
Slide jacket
The water inlet consists
of connection socket and
speedy connector.
+
+
Water inlet hose
Clamping nut
Installation of water inlet hose
Put the water inlet pipe(which has
metallic filtering bag) screw on to the tap.
Tightly screw another end of water
inlet hose on water inlet valve .
(with rubber seal ring inside).
Note: When tightening the
clamping nut, evenly apply the
force and do not twist the water
inlet valve to avoid breaking of
water inlet valve joint.
+
+
+
+
! Completely seat the drain
hose over the drain connector.
Installation of water inlet hose.
! Fix and tighten it with a hoop.
( As shown in the figure, and
you can use a pliers to finish
it.)
+
+
Clamping
nut
Hot water
Cold water
The two ends of
the hose is jacinth.
Water inlet hose

Before washing, please do take out coins,
keys and other hard goods, and pull to close
the zip fastener to prevent clothes and
barrel from damage.
7
+
+

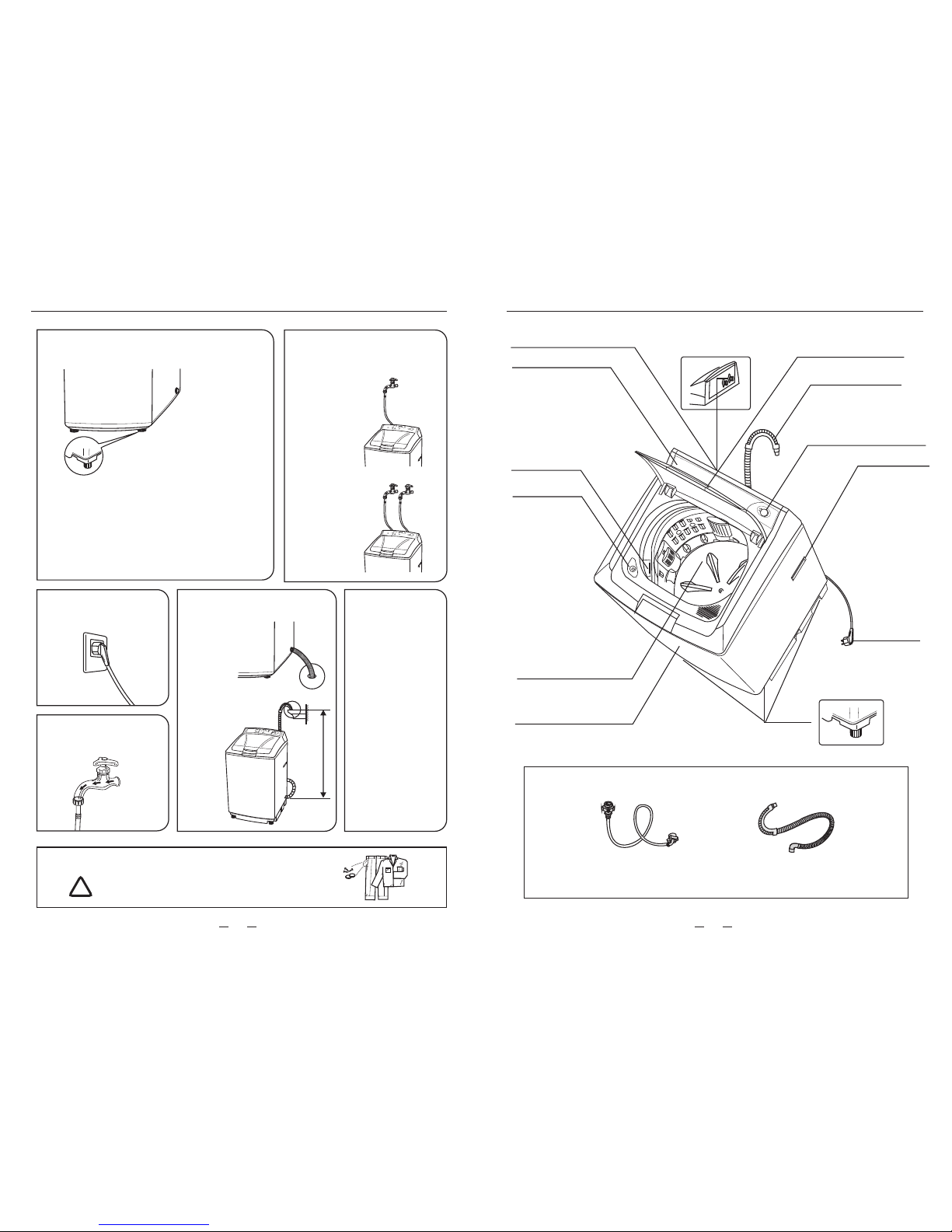

Inlet hose 2pc
Accessories
Upper Drain hose 1pc
8
Preparation before washing Parts identification of the washer
！
！
NOTICE
Adjust the adjustable foot making
the washer be placed stable.
1
Adjustable foot (extend when
clockwise rotating and shorten
when counterclockwise rotating)
(Slightly incline the washer first and loosen the
adjustable foot knob. Adjust the adjustable foot so
as to ensure four corners of washer be steadily
contacted with the ground. Then tighten the
adjustable foot knob and lock it. If the ground is
obviously not flat, correction should be made on
the ground surface, otherwise the washer barrel
will incline and knock the cabinet)
Install the water
inlet hose.
2
one inlet hose
two inlet hoses
Connect with
power source.
3
4Open the
water tap.
Put down the drain
hose.
5
Gravity drain
Upper drain
Note:
The water
will overflow
when the
height of
the drain
hose under
750mm.
750mm~1200mm
Put in
clothes
and
suitable
amount of
washing
powder.
6
Water inlet valve(in the back) Handle of lid
Handle
Power cord
Adjustable
foot knob
Impeller
Cabinet
Bleach filling
inlet
Power switch
Softener inlet
Control panel
UpperDrain hose

10
9
Instruction of the washer operation panel

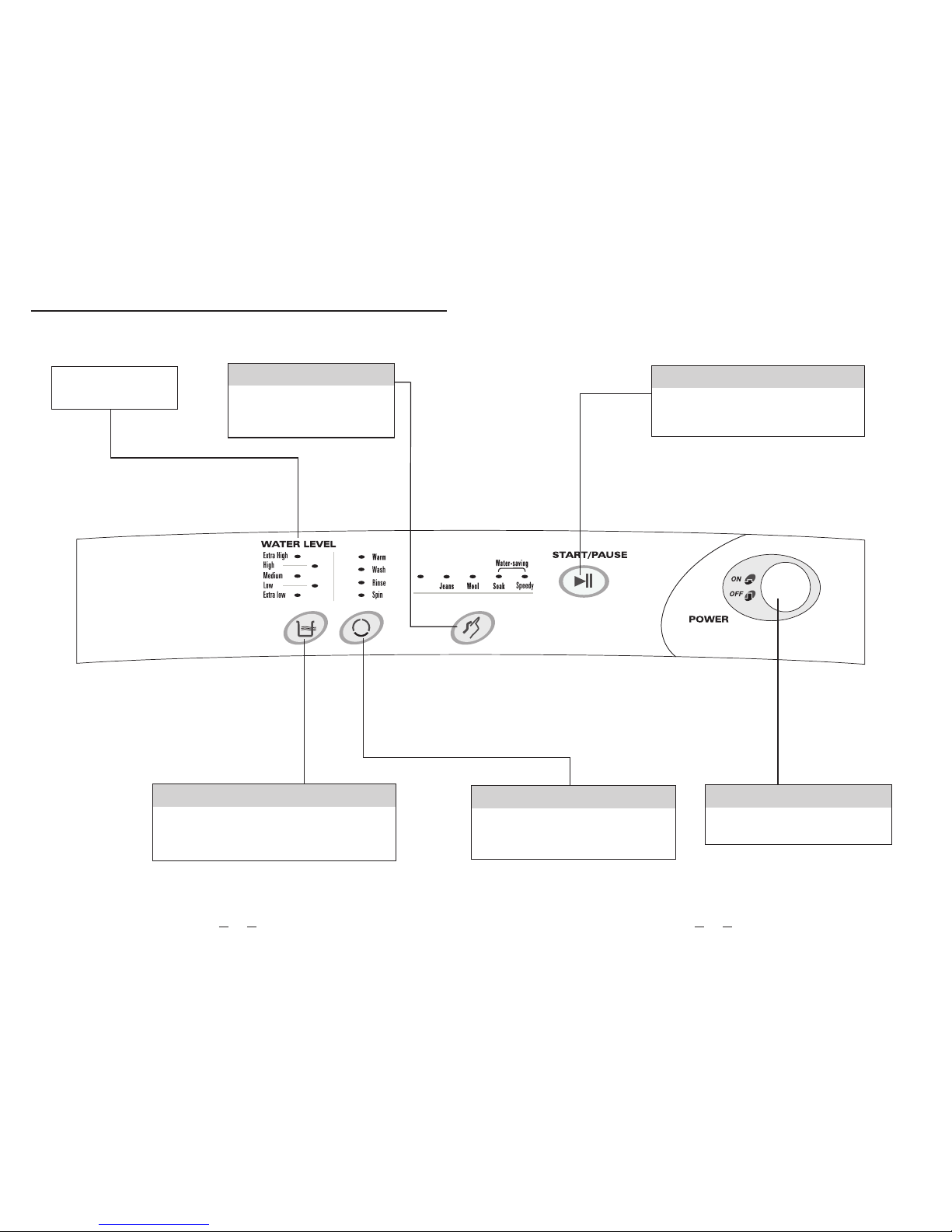

Process Selection
Press this button continuously. And selecting any
one process of warm,wash,rinse or spin.
Press power switch to turn on the power,
pressing power switch again to shut down
the power.
.
Water level selection button is used by customer to
select and change water level Continuously pressing
this button, the lamp circularly will display between
"high - extra low".
[Start / Pause] button has both function of start
and pause. Continuously press this button, the
machine will be switched between start and
pause mode.
Before start, continuously press this
button for switching over between
“standard", " jeans ", " wool ", "soak",
"speedy"and "water-saving" programs.
Program selection
Water level selection
Start / Pause
Power switch
Five water levels are
available .
Standard

The wash stops
Programme selection
1 Install the washing
machine
3 measure out the
detergent 7 Plug the power supply
6 Turn on the water tap
8 Select the desired
programme
5 Put down (hang up)
the drain pipe
4 Close the
machine door
9 Press the
[start/pause] key
11
When the wash stops, the buzzer will buzz continuously for 6 times and
then the power will be automatically cut off.
Turn off the water tap.
Although the power can be cut off automatically, the power plug must be pull
out as well for the safety.

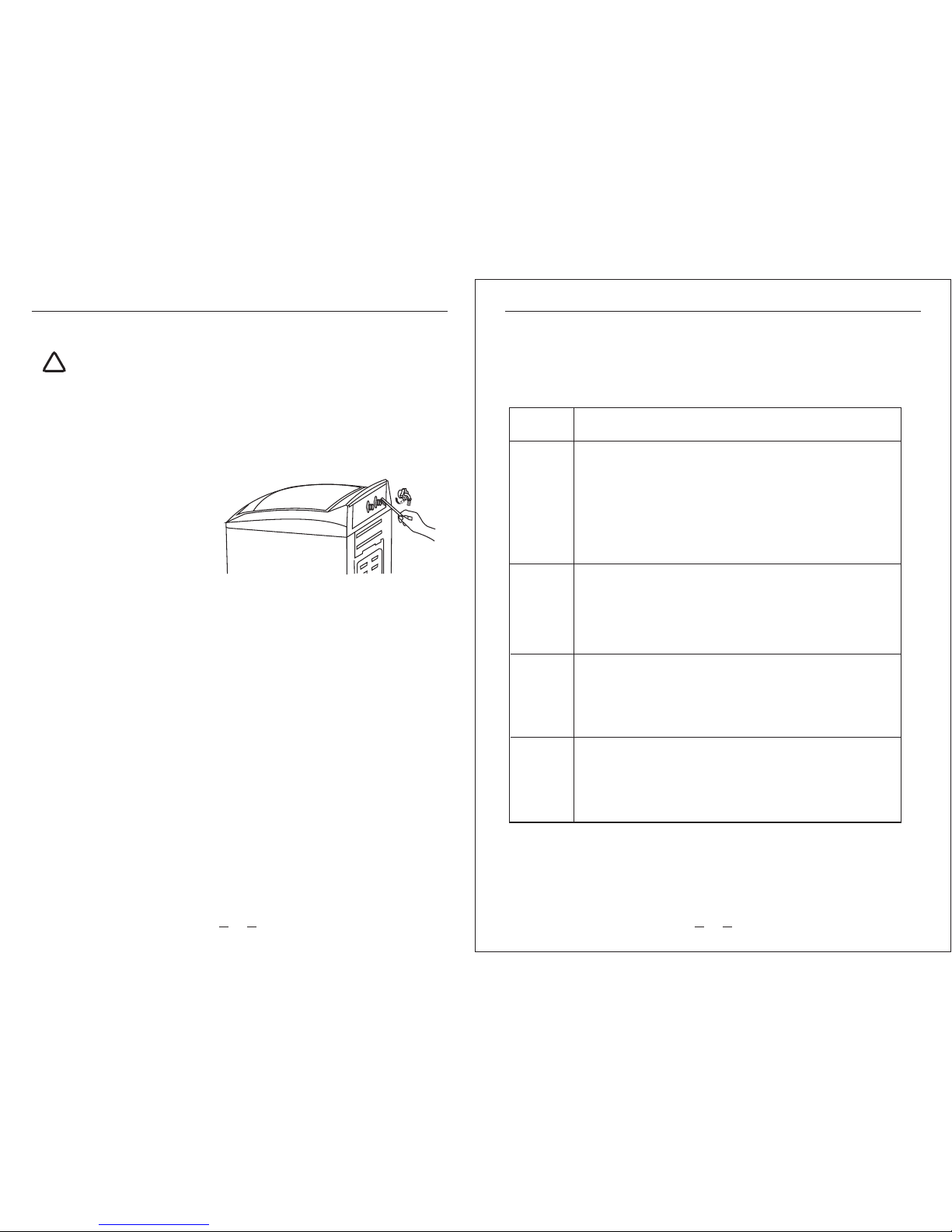

1Press the POWER button.
3To press the start/pause key.
2 Select the proper water level or other attached functions.
2 Load the laundry
Instruction to the programSTANDARD
Instruction to single wash procedure
Instruction to self-programmed procedure
Steps in details
1.Press the power switch.
2.According to the washing amount choose the proper water level.
3.Press START/PAUSE button.
12
! Close the lid of the door when machine is running, otherwise, it will automatically
stop working during spin process and send out abnormal warning.
!The washer will not work when the filled water does not reach the set water level.
! After pressing down [ Power Switch ], if the [Start / Pause ] button is not pressed,
the power will be automatically cut off after 10 minutes.
! [ ] wash program is the easiest, most convenient and most common washing
program. When the user press the power switch and then press [Start/Pause] button,
the normal washing program will start to work.
! When the washer start to work, the digital tube show the remain time. The indicator
light which stand for remaining time is flickering.
Standard
! User may freely select any single procedure, or any combination of procedures
among WASH, RINSE and SPIN according to the actual requirements. It is only
required to turn off any one or two of these three indicators that not needed by the
user. And keep the indicator be on showing the process needed by the user.
! Single wash -- after switching on the power, turn off RINSE and SPIN two indicators
by pressing these two keys. The operation for single rinse and single spin is similar.
! Single wash-spin – after switching on the power, turn off RINSE indicator by pressing
that key. The operation for single rinse-spin and single wash-rinse is similar.
! User can freely select any combination among WASH, RINSE and SPIN modes
according to the dirty degree of clothes.
Detail operation methods are following:
Continuously pressing the washing button to select washing time.
(1~20 minutes, or no wash process)
Continuously pressing the rinse button to select rinse times.
(1~3 times, or no rinse process)
Continuously pressing the spin button to select the spin time.
(3~9 minutes or no spin process)
NOTICE
！
Quick start The main wash

SPEEDY
! SPEEDY program is used for washing the clothes not so dirty and the whole
washing process will be completed in a short time.
JEANS
! JEANS program is used for washing jeans and big clothes.
13 14
Special features Application of detergent, softener and bleach
WOOL
! WOOL program: The water flow is infirmly. It is used for washing woollens, thin clothes or
cleaner clothes.
SOAK
! SOAK program is with strong water fiow similar as that [ ] washing progarm.
However, there is a motional soak process just before the washing process.
Thus it is used for washing more dirty clothes.
Standard
WATER-SAVING
! WATER-SAVING is a frugal program, the machine will run the process wash,
rinse and spin every time after soak a period of time.
The way for placing the washing powder is to directly put it into barrel of the washer.
It is necessary to use proper amount of washing powder. Using a big a mount of detergent
will generate suds over clothes. therefore rinse process will not eliminate it.
Slowly pour the clothes softener in the inlet softener opening, but washing powder, bleacher and
sizing agent should not be filled through this opening. ( If the location of the filling opening does not fit
the operation, clockwise rotate the spin barrel to change the location of filling opening for softener ) The
softener can only be used in the whole procedure of washing program, however, the bulking results will
be much better when using normal and strong wash program.
The softener will be filled into the washing tub automatically before the final rinsing operation. After the
clothing softener is filled, the lid of the washer should not be opened during the spin procedure,
otherwise an error will be caused for the automatic filling time of softener so that it can not execute
effective functions.
Do not place the clothes softener in filling opening for long time, otherwise it will get solidified resulting in
slack filling.
Application of softener
Before washing, dilute the bleacher with sufficient water and then fill it through the inlet
bleach opening.
The bleacher should not be directly poured into the washing barrel, otherwise it will cause fading of
colorful clothes. Please correctly use the bleach according to the application method of bleach supplier.
Standard using amount of water, washing powder and clothes softener
10 - 16g 12 - 19g 14 - 22g 16 - 26g 18 - 30g
35 - 52g
27 - 42g 31 - 47g
24 - 38g
20 - 32g
about 16 ml about 18 ml about 20 ml about 22 ml about 24 ml
Application of detergent
Filling opening for bleacher
Filling opening for softener
Application of bleacher
Rated amount of water (liter)
Using
amount of
washing
powder
Fast Program
Normal program
Using amount of
Clothes softener
Extra low Very low Low Medium High
Note: The using amount of washing powder will vary with its different quality.

15 16
!
! Please keep the washer with neat appearance and perform correct
maintenance to prolong the service life of washer.
Make sure to pull out the power plug before the cleaning and maintenance.
Cleaning of water inlet hose joint
Unscrew and remove the water inlet
hose joint from the washer and clean
the filtering screen of inlet valve with
brush.
！
！
NOTICE
Cleaning and Maintenance of the washing machine
No
washing
Abnormal
draining
Abnormal
spin
Identify usual trouble of washer
List of faults and inspection
Faults Inspection Items
No water
flows in
! If the power is off or the fuse is burned out.
! If the water supply is cut off or the water pressure is too low.
! If the inlet hose is properly connected and the water tap is opened.
! If the filtering screen of inlet valve is blocked by dirt.
! If the coil of inlet valve is damaged. (The slight electromagnetic
sound is normal phenomenon when the inlet valve is switched on)
! If the "Start / Pause" button is pressed after the power
switch is pressed.
! If the door lid is closed.
! If all clothing piled largely at one side of barrel or the clothing
is excessively placed.
! If the washer is not placed in stable condition or it is placed in
inclination state. (The ground is not flat).
! If the motor belt is loosened.
Note: During the de spin process, if washing are piled at one side of the spin barrel,
it will cause unbalance of spin barrel resulting in striking. At this moment, the
computer inside the washer will feel this unbalance phenomenon and will automatically
correct it ( fill in water Washing ). However, if unbalance situation is not removed after
continuous three corrections, which means the computer auto-correction can not
resolve the problem. Then the user has to manually and evenly place the clothing
inside the barrel to solve the problem.
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine without
permission.
If the washer can not work normally, or appear abnormity or alarms, please check and
correct asfollows.
! If the water drain hose is placed very high.
! If the end of water drain hose is sealed in pond.
! If the internal rubber ring of drain valve is blocked by dirt.
! If the power is off or the fuse is burned out.
! If the power supply voltage is too low.
! If the water amount reaches to the required water level.
(The washer will not work if the water amount does not reach the
required water level)
! If it is set to "Delay" washing mode. (It will only start to work
until the reservation time reached)

17
Specifications and technical parameters of washer
18
240V / 50Hz
Rated power supply
460W
Input power of motor
7.0kg
Rated washing capacity
7.0kg
Rated spin capacity
XX
560 585 960
Overall dimensions
Application water pressure
38kg
Weight of whole machine
0.03MPa~1MPa
Washing mode New water flow
Draining mode
Spin mode Centrifugal spin
Upper drain
Following phenomena are not faults of washer
There is water leaks from the
water drain hose when used
for first time
Make up water during
washing process
During the spin process, spin
suddenly stops before water
filling and rinsing.
The clothes not sufficiently
spinned after spin process
Symptom
This is residual water after the performance test
in the factory.
During the washing process, the water will be
automatically made up when the water level is lower.
This is because the clothes is at one side. So the safety
switch starts to work to make up water, rabble while
running. The spin process will be continued when the
clothes is in balance status. in case of failure of three
corrections of the machine. please manually adjust the
balance of clothes.
The spin efficiency of full automatic washer is a
little lower than that of twin tub washer. The heavy
and thick part of clothes will cause uneven spin.
Causes
