Trieste TR-KQB60-560 User manual

Please carefully read this operation manual before using the product.
Please keep this operation manual for your future reference.
FULLY AUTOMATIC WASHING MACHINE
INSTRUCTION MANUAL
TR-XQB60-560

CONTENTS
Safety and precaution.............................................2
Parts identification of the washer............................5
Explanation of washer control panel.......................6
Installation of washer..............................................8
Preparation before washing....................................9
Operation of normal wash program.......................10
Operation of single wash / rinse / spin program....12
Operation of other full-automatic wash program...13
About procedure of full-automatic wash program..14
Application of wash detergent, softener
and bleacher..........................................................15
Identifying common troubles of washer..................16
Following phenomena are not problems of
Washer...................................................................17
Specifications and technical parameters
of washer................................................................17
Preparation before application About washing program Maintenance of washer
FIRSTLY
You should know
SECONDLY
When you want to use
FURTHER
Easier for your operation
If
You are in trouble
Detergent etc
Operation of full load of soiled clothes...........11

SAFETY AND PRECAUTION
Observe the following items in order to prevent from injuring yourself,
to others and the damage of property:
Please observe following contents of graphics.
Warning
Warning
Caution
This indicates serious injury or death to human being
may be caused.
This will remind you that injury to people and damage
to property may occur.
Do not rinse the machine with water
when cleaning. A damped clothes or
sponge is recommended for
cleaning purposes.
Do not install the machine in
damp and raining environment to avoid
electric shocking, catching fire, faults
and distortion
accidents.
No dismantling No touching
No dampness No rinsing
This graphics represents operation prohibited], and detailed prohibitive
items will be displayed inside the graphics.
This graphics represents cause attention and detailed cautions
will be displayed inside the graphics.
This graphic represents [forced execution], and detailed force
execution items will be displayed inside the graphics.
Do not disassembly
and assembly the
machine without
authorization.
Do not insert your hand
and take out clothes during
spin process until
it is fully stopped.
The appliance should be connected to the water mains using new hose-sets and old hose-sets
should not be reused.
When the appliance is placed on a carpet, the ventilation openings in the base must not be
obstructed.

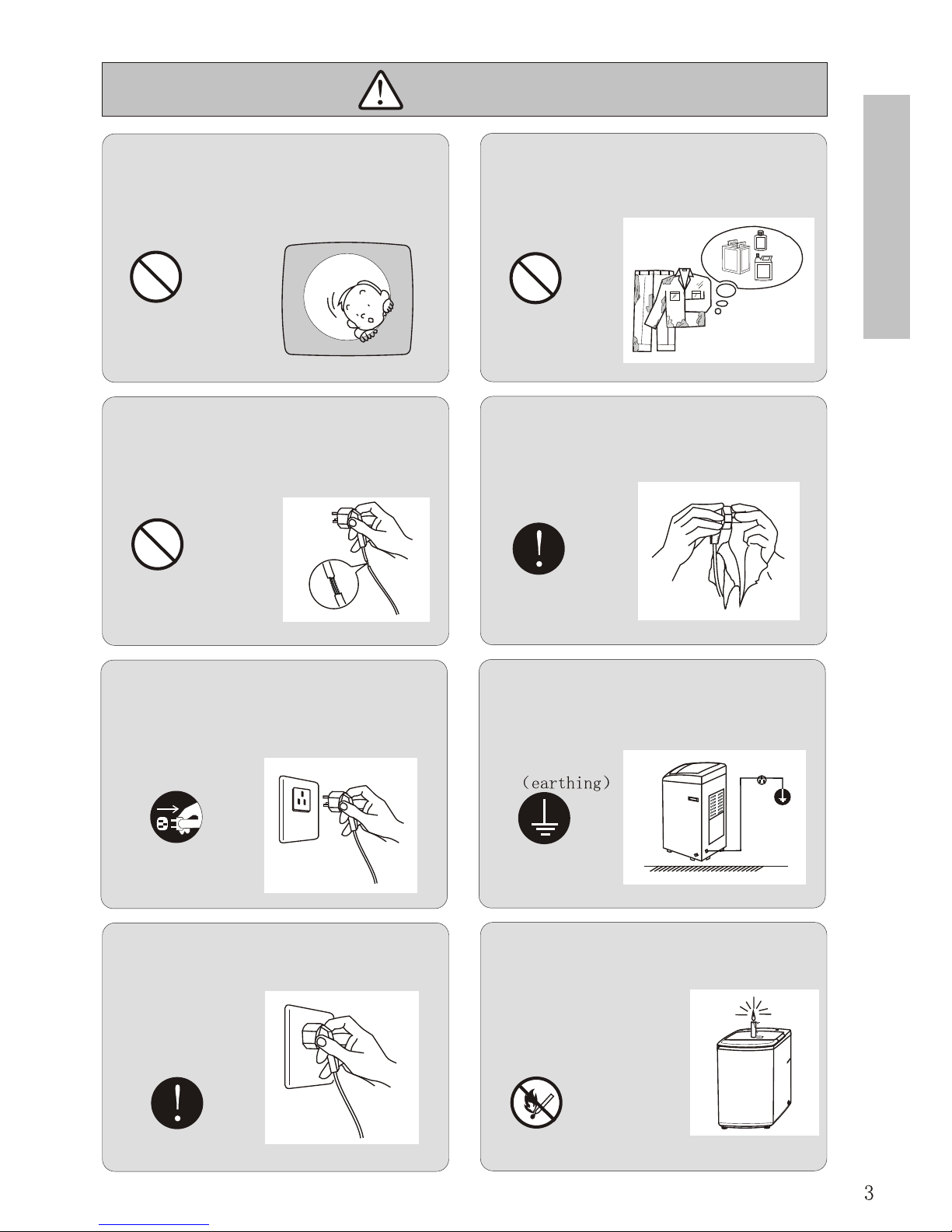

This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Young children should be supervised to ensure they do not play with the appliance.

Do not let children climb the
machine or peer into the rotating
basket to avoid accidents.
It is prohibited to wash the clothes
damped with kerosene, gasoline,
alcohol and other Flammable materials.
Do not damage power flexible
cord and power plug to avoid electric
shocks, short circuit and catching
fire.
(Recommendation)
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
(Recommendation)
Please pull out plug from the socket
if the machine is not in use.
(Recommendation)
Connect the earth line of socket to
avoid electric shocking by accidental
leakage.
(Recommendation)
insert the power plug tightly.
Prohibited
Prohibited
Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Please do not place on the washer burning
candle, mosquito-repellent incense,
cigarette and other
flammable things, as well
as electric stove, air
heating fan and other
heating sources.
Preparation before application
Gasoline
Alcohol
Kerosene

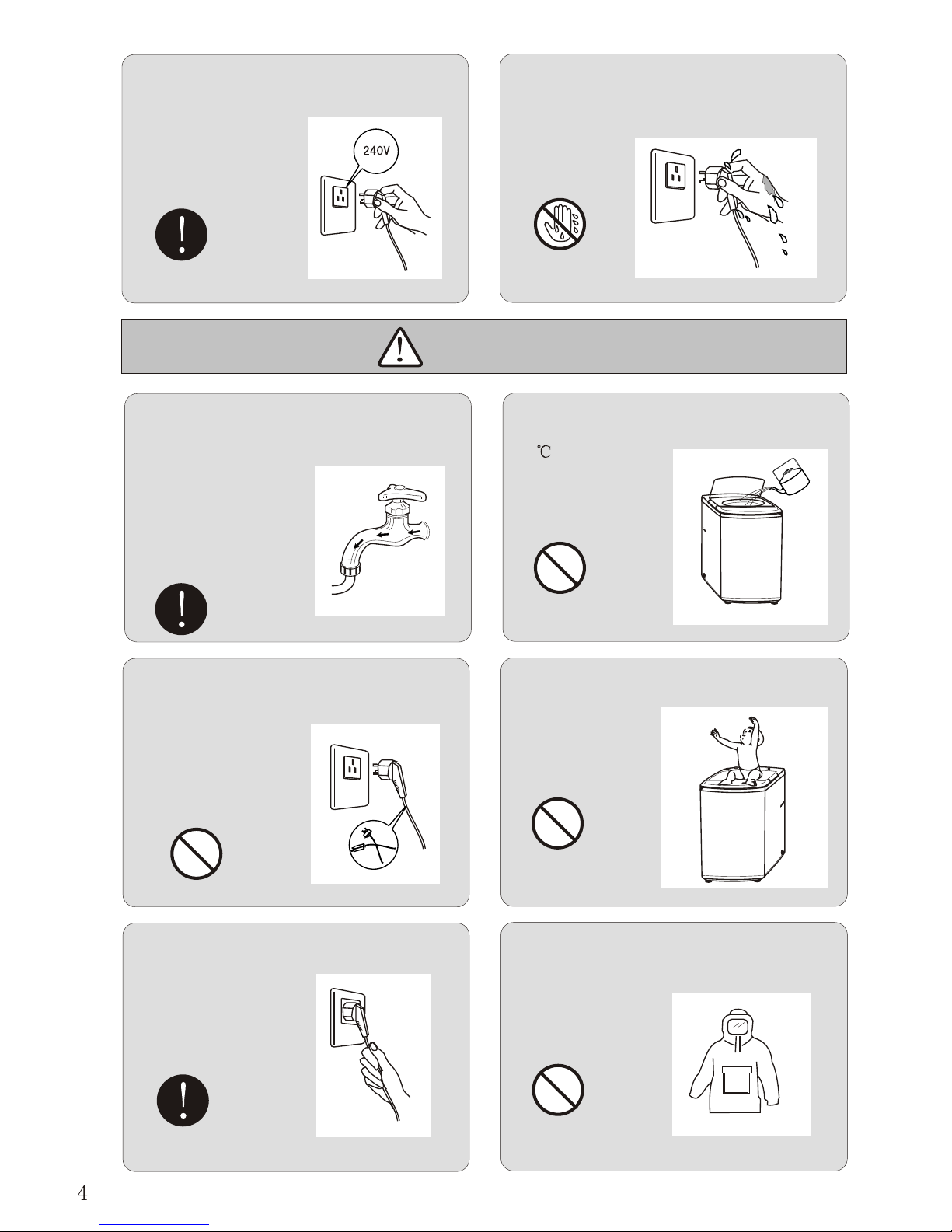

For the correct operation of your washer
machine a Please
use 240V AC
power source is
recommended.
Please do not pull out or insert the
plug with wet hands to avoid electric
shocking.
Drawing or legend for "type" plug is
required according to IEC 335, clause
.12.5. If power cord
is damaged, report to
service technician
agent or qualified
personal to repair it.
Do not place heavy weights nor allow
people or
children sit or
climb over
washer cover.
Do not pull the electric cord
when pulling out the
plug.
Do not wash raincoat, fishing
coat and similar clothes in the
washer.
Wet hands are
prohibited
The water temperature shall not exceed
50 when washing
with warm water.
Prohibited
Prohibited
Prohibited
Prohibited
Caution
Please ensure that the water inlet pipe
is connected and the tap is opened
before washing
clothes.

Parts identification of the washer
Water inlet valve(in the back) Handle of lid
Handle
Power cord
Adjustable
foot knob
Impeller
Cabinet
Inlet hose 2pc Self-tapping screw 1pc
(M4 X 12)
Base plate 1pc
Accessories
Bleach filling
inlet
Power switch
Softener inlet
Control panel
Preparation before application
UpperDrain hose 1pc
UpperDrain hose

WATER LEVEL PROCESS PROGRAM
Wash rinse spin

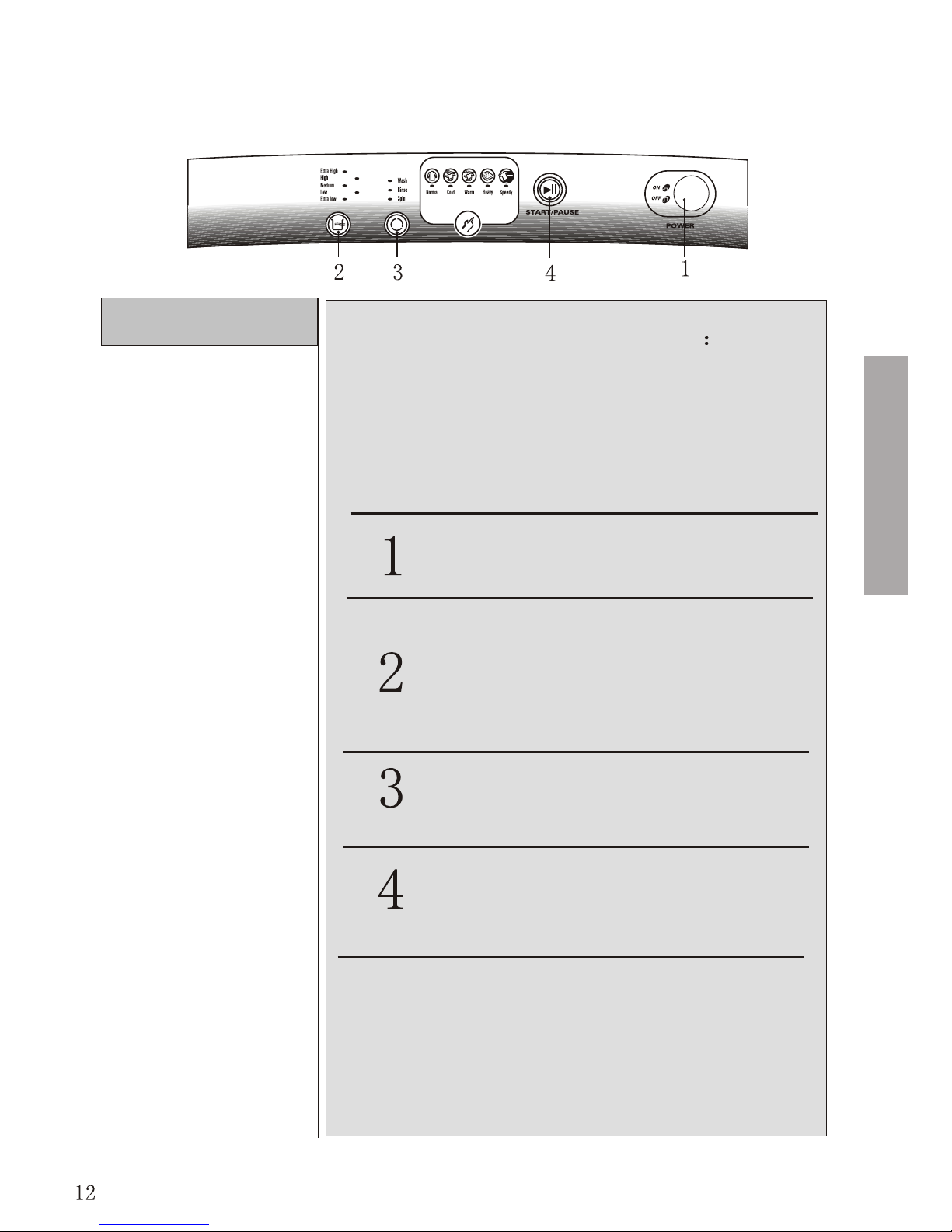

Explanation of washer operating panel
If "wash" button is pressed, wash
lamp will be on . If "rinse" button is
pressed, rinse lamp will be on. If "spin"
button is pressed, then spin lamp will be on.
Press power switch to turn on the power,
pressing power switch again to shut down
the power.
.
Water level selection button is used by customer to
select and change water level Continuously pressing
this button, the lamp circularly will display between
"high - extra low".
[Start / Pause] button has both function of start
and pause. Continuously press this button, the
machine will be switched between start and
pause mode.
Before start, continuously press this
button for switching over between
"normal", " cold ", " warm ", "heavy"
and "speedy" programs.
Program selection
Water level selection
Start / Pause
Power switch
Five water levels are
available .
Preparation before application

Installation of the washer
Remove package
Installation of the bottom board
Installation of drain hose
!Remove package and take out the bottom board of
the cabinet on the foam cover.
!Open the washer's lid and take out accessories.
!Remove the convex plastic block placed at the
center of foamed plastic cushion of the packing case.
this is for fixing the washer during shipment rather than a part of washer.
!A trial operation or washing with foamed cushion base is strictly forbidden.
!Tilt the back of washer forward slightly, push bottom board along
the base insertion grooves from the back of washer until it is
completely in place.
!Fix the bottom board on the base of washer with screws.( There
is a small hole in rear side of bottom board ).
Convex plastic block
Base foamed cushion
!Completely seat the drain hose over the
drain connector. Installation of water
inlet hose.
!Fix and tighten it with a hoop. ( As shown
in the figure, and you can use a pliers to
finish it.)
Installation of water inlet pipe
Put the water
inlet pipe(which
has metallic
filtering bag)
screw on to the
tap.
Note: Use only the new supplied water
hose with your new appliance do not
use a hose from your existing machine
or a hose that has been used previously.

Preparation before application
Preparation before washing
Adjustable foot
(extend when clockwise
rotating and shorten when
counterclockwise rotating)
Knob of adjustable foot
( loosen by clockwise
rotating tighten by
counterclockwise
rotating)
In the back
1! Leveling of washer
Before operation,check that the washer is both level and stable on the floor,
otherwise the washer barrel will incline and knock against the cabinet,
(Hint:Use a spirit level aligned with the top edge of the metal
casing both at the front and side to check if
the machine is level).
Adjust the adjustable feet at the front and right
hand side rear of the unit as per the diagram.
To adjust:
a) Loosen the outer grey knob of adjustable
foot by turning in a clockwise direction
b) Slightly incline the washer and rotate the
black rubber foot clockwise to extend and
counter-clockwise to retract.
c) Once the machine is both level and stable
on all four corners lock each adjustable foot
by rotating the outer grey knob in a counter-
clockwise direction.
Note:If the floor is severely out of level then
correction will need to be made to the floor surface.
2 ! Install the hot and cold water inlet hoses.
3 ! Connect machine to power outlet.
4 ! Turn on the water supply
5 ! Hang the upper drain hose on the side
of the laundry sink or tub
6 ! Load the washer with a suitable wash
load and amount of washing powder
When washing,ensure that all coins,keys and other hard items removed form
wash articles and close zip fasteners to prevent damage to clothes and machine.
Only machine washable items should be put into the washer.Wash delicate items
in a suitable wash bag.
are
>750mm
Note:
The water will overflow
when the height of the
drain hose under 750mm.
Tightly screw another end of water inlet
hose on water inlet valve . (with rubber
seal ring inside).
Note: When tightening the clamping nut,
evenly apply the force and do not twist
the water inlet valve or hose to avoid
breaking of water inlet valve joint.
Clamping
nut
Hot water
Cold water
Water inlet hose

WATER LEVEL PROCESS PROGRAM

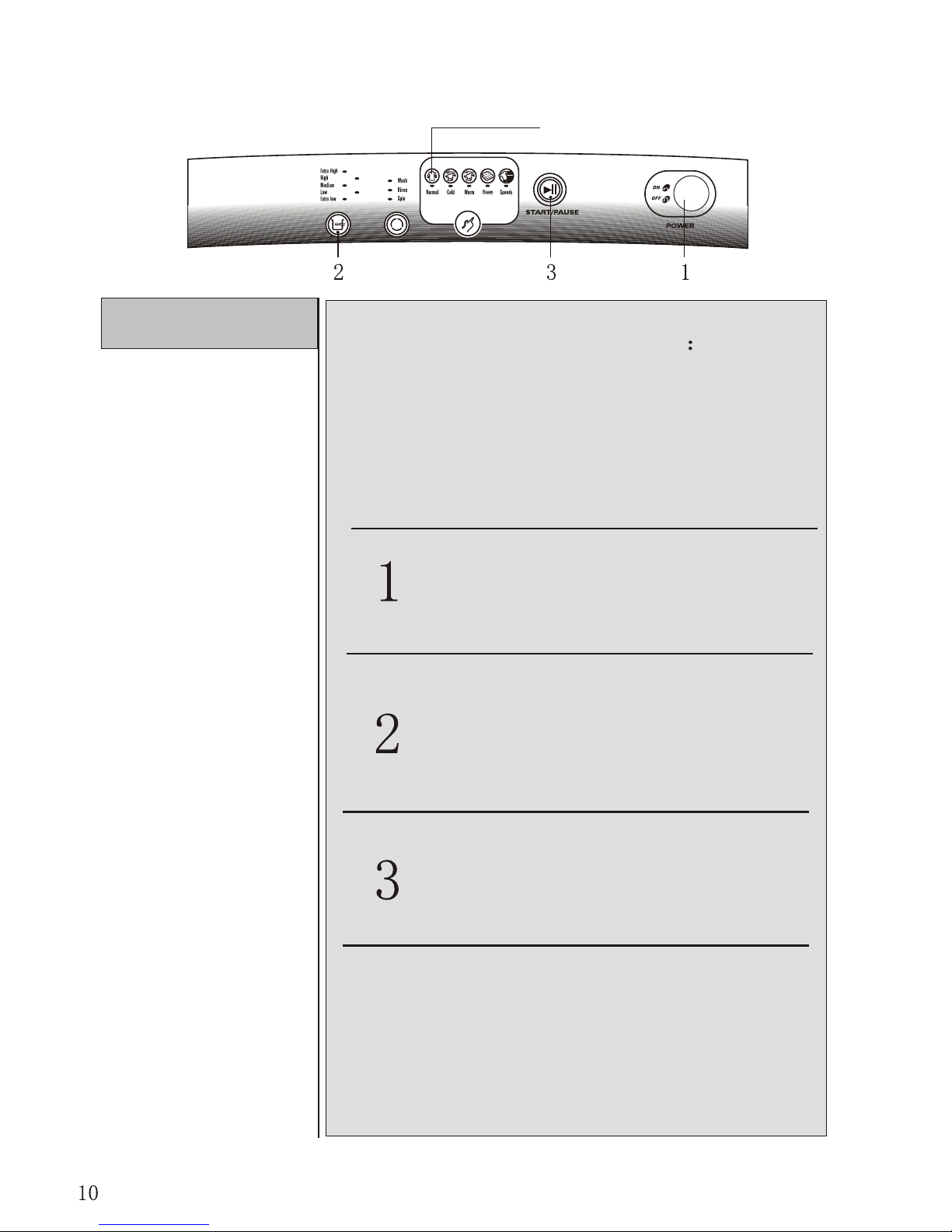

Operation of normal wash program
Description of the normal
wash program Preparation before washing
!"normal" wash program is the
easiest, most convenient and
most common washing program.
!Close the lid when machine is
running, otherwise, it will
automatically stop working
during spin process and send
out abnormal warning.
!The washer will not work until
the filled water reach the set
water level.
Press the power switch.
Press "start / pause" button.
Completion of washing
The "normal" program set as default
is now ready for washing.
"normal" program starts working.
!Upon completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Close the water tap.
!Although the power can be cut off automatically, however, the
as well for safety.mains power switch should be turned off
Select the proper water level,
according to the weight of the
clothes.
- Plug in the power cord
- open water tap
- load clothes uniformly
- put in suitable amount of detergent
- close the lid.
Normal program

WATER LEVEL PROCESS PROGRAM

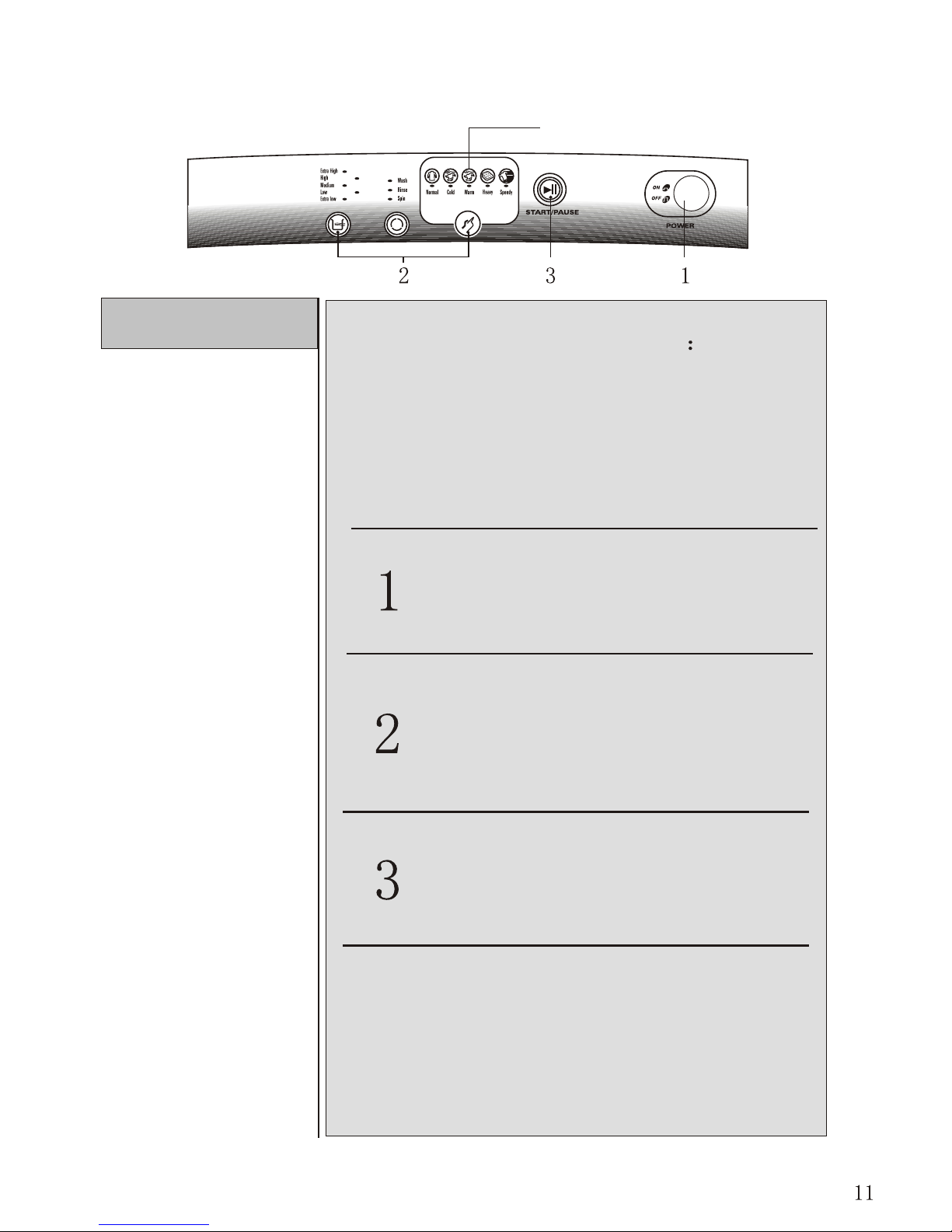

Operation for full load of soiled clothes
Preparation before washing
!Close the lid when machine is
running, otherwise, it will
automatically stop working
during spin process and send
out abnormal warning.
!The washer will not work until
the filled water reach the set
water level.
Press the power switch.
Press "start / pause" button.
Completion of washing
!Upon completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Close the water tap.
!Although the power can be cut off automatically, however, the
as well for safety.
mains power switch should be turned off
Select the "Warm" program
and "High" water level.
- Plug in the power cord
- open water tap
- load clothes uniformly
- put in suitable amount of detergent
- close the lid.
""Warm program
Operation for full load
of soiled clothes

WATER LEVEL PROCESS PROGRAM
About washing program
Operation of single wash / rinse / spin program
!User can freely select any
single process, or any
combination of processes
among , "wash", "rinse" and "
spin" according to the actual
requirements.
!Detail operation methods are
following:
!single washing -- after switching
on the power, select " wash "
indicator , The operation for
single rinsing and single spin is
similar.
!Single washing - spin -- after
switching on the power, select
"wash" and "spin" indicator ,The
operation for single rinsing -
spin and single washing -
rinsing is similar.
Preparation before washing
Completion of washing
!Upon completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Close the water tap.
!Although the power can be cut off automatically, however, the
as well for safety. mains power switch should be turned off
Press the power switch.
Select the single washing
program required.
Press "Start / pause" button.
Introduction to single
wash program
The washer will start to work with the set
program.
Select the proper water level,
according to the weight of the
clothes.
- Plug in the power cord
- open water tap
- load clothes uniformly
- put in suitable amount of detergent
- close the lid.

WATER LEVEL PROCESS PROGRAM
Operation of other full automatic
wash program
Preparation before washing
Completion of washing
!Upon completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Close the water tap.
!Although the power can be cut off automatically, however, the
as well for the safety. mains power switch should be turned off
Introduction to other full automatic
washing program
!"cold " program is used for
washing the normal Clothes.
!"warm " program is used for
washing the clothing cleanly.
!"Heavy" program is used for
washing dirtiest or thickest clothing
with the strongest water flow.
!" speedy " program is used for
washing the clothing not so dirty
and the whole washing process will
be completed in about 30 minutes.

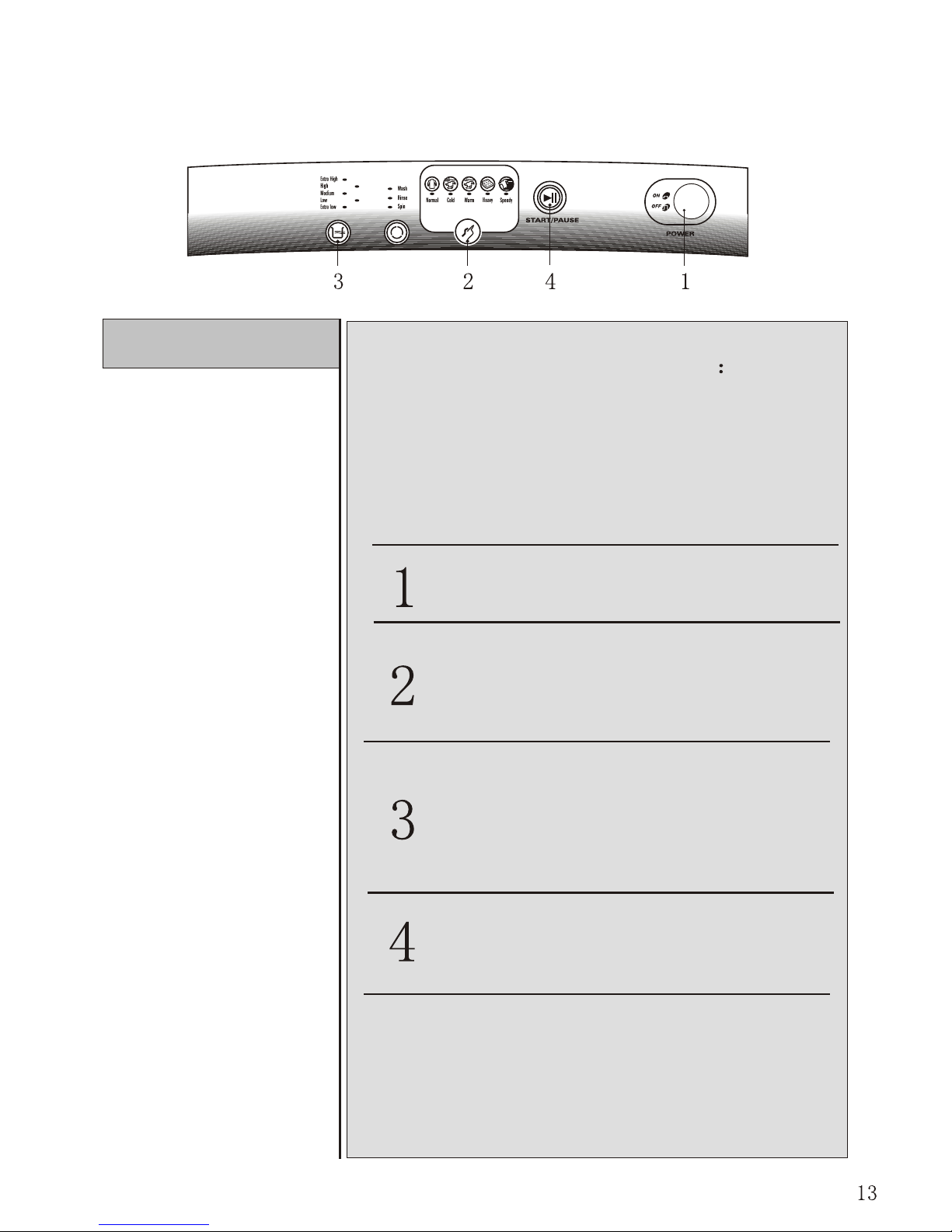

Press the power switch.
Select any one program of
" cold" "warm " " heavy ", or
" speedy " in Program.
Press "Start / pause " button.
The washer will start to work with the set program.
Select the proper water level,
according to the weight of the
clothes.
- Plug in the power cord
- open water tap
- load clothes uniformly
- put in suitable amount of detergent
- close the lid.

About washing program
About the procedure of full automatic
wash program
Note: The time required will also vary with water pressures of intake pipe, different
clothes textures and different water drain conditions.
Contents
Water
Level
Wash
Time
(minutes)
Spin
Time
(minutes)
Washings
(Recommended)
Complete
Time
(minutes)
Rinsing
Times
Program Normal
Cleaner
Clothes
Heavy
Thicker
clothes
Warm Cold
Normal
clothes
Speedy
Less dirty
Clothes
High
Extra low
High
Extra low
High
Extra low
High
Extra low
Medium
Extra low
Clothes
with
more dirt
(soiled)

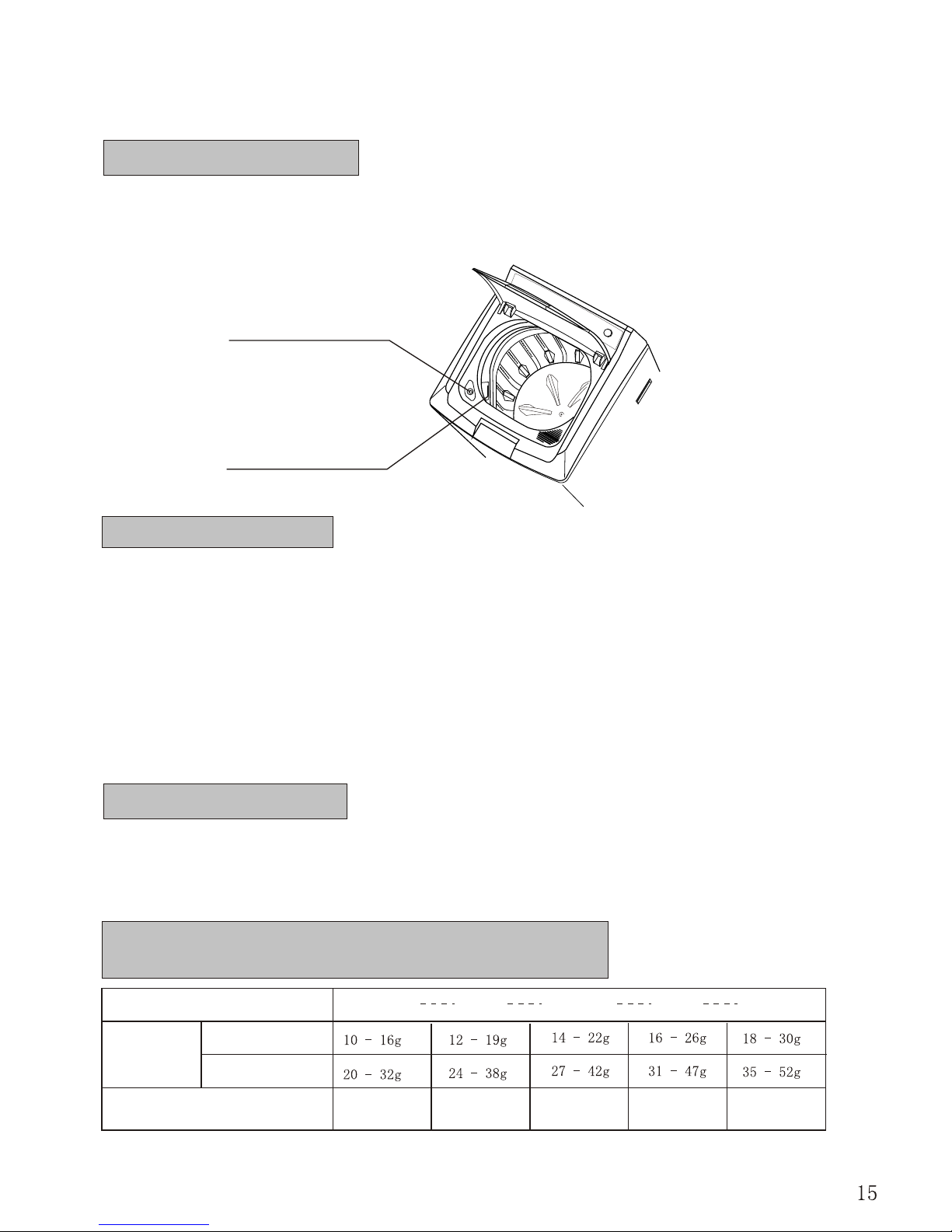

Application of detergent,
softener and bleach
The way for placing the washing powder is to directly put it into barrel of the washer.
It is necessary to use proper amount of washing powder. Using a big a mount of detergent
will generate suds over clothes. therefore rinse process will not eliminate it.
Slowly pour the clothes softener in the inlet softener opening, but washing powder, bleacher and
sizing agent should not be filled through this opening. ( If the location of the filling opening does not fit
the operation, clockwise rotate the spin barrel to change the location of filling opening for softener ) The
softener can only be used in the whole procedure of washing program, however, the bulking results will
be much better when using normal and strong wash program.
The softener will be filled into the washing tub automatically before the final rinsing operation. After the
clothing softener is filled, the lid of the washer should not be opened during the spin procedure,
otherwise an error will be caused for the automatic filling time of softener so that it can not execute
effective functions.
Do not place the clothes softener in filling opening for long time, otherwise it will get solidified resulting in
slack filling.
Application of softener
Before washing, dilute the bleacher with sufficient water and then fill it through the inlet
bleach opening.
The bleacher should not be directly poured into the washing barrel, otherwise it will cause fading of
colorful clothes. Please correctly use the bleach according to the application method of bleach supplier.
Standard using amount of water, washing powder
and clothes softener
about 16 ml about 18 ml about 20 ml about 22 ml about 24 ml
Application of detergent
Filling opening for bleacher
Filling opening for softener
Application of bleacher
Note: The using amount of washing powder will vary with its different quality.
Rated amount of water (liter)
Using
amount of
washing
powder
Fast Program
Normal program
Using amount of
Clothes softener
Extra low Medium High Low Extra high

Detergent etc
Maintenance of washer
Please keep the washer with neat appearance and perform correct maintenance to prolong the
service life of washer.
Cleaning of water inlet pipe joints
Unscrew and remove the water inlet pipe joint
from the washer and clean the filtering screen
of inlet valve with brush.
No
washing
Abnormal
draining
Abnormal
spin
Identifying common troubles of washer
List of faults and inspection
Faults Inspection Items to be checked
No water
flows in
!If the power is off or the fuse is burned out.
!If the water supply is cut off or the water pressure is too low.
!If the inlet hose is properly connected and the water tap is opened.
!If the filtering screen of inlet valve is blocked by dirt.
!If the coil of inlet valve is damaged. (The slight electromagnetic
sound is normal phenomenon when the inlet valve is switched on)
!If the "Start / Pause" button is pressed after the power
switch is pressed.
!If the power is off or the fuse is burned out.
!If the power supply voltage is too low.
!If the water amount reaches to the required water level.
(The washer will not work until the water amount does not reach the
required water level)
!If the water drain hose has been very high..
!If the end of water drain hose is sealed in pond.
!If the internal rubber seal ring of drain valve is blocked by dirt.
!If the door lid is closed.
!If all clothing piled largely at one side of barrel or the clothing
is excessively placed.
!If the washer is not placed in stable condition or it is placed in
inclination state. (The ground is not flat).
!If the motor belt is loosened.
Note:
During the spin process, if washings are piled at one side of the spin barrel, it will cause unbalance of spin barrel resulting in
striking. At this moment, the computer inside the washer will feel this unbalance phenomenon and will automatically
correct it ( fill in water Washing ). However, if unbalance situation is not removed after continuous three corrections, the time
buzzer start to alarm, which means the computer auto-correction can not resolve the problem. Then the user has to manually
and evenly place the clothing inside the barrel to solve the problem.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.

240V~50Hz
420W
6.0kg
6.0kg
XX
560 585 960 (mm)
0.03MPa~1MPa
38kg
Specifications and technical
parameters of washer
Rated power supply
Input power of motor
Rated washing capacity
Rated spin capacity
Overall dimensions
Application water pressure
Weight of whole machine
Draining mode Upper draining
Spin mode Centrifugal spin
Following phenomena are not
faults of washer
There is water leaks from the
water drain hose when used
for first time
Make up water during
washing process
During the spin process, spin
suddenly stops before water
filling and rinsing.
The clothes not sufficiently
spinned after spin process
Symptom
This is residual water after the performance test
in the factory.
During the washing process, the water will be
automatically made up when the water level is lower.
This is because the clothes is at one side. So the safety
switch starts to work to make up water, rabble while
running. The spin process will be continued when the
clothes is in balance status. in case of failure of three
corrections of the machine. please manually adjust the
balance of clothes.
The spin efficiency of full automatic washer is a
little lower than that of twin tub washer. The heavy
and thick part of clothes will cause uneven spin.
Causes

Washing Machine 1
Inlet Hose 2
Upper drain Hose 1
1
2
3
4
5
6
7
Operation manual 1
Packing Bag 1
1
Self-tapping Screw Nail
Bottom Board 1
Description Quantity
PACKING LIST
Number
