TUGO AG925B8V-S0ECF0 User manual

INSTRUCTION MANUAL
MODEL:A G925B8V-S0ECF0
Microwave Oven
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
Specifications
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight:
AG925B8V-S0ECF0
2
1450 W
1000 W
2
315 mm
Approx 1 kg
20V~ 50Hz
900 W
5 L
594X410X388mm
8.1
2

IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. Warning: Only allow children to use the
oven without supervision when adequate
instructions have been given so that the
child is able to use the oven in a safe way
and understand the hazards of improper
use.
4. Warning: When the appliance is operated
in the combination mode, children should
only use the oven under adult supervision
due to the temperatures generated.
(only for grill series)
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONSTOAVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is observed, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items,
such as bread, cookies, etc. inside the
oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15. Use this appliance only for its intended
uses as described in manual. Do not
use corrosive chemicals or vapors
in this appliance. This oven is especially
designed to heat. It is not designed for
industrial or laboratory use.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to
get hot during use.Keep cord away
from heated surface, and do not cover
any vents on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
23. Microwave heating of beverages can
result in delayed eruptive boiling,
therefore care must be taken when
handling the container.
24.The appliance is not intended for use by
persons (including children) with reduced
physical , sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for their
safety.
25.Children should be supervised to ensure
that they do not play with the appliance.
3

DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to unplug the
appliance from the power supply.
1. Clean the inside of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighboring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
1)The marked electrical rating of the cord set
or extension cord should be at least as great
as the electrical rating of the appliance.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be pulled on by children or tripped
over unintentionally.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped
with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood or if doubt exists as to whether the
appliance is properly grounded. If it is necessary
to use an extension cord, use only a 3-wire
extension cord.
27.Appliances are not intended to be operated by means of an external timer or separate
remote-control system.
26.The microwave oven shall not be placed in a cabinet unless it has been tested in
a cabinet.
29.The rear surface of appliance shall be placed against a wall.
28.The door or the outer surface may get hot when the appliance is operating.
4

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
5

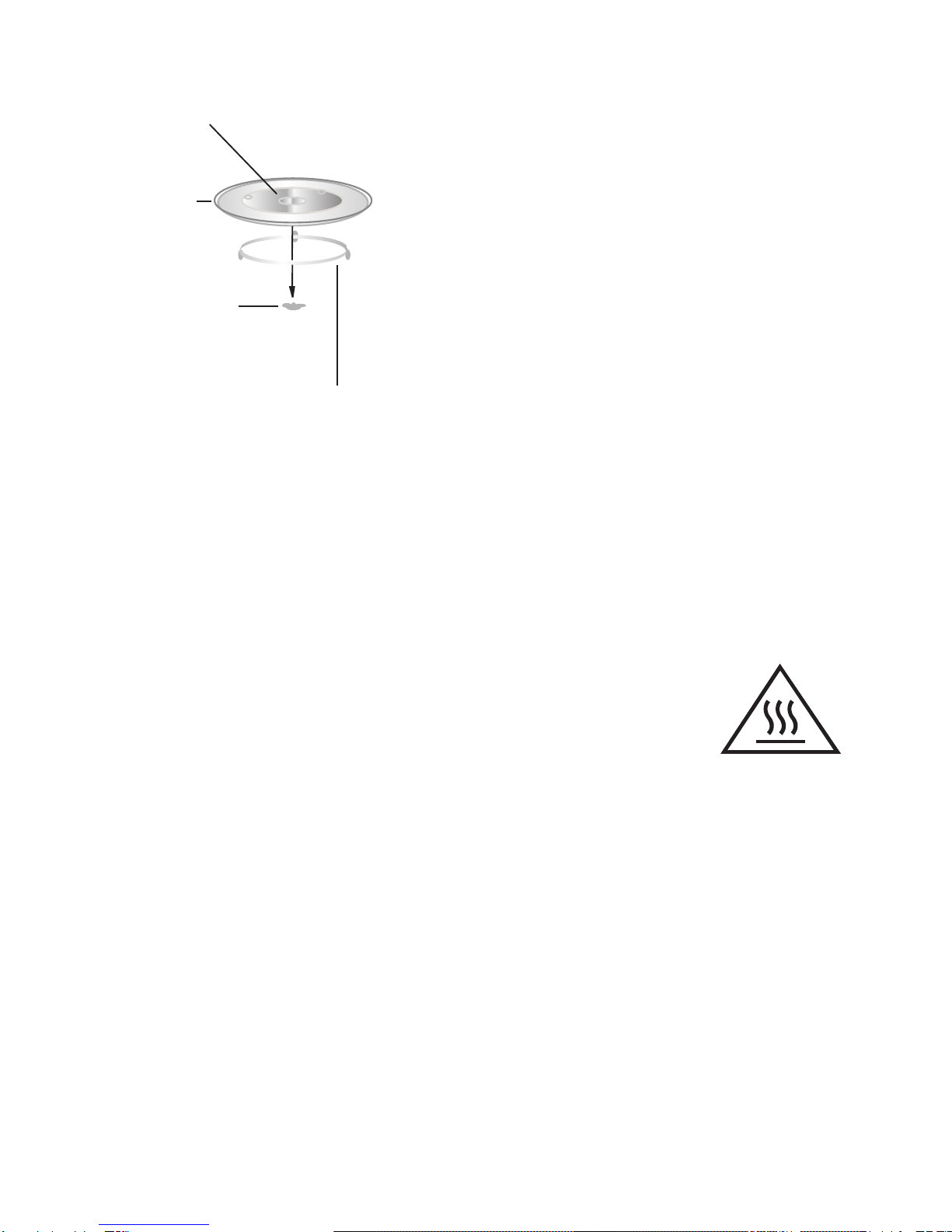

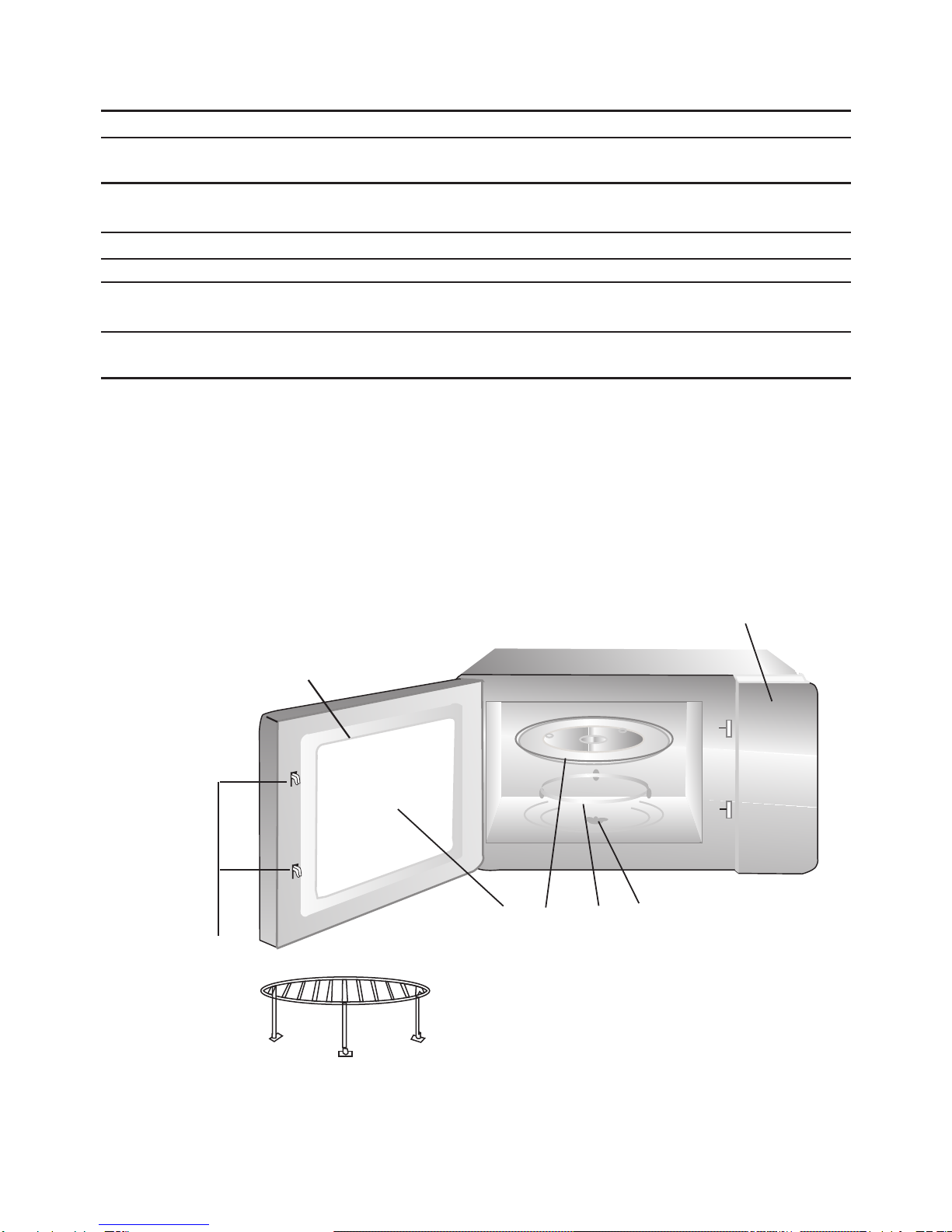

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Grill Rack( Only for Grill series )
6

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.

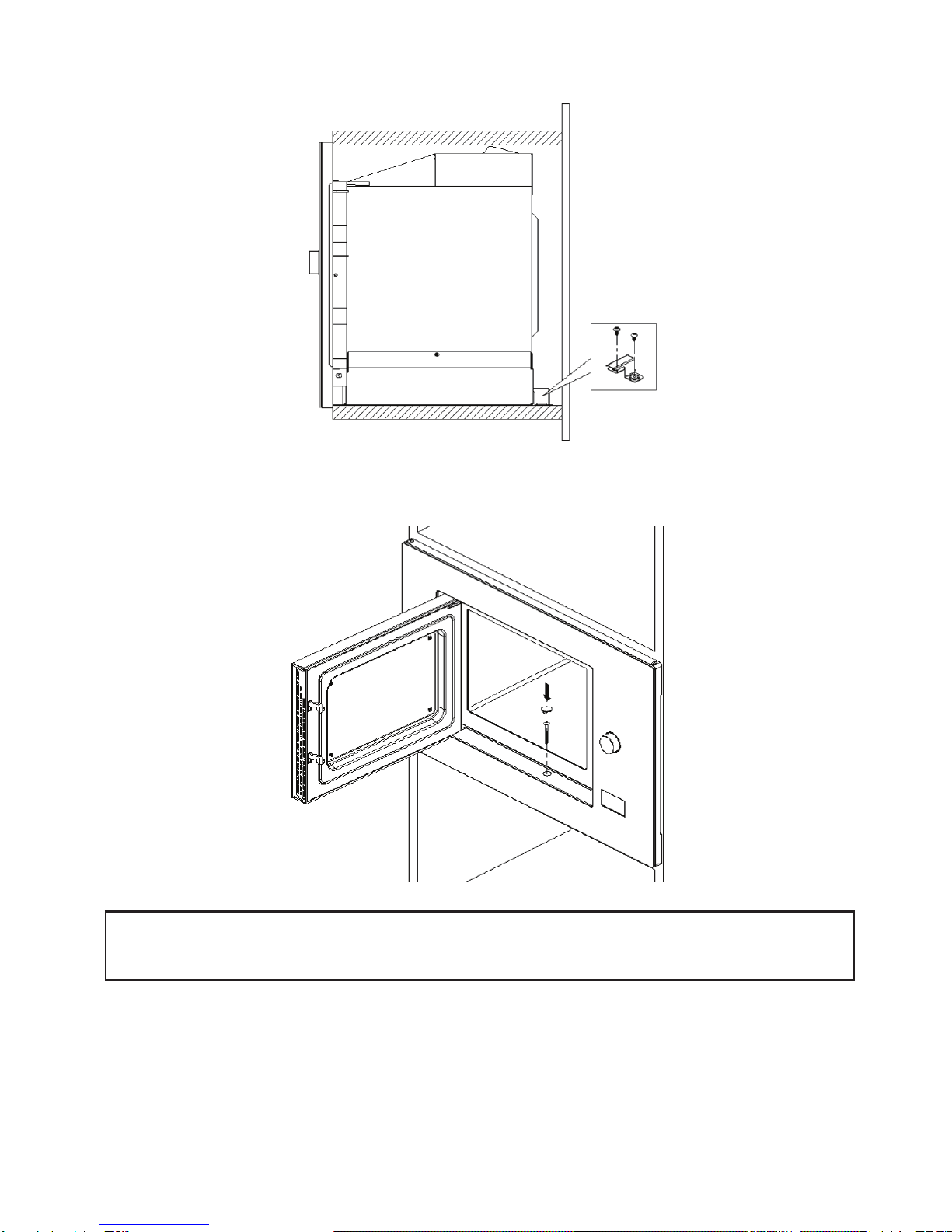

Countertop Installation Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
The accessible surface
may be hot during
operation.
Installation procedure
Connect the appliance only to a properly grounded power socket.
If the power socket is not suitable for connecting the plug on the power cord, then it must be replaced
with a suitable power socket by a qualied service technician according to valid local legal codes.
The cabinet into which the appliance is to be installed should not have the rear wall attached in order to
ensure maximum possible air circulation and ventilation.
The minimum installation height is 85 cm
Do not cover the ventilation outlets and inlets.
Do not bend the power cord, do not expose it to excessive pressure and do not damage it in any way.
7

Check that the installation location is large enough for the installation of the oven.
Place the template in to the installation location and attach the stopper using 2 screws. The location of the
stopper is marked out on the template.
Insert the microwave into the installation location. Check that the distance on the right and left side is the same
and that the stopper is in the back part.
8

After placement, open the oven door and in the front part of the interior of the oven there is a hole for
the fastening screw. Insert the screw into this hole and screw it in. Check that it is properly tightened. Place
the cover over the screw (if included in the accessories).
NOTE:
In the back part of the cabinet and along its sides, it is necessary to provide for at least a 10 cm distance
from the wall or oor.
9

Control panel
1.
2.
3.
4.
5.
6.
7.
8.
9.
1. Display
2. Microwave button
3. Grill / Combi button
4. Weight / time defrost button
5. Kitchen Time / Clock button
6. Stop / Clear button
7. Start / +30SEC. / Conrm button
8. Settings control dial
9. Door open button
r
10

Operating instructions
1. Setting the clock
When the microwave oven is on, the text
“0:00” appears on the LED, and the
buzzer sounds.
1. Press “Kitchen Timer/Clock” twice to
select the clock setting function; the
hour digits on the clock will begin to
flash.
2. Press “ ” to adjust the hour digits,
making sure the value entered falls
between 0-23.
3. Press “Kitchen Timer/Clock” once;
the minute digits on the clock will
begin to flash.
4. Press “ ” to adjust the minute
digits, making sure the value entered
falls between 0-59.
5. Press “Kitchen Timer/Clock” once to
finish setting the clock. “:” will begin to
flash, and the time will light up.
Note: 1. If the clock is not set, the time
will not be displayed.
2. During the clock setting
procedure, if “Stop/Clear” is
pressed, the oven
automatically reverts to its
previous status.
1-3-5
2 - 4
11

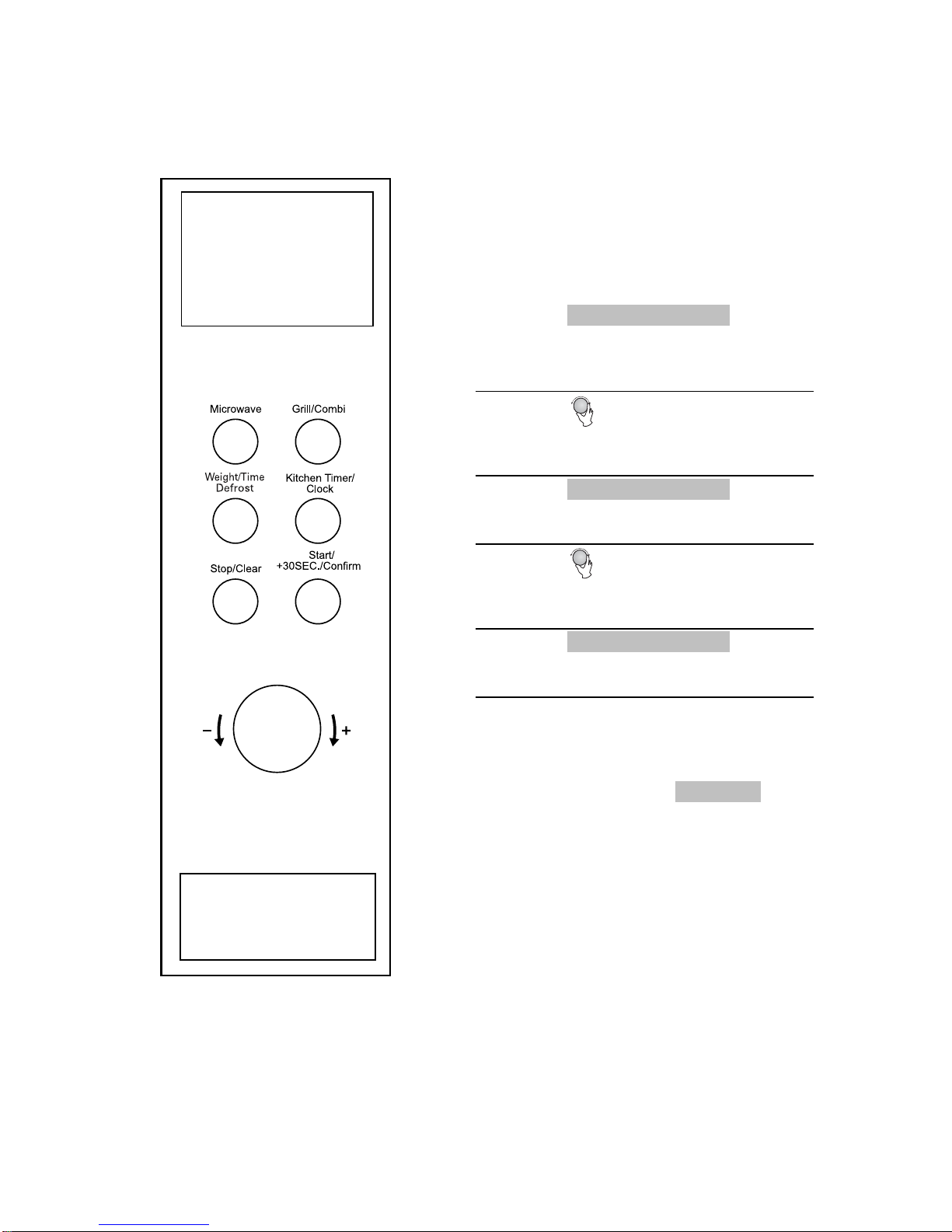

2. MICROWAVE cooking
1. Press “Microwave”; the text “P100”
will appear on the LED.
2. Turn the “ ” knob to select the
desired power level: “P100”, “P80”,
“P50”, “P30” or “P10” will appear
consecutively, in correspondence
with each press of the button.
3. Next press “Start+30Sec./Confirm”
to confirm.
4. Use “ ” to set cooking times from
0:05 to 95:00.
5. Press “Start/+30 Sec./Confirm”
again to start cooking.
Example: To use the microwave at
80% of its power and
cook the food in
question for 20 minutes,
operate the oven as
indicated below.
1. Press “Microwave” once; the text “P100” will appear on the display.
2. Use “ ” to select 80% microwave oven power.
3. Press “Start+30Sec./Confirm” to confirm; the text “P 80” will appear on the display.
4. Use “ ” to adjust the cooking time until the text “20:00” appears on the oven.
5. Press “Start+30Sec./Confirm” to start cooking.
2 - 4
1
3-5
“Microwave” BUTTON PERCENTAGE VALUES
Display
Microwave power
P100 100% - 900 WATTS
P80 80% - 720 WATTS
P50 50% - 450 WATTS
P30 30% - 270 W
P10 10% - 90 W
12

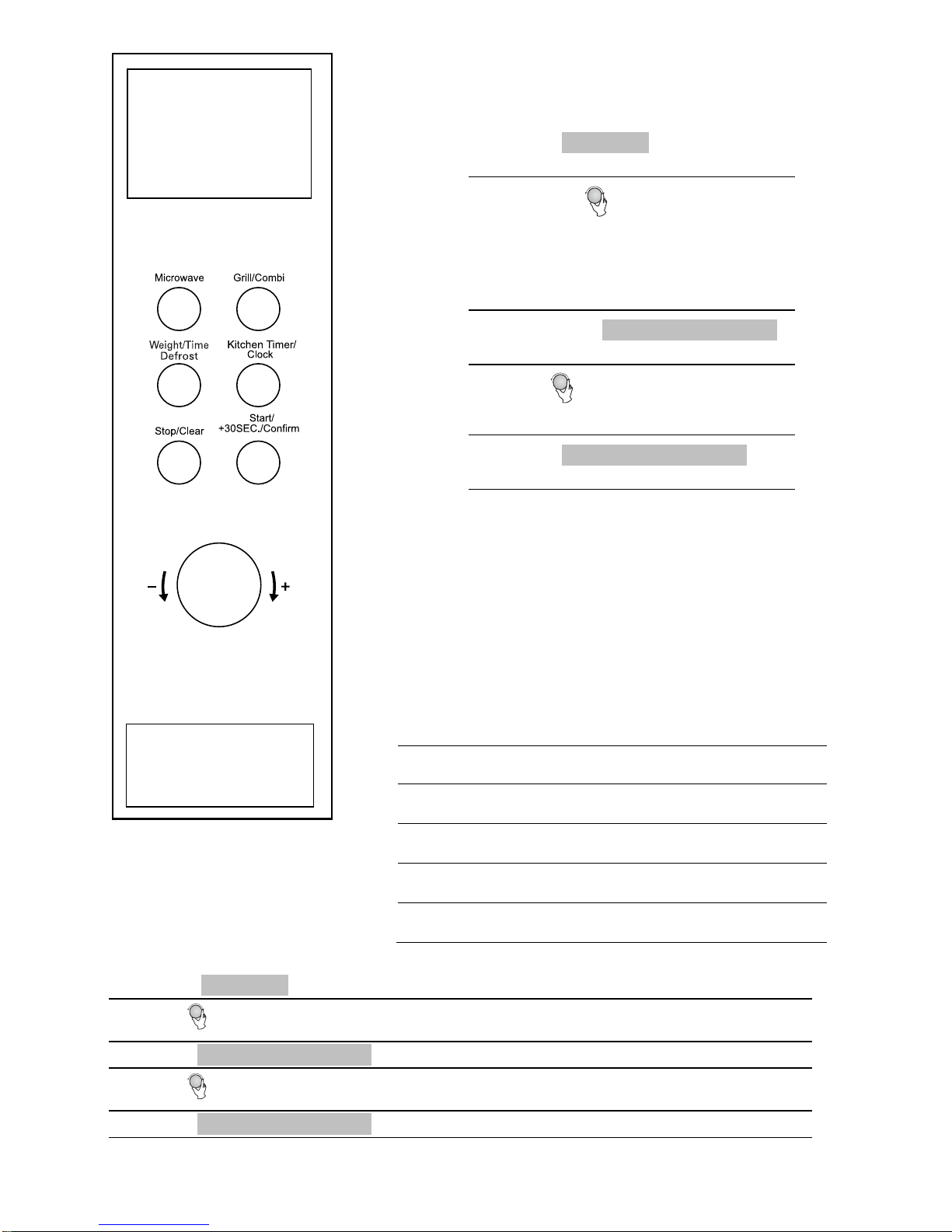

3. Grill or Combi cooking
Press “GrilI/Combi.” 1the text “G” will
appear on the LED; at this point, press
“GrilI/Combi.” 2several times or use
“” 2to select the desired power level:
every time the button is pressed, the
values “G”, “C-1” or “C-2” will appear
consecutively.
Next, press “Start+30Sec./Confirm 3to
confirm, and use “ ” 4to set a cooking
time from 0:05 to 95:00. Press
“Start+30Sec./Confirm” 5again to start
cooking.
Example: To use the microwave at 55%
power and the grill (C-1) at 45% power,
cooking the food in question for
10 minutes, run the oven as indicated
below.
1. Press “GrilI/Combi.” once only: the
text “G” will appear on the display.
2. Press “GrilI/Combi.” again or use
“ ” to select the combi option.
Mode 1.
3. Press “Start+30Sec./Confirm” to
confirm: the text “C-1” will appear on
the display.
4. Use “ ” to adjust the cooking time
until the text “10:00” appears on the
oven.
5. Press “Start+30Sec./Confirm” to start
cooking.
1-2
2 - 4
3-5
Grill/Combi keypad instructions
Display
Microwave power
Grill power
G
0%
100%
C-1
55%
45%
C-2
36%
64%
Note: when the oven reaches the halfway point of the set grill cooking time, the
buzzer sounds twice as an alert. To achieve optimal results with this type of
cooking, turn the food halfway through, close the door, and press “START/
+30SEC./ Confirm” (Start+30Sec./Conferma) to continue cooking.
Alternatively, the oven will continue cooking until the set time has elapsed.
13

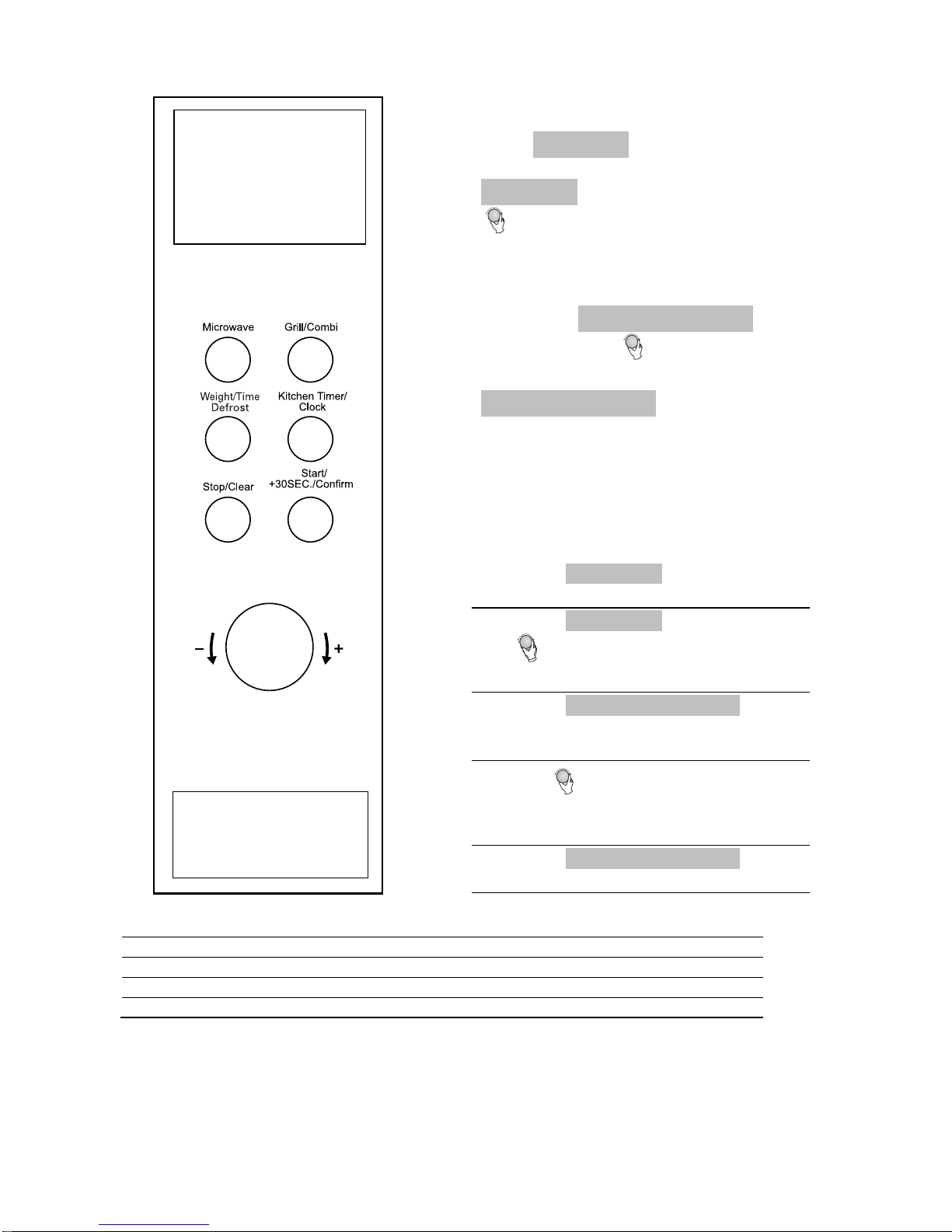

4. Quick start
1. Press “Start+30Sec./Confirm” 1to
start cooking at 100% power; press
the button several times to increase
the cooking time by 30-second
intervals, up to a maximum of
95 minutes.
1
14

Timer with sound alert
(does not stop cooking)
1. Press “Kitchen Timer/Clock” (1): the
figure 00:00 appears on the LED, and
the clock indicator lights up.
2. Turn “ ” 2to enter the correct time.
(maximum cooking time is
95 minutes).
3. Press “Start+30Sec./Confirm” (3) to
confirm the setting; the clock
indicator lights up and flashes.
4. When the previously set time has
elapsed, the clock indicator switches
off. The buzzer sounds 5 times. If the
clock has been set (24 hour system),
the LED shows the current time.
Note: the time is shown by the Timer in a
different format compared with the
24-hour time display format, as it is
an actual timer.
Stopping the cooking cycle
once and opening the oven door.
In both cases:
The emission of microwaves will be stopped immediately.
To restart the process, close the door and press the button.
To cancel the cooking process, press the STOP/CLEAR button again.
2
1
3
Start+30Sec./Confirm
The cooking process can be stopped at any time by pressing the STOP/CLEAR button
15

5. Defrosting on the
basis of weight
1. Press “(1) once;
dEF1” will appear on the oven.the text “ ”
2. Turn “ ” 2to select the weight of
the food in question, choosing a
weight from 100 to 2000 g.
3. Turn “Start+30Sec./Confirm” (3) to
start defrosting.
W /Time Defrost
3
2
1
eight
6. Defrosting on the
basis of time
1. Press “ ” (1) ;
dEF2” will appear on the oven.the text “ twice
2. Turn “ ” 2to select the defrost time.
The MAX time is 95 minutes.
3. Turn “Start+30Sec./Confirm” (3) to
start defrosting.
W /Time Defrosteight
16

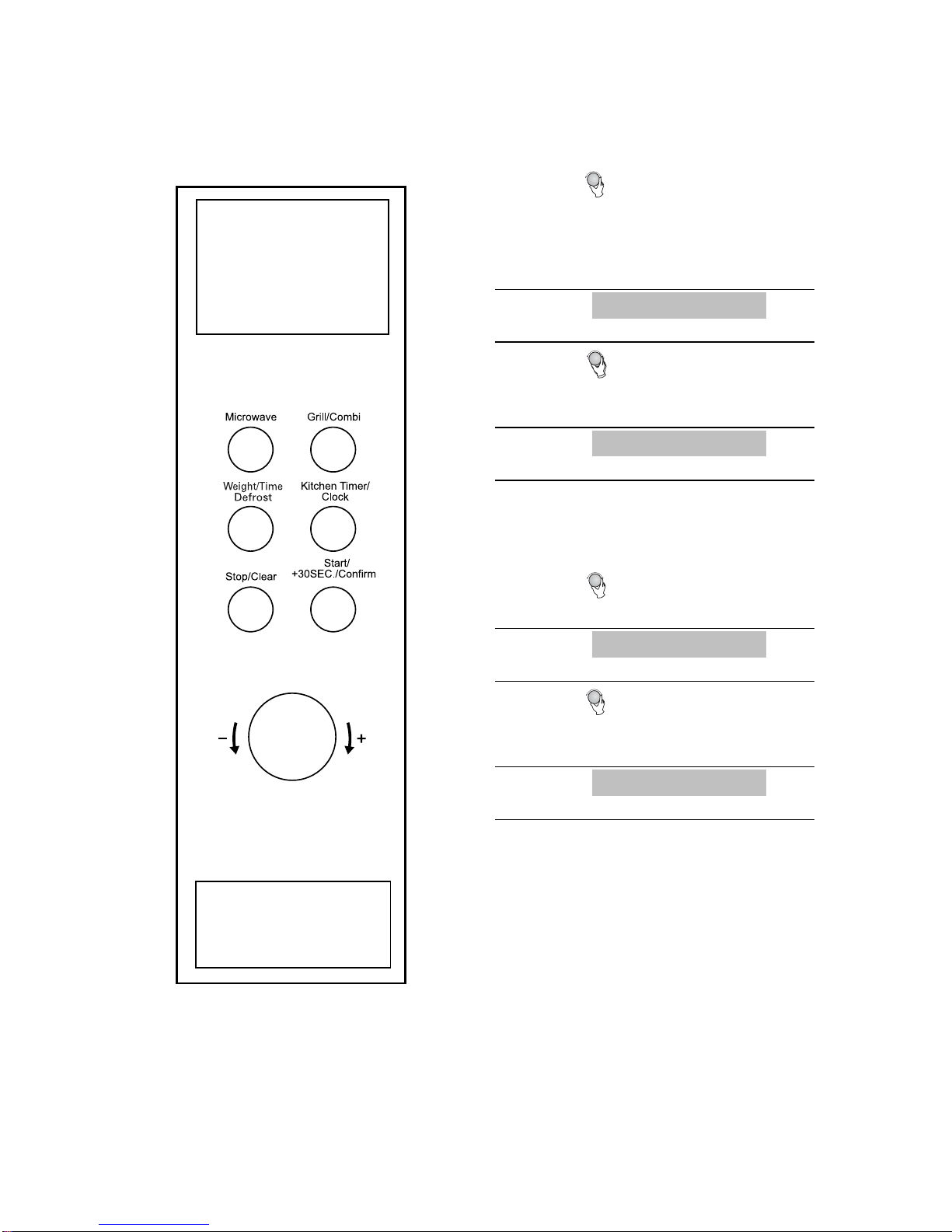

7. Automatic menu
1. Turn “ ” 1to the right to select
the menu: options “A-1” to “A-8”
will appear, indicating pizza, meat,
vegetables, pasta, potatoes, fish,
beverages and popcorn.
2. Press “Start+30Sec./Confirm” (2)
to confirm.
3. Turn “ ” 3to select the default
weight in accordance with the
menu table.
4. Press “Start+30Sec./Confirm” (4)
to start cooking.
Example: If you want to use the “Auto
Menu” option to cook 350 g of fish,
proceed as follows.
1. Turn “” 1clockwise until the
text “A- ” appears.6
2. Press “Start+30Sec./Confirm” (2)
to confirm.
3. Turn “ ” 3to select the weight of
the fish you wish to cook, so that
the text “350” appears.
4. Press “Start+30Sec./Confirm” (4)
to start cooking.
2-4
1 - 3
17

AUTOMATIC MENU table of foods:
Menu
Weight
Display
A-1
Pizza-Desserts
200 g
200
400 g
400
A-2
Meat
250 g
250
350 g 350
450 g
450
A-3
Vegetables
200 g
200
300 g 300
400 g
400
A-4
Pasta
50 g
(with 450 ml cold water)
50
100 g
(with 800 ml cold water)
100
A-5
Potatoes
200 g
200
400 g 400
600 g
600
A-6
Fish
250 g
250
350 g 350
450 g
450
A-7
Hot beverages
1 cup (120 ml)
1
2 cups (240 ml)
2
3 cups (360 ml)
3
A-8
Popcorn
50 g
50
100 g
100
18
1. In microwave cooking, grill cooking and combi cooking, press “Microwave” to
display the current oven power level for 3 seconds. After 3 seconds, the oven
returns to its previous status.
2. During cooking, press “Kitchen Timer/Clock” to display the current time for
3 seconds.
kfunction
Safety lock: In standby mode, press “Stop/Clear” for 3 seconds; a long beep
sounds to indicate that the child safety lock mode is enabled; at
this point the current time will also appear, as long as the time
has been set, otherwise the LED will show the text “ ”.
Cancelling the safety lock: When the safety lock is enabled, press “Stop/Clear” for
3 seconds; a long “beep” will sound to signal that the
lock has been disabled.
8. Displaying information
9. Child safety loc

Cooking in several
phases
Programming two different
types of cooking together
At least 2 cooking phases can be set.
When cooking in several phases, if
one is defrosting, this process will be
carried out as the first phase.
The available programmes are:
MICROWAVE+GRILL/COMBI
GRILL/COMBI+MICROWAVE
DEFROST/WEIGHT+MICROWAVE
DEFROST/TIME+MICROWAVE
DEFROST/TIME+GRILL/COMBI
Example: If you want to defrost a food
for 5 minutes, then cook at 80%
microwave oven power for 7 minutes,
proceed as follows:
1. Press 1)
dEF2” will appear on
(
;the text “
the oven.
"
twice
2. Press “ ” 2to select the defrost
time, so that the text “5:00”
appears.
3. Press “Microwave” (3), once; the
text “P100” will appear on the
display.
4. Press “Microwave” (4) again or
use “ ” 4to select 80%
microwave oven power.
5. Press “Start+30Sec./Confirm” (5) to confirm; the text “P 80” will appear on the
display.
6. Use “ ” 6to adjust the cooking times until the text “7:00” appears on the oven.
7. Press “Start+30Sec./Confirm” (7) to start cooking: the buzzer will sound once to
signal the start of the first phase and the defrost time will begin counting down; the
buzzer will sound a second time as soon as the second cooking phase has begun.
When cooking is complete the buzzer will sound five times.
“
2-4-6
1
3-4
5-7
W /Time Defrosteight
19
10.

20
Trouble shooting
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
