TV Ears Wireless Speaker User manual

TV Ears
Wireless Speaker
User Manual

1
2
3
4

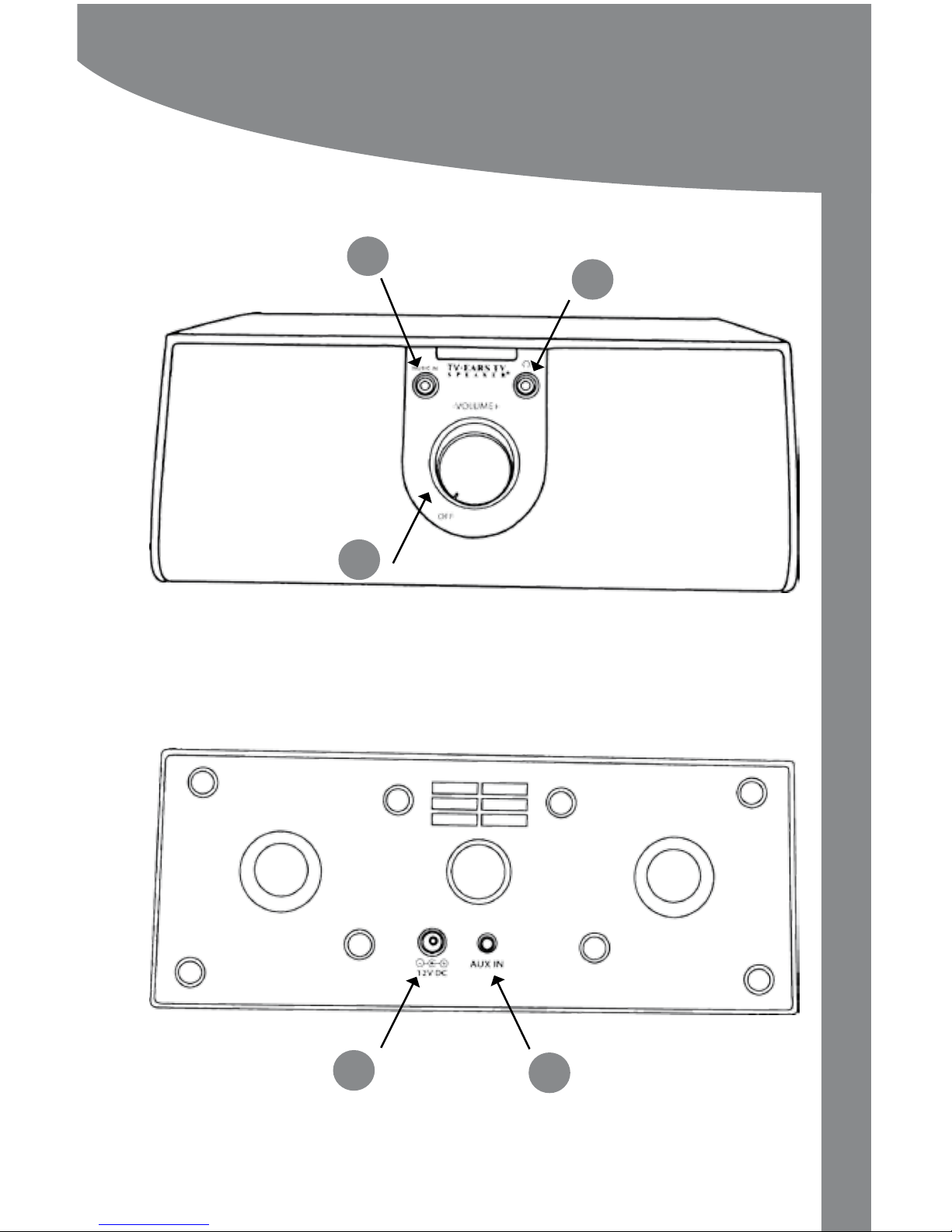

On / O and Volume Control
Music In jack
Headphone jack
12V DC (power port)
II 2.3 Transmitter & Cords
6
7
8
9
Infrared Diodes
Charging Indicator
Light
Charging Cradles
Audio Port
10 12V port
11
12
Ridged AC Adapter
for speaker
Smooth AC Adapter
for transmitter
IWireless Speaker
Included in Box:
Wireless Speaker & Power Adapter
2.3 Transmitter & Power Adapter
Audio Cord
25 ft. Extender Cord
3 ft. Auxiliary Cord
Ear Buds
5Aux In port
13
14
15
16
Audio Cord
25 ft. Extender Cord
3 ft. Auxiliary Cord
Ear Buds

3
1
2
4
I
5
Front
Back

6
7
8
10
9
II
11 12 13
14
15
16
Back
Front
Cords

L
R
AUDIO OUT
AUDIO OUT
AUDIO OUT
TV
Satellite
Cable
TV
Satellite
Cable
DVD
VCR
12
13
Installation Guide
11
or

Congratulations!
You’ve taken the rst step toward the TV Ears television
experience. The TV Ears 2.3 System will help you hear TV
better at your own volume. To ensure the best TV listening
experience please read this manual thoroughly.
TV Ears Customer Service
Please feel free to contact us with any questions, concerns, or
problems about your TV Ears product.
 • Call:
US Technical Support: 1-866-611-9944
US Customer Sales: 1-888-883-3277
 •Visitwww.tvears.com
ENGLISH
TV Ears Wireless Speaker
User Manual

Table of Contents Page
ENGLISH
Important Safety Instructions
Warnings
Installation Instructions
Step 1 | Plug in the Audio Cord
Step 2 | Power and Place the TV Ears Transmitter
Step 3 | Power and Place the Wireless Speaker
Using the Speaker
Replacements
Accessories
Frequently Asked Questions (FAQ’s)
Troubleshooting Guide
Specications
Manufacturer Declaration
1
2
3
3
5
5
6
7
8
9
11
13
14

ENGLISH
Important Safety
Instructions
1. Read all instructions completely and heed all warnings.
Install in accordance with TV Ears, Inc.’s instructions.
2. Keep these instructions in a safe place for future reference.
3. Do not use or submerge TV Ears products near water,
moisture, or other liquids.
4. Clean with a dry cloth.
5. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
6. For safety purposes, do not deface the prongs on the AC
adapters. If the provided plug does not t into your outlet,
purchase the correct adapter or consult an electrician for
replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where the cord exits from the transmitter.
8. TV Ears recommends using a surge protector to protect
your TV Ears from power surges.
9. Only use attachments and accessories specied by
TV Ears, Inc. with your TV Ears system.
10. Refer all servicing to qualied service personnel.
Servicing is required when the TV Ears product has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have
fallen into the TV Ears product, the TV Ears product has
been exposed to rain or moisture, does not operate
normally, or has been dropped, cracked, or broken.
1

12
ENGLISH
Warning: To reduce the risk of re or electric shock, do not
expose the TV Ears product to rain or moisture. The TV Ears
product should not be exposed to dripping or splashing
liquids. Do not place objects lled with liquid such as vases
on or near the TV Ears product.
Warning: Keep batteries out of reach of children. Discard the
battery faceplate (leave batteries installed in faceplate)
appropriately and carefully. If swallowed, call:
The National Button Battery Ingestion Hotline:
202-625-3333
Warning: The magnetic eld emitted by the TV Ears ear tip
speakers is minimal. When used as indicated, TV Ears headsets
should not cause magnetic interference with pacemakers
or internal debrillators. The magnetic eld strength of the
speakers is less than 1 Gauss when within 1 inch (3 cm) of
the pacemaker or internal debrillator. It is recommended
that the user keep the ear tips at least an inch away from any
pacemaker or internal debrillator.
We have not had any customers indicate a problem using
TV Ears in the presence of a pacemaker or internal
debrillator. We recommend not placing the ear tip ends
of the headsets (where the speakers are) on your chest or
directly in the vicinity of a pacemaker or debrillator. If you
have concerns, we recommend you contact your physician.
WARNINGS

3
ENGLISH
For best results, plug the audio cord into your
television’s analog (RCA) audio out ports.
1. Plug the dual end of the audio cord (red and
black male plugs) into the analog (RCA) audio out
ports on the back of the television. *
2. Plug the single end of the audio cord into
the Audio jack on the back of the TV Ears
transmitter.
* If audio out ports are not available on the back of
your television: use the audio out ports on your
cable or satellite box.
* If outside the U.S. and audio out ports are not
available on the back of your television: use a
SCART to RCA signal out adapter.
TouseaDVDplayerorVCRwhentheaudiocordis
plugged into a cable or satellite box:
1. Take the dual end of the audio cord (red and
black male plugs); gently pull apart the red and black
plugs.
2. Insert the red plug into the analog (RCA) audio out
port of the cable or satellite box.
3. Insert the black plug into the analog (RCA) audio
out port of the DVD player or VCR.
4. Plug the single end of the audio cord into the
Audio jack on the back of the TV Ears transmitter.
When installed this way, you must turn o whichever
device is not in use. Turn o the cable/satellite box
when watching a DVD or video. Turn o the DVD/VCR
player when watching TV.
Step
1
Plug in the
Audio Cord
Installation
Instructions
13
13
13
L
R
AUDIO OUT 9
13

Installation
Instructions
4
ENGLISH
Installation Tips:
• Ports on the front of TVs are usually audio in ports
and will not send sound to your TV Ears.
• Fixed/Variable audio setting: See the
Troubleshooting Guide on page 11.
• TV Ears does not work with digital audio out ports
without the TV Ears DAC (Digital Analog Converter).
For information on the DAC see page 8.
• When receiving a signal from the transmitter
or plugging the audio cord into the back of the
speaker, the sound will be mono.
For stereo sound, see Using the Speaker with Music
Devices.
Optional - To Extend the Audio Cord:
You may extend the audio cord to move the transmitter
further away from the television or to plug the audio
cord directly into you speaker.
1. Plug the single end of the audio cord into one of the
female ends of the 25 ft. extender cord .
2. Plug one of the male ends of the 3 ft. auxiliary cord
into the opposite female end of the extender cord.
3. Plug the remaining end of the auxiliary cord into
the Audio jack on the back of the TV Ears
transmitter.
14
15
8
13 14 15

ENGLISH
Installation
Instructions
4
5
Step
2
PowerandPlacethe
TV Ears Transmitter
The transmitter lights must be in direct line of sight with the
speaker.
1. Place the transmitter on a at surface 3-5 feet o the
ground.
2. Point the front of the transmitter towards the seating
area where the speaker will be used. Plug the end of
the smooth AC adapter into the 12V jack on the
back of the transmitter.
3. Plug the smooth AC adapter into a standard electrical
outlet or surge protector.
Note: The transmitter must remain plugged-in to transmit
the infrared signal.
12 10
Step
3
PowerandPlacethe
Wireless Speaker
The transmitter sends the audio via an infrared signal to the
speaker.
1. Place the speaker on a at surface 3-5 feet o the
ground.
2. Plug the end of the ridged AC adapter into the 12V
jack on the back of the transmitter.
3. Plug the ridged AC adapter into a standard electrical
outlet or surge protector.
11
10

Using the Speaker
ENGLISH
6
ON and Volume: Turn on the volume knob
clockwise to turn the speakers ON and adjust the
volume to your preference. The blue light ring will
illuminate when the speaker is ON.
OFF: Turn the volume knob couter clockwise until
you feel or hear it click OFF. The blue light ring will turn
OFF when the speaker if OFF.
The included ear buds or another headset of
your choice can be plugged into the
Headphone jack on the front of the speaker.
This will turn the sound to the speaker OFF
and only send sound to the headphones.
1. Plug one end of the auxiliary cord into the
headphone jack of the music player.
2. Plug the opposite end of the auxiliary cord into the
Music In jack on the front of the speaker.
3. Turn the music player ON and set it to 3/4of the full
volume.
4. Turn the speaker ON and adjust the volume to your
preference level.
Note: When the audio signal is received through the
Music In jack on the front of the speaker, the speaker
will play stereo sound. If the auxiliary cord is being used
to extend the audio cord, unplug the auxiliary cord
to use it with the music device and reconnect it when
nished.
Functions
1
1
Private Mode
3
UsingtheSpeakerwithMusicDevices
15
2
23
1

Replacements
7
ENGLISH
If you need to replace your speaker for any reason,
please call our customer service representatives for
troubleshooting assistance. If we are unable to resolve
the problem or if the product needs to be replaced, a
Return Merchandise Authorization (RMA) number will
be issued. RMA numbers allow TV Ears to keep track of
your product and return it to you quickly. All returned
items must have an RMA number.
Obtain an RMA number by calling TV Ears Customer
Service:
•USCustomerService:1-866-611-9944
 •Canada:1-800-263-4864
Accessories and Replacements can be purchased online,
by telephone, or from an Authorized TV Ears dealer.
Online: www.tvears.com
Call Customer Service at the appropriate number above.
Visit a local Authorized TV Ears Dealer:
To nd a TV Ears dealer near you, go to the TV Ears
website at www.tvears.com. Please call the dealer
to conrm the desired item is in stock.

Accessories
ENGLISH
8
Available Accessories and replacements for your TV Ears system.
Additional Wireless Speaker: The transmitter can send the
infrared signal to more than one speaker at a time. Add another
speaker to create a surround sound eect.
2.3 Headset: The transmitter can also send the infrared signal to
a wireless headset for personal listening. The transimtter will also
charge your new headset so it is always ready for use when the rest
of the house wants the TV to be quite.
Seat Side Charger: This charger keeps your headset charged right
next to your seating area. The charger does not transmit an infrared
signal.
Alternate Installation Kit: This kit includes a power microphone,
extender cord, and headphone jack adapter. This kit can be used if
you cannot access or there is no analog (RCA) audio out ports on
your television, cable, or satellite box.
DAC (Digital Analog Converter): This converter allows you to
connect your TV Ears transmitter to a digital audio out port when
analog audio out ports are not available.

Frequently Asked
Questions
ENGLISH
9
1.HowdoTVEarswork?
TV Ears has infrared lights on the front of the transmitter which sends an
infrared signal to the receiver in the front of the speaker.
2.Whyisthesoundsoclear?
TV Ears Voice Clarifying Circuitry takes the sound of the television and
enhances the speech frequencies above the background noise, so the
dialog is more clear.
3.WhydoesmyspeakermutewhenImutetheTV?
When the TV is set to a Variable audio out setting, the volume of the
TV Ears speaker will change as the volume of the TV changes. A Fixed
audio out will allow the television volume and TV Ears volume to work
independently from one another. Some televisions have to be manually
switched from the Variable audio setting to the Fixed audio setting by
using your TV menu. Not all TVs have the ability to switch from a Variable
to a Fixed audio out (consult your television manual or manufacturer).
4.WhydoIhearatelevisionstationwhenI’mwatchingaDVD/video?
When the audio cord is plugged into the analog (RCA) audio out port of a
cable or satellite box AND an analog (RCA) audio out port of a DVD player
or VCR, you must turn o whichever device is not in use.
See Step 1 of installation for further instructions.

Frequently Asked
Questions
ENGLISH
10
5.Whatisnosoundisheardthroughthespeaker?
Verify the volume is turned on. Make sure the audio cord is plugged into
the audio port in the television and the AC adapter is plugged into a
working electrical outlet.
6.CanIusea2.3Headsetwithmy2.3Transmitter?
Yes! You can purchase a 2.3 headset which will work with your 2.3
transmitter.
7.Whatifthefarleftlightisnotlightingup?
The far left light is the charging light. It will only illuminate if a headset is
placed into the charging cradle of the transmitter. If there is no headset in
the charging cradles, the light will not illuminate.
8.Whatdoes2.3MHzmean?
2.3MHz is the frequency of the infrared signal that is sent by the
transmitter to the speaker. Infrared signals are invisible light signals and
are not disturbed by electrical storms.
For additional technical questions, consult our Troubleshooting Guide on the
next page.
If you have further questions please call one of the customer service numbers
or visit our website, www.tvears.com.

Troubleshooting
Guide
11
ENGLISH
Problem:  ChecktheFollowing:
You hear static or
interference.
The lights on front of
transmitter do not light
up.
•Plugtheaudiocordcompletelyintoan
analog (RCA) audio OUT port of the audio
source.
•DoNOTplugtheaudiocordintoadigital
audio out port, unless using a DAC.
•Plugthetransmitterintoaworkingpower
outlet.
•PlugtheaudiocordintotheAudio jack of
the transmitter completely.
•Makesuretheinfraredlightsofthetransmitter
are facing the headset and are illuminated.
•Putthetransmitteris3-5feetotheground.
•Besurethattheheadsetmodelmatchesthe
transmitter model. For example, you must use a
2.3 headset with a 2.3 transmitter.
•Coveralllargewindows.
•Cupyourhandoverthelightsandseeifthe
infrared lights are glowing red.
•Makesurethatthepoweradapteris
completely plugged into a power outlet and the
12V jack on back of the transmitter.

Troubleshooting
Guide
11
ENGLISH
12
Problem   ChecktheFollowing
The TV volume does not work
independently from TV Ears
volume.
You hear a television station
when you watch a DVD or video.
You have a Blu-Ray player.
You have a Digital Converter
Box or similar.
• MakesuretheaudiocordisinaFixed
audio out port and the television is set
on Fixed audio out settings.
See Question 3 of FAQs.
•Turnthecableorsatelliteboxowhen
you watch a DVD or video.
See Question 4 of FAQs.
Note: This is only if audio cord is plugged
into audio out port of a cable or satellite
and a DVD or VCR player.
• HookaBlu-Rayplayerupthesame
way you would a DVD or VCR.
See Step 1 of Installation.
• HookaDigitalConverterBoxor 
similar up the same way you would a
cable or satellite box.
See Step 1 of Installation.

Specications
ENGLISH
13
Modulation Infrared, Mono
Carrier frequencies 2.3MHz
Range     600sq.ft(55m2)
Audiofrequencyresponse  100-16,000Hz
THD (Total Harmonic Distortion) < 1%
SignaltoNoiseRatio   90dB
Weight    3.5lbs(1.59kg)
Height    4.25”x6.5”x10.75”
     (10.8cmx16.5cmx27.3cm)
Audio / Microphone connection
Power Supply
DCPowerSupply12v,200mA
Weight 3 oz (85g)
Dimensions (H x W x D) 1.4” x 4.12” x 3.4”
     (3.6cmx10.5cmx8.6cm)
System
Speaker
Transmitter
Mini headphone/RCA cable/
Microphone
