Owners Handbook
T350
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Thank you for purchasing your T350, we trust that you will enjoy it. The car has been
designed and built to be safe, rewarding to drive and have a long life.
Whilst many new customers of TVR may have previously owned high performance
vehicles we feel that a few words of caution are necessary.
Your first impression of the T350, we hope, will be one of sophistication and comfort
but please be aware of its very high performance. The power to weight ratio coupled
with the progressive nature of the power curve can be deceptive. Consequently, it
would be wise to gradually acquaint yourself with the abilities of your new car.
For all cars fitted with high performance tyres, there is a much greater difference
between the amount of adhesion on dry roads than on a wet or slippery surface
compared with normal cars. In addition it is essential you bed the tyres in for approx.
1000miles.
Please drive safely and have fun.
Chairman
Peter Wheeler
Downloaded free from the TVRCC website, not to be sold for commercial gain.

The Owners Handbook
This handbook is designed to help you understand and enjoy the TVR T350 by
providing detailed information on controls, equipment and general car care.
If there are any queries, or if more information is required please contact your
dealer.
TVR do not accept any responsibility for any inaccuracies, errors or omissions
contained within this handbook, although every effort has been taken to make it as
complete and accurate as possible.
TVR do not accept any liability for any consequential or other losses howsoever
arising as a result of any of the recommendations contained within this handbook,
save for any loss or damage arising as a result of the negligence of the company
or its employees.
© TVR Engineering Limited- Issue 2 August 2003
TVR Engineering Limited,
Bristol Avenue, Blackpool, Lancashire, FY2 0JF
Tel•01253 509000 Fax•01253 356097
email•[e-mail] web•www.tvr.co.uk
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Contents
T350 in Brief
Instrumentation
Routine Maintenance
Dashboard 1
Dash Pod Warning Lights 2
Warning and Telltale Lights 2
LCD Display Brief 3
Starting the Engine 4
Horn 4
Cigar Lighter 4
Running in 5
Tyres 5
Brakes 5
Doors 5
Refuelling 6
Fuel Tank Capacity 6
Fuel Type 6
Tyre Pressures 6
Fog Lamp 9
Sidelight/Headlight 9
LCD Function Switches 9
LCD Display Information 10
Fuel Gauge 10 - 12
Water Temperature Gauge 10 - 12
LCD Setup Controller 14
LCD Display Warning Screens 15
Horn 16
Hazard Waring Lights 16
Turn Indicator Stalk 17
Wiper/Washer Stalk 17
Intermittent Wipe Speed 18
Dashboard Buzzer 18
Steering Column Adjust 19
Stereo Radio Cassette 19
Bonnet Release 20
Internal Door Lock Switch 20
Gear Lever 21
Door Mirror Controller/Demist 21
Heated Rear Screen 21
Handbrake 22
Immobiliser Disarm Socket 22
Interior Light 23
Seat Adjust 23
Seat Belts 24
Demist/Temperature Controls 25
A/C Controls 25 - 26
Window Position 27
Door Release 28
Emergency Door Release 28
Boot Release 29
Luggage Cover 29
Tool Kit 30
Roof Panel (T350t) 31
Alarm 33 - 34
Radio Key 33 - 34
Cooling System 36
Power Steering 38
Windscreen Washer Reservoir 38
Engine Oil Dipstick 39
Brake/Clutch Fluid Reservoir 40
Battery 41
Fuses 42
Bulb Replacement 43 - 44
Bulb Specification Chart 45
Puncture Repair 46
Towing 46
Jump Starting 47
Brake Down Cover 47 - 48
Running in the Vehicle 48
Cleaning the Vehicle 49 - 50
Checks and Servicing 51
Resetting the Inertia Switch 54
1
9
36
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Contents
Technical Specification
Warranty
Oils and Lubricants 57
Bodyshell 57
Interior 57
Chassis 58
Suspension 58
Steering 58
Wheels and Tyres 58
Transmission 59
Slip Differential 59
Engine 60
Fuel and Ignition Systems 60
Dimensions 60
General Warranty Coverage 65
Body Warranty Coverage 65
Replacement Parts Coverage 65
Extent of Company Obligations 66
Exclusion from Warranty Cover 66
Maintenance 66
Motor Racing 66
Loss of Damage 67
Limitations of Warranties 67
Obligations of the Owner 67
Disputes 67
Warranty Acknowledgement 67
Foreword
Index
57
65
72
75
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Dashboard 1
Dash Pod Warning Lights 2
Warning and Telltale Lights 2
LCD Display Brief 3
Starting the Engine 4
Horn 4
Cigar Lighter 4
Running in 5
Tyres 5
Brakes 5
Doors 5
Refuelling 6
Fuel Tank Capacity 6
Fuel Type 6
Tyre Pressures 6
Downloaded free from the TVRCC website, not to be sold for commercial gain.

T350 in Brief
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Dashboard
1 Glove box
2 Internal Door Lock Switch 20
3 Window position controls 27
4 Audio head unit 19
5 Cigar lighter 4
6 Heating & ventilation fan control 25
7 Heating & ventilation temperature control 25
8 Door mirror controls 21
9 Headlamp/Foglight controls 9
10 Door Release 28
11 Ashtray 28
12 Handbrake lever 22
13 Gear lever 21
14 Directional Indicator/main beam & flash stalk 17
15 Horn 16
16 Windscreen wiper and washer stalk 17
17 LCD display 10
1
T350 in Brief
1 2 345678
10
13 11 12 14 15 16
17 9
Downloaded free from the TVRCC website, not to be sold for commercial gain.

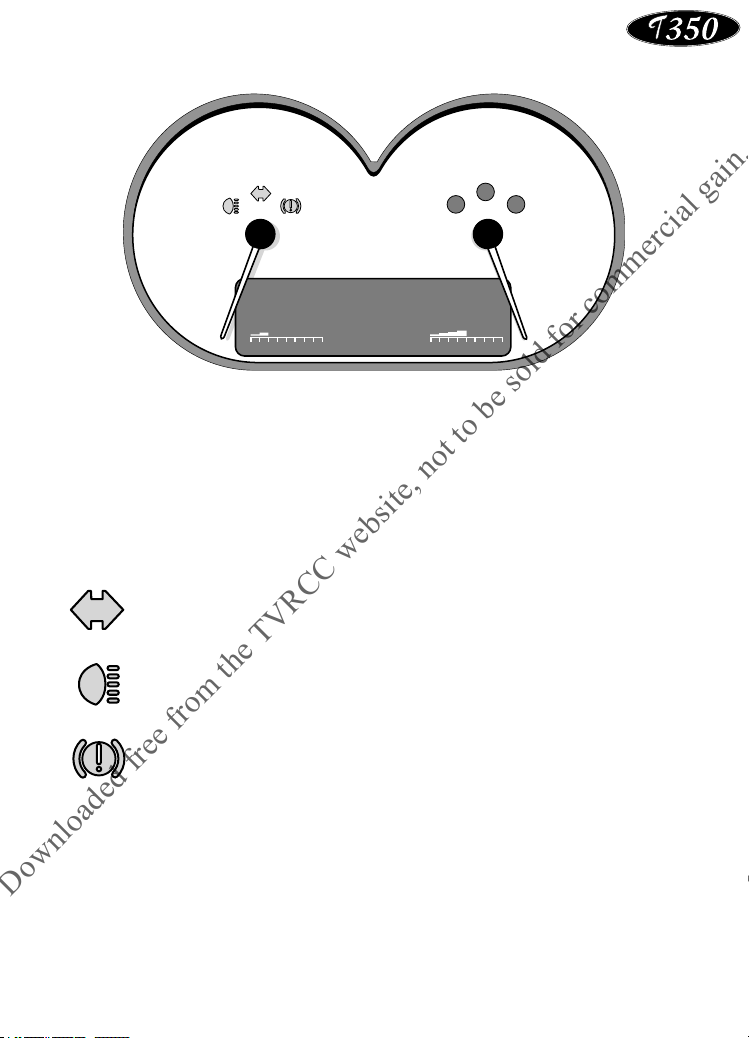

Dash Pod Warning Lights
1 High beam warning light (blue)
2 Turn indicator (green)
3 Brake system warning light (red)
4 LCD panel
5 Shift light (amber) medium (green remains lit)
6 Shift light (red) high (green & amber remain lit)
7 Shift light (green) low
Warning and Telltale Lights
Turn indicator light
Flashes simultaneously with either the left or right hand indicator.
High beam headlights
Illuminates when the headlights are on high beam or when the headlight
flash is operated.
Brake system warning light
Illuminates when the handbrake is applied or if the brake fluid level is too
low.
T350 in Brief
0mph 000
10:24
00000.0
Fuel W a t e r
2
2
4
4
6
6
8
8
10
12 14
16
18
20
9
7
5
3
1
2
13567
Downloaded free from the TVRCC website, not to be sold for commercial gain.

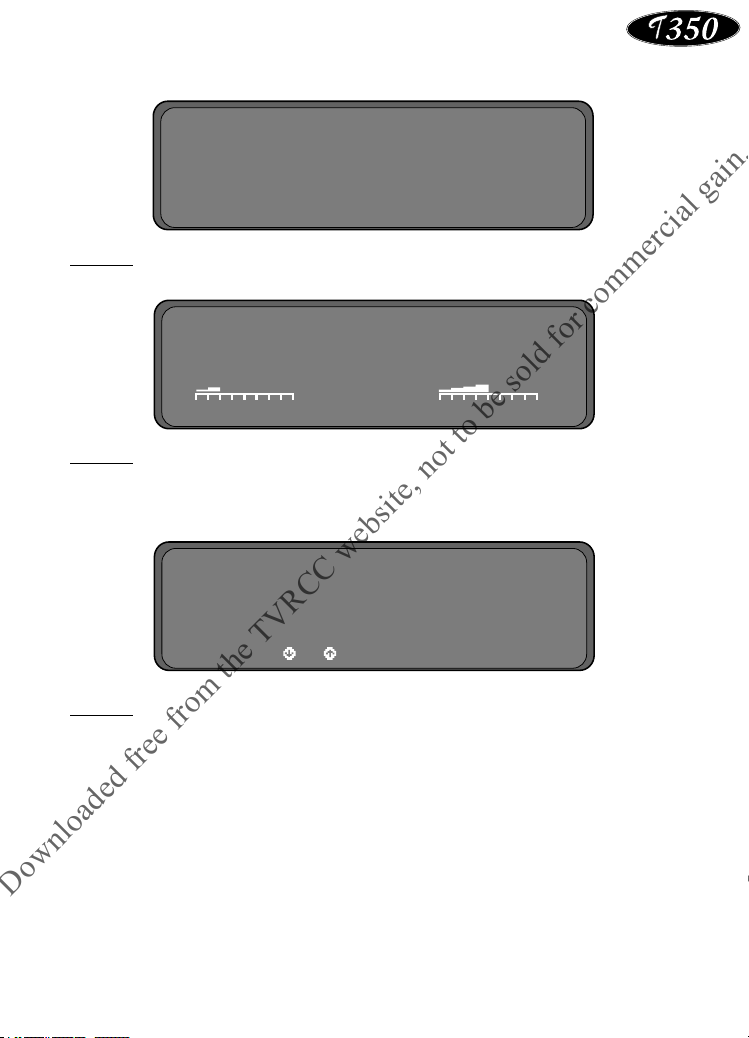

LCD Display in Brief
The LCD screen in the middle of your dash pod has been designed to display
selectable information screens.
The information can be accessed by pressing the function switches located on the
steering wheel (see page 9).
For information on how to use the LCD screen display see pages 10-15
Note
The system has a memory function, so when the ignition is switched on, the setup of
the last screen displayed, will be shown.
LCD Warning Screens in Brief
LCD Warning screens have been programmed to automatically override information
screens.
Ignition and Steering Lock
The ignition key switch has four distinct clockwise positions:-
Position 0 The steering is set to lock upon removal of key.
Position 1 The steering lock is released but the ignition
remains off.
Position 2 Ignition and all other electrical circuits are on.
Position 3 Starter motor is engaged and engine will start.
3
T350 in Brief
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Starting the Engine
1 Apply the handbrake and insert the ignition key into the steering column ignition
lock.
2 Depress the clutch pedal. Put the gear lever into neutral.
3 Turn the key to position 1 to release the steering lock.
(move the steering wheel slightly if necessary)
4 Turn the key to position 2 to activate electrical circuits.
(The fuel pump will be heard pressurising the fuel system.)
5 Turn the key to position 3 to engage the starter motor. The engine will start (minimal
use of the throttle pedal may be needed during the engine start sequence.)
6 If the engine fails to start, return the key to position 1 and repeat steps 4 and 5.
IMPORTANT: Where necessary only short repeated engine
cranking periods should be used, as long cranking periods
cause unnecessary wear to the starter motor and causes
unburnt fuel to be deposited into the catalyst/exhaust system.
Horn
Press the centre of the steering wheel to sound the horn. The horn works independently
of the ignition being switched on.
Cigar Lighter
The cigar lighter is located on the transmission tunnel forward of the gear lever next to
the ash tray. To operate, fully depress the button to heat the element. The button will
eject back to its original position when ready for use (after approximately ten seconds).
Withdraw the complete unit to reveal the element.
T350 in Brief
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Running In
The purpose of running in is to allow the new engine components to bed in correctly.
To gain maximum performance, service life and general reliability, the best policy
to adopt during the run in period is to avoid high engine rpm and large throttle
openings but most importantly, not allowing the engine to labour in a high gear.
Recommended rpm during the running in period
Starting the engine from cold. 0-1000 miles, rpm should not exceed 2500 rpm until
the engine is warm.
1. 0-250 miles, max rpm should not exceed 3500 rpm even
when the engine is warm.
2. 250-2000 miles, rpm should be gradually increased until full power and max rpm
for the vehicle is achieved.
3. Do not use full throttle accelerations in low gear for at least
900 miles and avoid full throttle use in any gear for the first
250 miles
4. Avoid driving at a constant speed within the first 300 miles.
Tyres
To obtain the maximum performance from the tyres it is advisable to avoid excessive
braking and cornering whenever possible during the 0-500 mile period.
Brakes
To bed the brake pads in correctly, avoid excessive braking during the first 500 miles,
unless required to do so in an emergency.
Doors - Opening from the outside
As with other TVR models the door release button has been fitted to the underneath
of the door mirror.
When unlocked to enter the vehicle press this release button, the door will pop open
slightly.
5
T350 in Brief
Downloaded free from the TVRCC website, not to be sold for commercial gain.

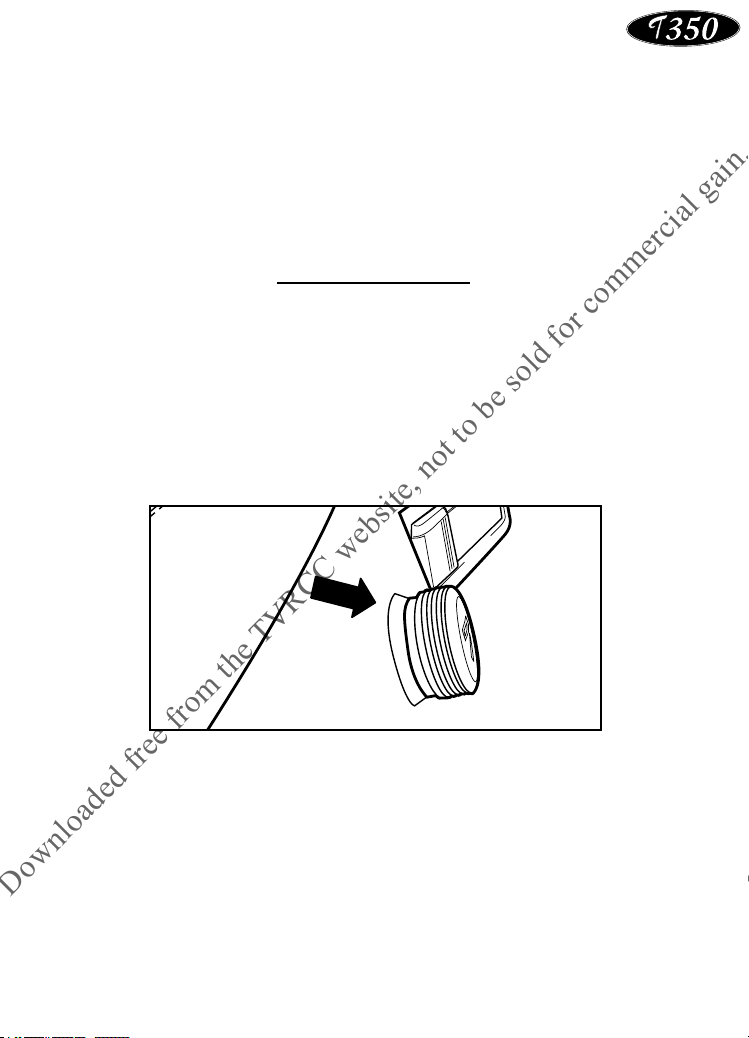

Refuelling
The fuel filler is located on the nearside rear wing. To open the filler neck - open the
rear hatch and raise the handle located in the left corner just in front of the rear
lights, through 90 degrees. The petrol nossle will now fit into the filler neck. To avoid
the pump cutting out early do not fully insert.
Please note: Any petrol spilt onto the paint work should be washed off immediately
to prevent staining.
Fuel Tank Capacity
56 Litres
Fuel Type
The TVR T350 is designed to run exclusively on unleaded fuel.
Please note: It is fitted with a narrow fuel filler neck, making it compatible for
unleaded fuel pumps only.
For normal everyday use - Premium unleaded 95 Ron
For track use - Super unleaded 98 Ron
Tyre Pressures
Check the tyre pressures regularly.
Front 225/50 ZR 16 28 lbs sq/in
Rear 225/50 ZR 16 28 lbs sq/in
For high speed continental driving or when fully loaded with luggage or track use.
Front 30 lbs sq/in
Rear 32 lbs sq/in
T350 in Brief
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Fog Lamp 9
Sidelight/Headlight 9
LCD Function Switches 9
LCD Display Information 10
Fuel Gauge 10 - 12
Water Temperature Gauge 10 - 12
LCD Setup Controller 14
LCD Display Warning Screens 15
Horn 16
Hazard Waring Lights 16
Turn Indicator Stalk 17
Wiper/Washer Stalk 17
Intermittent Wipe Speed 18
Dashboard Buzzer 18
Steering Column Adjust 19
Stereo Radio Cassette 19
Bonnet Release 20
Internal Door Lock Switch 20
Gear Lever 21
Door Mirror Controller/Demist 21
Heated Rear Screen 21
Handbrake 22
Immobiliser Disarm Socket 22
Interior Light 23
Seat Adjust 23
Seat Belts 24
Demist/Temperature Controls 25
A/C Controls 25 - 26
Window Position 27
Door Release 28
Emergency Door Release 28
Boot Release 29
Luggage Cover 29
Tool Kit 30
Roof Panel (T350t) 31
Alarm 33 - 34
Radio Key 33 - 34
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Instrumentation
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Dash Pod
Fog Lamp Switch
Located on the right hand side of the dash pod. Rotate the switch clockwise to
operate the lamps, position 1 (front only) position 2 (front and rear). The lamps will
only work with the headlights and ignition switched on. Turning off the headlights or
ignition will cancel the fog lamps. If cancellation occurs with the switch left on, reset
by turning the switch off and then on again.
Side Light/Headlight Switch
Located on the right hand side of the dash pod. Rotate the switch clockwise to
operate the lights, position 1 for sidelight illumination, and position 2 for headlight
illumination. Surrounding LED’s will light up as follows. Dipped headlights, 4 on,
Highbeam, 6 on.
LCD Function Switches
Located on the back of the steering wheel spokes (inboard) . These switches enable
you to access, and alter the different information screens on the LCD display (left =
down, right = up).
9
Instrumentation
Downloaded free from the TVRCC website, not to be sold for commercial gain.

LCD Display Information
Screen 1
Due to the memory feature when the ignition is turned on the screen displayed will
be the same one that was selected when the ignition was turned off (so the above
screen may not be the one shown).
Screen 2
To cycle through the screens use the up and down LCD function switches (page 9).
Screen 3
From this screen the trip can be reset by pressing both function switches simultane-
ously.
Instrumentation
0mph
10:24
0 0 0 0 0 . 0
Fuel
T r i p
00
4 1
mph Water
Oil P
0mph
10:24
00000.0
F u e l
W a t e r O i l T O i l P
T r i p
Downloaded free from the TVRCC website, not to be sold for commercial gain.

LCD Display Information
Screen 4
Changes the right side of the screen to show a selected parameter magnified.
Screen 4 continued
To change the parameter shown on the right side of the screen
press both function switches simultaneously, to enter the select mode. Select> will
appear on the display.
Whilst Select> is shown in the display, use the up and down function switches to
cycle through the various parameters.
KMH -> Oil Temperature -> Water Temperature -> Outside Air Temperature -> Fuel
Quantity Remaining -> Oil Pressure ->
Volts -> RPM.
To accept the required parameter (and leave the select mode), again press both
function switches simultaneously
11
Instrumentation
00
mph K m h
Water
Oil P
F u e l
Select>
P a r a m e t e r
8 4 C
2 9 psi
1 0 L
084
m p h
Water
Oil P
F u e l
Select> Water C
P a r a m e t e r
8 4 C
29 p s i
10 L
Downloaded free from the TVRCC website, not to be sold for commercial gain.

Instrumentation
LCD Display Information
Screen 5
Shows MPH and temperatures
Screen 6
Shows MPH and Trip
Screen 7
Main Menu Enter screen.
Press both function switches simultaneously to enter the Main Menu.
0m p h
k m h
0
Water
Oil T
Oil P
B a t t
F u e l
Air T
8 4 C
6 6 C
2 9 p s i
1 0 L
5 C
1 2 , 9 v
Press + to enter menu
Tamora T350c
TVR Engineering Ltd
0mph
000
1 0 : 2 4
0 0 0 0 0 . 0
F u e l Water
Downloaded free from the TVRCC website, not to be sold for commercial gain.
