TWSAFE OSE-801 User manual
OSE-801 IP Speed Dome Camera
Quick Installation Guide
Product: OSE-801 IP Speed Dome Camera
Document: Quick Installation Guide
Published: March 28, 2007
Version: 1.10
Web: http://www.oosec.com
Copyright © 2006 TWSAFE Corp., All rights reserved.
Table of Contents
Preface...........................................................................................................................3
Product..........................................................................................................................3
Product Features Overview.................................................................................3
What is Quick Installation Guide (QIG) ...........................................................4
Product &Accessories.........................................................................................4
Hardware Wires & Indicator..............................................................................5
AdditionalAccessories for System......................................................................6
Mount The Camera......................................................................................................7
Start Installation ........................................................................................................11
Install Software ..........................................................................................................12
Start CD Software Installation .................................................................................12
IPAddress Setup ........................................................................................................17
Network Security Setup.............................................................................................19
IE Login ......................................................................................................................22
Login Authentication.........................................................................................22
IE .................................................................................................................................24
IE Main Page......................................................................................................24
【Setup】...........................................................................................................28
【Network】......................................................................................................30
【User】............................................................................................................31
【Event】..........................................................................................................34
【Event】..........................................................................................................35
【Email】..........................................................................................................35
【Log】..............................................................................................................36
IP Installer ..................................................................................................................37
Appendix A DDNS Service........................................................................................41
Appendix B Intellectual Property Right..................................................................49
Appendix C Limited Warranty.................................................................................50
Appendix D PAL/NTSC Country/Region List..................................................51
Preface
Congratulations for the purchasing of the world’s most compact IP speed dome
camera. This IP speed dome camera is designed and manufactured not just to meet the
requirements for modern remote digital surveillance, but also increase the systems’
overall performance.
This camera line incorporates high resolution color CCD with ICR function. The
CCD can be set up for automatic switching to black-white mode for night-vision
ready when illumination is low. The pan-tilt mechanism provides controllable
panning (360o) and tilting (90o) functions, giving users the capability to manipulate
the camera for precise locating on target. The built-in micro-controller allows users to
program up to 32 presets for quick and accurate capture to specific view positions.
Moving speed, ranging from 0.25 to 300 degrees per second and is selectable to
controller, is variable in optional levels. Dwell time of each view position is also
selectable in seconds. Also, this camera is equipped with 2-way audio which offers
user not only can monitor the videos but also audio receiving and broadcasting
capability.
System function includes I/O for alarm function for intrusion management. This
device is driven by DC12V power. It can be controlled on web IE, PC, or
multi-camera management software we attach to you in the package.
This camera is designed to be water-resistant for iutdoor use, under the condition of
normal temperature range from 0 o to 50oC. A companion outdoor housing is also
available for severe weather condition (extreme low or high temperature
environment).
Product
Product Features Overview
Compact Size of 4-1/2” (114 mm) diameter
High resolution color CCD 480 TV lines
23 times optical zoom
Continuous panning for 360o; Tilt for 180o
Fast rotation speed up to 300oper second
BNC connector for video output
Programmable for view position, speed and dwell
View position preset up to 32 points
Auto-pan and preset locations cruise
2 alarm inputs and 1 alarm output
12V DC
Water resistant design
Be able for embedded, surface, wall and ceiling mount
External housing for severe outdoor environment (Option)
MPEG4 web server module
Two-way audio communication
What is Quick Installation Guide (QIG)
The purpose of this QIG is to guide you how to setup this system in order to view
remote video images of video server on IE. As for details of setup functions on IE
and management software, user’s manual has more details to discuss.
Product & Accessories
Please check packing contents thoroughly while opening this pack. Please
contact your reseller while item is missing.
Quick Installation Guide
OSE-801*1
Accessories
Plastic Ring*1
Metal Ring*1
Software CD
ROM*1
Mounting base
Metal bowl
holder
Hardware Wires & Indicator
1. Audio: Black: Microphone input ; Red: Speaker
2. Video Output: BNC bypass analog video to connect TV or monitor.
3. RJ-45: 10/100 Mbps auto detection to connect networking device such as switch/hub, IP
sharing, or router.
4. Power indicator: Plug-in power will auto light on
5. Reset Button: Use L-type wrench and press this button for 5 seconds to restore
manufacture’s default values.
6. Power: plug-in standard DC-12V
7. I/O: Product offers 2 digital inputs and one digital output to integrate other security
devices.
Port. Function Remark
1 Black DI1+ DI-1 positive Max.50mA，12VDC
2 Brown DI1- DI-1 negative
3 Red DI2+ DI-2 positive Max. 50mA，12VDC
4 Orange DI2- DI-2 negative
5 Purple DO DO positive Max 3A，125VAC / 30VDC
6 Grey DO DO negative
7 Blue COM TX/RX Non-inverting
System Reference Structure
AdditionalAccessories for System
yAlarm/Access control: DI/DO to connect
urgent button, sensor, buzzer, system for
security integration.
Alarm (option)
yUTP cables: Prepare a parallel UTP cable with
RJ45 connectors to connect network
equipment e.g. switch/hub, IP sharing, router.
Use a cross-over cable if directly connects to
PC.
RJ45 UTP cable
yRecording Software Requirement: CPU Intel
P4 3.0, 1G memory, 128 MB VGA, OS:
Microsoft XP SP1
yIE View: Pentium Celeron 1.7G
Personal computer
yAudio: Microphone and speaker
Microphone/speaker
(option)
yBandwidth: XDSL broadband for Internet
connection
Mount The Camera
Mounting Accessory
Description Photo Use
1 Plastic ring
To hold the camera embedded on ceiling
Must be used with the metal ring together to hold the speed dome camera..
2 Metal ring
To hold the camera embedded on ceiling
Must be used with the plastic decoration ring together to hold the speed dome
camera.
3
Mounting base
a To hold the camera on ceiling surface
b Used together with item # 4 (bowl type holder) for ceiling hold or wall mount
4
Metal bowl
holder
To work with item 3 for creating ceiling or wall mount
5 Screw pack
Screws for the build of camera’s holding structure
Surface mount onto Ceiling
Locate the base onto the place the camera is to mount, and fix the base on the place tightly with screws
through the 3 holes on the base (be sure screws are complete in the ceiling)
Get the camera and secure it to the base with the supplied metal chain.
Then fit the camera body to the base, rotate the camera body clockwise until it is completely locked
into position.
Put the screw A (anti-loss) in position and screw it in
In case of dealing with a concrete wall:
a. Mark the locations for screw through the holes on the base
b. Make holes on the wall, then insert the supplied plastic plugs into the
holes and squeeze them in until they are flush with the wall surface.
c. Mount the base on the desired place tightly with screws
Embed The Camera Into Ceiling
Step 1 make holes
To insert the speed dome into the ceiling, first a hole must be properly made to let the dome be through for hanging.
The best way to decide the diameter of the hole and the spots for mounting screws is to use the supplied metal holder.
Put the holder on the surface of the target location and mark a circle with pencil or color
marker
Also mark out the spots for screws with the screw holes on the holder
Cut the camera hole alone with the curve
Drill holes for screw in 6 mm (1/4”) on the three marked spots;
Step 2 Integrate the decoration ring with camera
The decoration ring is not just for nice looking, but also the piece to hold the camera in place for
embedded mounting.
To integrate the ring to camera:
1. Take the transparent dome cover off
2. Locate the ring to the bottom side of the cover
3. Put the cover back to the camera
Step 3 Mount the camera through the hole
Take the below steps to make the camera cling to ceiling:
1. Place the auxiliary metal bracket onto the top of the ceiling
2. Put the camera through out the hole
3. Align the screw holes of the decoration ring and the auxiliary bracket
4. Put screws through and tighten the two brackets, with the ceiling in between
Wall-mounting
The mounting procedure
Step 1 Get the metal bowl and mounting base, put them together with screws to make them a
sub-assembly for mounting.
Step 2 Hook the sub-assembly and camera with the safety cable located on the bottom of camera (left picture on below), then put the signal
cables throughout the sub-assembly (right picture).
Step 3 Fasten the sub-assembly and camera together at the joint of D-sub connectors.
Rotate camera all the way in direction of clockwise.
Fix the base to camera with the supplied screw and wrench.
Step 4 Get the wall-mount bracket. Remove the metal cover (sheet) from the bracket（Fig-1）
Step 5 Mount the bracket onto wall (Fig-2) but DO NOT tight the bracket to wall completely until the Step 6 and 7 are finished.
Caution: Be sure the wall is strong enough to hold the entire device (i.e. housing + camera)
Step 6 Lay all the signal cables in the trench of bracket, and have all connectors come out bracket through the cable outlet (Fig-3).
Step 7 Fasten the camera module (assembly) to the bracket with supplied screws（Fig-4）
Step 8 Put the cover back to holder（Fig-5）
Ceiling-drop
To mount the camera from ceiling, a metal wall-mount bracket in separate package will be needed.
The mounting procedure
Step 1 Get the metal bowl and mounting base, put them together with screws to make them a sub-assembly
for mounting.
Fig-1 Fig-2 Fig-3
Fig-4 Fig-5
Step 2 Hook the sub-assembly and camera with the safety cable located on the bottom of camera (left picture on below), then put the signal
cables throughout the sub-assembly (right picture).
Step 3 Fasten the sub-assembly and camera together at the joint of D-sub connectors. Rotate
camera all the way in direction of clockwise. Fix the base to camera with the supplied
screw and wrench.
Step 4 Get the ceiling mount bracket. Put cables into the tube, starting with the 9-pin alarm I/O (take the male part off
to obtain smaller size).
Have all connectors come out the tube from cable outlet near the top of the bracket.
Step 5 Fasten the camera module (sub-assembly) to the bracket with the supplied screws
Step 6 Mount the bracket onto ceiling and tight the bracket completely.
Caution: Be sure the wall is strong enough to hold the entire device (i.e. housing +
camera)
Use External Housing
To operate speed dome camera and maintain all functions in normal in severe temperature conditions, i.e. below -10oC or above 45oC, external
housing is required.
Specially designed for mating each other with ease, this speed dome camera has a companion housing for such extreme outdoor environment, in
options of ceiling and wall mounting configuration, as shown by the pictures on below.
Start Installation
Step 1: Connect Microphone/speaker.
Step 2: Connect security devices into digital inputs/output.
Step 3: Use 5C2V coaxial cable to connect TV/monitor.
Step 4: Use RJ-45 UTP cable to connect network equipment.
Step 5: Plug-in powers of all optional connected devices.
Step 6: Plug-in power of IP speed dome camera.
Step 7: Confirm power indicator is on.
Step 8: Start-up PC to start application software installation.
Wall mount
262 300
Ceiling mount (Option)
Install Software

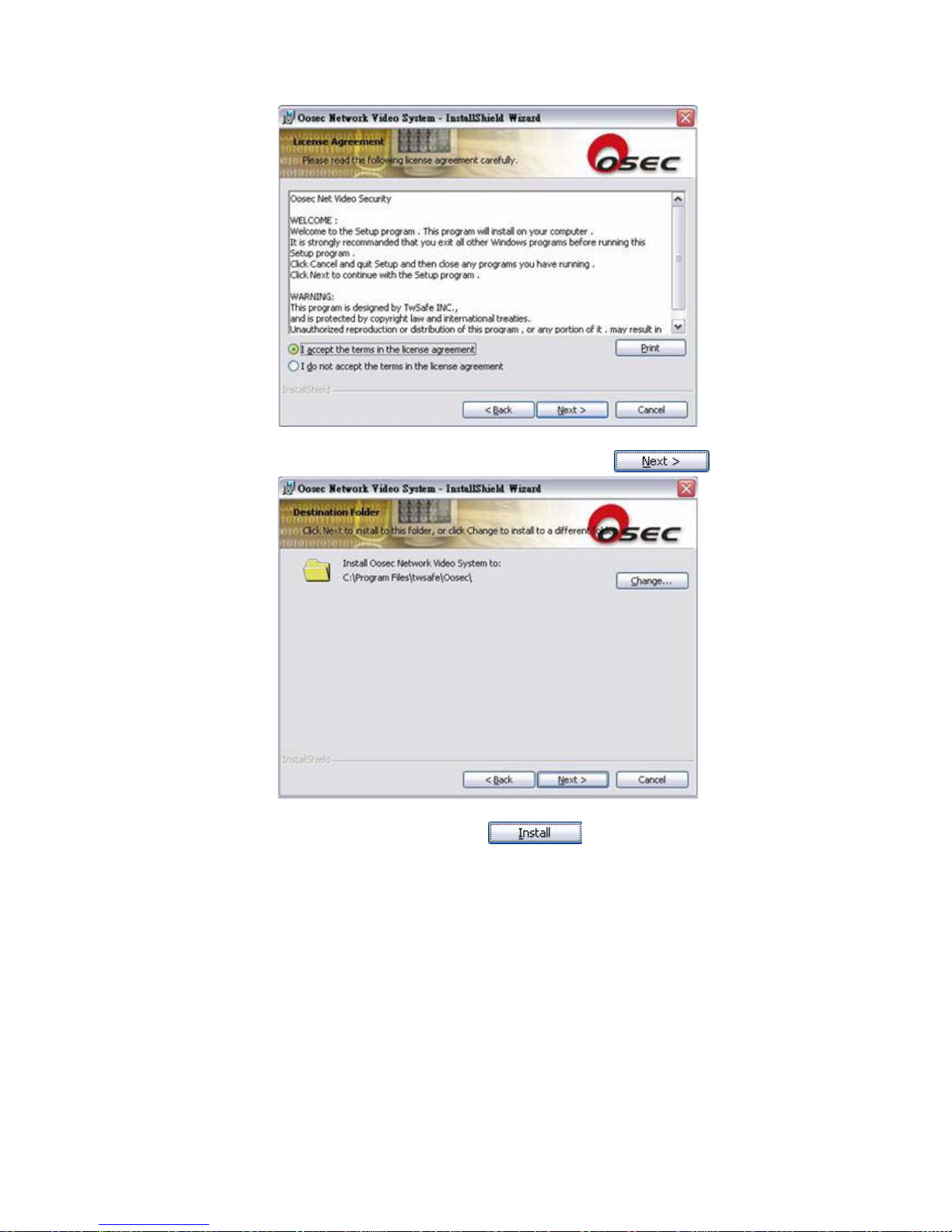

Start CD Software Installation
Before Installation: Insert the CD attached in the package to CD-ROM reader in your computer,
system will start its auto-execution procedure.
Software Installation Sequence
Click to enter NVR multi-camera software installation sequence.
Click to enter English Installation sequence.
System is detecting user’s PC, please wait.
Welcome Page: Click to enter next setup procedure.
Read Me & Intellectual Property Announcement: User needs to click “I accept the terms in the
license agreement” to enter next step of setup procedure or the setup sequence will not proceed.
Click to proceed.
Save-path: User defines save path of the execution file. Click to proceed.
Check: Check setup details are correct. Click to proceed.
Installing: System setup is proceeding, please wait.
Installation Complete: System installation sequence is complete. Click
to exit.
IP Address Setup
User can write IPaddress onto Product either by IE, IPInstaller or multi-port application
software.
Remark: 1. Product default IPaddress is “192.168.1.99” and default password is Mac address
(0013dcXXXXXX) shown on the package and bottom of the camera.
2. User needs to revise PC’s IP at 192.168.1.XXX before setup new IP address on camera
Please follow procedures listed below to change default values on personal computer
Hardware connection
Prepare a crossover UTP cable to connect directly with PC (192.168.1.XXX) or a standard
parallel UTP cable and insert it onto swich/hub or IPsharing (if LAN MASK is same with
product).
Network and Internet Connections
Before IPInstaller setup sequence, user needs to adjust Internet Connection.
▼Click “Start”Æ“Control Panel” Æ“Network and Internet Connections”
▼Click ”Network Connections”
▼Double click your network (LocalArea Connection)
▼ Click “Properties” to enter IPaddress setup.
▼Double click “Internet Protocol (TCP/IP)
▼Tick “Use the following IP address” then type IP(I):192.168.1.99, and for Subnet mask is
255.255.255.0
Click “OK” icon to finish network connections setup for user’s PC and video server are in the
same subnet. User can setup IE security for remote view.
Network Security Setup
Security/Trusted Sites Setup
When first time to login video server via Internet Explorer, user needs to do security
adjustment to view video images.
Sequence: Click “Start”Æ”Control Panel”Æ”Network and Internet Connections”
Æ”Internet Options” Æ”Security” Æ“Internet” Æ“Custom level”.
▼Click “Internet Options”
▼Click “Trusted Sites” and then click “Sites” to type wishful IP address for IP camera/video
server to ensure IE browser will not block the IP address.
Table of contents
