Uctronics U6243 User manual

CONTACT US
If any problem, feel free to contact us.
Website: www.uctronics.com
Email: [e-mail] www.uctronics.com
SKU: U6243
ASSEMBLY GUIDE
Installation
metal
9. Finally, insert the installed bracket into the case and fix it with
M4 thumbscrews. Then stick the footpads to the bottom panel.
The installation is complete.

Installation

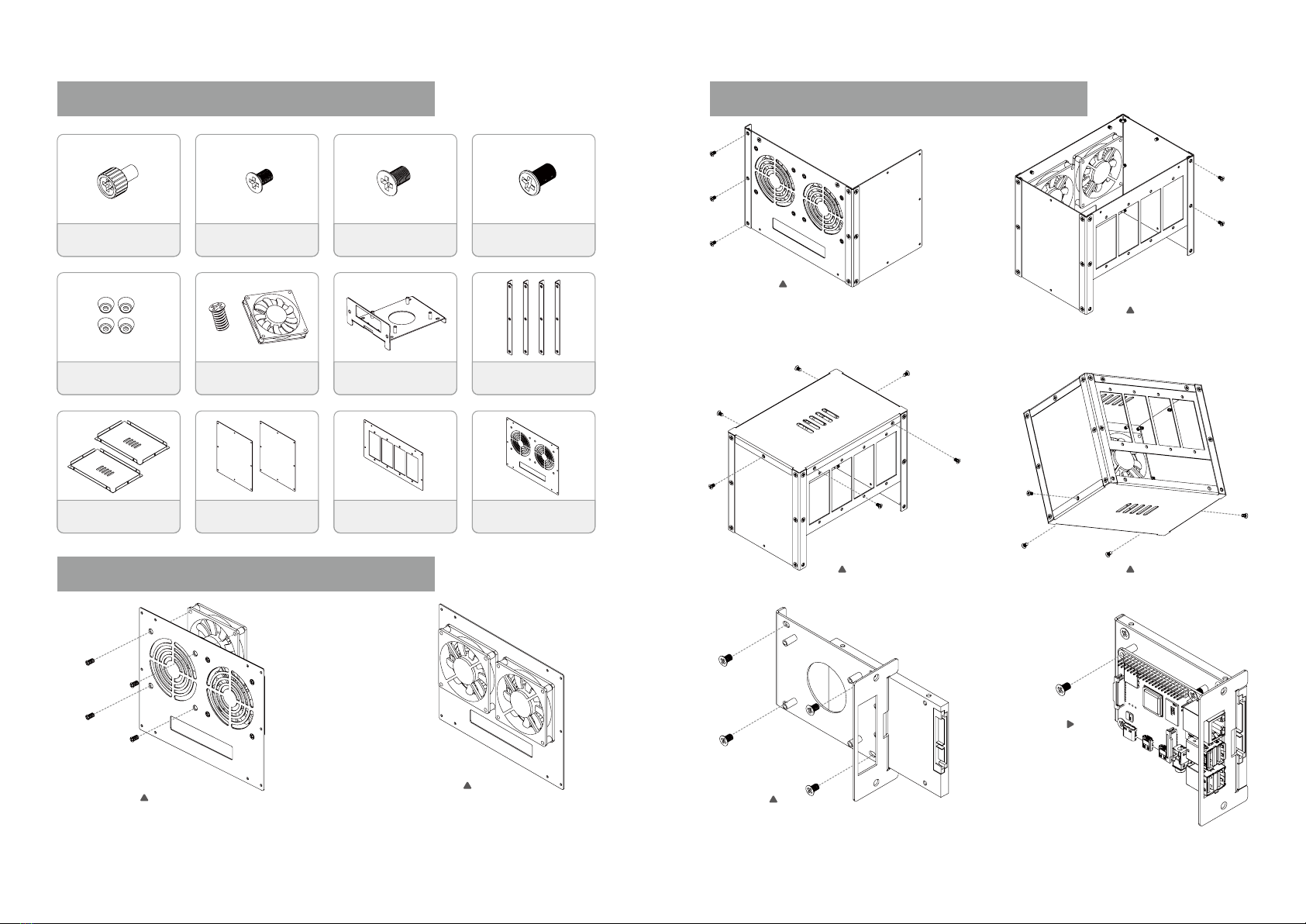

InstallationPackage Contents
M4 thumbscrew×8 M2.5*5 for Raspberry
pi×16 M3*5 screw for SSD×16 M3*5 screw for frameworks×32
Foot pad×4 M5*8 screw for fans×8
8cm Cooling fan ×2
Raspberry pi mounting
bracket×4 Framework×4
Bottom panel（top
panel）×2 Side panel×2 Front panel×1 Back panel×1
1. Install the fan on the back panel and
fix it with M5*8 screws
2. Pay attention to the direction of
the fan, the sticker should face the
Raspberry Pi.
3. The frameworks are used to connect
vertical panels. Connect the framework, the
back panel and the right panel together,
and fix it with M3*5 screws.
5. Cover the top panel and fix it with M3*5
screws
7. Insert the 2.5-inch SSD into the mounting bracket, align the
direction of the mounting hole, and fix it with M3*5 screws.
8. Mount the
Raspberry Pi with
M2.5 *5 screws.
6. Then fix the bottom panel with the same
method.
4. The installation of the front panel and the
left panels is the same as above.
