Ugur UDD 45 DTK User manual

COMMERCIAL TYPE VERTICAL FROZEN FOOD
STORAGE CABINET
OPERATING MANUAL EN

| User Manual
2
EN

User Manual | 3
EN
THIS MANUAL COVERS THE
FOLLOWING MODELS
EN
This manual has been prepared for the models listed below. You have purchased
may written RXX at the end of the model name on the rating label of model.
The RXX mean which refrigeration gas used and the energy class of the device.
UDD 45 DTK UDD 440 DTKL NF
UDD 45 DTKL UDD 440 DTKLE NF
UDD 65 DTKL UDD 690 DTKLE NF
UDD 370 DTK UDD 690 DTKL BK NF
UDD 370 DTKL UDD 740 D2KL
UDD 370 D2KL UDD 740 D4KL
UDD 370 DTK BK UDS 374 D2KL
UDD 370 DTK BK GST UDD 1600 D2KL NF
UDD 370 DTK GST UDD 1600 D3KL NF
UDD 440 DTKL
UDD 440 DTKLB

| User Manual
4
EN
Dear Customer,
In order to use more eciently your product, which was
manufactured and quality controlled in Uour company plants
with great care, we kindly request you to read this manual
carefully and completely before starting using your product, to
keep it for further reference and to use your product according to
the terms stated herein.
If you fail to use your product according to the rules and
instructions contained in this manual and/or in case of any usage
error, our Company shall not be anyway responsible from the
breaking down of your product.
You can ask the updated version of the operating manual the
authorized service.
INFORMATION

User Manual | 5
EN
Dear Customer,
Ponts to consder wthn ths manual are ndcated under the headngs WARNING, CAUTION,
NOTEE and SUGGESTION
These headngs are defned accordng to the degree of mportance and we kndly request you
to read each of them carefully.
The nformaton stated under headngs WARNING, CAUTION, NOTEE and SUGGESTION n ths
operatng manual apples for all stages durng the perod of use of your product, ncludng
transportaton and nstallaton.
WARNING!
Contans nformaton for preventng serous damages, whch may lead the
product out of use, to njury, loss of lfe and property whle the product s n
use
CAUTION!
Contans nformaton for preventng the errors, whch may decrease the
ecency of your product or falures whle the product s n use.
NOTE
Contans explanatory nformaton whle the product s n use.
SUGGESTION
Contans nformaton that may be useful whle the product s n use.
NOTE
In case of any falure please contact to the nearest Authorze Servce of Our Customer
Care Centre for nformaton.
It s at the dscreton of the consumer to take acton related to the food nsde your
devce n case of any falure. Our company s not responsble from the deteroraton of
your foodstu due to any falure or usage error.

| User Manual
6
EN
TABLE OF CONTENTS
A - Things that must be done before using your product and
security warnings.

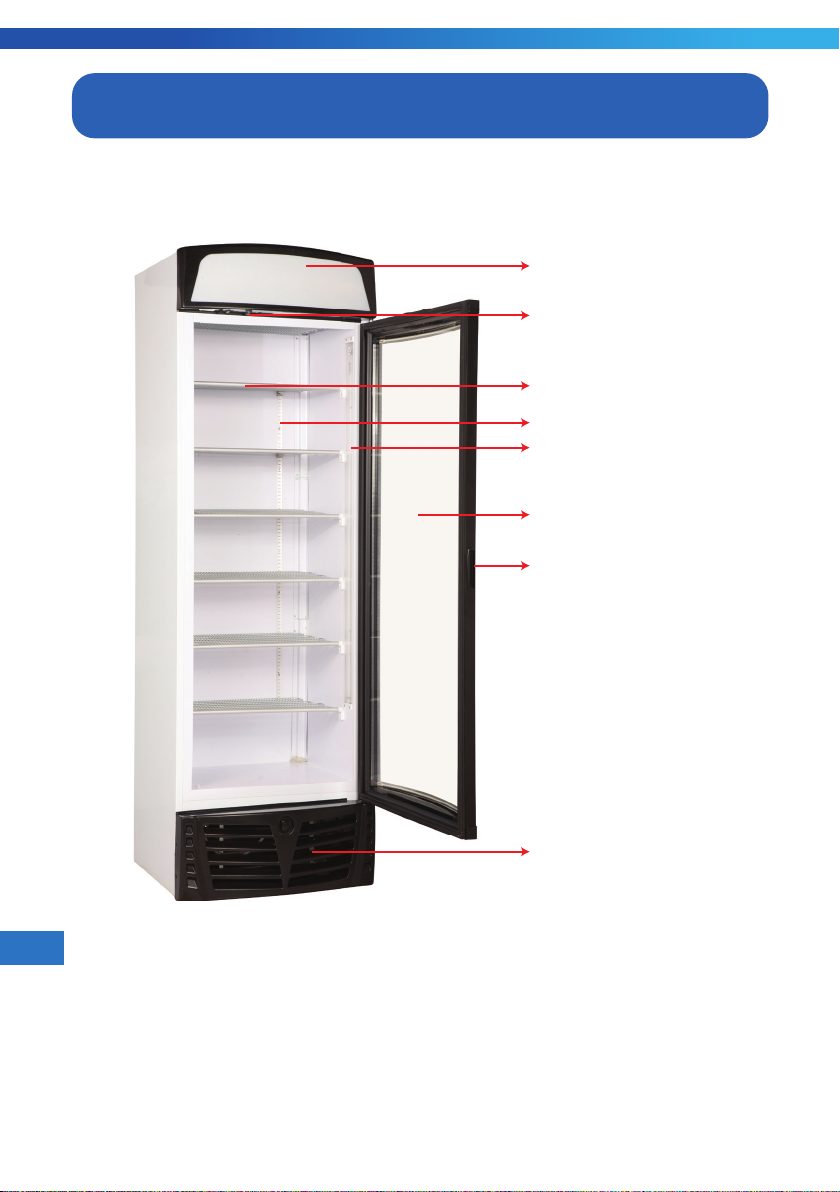

B - General appearance and technical specications of your
product
C - Installation of your product.
D - Using your product
E - Cleaning, maintenance and transportation of your product
F - Things that must be done before calling Authorized Service

User Manual | 7
EN

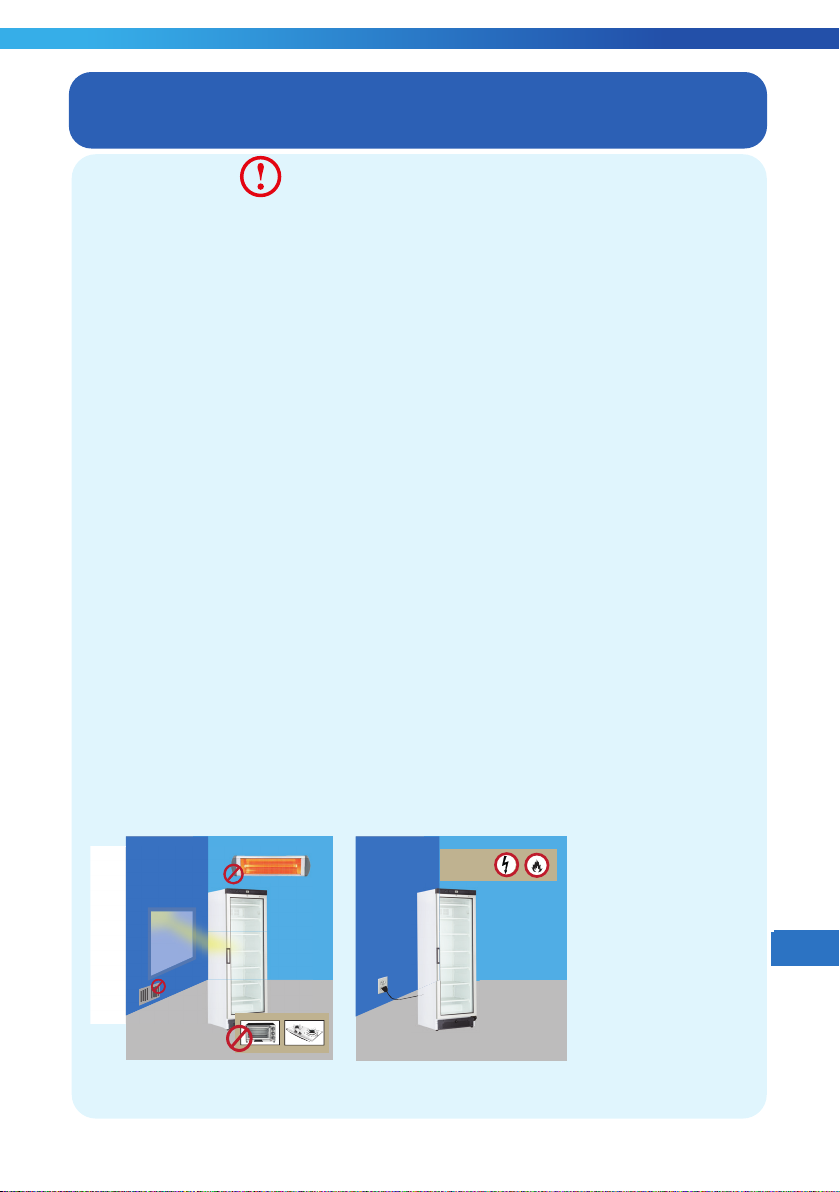

A- THINGS THAT MUST BE DONE BEFORE USING YOUR PRODUCT
AND SECURITY WARNINGS
WARNING!
• Do not place your product to a place exposed to drect sunlght or nuence area of the heat
sources such as stove, radator core, oven, cooker, radant and nfrared. Otherwse, ths may cause
performance decrease, damage of your product or make t become dysfunctonal (Pcture 1).
• Your product s set for operatng at mans power of 220-240V/ 50-60 Hz, 110-127/60 Hz Usng your
product wth a derent voltage may cause t become dysfunctonal and fre (Pcture 2).
• Our company s not responsble for the falures and materal damages that may occur n case of
usng wthout groundng.
• Electrcal nstallaton must conform to natonal regulatons.
• There must absolutely be a resdual current relay and a fuse n your electrcal nstallaton for
preventng the rsks of electrcal shock and fre.
• Place the devce n a damp-free place wth unobstructed ar crculaton.
• You must clean nsde your product before the frst use.
• After placng your devce to ts place, wat for one (1) hour wthout movng t before startng usng.
• If your devce s nstalled under very cold weather condtons, then the watng perod must be at
least two (2) hours before startng to operate t.
• In case of prolonged blackouts, do not open the door of your products for preventng heat loss.
• If you do not use your devce or leave t empty for a short tme, do not unplug t for savng energy.
Otherwse, more energy wll be consumed for re-coolng your product.
• In products, the doors of whch are left opened or opened and closed contnuously, frost depost
wll ncrease and no coolng operaton wll be carred out. Thus open the doors of your product
only when needed. Make sure that the doors are closed f not requred.
• Unplug your product n case of sudden blackouts. For startng agan, plug n your product 20
mnutes after the electrcty s suppled. Hgh voltage occurrng at the moment of electrcty supply
may cause damage of your product and fre.
• Do not allow wld anmals and pets to enter nto your product or walk around t. It may damage
your product or cause death and njury of the anmals. Furthermore, wld anmals and pets may
cause fre by gvng harm to the electrcal nstallaton.
• Your devce does not have any sterlzng eect on the mcroorgansms. Therefore t s necessary
that the foodstu you place nto your product must conform to the hygene standards and
packaged. Otherwse, mcroorgansms reproducng n foodstu may pose a threat for your health.
PICTURE 1 PICTURE 2
220-240V/ 50-60 Hz,
110-127/60 Hz

| User Manual
8
EN
A- THINGS THAT MUST BE DONE BEFORE USING YOUR PRODUCT
AND SECURITY WARNINGS
WARNING!
• When you place packages, whch are not packed, properly packed and cause leakages
to your devce, lqud leaks from the foodstu may cause corroson on the metal parts
of your storage cabnet, gas leakage at the ppes, yellowng on the plastc parts, cracks
and dsappearance of thee hygene condtons, odour formaton and reproducton of the
mcroorgansms that may pose a threat for your health.
• Place the foodstu to be placed nto your devce after checkng ther expry dates.
• Do not use your foodstu n your product untl ther expry dates. Defrost and use
foodstu wth close expry dates. Otherwse expred food may cause posonng.
• Never place hot foodstu nto your devce for coolng or freezng purposes.
• If you use sharp, ponted and metal objects, you may damage nternal wall of your
storage cabnet. Furthermore, ths stuaton may lead to gas leakage.
• Do not ever pour water or any other lqud for defrostng n your devce; never clean wth
steam cleanng devces. It may cause damage on your devce or electrc shock.
• Do not ever use a thermal source (electrc heater, heater etc.) for acceleratng defrostng
n your devce. These heaters may damage plastc parts of your devce.
• The product you’ve purchased s desgned and manufactured for storng frozen food
only. Please do not use for other purposes. Our company shall not be responsble from
the damage on the products that are used for purposes other than these.
• Your devce s desgned for usng at ndoor places. Do not use your product at outdoor
places.
• Do not place materals that must not be cooled down or frozen nto your devce.
• Devce nstallaton, placement, mantenance and cleanng must be done as stated n the
manual. Do not apply anythng contrary to the manual. In case of any damage that may
happen n your product as the result of such use, warranty condtons wll be nvald.
• Care must be taken for the products wth glass doors as httng them wth a sharp,
ponted object or contactng them wth a very hot substance may cause them broken.
• Place your devce onto a at surface wth no slope n order to prevent sldng or tltng
of your devce.
• Operate your devce only n usage poston.
• Do not expose your devce to drect sunlght.
• Carry and store your devce at normal usng poston only n order to protect t from
damages. Actons n contrary may cause loss of the warranty rghts.
• For preventng frost depostng n your product and hgh sweatng on ts glass, make
sure that the dscharge plug s closed.

User Manual | 9
EN
A- THINGS THAT MUST BE DONE BEFORE USING YOUR PRODUCT
AND SECURITY WARNINGS
NOTE
It s at the dscreton of the consumer entrely to take acton related to the food nsde your
product n case of any falure. Our company s not responsble from the deteroraton of your
foodstu due to any falure or usage error.
The product you have purchased has been desgned for storng packed frozen food used for
commercal purposes only. Our company shall not be held responsble for any damage as the
result of use for another purpose.
Check your product f there are any falures or not mmedately after recevng the product you’ve
purchased. If there s any damage, contact to your seller wthn 24 hours.
In order to use your product ecently and safely, please read ths manual entrely before startng
usng your product and keep t as a source of reference. You can fnd updated verson of the
operatng manual on our authorzed servces.
Ths product contans (WEEE) classfcaton symbol, whch ndcates electrc and electronc
hardware. Accordngly, the user must conform to 2012/19/EU European Drectve for recyclng n
order to mnmze the envronmental mpact of the relevant product.
When you ntend to throw your product to garbage or to allocate s as scrap, please contact to
Authorzed Servces for learnng necessary nformaton. Your devce must be defntely delvered
to local WEEE dsposal nsttutons n such cases.
The pctures shown n ths manual are representatve only and may vary dependng on the
model. Snce the specfcatons stated n ths manual nclude all optons, some of them may not
be present at your product.

| User Manual
10
EN
A- SECURITY WARNINGS
WARNING!
• The products mentioned in this manual are designed and manufactured under control according
to national and international security norms.
• Following rules must be followed for a safe and secure use.
• Check that your outlet is suitable for the operation of your product. Always use your product with
grounded socket. Make sure that electrical installation of your building is convenient. Do not use
displaced and loose outlets.
• Do not ever use your product with extension cord or power strip.
• Always follow the instructions in this manual while replacing the bulb. The power of the bulb to
be replaced is indicated on the product declaration name label, on the label just under the lamp
and in this manual. Canopy lamps must only be replaced by Authorized Service.
• Lamp replacement for the lightings must only be made by Authorized Service.
• If power cable is damaged, its replacement must only be made by Authorized Service.
• Please call Authorized Service if you have any doubt about the electrical connection while your
product is running.
• Always pull the plug of your product by holding it from the plug-head. Never pull the power cord.
• Do not remove any external protective cover that is not stated in this manual. You may access
electrical parts posing threat to life if the external protective covers are removed.
• Never use pressurized water for cleaning. Pressurized water may cause damage in live parts.
• Do not handle the electrical issues by yourself. Do not forget that safety comes rst.
• Never plug and operate a damaged (such as transportation damage) product. Always call an
Authorized Service.
• Always consider maximum loading capacity while loading your product with frozen food. Do not
exceed the loading line indicated in your product.
• Do not place defrosted products into your product again.
• Replacement for the live parts must only be made by Authorized Services.
• Always store packaging materials of your product out of reach of children. Packaging materials
(nylon, styrofoam etc.) may pose danger for children.
• The product you've purchased must not be used by physically (visual, audial) or mentally
handicapped people, children and people with inadequate knowledge without surveillance of a
person responsible for their safety. Children must be guarded while using the product and it must
be ensured that they are not playing with the product.
• Do not use any material and metal that are not recommended by the manufacturer while
defrosting. You may damage cooling parts.
• Do not damage cooling cycle components.
• Do not anyway use the products/materials, which are not recommended by the manufacturer
company inside and outside the cabin.
• Make sure that the intervention to be made to your product is certainly made by an Authorized
Service.
• Do not carry, move your product under any circumstance while it is plugged in.
• Never carry out servicing and repair operations on your product while it is plugged in.
• Substances such as aerosol cans with ammable propellant must not be stored in this product.
• Always abide positioning rules of your product. Not abiding the product layout rules stated in the
manual may cause re danger.
• If your product is damaged or not working properly, please unplug it from the wall outlet. Transfer
the foodstu inside of it to a convenient place and call the nearest Authorized Service.

User Manual | 11
EN
A- SECURITY WARNINGS
CAUTION!
Please check the refrigerant gas written on your product label.
Following 5 clauses cover the products containing R600a and R290 Hydrocarbon gas.
• Installation of this device must be only made by Authorized Service for reducing ammability
dangers.
• Do not obstruct the ventilation holes on the device cover or body.
• Mechanical tools and other apparatus, other than the ones recommended by the
manufacturers, must not be used for accelerating defrosting.
• Cooling circuit must not be damaged.
• Electrical devices must not be used inside the food storage section of the device unless the
models recommended by the manufacturer.

| User Manual
12
EN
B- GENERAL APPEARANCE OF YOUR PRODUCT
Canopy
Control Panel
Shelves
Shelf Height Adjustment Line
Lighting
Glass Door
Door Handle
Lower grill

User Manual | 13
EN
C- INSTALLATION OF YOUR PRODUCT
Selecting the place of installation
The operating environment of the product is very important for the smooth operation of your product. While
selecting the operating environment,
Do not place your product exposed to outdoor environment (on the street, avenue, etc.).
Be careful for not obstructing lower shutter of the product with materials such as cardboard, box etc. for a
proper cooling (Picture 3).
Place the product at least one (1) meter away from heat resources (stove, radiator, electric heater etc.) (Picture
4).
Do not place it opposite to the air conditioner chutes, under fans and direct door and window openings
(Picture 5).
Do not expose to direct sunlight. Operation ratio will increase if sunlight comes to your product’s glass. That
means an increase in the energy consumption.
Air intake and outlet must absolutely be uent and free for proper operation of the compressor section of
your product.
While approaching your product to the wall, be careful that there is a gap of 150 mm (15 cm) between the wall
and back of your device.
WARNING!
In very humid environments, ensure that oor and wall of the place where your product is located, is not
aected by water; against discharge water overow danger.
In installations performed by Authorized Service, Authorized Service shall inform the consumer on the
suitable place for installation and make suggestion, but the consumer shall give the nal decision on
where the installation will be made. This above mentioned process shall also be stated on the relevant
installation form by Authorized Service. In case of any loss arising from the place of installation of the
product according to the nal decision given by the consumer, all responsibility related to such loss shall
belong to the consumer.
Your product gives the best cooling performance according to the climate condition under the conditions
given below. Therefore, be careful that the temperature of the environment where your product will operate
is at these levels.
PICTURE 3

| User Manual
14
EN
C- INSTALLATION OF YOUR PRODUCT
Positioning
Possible placement positions:
1- In a way that the back side alone is opposite to the wall; be careful that there is a gap of 150 mm (15 cm)
between the wall and your device (Picture 6).
2- In a way that is place to a corner; when you place it to a corner, leave a gap of 150 mm (15 cm) behind. You
can lean the side, corresponding to the corner, to the wall.
The most important point to be considered in all cases of product placement is not to obstruct ventilation of
the compressor assembly.
Without exposing your product to any slope, place and operate it in a manner that it is on its feet or wheels.
The freer the compressor assembly ventilation is, the better the device will run.
PICTURE 6
15 cm
In commercal products:
Clmate Class of your product s ndcated on the techncal specfcaton label on the product.
Climate Class Temperature Range Humidity
Class 3 25 °C 60% Rh
Class 4 30 °C 55% Rh
Class 5 40 °C 40% Rh
PICTURE 4 PICTURE 5

User Manual | 15
EN
C- INSTALLATION OF YOUR PRODUCT
Installation
Before positioning, remove and disassemble all packaging materials and bottom wooden pallet of the
product. (It may be necessary to lift your device for removing the bottom pallet).
Insert the replacement parts inside your product according to the installation instructions. Only use
genuine spare parts. Please consult to salesperson for minumum period during which spare parts, are
available.
Inauthentic spare parts may constitute danger for you and damage your product.
Place the product anywhere you desire. Consider the placement rules written in the manual while
positioning the product.
Balance your product in width and in depth by means of a water gauge. Please perform optional
balancing operation by means of the adjustable feet at the bottom front of your product (Picture 7).
In models with wheels (optional), wheel brake (optional) must be locked or if there is no wheel brake, it
must be guaranteed that the device will not move after the positioning of the product.
PICTURE 7

| User Manual
16
EN
C- INSTALLATION OF YOUR PRODUCT
Electric Connection Rules
The product will start when you insert the plug into the outlet as shown in picture 8.
WARNING!
It is forbidden to insert the plug into multiple socket and to use extension cord (Picture 9).
There is no separate on-o switch on your product.
Do not contact the cables of your product, which are connected to the mains, to hot surfaces.
The outlet you will use must be grounded. Furthermore, the outlet to be used must have the resistance
of at least 10-16 A and be protected with a suitable fuse. Denitely take assistance from our technical
service or a competent electrician with regards to the fuse that should be present on the mains where
the outlet is connected.
Mains voltage and frequency must be same with the value written on the label inside your product.
If your mains voltage is extremely below or above the value indicated, denitely supply demanded
voltage by using a voltage regulator. You can get assistance from an expert electrician with this regard.
Do not place your product's cord onto passageways. This may cause you to get injured and damage
your device (Picture 10).
PICTURE 9
PICTURE 8 PICTURE 10
10-16A

User Manual | 17
EN
D- USING YOUR PRODUCT

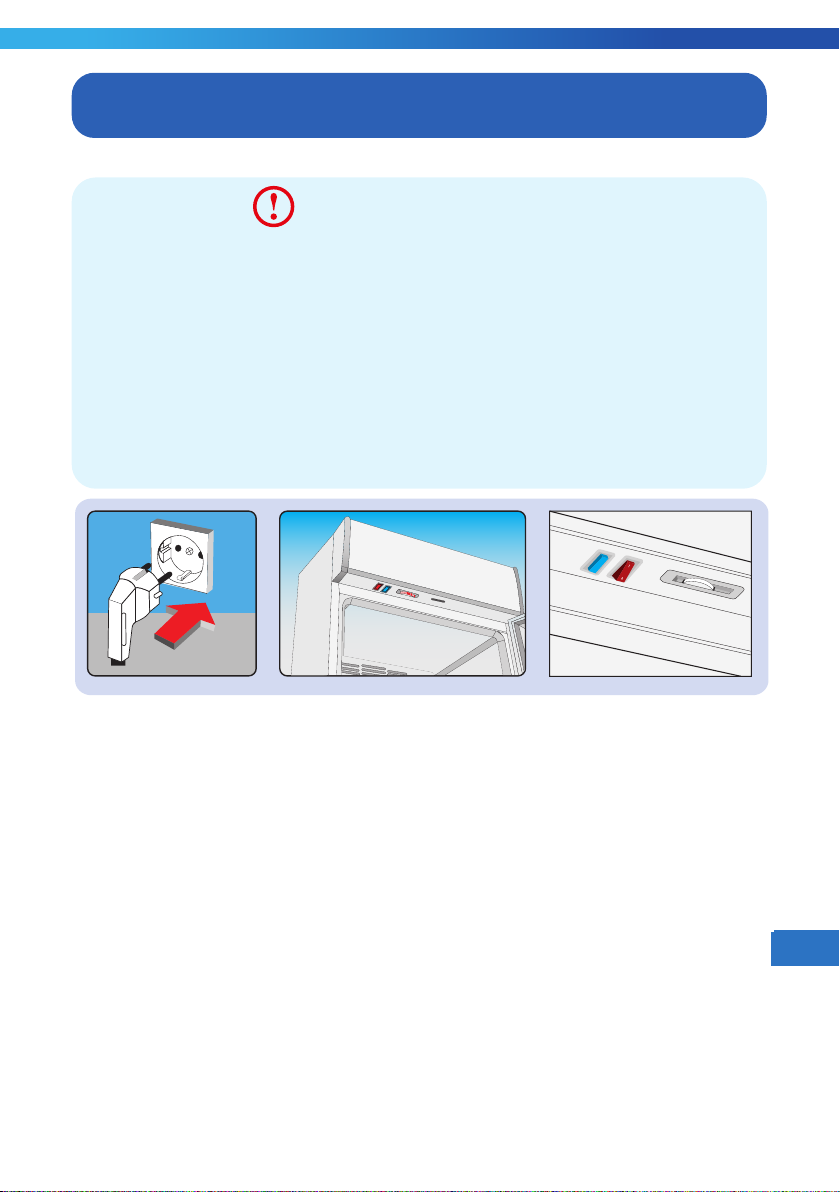

Start-up
WARNING!
• Ths operatng manual apples for varous devce models. Hardware scopes of the models may vary.
There may be derences n the pctures.
• Clean nsde and all accessores of your product before the frst start up.
• If your product has been shaken so much durng the transportaton and postonng, wat for one (1)
hour wthout runnng t. Thus, the compressor ol, whch may enter nto the system, wll return back.
You may damage the compressor f you run t wthout consderng ths.
• Insert your product’s plug nto an outlet wth alternatve current of 220-240V/ 50-60 Hz, 110-127/60 Hz
only, whch has been nstalled accordng to the regulatons (Pcture 11).
• You wll hear a slght sound from the compressor when your product s runnng.
• The fan nsde your product wll stop once you open the door of your cabnet.
• If the lghts of your product do not lght, put the 0-1 swtch under the canopy to poston 1 (Pcture
12-13).
PICTURE 11 PICTURE 12 PICTURE 13

| User Manual
18
EN
WARNING!
• Internal temperature of your product can be adjusted between -18°C and -23°C. (In models
wth a dgtal thermometer, adjustment can only be made by an Authorzed Servce.)
• Always provde a gap between the top and the product you load for ensurng ar crculaton.
Setting Internal Temperature of Your Device
Temperature setting of your product has made at the factory in a manner that it is operated under the
most appropriate conditions.
Be careful for always placing frozen product inside your product.
Preservation temperature of the products can be observed from the digital indicator or thermostat
under its canopy and adjusted by means of an electronic thermostat.
When you run your product at factory set value, you get the best result in terms of both the performance
and energy consumption.
Run your device empty for at least three (3) hours. Therefore inside of your product will be cooled down
in the best way.
D- USING YOUR PRODUCT
0
23
4
5
6
7
1

User Manual | 19
EN
D- USING YOUR PRODUCT
Using Digital Thermostat
Thermostat Adjustments (ERC 112D) Set Temperature
The explanations regarding the symbols on the thermostat and general information about the
settings are given below.
1) [ ] : Defrost Key
2) [ ] : Stand by Key
3) [ ] : Up Key
4) [ ]: Down Key
General Informatıon And Instructıons
Push the [ ] untl thetemperature value is shown or push the [ ] until the temperature
value is shown.
Manual Defrost
Manuel start or stop of a defrost. •Push the [ ].
Thermostat Adjustments (EWPLUS 971)
EWPlus 971 thermostat is used for D (freezer without defrost) models.
1 3
2
4
1
2
3
4

| User Manual
20
EN
D- USING YOUR PRODUCT
General Informatıon and Instructıons
Keys;
1-[ ]:Press and release, ncreases the sldng optons among menu optons and enables
transton.
2-[ ]/Light: Internal menu status, reduces sldng values among menu optons or enables
transton. When you press for 5 seconds, the Lght turns on/off.
3- [ ]/(Esc): Press and release, return to the prevous menu and approval of
parameter values. When you press at least for 5 seconds, all the functons are
turned off excludng the lghts (Standby on)
4- [ ]/(Enter): Press and release, dsplays the alarms and opens sub menus
(f any). When you press for 5 seconds, opens programmng menus. Approves the
commands.
Reduced SET / Economy LED
Permanently on: Energy
Savng actve
Flashng: Reduced set actve
Quck ashng: Access to level2
parameters
O: Otherwse
Fans LED
Permanently on: Fans actve
O: Otherwse
Compressor LED
Permanently on: Compressor actve
Flashng: Delay, protecton or actvat-
on blocked
O: Otherwse
Alarms LED
Permanently on: alarm actve
Flashng: alarm acknowledged
O: otherwse
Aux LED
Permanently on: Aux output actve
Flashng: Deep coolng Cycle actve
O: Aux output not actve
°F LED
Permanently on: °F settng
(dro = 1)
O: otherwse
°C LED
Permanently on: °C settng (dro = 0)
O: otherwse
Set Temperature
To display the Setpoint value press the [ ] key when the 'SEt' label is
displayed. The Setpoint value appears on the display. Please again press the [ ].
To change the Setpoint value, press the [ ] and [ ] keys within 15 seconds. Press
[]to confirm the modification. Press the[ ] key to exit setting.
