Uniden UWG200 User manual

1
UWG200
DECT CORDLESS PHONE
with DOORBELL
For more exciting new products please visit our website:
Australia: www.uniden.com.au
New Zealand: www.uniden.co.nz

2
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be fol-
lowed to reduce the risk of re, electric shock and injury to persons, including the fol-
lowing:
•This unit is NOT waterproof. DO NOT expose this unit to moisture.
•DO NOT expose this unit to rain.
•Do not use this product near water, for example, near a bath tub, wash bowl, kitchen
sink or laundry tub, in a wet basement or near a swimming pool.
•Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
•Do not use the telephone to report a gas leak in the vicinity of the leak.
•Use only the power cord and batteries indicated in this manual. Do not dispose of
batteries in a re. They may explode. Check with local codes for possible special dis-
posal instructions.
•Do not place the handset in any charging cradle without the battery installed and
the battery cover securely in place.
SAVE THESE INSTRUCTIONS!

3
Under power failure conditions this appliance may not operate. Please ensure that a separate
telephone, not dependent on local power, is available for emergency use.
Important Notice
•The grant of a NZ Telepermit for any item of terminal equipment indicates only that
Telecom has accepted that the item complies with minimum conditions for connec-
tion to its network. It indicates no endorsement of the product by Telecom, nor does
it provide any sort of warranty. Above all, it provides no assurance that any item will
work correctly in all respects with another item of Telepermitted equipment of a dif-
ferent make or model, nor does it imply that any product is compatible with all of
Telecom’s network services.
•NZ users must set the Flash Time to “Long” to use Call Waiting or Conference Calling
features. See Flash Time on page 37 for details.
•Telecom NZ customers must turn on the Insert 0 feature for Caller ID to display cor-
rectly. See Insert 0 (NZ Only) on page 39 for details.
•For telephone networks other than Telecom there may be a charge incurred for local
calls if the Insert 0 feature is on. Turn Insert 0 o.
•This equipment may not provide for the eective hand-over of a call to another de-
vice connected to the same line.
General Notices for New Zealand Model:

4
IMPORTANT SAFETY INSTRUCTIONS 2
FEATURES OF THE UWG 200 5
WHAT’S IN THE BOX? 6
GETTING TO KNOW YOUR PHONE 7
INSTALLING YOUR PHONE 13
CORDLESS PHONE 18
Basic Functions 18
Making a Call 18
Receiving a Call 19
Muting the Microphone 20
Adjusting Audio Volume 20
Ringer Setting 20
Last Number Redial 21
CID Book 23
Key Lock 25
Selecting a Language 25
HS Name 26
Auto Answer 27
Paging 27
Dial Mode 28
Handsfree (Speakerphone) 28
Flash Signal (Call Waiting Service) 29
Advanced Functions 30
Menu Navigation 30
Menu Map 31
Phone Book 32
BS (Base) Settings 37
Terminate HS 37
Flash Time 37
Modify PIN 38
BS Reset 39
Insert 0 (NZ Only) 39
HS (Handset) Settings 40
Setting Alarm 40
Audio Setup 41
Key Tone 42
Setting Date & Time 43
Selecting a Base 44
HS Reset 44
Registration 45
Calling with more than one Handset 46
Call Transfer between Handsets 47
Setting up a 3-way Conference Call 48
Caller ID on Call Waiting 49
WIRELESS DOORBELL 50
TROUBLESHOOTING 52
ONEYEAR WARRANTY 54
CONTENTS

5
FEATURES OF THE UWG 200
•1.8GHz DECT technology with GAP
•Up to 5 handsets optional for one base
•Up to 4 bases optional for one handset
•Phonebook with up to 50 entries
•9 VIP ring tone settings for phonebook entries
•Redial memory with up to 10 entries
•10 ring tones and volume selectable
(5 levels+o)
•Internal call
•Call transfer
•3-way conference call
•Receiver/Speaker volume adjustable (5 levels)
•PIN protection
•Predialing
•Redial, Flash, Pause, Mute
•Key tone ON/OFF selectable
•Full handsfree speakerphone
•FLASH time selectable
•Call duration display
•Real time clock (set time)
•Keypad lock
•13 languages selectable
•Auto answer ON/OFF selectable
•Alarm clock include snooze option
•Handset Name setting
•LCD backlight
Caller ID
•FSK and DTMF dual system Caller ID
•Caller ID / Call Waiting
•Caller ID list with up to 40 entries
•Incoming calls can be called back/added to
phonebook/deleted
Doorbell
•Page all handsets
•Talk with answering handset
Phone

6
WHAT’S IN THE BOX?
Handset (2) Doorbell
xIf any items are missing or damaged, contact your place of purchase immediately.
Never use damaged products!
xNeed help? Get answers at our website:
www.uniden.com.au for Australian model
www.uniden.co.nz for New Zealand model.
Not Pictured:
•Wall mounting bracket
for doorbell
•4 AAA Ni-MH batteries
•2 C size Alkaline batteries
•AC Adaptor
•Telephone cord
•Owner’s Manual
Base
Charger

7
GETTING TO KNOW YOUR PHONE
Phone Layout and Keys Function
Battery compartment
cover
Speaker
Charging Contacts
Earpiece
Display
MENU/
SELECT CID/UP
PHONEBOOK/DOWN
END
DIAL/SPEAKER
CANCEL/MUTE
Microphone
12-key
dial pad

8
Page button
Power JackPhone Line Jack
Charge Pins
PHONE (BASE)
CHARGER
REAR AND BOTTOM VIEW
Phone Layout

9
Doorbell/Intercom
Call Button
1
1
3
2
4
5
1. 12V DC POSITIVE INPUT
2. 12V DC NEGATIVE INPUT
3. UNLOCK CONTROL POSITIVE TERMINAL
4. UNLOCK CONTROL NEGATIVE TERMINAL
5. SILICA GEL PLUG

10
Key Icon What it does
Dial/Speaker key
Make/Answer a call.
Activates the speakerphone, if pressed during a call.
End/Power key
End a call.
Press and hold to activate On/O, as described in page 17.
Navigation Key
Up/CID key
Scroll up through lists and menu options
Increase the earpiece/speakerphone volume during a call.
Enter the CID book, as described in page 23.
Down/Phonebook key
Scroll down through lists and menu options
Decrease the earpiece/speakerphone volume during a call.
Enter the Phonebook, as described in page 32.
Keys Description

11
INT key
Set up internal call to another handset.
Transfer an incoming call to another handset.
Set up a conference call with an external line and an internal handset.
Redial Key
Redial a number, as described in page 21.
Insert a pause when pre-dialing a number.
MENU/R
Menu (Select)/R key
Enter the menu functions in standby mode.
Conrm selections & actions.
Performs “Flash (Recall)” function.
Cancel/Mute Key
Return to the previous menu.
Enter to mute during a call.
Delete an incorrect character/digit.
Press and hold to turn on/o keypad lock function.
Set up a conference call, as described in page 48.

12
LCD Icons Description
New Call: Indicates you have missed one or more calls.
O Hook: Indicates the line is engaged.
Hands-free: Indicates the handsfree function is enabled.
Battery Icon: Indicates battery charge level.
Signal Icon: Indicates whether the current signal exists or not. If the
handset is too far from the base, this icon will blink on the LCD.
Keypad Lock: This icon appears when the keypad is locked.

13
1. Press in on the notch and slide the battery
cover down and o.
2. Insert the new batteries, matching correct
polarity (+, -).
3. Replace the battery cover, by sliding it into
place.
4. Use an AC adaptor to connect the power
jack on the base to a regular indoor (240V
AC) power outlet.
Charge the Battery
INSTALLING YOUR PHONE
Install the rechargeable batteries
before using your phone.
Phone
#Charge handsets completely (about 15 hours) before using. To charge the hand-
set, you should place it on the base or charger. When you place the handset on
the base or charger the handset automatically turns on.

14

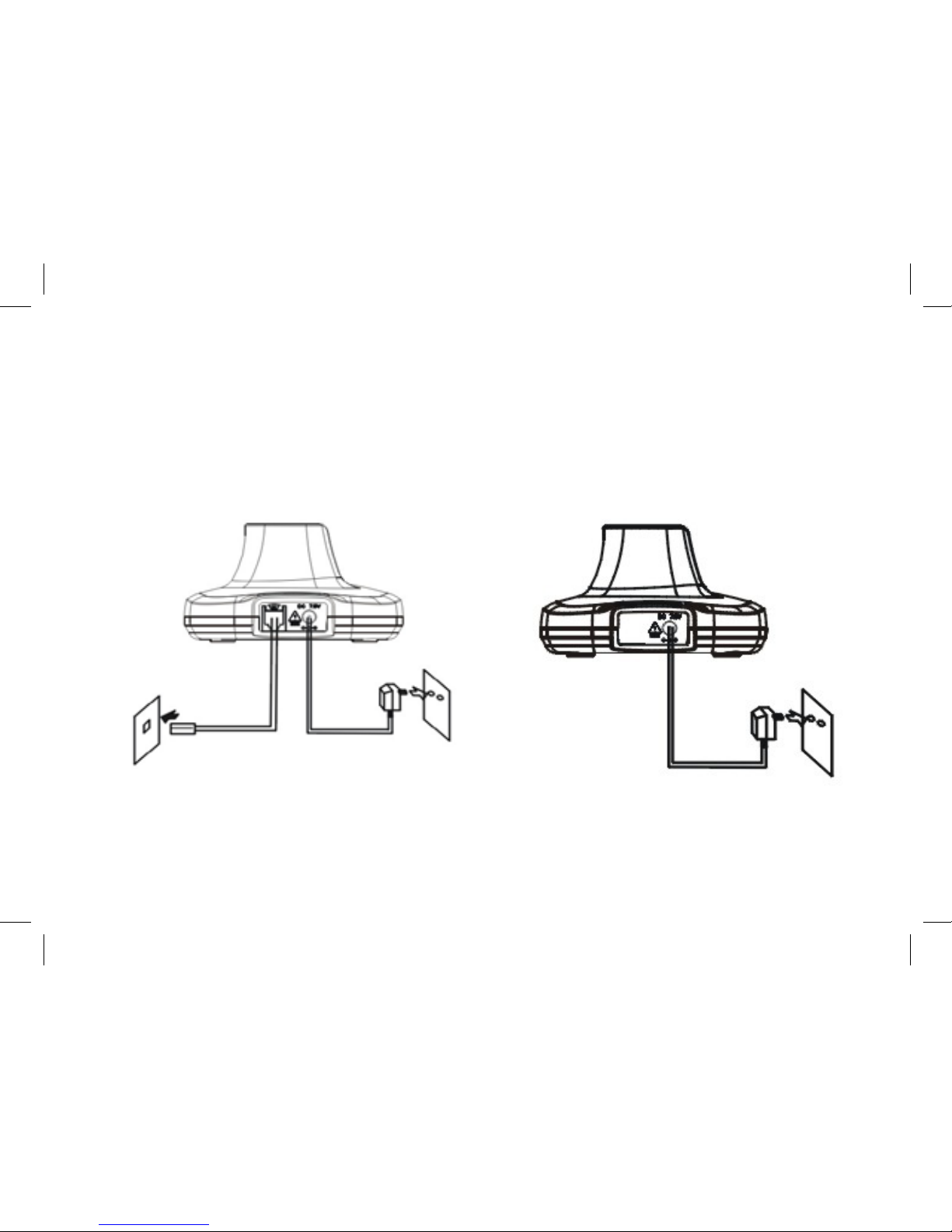

Installation Instruction
1. Connect the modular ends of the AC power adaptors to the power jack of the
base and charger, then plug the AC adaptors into standard AC wall outlets.
2. Connect one end of the phone line cord to the phone line jack of the base, and
the other end to a standard phone wall outlet.
To phone wall outlet
To AC wall outlet
To AC wall outlet

15
Doorbell/Intercom
1. Press in on the notch and slide the battery cover down and o.
2. Insert two C size alkaline batteries batteries, matching correct polarity (+, -).
3. Replace the battery cover, by sliding it into place.
Charge the Battery
#Reversing the orientation of the batteries may damage the unit.
#When replacing the batteries, always use good quality C size alkaline batteries.
#If you have installed the batteries, you do not need to connect the 12 V DC posi-
tive input and negative input.

16

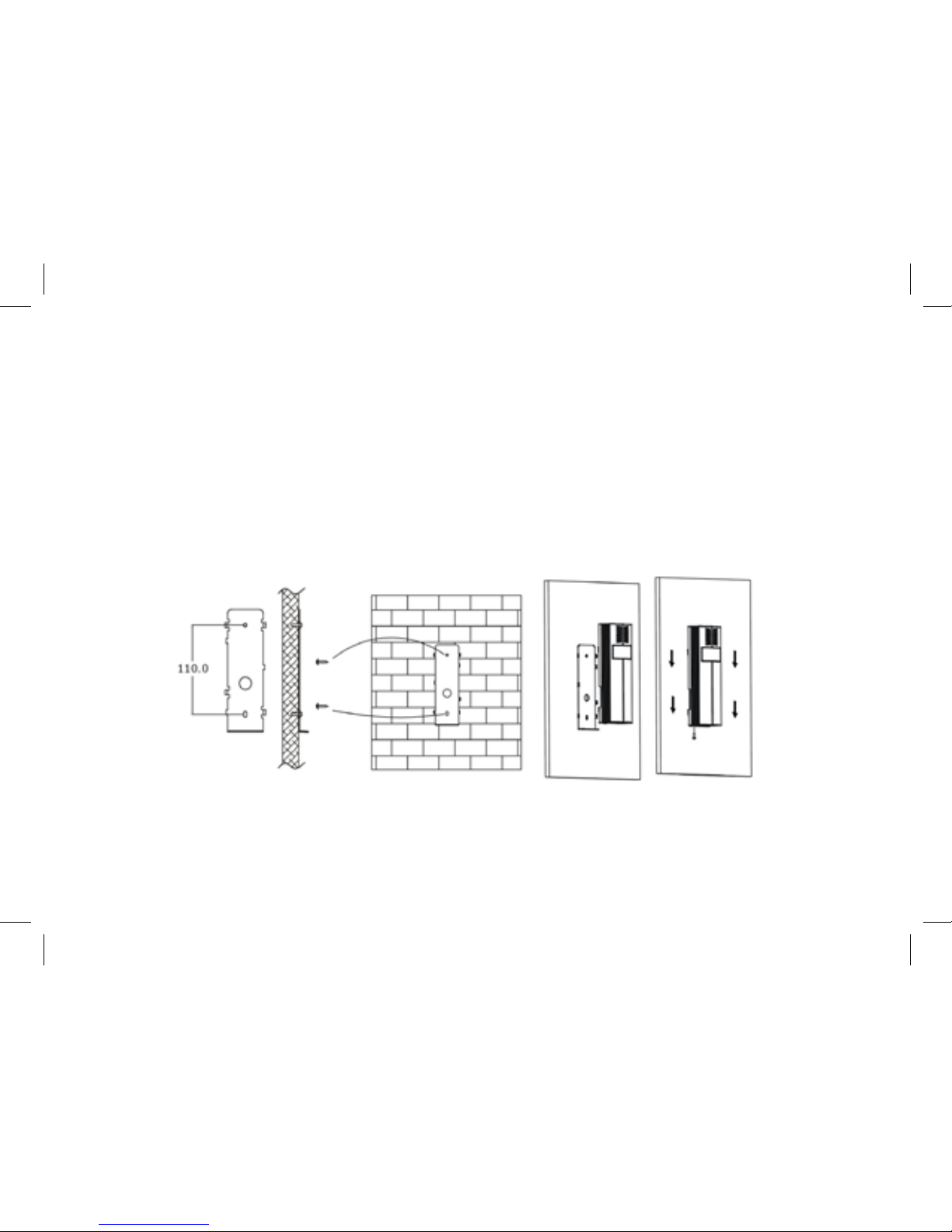

Installation Instruction
1. Choose a proper location for the doorbell. Be sure to consider the average
height of the visitors.
2. Place the iron mounting bracket on the wall and x it by drilling the screws.
3. Slide down the doorbell and nish the installation.
4. If you do not install two batteries, you should connect the 12 V DC Positive input
and negative input. If a trigger signal is required, for an optional door lock, then
connect the other two terminals.
#The silica gel plug on the rear of the doorbell is used to prevent the screws from
rusting. You should remove this plug before connecting the line. But after the con-
nection, remember to cover it again.

17
If the handset is in power o mode, when you place the handset on the base, it auto-
matically turns on. To turn the handset on or o in standby mode, follow these steps:
1. To turn on the handset when it’s o, press and hold the key until you switch
the display on. On power up, the handset will enter subscription mode and
search for a registered base. The LCD display will show “Searching”and the signal
icon will ash.
2. To turn o the handset, keep the key pressed until the display disappears.
If the handset is successful in nding a base, the handset will enter the standby
mode, the display will show the handset number or the handset name (if you
have one saved as described on page 26), signal icon, battery icon and current
time. If the handset is unsuccessful in nding a base, the handset will behave ac-
cording to the Out of Range condition.
Turning the Handset On/O
#When battery power is very low, if you place the handset on the base, the display
will show“......”. YOU SHOULD FULLY CHARGE THE HANDSET BEFORE USING.

18
CORDLESS PHONE
Basic Functions
Making a Call
1. Pick up the handset and press key.
The icon appears on the LCD.
2. Dial a telephone number.
3. To end a call, either press key or replace the handset on the base.
You can enter the desired phone number in the standby mode, which allows you to
make corrections before dialing.
1. Enter a telephone number (up to 32 digits). You can also use the key to insert
a pause.
2. When the number appears correctly, press the key.
#If you make a mistake while entering a number, press the to clear the last
digit.
#To make a call to the last number you dialed, use the Redial feature. For details,
see page 21.
All descriptions in this manual assume that the handset is in the standby mode. Set
the telephone to the standby mode by pressing the key

19
Receiving a Call
1. To answer a call, press the key. If you have activated the Auto Answer func-
tion, when the handset is on the base, simply lift up to answer.
2. To end the call, either press the key or replace the HS on the base.
After you hang up, the LCD displays the call duration.
When a new call is received, the call information will appear on the LCD.
If the caller can be identied, the caller’s phone number is displayed.
#You can select the ringer volume by using the or key when the phone
rings.
#If the polyphonic ring tone is set, the ring tone may continue for 4 seconds after
the caller hangs up or after the parallel phone has answered the call.

20
Ringer Setting
You can select a ring tone (external from the telephone network or internal from
other handsets registered to the base) and adjust the volume.
1. Press Menu soft key.
2. Press or key repeatedly to choose HS Settings menu, then press the
MENU/R
key.
3. Press the or key to choose Ring Setup, press the
MENU/R
key.
4. Use or key to choose INT Ring/EXT Ring, press the
MENU/R
key.
Muting the Microphone
During a conversation, you can temporarily switch o your phone’s microphone, so
that the other party cannot hear you.
•Press the key, during a conversation. The “Call Muted” appears on the LCD.
•To unmute, press the key again.
Adjusting Audio Volume
During a conversation, you can use the or key to adjust the level of the ear-
piece volume (or the handsfree speakerphone, if activated) from VOL1 to VOL5. The
selected volume will be displayed on the LCD.
You can also select the earpiece volume or the speaker volume by the Audio Setup in
Menu under HS settings as descibed on page 40.
