Uovision UM785-3G SMS 12MP Full HD
Wireless Camera Instruction Manual
For UM785-3G SMS 12MP Full HD Model
Declaration of Conformity to Directive 1999/5/EC
CE Caution:
Hereby, the manufacturer declares that this camera is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. Please ask for your
distributor for a copy of the Declaration of Conformity to Directive 1999/5/EC.
©Copyright 2017
Content
1 General Description..........................................................................................................................................................................1
2 Camera button info diagram.............................................................................................................................................................1
3 Installing batteries.............................................................................................................................................................................2
4 Purchasing SIM card.........................................................................................................................................................................3
5 Installing your SIM card and SD card..............................................................................................................................................3
6 Customizing camera settings...........................................................................................................................................................3
6.1 Formatting the SD card.........................................................................................................................................................3
6.2 Download U set......................................................................................................................................................................3
6.3 Setup with computer.............................................................................................................................................................4
6.4 Send a test photo...................................................................................................................................................................8
6.5 Camera mode settings..........................................................................................................................................................8
6.5.1 CAM TAB.....................................................................................................................................................................8
6.5.2 Camera Scene............................................................................................................................................................8
6.5.3 Video Mode............................................................................................................................................................10
6.5.4 PIR TAB..................................................................................................................................................................10
6.5.5 Work Time.......................................................................................................................................................................11
6.5.7 SYS TAB.........................................................................................................................................................................12
7 Control Camera byAPP via SMS................................................................................................................................................13
8 View or Delete photos on the color display...............................................................................................................................16
9 Trouble Shooting.............................................................................................................................................................................16
10 Tricks and tips on field setup.......................................................................................................................................................16
Appendix Ⅰ: Technical Specifications...........................................................................................................................................17
Appendix Ⅱ: Parts List.............................................................................................................Virhe. Kirjanmerkkiä ei ole määritetty.
Page 1
1 General Description
Congratulations on your purchase of UM785-3G Full HD scouting camera. UM785-3G Full HD is a powerful and
reliable performance 3G wireless camera.
Main features:
12MP invisible IR 3Gcamera
1080P H.264 video with audio
0.6s trigger speed
3G (WCDMA) network, faster transmission speed
Video/Full size picture transmission
Remote control via Android App or SMS
Support 1-10 burst photos
Support Wifi-SD card
No glow black LEDs with 15m range
Camera scene feature, including moving object settings
WeatherProof resistance IP54
2 Camera button info diagram
Figure 1 Front View Figure 2 Operation Interface
Page 2
Figure 3 Bottom View
Operation Panel
MENU: To enter the menu, the power switch should be on SETUP.
▲▼◄►: Navigation arrows. (“▲”is the shortcut to choose “Video”, while “▼”for the “Photo”.)
OK : Save parameter settings. Exchange between playback and preview.
►Shot: To capture a photo or record a video manually. (Click ►again to stop the video.).
Power Switch: OFF: turn off the power; SETUP:change camera settings; ON: enter working mode.
3 Installing batteries
To supply power for the camera, 4, 8 or 12 sizeAAbatteries are needed.
Confirm that the power switch is on the OFF position; load the fully charged batteries into the pack according to
the polarities signs shown below.The following batteries with 1.5V output can be used:
1. High-density and high-performance alkaline batteries (Recommended)
2. Rechargeable 6V external battery
There are 6 battery slots. Slot 1 and 2 form one group and is marked “1”, slot 3 and 4 form the other group and
is marked “2”, while slot 5 and 6 form the other group and is marked “3”. Single “group” of batteries is needed to
supply power to the camera, but both can be used and is recommended.
Figure 4 Battery Config
Page 3
4 SIM card (Dataplan speed, PIN code OFF)
The camera is designed by using 3G cellular network to send MMS photos to any phone number or email address
instantly once the photo or video is taken.
-Make sure thatyour SIM card 3G dataplan provides atleast 21Mb/s transmission speed
-Be sure that the PIN Code is OFF from the SIM card before inserting SIM card to camera. (You can disable
the PIN of a SIM card via your mobile phone.Then reinsert the card into your camera)
5 Installing your SIM card and SD card
UM785 camera has no storage space to store pictures. You need to insert a SD memory card to let the camerawork
correctly. SD and SDHC (High Capacity) cards up to a maximum 64GB capacity are supported. Using high speed
SD cards (SanDisk3 Ultra3 or Extreme3 series or similar) is recommended if you will use the 1280x720 or
1920x1080 video settings.
Make sure the power switch is at OFF position before you insert SIM card or SD card into camera. You can use any
SD card size up to 32G.The camera will not turn on without a SD card inside.
Before you switch camera to ON mode, please double check that the write-protect switch on the side of the card is
“off” (NOTin the “Lock” position).
NOTE: Every photo taken by this camera will be saved to SD card even those have been sent out wirelessly to the
recipients. You will always have access to high resolution photos on the SD card. SD card can be over written to
ensure cycle use
6 Customizing camera settings
6.1 Formatting the SD card
Press MENU button, then choose SYS tab. Navigate down by pressing the ▼ button until the FORMAT option is
highlighted and press OK then choose Yes to format.
Figure 5
6.2 Download U set
Select the NET tab and navigate down to the DOWNLOADTOOLand press OK. Shown as Figure7 and Figure8;
-Turn the camera off
-Remove the SD card from your camera and insert into your personal PC card reader
-Locate the SD card reader in your computer
Page 4

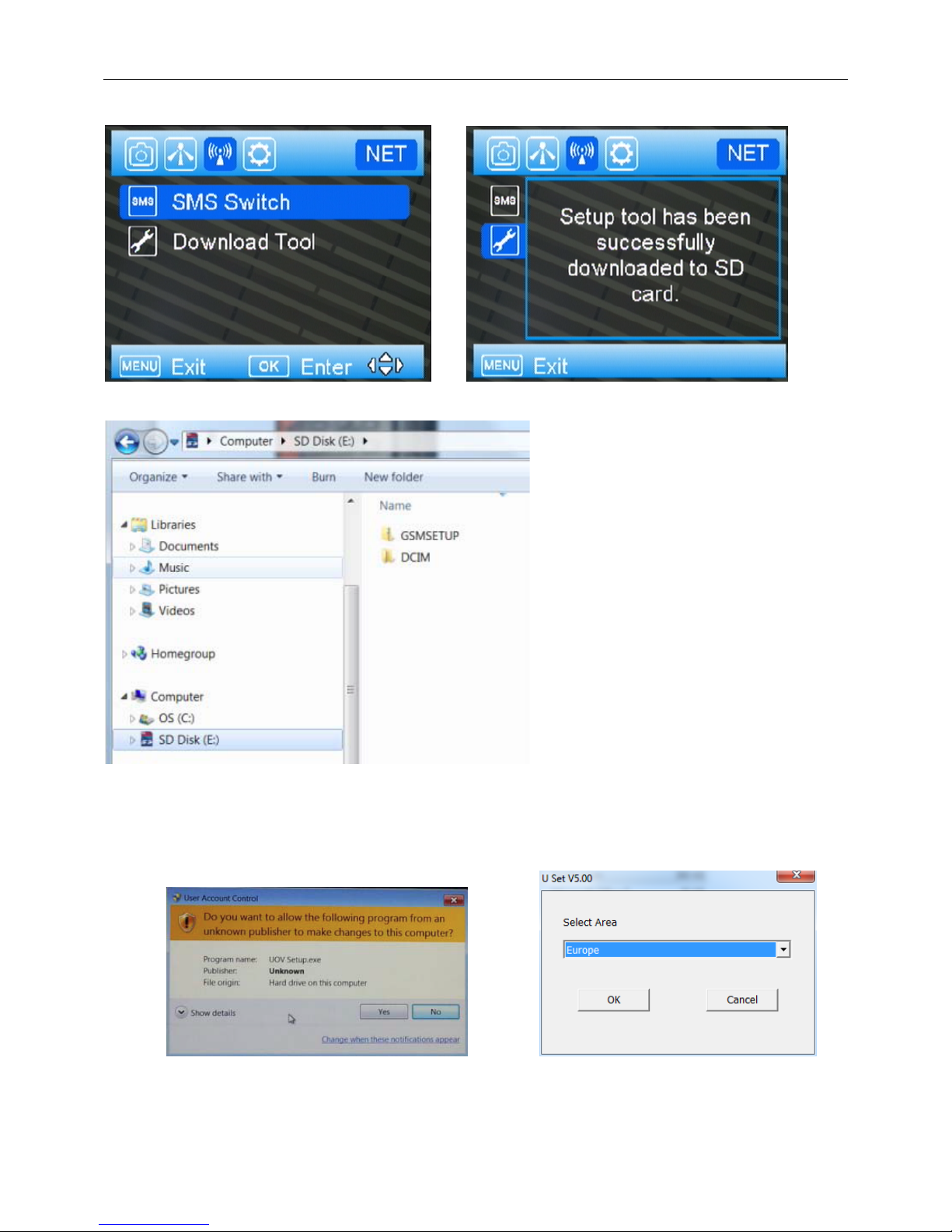

Figure 6 Download Tool Figure 7 Download successful
Figure 8 GSMSETUP
- Unzip the GSMSETUP file to get the USet application
6.3 Setup with computer
After double click U set, you may see a warning box like below. ChooseYES to continue.
Figure 9 Warning box Figure 10 SelectArea
You will see the above screen for selecting area (Fig.10), then setting up window will shows up;
Page 5
Setup starts from choosing operator parameters for your camera.There are three ways to setup your camera.
Fill in the "E-mail" setting box before doing other settings, shown below in Fig.11. Then choose Auto in the
parameter settings shown in below in Fig.12. Fill in rest of the needed information such as e-mail, phone etc. Note:
the advantage of this way is that if any change on SIM card for the camera in the wood, you don´t need to bring
camera back to home.
Figure 11 functionAto set up camera
Figure 12 phone number and email address
Note: when entering phone number, make sure you do not enter any spaces or dashes
Page 6
Choose your country and select operator, set sender email, then fill in rest of the needed information like e-mail,
phone etc.
If your personal cellular provider is not on the list, you can customize all the parameters by choosing Other in
operator parameter, you can look all the MMS and GPRS information online or call your operator customer service,
and fill in the blanks;
If the default set sender email is not working in your country, please select Other in Sender email settings shown as
below, and put your personal email account in the sender email.
Note: the sender email should be different from receive email;

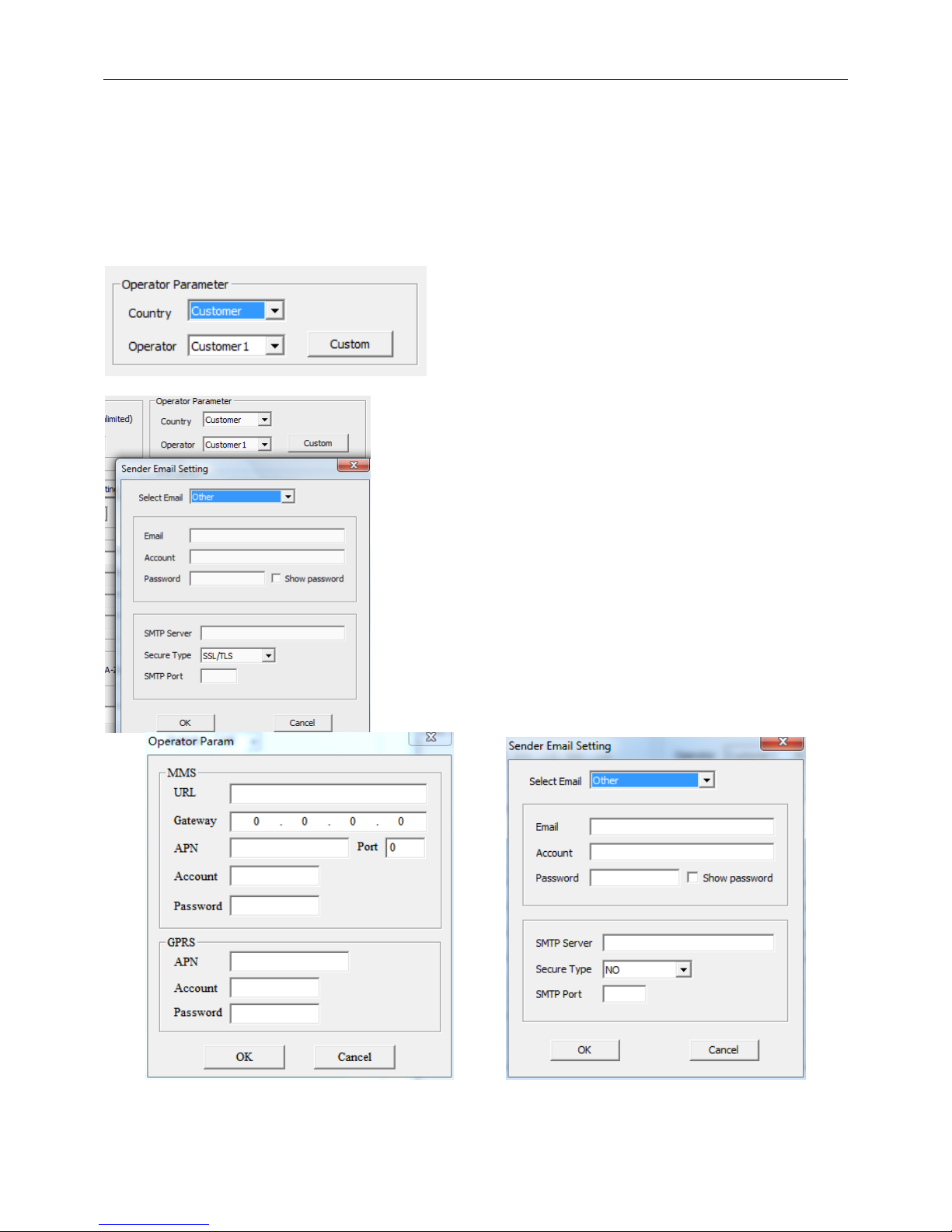

Figure 13 customize operator parameter
Figure 14 customize operator parameter Figure 15 customize sender email
Then fill in the blanks with your phone number or email addresses.
Page 7
GMAIL EXAMPLE:
Please insert to E-MAILSETTING table following SSL Protected Gmail settings:
Password Your Gmail password here!
SMTP server smtp.gmail.com
Secure Type SSL/TLS
SMTP port 465
Important! Gmail account settings change:
When you are logged in to your own Gmail e-mail account for example with your home computer,please go with the
internet web-browser to following Gmail settings page
www.google.com/settings/security/lesssecureapps
Then click: "enable"
Now your camera is able to use your own Gmail account as a sending e-mail address and photos/videos are
sended using via your own Gmail account.
After finish customizing all the settings, make sure to save your path directly to SD card root, then it will generate a
‘profile .bin’ file in SD card;
Figure 16 Save to SD card root
Insert the SD card back to camera, switch camera to setup, then you will see ‘update success’shown on the screen;
Send Mode:
Figure 17 Send mode Figure 18 Instant
a. INSTANT: If you want the camera to send every photo instantly, you need to choose this option. You can control
Page 8
the numbers of photos that are sent to your device or email every day. If you want to limit this, set the maximum
number.If you want it to send every photo regardless of the number of photos each day, set this value to 0 (zero)
b. Daily Report: This option only sends you the last photo taken each day with a report of all the other activity during
the day at the preset time.
c. Instant & Daily Report: Camera will send every photo choose this option if you do not want the camera to send
out the photos taken.This will make the camera perform just like a normal trail cam.
d. Off: choose this option if you do not want any photo be sent out
Send to:
a. Phone: Choose this option if you only wantthe photos sent to phone numbers
b. Email: Choose this option if you only want the photos sent to chosen e‐mail addresses.
Note：For your information security, please click Email Set button to change the default sending email address to
your own sending email address. Thanks.
Edit Phone: you can add or delete phone number from here.
Recipients: you can double check the receive phone number and emails from here.
SMS switch: you can require photo or change settings by sending a SMS command code. Choose the ON option if
you want to be able to control the basic functions of your camera by APP from your phone. If you do not want to
have wireless control, you can leave the option at OFF. Also you can preset working time, then SMS command only
work during that time.
6.4 Send a test photo
1) Switch camera to Setup mode, press ► button to take a picture, then press OK button to check this picture;
2) Press the MENU button, choose send.You will see sending progress shows on the LCD screen.
Once you see send successful, check your email accountor phone see if you receive the correct photo.
6.5 Camera mode settings
6.5.1 CAM TAB

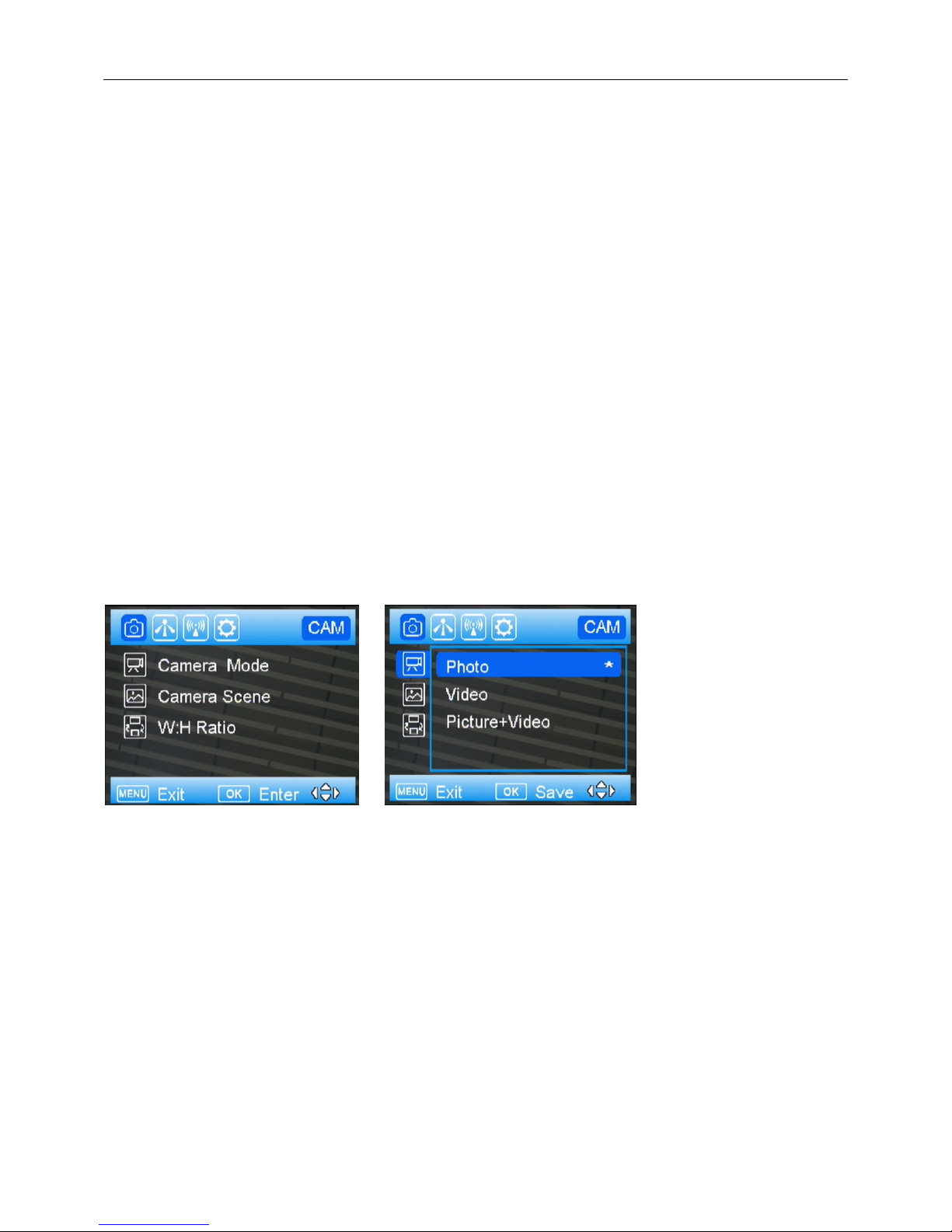

Figure 19 CAM menu Figure 20 Camera mode
Press menu button, then you will see the screen shown in Fig.19, press ▲▼ button to highlight the option, then
press OK to select.There are always a ‘*’ shows up beside every selected option.
6.5.2 Camera Scene
UM785 camera has rich camera scene settings, including moving object and close object, with the help of camera
scenes, you can easily choose different combinations of shutter speed and exposure time according to particular
cases.
Page 9
Figure 21 Camera scene(A) Figure 22 Camera Scene(B)
Camera Scene
Description
Auto
Thisoptionisappropriatefor mostoftheuse.
We recommend
this
option
for
quick
setup camera. It takes 8MP photos in daytime and 3MP photos at night.
Close objects
This
option is suitable for object
which
is within the
distance
between
3m
and
5m.
The IR flash is dimmed to prevent excessive exposure.
Note:Keep in mind that the focal distance of the camera is 3m(10ft) to infinity.
Moving objects
This option is to reduce m
otion blur
when capturing fast moving objects
.
Still objects
Th
is option give a relatively slow
shutter speed
to
get
a
brighter
picture.
Chasing Photo
This option allows PIR triggered up to three times within 15s, without constraint
ofthe PIR interval.
2Bursts(
A
+M)
Your camera can take a
2
shot burst every time the PIR is triggered to take a
photo. One is using Auto scene, the other one using Moving objects scene to
take a no blur photo. It’s useful for home surveillance usage. “A” means Auto, ”M”
means moving.
3Bursts(
A
)
To take 3 continuous photos after one trigger.
Also, you have access to custom settings just by clicking customize. See Fig.23.
Photo Size:1.3MP, 3MP, 8MP, 12MP
Flash Power: Low/Medium/High.
Photo Burst: 1-10
Figure 23 Customize
Page 10
6.5.3 Video Mode
When you set Camera Mode as Video, then you will see these submenu shows up.
Video Size
Select video resolution (in pixels per frame). Higher resolution produces better quality videos, but creates larger files
that will take up more SD card space and fills it up faster. It provides Full HD 1080P (1920x1080, 30fps), HD 720P
(1280x720, 60fps) and WVGA(848x480, 60fps) videos. Default set is 720PHD.
Figure 24 Video Size Figure 25 Video size
Video Length
Video length is the length per captured video clip. The video length is from 5s to 60s. The default setting is 10s. For
saving power, it is better to set video length within 10 - 20s
NOTE 1) For saving flash power, it is suggested to set video length within 10s if video sending is ON!
NOTE 2) For the cold winter climate, it is recommended connect the camera to 6V external battery!
NOTE 3)If the 10 seconds video sending is ON and available battery power is minimal, camera switchs
automatically to STILL picture sending! Please secure sufficient power for the camera
Figure 26 Video Length Figure 27 Video Length
6.5.4 PIR TAB
Trigger Mode
There are 3 trigger modes: PIR trigger，Time lapse and PIR trigger &Time lapse.
Page 11
Figure 28 Trigger Mode Figure 29 Trigger options
PIR trigger
When choose PIR trigger, the PIR is active. Any motion (animals or humans) that is detected by PIR will trigger
camera to capture a photo or video according to the preset PIR sensitivity and PIR Interval.
PIR Sensitivity
The camera monitors temperature of ambient conditions. Auto is camera automatically adjusts the sensitivity of
sensor/trigger signal, on cold days it is ok to choose Low, on hot days it is better to choose High to be more
sensitive to slight variations in temperature.
PIR Interval
Allows you to customize how often the PIR sensor can be allowed to work. This prevents the card from filling up with
too many redundant images. Options are 0-60 seconds (5 second increments) and 1-60 minutes.
Time lapse
When choose time lapse, camera takes photos or videos even when it is not triggered by a nearby live animal,
useful for constant monitoring of an area that might be far away from the camera. The interval time between each
photo/video is set in submenu Time Lapse. It sets the time lapse interval between each photo/video, when the
trigger mode is Time Lapse or both. The time options include 5-55 seconds (in 5 second increments), 1-5 minutes
(in 1 minute increments), 5-55 minutes (in 5 minute increments), 1-8 hours (in 1 hour increments) and 24 hours.
Both
It means PIR and Time Lapse are both active.
For example: Someone placed this surveillance camera in a country park entrance, selected both, set the PIR
interval as 5 second, set the Time Lapse as 4 hours, means that in addition to every 4 hours automatic field scan
shooting.
6.5.5 Work Time
The camera can just work at a preset time and preset days. In the rest of the time the camera is under standby
mode.
There are four work time can be set, see Figure 30.
Page 12
Figure 30 Work Time 1 Figure 31 Work time menu
On: It means enable the work time function. Off: It means the camera will work all the time.
If you want set two different time periods, please set more than one Work Time.
6.5.7 SYS TAB
Set Clock
Enter to set the date and time.
Figure 32 SYS menu Figure 33 Set Clock
Password
Use “▲”“▼”“►” to set the password, and press OK to save it. The default password is 0000. In case you forget
your password, make sure you write down your password or save it to your mobile phone so you can access your
camera ifyou ever forget your password.This is a very important security feature.
Rename
In order to distinguish one camera from others, you can rename your camera. The character is from”0”to”9” and ”A”
to ”Z”. The max number of character is 8. Use “▲”“▼”to select the character, and press OK to save it. The new
camera name will be printed on time stamp.
Figure 34 Figure 35
Page 13
Wi-Fi SD Test
You can enable wifi function by select this option. Before you use Wifi SD card to transfer photos, please make sure
you already downloaded a certain app to smart phone. With the certain Wifi transfer app, you can send photos &
videos from your SD card to your Android phone or tablet, or share them on your favorite online site. Your Wifi SD
card will automatically upload your photos & videos to your Android device — no cables, no hassles! Further
information please refer to SD card supplier.
Beep
When the Beep is on, every button you pressed, there will be a sound notifies you that an action just be done. Also
you can turn it off to mute this sound.
Overwrite
The Over Write function will save new photos over the old photos on your SD card if it becomes full. Each time a
new photo is taken the oldest photo on the card will be overwritten, however the camera may not continue to send
pictures once the SD card is full.
Format SD card
Deletes (erases) all files stored on a SD card to prepare it for reuse. Caution! First , make sure you have
downloaded and backed up all the photos you want to preserve!
It’s recommended to format the SD card when first used in this camera, especially when the SD card has been used
in other devices
Default
The Default Set resets the camera to factory settings.
Software Version
It shows the firmware version of the camera, for manufacturer’s use only.
7 Control Camera byAPP via SMS
You can control many of the basic functions of your camera from your cell phone by Android / iOS APP or text
message when camera switched to ON mode.
IMPORTANT NOTE: the SMS switch MUST be set to ON in the NET set‐up for the SMS function.
The number which has control of this function (command phone number) is the one in the first position of the phone
number list.

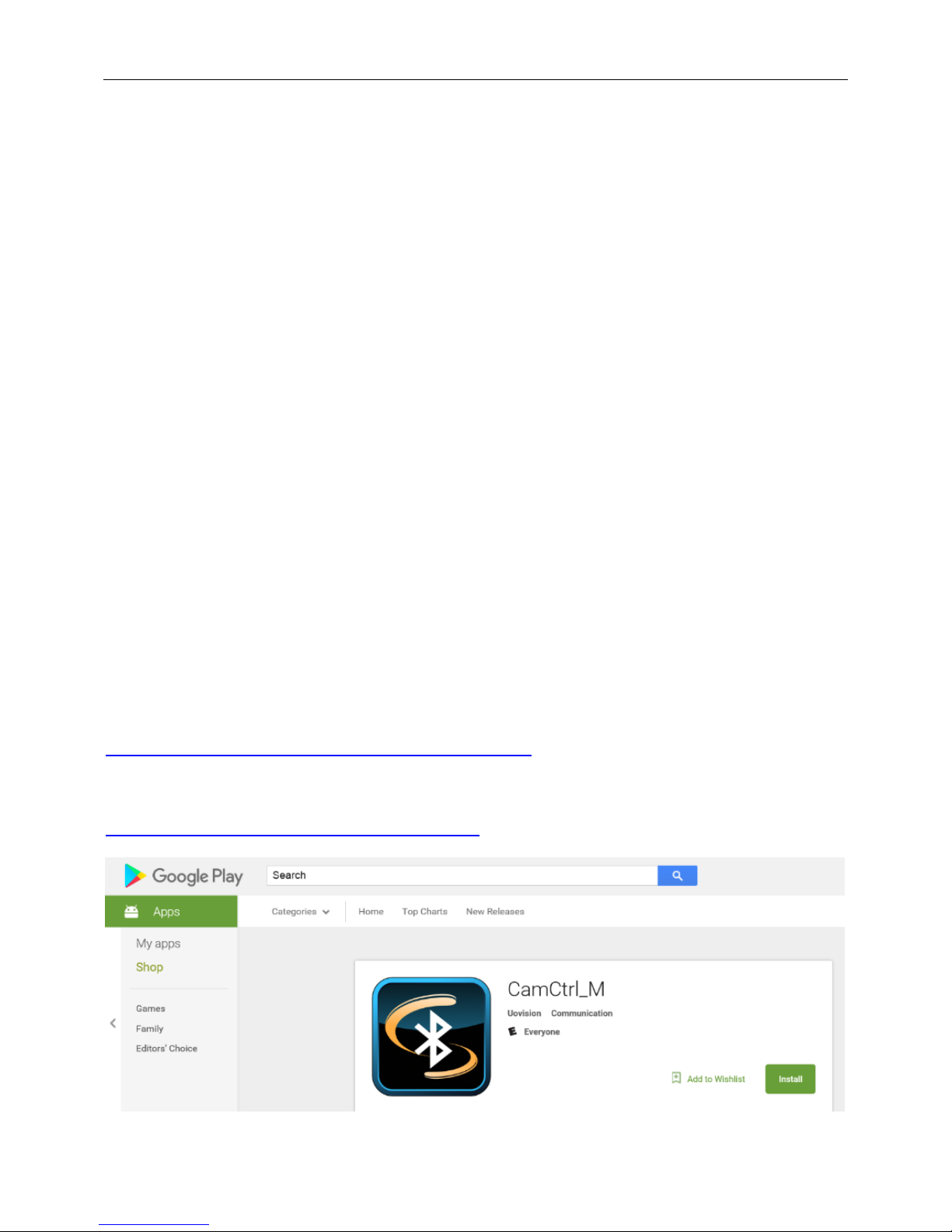

AndroidAPP: Please search ’UOVision’ or ’CamCtrl_M ’in Google play and install theAPK file to your smart phone.
https://play.google.com/store/apps/details?id=com.uovision.camctrl
iOS APP: Please download following APPfrom Apple store and save most used SMS commands inside to the APP.
Most used commands are listed in pages 14 – 15
https://itunes.apple.com/us/app/sms-rc/id663030672?mt=8
You can control the following functions on your camera viaAndroid / iOSAPP.
Page 14
Figure 36 CamCtrl_M
Fig 1
There are 2 main panels as below. Slide the phone screen to change between the panels.
Fig 2
Note: If you set Wireless Status to OFF, you will not receive photos or Daily reports to your phone or e‐mail. You
also can’t get any response of other SMS commands. Just Wireless ON command can be responded when the
Wireless Status is Off.
Page 15
Incase if you want send SMS commands to camera by normal text messages, below are few most common used
SMS commands:
SMS commands UM785-3G
Command Function
#110# Take picture andsend it
#360# Location
#370# Camera status request
#330#1#5# 5sec HD video capturing: res 720PHD / 5 sec
#330#1#10# 10sec HD video capturing: res 720PHD / 10 sec
#310#0# Camera mode: Still pictures
#310#1# Camera mode: Video imaging
#310#2# Camera mode: Still + Video
Camera scene options (Auto):
(0 =Auto, 1 =Close object, 2= Movingobject, 3 =still object, 4 =2 pulse, 5= 3 pulse 6 =Searching object)
Example:
#320#0# Camera sceneAuto (0)
Camera scene customize settings: oRESOLUTION (0 = 1.3MP, 1 = 3MP, 2 = 8MP, 3 = 10MP, 4 = 12MP)/
oFLASH POWER (0 = low, 1 = normal, 2 = high) /
oPULSE (0= 1 pic, 1 = 2pics, 2 =3 pics, 9 =10 pics)
Example:
#320#7#4#1#2# Custom settings: 12MP (4), Flash powernormal (1), Pulse 3 pics (2)
WiFi SD card support:
#140#0# WiFi SD card ON
#140#1# WiFi SD card OFF
Remote and sending:
#240#0000#0000# SMS remote ON 24h
#240#1830#2030# SMS remote ON for example between 18.30 – 20.30
#220#0#10# Instant sending, max 10pics per day (value0 = unlimited sending, other values 1-99)
#220#1#2030# Daily report 20.30
#220#2#10#2030# Instant sendingmax 10pics day +Daily report 20.30
#230#0# Send to phone byMMS
#230#1# Send toe-mail bye-mail sending
#230#1#0# Send to e-mailwithhigh resolution (Big picture/Video)
#230#1#1# Send to e-mail with low resolution picture
PIR (m1 = 1 minute, h1 = 1 hour, sensitivity: 0 low, 1 = auto and 2 = high):
#350#0#m1#2# PIR delay 1 minute, High sensitivity
#350#0#m2#2# PIR delay 2 minutes, High sensitivity
#350#1#h24# PIR sensor OFF, sends automatically 1 control picture (system check) per day
#350#1#h1# PIR sensor OFF, sends automatically 1 control picture (system check) per hour (h1)
Example
#350#0#m3#1# PIR delay 3 minutes, SensitivityAuto
PIR sensor and Time-Lapse ON together (m1= 1minute, h1= 1hour, sensitivity: 0low, 1 = autoja 2= high):
Example
#350#2#m2#2#h24# PIR sensor ON + PIR delay 2min (m2) + PIR Sensitivity high (2) andTimeLapse one picture per day (h24)
Example 2
#350#2#m1#1#h12# PIRsensor ON+ PIR delay 1min (m1) and PIR SensitivityAuto (1) andTimeLapse picture every 12hours (h12)
Adding users:
#210#MobileNumberHere# Adding phonenumberif MMSsending chosed
Page 16
#211#EmailAddressHere# Adding e-mail address if e-mail sending to e-mail address is chosen
8 View or Delete photos on the color display
You can view your photos on the color display when in the field. If you want to do this, make sure the Power switch
is setted to SETUP. Press the Play button.You can use the ◄► buttons to toggle through the photos.
If you see photos you want to delete, press the DEL button. Use the ◄► buttons to toggle through YES or NO.
Press OK to delete it
Press the Play button again, you can back to the main screen.
If you want delete all photos one time, press from main screen, then press MENU. Choose Delete item, and
use ► to select delete all. After delete all the photos, press again to back to the main screen.
9 Trouble Shooting
COMMON ERROR MESSAGES:
“SEND FAIL”
“NETWORK BUSY”
Reasons for error:
1) The service in your area is not sufficient to run the camera.
2) There is an error when setting up the SIM card or it’s locked.
3) Your dataplan for SIM card is not sufficient (too slow speed from the operator)
Suggestions to remedy:
1) Re‐do the UOV Set‐up to make 100% sure there aren’t any mistakes, check to be sure the numbers and e‐mail
addresses are correct.
2) Contact your network provider and make sure your SIM card is aText Feature Package only and is UNLOCKED.
3) If it’s a cellular service issue you may need to purchase a booster antenna to help boost the signal. These can be
very effective in boosting the signal to your camera in a poor signal area.
“Network Busy:”
Reasons for error:
1) There is a problem with the phone number or email addresses.
2) There is not enough money on the SIMcard plan.
Suggestions to remedy:
1) Re‐do the UOV setup. Make sure there are no mistakes.
2) Sometimes you need to go back to just one phone number or e‐mail address at a time to find where the error is.
Test with just one and if it works, then add more and test.
3) Call in and re‐up your text plan with more texts.
Cannot access the SETUP menu:
Reasons for issue:
1) This only happens if you don’t have a SD card in the card slot or if the SD card is corrupt.
2) Batteries are too low
Suggestions to remedy
1) Install a SD card or Install a new SD card
2) Replace the batteries.
10 Tricks and tips on field setup
For best results, mount the camera approximately 1.3m/4ft off the ground facing straight forward as level as
possible.
- To enhance the flash, we recommend positioning the camera in an area with a backdrop to reflect the maximum
amount of light. For instance, place the camera 7m-10m/20ft‐30ft from a field edge facing the woods. For the inside
of timber, positioning the camera facing a thicket approximately 7m-10m/20ft‐30ft away.
- Try to set the camera up so it’s not facing directly into the sun either in the morning or the evening when game
movement is at its peak.
Page 17
Appendix Ⅰ: Technical Specifications
Picture Resolution 12MP, 8MP (Interpolated), 3MP, 1.3MP (CMOS 5MP)
Lens F/NO=3.0 FOV (Field of View)=52°
Frequency Bands UMTS/HSPA+: 900/2100MHz
GSM/EDGE:850/900/1800/1900MHz
IR
-
Flash
50% (
6m
)
,
100%
(
12m
)
Display Screen 2.4” LCD
Memory Card Up to 32GB
Video Resolution WVGA,720P,1080P
PIR Sensor Multi Zone
PIR Sensitivity Adjustable (High/Normal/Low)
Trigger Time 0.6s
Operation/Storage Tem. -30 - +60°C / -40- +80°C
Trigger Interval 0s – 60 min.
Time lapse
5
‐
55 second (in 5 secondincrements)
1
‐
59 minutes(in 1 minuteincrements)
1-8 hours (in 1 hourincrements)
12 hours/16 hours/20hours/24 hours
Photo Burst 1–10
Video Length 5–60s
Power Supply 4×AA, 8×AA or12AA
Stand-by Current < 0.25 mA (<6mAh/Day)
Low Battery Alert LED Indicator; SMS alert
Mounting Rope/Belt/Pythonlock
Dimensions 140 x87 x55mm
Operation Humidity 5% - 90%
Security authentication FCC, CE, RoHS
Appendix Ⅱ: Parts List
Part Name
Quantity
Digital Camera
One
Belt
One
User M
anual
One
Antenna
One
Page 18
Customer Name:
ContactTel:
Date of Purchase:
Series No:
Fault Description:
Retailer:
The camera manufacturer provides 12 months of warranty service for this product against manufacturing defects or
malfunctions. If your camera fails to function under normal use within 1 year, the camera manufacturer will repair or
replace the camera at no charge. The purchase receipt must be included from an authorized retailer to validate the
warranty. Improper use of the camera resulting in damage is not covered by this warranty.
The camera manufacturer can provide repair service, after the warranty expiration. The customer will be responsible for
any charges on parts, labor and shipping costs. Please contact the manufacturer for more details. Please contact the area
distributor for more details.
Table of contents
