1 Precaution
● please read this manual carefully before the installations and operations.
● Transportation Security
No heavy stress, violent vibration or water splash are allowed during transportation, storage. The
unit should be transported in separated packing. In shipments of distributor and delivery of
maintenance, any damages caused by integral packing are not covered by warranty.
● Installation
Avoid heavy stress and violent vibration during installation. Don’t touch the camera cover directly
by hand. When connecting the power source, please follow all electric safety standards and only
use the power supply designated for this device. Keep the video and control signal in a decent
distance from high voltage devices and cable. Don’t apply power to camera before finishing the
installation.
● Internal Environment
Keep metal and inflammable material away from camera body to avoid fire short circuit and
damage. Please prevent all liquids material from entering the camera. If this occurs, please shut
down the power and pull out the plug-in. Then please inform the technical personnel immediately.
● Electrical Safety
The video image would be interfered when the camera is installed near Television, radio
transmitter, voltage changer and audio amplifier.
● Camera Protection
Avoid shooting very bright objects directly into the camera’s CCD (such as the sun or light fittings)
and avoid fixating the camera lens on bright static object for long time, as it will cause Irreparable
damage to the camera’s CCD.
● Cleaning Method
Please don’t use abrasive and violent detergent to clean the camera. Please choose dry fabric and
neutral detergent. And please use lens paper to clean the lens.
● please use our production under the following environmental standards:
2 Product Overview
2.1 Features
2.1.1 Special Features
●High Definition
H.264 compression algorithm, save the network bandwidth and hard disk storage space, aspect

2
ratio of 16:9 and 4:3 adjust at will; h. 264 main profile levels and M - JPEG video streaming can
be output at full frame speed. Support for dynamic coding parameters adjustment
●Fix/Veri-focus/Automatic focusing
With 20 x optical zoom, more than 20 times digital zoom and autofocus function, not only can
provide an ideal field of vision, but also can realize perfect automatic focus
●Double stream free switch
Support the double stream, choose the main stream or sub stream according to different
application.
●Supported protocols
Support TCP/IP、PPPoE、DDNS、FTP、UPNP 、Onvif,etc
●Voice intercom function
Support Voice intercom
●Alarm function
Support the local and network linkage signal; Provide area, mobile sensitivity detection alarm,
regional block alarm
●ROI function
Stream concentration makes the drawing region clearer, suitable for condition of the lack of
stream.
●OSD function
Support camera picture character superposition
●Power-down memory storage function
Camera stays on some location meeting for time limit before power-down, when camera is
power-on, it will back to the former location before power -down
2.1.2 Function Introduction
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 360o/S (high speed IR speed dome)
• Pan 0.5o~35o, Tilt 0.5o~35o, Preset: 35o/s (for Vari-speed IR dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule
• Built-in Semi-conductor heater & digital temperature sensor
• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours, 10 Mins memory, 500 programmable instructions

3
• Multi-Protocol through RS485 or coaxial cable.
• 8 auto scan with use-defined left and right boundaries and settable scan speed
• 8 Privacy Zones with defined English camera title
•Auto Compatible PELCO_P, PELCO_D compatible
• Guard Location: the dome will rotate back to preset position after a period of vacant time
• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
• Soft Address Function: the use can set up the dome address without uninstall the dome
2.1.3 Integrated Super Speed PTZ Rotator
• Delicate stepping motor, stable, sensitive and accurate
• 360°Pan and 90°Tilt range (auto-flip) without blind area
• Stepless speed change, auto zoom/speed matching
• Near / far IR Light auto matches camera zoom in/out
2.1.4 All-weather outdoor design
●IP66 Protection standard
●TVS 3000V Protection standard
In this section, the text describes the main functions of the infrared PTZ camera and its
implementation of general principles, not involving the specific operation method. Generally
manufacturer’s operation manual shall prevail, in some cases there will be some special
requirements and operation method, please contact the dealer to obtain the necessary
information.
● Preset Position Set up and Call Up
In the Preset function the camera stores the current pan/tilt angle, zoom and other position
parameters in its memory. When necessary the camera recalls these parameters and adjusts the
camera to a particular position. The user can store, recall and clear the presets easily and promptly
by using the keyboard controller. The camera can store up to 256 presets.
● Auto Scan
Users can set up the left and right boundaries by control keyboard. Then camera can scan
between these boundaries. It supports up to 8 groups of scanning paths.
● Cruising Track
The preset position can be programmed to be recalled in a set of sequences. This sequence
can be set to let the camera scan from one position to the next in a cycle at a set speed. This
feature is called the “auto cruise”. The cruise sequence and dwell time of each preset can be set. It
supports up to 8cruising tracks, each cruising track with 32 presets.
● Pattern Tour
Camera can memorize 600S running path or 500 programmable instructions. When start pattern
tour, camera will move automatically according recorded action path. It supports 4 groups of
pattern tours.

4
2.2 Technique Parameter
Technical Data
Power Supply:
DC12V+10% 50W
Decoder:
Built-in
Manual Speed:
Pan:0.01o～360o/S, Tilt: 0.01o～120o/S (high speed)
Pan:0.01o～100o/S, Tilt:0.01o～100o/S (Vair-speed)
Preset Speed:
360o/S (high speed) / 100o/S (Mid-speed)
Pan Angle:
360o continuous pan rotation
Tilt Angle:
90o(Auto Flip)
Number of Preset:
256
PresetAccuracy:
+0.1o
Alarm input/output:
4input,2 output
Auto Scan:
8 auto scan tracks, user-defined left and right boundaries and scan speed
Auto Cruising:
8 cruising tracks, each cruising tracks has 32 preset positions,
user-defined dwell time
Pattern Tour:
4 patterns, up to 500 instructions per pattern
Guard Location:
The dome will rotate back to preset position after a period of vacant time.
Operating Humidity:
0～90%
Operating Temp:
-35oC +60oC
2.3 OSD Menu operation
● Call up OSD menu
Call Preset 95 to enter the main OSD menu; call Preset 96 to close the OSD menu or
Select “Exit”
● Confirm
The “Left "and “Right "button is controlled by PTZ can change the required item, and the
changed item is the confirmed one without further confirmation. You can directly click “Up"
and “Down" button to go on your further operation. When setting the left and right boundary for
scan and pattern, you can click the “Focus Far" for confirmation.
● Cancel
The “up” and “down” button controlled by PTZ carry out the request for Further action;
meanwhile, it carries out the “Cancel” order for last operation.

5
3 Web Browse Operation Guide
3.1 Common Operations
Factory settings：
IP speed dome camera is a kind of network equipment, you need configure network IP
address, gateway and other information reasonably, and camera with default IP address in factory,
and user could change it according to their requirement.
Default IP address：192.168.0.99
Subnet mask：255.255.255.0
Gateway：192.168.0.1
WEB port：8000
Network parameters
Take the example of Windows XP operating system. Make sure the IP address in network
parameters of the user computer is in accordance with the one of the camera, they are in same
segment, the IP address in the same LAN cannot be the same, otherwise, it will interfere with
each other, causing the equipment couldn't operate normally.
After setting IP address, you could test whether it has been connected between the computer and
the camera by using the PING order from clicking the “start”-”run" button in the bottom left
corner. The format of the command: ping 192.168.0.99
If the screen shows like this:

6
As the picture shown above, it indicates that it has been successfully connected between the
computer and the camera. However, if the screen shows like this:
It indicates equipment is failure to install, you could check from the following aspects:
●If hardware connection is correct
●If computer TCP/IP is in the same segment as the camera
●If network forbid ping order, please connect network administrator
3.2 Web Login
3.2.1 Login
Enter IP address (default: 192.168.0.99) to open the interface, dialog box as follows comes out:
◆user name：admin
◆password：admin
Picture 2.2.1-1 login interface

7
◆Port：Default 8000
3.2.2 Download playing component
After you logged in, if the WEB browser indicates it is the first time of visiting or plug-in
reminds you of the update of the new version. （See 3.2.2-1). Double-click this plug-in and it
will remind you of the downloading process. Or you can double-click the icon at the top-right
corner of the login interface. Double-click the downloaded WebPluginInstaller.exe and start
install the playing plug-in for WEB browser, then confirm its installation as well as clicking the
“Next "button until finished. You need to return to the WEB browser screen and refresh the
display if you want to run this plug-in after installment, then you can watch the video.
The IP address again to the login screen after you have installed the plug-in and then input user
name, code, and then click the “login "button to enter the “preview "screen. See picture 3.2.3-1
Picture 3.2.3-1 Preview screen
Picture 3.2.2-1 Plug-in installation

8
Sheet 3.2.3-2 Preview screen information

9
Sheet 3.2.3-3 PTZ control screen information
In the preview screen, you can control the preview, video recording, snapshot, intercom and
the on/off of the sound. The size of the image can be adjusted according to the needs of the user to
set its original size; we have “4:3””16:9”or “self-adaptation "mode. Preview code stream can be
set as “main stream” ”sub stream". See 3.2.3-2
Click “camera "can open the control screen of the camera. See 3.2.3-3
Operation methods for preset position

10
1. Enter the screen of setting preset position, and it will show the current preset position.
2. Setting preset position: select the number of preset position, and then operate the control
panel of the camera, when the camera scene moves to the place you want to set, then click the
“save "key to save this preset position.
3. Call the preset position: click “call "and the set preset position can be called.
4. Delete preset position: click “delete” can clear the information of preset position.
5. Special function preset position: this kind of preset position can be called, but it cannot be
modified or deleted.
Operation methods for pattern scanning
1. Enter the pattern scan screen, and it shows the current pattern scan path. See 3.2.3-5
2. Start recording the scanning: click start to record the pattern scan, and control the movement
of the camera by the control panel.
3. Stop recording scanning: click save to save the scanning path.
4. Start and stop the pattern scan: click start to start the pattern scan, and click the stop key to
stop the pattern scan.
5. Delete the pattern scan: click delete key to delete the pattern scan.
Picture 3.2.3-5 Pattern settings
Operation methods for IR LED
Enter the IR LED setting screen, user can set the power of the low beam lights as 1~10 gear,
the power of high beam lights, low beam lights compensation, enable illumination, IR status
setting. See 3.2.3-6
Picture 3.2.4 Sequence settings

11
Picture 3.2.3-6 IR LED Setting Screen
Auto scanning setting
Enter the auto scan screen, user can set scan speed, left boundary, right boundary, start scanning,
stop scanning.Auto scanning include 8 scanning paths. See3.2.3-7
Picture 3.2.3-7 Auto scans settings
1. Scanning speed: from 1~100, the larger the gap between numbers, the more evident the effect.
2.The left boundary and right boundary of scanning: first make the camera to stop and then click
the left boundary, and make the camera to stop and then click the right boundary, finally click
the start key and the camera will move in the range of the left and right limit, and click the stop
to stop the movement.
3. Other auto scanning path is as the same as the above setting methods
3.2.4 Playback
Click “playback” to enter the video searching playback screen. Playback screen can inquire,
playback and download effective video saved in the SD card of the camera.
Select the inquire type, start and end time, click the “search "key, and the eligible video files will
be displayed in the right box. Select it and double-click it to open, so the video files can be
playback. See 3.2.4-1.

12

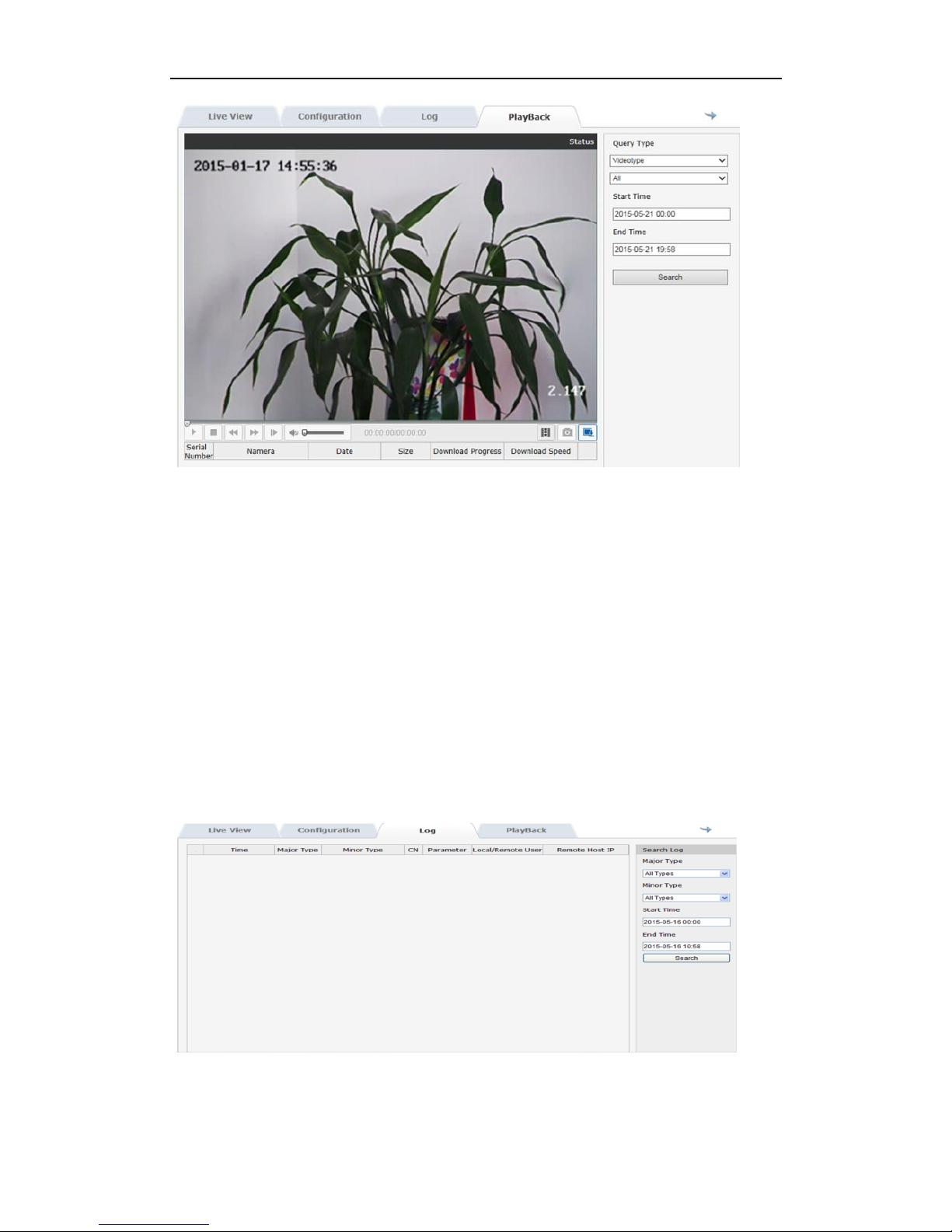

Picture 3.2.4-1 video playback
Note: playback function can be used under the circumstance when the camera is with SD
card. If the camera has SD card, using it for the first time you must click the “storage "key
to initialize the SD card and setting the video-recording plan.
3.2.5 Log
Click “log” key to enter the log inquiring screen. Log screen can search, show and output the log
information stored in SD card of the camera.
Select the type of the log, and set the start and end time of the log-search. And click the search
key, and all the eligible log information will be displayed in the list. See 3.2.5-1. And click the
“save” key, you can save the log information to your local computer.
Picture 3.2.5-1 log record screen

13
3.2.6 Parameter Configuration
Click “configuration”, enter configuration interface. Configuration—local configuration as
picture 3.2.6-1, each item instruction as picture 3.2.6-2
Picture 3.2.6-1
3.2.6-2 configuration information
SYSTEM → DEVICE INFORMATION
In Device Information screen, users can set Device Name、Model、Serial No.、Firmware Version、
Encoding Version、Number of Channels、Number of HDDs、Number of Alarm input and output.
See picture 3.2.6-3

14
Picture 3.2.6-3 device information
System→Time settings
In the Time Settings screen, time sync is operational. “Time Zone” shows the current IP
camera’s time zone, and that can be set according to the actual situations. For “Time Sync”, set
NTP server address、NTP port、Internal, the device will be time sync every once in a while
according to the setup. For “Manual Time Sync”, set time and check “Sync with computer time”,
and then the time of the camera syncs with the local PC.After changing some parameters and
click “save “to save the corresponding settings. See picture 3.2.4
Note：NTP port number is unchangeable
Picture 3.2.6-4 Time settings
System→Maintenance
Enter system maintenance interface, See picture 3.2.6-5

15
Click“reboot”reboot the device。Click“restore”restore device parameter , easily restore the
other parameters except IP address, subnet mask, gateway, 8000 port number, DNSS address and
user name management information. Click “Default” will completely restore device parameter to
default setting. Parameter import could lead to configuration file; parameter export could lead to
configuration file. (Click then will show hint of after 59 seconds will automatically go to login
interface)
Click “browse”, choose local upgrade file or upgrade catalogue, then click “upgrade” to upgrade
device version. “Status” shows the current upgrade progress, after the upgrade is complete, you
will be prompted to upgrade successfully
Note: The upgrading process will be 1 to 10 minutes; please don't disconnect the Power to
the device during the process. The device reboots automatically after upgraded.
Picture 3.2.6-5 System maintenance interface
Network →TCP/IP
In “TCP/IP” screen, users can set “IPv4 Address”,“IPv4 Subnet Mask”,“IPv4 Default
Gateway”,"IPv4 DNS Server""IPv4 mode". Ticking “auto", the device will obtain IP address

16
automatically. After changing some parameters you can click to save the corresponding settings.
See picture 3.2.6-6
Picture 3.2.6-6 TCP/IP interface
System→port
“Port” screen includes: “HTTP Port” （the default is 80）、 “RTSP Port”（the default is 554）、
“HTTPS Port”(the default is 443).Through network access the device, users can set
corresponding port as needed. After modifying the parameters, click to save the settings. See
picture 3.2.6-7
Note：Reboot the IP camera after modifying the parameters.
Network →DDNS
Picture 3.2.6-7 port configuration screen
Enter DDNS setting screen，indicates enable DDNS function。DDS Type includes “Oray” or
“Noip”。See picture 3.2.6-8

17
Oray need to fill Server address, default open, server address is DNS server address software
operator, domain is the one which user apply for in software operator website, port can be set
according to configuration, user name and password is which user registered.
Noip operation is same as Oray.
After modifying related parameter, need to click “save” to save settings
Picture 3.2.6-8
Network →PPPoE
Tick“enable PPPoE” indicates PPPoE function。Input PPPoE user name and PPPoE password，
click“save”restart, camera will gain a public IP address.
After modifying related parameter, need to click “save” to save settings. See picture 3.2.6-9
Picture 3.2.6-9 PPPoE configuration
Note：PPPoE configuration enable default gateway is invalid；Parameter in network settings is
modified, need to reboot device.
Network→FTP
By setting FTP parameter, user could upload snapshot file to FTP server. See picture
3.2.6-10

18
Server address, port is the corresponding ones in FTP server. Directory structure could be
set save path of file, “save in the root directory”, “save in the parent directory”, “save in the child
directory”, choosing parent directory including “use device name", "use device number” “use
device IP address”, child directory includes “use camera name", "use camera number”
After modifying related parameters, need to click “save" to save settings
Note：PPPoE configuration enable default gateway is invalid；Parameter in network settings is
modified, need to reboot device.
Network→FTP
By setting FTP parameter, user could upload snapshot file to FTP server. See picture 3.2.6-10
Server address, port is the corresponding ones in FTP server. Directory structure could be
set save path of file, “save in the root directory”, “save in the parent directory”, “save in the child
directory”, choosing parent directory including “use device name", "use device number” “use
device IP address”, child directory includes “use camera name", "use camera number”
After modifying related parameters, need to click “save" to save settings
Picture 3.2.6-10 FTP setting
Network→UpnP
