UVI Group GPS-118V User manual

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-1/18-
GSM Car Alarm System with
GPS Car Tracking
Installation and Guide Book
Model No.: GPS-118V

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-2/18-
Content
1. Product Introduction
1.1. Basic Components
1.2. Buttons of the Remote Control
1.3. Model and Apply
1.4. Technical pecification
2. Original ettings
2.1. Insert a IM Card
2.2. et and Modify the Password
2.3. Alarm Phone Number
2.4. et Emergency Help Number
2.5. Delete an Alarm Telephone Number
2.6. Password
2.7. Telephone Operation
3. Functions and Operation
3.1. ound and Light Alarm
3.2. Mute Alarm
3.3. Armed Reminder (optional)
3.4. Trigger Alarm (optional)
3.5. Third Alarm Phone Number (optional)
3.6. Alarm Report
3.7 Alarm priority
3.8. Reminding to et the Phone Number Beforehand
3.9. afety Reminding (optional)
3.10. Dialer/Remote Control Learning Code
3.11. Reporting Incoming Telephone Number
3.12. Hacker Memory
3.13. Disarming and Auto Rearming
3.14. Emergency Help Alarm
3.15. Remote Trunk Release
3.16. Help
3.17. Arming Reminder (optional)
3.18. Closing Door Reminder
3.19. Automatic Central Lock ystem
3.20. earch the Car
3.21. Alarm Memory Recall
3.22. Returning to Original Mode before Power Off
3.23. Power Off and Wire Cut-off Alarm
3.24. Parking Warning
3.25. Alarm Mode of LED
3.26. Alarm Pause
3.27. Two-stage of hock ensor
3.28. Alarm Trigger Identification
3.29. Electric/Air Compressor Lock Optional
3.30. Enable/Disable hock ensor
3.31. Power Window
3.32. Auto arming (optional)
3.33. Engine tart
3.34 messages control order
3.35 GP function

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-3/18-
4. Dialer
4.1. Buttons of the Dialer
5. Phone Operation
5.1. Note
5.2. Telephone Operation Menu
5.3. even Options in Main Menu
5.3.1. Check ystem tatus
5.3.2. Listen In
5.3.4. Car Control
5.3.5. Change Password
5.3.6. et up Phone Number
6 Wiring Diagram
6.1. Wiring Diagram of Mainframe
6.2. Wiring Diagram of Central Locking ystem
7. Quality Warranty
8. Notes for Use
9. Trouble hooting
10. pecial Notice
1. Production Introduction
1.1 Basic Components
1mainframe, 1 G M antenna, 2 remote controls, GP antenna, 1 dialer, 1 shock sensor, 1
siren, 1 speaker, 1 relay, 1 emergency help switch, 1 LED, 1 microphone, 1 bundle of output
wire (12 holes), 1 bundle of input wire (10 holes), 1 bundle of input wire (6 holes), 1 bundle of
start connection wire (4 holes), 1 operating instruction, 1 bundle of fastening wire
1.2 Buttons of the Remote Control
arm disarm silent （ ） search/start
1.3 Model and Apply
GP car alarm system is compatible with all gas and diesel cars of 12V battery, with a central
locking system, negative point meet metal.
1.4 Technical Specification
1.4.1 Mainframe
Working Voltage: 12V
tatic Current (with G M Module): 40mA -60 mA
Arm/Disarm Working Frequency: 300MHz-500HMz
Cover Area and Capacity: identical to the G M system
Location Accuracy: 5-10M (which depends on the GP satellite)
Alarming Duration: Alarm lasts until it is disarmed or the phone call is answered.
1.4. Voltage of the Output Control Point
Ignition Control: 0V
iren Control: 12V
Petrol Control: 0V
peaker Control: 12V
1.4.3. Input Checking Voltage
Door: 0V
Key: 12V
Foot Brake: 12V
1.4.4 GSM Module
Frequency: G M 900MHz/1800MHz
Voltage of erial Interface: 2.8V
tand-by Current: 11-25mA
tatic Current: 4mA

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-4/18-
1.4.5 Remote Control
Working Voltage: 12V (1 A27 12V dry battery)
Working Frequency: 300MHz-500HMz
Control Distance: 20-100M
tatic Current: 0mA
1.4.6 Working Conditions
Mainframe
torage Temp.: -30℃-85℃
Working Temp.: -20℃-65℃
Working Humidity: 25% — 95%
Accessory
torage Temp.: -40℃-100℃
Working Temp.: -20℃-85℃
Working Humidity: 25% — 95%
1.4.7 Size of the Mainframe
123 MM *116 MM *38 MM
. Original Settings
This first thing after installation is to set alarm phone numbers, emergency number and
password. The user must set at least one alarm phone number to ensure the normal function of
this system.
.1 Insert a SIM Car, install GSM and GPS antenna
Before using this system, please buy a IM card of G M. Insert the card into the back of
mainframe. Please remember the card number. Quick flashing of the signal LED indicates there is
no G M signal, while slow flash tells that the G M signal is in good.
Install the G M antenna above the IM card socket, and GP antenna install beside it.
. Set and Modify the Password
Please change the original password of this system in order to prevent any wrong telephone
call and illegal operation.
olution 1
Press button *+# on the dialer to enter into the operation menu.
olution 2
Use any phone to dial the IM card number to enter into the Main Menu of Operation, then to”
Modify Password” to set new password.
.3 Alarm Phone Number
When there is an alarm trigger, this system will call the alarm phone numbers. Normally, one
alarm phone number is enough for the normal alarm function. If needed, 2 or more phone
numbers can be set into this system. In case of any alarm, this system will call these numbers by
turns, which will never stop until one of these calls is answered. The 1
st
one is prior. At the same
time, system sends short message to these numbers. If the 1
st
phone is answered, there will be no
short message to the 2
nd
phone number.
.4. Set Emergency Help Number
When the car is hijacked, the owner can get help from 2 ways. He can use the remote control
to activate anti-hijacking mode. Please find the instruction in 3.14. econdly, he can press the
emergency help switch to activate anti-hijacking mode.
When the car enters into anti-hijacking status, the mainframe of this system will dial the
emergency help number to get help. Once the call is answered, the LED will flash 3 times in 5
seconds. As the driver may be restrained to take any action in this situation, owner had better set
his intimate’s or family telephone into this emergency help number.
.5. Delete an Alarm Telephone Number

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-5/18-
Press # instead of numbers+ # when you are setting the alarm telephone number. The system
will speak “Phone number deleted.” Then press confirmation button to finish.
.6 Password
To prohibit illegal operation on the car, the owner can set a password, 1 to 6-digital password,
for this system. Originally, there is no password out of factory. It is suggested to set password after
the purchasing.
Please note that after setting a password, the user should enter * + password + # to operate
this system by using the dialer.
2.6.1 etting and Modifying Password
Please change the original password of this system in order to prevent any wrong telephone
call and illegal operation.
Operation olution: Dial the number then enter into the Main Menu of Operation, after hear
of ” Modify Password” then set new password.
2.6.2 Delete a Password
Press # instead of any numbers + # when you are setting the password. The system will
speak “password deleted.” Then press confirmation button to finish.
2.6.3 Forget the Password
olution: Make an alarm purposively by someone. Answering the alarm telephone, the owner
can change the password by following the voice instruction.
.7 Telephone Operation
2.7.1 Alarm Trigger Modes
When the user answers the alarm phone call he will hear the follow sentences.
A. Warning, shock sensor activated
It means that the car is bumped or shocked heavily in armed mode.
B. Warning, door opened
It means that the door is opened in armed mode.
C. Warning, engine started
It means that the ignition is turned on and car is started.
D. Warning, power off
It means that the power supply is cut off or the voltage is low.
E. Warning, please help
It means that the owner is hijacked, and he needs help.
2.7.2 Real-time Alarm Report
If there is alarm on the car when the user is using a phone to operate this system, the system
will stop the operating to report the alarm modes and then auto return the main menu.
2.7.3 The owner can arm his car by telephone when he leaves the car for long vocation, which can
also treat emergency of dialer or remote control loss.
Armed by telephone, the car must be disarmed by telephone or dialer.
2.7.4 Car Immobilizer
If car is stolen or hijacked，the owner can dial the mainframe to enter car control menu and
activate immobilizer. The turn lights flash for 10 seconds, and then the siren beeps with light flash
for 10 seconds. After that, the engine is stopped in 10 seconds.
If the car is stopped by phone, only a release by phone can start the engine. Both stopping and
starting order are mandatory orders. They only switch the pneumatic /electrical circuit on/off, which
doesn’t affect the armed/disarmed condition.
Warning! It is dangerous when this order is carried on the highway. It is suggested to choose
Voice Broadcast first and let the thieves have several seconds to stop the car. The owner can
check whether the car is stopped or not by Check ystem tatus first, and then activate the
immobilizer.
2.7.5. Listen In
The user can listen in car. In the mode of Listening In, press * to go on and press 0 to return.
2.7.6 Voice Broadcast
When someone steals the car, the driver can frighten the thief by broadcasting to the car

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-6/18-
before he reaches his car. Press 0 to exit.
3. Function and Operation
3.1 Sound and Light Alarm
hortly press . Car door will be locked, and the system enters into sound and light alarm
mode.
3. . Mute Alarm
In disarmed mode, shortly press . Car door will be locked, and the system auto enters into
mute alarm mode after 3 seconds.
3.3 Armed Reminder（
（（
（optional）
））
）
Armed by remote control, this system will dial the 1
st
alarm phone number and then hang up
after the phone rings for 5 seconds. There is no need for the user to answer this phone call. At the
same time, a short message” Armed” will be sent to the 1
st
phone number.
3.4. Trigger Alarm （
（（
（optional ）
））
）
Trigger mode Alarm mode Voice Notice M
In 15 seconds,
there is only one
shock.
iren interval
beep ５times，
turn light flashing
No calling to car
owner
In 15 seconds,
there is shock
over two times.
iren interval
beep 30 seconds，
turn light flashing
Calling to car
owner：Warning,
shock sensor
activated
hocking
N(S)XX.XX.XX
E(W)XXX.XX.XX
VX.XX
DXXX.XX
Open car door
Calling to car
owner：Warning,
door opened
Door open
N(S)XX.XX.XX
E(W)XXX.XX.XX
（means XXºXX'XX"）
VXX.X
DXXX.XX
Open the engine
Calling to car
owner：Warning,
door opened
Door open
N(S)XX.XX.XX
E(W)XXX.XX.XX
VXX.X
DXXX.XX
ound
light
alarm
Engine start
iren long beep
25±５times，turn
light flashing
Calling to car
owner：Warning,
engine started
Engine started
N(S)XX.XX.XX
E(W)XXX.XX.XX
VXX.X
DXXX.XX

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-7/18-
tep on foot
brake
Calling to car
owner：
Warning, engine
started
Footbrake trigger
N(S)XX.XX.XX
E(W)XXX.XX.XX
VXX.X
DXXX.XX
Power off
Calling to car
owner：Warning,
power off
Power off
N(S)XX.XX.XX
E(W)XXX.XX.XX
VXX.X
DXXX.XX
Emergency help
Calling to car
owner: Hijacked,
please help
Help
N(S)XX.XX.XX
E(W)XXX.XX.XX
VXX.X
DXXX.XX
Arm the car
iren interval
beep 3 times, turn
light flashing
Please arm
N(S)XX.XX.XX
E(W)XXX.XX.XX
VXX.X
DXXX.XX
1. These alarm above will continue if the trigger alarm continues.
2. In case of any alarm, this system will call the 1
st
phone number. Not answered, it will call the
2
nd
phone number. The call will continue by turns, which will never stop until one of these calls is
answered. At the same time, system sends short message to these numbers. If the 1
st
phone is
answered, there will be no short message to the 2
nd
phone number.
3.5 Third Alarm Phone Number (optional)
This system can hold 3 alarm phone numbers if it is needed.
3.6 Alarm Report
If there is another alarm trigger when the previous alarm phone is answered, this system will
report the latest alarm immediately. However, the shock trigger alarm will not be reported when
there is another alarm.
3.7、
、、
、Alarm priority
When connected the G M mainframe, alarming happened before enter the password .the
connection would be but automatically .then dial the number to alarm phone that used set.
3.8 Reminding to Set the Phone Number Beforehand
This system will remind the owner to set phone number before setting a password to treat the
emergency when car owner forget the password. The voice instruction is “Please set up phone
number.”
3.9 Safety Reminding (optional)
After the ignition is turned on, the system will speak “Pleas wear your seat belt.”
3.10 Dialer/Remote Control Learning Code
Close the door, and step on foot brake. Turn the key from OFF to ON for 3 times and stop in
the position of ON. When turn light flash 5 seconds, press any button of dialer. Turn light will flash
3 times, and siren beeps 3 times. Dialer learned code successfully.
3.11 Reporting Incoming Telephone Number

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-8/18-
When someone calls the owner in disarmed mode, the system will ring and speak the
incoming telephone number.
3.1 Hacker Memory
When someone tries to enter this system by putting the wrong password for three times, the
line will be cut off automatically. When car door is opened, this system will speak “A hacker wants
to enter your system. The number is ***. Press # to continue.” In 10 seconds, press # to listen the
number again. Press other button to exit.
3.13 Disarming and Auto Rearming
hortly press to disarm and unlock the door. If the car is armed by dialer or phone,
remote control will fail to disarm it. Only a phone or dialer can disarm this system. After disarming,
if door is not opened in 25 seconds, this system will return to original armed mode automatically.
3.14 Emergency Help Alarm
In case of any hijack during the course of driving, the driver can get help his friends, family or
policeman through the following method.
A. Press for 2 seconds. Lights flash and siren beeps.
B. Press emergency help switch for 2 seconds. LED flashes 2 times in every 5 seconds.
This alarm system will dial the emergency help number automatically, and send M to the
emergency help number. At the same time, his friends or family can put through the line to monitor
the situation in the car. Press # to release the alarm. At this time, the LED will flash 3 times in every
5 seconds.
3.15 Remote Trunk Release
Press twice in disarmed mode. This system will speak “Trunk opened.”
3.16 Help
Press （） for two seconds in running, siren will beep for 30 seconds with turn light
flashing at same time. Press any button to stop.
3.17 Arming Reminder (optional)
When the ACC is off, if the car is not armed in10 seconds after the door is closed, the system
will beep 3 times and lights will flash 3 times to remind the car owner to arm the car.
2 minutes after the door is closed, if the car is still not armed, this system will auto call 1
st
phone
number with short message, and speak “Please arm.” If the user has chosen the auto arming
function, there will be no phone call and M .
3.18 Closing Door Reminder
If the car is parked and armed with door not closed properly, the system will bee for 3 times and
the turn lights flash. In this case, the owner should disarm the car and close the door properly.
Otherwise, there will be beep 10 seconds later.
3.19 Automatic Central Locking System
When ACC is on, step on the brake after 15 seconds, the door will be locked automatically.
When ACC is off, the door will be unlocked automatically. In driving course, press to lock the
door and press to unlock the door.

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-9/18-
Power is covered
3. 0 Searching the Car
In armed mode, shortly press , the turn lights flash for 15 seconds. In armed mode, a short
press of will make the turn lights flash and siren beeps for 15 seconds, which indicates the
location. Press any button on the remote control to stop the beep and flash.
3. 1Alarm Memory Recall
If the car has been triggered, the siren will beep once and the lights flash for 3 seconds when
the door is opened.
3. Returning to the Original Mode before Power Off
If the system is destroyed, it can go back to the original condition 5 seconds after the power is
recovered.
3. 3 Power Off and Wire Cut-off Alarm
In armed mode, if the power is off or the wire of mainframe is cut off, this system will dial the 1
st
phone number in 3 seconds. It speaks “Warning! Power off.”
3. 4 Parking Warning
When ACC is off, the lights will flash 15 seconds to give warning to the car behind when the door
is opened.
3. 5Alarm Mode of LED
In armed mode: LED flash 2 times, stop for 1 second…
Triggered by shock: LED flash 3 times, stop for 1 second…
Trigger from power-on: LED flash for 2 seconds, stop for 2 seconds…
Disarming after being triggered: LED flash for 3 seconds
3. 6 Alarm Pause
In alarming, press ( ) or or to pause the alarm. This system is still in armed
mode. But can not lock and unlock.
3. 7 Two-stage of Shock Sensor
In armed mode, if the car is vibrated slightly, the light will flash for 5 times with beep for 5 times. If it
is suffered from continuous vibration, the flash and intermittent beep will last 25+5 (mute no beep).
3. 8Alarm Trigger Identification
There are 2 kinds of alarming. hock and vibration induce intermittent beep (mute no beep);
while door open and engine start induce continuous beep (mute beep).
3. 9 Electric/Air Compressor Lock Optional
witch the LUCKY TYPE off in the mainframe, air compressor lock will work; switch the LUCKY
TYPE on, the electric lock will work. electing the lock should be carried under power off condition.
3.30 Enable/Disable Shock Sensor
In order to prevent wrong shock alarming, the user can disable shock sensor according to voice
instruction.
3.31 Power Window
If the car is installed with a power window, this system will auto close the windows 3 seconds
after being armed. It needs 25 seconds to close all the windows. In this period, the shock sensor
fails. Without a power window, the shock sensor works 3 seconds after this system is armed.
3.3 Auto Arming（
（（
（optional）
））
）
Parking the car, driver closed the door. If the car is not armed in 1 minute, this system will enter
into silent armed mode with door unlocked.
3.33 Engine Start (optional)
In armed mode, short press start button. The lights will flash for 4 seconds. Press start button

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-10/18-
again, this system will try to start the engine. If it succeeds, siren will beep once. Otherwise, the
siren will beep 3 times. After being remote started, the engine will be on for 8 minutes. Press to
stop the engine.
Attention! Before the engine is remote started, the user should make sure that the gear is in
neutral place and the hand brake is should be pulled on. To remote start the air conditioner, it is
should be on before the ignition is turned off. The engine will be off after 8 minutes. If it is remote
started by remote control, any brake and key spinning in ACC will cut off the ignition.
3.34. SMS Control Order
The user can send specific short message to the system to control the car, and also a short
message will be back to tell the user whether the operation is done successfully/
hort message are as follows will be displayed on the alarm phone numbers.
Message back Message Function
uccessful Failed
Arm Remote arm the car. Arm uccessfully Failed
Disarm Remote disarm the car. Disarm uccessfully
Failed
tart Remote engine start. tart uccessfully tart
Failed
top Remote stop the engine. top uccessfully Failed
Phonelist List all the phone numbers that have been set in
this system.
Phoneclear Clear all the phone numbers that have been set in
this system.
Phone1clear Clear phone number 1.
Phone1clear;2cle
ar
Clear phone number 1 and 2.
If a password has already been set into this system, the user should put the password before the
first letter. For example, send“****** Arm#” to arm the car. If there is no password, the message
should be “_Arm#”. If do not set the password yet, it must keep a blank before the first capitalized
letter. If set the password, it must keep a blank before the password.
If no phone number is in this system, the returned message will be “1), 2), 3)”.
3.35 GPS function
3.35.1 GP message in state of alarming
When the system alarmed, the registered alarm phone will receive the M with status of
alarm, latitude, longitude, velocity and direction, e.g.
Door open,
N( )XX.XX.XX
E(W)XXX.XX.XX
（means XXºXX'XX"）
VX.XX
DXXX.XX
They mean latitude (N/ ), longitude (E/W), velocity (V), direction (D) respectively.
3.35.2 Check the location of car in real time
The user can send specific short message to check the car’s status any time and any
where
e.g.: *P#, if the password already been set, the format of check is: password*P#, the system will
send a message back to user with GP message, e.g.:
N( ) XX.XX.XX
E (W) XXX.XX.XX
（means XXºXX'XX"）

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-11/18-
VX.XX
DXXX.XX
If send password wrong, the GP system will send back a message: Wrong password.
3.35.3 How to check the location of car with system message
The user can track the place with the message in PC PDA and Google earth map.
NOTE: If the checking format is different as system message .it has to change our GP system
message to the checking format e.g.
Our GP message format: N( )XX°YY'ZZ'' E(W)XX°YY'ZZ'
Different format: XX YY.YYYY’E (W), XX YY.YYYY'N( )
Conversion process: let the last ZZ’’N( ) and ZZ’’E (W) divided by 60 to checking format YYYY ('E)
and YYYY ('N).

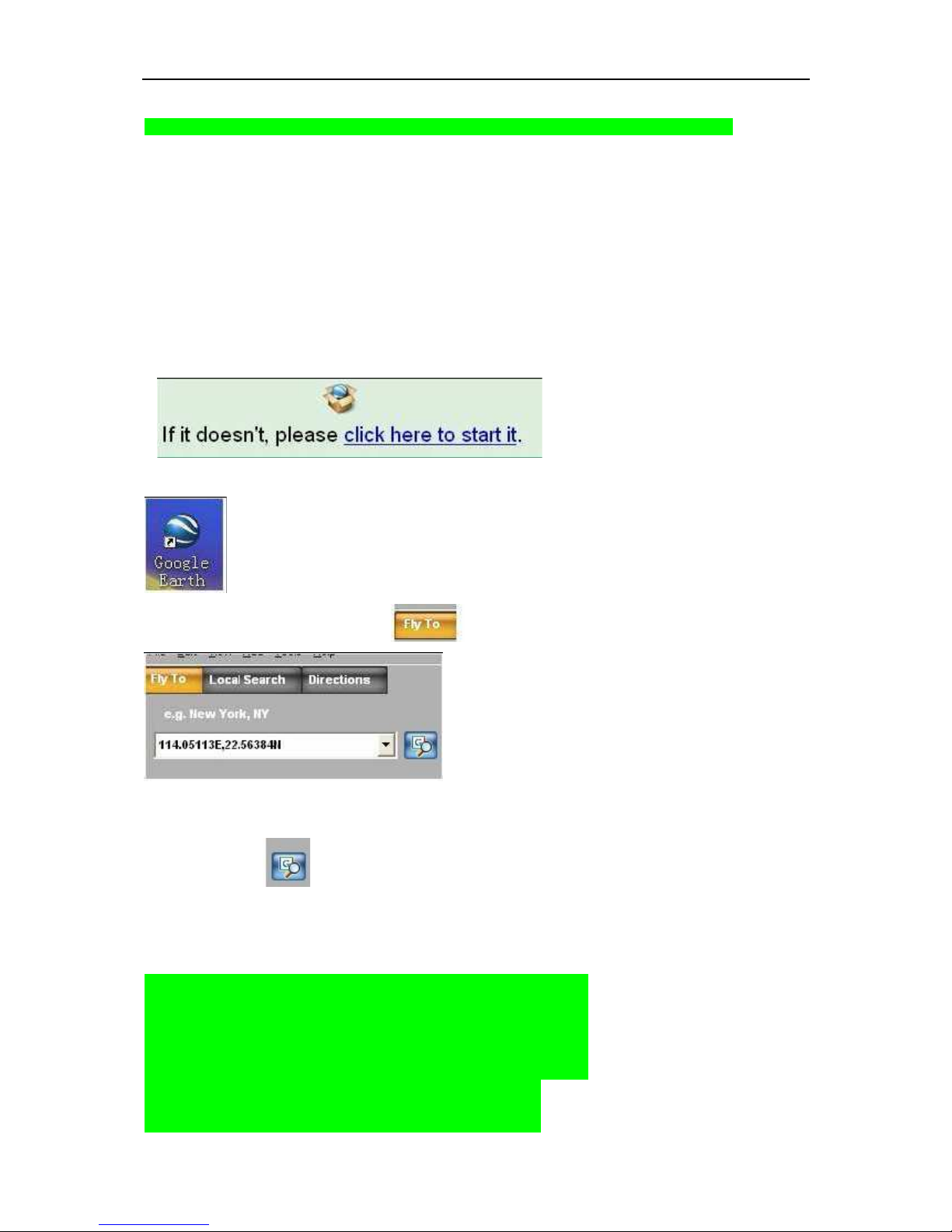

The Google map loaded as below:
http://earth.google.com/tour/thanks-win4.html
Click:
1. Download the installation procedure.
2. After installation, it would show the following at desk:
Click it to enter” Google-map”, click , and enter the interface:
3. Enter the longitude and latitude you gained from message,
Click inquiry key , and you can see the position of vehicle.
3) Open the tracking function
If the user wants to track the system time, the user can set the time back message function
1. send back message every 4 minutes(password*T1#)
2. send back message every 8 minutes(password*T2#)
3. send back message every 12 minutes(password*T3#)
4. send back message every 16 minutes(password*T4#)
5. send back message every 20 minutes(password*T5#)
6. send back message every 24 minutes(password*T6#)
7. send back message every 28 minutes(password*T7#)
8. send back message every 32 minutes(password*T8#)
9. send back message every 36 minutes(password*T9#)

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-12/18-
To cancel the function, please send message (password*T0#)
If have not set password yet, directly send *Tx#(x=0~9), spacing interval is multiple of 4.
If send password wrong, the GP system will send back a message: Wrong password.
If send format wrong, the GP system will send back a message: Failed, correct format is
password*Tx#(x=0~9)
4. Dialer
4.1 Buttons of the Dialer
0-9.*.# Phone button
YE Answer phone call, call out
C Delete the last number
NO Hang up, exit the system directly (optional)
4.1.1 Pressing 0-9, the user can hear the number he dialed, with toot by other buttons.
4.1.2 How to Use the Dialer
Phone numbers can be set by dialer. Press No, and then *password# to enter into the system. If
there is no password, press *# to enter.
4.1.3 Dial a Phone number
Press button NO on the dial-pad firstly, and then enter the phone number. You can delete the
last number you enter by pressing C. Finishing all the numbers, press YE . The system will repeat
what you have entered, “The phone number you entered is ***.” 3 seconds later, the number will
be connected. In the course of dialing and talking, press NO to hang up.
4.1.4 Answer a Phone
When there is an incoming call, the system rings. Press NO to hang up and YE to answer.
5. Phone Operation
When the user answers a call from the mainframe, he can press the corresponding numbers to
control the system.
5.1 Note
5.1.1 When the user connected the car from his side, he should choose Car Control and enter
password to enter into the system. If there is no password, he can enter into the system directly.
5.1.2 When the user answered an alarm phone call, there is no need to enter password to enter
into the system.
5.1.3 If the user enters a invalid button, the system will repeat the options again.
5.1.4 In submenu, press 0 to return the upper menu. In the main operation menu, press 0 to exit.
5.1.5 When the line is get through and no order is from user’s side, there will be short beep after
40 seconds, with another beeps in every 10 seconds after. At last, the system will be cut off
automatically after 1 minute. Press # to delay the talking time.

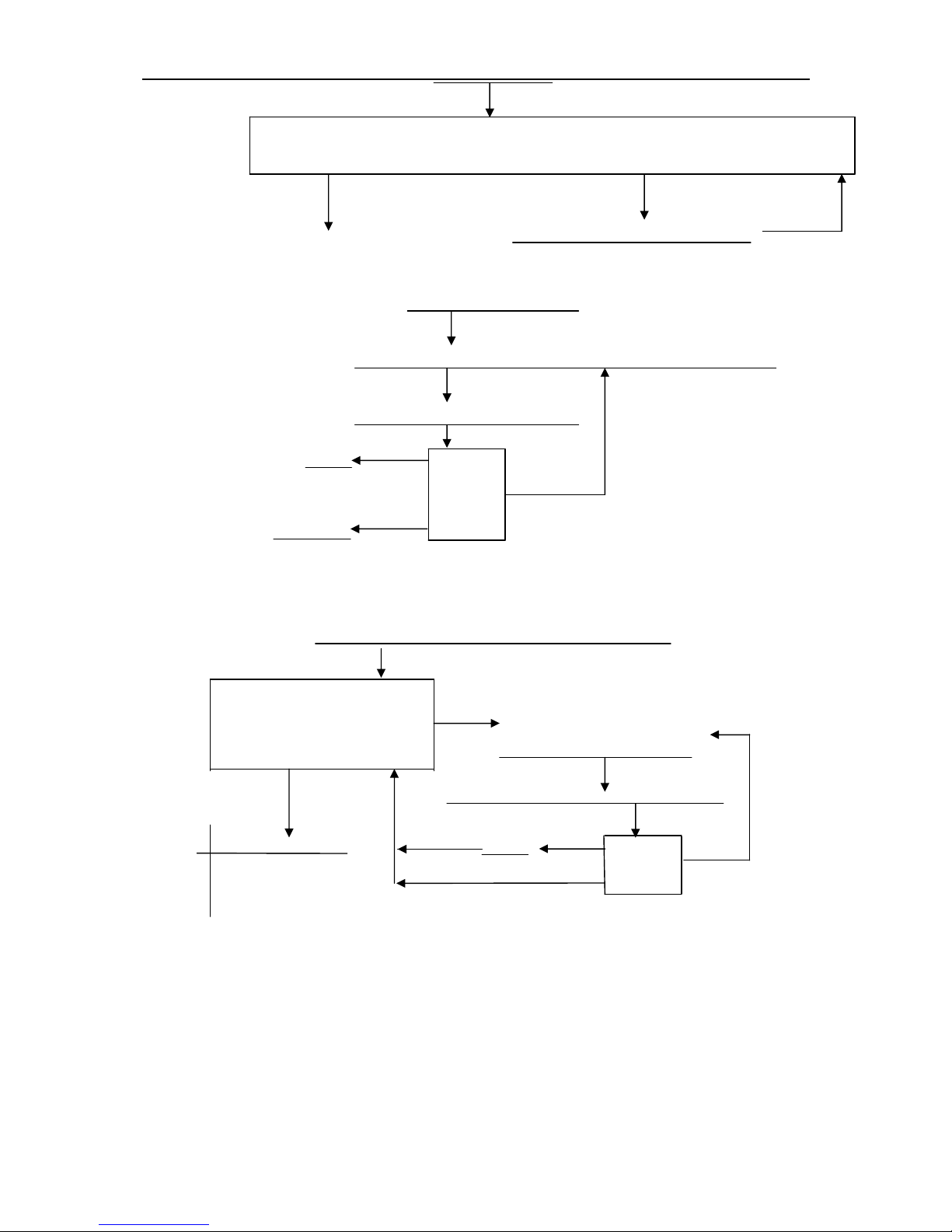

5. Telephone Operation Menu
5.2.1 Telephone Operation (in disarmed mode)
Dial the number of mainframe, and enter the password according to voice instruction.
Dial the number of mainframe
Welcome to use G M car alarm system.
Correct password please enter password, please “Hex” when finished.
Correct password
Wrong password, please try again.

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-13/18-
Wrong password for 3 times, the line will be cut off.
Thank you.
Good bye.
Enter into main menu of operation.
5.2.2 Car Phone Operation (in driving course)
Dial the number of mainframe, and enter the password according to voice instruction.
Dial the number of mainframe
2
1. Car control 2. Car connected.
1
Welcome to use G M car alarm system.
Car phone
Correct password
Please enter password, please “Hex” when finished.
Correct password
Wrong password, please try again.
Wrong password for 3 times, the line will be cut off.
Thank you. Good bye.
Enter into main menu of operation.
When there is an alarm and the call is answered, there will be no need to enter password. After
the sentence is finished, the system will enter into main menu of operation.
The user receives an alarm phone call.
Mainframe reports the alarm types.
（hocking./ Door open. / Engine started./ Help. /Power off.）
Enter into main menu of operation.
5.2.3 Main Menu of Operation
Main Menu of Operation
1 Check system status Report the status of car
2 Listen in tart listen. Press 0 to exit
3 Car connected. peak. Press 0 to exit.
4 Car control Car control the car menu
5 Change password Password change menu
6 et up phone number Alarm phone number setting menu
0 Exit Thank you, goodbye. End
5.2.4 Car Control Menu
Car Control Menu

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-14/18-
1 Arm by phone 2 Disarm by phone 3 Disable shock sensor
4 Enable shock sensor 5 Activate immobilizer 6 Deactivate immobilizer
7 Remote start engine 8 Cancel remote start 0 Exit
（1.2.3.4.5.6.7.8.）
（0）
Report the results of this operation.
Back to the main menu
5.2.5 Password Change Menu
Password Change Menu
Please enter six number passwords, press “hex” when finished.
The password you entered is *****
（1）
et up 1Confirm
（2）
2 Re-enter
（0）
Back to main menu 0 Exit
5.2.6 Alarm Phone Number etting Menu
et up phone number （3 phone numbers optional）
1 et up phone number 1
2 et up phone number 2 (1.2.3.4）
3 et up phone number 3 please enter phone number,
4 et up emergency phone number press “hex” when finished.
0 Exit
The phone number you entered is ******.
(0)
(1)
Back to the main menu et up 1Confirm (2)
2 Re-enter
0 Exits
(0)
5.3 Seven Options in Main Menu
5.3.1 Check ystem tatus
Dial the number of mainframe and choose 1 in the main menu to check status of the car.
The results are as follows.
Disarmed——Car is disarmed by remote control or phone.
Armed——Car is armed by remote control or it is auto armed.
Armed by phone——Car is armed by phone.
Warning! Door is opened.—— Door is unlocked.

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-15/18-
Engine is running.—— Car is running or ignition is turned on.
Immobilizer is activated.—— Car is immobilized.
Immobilizer is de-activated. —— Car is allowed running.
No phone number.—— There is no alarm phone number and emergency number in the system.
This system needs at least 1 alarm phone number for working normally.
5.3.2 Listen In
Dial the number of mainframe and choose 2 in the main menu to listen the voice inside the car.
When the owner gets through the line, and then listens the voice, thieves inside the car will not be
aware of it.
In the mode of listen in, the owner can press * to shift from talking to non-talking. Press # to
delay, and press 0 to exit.
5.3.3 Car Connected
Dial the number of mainframe and choose 3 in the main menu to broadcast to thieves inside
the cars.
In connected mode, press # to delay, and press 0 to exit.
5.3.4 Car Control
Dial the number of mainframe and choose 4 in the main menu to control the car. ubmenu is
as follows.
Press 1 to arm the car by phone and lock doors. The system enters into light and sound armed
mode in 3 seconds. There will be voice notice at the same time, “Armed by phone”.
Press 2 to disarm by phone and unlock doors. There will be voice notice at the same time,
“Disarmed
by phone”. (Notice: When the car is armed by phone or dialer, it is can only be disarmed by phone
or dialer.)
Press 3 to disable shock sensor. If there is a shock trigger, there will be no alarm.
Press 4 to enable shock sensor. hock sensor works.
Press 5 to activate immobilizer. The car will be stopped after 10 seconds. After immobilizer is
activated, only an order of Deactivate Immobilizer can make the car start normally.
Press 6 to deactivate immobilizer.
(Note: Activate Immobilizer and Deactivate Immobilizer are absolute orders, which only control the
pneumatic circuit/electric circuit, no change of arm/disarm mode.
Press 7 to remote start the engine.
Press 8 to cancel remote engine start. The ignition will be off and the engine will be stopped.
5.3.5 Change Password
Dial the number of mainframe and choose 5 in the main menu to change password.
There is no factory password in this system. Before setting a password, the user must set a
phone number at least. Otherwise this system will give voice notice, “No phone number”.
If the owner forgets the password, he can trigger alarm purposively; for example, open the door
by key in armed mode. The system will dial the alarm phone number. At this time, no password is
required before he enter into the control menu. Following the voice instruction, the owner can
change the password by pressing 5.
It is suggested to set a password before using this system. Otherwise, somebody who knows
the alarm phone number can also operate the car.
5.3.6 et up Phone Number
Dial the number of mainframe and choose 6 in the main menu to set up alarm phone number. 2
or 3 alarm phone numbers and 1 emergency number can be set into this system.

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-16/18-
6 Wiring Diagram
6.1. Wiring Diagram of Mainframe
6.2. Wiring Diagram of Central Locking ystem
7. Quality Warranty
7.1 This system is warranted to be free of defects in material and workmanship for 1 year from the
date of purchase. With the Warranty Card, purchaser can replace or repair the defect in the
product at the maintenance agency.
11.2 This warranty doesn’t extend to any defect, malfunction or failure caused by abuse or misuse
by the Operating Instruction. In no event shall the manufacturer be liable for any alarm system
altered by purchasers.
8. Notes for Use
8.1 It is suggested to use a IM card which can be charged by other phones.
8.2 Please check the balance in the IM frequently to make sure there it can work properly.
8.3 Try to keep the vehicle in the covering area of G M signals.
8.4 Keep the password secret. When the password is known by others, please change it in time.
8.5 In disarmed mode, when the key is used to open the door and start the engine, there is alarm.
Armed by phone, the remote controls fail. Only disarmed by phone the car can be started. It is
suggested to arm the car by remote control.
8.6 Before using the Remote Engine tart order, make sure the gear is in neutral position.
8.7 On the highway, it is dangerous to use Activate Immobilizer order. It is suggested to broadcast
to the thief and give him several minutes before giving this order. The owner can check the car
status by Check ystem tatus first. Confirming the car is stopped, the owner can give this order.
9. Trouble Shooting
Many apparent malfunctions are caused by maladjustment and incorrect connection. If you
encounter any troubles listed in the following table, please check and adjust according to the
methods. hould the troubles still persist, contact the dealer.
Troubles Methods of Checking and Adjustment
Remote controls fail. Check the whether the car is armed by phone.
The dialer cannot dial any phone numbers.
Check whether the IM card was plugged in when the power of
mainframe is on.
The car cannot be started normally. Check whether the immobilizer is activated.
When there is alarm, no phone call to the 1. Check whether the alarm phone numbers are incorrect.

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-17/18-
alarm phone numbers. 2. Check whether there is balance in IM card.
When there is no alarm, the system call
alarm phone numbers.
Check the sensitivity of the shock sensor, and adjust it to a
moderate level.
When you use the dialer to dial a number,
there is no voice in the speaker. Check whether the connection plug is in correct place.
The central lock doesn’t work or is abnormal.
1. Check the actuator.
2. Check the wire, fuse.
3. Read the installation instruction and wiring connection for
central lock.
The car cannot be started. / ystem give
notice that it is started successfully, but the
system is still trying to start the ignition.
1、 The hand brake test line is not connected properly.
2、 The lamp test line of engine is not connected properly.
The siren beeps all the time and cannot be
released by remote control after this system
is installed.
1. Check whether the wire is connected correctly.
2. Check whether the fuse of the mainframe is burned out.
3. Check whether the model of mainframe and that of remote
control is the same.
Parked and armed, this system alarms when
a truck or a cart passes by. Check and adjust the sensitivity of the shock sensor.
10. Special Notice
 As the signal from remote control of the car is transmitted via RF, the control distance of
remote control may be affected by buildings, geography conditions, and weather sometimes.
 Read the Operating Instruction and wiring connection carefully before the installation. Please
make out electro circuit of car first.
 The mainframe should be installed away from high temperature, humidity and other electronic
items. Plug the wire plug into the mainframe, and wrap the wire top with a paste-tape. Please
take out the control wires, such as power supply wire, ignition wire, and light wire, door open
signal wire. If there is no door open signal wire, it is needed to install corresponding sensor
switch.
 The power supply wire should be installed after all other wires being installed. Please wrap all
the connection point with pastern.
 It is suggested that the antenna should be installed close to the windshield. Any antenna
folding, cutting and grounding is prohibited.
 The shock sensor should be pasted close to the car. Adjust the sensitivity to a good level.
 If the remote control distance shortens and the LED on remote control is dim, please change
the battery.
 When battery of the remote control is low, please change it in time. Please choose high
capacity alkaline battery. Pay attention to the anode and cathode of the battery.
 The manufacturer preserves the authority to change the design and function without
preannouncement.
Warranty Card
IMPORTANT! This card should be completed by selling dealer. To receive product support service,
technical updates and upgrades, please keep this card after purchasing.

Manufacturer: UVI Group Corporation GSM Car Alarm System with GPS Car Tracking GPS-118V)
-18/18-
Customer’s Name:
_____________________________________________________________________
Address:
_______________________________________________________________________
Dealer Name:
_______________________________________________________________________
Dealer Address:
_______________________________________________________________________
Date of Purchase: __________________________
Date Installed: __________________________
Product Model: ____________________________
Product Code Number: ____________________
Maintenance Record:
___________________________________________________________________
