Vacoss Cam IR User manual

QUICK START GUIDE
Vacos Cam IR

EN 04-17
DE 18-31
CONTENTS

Regulatory Information
FCC compliance:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
About This Manual
Legal Disclaimer
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other
information hereinafter are for description and explanation only. The information contained in the Manual is
subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in
the company website. Please use this user manual under the guidance of professionals.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR
COMPANY SHALL NOT TAKE ANY RESPONSIBIUTES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES
RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,
OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION.
PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT
YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE UABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
- 01 -

This product and - if applicable - the supplied accessories too are marked with "CE" and comply
therefore with the applicable harmonized European standards listed under the EMC Directive
2004/108/EC, the RoHS Directive 2011/65/EU and Amendment (EU)2015/863.
EU Conformity Statement
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info
2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted
municipal waste in the European Union. See the product documentation for specific battery
information. The battery is marked with this symbol, which may include lettering to indicate cadmium
(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment shall be installed and operated with minimum distance 20cm between the radiator & body.
- 02 -

Cautions
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and
wipe it gently. If the camera will not be used for an extended period, replace the lens cap to protect the
sensor from dirt.
Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur otherwise (which
is not a malfunction), and affect the endurance of sensor at the same time.
The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the
surface of sensor will not be exposed to the laser beam.
Do not place the camera in extremely hot, cold or dusty, and do not expose it to high electromagnetic
radiation.
To avoid heat accumulation, good ventilation is required for operating environment.
The security camera supports outdoor and indoor use. Please make sure the camera power connector is
waterproof.
- 03 -

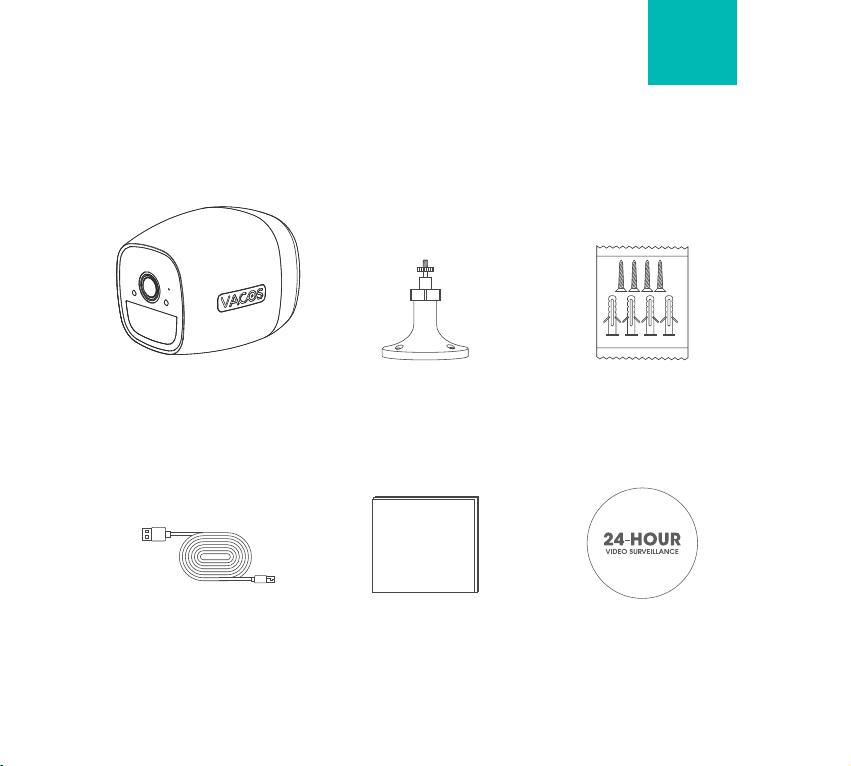

1x Vacos Cam IR 1x Outdoor Screw Bracket
What’s in the Box
User Manual
1x Screw Kit
1x Power Cable 1x User Manual 1x Surveillance Sign
EN
- 04 -

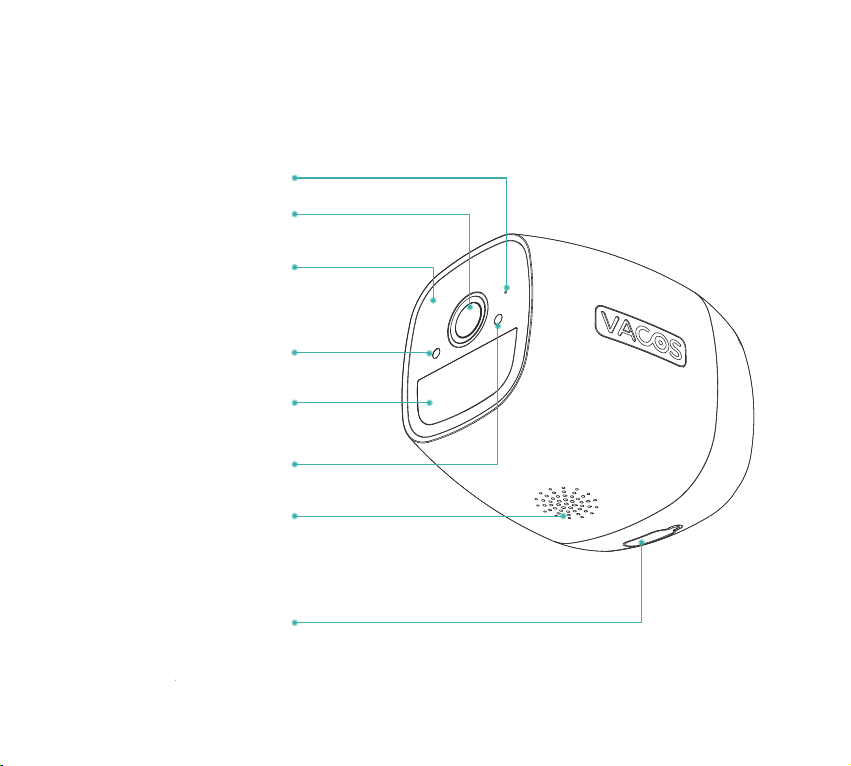

Product Introduction
IR Light (IR) or Supplement
Light (Vacos Cam)
Light Sensor
Indicator Light
Lens
Microphone
PIR Sensor
Speaker
USB Interface
- 05 -

Setup Button/Indicator Light
Reset Button
Indicator Light
Slightly Tap
Long Press
Slow Flashing Red Light
Wake up the Camera
Reset the Camera
Operation/Indicator Light Status Details
Fast Flashing Red Light
Solid Blue Light
Solid Red Light (Charging Port)
Solid Blue Light (Charing Port)
Ready for WiFi Connecting
WiFi Connecting
WiFi Is Connected
Camera in Charging
Camera Charging Completed
- 06 -
Reset Button
Charging Indicator
(Press for more than five seconds to reset
the device to factory settings.)

1. Charge the Camera with a power Adapter
The camera is built-in battery. Before operation. please use the USB power cord and DC5V power adapter (not
included) to fully charge your device.
There is an indicator light near the power port, Red means the camera is charging
Note: Please fully charge the camera when you use it at the first time.
- 07 -
Indicator Light

2. Preparation
2.1. Search for Vacos Smart in App Store or Google Play. Download and install it into your phones or tablets.
2.2. The camera only supports 2.4GHz Wi-Fi, Please don't connect it with 5GHz WIFI.
2.3. Your WiFi should be encrypted by WAP/WAP2, and make sure there are no special characters in the name
and the password of WiFi.
2.4. When connecting, please ensure that the wifi signal is smooth and stable. We recommend t within 3-5m
away from the router to ensure a successful connection.
Get it on
Available on the
Apple and the Apple logo are
trademarks of Apple lnc.
Google Play and the Google Play logo
are trademarks of Google lnc.
Vacos Smart
10:00
(2.4GHz Wi-Fi) Router
3-5 m (9-16 ft)
3-5 m (9-16 ft)
3-5 m (9-16 ft)
- 08 -

4. Set up the Device
Turn on the camera by pressing the reset button. Now the camera is in standby mode. When LED indicator
flashes red, the camera is ready for setting.
3. Create Your Vacos Account
New users need to sign up by email. Click Sign Up, follow the steps to complete the registration, and then log in.
(Picture 1, 2, 3)
Picture 1 Picture 2 Picture 3
10:00 10:00 10:00
- 09 -

5. Add the Device
5.1. Tap Add Device icon “+” to add your device and then choose Battery Camera. (Picture 4, 5)
5.2. Choose Next for the reset tips. (Picture 6)
Note: If your camera won’t turn on, please charge it with a DC 5 V adapter or solar panel for 15 minutes. After
that, reset the camera by pressing the reset button. You will hear a prompt tone after the reset succeeded.
Picture 4 Picture 5 Picture 6
10:00 10:00 10:00
- 10 -

5.3. Enter the WiFi password, and then click Next. (Picture 7)
5.4. A QR code will be shown on your phone. Please scan the QR code with the camera. (Picture 8, 9)
5.5. You’ll hear a prompt tone after the scan succeeded. Tap Next on the app. You will hear a prompt tone
indicating WiFi connecting. When the app screen shows 100% connecting, the camera is connected to your
WiFi. (Picture 10)

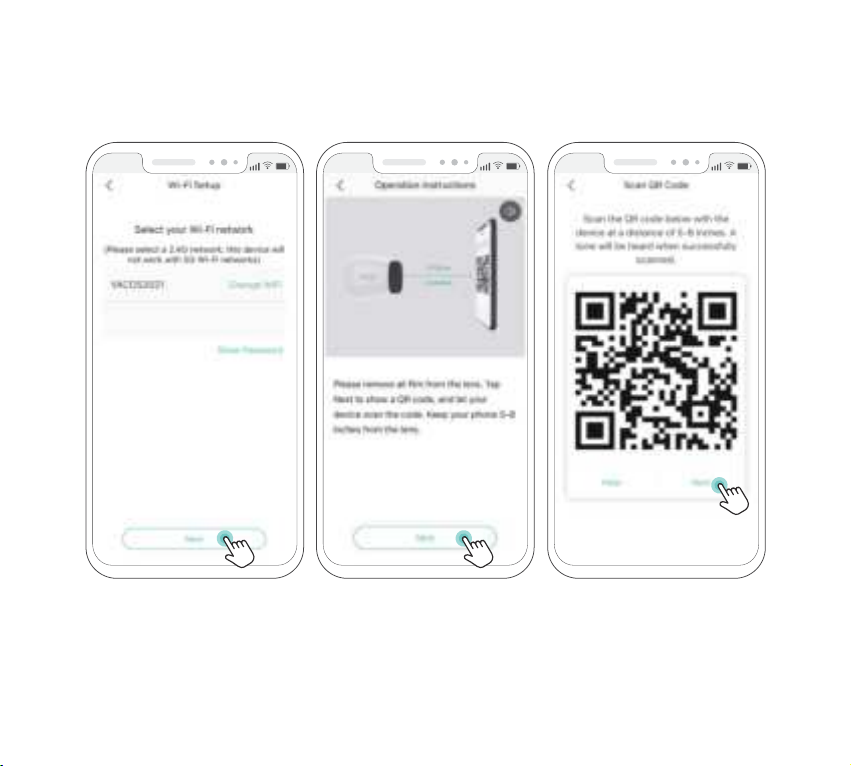

Picture 7 Picture 8 Picture 9
10:00 10:00 10:00
- 11 -

Note: When the camera fails to scan the QR code, please select the AP mode for pairing
AP mode: Select "Help" and click "More Options", Select "Manually Configuration" to complete all operations
follow the prompt If it still failed, please share your problem to suppor[email protected] for our technique support,
we will have a complete solution for you include video guide, FAQ, Usermanual etc.

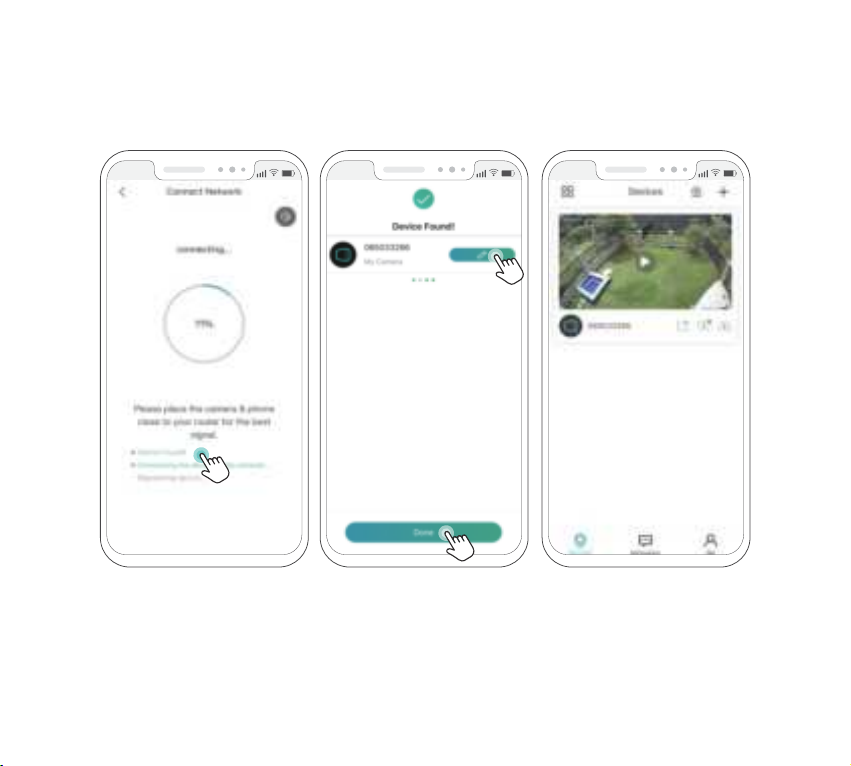

Picture 10 Picture 11 Picture 12
10:00 10:00 10:00
5.6. When the camera is online, you can name your camera, and then click Done. (Picture 11)
Note: If the camera fails to connect the WiFi, please reset the camera and try again.
5.7. Now you can get live view. (Picture 12)
- 12 -

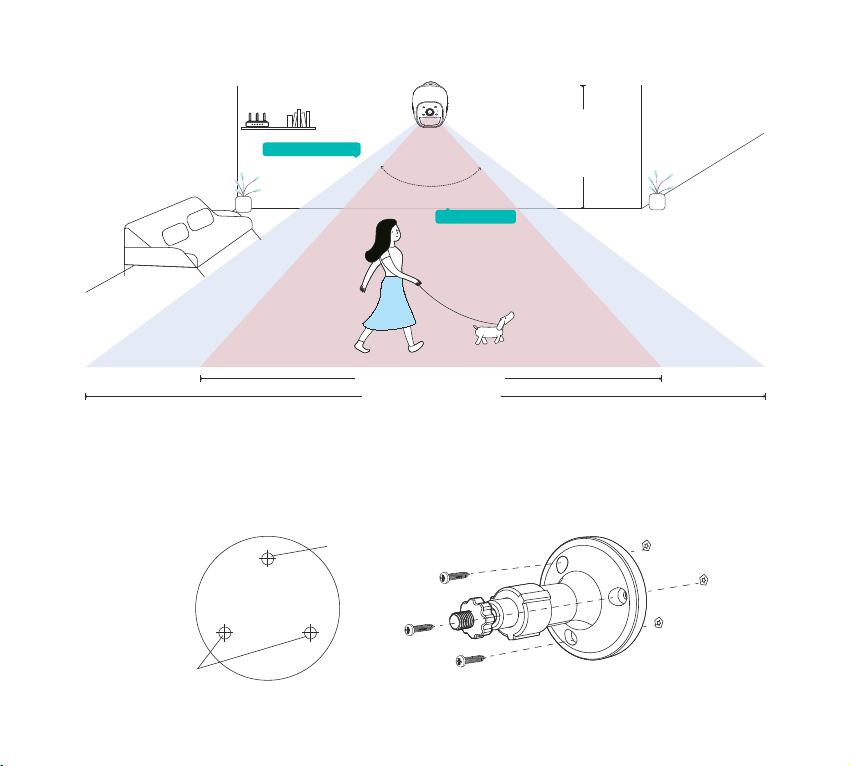

6. Notes on Camera Installation
Find the Best Spot for the Camera
Please install the camera 2-3 ( 7-10 ft) above the ground. The detection range of the motion sensor would be
maximized at such a height.
It is not suggested to install the camera vertically towards the moving objects, otherwise, it may not detect the
motion events or cause delay.
It is suggested to make the angle between PIR Sensor and detected objects more than10 degrees.
The Camera motion sensor is much more sensitive to side-to-side movement across its field of view than to
movement directly toward or away from the camera.
7-10 ft (2-3 m)
Camera Visual Distance (up to 32 ft/10 m)
Camera Field of View
- 13 -

6.1.1. Please drill 3 holes based on the drill template. Make sure the installation position is at a thick wall made
from hard materials such as concrete, brick, or stucco. Fix the bracket to the wall with the screws.
6.1. Mount the Camera Outdoors with the Screw Bracket
Drill Template
Screw hole All: for integrative bracket
Screw Hole
Screw Hole
7-10 ft (2-3 m)
AI & PIR Detecting Distance (up to 26 ft/8 m)
Camera Visual Distance (up to 32 ft/10 m)
Camera Field of View
- 14 -
AI Detection Area

6.1.2. Screw the camera to the bracket. Make sure the camera is stable against external forces.
6.1.3. Adjust the camera for an ideal angle of
view to cover your desired areas.
- 15 -

7. FAQ
- 16 -
Q. Cannot add camera for the first time?
A. When adding a camera for the first time, make sure that the camera is powered on and the
working status light flashes slowly in red.
1. Make sure the WIFI user name and password are correct.
2. The camera only supports 2.4GHZ WIFI, 5g band is not supported. please do not use 5G wifi to
configure the network.
3. When adding a camera, ensure that the network is smooth, and it is recommended to connect
near the router as much as possible.
4. If the QR code is unsuccessful in the network configuration, try to manually configure the
network; try not to set complex WIFI password and do not contain special characters such as \'.
ect
5. If the two methods still do not match the Internet, it is recommended to restart the router and
try again.
6. Provide the nameplate label of the router
Q. No response to QR code scanning?
A.
1. Make sure that the QR code of the mobile phone is 15~20cm away from the camera lens when
scanning the code, you can try to scan the code from multiple angles;
2. The QR code generated by the mobile phone may be abnormal. This situation maybe caused
by new mobile phones or non-mainstream models. At this time, provide us with a screenshot of
the QR code and the mobile phone model system version;

- 17 -
3. Make sure that the lens is clean, you can try AP network configuration, and check whether the
lens has virtual glue after matching the Internet;
4. If all the network distribution methods are failed,and the camera does not respond when the
network is distributed, the camera may be defective ,please contact us .
Q. Why the camera is always disconnected/offline?
A. Network problems will cause the camera disconnected.
Solution:
1. Ensure that the place where the camera is installed can get a smooth WIFI signal, it is
recommended to be above 75%. You can use the "installation guide" in the APP to perform
network diagnosis, determine where you install the camera, and whether the camera can get a
smooth WIFI network.
2. Restart the camera and router.
3. Judge whether the power of the camera is sufficient. When the battery is low, the camera will
automatically turn off.
4. Take the camera next to the router and observe whether play the video is smooth. If the
camera is still offline, it may be due to the camera hardware failure, please contact customer
service.
Q. Why the camera consumes power fast?
A. The battery life of the camera depends on the times the camera works. The more times the
camera is wakes up, the faster the battery will be consumed. According to laboratory test data, if
the camera is triggered 15 times a day, the battery can be used for 3-5 months. If your camera
battery drains very quickly, please check if the camera is triggered too many times. It is
recommended to place the camera in a working environment with a smooth and stable network.
