O VERVIEW
The Vaddio RoboSHOT 12 USB Camerais an Enterprise Class,
high definition PTZ conferencing camera with very high quality
imaging, truly fine detail and exceptional color reproduction.
With simultaneous USB 3.0 and IP Streaming (H.264)
capabilities with an HDMI video output, this camera offers
integrators, dealers and end users with an incredible
improvement over other conferencing cameras available today.
The RoboSHOT 12 is perfect for small to medium sized
conference rooms, training rooms or classrooms and provides
incomparable support for applications especially in UC
conferencing, videoconferencing, distance learning, lecture
capture, telepresence and more!
The key features of the RoboSHOT cameras are Tri-
Synchronous Motion, the silent direct drive pan/tilt motors,
advanced Exmor® image sensor, wide angle 12X lens, built-in
web server and an advanced ISP (image signal processor).
Thelens, image sensor andISP combination are therealmagic behindthiscamera’s remarkablevideo performance
characteristics. The lens is a multi-element, glass lens featuring a 12X optical zoom with a 73° wide horizontal field
of view. The latest generation Exmor® 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise
CMOS image sensor combined with the new ISP produces vivid and realistic color with very fast, razor sharp auto-
focus routine.
The Tri-Synchronous Motion algorithm in the RoboSHOTcameras is capable of moving all three (pan, tilt and zoom)
axes simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor
movements between the presets so pan, tilt and zoom arrive at the preset subject simultaneously, which finally
allows for smooth and manageable on-air camera movements. Yep, there’s no more pan/tilt, then zoom like other
PTZ cameras available today.
The RoboSHOT 12 USB has an PoE+ GB Ethernet port and a built-in web
server, which allows the user to power the camera and control the camera’s
functions with an internal web page with any browser from anywhere in the
world, over the IP network, while watching the RSTP IP video stream. This
feature is perfect for remote management, network operating centers and
overall IT control. Telnet, IR Remote and RS-232 control for the camera are
available to satisfy almost any, if not all, system control requirements.
The RoboSHOT 12 USB camera was designed for the times and represents
a new era in specifying and integrating professional quality cameras into UC
Conferencing and Pro AV system configurations. The features, flexibility and
the value of the RoboSHOT 12 USB conferencing camera is unparalleled in
today’s PTZ camera market. All this and it’s made in the USA, at the Vaddio
HQ in Minnetonka, Minnesota.
Intended Use:
Before operating the device, please read the entire manual thoroughly. The system was designed, built and tested
for use indoors with the power supply provided. The use of a power supply other than the one provided or outdoor
operation hasn’t been tested and may damage the device and/or create an unsafe operating condition.
Save These Instructions:
The information contained in this manual will help you install and operate your product. If these instructions are
misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings (DWG and PDF) for the Vaddio product lineon the Vaddio website. These documents can be downloaded
from www.vaddio.com free of charge.
Example: Built-in Camera Control Web Page
Image: RoboSHOT 12 USB, HD PTZ
on Supplied Thin Profile Wall Mount

RoboSHOT 12 USB
RoboSHOT 12 USB - Document Number 342-0981 Rev B Page 5 of 40
Important Safeguards:
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged.
In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock,
do not immerse in water or other liquids and avoid extremely humid conditions.
Use only the power supply provided with the system. Use of any unauthorized or extended DC
power supplies will void any and all warranties.
U NPACKING THE C AMERA S YSTEMS
Carefully remove the product and all of the included parts from the packaging. Identify the following parts:
RoboSHOT 12 USB System
Part Number: 999-9920-000
One (1) RoboSHOT 12 USB HD PTZ Camera
One (1) Vaddio IR Remote Commander
One (1) 12 VDC, 3.0 Amp Switching Power Supply
One (1) North American AC Cord Set
One (1) Thin Profile Wall Mount & Mounting Hardware
One (1) EZCamera™ Control Adapter
One (1) 6’ (1.83m) USB 3.0 Cable
One (1) Quick Start Guide
Note: Full Manuals are downloaded from vaddio.com
RoboSHOT 12 USB System
Part Number: 999-9920-001
One (1) RoboSHOT 12 USB HD PTZ Camera
One (1) Vaddio IR Remote Commander
One (1) 12 VDC, 3.0 Amp Switching Power Supply
One (1) Euro Power Cord
One (1) UK Power Cord
One (1) Thin Profile Wall Mount & Mounting Hardware
One (1) EZCamera™ Control Adapter
One (1) 6’ (1.83m) USB 3.0 Cable
One (1) Quick Start Guide
Note: Full Manuals are downloaded from vaddio.com

RoboSHOT 12 USB
RoboSHOT 12 USB - Document Number 342-0981 Rev B Page 6 of 40
Image: RoboSHOT 12 HD PTZ Camera
Camera Front View with Feature Call-outs
1) Camera and Zoom Lens: This RoboSHOT model features a 12X optical zoom lens (12X in Super-Wide mode
and 10X in normal mode) that is built around an Exmor 1/2.8-Type, high-speed, low noise image sensor with a total
of 2.38 megapixels for exceptionally precise HD video image acquisition in a small to medium sized conference
room.
2) Camera Support Arm: The RoboSHOT cameras use a single control arm for pan and tilt movements. Both
ends of the cast control arm are anchored with silent and smooth BLDC (brushless DC) direct drive motors. These
motors provide ultra-accurate and fast camera positioning and are capable of the slowest of crawls, which are
suitable for on-air use.
3) IR Sensors: IR sensors are built into the front of the RoboSHOT to receive IR signals from the IR Remote
Commander suppliedwith the camera. The IR sensors sit behind the Makrolon IR Window on the front of the base.
4) Multi-Color LED:
The multi-colored LED indicates the use states of the camera:
Purple LED is for Boot-up and Standby modes.
Blue LED is for normal operation and is a power on, ready condition.
The blue LED will blink when the camera receives a valid IR command.
Solid red LED is to indicate a tally function illuminating when the camera is on-air.
Blinking red LED indicates a fault condition.
Yellow LED illuminates during a firmware update.
5) Logo: Really Cool Logo Badge (RCLB) is located on the IR Window.
6) Camera Base: Cast zinc alloy base for strength and stability, powder coated for toughness with fine texture.
②
①
③
④
⑤
⑥

RoboSHOT 12 USB
RoboSHOT 12 USB - Document Number 342-0981 Rev B Page 7 of 40
Image: RoboSHOT 12 USB Rear Panel Connections.
1) Power Connector: 12 VDC, 3.0 Amp power input on an EIAJ-04 connector with a positive center.
2) Network PoE+ RJ-45: The PoE+ Gb Ethernet port allows the camera to be powered from a PoE+ network
switch or power injector, controlled from embedded web server with a web browser or through a Telnet session. It
also will IP Video in a RTSP format withH.264 compression up to 1080p/30. Note: for RoboSHOT 12 USB Release
1.0.0, 1080p is the only active IP (H.264) streaming resolution available. More resolutions will be added in the next
software releases.
3) USB 3.0 Port: This port will stream uncompressed UVC (USB Video Class) standard video up to 1080p. The
camera will detect the connection to a USB 2.0 video port and provide standard resolution video to the host PC
that USB 2.0 can handle (640x480, 360p/30, 240p/30, 320x240 and 180p). Many UC clients will not ask for more
than standard resolutions such as these.
4) HDMI VIDEO SELECT: A rotary switch allows the user to choose the HDMI video output resolution. See the
Switch Settings page for additional information.
5) Camera Setting DIP Switch: DIP switch settings for IR remote frequency, baud rate and image flip can be
configured on these switches. See the Switch Settings page for additional information.
6) HDMI Video Output: This is the HDMI video output (what else can you say?).
7) RS-232 Port (Color Coded Blue): The RS-232 port accepts modified VISCA protocol for camera control over
a Cat-5/5e/6 cable.
②
③
④
⑤
⑥
①
⑦

RoboSHOT 12 USB
RoboSHOT 12 USB - Document Number 342-0981 Rev B Page 8 of 40
B ASIC A PPLICATION D IAGRAMS

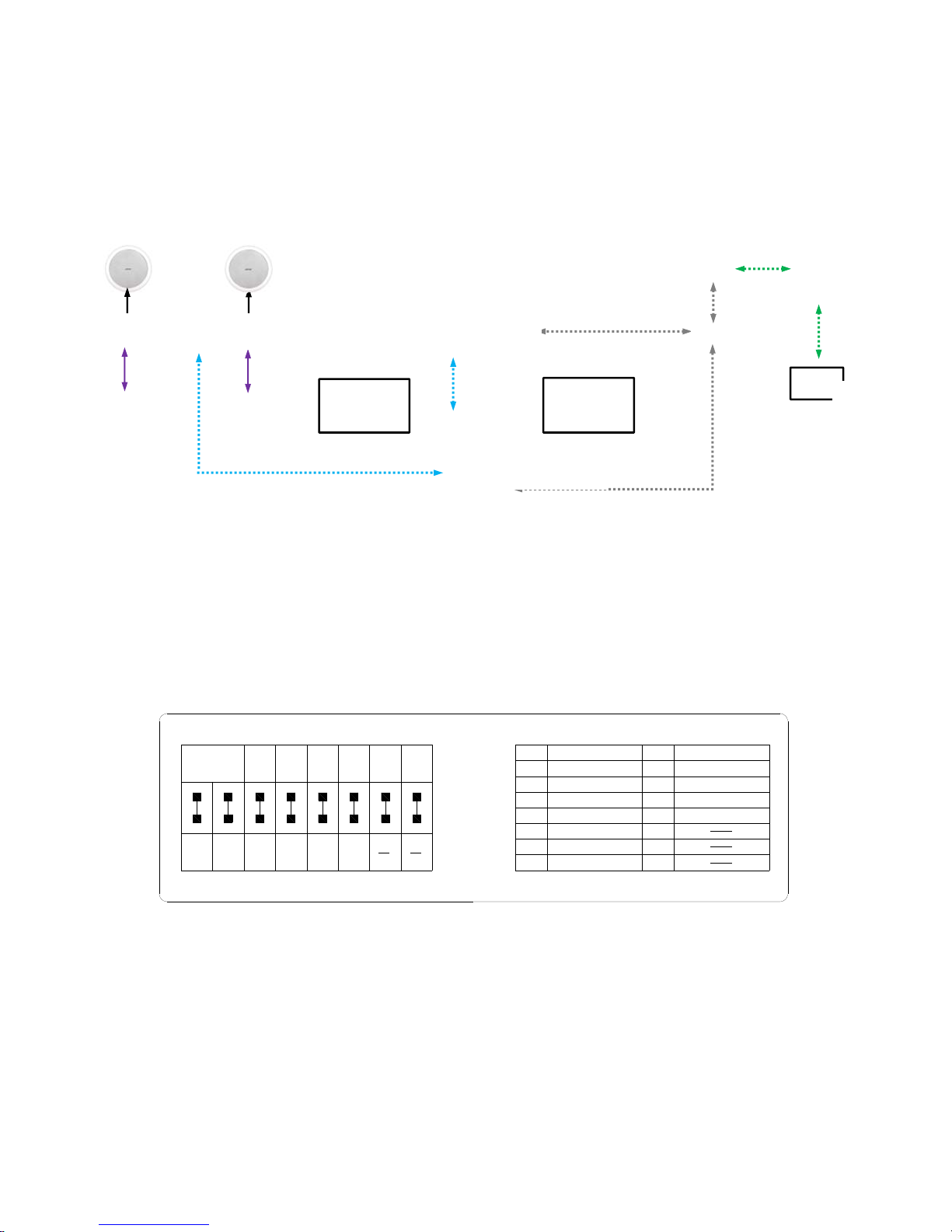

Diagram: Basic Wiring Configuration - UCC Application
RoboSHOT 12 USB, EasyUSB™ Mixer/Amp, EasyMic™, UC Conferencing Application, Monitors and Speakers make up this UCC Application.
Near-end and Far-end video is simulated.
S ETTING UP THE R OBO SHOT
The RoboSHOT 12 USB HDMI video resolution is set with The HDMI VIDEO SELECT rotary switch (previous
page) the USB 3.0 Resolution is negotiated with the host PC and application and the IP resolution is set with the
embedded web server. There is also a set of eight (8) DIP switches that determine certain camera functions. The
HDMI resolutions and switch functions are on a metalized polyester label, next to the warp plasma conduit on the
bottom of the camera
Drawing: DIP Switch and Resolution Label on the Bottom of the RoboSHOT 12 USB
Setting the RoboSHOT Switch Gear:
1) Set the desired and available HD output resolution for the camera with the Rotary Switch.
2) Set the IR control frequency of the camera if it is to respond to the IR remote control.
3) The IR reception from the IR Remote Commander can be turned off. The default is ON.
4) If inverting the camera, turn the IMAGE FLIP ON (SW4).
5) For the RoboSHOT 12X model only, set the Super-wide mode to ON for a 12X, 73º horizontal super-wide
angle of view. Normal mode will produce 67.2º horizontal field of view (HFOV).
6) Set the Baud Rate DIP switch (SW6) to 9600bps for most applications. The default is 9600 bps.
7) Setting all DIP switches DOWN with a power cycle loads the default camera settings. Return DIPs to
desired operating position after power cycle.
Note: Switches 7 & 8 are reserved for future use.
②①
③④⑤⑥
⑦
All Down
with Power
Cycle for
Defaults
RoboSHOT 12 USB
HD PTZ Camera in
Minneapolis, MN
EasyMics
(
w/AEC
)
Ethernet
IP Network
Ethernet, Control, IP
Streaming, Remote
Mana
g
ement and PoE+
USB 3.0
Video
(
UVC
)
Easy USB
Mixer/Amp
Good
S
p
eakers
USB 2.0 Audio (UAC)
PC Video
HDMI
Video
Far End Monitor
Near End
Self-view
Monitor
Network
Switch
Room PC (i5 Processor with 4GB Ram)
IP Streaming and
Camera Control in
New York Network
O
p
eratin
g
Cente
r
Network
IR 1
1 & 2 UP
OFF
DIP SWITCH SETTINGS
8
1234567
HD VIDEO RESOLUTION SELECT
720p/59.94
1080i/59.94
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1080p/59.94
1080i/60
1080p/60
720p/50
21 5 4
37 68
IR 2
ON IR 3 ON
IR
ON
BAUD
9600
bps
38,400
bps 1080i/50
1080p/50
7
OFF 8
OFF
FLIP
OFF
ON
SUPER
WIDE
OFF
ON
720p/60
720p/30
1080p/30
720p/25
1080p/25

RoboSHOT 12 USB
RoboSHOT 12 USB - Document Number 342-0981 Rev B Page 9 of 40
Dip Switch Settings Further Explained:
IR 1, 2 and 3 (SW 1 &2): A single IR remote has the capability of operating up to three
different PTZ cameras in a room. Use these selector DIP switches and the selector
buttons at the top of the IR remote to select the frequency.
IR ON/OFF (SW3): Turn off the IR reception when only using RS-232 control, Telnet control or controlling the
camera from the web server. The IR is defaulted to ON. Hint: Turning off the IR may be confusing to the users
that grab the remote and expect the camera to respond, instead it will seem busted, which is never good.
Image Flip (SW4): To invert the camera, turn the IMAGE FLIP ON (switch down).
Super-Wide Mode: Super-wide works only with the RoboSHOT 12 model and allows the camera to switch
from 67.3º wide end HFOV to a Super Wide 73º wide end HFOV.
Baud Rate (SW6): The options for baud rate are either 9600 or 38,400 bps. The 9600 bps works best with
Cat-5e over distance. Use 38,400 bps for short control lines only.
DIP Switches (SW7 & 8): Not used for operation, please leave these DIP switches up or in the OFF position.
Setting the RoboSHOT 12 USB Resolution with the Rotary Switch
ForHDMI, setthe desiredHD resolution with theHDMI VIDEO SELECT rotary switch on the back of thecamera.
For USB 3.0 streaming, the Host PC’s OS and conferencing/recording application will negotiate the streaming
resolution. Some applications will the highest possible resolution that the camera and PC can use while others
pick lower resolutions and use the video content as an auxiliary input where the data has priority. Just
remember that the USB resolutions are always negotiated
For the IP Stream (RTSP format with H.264 compression), the resolution is set over the Ethernet network via
the RoboSHOT’s web server on the Streaming menu page.
I NSTALLATION B ASICS :
The RoboSHOT cameras include a Thin Profile Wall Mount for…wall mounting the camera. There are options for
IN-Wall™ mounts and IN-Ceiling™ Half-Recessed mount as well.
Step 1: Determine Camera Mount Location
When locating the camera, consider viewing angles, lighting conditions, possible
line of site obstructions and check for in-wall or in-ceiling obstructions where the
camera is to be mounted. Always pick a mounting location to optimize the
performance of the camera. Please locate the camera to enable easy positioning
of the camera body with the ability to point down and away from the ceiling and a
pile of fluorescent lighting cells. Cameras generally don’t like to be swamped with
fluorescent light and nobody sits or stands on the ceiling anyway.
Step 2: After determining the optimum location of the camera system, pull and route the required cables from the
camera location back to the PC, network, monitor, switcher or other video destination. The connections can be
routed through the back of the mount, into the wall, or through the bottom of the mount and drop down behind a
monitor to hide the cables. The following connections are available:
a) HDMI Video, which is great for testing if the video is present and troubleshooting USB or IP streaming issues.
Like the example on the previous page, it can be used as a near end (self-view) monitor or for a variety of other
applications.
b) USB 3.0 Streaming Video (UC Conferencing)
c) IP Streaming Video (RTSP format with H.264 compression)
d) DC Power on a 12 VDC, 3 Amp EIAJ-04 Connector
Connect any or all of the video outputs for whatever application is used.
Step 3: The Thin Profile Wall Mount Bracket’s mounting holes are slotted and are 90° opposing to provide easy
leveling. If mounting to Drywall, hold the mount to the wall and using a level, level it. Mark the center of the slotted
holes. Install the provided wall anchors and attach the mount to the anchors. If the mount is to be mounted on a
2-gang wall box, use the screws supplied with the wall box cover plate to attach Thin Profile Wall Mount Bracket.

RoboSHOT 12 USB
RoboSHOT 12 USB - Document Number 342-0981 Rev B Page 10 of 40
Step 4: Place the camera on the mount and connect the desired cables for the application. Check the level again
to avoid any of those weird Batman camera angles. Use the provided ¼”-20 x .375 mounting screw to attach the
Camera to the mount. The cables are fed through the cable management slots (back or bottom) provided by all
Vaddio mounting options.
Step 5: After connecting the desired video cables, plug in the camera’s 12 VDC, 3.0 Amp power supply AC power
cord to an electrical outlet. The camera will boot up and the motors will start up and initialize. The process may
look a little spazzy, but it is normal for these direct drive BLDC motors. In a few seconds, the camera will settle
down and appear normal. When an image is available, the camera is ready to accept control information from the
IR remote control or RS-232, Telnet or internal web server.
C ONTROLLING THE C AMERA
IR Remote Commander
The following functions are accessible with the Vaddio IR remote:
Camera Power On/Off (Toggle on/off same button)
Back Light Compensation (Toggle on/off same button)
Data Screen: Toggle on/off the OSD for the RoboSHOT’s IP/MAC Address
Camera Select (the remote can operate 3 cameras (with 3-IR Freq.)
Pan/Tilt and Home controls with Reverse and Std. Pan direction
Pan/Tilt Reset
Auto Focus (Toggle on/off same button)
Zoom In/Out controls Wide & Telephoto
Fast speed controls (W & T)
Slow speed controls (W & T)
Manual Focus On/Off control (Toggle on/off same button)
Near (-) adjustment
Far (+) adjustment
Six (6) pan/tilt/zoom positioning presets (1 through 6)
Preset Set (store)
Preset Reset (clear)
Red LED that indicates IR Transmission and battery level
The IR Remote operational characteristics are as follows:
 Finding the Camera’s IP/MAC Address: Use the data screen button on the remote to turn on and off the IP and
MAC address. When turned on the Address will remain on the screen for 30 seconds.
 Preset Activation: IR Remote is limited to executing Presets 1 through 6.
 Tri-Sync Speed on Preset: If a global Tri-Sync speed is stored in the preset in the internal web pages by the
user/admin, then that speed is used. If no Tri-Sync speed is used, then a default medium speed will be used.
 Preset Store: IR Remote is limited to positional (PTZ) type presets. To set a preset, position the camera, hold
down the Preset Button and touch the one of the preset numbered buttons 1 through 6.
Vaddio
IR Remote
Commander
